Presentation Transcript
Wastewater collection systems l.jpg
Wastewater Collection Systems

On completion of this module you should be able to:

  • Discuss the sources of wastewater

  • Understand the relevant sections of the legislation relating to sewer collection systems and wastewater

  • Plan and design a wastewater collection system

Public Health Engineering


Wastewater collection systems2 l.jpg
Wastewater Collection Systems

Some definitions on wastewater systems

  • Sewerage – a system comprising of collection and treatment facilities

  • Sewage – spent water or wastewater

  • Sewers – a collection system of pipes to convey wastewater to a central point of treatment

Public Health Engineering


Wastewater collection systems3 l.jpg
Wastewater Collection Systems

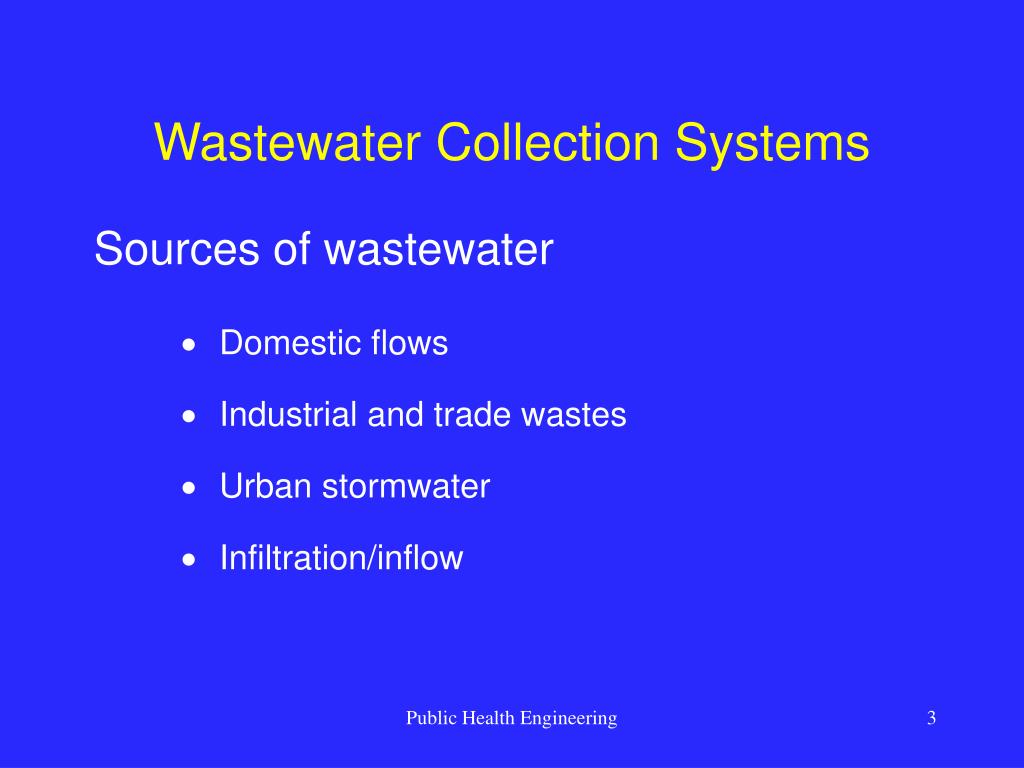

Sources of wastewater

  • Domestic flows

  • Industrial and trade wastes

  • Urban stormwater

  • Infiltration/inflow

Public Health Engineering


Wastewater collection systems4 l.jpg
Wastewater Collection Systems

Materials in wastewater

Impurities 0.01%

Chemical

Biological

Physical form

inorganic

suspended

organic

dissolved

living

Non-living

bacteria, fungi, protozoa,

algae

Public Health Engineering


Wastewater collection systems5 l.jpg
Wastewater Collection Systems

Infiltration/inflow (I/I)

  • Ingress of groundwater or rainwater from pipe defects, joints etc

  • Ground condition also dictates I/I

  • I/I peaks during and after storms and varies with season

  • Extraneous water from illegal connections

  • Qld’s guidelines allow 14 – 28 m3/d.km

Public Health Engineering


Wastewater collection systems6 l.jpg
Wastewater Collection Systems

  • Hydraulic loading (ML/d)

  • Organic loading (kg/m3.d)

  • Concept of equivalent person or population (ep) for design

Wastewater presents a unique design problem

Public Health Engineering


Wastewater collection systems7 l.jpg
Wastewater Collection Systems

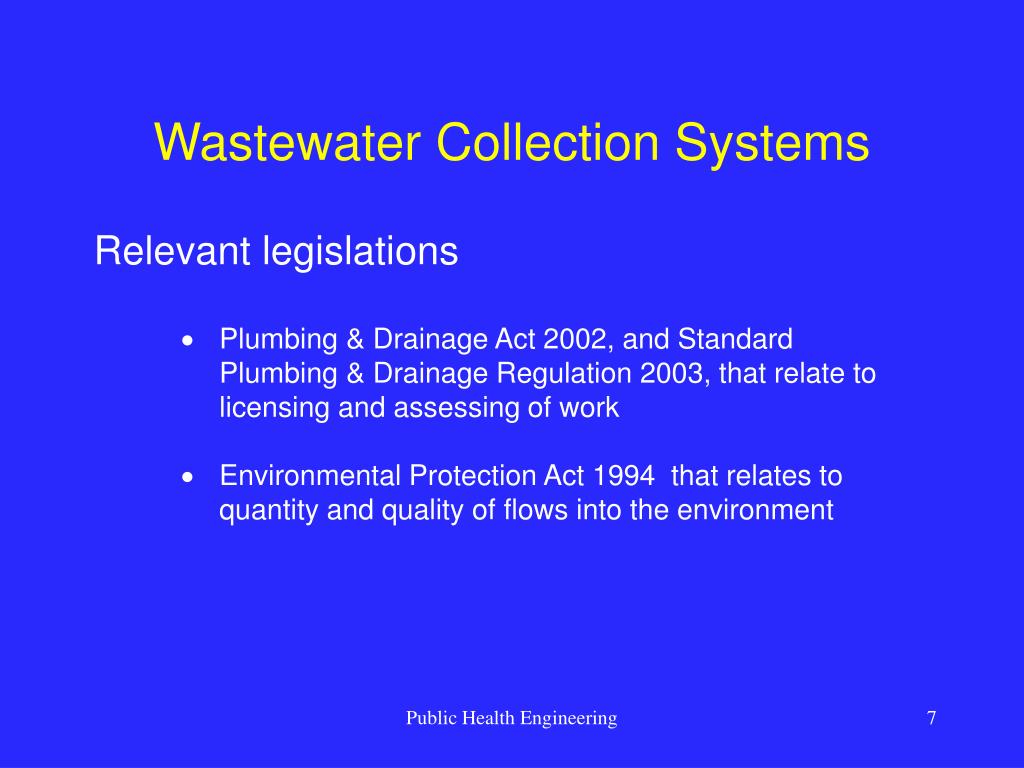

Relevant legislations

  • Plumbing & Drainage Act 2002, and Standard Plumbing & Drainage Regulation 2003, that relate to licensing and assessing of work

  • Environmental Protection Act 1994 that relates to quantity and quality of flows into the environment

Public Health Engineering


Wastewater collection systems8 l.jpg
Wastewater Collection Systems

Discharge into sewers

  • Governed by the local authority (trade officers)

  • Industrial and trade effluent are considered on a case by case basis

  • Land discharge is subject to the Environmental Protection Act 1994

Public Health Engineering


Wastewater collection systems9 l.jpg
Wastewater Collection Systems

  • Subject to the Environmental Protection Act 1994

  • Administered by the Environmental Protection Agency

  • Generally licence conditions of BOD5 < 20 mg/L; NFR < 30 mg/L; DO > 2 mg/L

Quality of treated effluent

Public Health Engineering


Wastewater collection systems10 l.jpg
Wastewater Collection Systems

Types of wastewater systems

  • Separate versus combined systems

  • Gravity and pumped flows

  • Small collection systems using pressure or vacuum

Public Health Engineering


Wastewater collection systems11 l.jpg
Wastewater Collection Systems

Pressure system

Public Health Engineering


Wastewater collection systems12 l.jpg
Wastewater Collection Systems

Vacuum system

Public Health Engineering


Wastewater collection systems13 l.jpg
Wastewater Collection Systems

Sewer installation

  • Sewer alignment

  • Depth of sewer

  • House connection

  • Location of manholes

  • Testing of sewers and house drains

Public Health Engineering


Wastewater collection systems14 l.jpg
Wastewater Collection Systems

Sewer installation

Public Health Engineering


Slide15 l.jpg

Factors that control the depth of sewers

  • Self-cleansing velocity ie. minimum slope

  • Minimum cover to protect the sewer

  • Required depth to drain properties serviced

  • Sufficient depth to avoid other services

Public Health Engineering


Slide16 l.jpg

House drain and connection

  • House drain is the property sewer pipe that adjoins council’s sewer

  • Minimum house drain dia. is 100 mm with a min. slope of 1:60 allowing 0.5 invert depth at the head

  • House drains must be vented at the head

  • House connection is made at the lowest point

Public Health Engineering


Wastewater collection systems17 l.jpg
Wastewater Collection Systems

Sewer installation

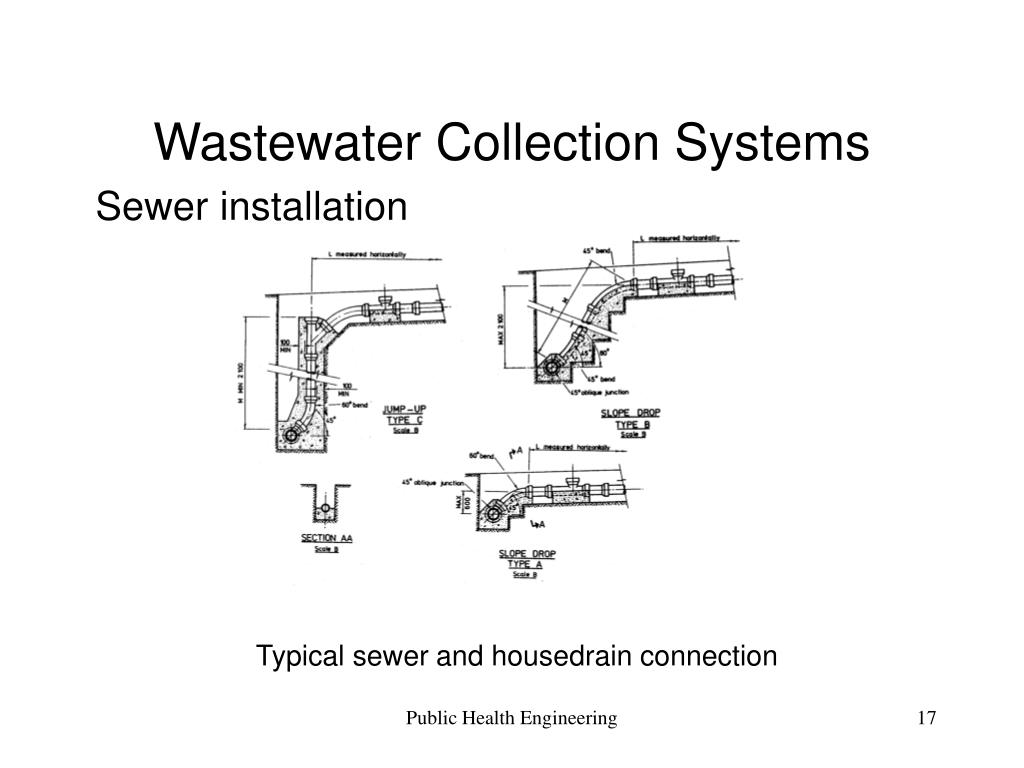

Typical sewer and housedrain connection

Public Health Engineering


Slide18 l.jpg

Testing of sewers

  • Water test - apply a pressure equal to 2 m head at the higher section of the length under test. Loss of water shall not exceed 1 L/m diameter. m length in 30 minutes

  • Air test – apply a pressure of 30 kPa and hold for 3 mins. Time taken for a drop from 25 kPa to 20 kPa shall be not less than 90 secs for pipes less than 225 mm.

Public Health Engineering


Slide19 l.jpg

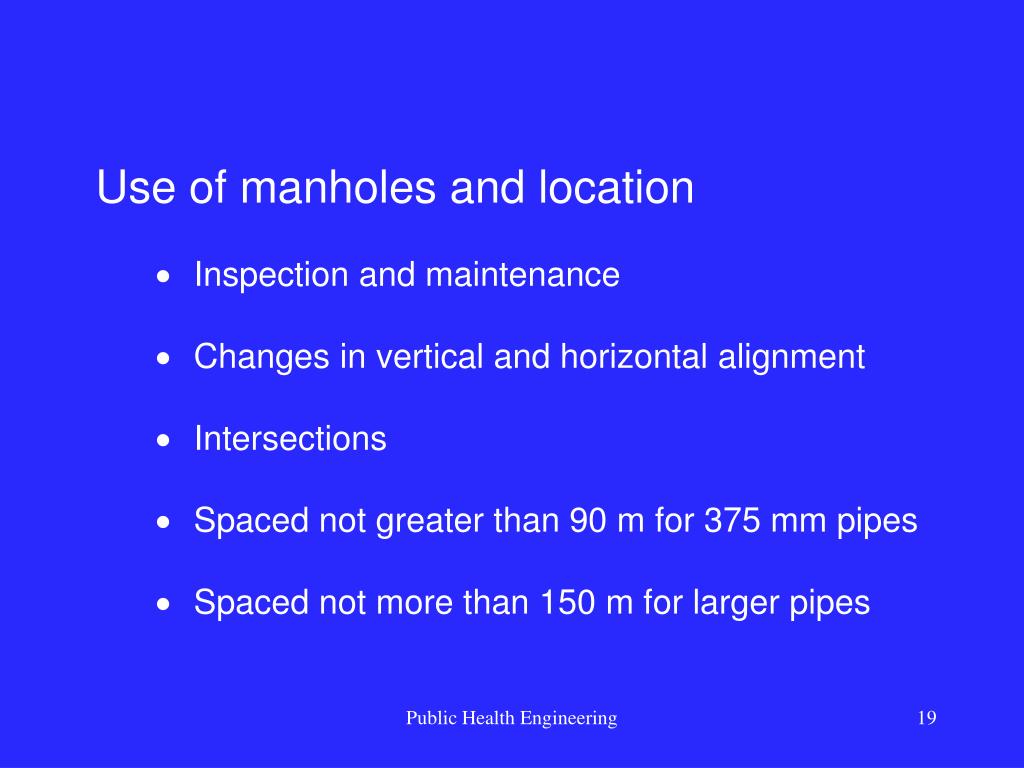

Use of manholes and location

  • Inspection and maintenance

  • Changes in vertical and horizontal alignment

  • Intersections

  • Spaced not greater than 90 m for 375 mm pipes

  • Spaced not more than 150 m for larger pipes

Public Health Engineering


Wastewater collection systems20 l.jpg
Wastewater Collection Systems

Typical manhole configuration

Public Health Engineering


Wastewater collection systems21 l.jpg
Wastewater Collection Systems

  • System must drain all points of the catchment

  • Peak wet weather flow capacity

  • Self-cleansing flow velocity

  • gravity flow at minimum slope

  • Pressure mains where necessary

Design parameters

Public Health Engineering


Wastewater collection systems22 l.jpg
Wastewater Collection Systems

Design for maximum flow(Queensland Planning Guidelines for Water Supply and Sewerage Schemes)

  • Average dry weather flow (ADWF) 275 L/c.d

  • Peak dry weather flow, PDWF = C1 x ADWF

  • Peak wet weather flow, PWWF = C1 .ADWF + I/I

  • Maximum flow at 3/4 pipe depth

  • 150 mm min. dia gravity flow & min. slope dependent on pipe dia.

Public Health Engineering


Slide23 l.jpg

Peaking factors for maximum flows

Public Health Engineering


Slide24 l.jpg

Proportional velocity and discharge

Public Health Engineering


Slide25 l.jpg

d/D

radian

Ad

Pd

v/V

q/Q

0.015

0.4911

28

5.48648E-05

0.0368

0.1164

0.00036

0.016

0.5073

29

6.04235E-05

0.0380

0.1215

0.00042

0.017

0.5230

30

6.61557E-05

0.0392

0.1265

0.00047

Proportional geometry elements

Public Health Engineering


Wastewater collection systems26 l.jpg
Wastewater Collection Systems

  • About 60 – 80% of the daily water demand appears as spent water

  • There is a diurnal pattern in the collection system

  • Minimum 150 mm pipe with a minimum slope of 1:150 in the collection system

  • Minimum slopes relate to self-cleansing velocity

Public Health Engineering


Wastewater collection systems27 l.jpg
Wastewater Collection Systems

Owing to a mixture of solids and liquids, sewage flow velocities must be self-cleansing

  • 0.75 PDWF at least once a day to promote self-cleansing flow

  • Generally, self-cleansing velocity is achieved at 0.6 – 0.75 m/s

  • Use of 0.15 kg/m2 shear stress for organic solids

Public Health Engineering


Wastewater collection systems28 l.jpg
Wastewater Collection Systems

Effects of long detention times

Owing to the high O2 demand of biodegradable organic matter, long HRT will deplete dissolved oxygen (DO)

  • Slime growth under waterline will promote anaerobic bacteria and reduce sulfate to sulfides

  • Downstream turbulence will release H2S into the air space

  • Moist film above the waterline and aerobic bacteria will oxidise H2S to H2SO4

Public Health Engineering


Slide29 l.jpg

Effects of long detention times

Public Health Engineering


Slide30 l.jpg

Effects of long detention times

Public Health Engineering



Wastewater collection systems32 l.jpg
Wastewater Collection Systems

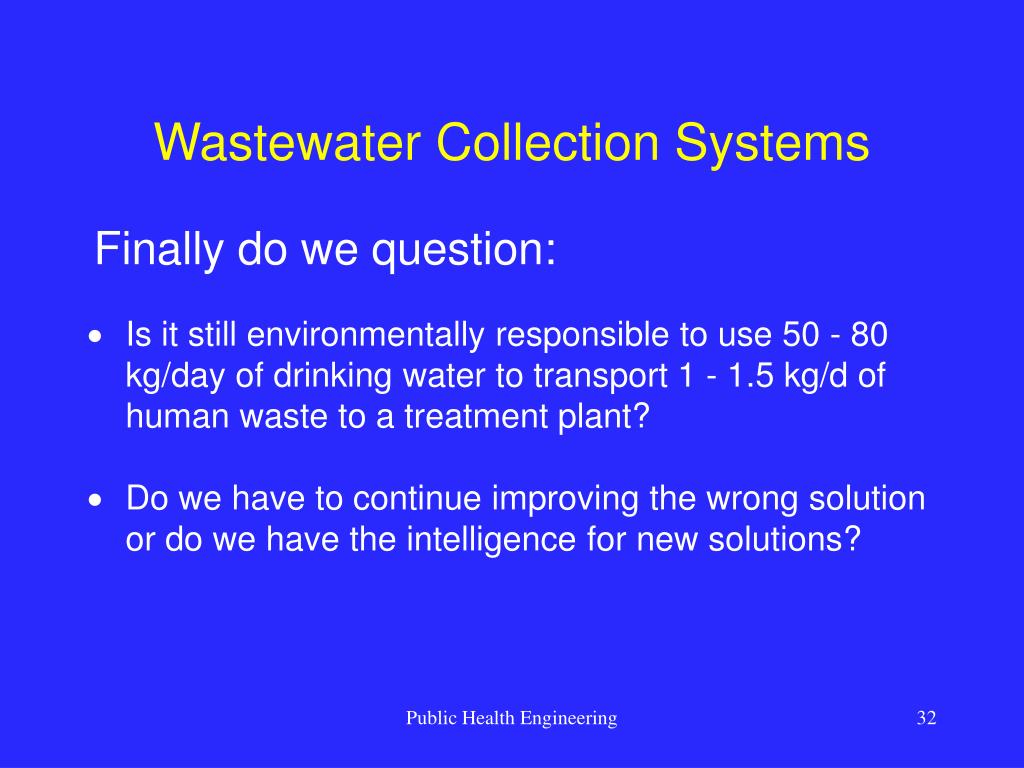

Finally do we question:

  • Is it still environmentally responsible to use 50 - 80 kg/day of drinking water to transport 1 - 1.5 kg/d of human waste to a treatment plant?

  • Do we have to continue improving the wrong solution or do we have the intelligence for new solutions?

Public Health Engineering
