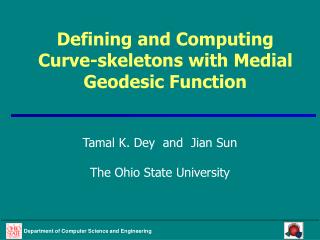

Defining and Computing Curve-skeletons with Medial Geodesic Function

Tamal K. Dey and Jian Sun

The Ohio State University


Motivation l.jpg
Motivation Function

  • 1D representation of 3D shapes, called curve-skeleton, useful in many application

    • Geometric modeling, computer vision, data analysis, etc

      • Reduce dimensionality

      • Build simpler algorithms

  • Desirable properties[Cornea et al. 05]

    • centered, preserving topology, stable, etc

  • Issues

    • No formal definition enjoying most of the desirable properties

    • Existing algorithms often application specific


Contributions l.jpg
Contributions Function

  • Give a mathematical definition of curve-skeletons for 3D objects bounded by connected compact surfaces

    • Enjoy most of the desirable properties

  • Give an approximation algorithm to extract such curve-skeletons

    • Practically plausible


Roadmap l.jpg
Roadmap Function


Medial axis l.jpg
Medial axis Function

  • Medial axis: set of centers of maximal inscribed balls

  • The stratified structure [Giblin-Kimia04]: generically, the medial axis of a surface consists of five types of points based on the number of tangential contacts.

    • M2: inscribed ball with two contacts, form sheets

    • M3: inscribed ball with three contacts, form curves

    • Others:



Properties of mgf l.jpg
Properties of MGF Function

  • Property 1 (proved): f is continuous everywhere and smooth almost everywhere. The singularity of f has measure zero in M2.

  • Property 2 (observed): There is no local minimum of f in M2.

  • Property 3 (observed): At each singular point x of f there are more than one shortest geodesic paths between ax and bx.


Defining curve skeletons l.jpg
Defining curve-skeletons Function

  • Sk2=SkÅM2: set of singular points of MGF or points with negative divergence w.r.t. rf

  • Sk3=SkÅM3: extending the view of divergence

  • A point of other three types is on the curve-skeleton if it is the limit point of Sk2[ Sk3

  • Sk=Cl(Sk2[ Sk3)


Computing curve skeletons l.jpg
Computing curve-skeletons Function

  • MA approximation [Dey-Zhao03]: subset of Voronoi facets

  • MGF approximation: f(F) and (F)

  • Marking: E is marked if (F)²n <  for all incident Voronoi facets

  • Erosion: proceed in collapsing manner and guided by MGF


Examples l.jpg
Examples Function


Properties of curve skeletons l.jpg
Properties of curve-skeletons Function

  • Thin (1D curve)

  • Centered

  • Homotopy equivalent

  • Junction detective

  • Stable

Prop1: set of singular points of MGF is of measure zero in M2

Medial axis is in the middle of a shape

Prop3: more than one shortest geodesic paths between its contact points

Medial axis homotopy equivalent to the original shape

Curve-skeleton homotopy equivalent to the medial axis


Effect of l.jpg
Effect of Function


Shape eccentricity and computing tubular regions l.jpg
Shape eccentricity and computing tubular regions Function

  • Eccentricity: e(E)=g(E) / c(E)


Thank you l.jpg

Thank you! Function
