Presentation Transcript

Topics l.jpg
Topics

  • Introductions

  • What is BAF?

  • BAF Interface Methods

  • Example Use

  • Key Concepts

    • BOMs

    • BAF Design

  • Applications / Tools

  • Planned Schedule

  • Additional Discussion

2


What is the bom aggregation framework baf l.jpg
What is the BOM Aggregation Framework (BAF)?

  • A common framework for aggregating and deaggregating models and entities

    • Facilitate Agg-level / entity-level interoperability

    • Reduce memory, cpu, & network load

  • What are its capabilities

    • Produces aggregate / deaggregate solutions

    • Supports transfer control

    • Manages / stores entity / agg models (library)

    • Monitors exercise activities

      • Logger

      • Scoreboard

      • Load Balancing Automation

    • Transformation support

  • What are its key components

    • Web Service Methods

    • Base Object Models

  • How is it offered / implemented

    • BASS - an adjunct server application

    • Java

    • Web Services (SOAP)

    • SOA

Aggregation - the coupling of multiple models/entities into a single inclusive group

3


What are the baf interface methods l.jpg

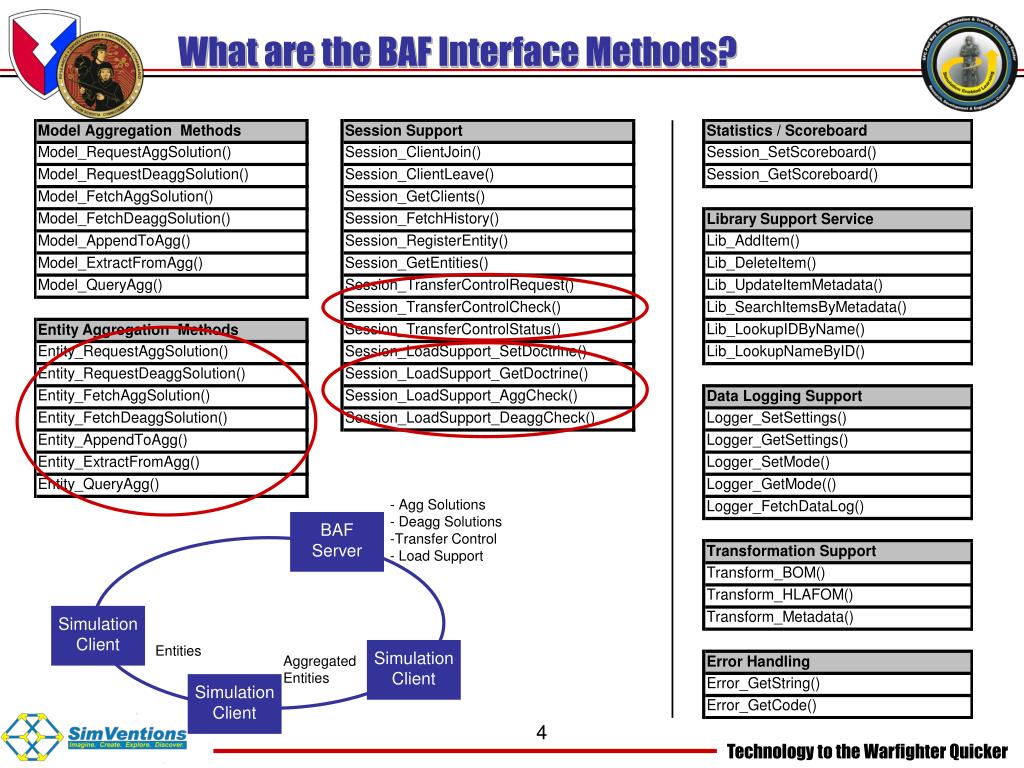

What are the BAF Interface Methods?

- Agg Solutions

- Deagg Solutions

-Transfer Control

- Load Support

BAF

Server

Simulation

Client

Entities

Simulation

Client

Aggregated

Entities

Simulation

Client

4



Example use instance aggregation demonstration overview l.jpg

Client – SV-AGG

Entity Driver

BASS

Example Use - Instance AggregationDemonstration Overview

Client: Join BASS network

Client: Registers Models (i.e. BOM) with BASS

Entity Data

Client ID

Item ID

Item (BOM)

BASS

Library

6


Example use bass monitors registers federates l.jpg

Client – SV-AGG

Entity Driver

BASS

Example Use – BASS Monitors & Registers Federates

Client: Requests aggregation solution of entities

Entity Data

Solution ID

Monitoring

Entity Data

Analyze Data

Instance

DataMonitored

BASS

Library

7


Example use bass monitors registers federates8 l.jpg

Client – SV-AGG

Entity Driver

BASS

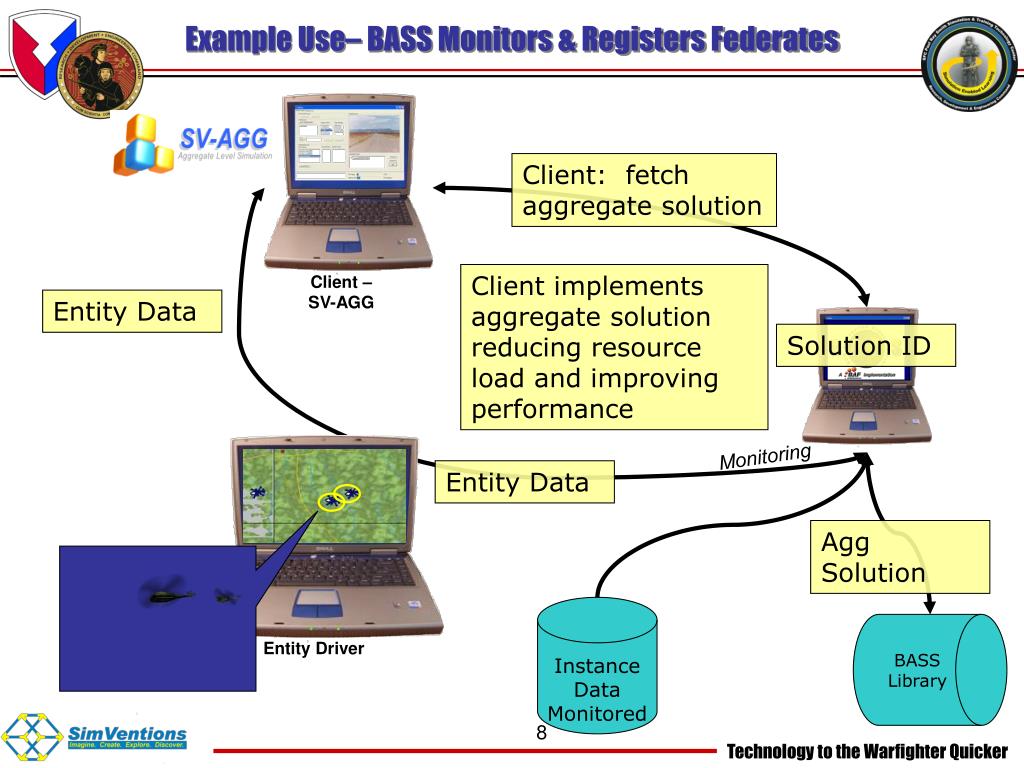

Example Use– BASS Monitors & Registers Federates

Client: fetch aggregate solution

Client implements aggregate solution reducing resource load and improving performance

Entity Data

Solution ID

Monitoring

Entity Data

Agg Solution

Instance

DataMonitored

BASS

Library

8



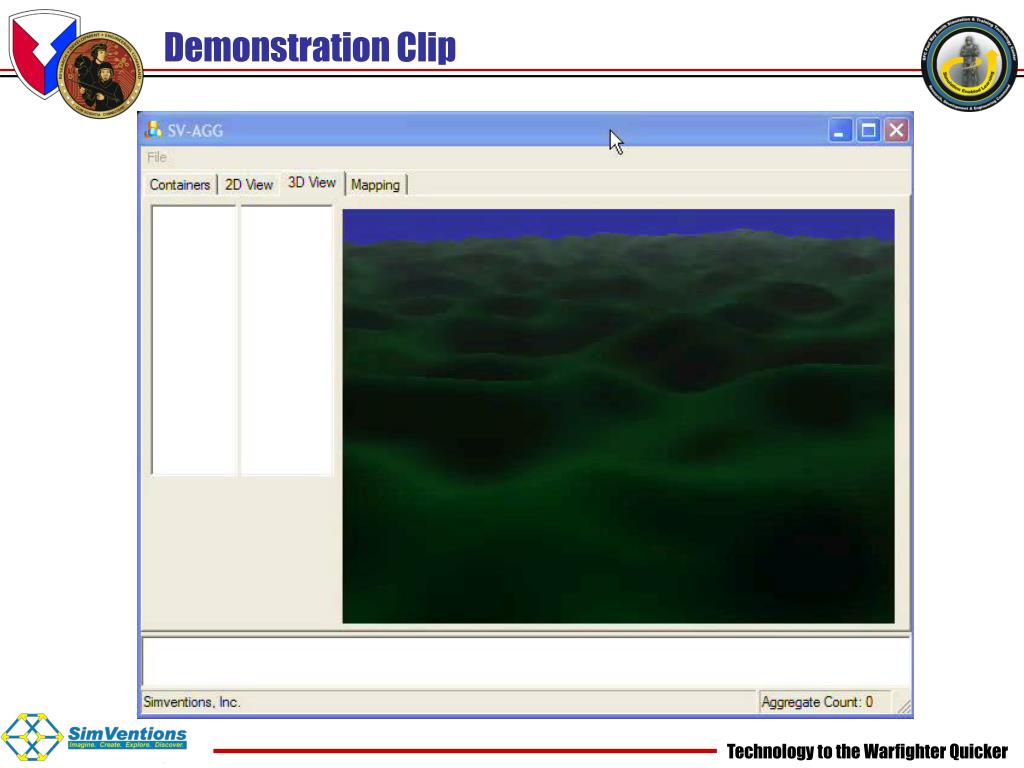

Demo review bass sv agg interaction l.jpg

Model Aggregation WSDL

Agg/Deagg

Services

Entity Aggregation WSDL

Session_ClientJoin()

client_id

Library Services WSDL

Lib_AddItem()

Exercise Support WSDL

item_id

Entity_RequestAggSolution()

Monitoring / IntercessoryServices

Data Logging WSDL

entity_agg_solution_id

Stats/Scores WSDL

Transformation Support WSDL

Error Handling WSDL

Session_ClientLeave()

Demo Review - BASS / SV-AGG Interaction

Server-side app

(implementation)

Client app

External services

(interface)

Soap calls

Entity_FetchAggSolution()

model

10



Key concepts bom aggregation types l.jpg

Model Aggregations

Interface Groupings

Non-exercise specific (class based)

Examples

Car(Engine / Wheels / Suspension / Braking System / Frame)

Ship(Weapon System / Radar / CIC)

Equipment Pack(Ammo / Weapon / Grenade / Water / First Aid Kit / MRE)

First Aid Kit(Gauze / Wrap / Ointment / Knife / Aspirin / Blood Clot (kitty litter))

Human Anatomy(Heart / Liver / Kidney / Digestion system, Epidermis, etc…)

Entity Instance Aggregations

Entity Groupings

Exercise specific (object driven)

Examples

Battalion (Collection of Individual Soldiers)

Air Squadron

Battle group

Weather(Storm Cells / Wind / Temperature / Atmospheric Pressure/ Bathymetry)

Close Air Support(Forward Air Controller / Aircraft / Target / Target Locater / Designator)

Crowds

Key Concepts – BOM Aggregation Types

Supported usingBOMs

Composite Pattern

Flyweight Pattern

12


Key concepts why a bom approach l.jpg
Key Concepts - Why a BOM Approach?

BOM –A piece part of a conceptual model, simulation object model, or federation object model, which can be used as a building block in the development and/or extension of a simulation or federation.

  • Offers modular way to represent simulation exchange elements

  • Platform independent (XML)

  • Captures / carries forward conceptual model

  • Allows implementations to be represented independently

  • Can be combined to form compositions (model aggregation)

  • Can be used to define container classes(entity instance aggregation)

  • Facilitates interoperability(the exchange of data)

    • BOMs can be mapped across different BOMs, FOMs and SOMs

Federate(SOM)

Sim / SystemA

WeaponsEffect

BOM 1

BOM 2

Theater WarfareRepresentation

Detect / Jam

Federate A

Federate B

- or -

Federation(FOM)

BOM 3

BOMAssembly

RepairResupply

Representation

Composition

Federate X

CompositeInterface

- or -

BOM n

Model#1

Model#2

RadioComms

Aggregation

Model#3

Model#n

13


Key concepts how are we using boms 1 3 l.jpg

RPR FOM

RPR

BOMs

OneSAF Objective System

Key Concepts - How are we using BOMs? (1/3)

  • Data exchange interface elements

  • Model Aggregations

  • Entity Instance Aggregations

14


Key concepts how are we using boms 2 3 l.jpg

radar

Humveeplatform

gun

BOM

BOMs

vehicle

Composite

pattern

soldier

RPR FOM

RPR

BOMs

Subsystem

models

OneSAF Objective System

Key Concepts - How are we using BOMs? (2/3)

  • Data exchange interface elements

  • Model Aggregations

  • Entity Instance Aggregations

15


Key concepts how are we using boms 3 3 l.jpg

radar

Humveeplatform

gun

BOM

BOMs

vehicle

Composite

pattern

soldier

RPR FOM

RPR

BOMs

Subsystem

models

OneSAF Objective System

<<tank BOM>>

M1A - 1403

<<container BOM>>

agg -123

<<tank BOM>>

M1A - 1404

Flyweight

pattern

<<helo BOM>>

Apache - 132

entities

Key Concepts - How are we using BOMs? (3/3)

  • Data exchange interface elements

  • Model Aggregations

  • Entity Instance Aggregations

16


Key concepts transfer control l.jpg

Client Owner

Client

Server

Session_RegisterEntity(client_id, item_id, client_entity_identifier)

entity_id

Session_GetEntities(client_id, client_of_interest_id)

entity_set

Session_TransferControlRequest(client_id, transfer_control)

Request

transfer_request_id

Session_TransferControlCheck(client_id)

transfer_control

Session_TransferControlRequest(client_id, transfer_control)

Accept

transfer_request_id

Session_TransferControlStatus(client_id, transfer_request_id)

transfer_control

Session_TransferControlRequest(client_id, transfer_control)

Complete

transfer_request_id

Key Concepts – Transfer Control

17






Baf applications l.jpg
BAF Applications

  • BAF Server (BASS)

    • Java (Eclipse)

    • Web Services

    • Independent WSDLsfor each service group

    • Not dependent on dedicated server

    • Uses and generates BOMs

    • Apache

    • HLA / RTI input

  • BAF Clients

    • C++, C#, Java

    • Apps include

      • BASS Text Clients (Java)

      • BASS Viewer (C#)

      • SV-Agg (C++)

      • AAXE (under dev - Java)

22


Bomworks l.jpg
BOMworks

  • Create BOMs

  • Edit BOMs

    • Grid/XML/UML

    • Drag/Drop

    • Cut/Copy/Paste

  • Validate BOMs

  • Import/Export FOMs

    • 1.3/1516

  • Source Code Generation

.NET Version available

Java version to be released very soon

www.simventions.com/bomworks

23


Sbir schedule l.jpg
SBIR Schedule

  • Mar 06

    • Complete BASS implementation to BAF version 1

  • April 06 (Spring SIW – Huntsville)

    • BASS / SV-AGG demo (compliant with BAF version 1)

    • 06S-SIW-116 – “Adding Aggregate Services to the Mix: An SOA Implementation Use Case”

    • BOMworks 1.0 release!

  • July 06

    • WARSIM collaboration?

    • OOS collaboration?

    • Orlando / VA Demo

  • Aug 06

    • BAF Adjudication of Interface Spec (v1.0)

  • Sept 06 (Fall SIW)

    • Orlando Demo

  • Nov 06

    • I/ITSEC Demo using WARSIM?

  • Dec 06 – Mar 07

    • Continued integration (using CMod)

    • WARSIM integration?

    • Phase III contract vehicle in place?

24


Discussion l.jpg

BOM Dev Env

Discussion

Entity Level Sim

BASS

SV Agg

Agg – level Sim

Server-side app

(implementation)

Warsim


Warsim system overview l.jpg
WARSIM System Overview

26


Program contacts l.jpg

Program Contacts

Paul Gustavson

[email protected]

540 372-7727 (work)

540 429-2550 (cell)

Mike Haddad

[email protected]

(407) 384-3853 (work)

www.simventions.com/sbir_agg



Background l.jpg
Background

  • Large-scale simulations exercises

    • High entity loads

    • High degree of resolution needed

    • Undue strain on Federation

      • Network

      • CPU

      • RTI Performance*

    • Recognition that not all players need / care about each model / entity

  • Approaches: Resolution scaling and aggregation

    • Concern for “water down” effect

    • Lack of techniques

    • No common infrastructure

Aggregation - the coupling of multiple models/entities into a single inclusive group

29


Key concepts what are boms l.jpg

Pattern of Interplay

Events

State Machines

Key Concepts – What are BOMs?

Definition

Concept

Standards

BOM – A piece part of a conceptual model, simulation object model, or federation object model, which can be used as a building block in the development and/or extension of a simulation or federation.

BOM Palette

-

x

Simulation Components

Choose what fits conceptual model?

User Requirements

A

B

Simulation Systems

  • foms

  • federates

X

C

Illustration

Federate(SOM)

Sim / SystemA

WeaponsEffect

BOM 1

BOM 2

Theater WarfareRepresentation

Federate A

Detect / Jam

Federate B

- or -

Federation(FOM)

BOM 3

BOMAssembly

RepairResupply

Representation

Composition

Federate X

CompositeInterface

- or -

BOM n

Model#1

Model#2

RadioComms

Aggregation

Model#3

Model#n

30

BOMs are designed for enabling composability, providing extensibility, facilitating interoperability, improving manageability, and encouraging understandibility.

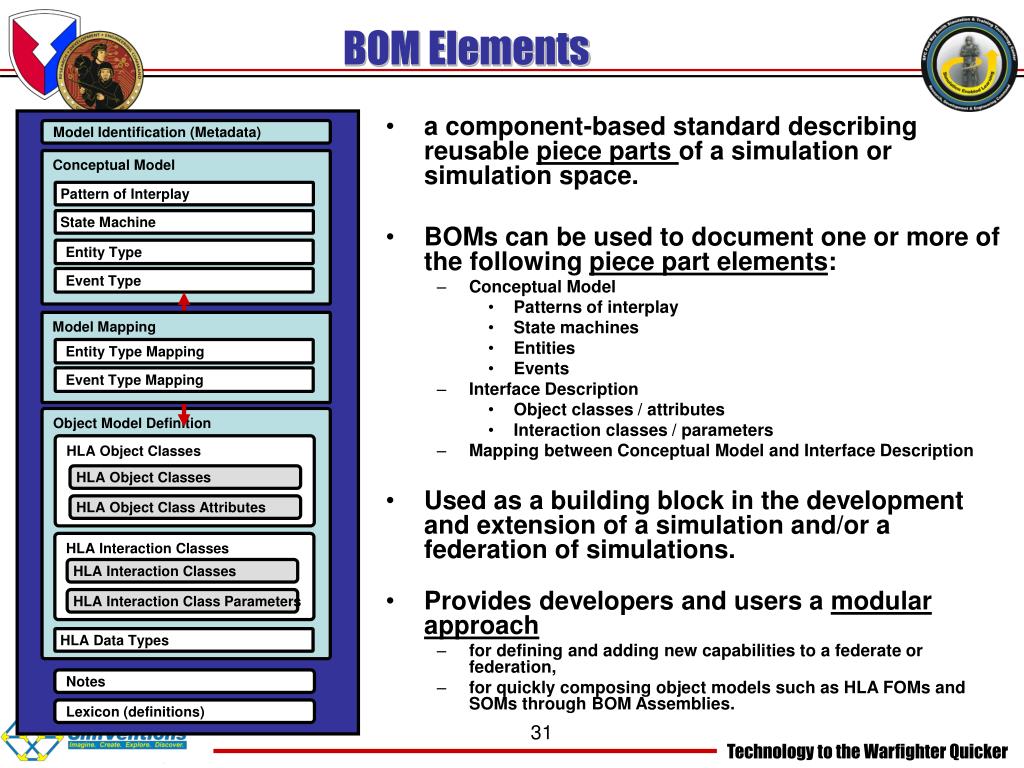

Bom elements l.jpg

a component-based standard describing reusable piece parts of a simulation or simulation space.

BOMs can be used to document one or more of the following piece part elements:

Conceptual Model

Patterns of interplay

State machines

Entities

Events

Interface Description

Object classes / attributes

Interaction classes / parameters

Mapping between Conceptual Model and Interface Description

Used as a building block in the development and extension of a simulation and/or a federation of simulations.

Provides developers and users a modular approach

for defining and adding new capabilities to a federate or federation,

for quickly composing object models such as HLA FOMs and SOMs through BOM Assemblies.

Model Identification (Metadata)

Conceptual Model

Pattern of Interplay

State Machine

Entity Type

Event Type

Model Mapping

Entity Type Mapping

Event Type Mapping

Object Model Definition

HLA Object Classes

HLA Object Classes

HLA Object Class Attributes

HLA Interaction Classes

HLA Interaction Classes

HLA Interaction Class Parameters

HLA Data Types

Notes

Lexicon (definitions)

BOM Elements

31


Boms being using rpr boms l.jpg

Weapons Effect

Logistics

Repair

Resupply

Collision

Entity State Update

SIMAN

Entity Creation

Entity Reconst’n

Entity Removal

RadioComms

Action Request

Minefield

Post Comment

Synthetic Enviro

Post Event

EntityObjects

EnvObjects

MinefieldObjects

SignalObjects

BOMs being using - RPR BOMs

RPR FOM 2.0

Conceptual Model

GRIM

DIS 1278

“The use of interaction classes involves a detailed understanding of the state transitions and timing between events.” - RPR FOM GRIM

Model Mapping

Object Model Def

32


Slide33 l.jpg

BASS Methods

Model Composition Agg WSDL

Entity Instance Agg WSDL

Library Services WSDL

Data Logging WSDL

BASS

Load Balance WSDL

Exercise Support WSDL

SV Agg

Transfer Control WSDL

Transform WSDL

Server-side app

(implementation)

Client app

Stats/Scores WSDL

Soapcalls

External services

(interface)

33


First level aggregation stage 1 pre aggregation l.jpg

NetworkLoad

CPULoad

First Level Aggregation - Stage 1 – Pre-aggregation

Here the responsibility of aggregation, although it can be advised by a web service like BASS, is upon the sending federate that owns the models / entities. He must use the aggregated interface / msg. The benefit is a reduction in the amount of messages being generated over the network by one federate.

Entityinstances

Modelsused

SENDER

models

RECEIVER

entities

34


First level aggregation stage 2 interest identification l.jpg

NetworkLoad

CPULoad

First Level Aggregation –Stage 2– Interest Identification

Here the responsibility of aggregation, although it can be advised by a web service like BASS, is upon the sending federate that owns the models / entities. He must use the aggregated interface / msg. The benefit is a reduction in the amount of messages being generated over the network by one federate.

Entityinstances

Modelsused

SENDER

models

RECEIVER

entities

Interest level

BASS

35


First level aggregation stage 3 aggregation opportunity l.jpg

NetworkLoad

CPULoad

First Level Aggregation -Stage 3 – Aggregation Opportunity

Here the responsibility of aggregation, although it can be advised by a web service like BASS, is upon the sending federate that owns the models / entities. He must use the aggregated interface / msg. The benefit is a reduction in the amount of messages being generated over the network by one federate.

Entityinstances

Modelsused

SENDER

models

RECEIVER

entities

Interest level

BASS

Aggregate Triggers/Criteria

  • Proximity to a specific obstacle, entity or feature in the synthetic battlespace;

  • A change in the level of interest or significance regarding the specific domain a model supports; or

  • An increase (or decrease) in the physical entity load by the system and/or over the entire federation.

Monitorsfederation

36

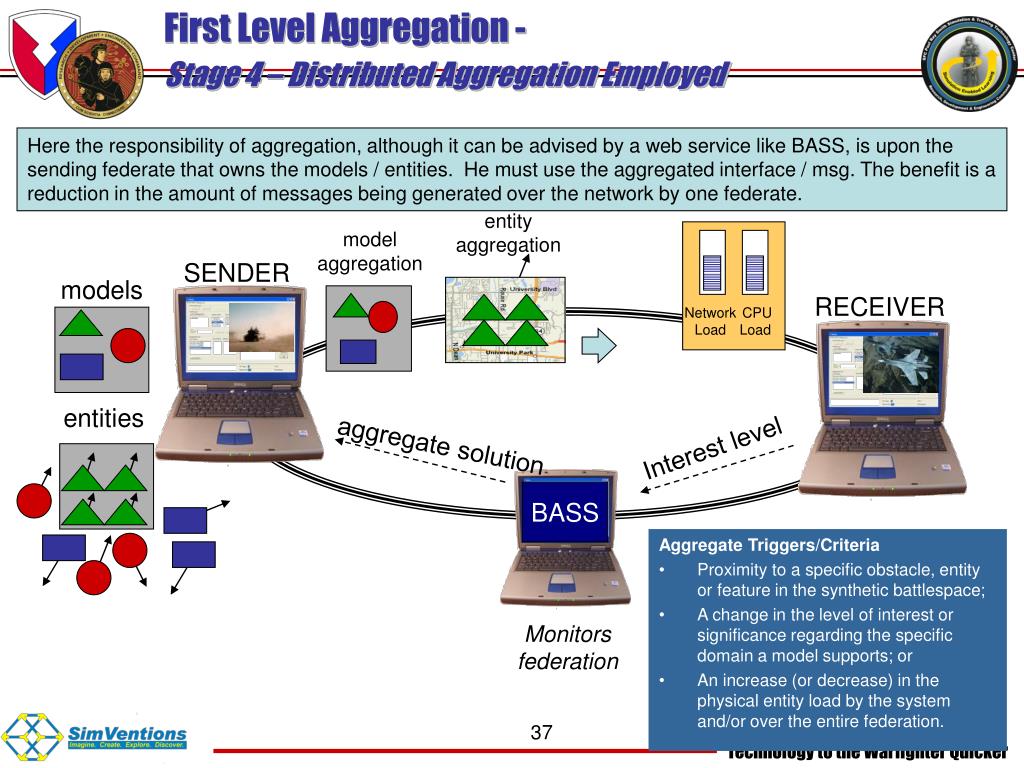

First level aggregation stage 4 distributed aggregation employed l.jpg

NetworkLoad

CPULoad

First Level Aggregation -Stage 4 –Distributed Aggregation Employed

Here the responsibility of aggregation, although it can be advised by a web service like BASS, is upon the sending federate that owns the models / entities. He must use the aggregated interface / msg. The benefit is a reduction in the amount of messages being generated over the network by one federate.

entityaggregation

modelaggregation

SENDER

models

RECEIVER

entities

aggregate solution

Interest level

BASS

Aggregate Triggers/Criteria

  • Proximity to a specific obstacle, entity or feature in the synthetic battlespace;

  • A change in the level of interest or significance regarding the specific domain a model supports; or

  • An increase (or decrease) in the physical entity load by the system and/or over the entire federation.

Monitorsfederation

37


Second level aggregation stage 1 pre aggregation l.jpg

NetworkLoad

CPULoad

Second Level Aggregation -Stage 1 – Pre-aggregation

Modelsused

Here the responsibility of aggregation, which is also advised by a web service like BASS, is upon the recipient federate(s). The idea here is that the messages, once received by the federate, can then be pooled and represented as an aggregate locally by that receiving federate rather than as individual models or object instances that it has to hold in memory. The benefit of this is that it helps reduce the memory load and computing burden for those federate recipients.

RECEIVER

Modelsused

Entity Instances

FEDERATE A

models

RemoteEntityinstances

FEDERATE B

entities

models

entities

38


Second level aggregation stage 2 interest identification l.jpg

NetworkLoad

CPULoad

Second Level Aggregation -Stage 2 – Interest Identification

Modelsused

Here the responsibility of aggregation, which is also advised by a web service like BASS, is upon the recipient federate(s). The idea here is that the messages, once received by the federate, can then be pooled and represented as an aggregate locally by that receiving federate rather than as individual models or object instances that it has to hold in memory. The benefit of this is that it helps reduce the memory load and computing burden for those federate recipients.

RECEIVER

Modelsused

Entity Instances

FEDERATE A

models

RemoteEntityinstances

FEDERATE B

entities

Interest level

models

BASS

entities

39


Second level aggregation stage 3 aggregation opportunity l.jpg

NetworkLoad

CPULoad

Second Level Aggregation -Stage 3 – Aggregation Opportunity

Modelsused

Here the responsibility of aggregation, which is also advised by a web service like BASS, is upon the recipient federate(s). The idea here is that the messages, once received by the federate, can then be pooled and represented as an aggregate locally by that receiving federate rather than as individual models or object instances that it has to hold in memory. The benefit of this is that it helps reduce the memory load and computing burden for those federate recipients.

RECEIVER

Modelsused

Entity Instances

FEDERATE A

models

RemoteEntityinstances

FEDERATE B

entities

Interest level

models

BASS

Aggregate Triggers/Criteria

  • Proximity to a specific obstacle, entity or feature in the synthetic battlespace;

  • A change in the level of interest or significance regarding the specific domain a model supports; or

  • An increase (or decrease) in the physical entity load by the system and/or over the entire federation.

Monitorsfederation

entities

40


Second level aggregation stage 4 localized aggregation employed l.jpg

NetworkLoad

CPULoad

Second Level Aggregation -Stage 4 – Localized Aggregation Employed

ModelAggs

Here the responsibility of aggregation, which is also advised by a web service like BASS, is upon the recipient federate(s). The idea here is that the messages, once received by the federate, can then be pooled and represented as an aggregate locally by that receiving federate rather than as individual models or object instances that it has to hold in memory. The benefit of this is that it helps reduce the memory load and computing burden for those federate recipients.

RECEIVER

Modelsused

Entity Instances

FEDERATE A

models

RemoteInstanceAggs

FEDERATE B

entities

Interest level

aggregate solution

models

BASS

Aggregate Triggers/Criteria

  • Proximity to a specific obstacle, entity or feature in the synthetic battlespace;

  • A change in the level of interest or significance regarding the specific domain a model supports; or

  • An increase (or decrease) in the physical entity load by the system and/or over the entire federation.

Monitorsfederation

entities

41


Demo scenario snapshot l.jpg

The following slides consist of snapshots obtained within OneSAF Objective System during a simulation execution for the 2005 Fall SIW Demo.

The entities displayed on the PVD are captured during a task operation as defined by the user.

The task organization is as follows:

BLUFOR Side

Helicopters (Apache, Blackhawk, Chinook, Cobra, Longbow)

Fixed Wing (F16 Falcon, A10 Thunderbolt, AC130U Global Hawk)

Tanks (armored)

Supply vehicles

Heavy artillery guns

Demo Scenario Snapshot

  • OPFOR Side

    • Heavy artillery guns

    • Infantry

    • Service vehicles

    • Mines / Bombs

42


Slide43 l.jpg

The simulation environment consists of different entities acting independent of each other with a mix of objectives. In this simulation the blue force is assembling to engage the red force.

43


Slide44 l.jpg

RequestAggSolutionForEntitySet acting independent of each other with a mix of objectives. In this simulation the blue force is assembling to engage the red force.

44

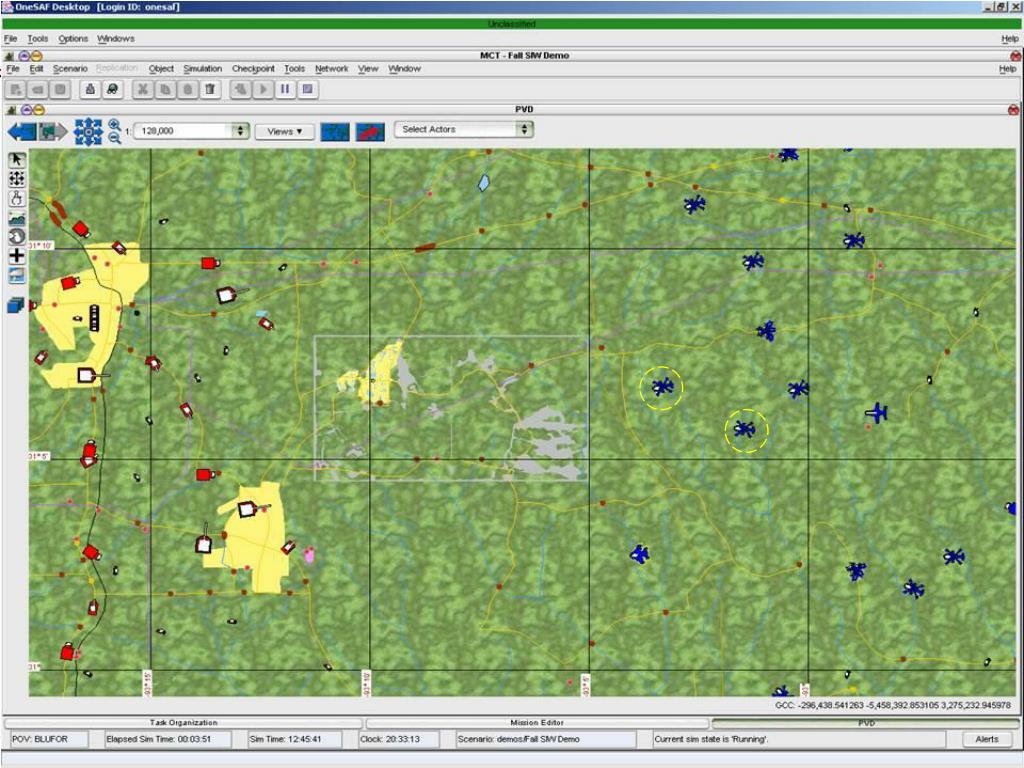

Slide45 l.jpg

45 acting independent of each other with a mix of objectives. In this simulation the blue force is assembling to engage the red force.


Slide46 l.jpg

46 acting independent of each other with a mix of objectives. In this simulation the blue force is assembling to engage the red force.


Slide47 l.jpg

47 acting independent of each other with a mix of objectives. In this simulation the blue force is assembling to engage the red force.


Slide48 l.jpg

RequestAggSolutionForEntitySet acting independent of each other with a mix of objectives. In this simulation the blue force is assembling to engage the red force.

48


Slide49 l.jpg

49 acting independent of each other with a mix of objectives. In this simulation the blue force is assembling to engage the red force.


Slide50 l.jpg

RequestAggSolutionForEntitySet acting independent of each other with a mix of objectives. In this simulation the blue force is assembling to engage the red force.

50


Slide51 l.jpg

RequestDeaggSolutionForEntitySet acting independent of each other with a mix of objectives. In this simulation the blue force is assembling to engage the red force.

51


Slide52 l.jpg

52 acting independent of each other with a mix of objectives. In this simulation the blue force is assembling to engage the red force.


Instance aggregation demonstration overview l.jpg

Entity Driver acting independent of each other with a mix of objectives. In this simulation the blue force is assembling to engage the red force.

Instance Aggregation Demonstration Overview

53


Key concepts aggregate triggers criteria l.jpg
Key Concepts - Aggregate Triggers/Criteria acting independent of each other with a mix of objectives. In this simulation the blue force is assembling to engage the red force.

  • Proximity to a specific obstacle, entity or feature in the synthetic battlespace;

  • A change in the level of interest or significance regarding the specific domain a model supports; or

  • An increase (or decrease) in the physical entity load by the system and/or over the entire federation.

54


Terminology l.jpg
Terminology acting independent of each other with a mix of objectives. In this simulation the blue force is assembling to engage the red force.

55

[1]M. D. Petty and E. W. Weisel, “A Composability Lexicon”, Proceedings of the Spring 2003 Simulation Interoperability Workshop, Orlando FL, March 30-April 4 2003, 03S-SIW-023.


Slide56 l.jpg

Transformation Support acting independent of each other with a mix of objectives. In this simulation the blue force is assembling to engage the red force.

Deagg Solution

Transformation Support

Aggregation Solution

BASS

ObjectiveOneSAFEntity-Level Sim

X

SV-AGGAggregate-Level Sim

RPR FOM

AggregateContainer FOM


Key concepts soa design l.jpg

Federate acting independent of each other with a mix of objectives. In this simulation the blue force is assembling to engage the red force.

Federate

discovery

messaging

Federates

services

Interface elements

BOMs

BAFWebServices

Key Concepts – SOA Design

Service Oriented Architecture (SOA) FOCUS

  • The common interface must be leveraged by all participating software agents (i.e. federates)

  • That the interfaces must be accessible and understood by all providers and consumers

  • Interfaces serve as the framework for the messages that are to be exchanged

  • Minimal system behavior is provided by these interfaces (or messages)

  • An XML schema should be applied to define the vocabulary and structure

  • Additional services should be able to be added without impairing the common interface.

  • Service-oriented Architecture (SOA)

  • Loosely Coupled Approach

  • Minimize Unnecessary dependencies among systems and software

  • Maintain functionality / individuality

  • Potential Technologies

    • XML

    • WSDL

    • SOAP / XML-RPC

    • UDDI

    • BOMs

    • XSLT (FOM Mappings, BTMs

    • BOM Impl (Java Beans)

  • Other Technologies (not SOA)

    • Network Distribution (RTI)

    • Federation Agreements (FOM)

http://www.informit.com/articles/article.asp?p=336265&seqNum=1

57


Baf automation of the rcip navigator barn l.jpg
BAF Automation of the RCIP Navigator (BARN) acting independent of each other with a mix of objectives. In this simulation the blue force is assembling to engage the red force.

  • How does it interact with the RCIP Navigator?

    • Capable of automating the execution process of the model

    • Able to extract/write BOM info from the model’s execution output

    • Can be retooled as a component instead of a standalone application

  • Where is it at this moment in time?

    • Queries for a script file name

    • Executes script read in from file or manually entered

  • Next Step

    • BAF (BASS) Integration

Automation and Extraction Agent (AAXE)

  • BAF client

  • prototype tool

  • Java-based, so that it is available on multiple platforms

  • Can integrate / wrap-around any client application (e.g. RCIP Nav)

  • Will leverage BAF web services & BOMs

Scripts exist already to execute the model in ProcessModel (i.e. RCIP Nav) and force export the data to an Excel spreadsheet.

58


ad
