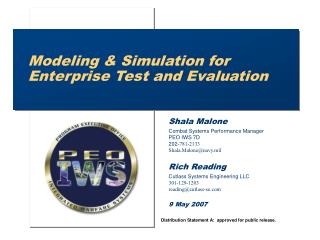

Modeling & Simulation for Enterprise Test and Evaluation

Shala Malone

Combat Systems Performance ManagerPEO IWS [email protected]

Rich Reading

Cutlass Systems Engineering [email protected]

9 May 2007

Distribution Statement A: approved for public release.


Operational context ship self defense l.jpg

Operational Context: Ship Self Defense

Ship Defense MOE

Probability of Raid Annihilation (PRA)

is the ability of a particular stand-alone ship as a system to detect, control, engage, and defeat a specified raid of threats within a specified level of probability in an operational environment

  • Subsonic, supersonic, high diver

  • Hi-G maneuvers

  • Multi-mode seekers

BattleTimeline

≈ 30 seconds

BattleSpace

≈ 0-12 nmi


Enterprise test evaluation master plan l.jpg

Enterprise Test & Evaluation Master Plan

The purpose of the Capstone Enterprise Air Warfare Ship Self Defense (AW SSD) Enterprise Test and Evaluation Master Plan (TEMP) is to consolidate all AW SSD at-sea testing and PRA Testbed testing

  • The AW SSD T&E Enterprise Strategy is founded on a two-tiered process to assess AW SSD warfare systems performance:

    • 1)Validate models with live testing

      • Operational Ship testing

      • Self Defense Test Ship (SDTS) testing

    • 2)Assess performance with models

Test Events DT/OT-ET15 thru ET19are formal PRA Testbed events

Includes DDG 1000, LHA 6, LCS and CVN 21 ship classes


Navy ship self defense t e enterprise ipt structure l.jpg

Navy Ship Self Defense T&E Enterprise IPT Structure

SSD T&E Enterprise IPT

Chair: PEO IWS

Representatives:

  • DOT&E

  • COTF

  • OSD (AT&L)

  • SEA 06

  • IWS WSEs

  • Ship Class Reps

  • IWS MPM Reps

  • N7

  • N43

  • N091

Chair

NAVSEA PH

Chair

IWS 7D

PRA Testbed Configuration

Working Group

SDTS Configuration

Working Group

Co-chairs:

IWS 7D

Ship Class rep

Chair IWS 1TE

Test Planning & ExecutionWorking Group

Testbed Ship Class Baseline

Testbed Ship Class Baseline

Threat Representation Working Group

Testbed Ship Class Baseline

Chair N091

Sub-group chairs: N43 for targets, IWS 7D for models


Enterprise p ra testbed system engineering drivers for centralized iws leadership l.jpg

Enterprise PRA Testbed System Engineering – Drivers for Centralized IWS Leadership

  • Systems performance for PRA assessment spans different technical communities and multiple managing program offices

  • PRA will be assessed using a federation of interoperable simulations; it will not (cannot) be tested empirically

    • Complex, multi-spectral, integrated HK/EW problem space

  • Many specific parameters, assumptions, and limitations are negotiated between the testing and acquisition communities

  • The testing community is intent on consistent PRA assessment across ship classes and warfare system configurations

    • Different hulls, different configurations…same threat models, same virtual range conditions


Enterprise p ra testbed components l.jpg

Enterprise PRA Testbed Components

“Virtual Range” (Infrastructure)

  • Testbed Architecture: network interface layer, interface standards, functional allocation standards

  • Common Threat Models: seeker, airframe/autopilot, signatures, vulnerability

  • Common Environment Models: tailored authoritative databases, runtime environment data services

    “Virtual Test Ship”(specific to ship class)

  • Ship Characteristics

    • Signature, motion, launcher placements, etc.

  • Combat System Representation

    • Authoritative, “T&E quality” models of combat system elements

“Virtual Range”

Testbed Architecture

Common Threat

Common Environment

Testbed Component

Providers:

IWS 7D

Ship Class PM

IWS Project Offices

Navy PRA Testbed Ship Class Baseline

Combat

System

Element

Combat

System

Element

Combat

System

Element

Combat

System

Element

Ship-specific Characteristics

“Virtual Test Ship”


Enterprise testbed construct l.jpg

Enterprise Testbed Construct

  • Provides Enterprise-level definitions and guidance for Testbed development

  • Single master document addressing:

    • CONOPS

    • Roles & responsibilities

    • Federation system engineering

    • Simulation architecture

    • Virtual Range development and use

    • VV&A process management

    • Configuration management

  • Draft in-process


Current simulation framework characteristics l.jpg

Current Simulation Framework Characteristics

  • HLA federation implementation

    • All system representations execute simultaneously for each ship defense engagement

  • Geographically distributed

  • Constructive simulation, conservative time management

  • System representations are a mix of digital models and tactical software

    • Most representations are a hybrid of tactical SWIL and digital model

    • Most tactical SW re-hosted to general purpose computers


P ra testbed deployment lpd 17 baseline l.jpg

ASCM Seeker,

Airframe, Autopilot

Threat

Types

5

reactive multi-threat raid

Ship Motion

& Signatures

Decoys

Threat/Ship Federate

PRA Testbed Deployment LPD 17 Baseline

JHU Applied Physics Lab

Laurel, MD

Naval Research Lab

Washington, DC

NAWC Weapons Division

China Lake

SIPRNET

Virtual Range Instrumentation:

SIMDIS, RePLAYS, HLA_Results

Scenario &

Environment

Federate (SEF)

Background

Targets/

Emitters

SPS-48E

SPQ-9B

SLQ-32

Network Interface Layer

Key:

Physics-based

Model

SSDS

CEP

Common Lethality Server

RAM

Missile Salvo

RAM

Launcher

Tactical

SWIL/HWIL

Deployed over a series of4 spiral Builds


Enterprise p ra testbed status l.jpg

Enterprise PRA Testbed Status

  • PRA Testbed Configuration Working Group Established Under Ship Self Defense T&E Enterprise

    • Chaired by IWS 7D, Shala Malone

    • Testbed baseline IPTs established for current Enterprise ship classes: LHA 6, DDG 1000, CVN 21, and LCS

  • LPD 17 Testbed Development Underway in Support of Ship Class OT&E

    • 3rd of 4 spirals completed; final Build integration May07

    • LPD 17 assessment ‘runs for score’ commence Aug 07

      • completion Planned for CY08


Enterprise p ra testbed evolution l.jpg

CVN 21

Testbed

Baseline

LCS

Testbed

Baseline

LHA 6

Testbed

Baseline

DDG 1000

Testbed

Baseline

LPD 17

Testbed

Baseline

Enterprise PRA Testbed Evolution

Consistent Testbed development

across ship classes and CS configurations

Enterprise

PRA Testbed Baselines

Common architecture,

common threats &

environment, model re-use

Validated models,

lessons learned,

arch. advances

Process Standards & Architecture

Testbed Configuration Management

PEO IWS 7D Leadership

Common Virtual Range

SPS-48E

SPS-49A

ES

CEC

RAM

CIWS

SM-6

SIAP

PEO IWS

Project Offices

SPQ-9B

DBR

Decoys

SSDS

TSCE

ESSM

OpenArch.

Element System Representations


Challenges ahead l.jpg

Challenges Ahead

  • Relationship of PRA Testbed simulations to other M&S supporting system development and T&E

  • Improved mechanisms for injecting data needs into planning of empirical tests

  • Feedback of knowledge and capabilities to early phase acquisition systems engineering

  • Extension of PRA Testbed to address other MOEs

  • Evolution of PRA Testbed to next spiral of T&E Enterprise

    • battlespace extension, force level representation
