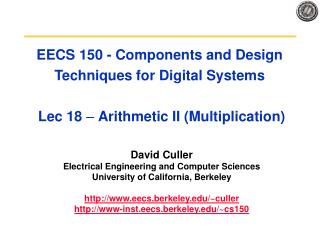

EECS 150 - Components and Design Techniques for Digital Systems Lec 18 – Arithmetic II (Multiplication)

David Culler

Electrical Engineering and Computer Sciences

University of California, Berkeley

http://www.eecs.berkeley.edu/~culler

http://www-inst.eecs.berkeley.edu/~cs150


Review l.jpg

Review

  • Circuit design for unsigned addition

    • Full adder per bit slice

    • Delay limited by Carry Propagation

      • Ripple is algorithmically slow, but wires are short

  • Carry select

    • Simple, resource-intensive

    • Excellent layout

  • Carry look-ahead

    • Excellent asymptotic behavior

    • Great at the board level, but wire length effects are significant on chip

  • Digital number systems

    • How to represent negative numbers

    • Simple operations

    • Clean algorithmic properties

  • 2s complement is most widely used

    • Circuit for unsigned arithmetic

    • Subtract by complement and carry in

    • Overflow when cin xor cout of sign-bit is 1


Computer number systems l.jpg

-8 + 5

Computer Number Systems

  • Positional notation

    • Dn-1 Dn-2 …D0 represents Dn-1Bn-1 + Dn-2Bn-2 + …+ D0 B0 where Di { 0, …, B-1 }

  • 2s Complement

    • Dn-1 Dn-2 …D0 represents: - Dn-12n-1 + Dn-22n-2 + …+ D0 20

    • MSB has negative weight

-1

+0

-2

1111

0000

+1

1110

0001

-3

+2

1101

0010

-4

1100

+3

0011

-5

1011

0100

+4

1010

-6

0101

+5

1001

0110

-7

+6

1000

0111

-8

+7


2s complement overflow l.jpg

2s Complement Overflow

How can you tell an overflow occurred?

Add two positive numbers to get a negative number

or two negative numbers to get a positive number

-1

-1

+0

+0

-2

-2

1111

0000

+1

1111

0000

+1

1110

1110

0001

0001

-3

-3

+2

+2

1101

1101

0010

0010

-4

-4

1100

+3

1100

+3

0011

0011

-5

-5

1011

1011

0100

+4

0100

+4

1010

1010

-6

-6

0101

0101

+5

+5

1001

1001

0110

0110

-7

-7

+6

+6

1000

0111

1000

0111

-8

-8

+7

+7

-7 - 2 = +7!

5 + 3 = -8!


2s comp overflow detection l.jpg

2s comp. Overflow Detection

0 1 1 1

0 1 0 1

0 0 1 1

1 0 0 0

1 0 0 0

1 0 0 1

1 1 0 0

1 0 1 1 1

5

3

-8

-7

-2

7

Overflow

Overflow

0 0 0 0

0 1 0 1

0 0 1 0

0 1 1 1

1 1 1 1

1 1 0 1

1 0 1 1

1 1 0 0 0

5

2

7

-3

-5

-8

No overflow

No overflow

Overflow occurs when carry in to sign does not equal carry out


2s complement adder subtractor l.jpg

2s Complement Adder/Subtractor

A - B = A + (-B) = A + B + 1


Adders on the xilinx virtex l.jpg

Dedicated carry logic provides fast arithmetic carry capability for high-speed arithmetic functions. The Virtex-E CLB supports two separate carry chains, one per Slice. The height of the carry chains is two bits per CLB.

The arithmetic logic includes an XOR gate and AND gate that allows a 2-bit full adder to be implemented within a slice.

Cin to Cout delay = 0.1ns, versus 0.4ns for F to X delay.

Adders on the Xilinx Virtex

How do we map a 2-bit adder to one slice?


Carry look ahead adders l.jpg

a b ci ci+1 s

Carry Look-ahead Adders

  • In general, for n-bit addition best we can achieve is

    delay  log(n)

  • How do we arrange this? (think trees)

  • First, reformulate basic adder stage:

carry “kill”

ki = ai’ bi’

carry “propagate”

pi = ai bi

carry “generate”

gi = ai bi

ci+1 = gi + pici

si = pi ci


Carry look ahead adders in blocks l.jpg

cin

pi

pi+1

pi+k

gi

gi+1

gi+k

Carry Look-ahead Adders – in blocks

  • “Group” propagate and generate signals:

  • P true if the group as a whole propagates a carry to cout

  • G true if the group as a whole generates a carry

  • Group P and G can be generated hierarchically.

P = pi pi+1 … pi+k

G = gi+k + pi+kgi+k-1 + … + (pi+1pi+2 … pi+k)gi

cout

Cout = G + PCin


Carry look ahead adders10 l.jpg

c0

Carry Look-ahead Adders

9-bit Example of hierarchically generated P and G signals:

a0

Pa

b0

a1

a

b1

a2

Ga

P = PaPbPc

b2

c3 = Ga + Pac0

a3

Pb

b3

a4

b

b4

a5

Gb

b5

c6 = Gb + Pbc3

a6

G = Gc + PcGb + PbPcGa

Pc

b6

a7

c

b7

a8

c9 = G + Pc0

Gc

b8


Parallel prefix generalizing cla l.jpg

x

BA

30

74

30

74

30

30

BA

Ax

10

BAx

54

54

32

10

76

54

32

76

10

30

10

54

6

0

2

4

0

4

2

1

6

5

3

7

76

54

32

10

74

64

30

20

70

60

50

40

Parallel Prefix (generalizing CLA)

  • Compute all the prefixes Fi = Fi-1 op Fi-2 op … op F0

  • Assume associative and commutative

70

B

A


Slide12 l.jpg

c0

cin

P = PaPb

G = Gb + GaPb

Cout = G + cinP

Pa,Ga

P,G

Pb,Gb

cout

c0

a0

ci

p = a  b

g = ab

s = p  ci

ci+1 = g + cip

p,g

b0

ai

s0

P,G

bi

p,g

c1

c0

a1

si

b1

s1

ci+1

c2

a2

b2

s2

c3

c0

a3

b3

8-bit Carry Look-ahead Adder

s3

P,G

c4

a4

b4

s4

c8

c5

c0

a5

b5

s5

c6

a6

b6

s6

c7

a7

b7

s7


Time space resource trade offs l.jpg

Time / Space (resource) Trade-offs

  • Carry select and CLA utilize more silicon to reduce time.

  • Can we use more time to reduce silicon?

  • How few FAs does it take to do addition?


Bit serial adder l.jpg

Addition of 2 n-bit numbers:

takes n clock cycles,

uses 1 FF, 1 FA cell, plus registers

the bit streams may come from or go to other circuits, therefore the registers may be optional.

Requires controller

What does the FSM look like? Implemented?

Final carry out?

A, B, and R held in shift-registers. Shift right once per clock cycle.

Reset is asserted by controller.

Bit-serial Adder

lsb


Announcements l.jpg

Announcements

  • Reading: 5.8

  • Regrades in with homework on Friday

  • Digital Design in the news – from UCB

    • Organic e-textiles (Prof. Vivek Subramanian)


Basic concept of multiplication l.jpg

Partial products

10001111

(143)

Basic concept of multiplication

  • product of 2 n-bit numbers is an 2n-bit number

    • sum of n n-bit partial products

  • unsigned

multiplicand

multiplier

1101 (13)

1011 (11)

1101

*

1101

0000

1101


Combinational multiplier accumulation of partial products l.jpg

Combinational Multiplier: accumulation of partial products

A1

B1

A1 B0

A0 B1

A0

B0

A0 B0

A3

B3

A2 B0

A2 B1

A1 B2

A0 B3

A2

B2

A2 B0

A1 B1

A0 B2

A3 B1

A2 B2

A1 B3

A3 B3

A3 B2

A2 B3

S7

S6

S4

S5

S3

S2

S1

S0


Array multiplier l.jpg

Array Multiplier

Generates all n partial products simultaneously.

Each row: n-bit adder with AND gates

What is the critical path?


Shift and add multiplier l.jpg

Sums each partial product, one at a time.

In binary, each partial product is shifted versions of A or 0.

Control Algorithm:

1. P  0, A  multiplicand,

B  multiplier

2. If LSB of B==1 then add A to P

else add 0

3. Shift [P][B] right 1

4. Repeat steps 2 and 3 n-1 times.

5. [P][B] has product.

“Shift and Add” Multiplier

  • Cost  n,  = n clock cycles.

  • What is the critical path for determining the min clock period?


Carry save addition l.jpg

Speeding up multiplication is a matter of speeding up the summing of the partial products.

“Carry-save” addition can help.

Carry-save addition passes (saves) the carries to the output, rather than propagating them.

Example: sum three numbers,

310 = 0011, 210 = 0010, 310 = 0011

310 0011

+ 210 0010

c 0100 = 410

s 0001 = 110

310 0011

c 0010 = 210

s 0110 = 610

1000 = 810

Carry-save Addition

carry-save add

carry-save add

carry-propagate add

  • In general, carry-save addition takes in 3 numbers and produces 2.

  • Whereas, carry-propagate takes 2 and produces 1.

  • With this technique, we can avoid carry propagation until final addition


Carry save circuits l.jpg

When adding sets of numbers, carry-save can be used on all but the final sum.

Standard adder (carry propagate) is used for final sum.

Carry-save Circuits


Array mult using carry save addition l.jpg

Array Mult. using Carry-save Addition

Fast carry-propagate adder


Another representation from book l.jpg

Add

CPA

Another Representation (from book)

Building block: full adder + and

4 x 4 array of building blocks


Carry save addition24 l.jpg

Carry-save Addition

CSA is associative and communitive. For example:

(((X0 + X1)+X2 )+X3 ) = ((X0 + X1)+(X2 +X3 ))

  • A balanced tree can be used to reduce the logic delay.

  • This structure is the basis of the Wallace Tree Multiplier.

  • Partial products are summed with the CSA tree. Fast CPA (ex: CLA) is used for final sum.

  • Multiplier delay  log3/2N + log2N


Signed multiplier l.jpg

Signed Multiplier

Signed Multiplication:

Remember for 2’s complement numbers MSB has negative weight:

ex: -6 = 110102 = 0•20 + 1•21 + 0•22 + 1•23 - 1•24

= 0 + 2 + 0 + 8 - 16 = -6

  • Therefore for multiplication:

    a) subtract final partial product

    b) sign-extend partial products

  • Modifications to shift & add circuit:

    a) adder/subtractor

    b) sign-extender on P shifter register


Signed multiplication l.jpg

Signed multiplication

  • product of 2 n-bit numbers is an 2n-bit number

    • sum of n n-bit partial products

  • unsigned

multiplicand

multiplier

1101 (-3)

1011 (-5)

1101

*

1111

Note: 2s complement

Sign extension

+

+(-3)

111

+(-6)

+

11010

+

00

000000

-

-(-24)

1

1101000

(15)

00001111


Signed array multiplier l.jpg

Implicit

Sign

extension

-

-

-

-

Signed Array Multiplier

b3 0

b2 0

b1 0

b0 0

a0

0

P0

a1

0

P1

a2

0

P2

a3

0

P3

P7 P6 P5 P4


Shift and add signed multiplier l.jpg

Signed extend partial product at each stage

Final step is a subtract

“Shift and Add” Signed Multiplier


Summary l.jpg

Summary

  • 2 complement number systems

    • Algebraic and corresponding bit manipulations

    • Overflow detection

    • Signficance of “sign bit” -2n-1

  • Carry look ahead is form a parallel prefix

  • Time / Space tradeoffs

    • Bit serial adder

  • Binary Multiplication algorithm

    • Array multiplier

    • Serial multiply (with bit parallel adder)

  • Signed multiplication

    • Sign extend multipicand

    • Sign bit of multiplier treated as subtract
