Presentation Transcript
Chapter 8 interpolation 1 l.jpg
Chapter 8Interpolation (1)

Copyleft  2005 by MediaLab


Table of contents l.jpg
Table of Contents

  • 8.1 Polynomial Interpolation

    • 8.1.1 Lagrange Interpolation

    • 8.1.2 Newton Interpolation

    • 8.1.3 Difficulties with Polynomial Interpolation

  • 8.2 Hermite Interpolation

  • 8.3 Rational-Function Interpolation

Copyleft  2005 by MediaLab


Lagrange interpolation polynomials l.jpg
Lagrange Interpolation Polynomials

  • Basic concept

    • The Lagrange interpolating polynomial is the polynomial of degree n-1 that passes through the n points.

    • Using given several point, we can find Lagrange interpolation polynomial.

Copyleft  2005 by MediaLab


General form of lagrange l.jpg
General Form of Lagrange

  • The general form of the polynomial is

    p(x) = L1y1 + L2y2 + … + Lnyn

    where the given points are (x1,y1), ….. , (xn,yn).

  • The equation of the line passing through two points (x1,y1) and (x2,y2) is

  • The equation of the parabola passing through three points (x1,y1), (x2,y2), and (x3,y3) is

  • http://math.fullerton.edu/mathews/n2003/lagrangepoly/LagrangePolyProof.pdf

Copyleft  2005 by MediaLab


Example of lagrange interpolation l.jpg
Example of Lagrange Interpolation

  • Example

    • Given points (x1,y1)=(-2,4), (x2,y2)=(0,2), (x3,y3)=(2,8)

Copyleft  2005 by MediaLab


Matlab function for lagrange interpolation l.jpg
MATLAB Function for Lagrange Interpolation

  • We can represent the Lagrange polynomial with coefficient ck.

    • p(x)=c1N1+c2N2+ … +cnNn

Copyleft  2005 by MediaLab


Higher order interpolation polynomials l.jpg
Higher Order Interpolation Polynomials

  • Higher order interpolation polynomials

    x = [ -2 -1 0 1 2 3 4],

    y = [ -15 0 3 0 -3 0 15]

Copyleft  2005 by MediaLab


Review and discussion l.jpg
Review and Discussion

  • In Lagrange interpolation polynomial, it always go through given points.

    Think with equation below

  • The Lagrange form of polynomial is convenient when the same abscissas may occur in different applications.

  • It is less convenient than the Newton form when additional data points may be added to the problem.

Copyleft  2005 by MediaLab


Newton interpolation polynomials l.jpg
Newton Interpolation Polynomials

  • Newton form of the equation of a straight line passing through two points (x1, y1) and (x2, y2) is

  • Newton form of the equation of a parabola passing through three points (x1, y1), (x2, y2), and (x3, y3) is

  • the general form of the polynomial passing through n points (x1, y1), …,(xn, yn) is

Copyleft  2005 by MediaLab


Newton interpolation polynomials cont d l.jpg
Newton Interpolation Polynomials (cont’d)

  • Substituting (x1, y1) into

  • Substituting (x2, y2) into

  • Substituting (x3, y3) into

Copyleft  2005 by MediaLab


Newton interpolation parabola l.jpg
Newton Interpolation Parabola

  • Passing through the points (x1, y1)=(-2, 4), (x2, y2)=(0, 2), and (x3, y3)=(2, 8).

  • The equations is

  • Where the coefficients are

  • thus

Copyleft  2005 by MediaLab


Newton interpolation parabola cont d l.jpg
Newton Interpolation Parabola (cont’d)

  • Passing through the points (x1, y1)=(-2, 4), (x2, y2)=(0, 2), and (x3, y3)=(2, 8).

Copyleft  2005 by MediaLab


Additional data points l.jpg
Additional Data Points

  • We extend the previous example, adding the points (x4, y4) = (-1, -1) and (x5, y5) = (1, 1)

  • Divided-difference

    table becomes

    (with new entries

    shown in bold)

  • Newton interpolation

    polynomial is

Copyleft  2005 by MediaLab


Higher order interpolation polynomials14 l.jpg
Higher Order Interpolation Polynomials

  • Consider again the data from

    Example 8.4 with Lagrange form.

    x = [ -2 -1 0 1 2 3 4 ],

    y = [ -15 0 3 0 -3 0 15]

  • Do it again with Newton form.

That the polynomial is cubic is clear.

Copyleft  2005 by MediaLab


Higher order interpolation polynomials cont d l.jpg

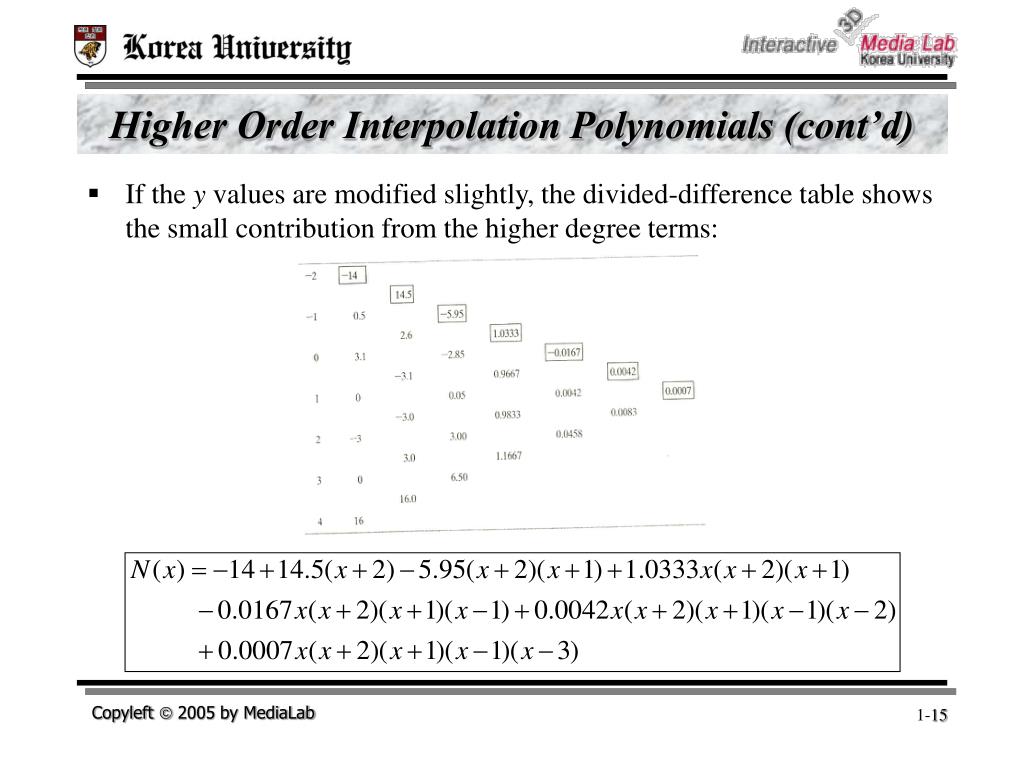

Higher Order Interpolation Polynomials (cont’d)

  • If the y values are modified slightly, the divided-difference table shows the small contribution from the higher degree terms:

Copyleft  2005 by MediaLab


Matlab functions finding the coefficients l.jpg
MATLAB functions – Finding the coefficients

>> x = [-2 -1 0 1 2 3 4];

>> y = [-15 0 3 0 -3 0 15];

>> Newton_Coef(x,y);

d =

15 -6 1 0 0 0

3 -3 1 0 0 0

-3 0 1 0 0 0

-3 3 1 0 0 0

3 6 0 0 0 0

15 0 0 0 0 0

>>

function a = Newton_Coef(x, y)

n = length(x);

%Calculate coeffiecients of

Newton interpolating polynomial

a(1) = y(1);

for k=1 : n-1

d(k,1) = (y(k+1) - y(k))/(x(k+1) - x(k));

%1st divided diff

end

for j=2 : n-1

for k=1 : n-j

d(k,j) = (d(k+1,j-1) - d(k,j-1))/(x(k+j) - x(k));

%jth divided diff

end

end

d

for j=2:n

a(j) = d(1, j-1);

end

Copyleft  2005 by MediaLab


Matlab functions evaluate the polynomials l.jpg

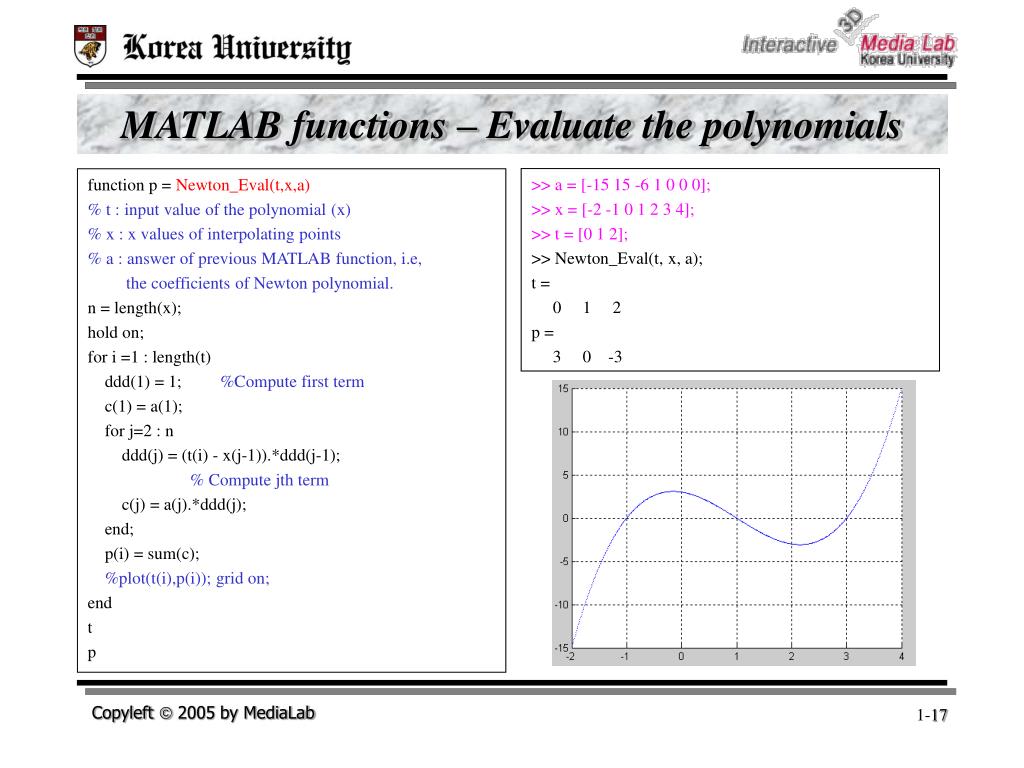

MATLAB functions – Evaluate the polynomials

>> a = [-15 15 -6 1 0 0 0];

>> x = [-2 -1 0 1 2 3 4];

>> t = [0 1 2];

>> Newton_Eval(t, x, a);

t =

0 1 2

p =

3 0 -3

function p = Newton_Eval(t,x,a)

% t : input value of the polynomial (x)

% x : x values of interpolating points

% a : answer of previous MATLAB function, i.e,

the coefficients of Newton polynomial.

n = length(x);

hold on;

for i =1 : length(t)

ddd(1) = 1; %Compute first term

c(1) = a(1);

for j=2 : n

ddd(j) = (t(i) - x(j-1)).*ddd(j-1);

% Compute jth term

c(j) = a(j).*ddd(j);

end;

p(i) = sum(c);

%plot(t(i),p(i)); grid on;

end

t

p

Copyleft  2005 by MediaLab


Humped and flat data l.jpg
Humped and Flat Data

  • The data

    • x = [ -2 -1.5 -1 -0.5 0 – 0.5 1 1.5 2]

    • y = [ 0 0 0 0.87 1 0.87 0 0 0]

      illustrate the difficulty with using higher order polynomials to interpolate a moderately large number of points.

Copyleft  2005 by MediaLab


Noisy straight line l.jpg
Noisy Straight Line

  • The data

    • x = [ 0.00 0.20 0.80 1.00 1.20 1.90 2.00 2.10 2.95 3.00]

    • y = [ 0.01 0.22 0.76 1.03 1.18 1.94 2.01 2.08 2.90 2.95]

  • Not well suited with noisy straight line.

Copyleft  2005 by MediaLab


Runge function l.jpg

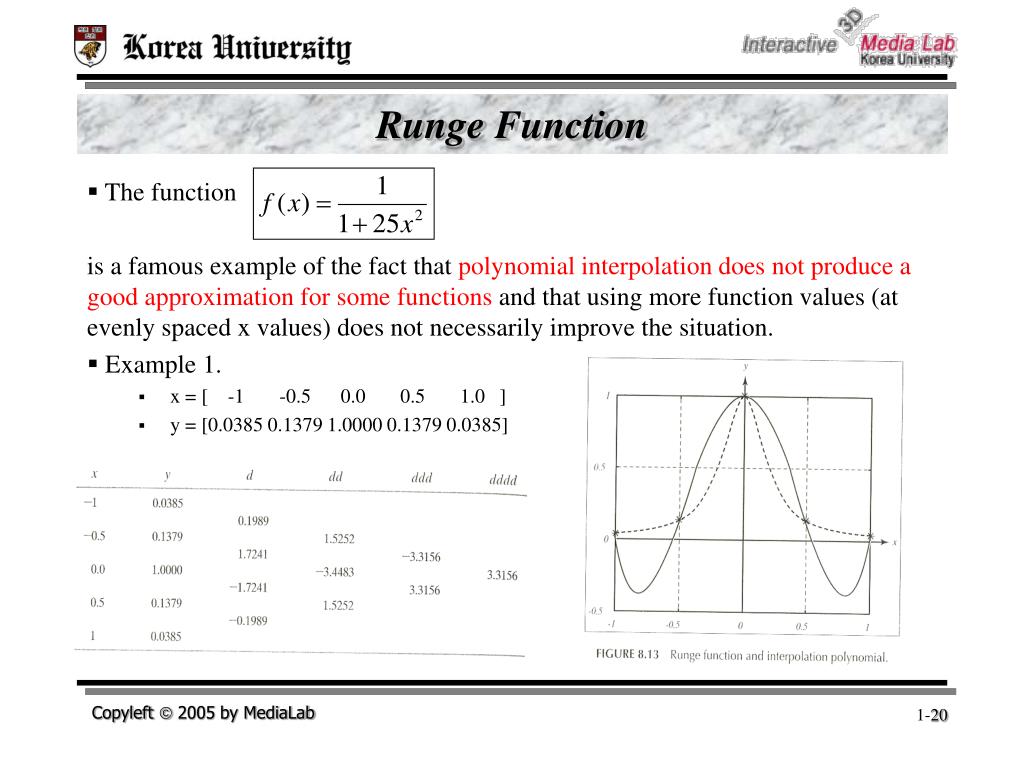

Runge Function

  • The function

    is a famous example of the fact that polynomial interpolation does not produce a good approximation for some functions and that using more function values (at evenly spaced x values) does not necessarily improve the situation.

  • Example 1.

    • x = [ -1 -0.5 0.0 0.5 1.0 ]

    • y = [0.0385 0.1379 1.0000 0.1379 0.0385]

Copyleft  2005 by MediaLab


Runge function cont d l.jpg

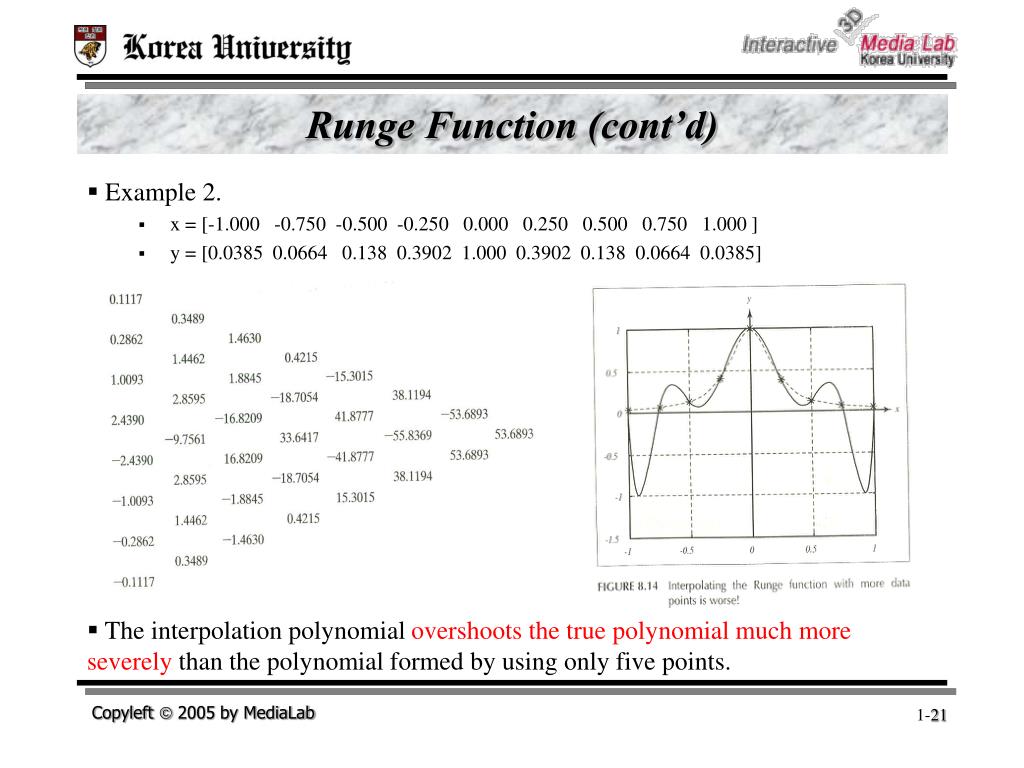

Runge Function (cont’d)

  • Example 2.

    • x = [-1.000 -0.750 -0.500 -0.250 0.000 0.250 0.500 0.750 1.000 ]

    • y = [0.0385 0.0664 0.138 0.3902 1.000 0.3902 0.138 0.0664 0.0385]

  • The interpolation polynomial overshoots the true polynomial muchmore severely than the polynomial formed by using only five points.

Copyleft  2005 by MediaLab


8 2 hermite interpolation l.jpg
8.2Hermite Interpolation

Copyleft  2005 by MediaLab


Hermite interpolation l.jpg
Hermite Interpolation

  • Hermite interpolation allows us to find a ploynomial that matched both function value and some of the derivative values

Copyleft  2005 by MediaLab


More data for product concentration l.jpg
More data for Product concentration

Copyleft  2005 by MediaLab


Matlab code for hermite interpolation l.jpg
MATLAB Code for Hermite interpolation

Copyleft  2005 by MediaLab


Difficult data l.jpg
Difficult Data

  • As with lower order polynomial interpolation, trying to interpolate in humped and flat regions cause overshoots.

Copyleft  2005 by MediaLab


8 3 rational function interpolation l.jpg
8.3Rational-Function Interpolation

Copyleft  2005 by MediaLab


Rational function interpolation l.jpg
Rational-Function Interpolation

  • Why use rational-function interpolation?

    • Some functions are not well approximated by polynomials.(runge-function)

    • but are well approximated by rational functions, that is quotients of polynomials.

Copyleft  2005 by MediaLab


Bulirsch stoer algorithm l.jpg
Bulirsch-Stoer algorithm

  • Bulirsch-Stoer algorithm

    • The approach is recursive, based on tabulated data(in a manner similar to that for the Newton form of polynomial interpolation).

    • Given a set of m+1 data points (x1,y1), … , (xm+1, ym+1), we seek an interpolation function of the form

<Bulirsch-Stoer algorithm general pattern>

The proof is in J.Stoer and R.Bulirsch, 'Introduction to Numerical Analysis'

Copyleft  2005 by MediaLab


Bulirsch stoer algorithm cont d l.jpg

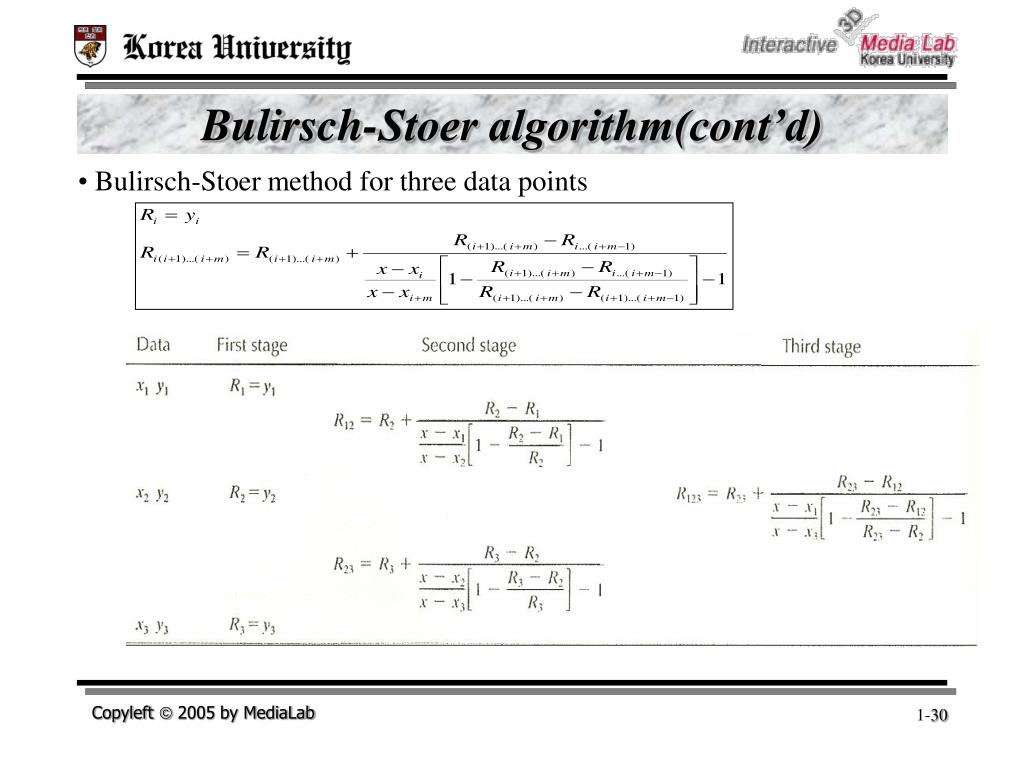

Bulirsch-Stoer algorithm(cont’d)

  • Bulirsch-Stoer method for three data points

Copyleft  2005 by MediaLab


Bulirsch stoer algorithm cont d31 l.jpg

Third stage

Second stage

data

First stage

x1 y1

R1= y1

x2 y2

R2= y2

x3 y3

R3=y3

x4 y4

R4=y4

x5 y5

R5=y5

Bulirsch-Stoer algorithm(cont’d)

  • Bulirsch-Stoer method for five data points

Copyleft  2005 by MediaLab


Bulirsch stoer algorithm cont d32 l.jpg

Fifth stage

Forth stage

Bulirsch-Stoer algorithm(cont’d)

Copyleft  2005 by MediaLab


Bulirsch stoer rational function cont d l.jpg
Bulirsch-Stoer Rational-Function(cont’d)

Copyleft  2005 by MediaLab


Example 8 13 rational function interpolation l.jpg

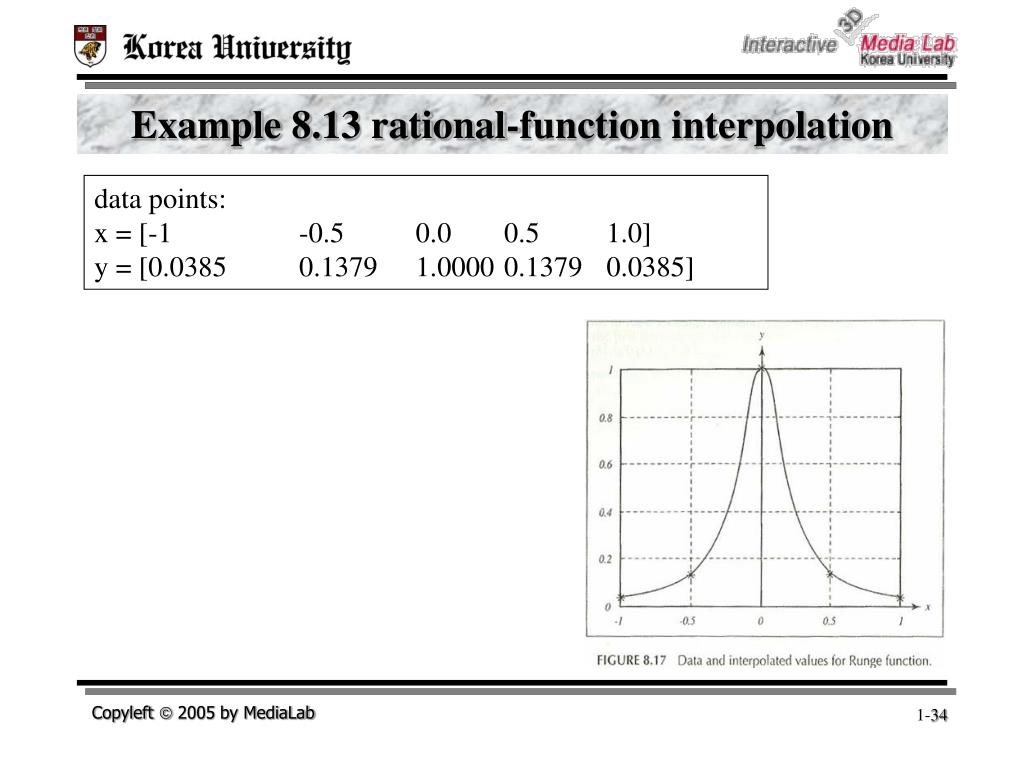

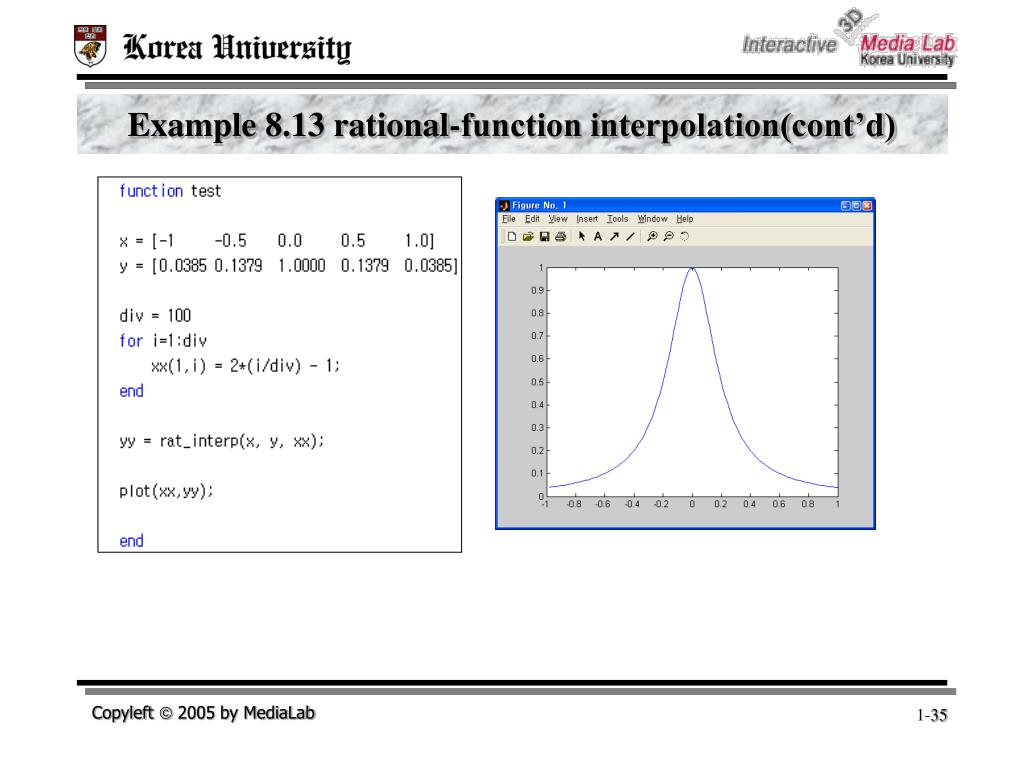

Example 8.13 rational-function interpolation

data points:

x = [-1 -0.5 0.0 0.5 1.0]

y = [0.0385 0.1379 1.0000 0.1379 0.0385]

Copyleft  2005 by MediaLab
