Presentation Transcript


Spine and joint disorders in late prenatal maternal care management options l.jpg

Spine and joint disorders in late prenatal – maternal caremanagement options


Outline l.jpg

Outline

  • Introduction

  • Low back and pelvic pain in general

    • General considerations and Hormonal considerations

    • Mechanical explanations for back and pelvic pain in

      pregnancy

    • Lumbar disc disease

    • Vascular congestion and night backache

    • Sacroiliac pain, osteitis condensans illii, and an

      associated with the inflammatory processes

    • Risk factors

    • Evaluations

    • Treatment


Outline3 l.jpg

Outline

Specific conditions – risks and management options

  • Spondylolysis and spondylolithesis

  • Scoliosis

  • Pelvic arthropathy and pubic symphysis rupture

  • Postpartum osteitis pubis

  • Stress fractures of the pubic bone

  • Transient osteoporosis of the hip

  • Avascular necrosis of the hip

  • Hip arthroplasty


Slide4 l.jpg

  • Complaints of musculoskeletal discomfort during

    pregnancy are common and may be temporarily

    disabling

  • Problems usually resolve spontaneously with

    completion of pregnancy

  • Some conditions that exist prior to pregnancy

    may effect the course of the pregnancy


Physiologic change in musculoskeletal system l.jpg

Physiologic change in musculoskeletal system

  • Progressive lordosis

    • Compensating for anterior position of the enlarging uterus

  • Increased mobility of sacrococcygeal , sacroiliac and pubic joints

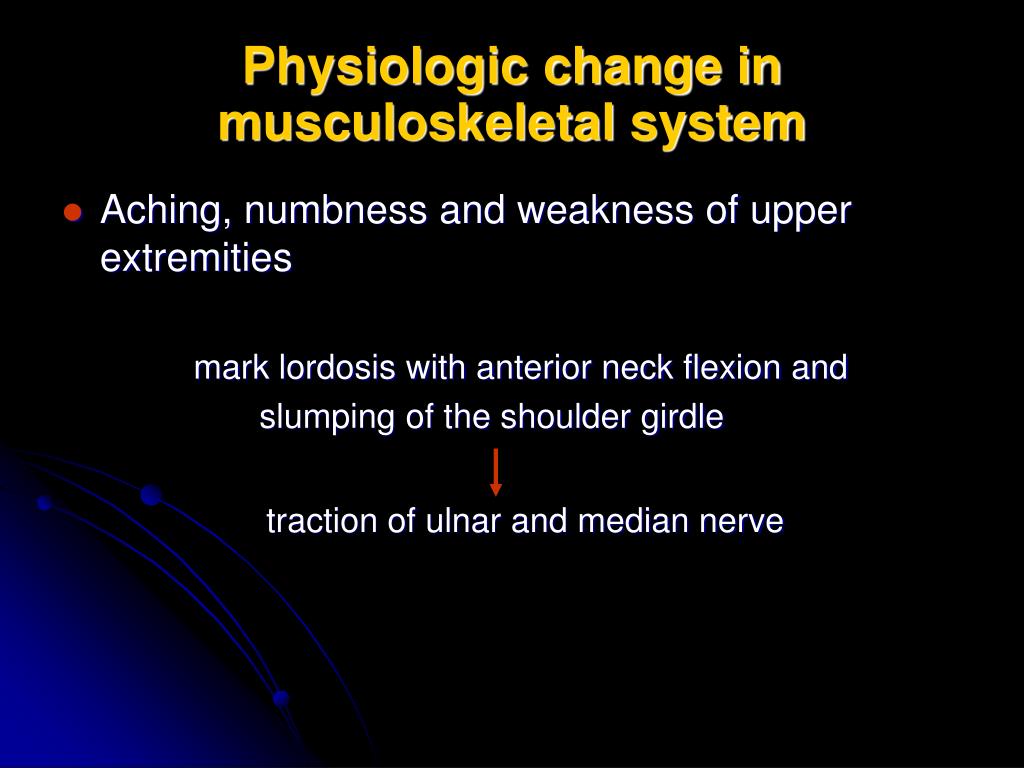

Physiologic change in musculoskeletal system6 l.jpg

Physiologic change inmusculoskeletal system

  • Aching, numbness and weakness of upper extremities

    mark lordosis with anterior neck flexion and

    slumping of the shoulder girdle

    traction of ulnar and median nerve

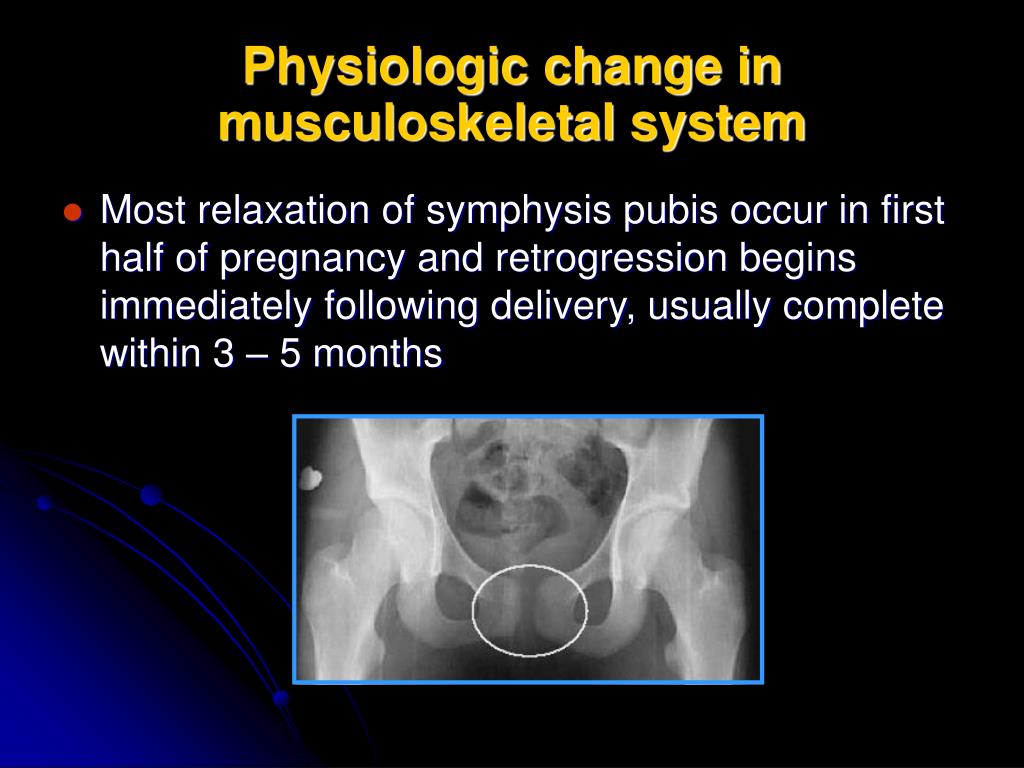

Physiologic change in musculoskeletal system7 l.jpg

Physiologic change inmusculoskeletal system

  • Most relaxation of symphysis pubis occur in first half of pregnancy and retrogression begins immediately following delivery, usually complete within 3 – 5 months


Low back and pelvic pain l.jpg

Low back and pelvic pain


General considerations l.jpg

General considerations

  • Back and pelvic pain occur in 48 – 90 % of

    pregnancy

  • Lumbar pain may be more common during pregnancy in women who noted back pain before pregnancy

  • Onset during pregnancy is more commonly described as sacral pain


Hormonal considerations l.jpg

Hormonal considerations

  • Relaxin

    • A polypeptide hormone

    • Produced by corpus luteum , deciduas and chorion

    • Receptor sites / target organs ; pubic symphysis , myometrium , cervix , placenta , breasts and skin fibroblast

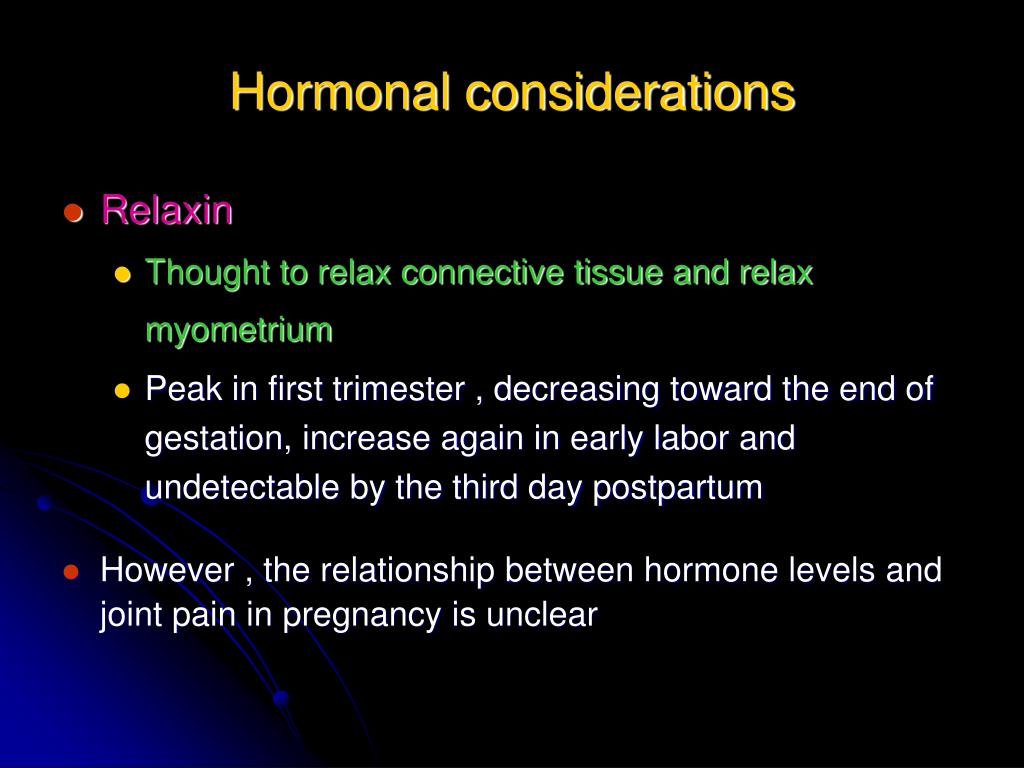

Hormonal considerations11 l.jpg

Hormonal considerations

  • Relaxin

    • Thought to relax connective tissue and relax myometrium

    • Peak in first trimester , decreasing toward the end of gestation, increase again in early labor and undetectable by the third day postpartum

  • However , the relationship between hormone levels and joint pain in pregnancy is unclear


Mechanical explanations for back and pelvic pain in pregnancy l.jpg

Mechanical Explanations for back and pelvic pain in pregnancy

  • General weight gain and the weight of the uterus, fetus and breast increaseload on spine

  • Response in increasing lumbar lordosis ; more anterior center of mass & producing shear stress across the motion segments of lumbar spine

  • The contribution of abdominal musculature to support the spine may be diminished

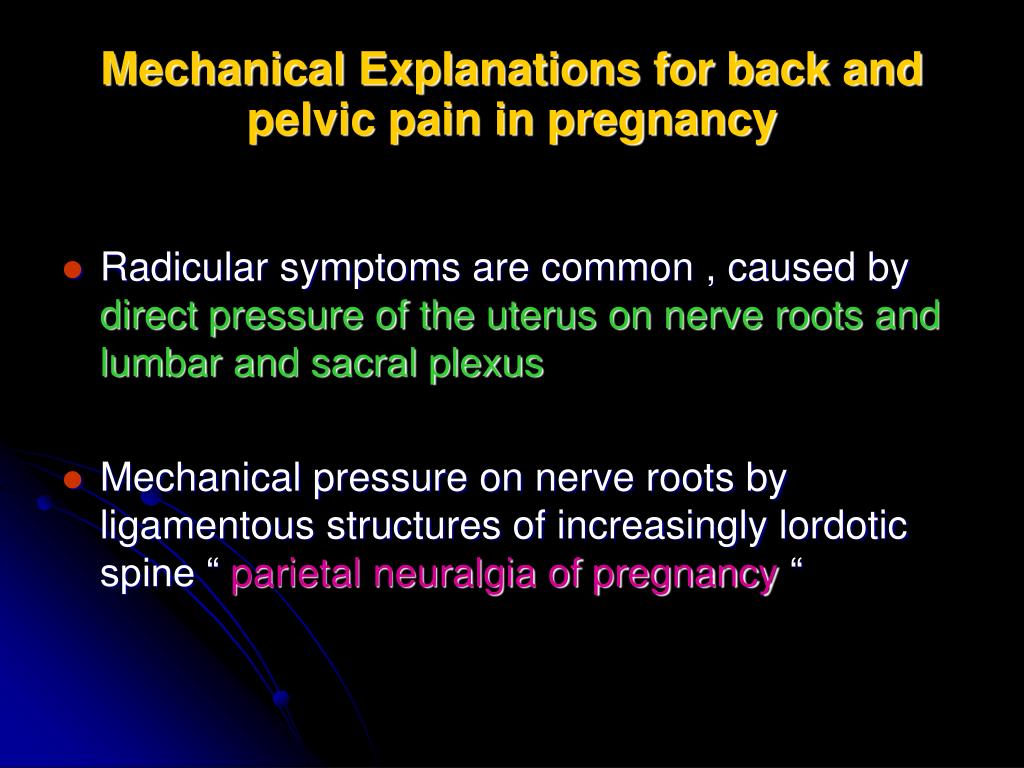

Mechanical explanations for back and pelvic pain in pregnancy13 l.jpg

Mechanical Explanations for back and pelvic pain in pregnancy

  • Radicular symptoms are common , caused by direct pressure of the uterus on nerve roots and lumbar and sacral plexus

  • Mechanical pressure on nerve roots by ligamentous structures of increasingly lordotic spine “ parietal neuralgia of pregnancy “


Lumbar disc disease l.jpg

Lumbar disc disease

  • Relaxin may weaken the annulus of the intervertebral discs

  • Less studies related lumbar disc disease to pregnancy

  • Potential for disc herniation and lumbar nerve root compression, with radicular pain and definite neurologic loss should be considered

  • EMG , MRI may helpful in diagnosis


Vascular congestion and night backache l.jpg

Vascular congestion and night backache

  • Increased venous flow through lumbar veins, the vertebral plexus , and paraspinal and azygous vein

  • Mechanical vena cava compression in supine position


Sacroiliac pain l.jpg

Sacroiliac pain

  • Inflammatory changes in the sacroiliac joint

  • Osteitis condensans illii

    • Fairly uniform area of increased density in the lower iliac bone, adjacent to the sacroiliac joint ,unilateral or bilateral

    • Most common in women, particularly in pregnancy


Risk factors during pregnancy l.jpg

Risk factors: during pregnancy

  • Increasing parity

  • Younger age

  • Back pain before pregnancy

  • Increased lordosis before pregnancy

  • Smoking

  • Physically strenuous work

    • Physical heaviness of work

    • Sitting work posture

    • Frequency of twisting and forward bending


Risk factors postpartum pain l.jpg

Risk factors : postpartum pain

  • Twin pregnancy

  • First pregnancy

  • Higher age at first pregnancy

  • Increased weight of the baby

  • Forceps or vacuum extraction

  • Flexed position of the women at childbirth

  • Cesarean section is negatively associated

    with postpartum pain


Evaluations l.jpg

Evaluations

  • Consider extraskeletal causes for backache

  • Atypical presentations or pain refractory to the usual care may indicate more significant, although rare , pathology

  • Differentiation from similar symptoms from direct fetal pressure on nerve roots is necessary

  • Routine examination and specific tests


Evaluations20 l.jpg

Evaluations

  • Specific test

    • Straight-leg raising test

    • PSIS pressure in the standing

    • Sacrospinous and sacrotuberous ligament pressure

    • Pubic symphysis pressure

    • Femoral compression test ( thigh thrust test )

    • Iliac or ventral gapping test, dorsal gapping test

    • Patrick test

    • Pelvic torsion ( Gaenslen test )

    • Fortin finger test

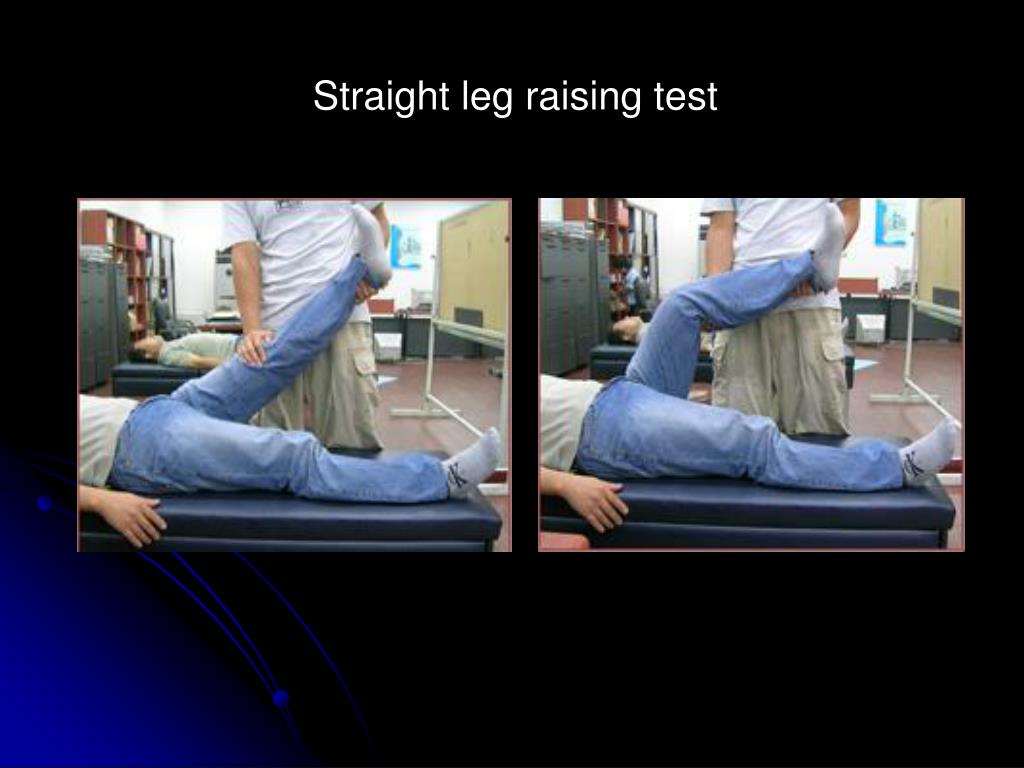

Slide21 l.jpg

Straight leg raising test


Slide22 l.jpg

Sacrospinous & sacrotuberous ligament tenderness

suggest a pelvic contribution to the pain


Slide23 l.jpg

Femoral compression test / posterior shear

-Sacral area or ipsilateral buttock

Iliac compression test

-sacral and buttock


Slide24 l.jpg

Patrick test

-sacroiliac area

Pelvic torsion / Gaenslen


Evaluations25 l.jpg

Evaluations

  • Radiographic evaluation

    • Plain film

      • Lumbar spine x-ray 0.031 to 4.0 RADS

      • Pelvis XRAy (AP) < 2.2RADS

    • Ultrasound

    • MRI

    • Electromyography and nerve conduction study


Harmful radiation levels to fetus l.jpg

Harmful Radiation Levels to fetus

  • RADS : 5 -10

    • Fetal Exposure in first 47 days: Spontaneous Abortion

    • Fetal Exposure after 47 days: Live fetus

      • Risk of congenital malformation increased 1 to 3%

      • Mental retardation and other CNS effects

      • Microcephaly

      • Intrauterine Growth restriction

    • First trimester exposure (especially <8 weeks)

      • Risk of childhood cancer

  • RADs: 200

    • Infertility Risk

    • Higher risk to fetus in early pregnancy


Treatments l.jpg

Treatments

  • Rest

  • Daily low back exercise

  • Pelvic tilt exercise

  • Simple measure taught in back care programs;

    placing one foot on afoot stool when standing

  • Maternity cushion

  • Elastic compression stocking

  • Trochanteric belt for posterior pelvic pain

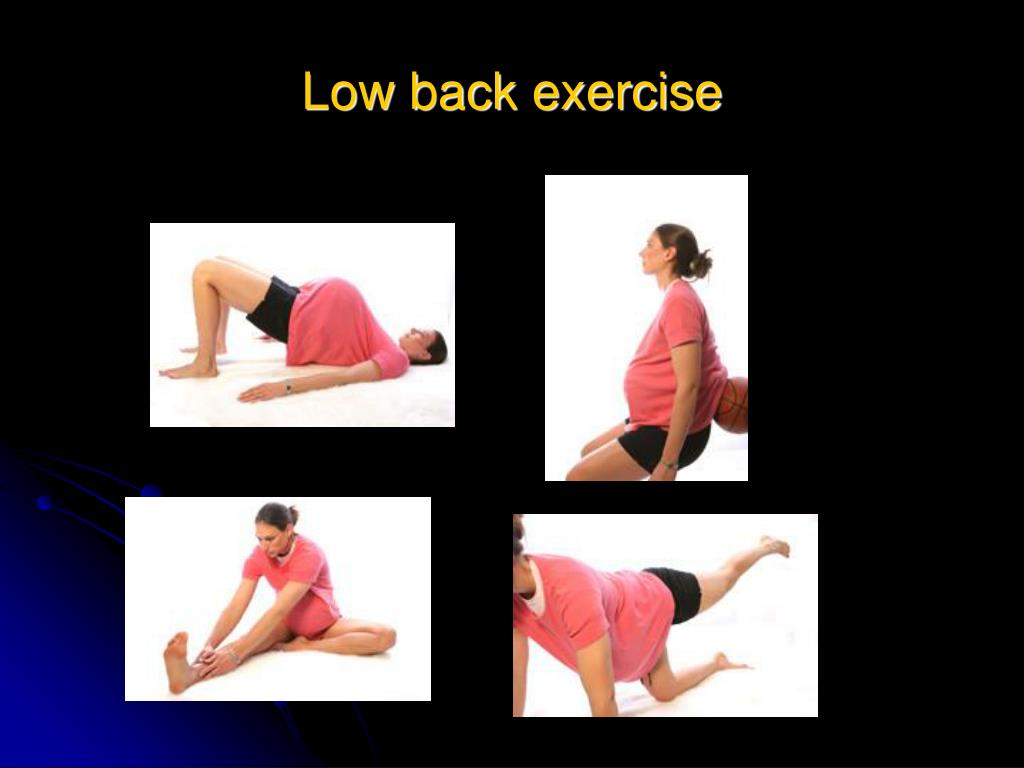

Low back exercise l.jpg

Low back exercise


Maternity cushion l.jpg

Maternity cushion


Elastic compression stocking and belt l.jpg

Elastic compression stocking and belt


Treatments33 l.jpg

Treatments

  • Analgesic agents

  • Lumbar epidural steroids

  • Transcutaneous electrical nerve stimulation

  • Sacroiliac injection with corticosteroids and local anesthetic in severe care


Analgesics l.jpg

Analgesics

  • Class B: No risk in controlled animal studies

  • Acetaminophen (Tylenol)

    • Analgesic of choice in pregnancy

  • Narcotics (Class D if prolonged use or high dose)

    • Fentanyl (Duragesic)

    • Morphine Sulfate

  • NSAIDs (first or second trimester only)

    • Ibuprofen (Motrin)

    • Indomethacin (Indocin)

    • Naproxen (Naprosyn)

    • Piroxicam (Feldene)


Analgsics l.jpg

Analgsics

  • Class C: Small risk in controlled animal studies

  • Narcotics (Class D if prolonged use or high dose)

    • Codeine (Tylenol with codeine

    • Tramadol (Ultram)

  • NSAIDs (first or second trimester only)

    • Aspirin

  • Class D: Strong evidence of risk to the human fetus

  • Aspirin

    • Used only with specific indications in pregnancy

    • Risk of neonatal hemorrhage, IUGR, perinatal death

    • Low dose Aspirin may be safer

  • All NSAIDs (Third Trimester)


Lumbar epidural steroids l.jpg

Lumbar epidural steroids


Slide37 l.jpg

TENS

  • transmission of low-voltage electrical impulses from a

    handheld battery-powered generator to the skin via surface electrodes


Sacroiliac injection l.jpg

Sacroiliac injection


Spondylolysis and spondylolithesis l.jpg

Spondylolysis and spondylolithesis

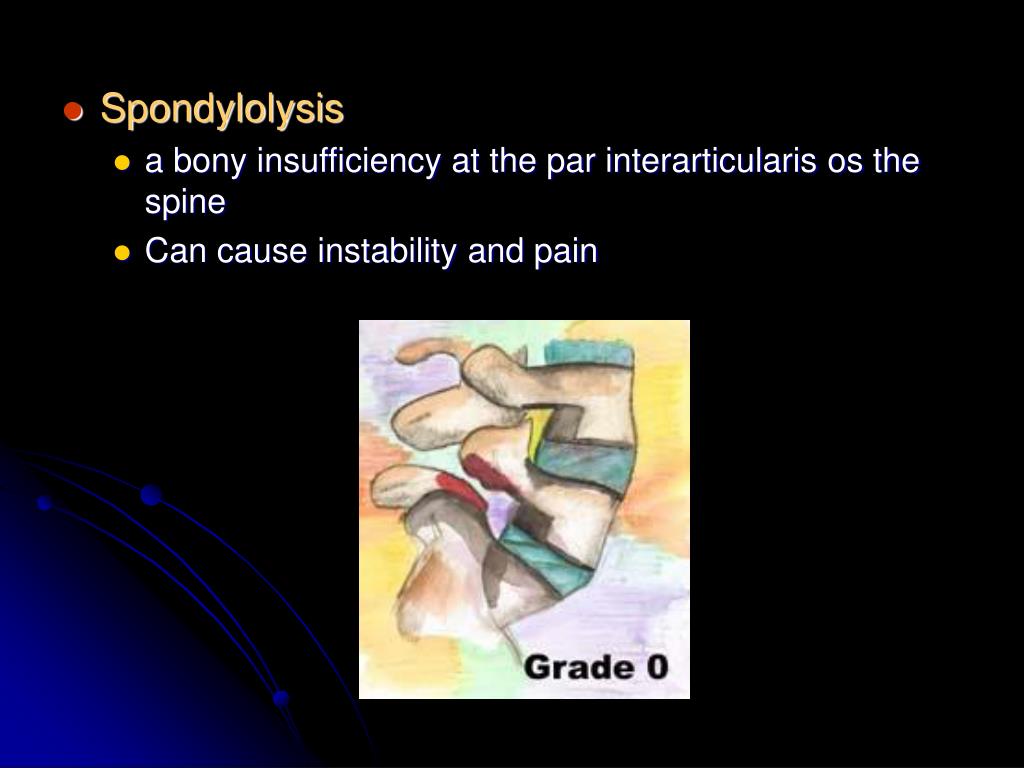

Slide40 l.jpg

  • Spondylolysis

    • a bony insufficiency at the par interarticularis os the spine

    • Can cause instability and pain


Slide41 l.jpg

  • Spondylolithesis

    • The slipping forward of one vertebra on another

    • Can result from a spondylolytic defect or from degenerative change in the facet joints

    • Common in males than females , but higher chance of progression in female

    • Common occur at the L5-S1


Slide42 l.jpg

  • No significant differences in symptomatology , impairment, degree of slip , or progression of slip in men , nulliparous and parous wome

  • Spondylolysis ,with or without spondylolithesis, was not a risk factor for pregnancy complications

  • Women who had borne children had a significantly higher incidence of degenerative spondylolithesisthan those who was not


Management options l.jpg

Management options

  • Rest and immobilization

  • Analgesic agent


Scoliosis l.jpg

Scoliosis


Slide45 l.jpg

  • Scoliosis

    • A three – dimensional deformity of the spine most prominently manifested by curvature in the coronal plane

    • Usually idiopathic , commonly familial

    • Common in females than in males


Slide46 l.jpg

  • No significant increase in the rate and incidence of curve progression during pregnancy

  • Somes have severe back pain during pregnancy

  • Spinal anesthesia may not be possible

  • The incidence of complications or deformity in the newborn was not increased

  • Postpartum back pain not greater than general population


Slide47 l.jpg

  • Women of childbearing age with curves greater than 30 degrees , radiographs should be done soon after each delivery


Pelvic arthropathy and pubic symphysis rupture l.jpg

Pelvic arthropathy and pubic symphysis rupture


Pelvic arthropathy l.jpg

Pelvic arthropathy

  • Occur in two recognizable syndromes

    • Abnormal mobility of the pelvic joints may lead to pain and waddling gait

    • After difficult delivery, there may be a ruptue of the symphysis


Pelvic arthropathy50 l.jpg

Pelvic arthropathy

  • Clinical pain with walking, turning to bed , or other exertion,unilateral or bilateral waddling gait

  • Asymmetrical SI laxity is much more associated with pelvic pain than absolute laxity

  • Diagnosis : history of pregnancy , pain at the pubic symphysis or SI joints, tender, laxity of

    ligaments


Pelvic arthropathy51 l.jpg

Pelvic arthropathy

  • Investigation : Ultrasonography / MRI

  • Management

    • Rest with / without a pelvic band

    • Analgesics


Rupture of the pubic symphysis l.jpg

Rupture of the pubic symphysis

  • Slight widening of the symphysis occur during a normal pregnancy, but not more than 8-9 mm.

  • Abrupt onset of pain , may be accompany by audible “ crack “

  • Associated factors

    • Hard lobor

    • Preciptous labor

    • Difficult forcep delivery

    • Abnormal presentation

    • Forceful abduction of the thighs

    • Previous pelvic trauma


Rupture of the pubic symphysis53 l.jpg

Rupture of the pubic symphysis

  • Associated factors

    • Hard lobor

    • Preciptous labor

    • Mutiparity

    • Difficult forcep delivery

    • Abnormal presentation

    • Forceful abduction of the thighs

    • Previous pelvic trauma


Rupture of the pubic symphysis54 l.jpg

Rupture of the pubic symphysis

  • Management

    • Tight pelvic binding

    • Rest in the lateral decubitus position

    • External fixation


Rupture of the pubic symphysis55 l.jpg

Rupture of the pubic symphysis

  • Complication

    • Nonunion

    • Pubic degenerative joint disease

    • Osteitis pubis

    • Hemorrhage


Postpartum osteitis pubis l.jpg

Postpartum osteitis pubis


Slide57 l.jpg

  • Non-infective osteonecrosis that begin at the pubic symphysis and extend into pubic bone

  • Pain and pubic tenderness like pelvic arthropathy

  • Investigate film rarefaction of the pubic bone without symphyseal widening

  • Self – limited

  • Management ; Steroids and NSAIDs


Stress fractures of the pubic bone l.jpg

Stress fractures of the pubic bone


Slide60 l.jpg

  • Rare condition during pregnancy

  • Cause due to ligament laxity , muscle imbalance and increase load

  • Clinical insidious pain, tender at fracture

  • Investigate film , MRI

  • Management symtomatic


Transient osteoporosis of the hip l.jpg

Transient osteoporosis of the hip


Transient osteoporosis of the hip63 l.jpg

Transient osteoporosis of the hip

  • Gradually developing pain in hip with weight bearing, predominate in anterior thigh and groin

  • Pain relieved by rest

  • Symptoms begin in the third trimester

  • Unknown cause

  • No history of trauma

  • Normal musculoskeletal exam ,except for discomfort at the extreme hip motion


Transient osteoporosis of the hip64 l.jpg

Transient osteoporosis of the hip

  • X-ray : osteopenia , preserved joint space

  • MRI : joint effusion and diffuse signal abnormality in the marrow

  • The condition is self- limited

  • Management : conservative

    • Protection from weight-bearing

    • Maintenance of joint motion

    • Analgesic medications


Avascular necrosis of the hip l.jpg

Avascular necrosis of the hip


Avascular necrosis of hip l.jpg

Avascular necrosis of hip

  • Symptoms begin in the third trimester

  • Clinical

    • hip pain with weight bearing , relieved by rest

    • No associated history of trauma or illness

    • Normal musculoskeletal examination , except for discomfort at the extremes of hip motion


Avascular necrosis of hip67 l.jpg

Avascular necrosis of hip

  • X-ray : differ from transient osteoporosis

    “crescent sign” with subchondral lucency

    or subchondral callapse of weight-

    bearing dome of femoral head


Hip arthroplasty l.jpg

Hip Arthroplasty


Slide69 l.jpg

  • There are few rare indications for hip joint replacement

    in the young

    • Avascular necrosis of the hip

    • Severe rheumatoid disease

    • Certain aggressive tumorous conditions

  • Dislocation during positioning is a theoretical concern

  • Dangerous positions ; hip flexion with internal rotation

    and, to a lesser extent, hip extension with external

    rotation


Slide71 l.jpg

  • Usually no significant problem encountered nor special

    management required

  • Normal birthing position can be used


Slide72 l.jpg

  • Avoid flexion to more than 90 degrees and internal rotation or adduction of the hips


Conclusions l.jpg

Conclusions


Slide74 l.jpg

  • Back and pelvic pain are common complaints in pregnancy

  • Risk factors for back pain during pregnancy include

    • Increasing age

    • Increasing parity

    • Younger age

    • Back pain before pregnancy

    • Increased lumbar lordosis before pregnancy

    • Smoking

    • Physically strenuous work


Slide75 l.jpg

  • Risk factors for persistent postpartum pain include

    • Twin pregnancy

    • First pregnancy

    • Higher age at first pregnancy

    • Increased weight of the baby

    • Forceps or vacuum extraction

    • Fundus expression

    • A flexed position of the women at childbirth


Slide76 l.jpg

  • Cesarean section is negatively associated with persistent postpartum pain

  • Extraskeletal causes should always be remembered in the initial evaluation

  • Atypical presentations, or pain refractory to the usual care, may indicate more significant, although rare, pathology


Slide77 l.jpg

  • Radiographic evaluation, although undesirable during pregnancy, may be warranted if insidious causes for pain are suspected

  • MRI may be helpful in the diagnosis of tumor and infection

  • Lesions compressing nerve roots, such as disc herniations, can be initially evaluated with EMG and nerve conduction studies, without exposure to radiation


Thank you l.jpg

THANK YOU


References l.jpg

References

  • High risk pregnancy : management options,

    third edition , section 5


  • Login
