  1. MJO, ENSO, QBO, and Other Patterns

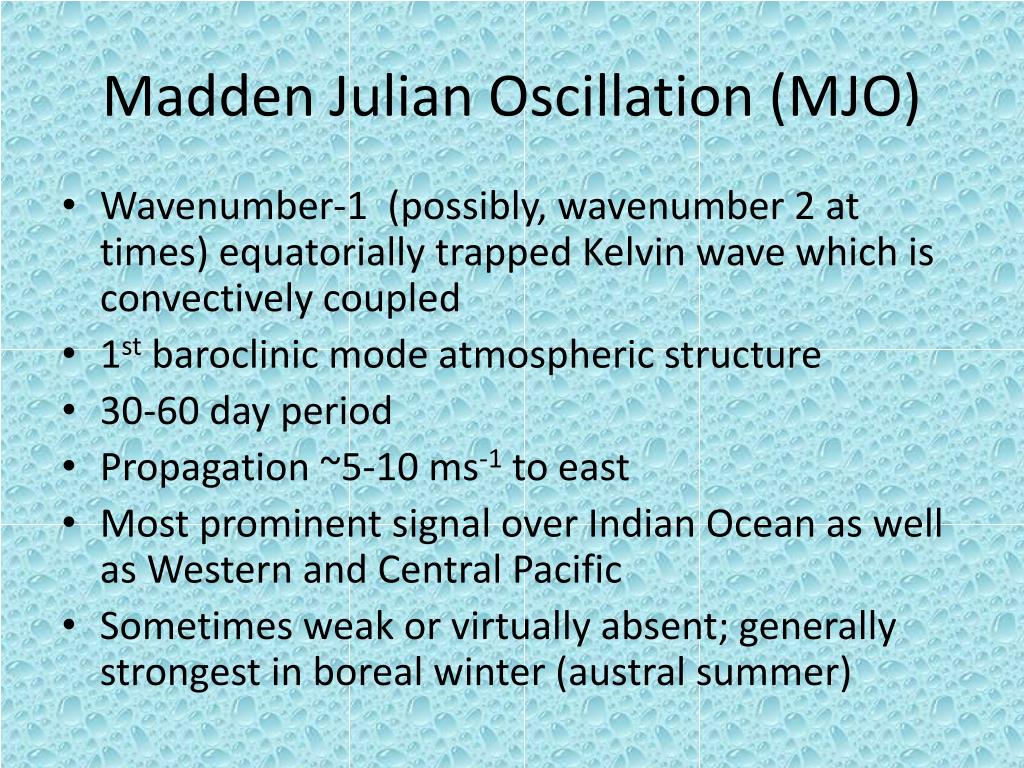

  2. Madden Julian Oscillation (MJO) • Wavenumber-1 (possibly, wavenumber 2 at times) equatorially trapped Kelvin wave which is convectively coupled • 1st baroclinic mode atmospheric structure • 30-60 day period • Propagation ~5-10 ms-1 to east • Most prominent signal over Indian Ocean as well as Western and Central Pacific • Sometimes weak or virtually absent; generally strongest in boreal winter (austral summer)

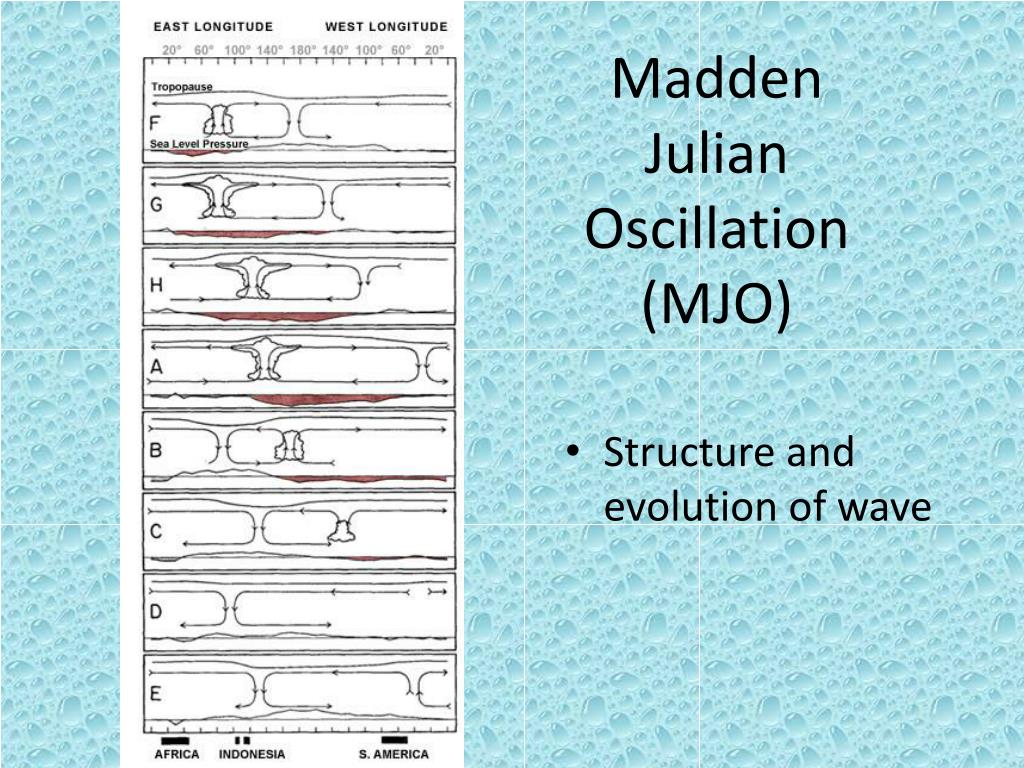

  3. Madden Julian Oscillation (MJO) • Structure and evolution of wave

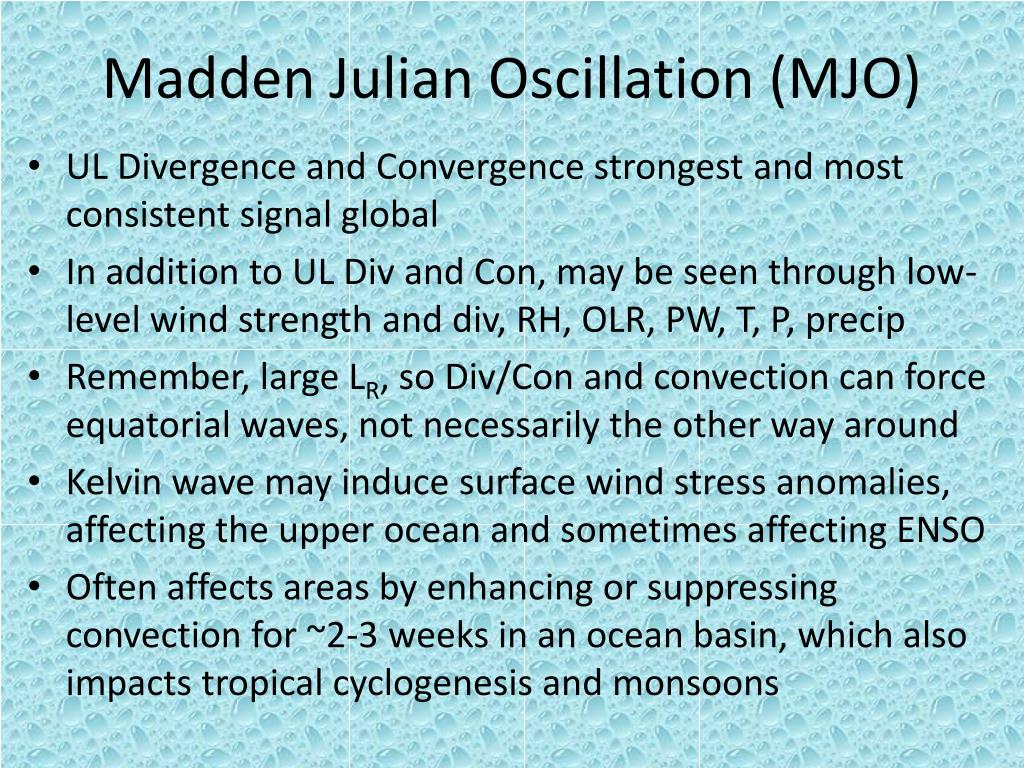

  4. Madden Julian Oscillation (MJO) • UL Divergence and Convergence strongest and most consistent signal global • In addition to UL Div and Con, may be seen through low-level wind strength and div, RH, OLR, PW, T, P, precip • Remember, large LR, so Div/Con and convection can force equatorial waves, not necessarily the other way around • Kelvin wave may induce surface wind stress anomalies, affecting the upper ocean and sometimes affecting ENSO • Often affects areas by enhancing or suppressing convection for ~2-3 weeks in an ocean basin, which also impacts tropical cyclogenesis and monsoons

  5. Madden Julian Oscillation (MJO) • Hovmoller of OLR anomalies and horizontal plots of OLR anomalies- not always obvious in latter

  6. Madden Julian Oscillation (MJO) • Easterly propagating Kelvin wave (negative slope, propagate to the right) • Higher frequency waves- here, WIG- embedded within (positive slope, propagate to the left)

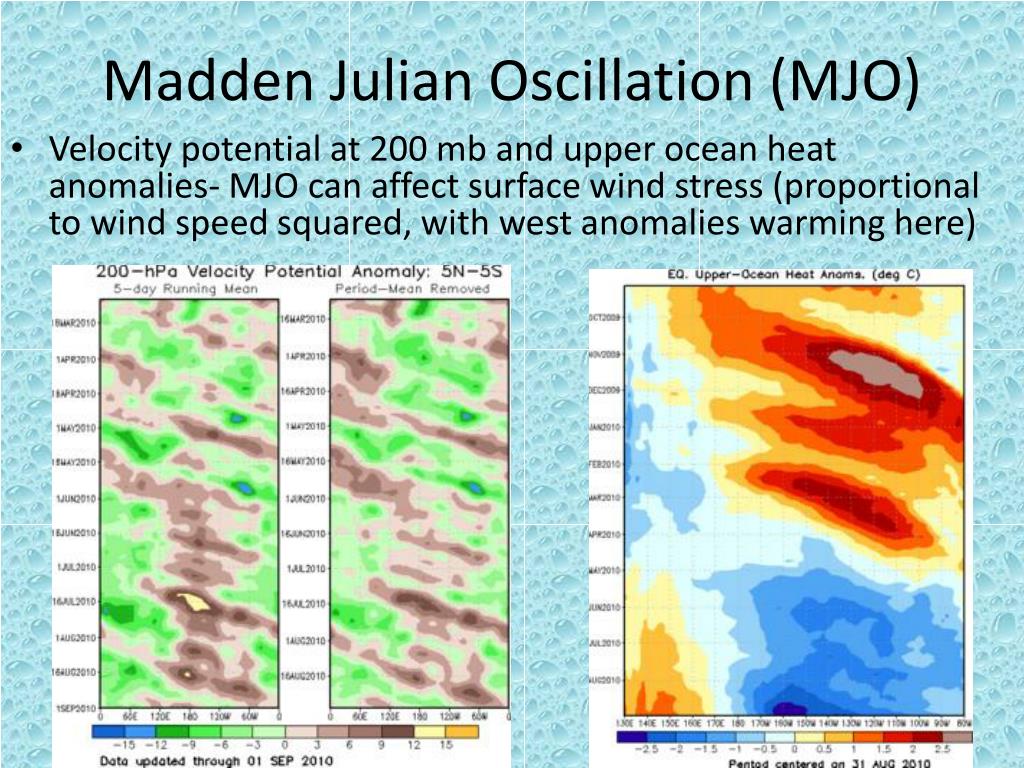

  7. Madden Julian Oscillation (MJO) • Velocity potential at 200 mb and upper ocean heat anomalies- MJO can affect surface wind stress (proportional to wind speed squared, with west anomalies warming here)

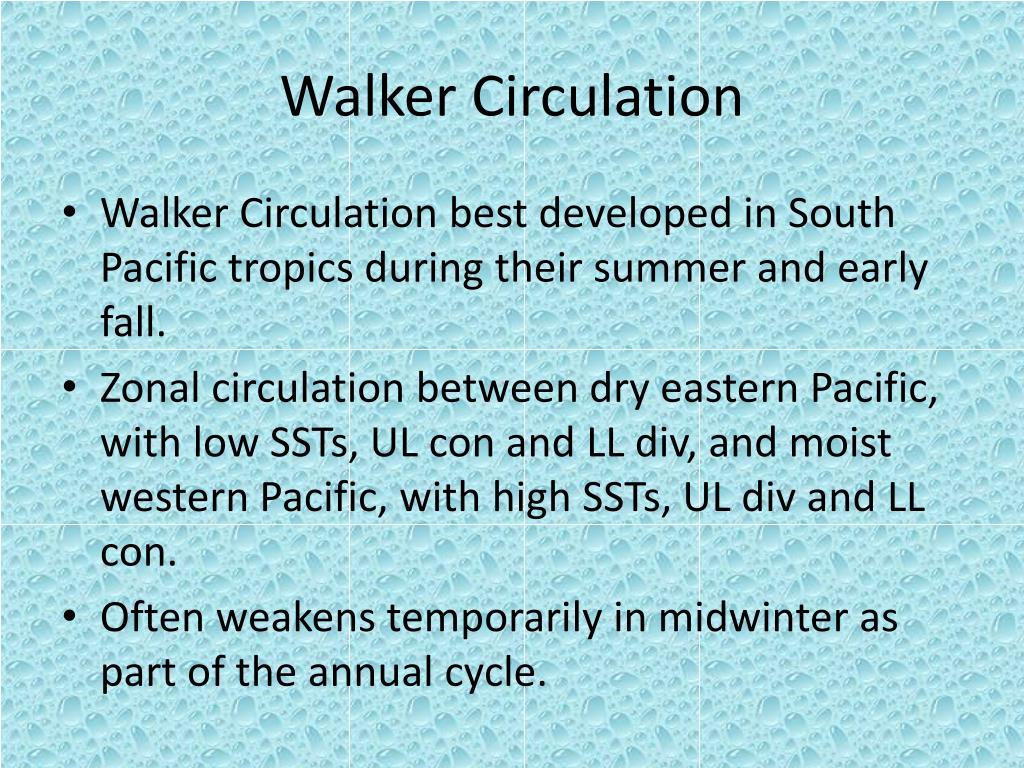

  8. Walker Circulation • Walker Circulation best developed in South Pacific tropics during their summer and early fall. • Zonal circulation between dry eastern Pacific, with low SSTs, UL con and LL div, and moist western Pacific, with high SSTs, UL div and LL con. • Often weakens temporarily in midwinter as part of the annual cycle.

  9. Walker Circulation

  10. El Nino-Southern Oscillation (ENSO) • Irregular periods of warming and cooling of upper ocean in eastern and central equatorial Pacific; period about 2-7 yr • Warm phase (El Nino); Cool (La Nina) • Maximum amplitude of El Nino exceeds La Nina, probably due to average background state • El Ninos typically have shorter durations (1 yr v. 1-3 yr on av)

  11. El Nino-Southern Oscillation (ENSO) • ENSO warm phase onset: SE Pacific surface high generally weakens • Pressure gradient decrease: trades weaker and westerly wind anomalies • SE Pac SST increase due to less upwelling • Increased SST in eastern and central Pacific helps lead to increased rainfall • Equatorial Kelvin and n=1 Rossby waves also appear to do similarly to trade wind and ocean effects as well as deepen eastern and central Pacific thermocline

  12. El Nino-Southern Oscillation (ENSO) • Negative feedback: as central and eastern equatorial Pacific SSTs increase, pressure near equator falls • Pressure gradient between subtropical high and ITCZ increases • Trade wind strength increases, which would increase upwelling of cooler water from below • Also remember (complicating factors): ocean response and adjustment is longer than atmosphere • Other wave forcing is likewise important • LH release in mid to upper troposphere, as well

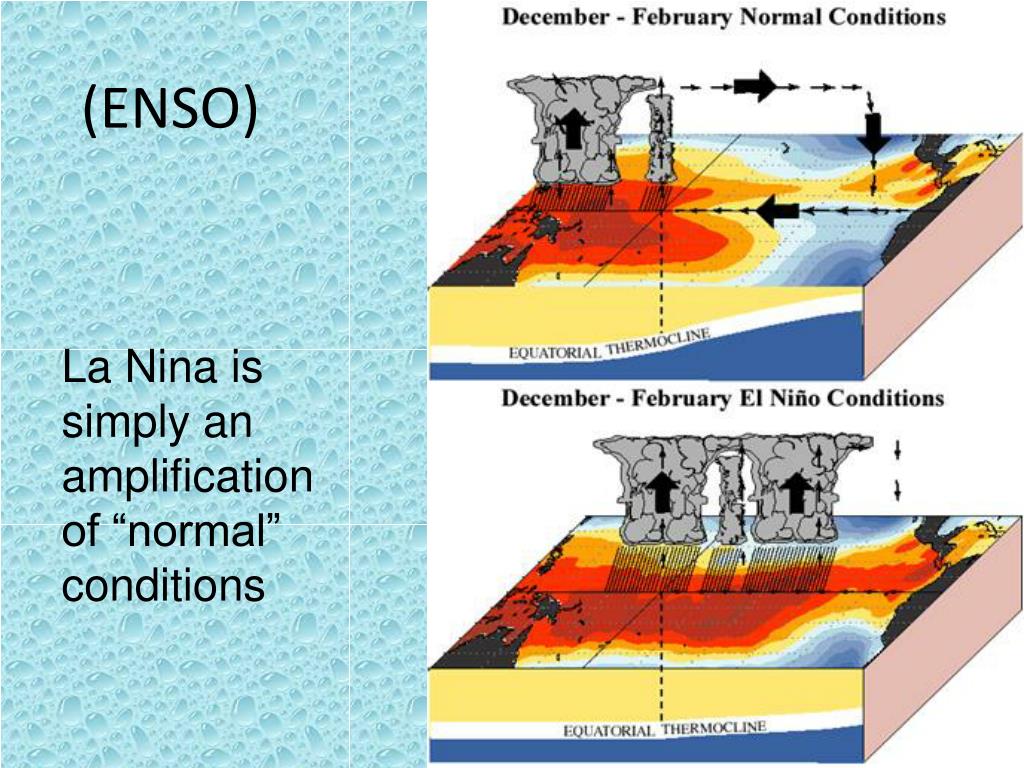

  13. (ENSO) La Nina is simply an amplification of “normal” conditions

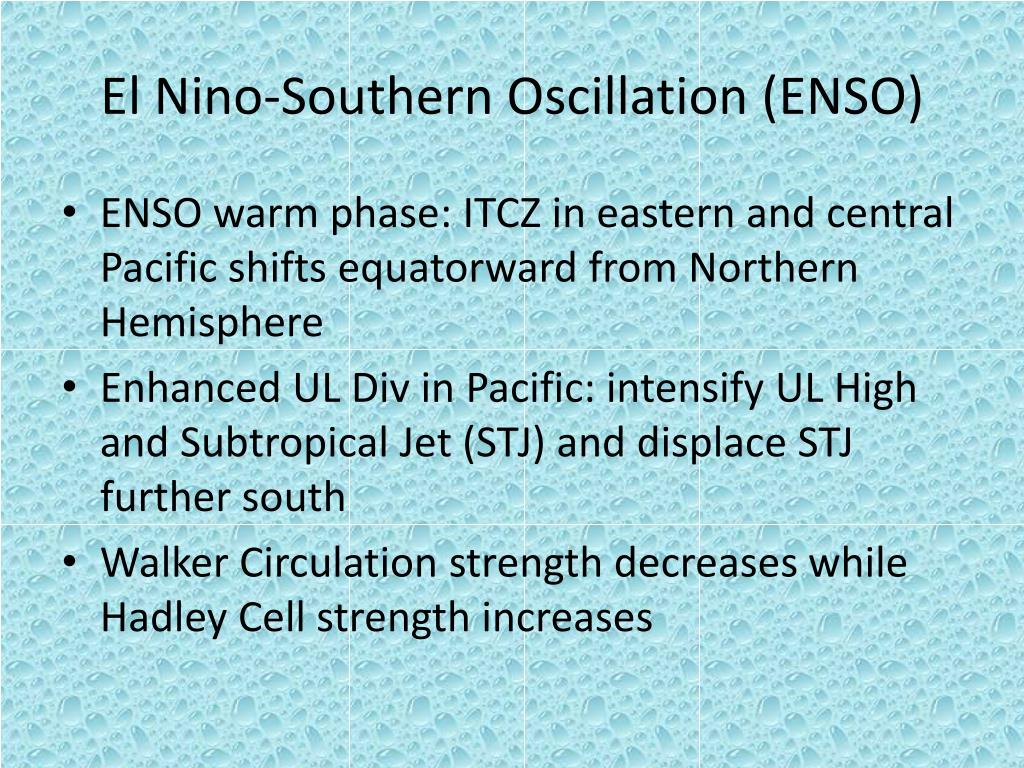

  14. El Nino-Southern Oscillation (ENSO) • ENSO warm phase: ITCZ in eastern and central Pacific shifts equatorward from Northern Hemisphere • Enhanced UL Div in Pacific: intensify UL High and Subtropical Jet (STJ) and displace STJ further south • Walker Circulation strength decreases while Hadley Cell strength increases

  15. El Nino-Southern Oscillation (ENSO) • Various hypotheses to try to explain ENSO formation; equatorial Kelvin and n=1 Rossby waves important to many conjectures and are supported by observations • Various ways to measure ENSO via indices; a robust measure is the Multivariate ENSO Index (MEI): 6 variables- SLP, surface wind zonal component, surface wind meridional component, SST, surface air T, and total cloud fraction; bimonthly measure and takes first principal component of all 6 combined fields

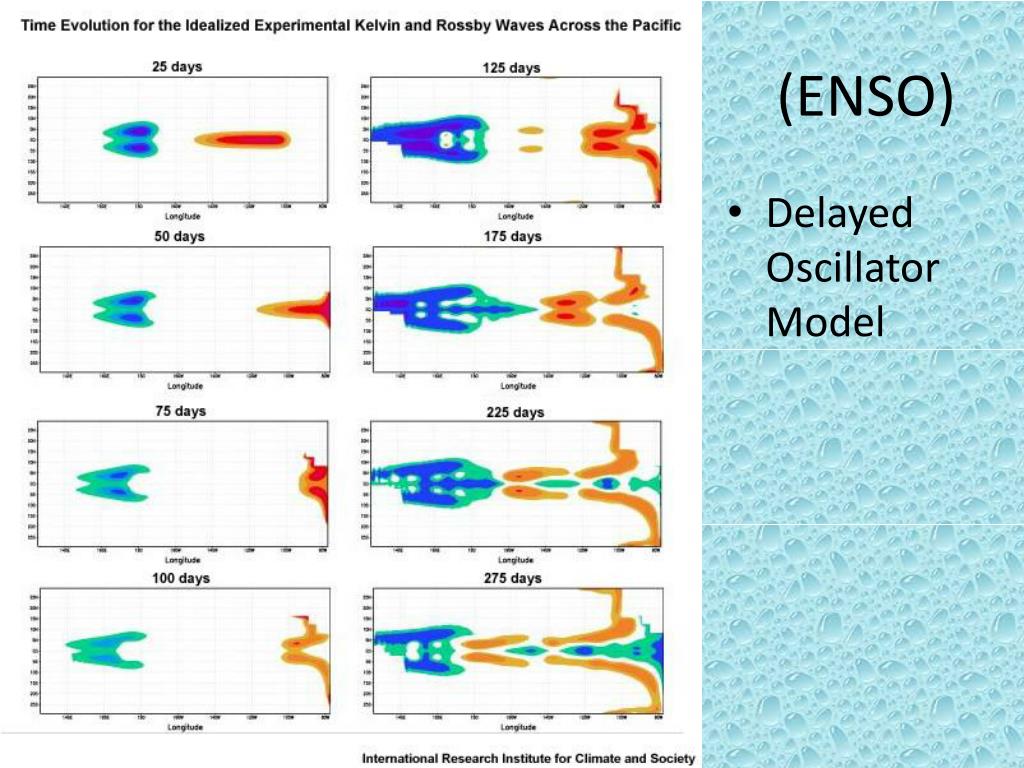

  16. (ENSO) • Delayed Oscillator Model

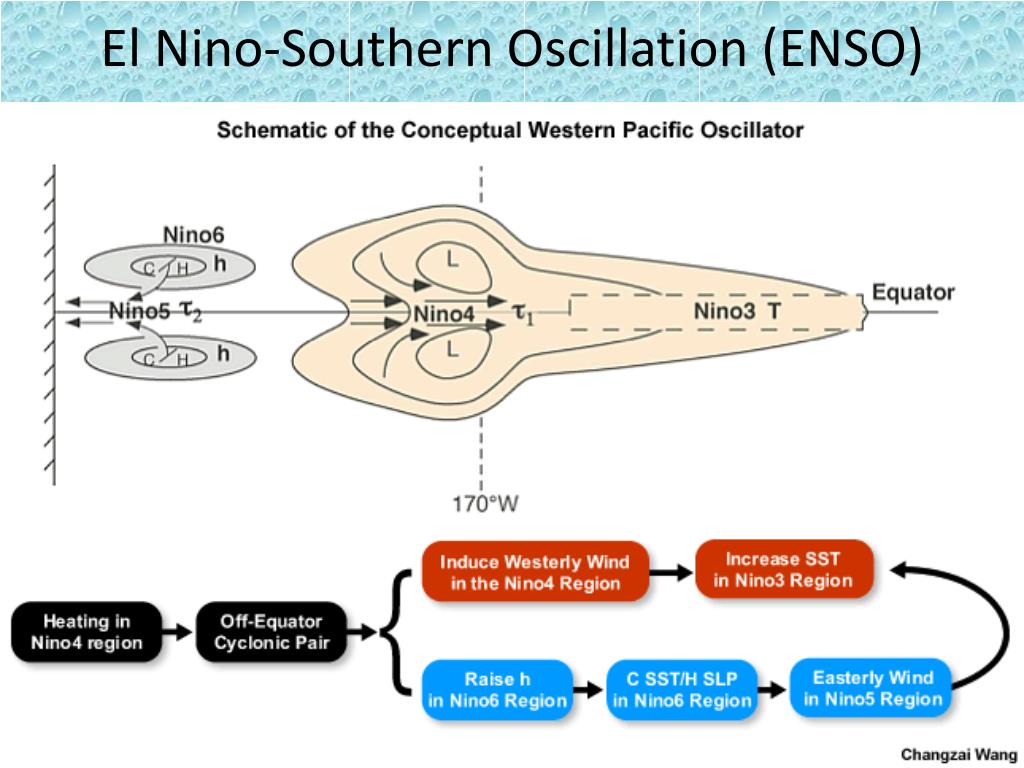

  17. El Nino-Southern Oscillation (ENSO)

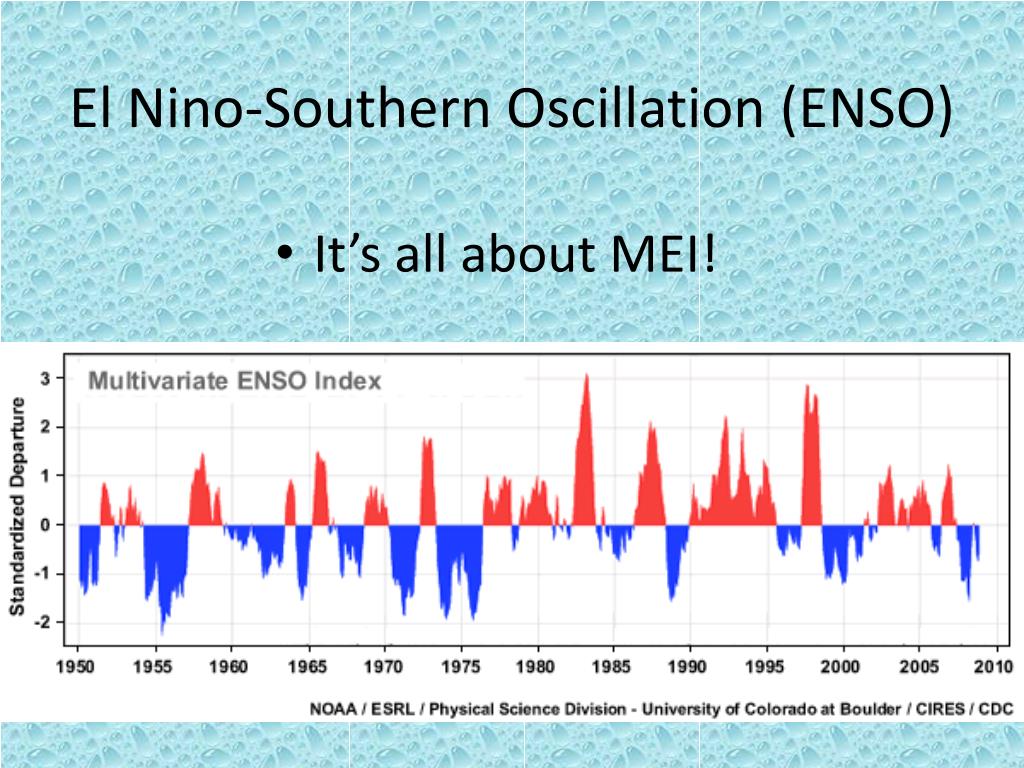

  18. El Nino-Southern Oscillation (ENSO) • It’s all about MEI!

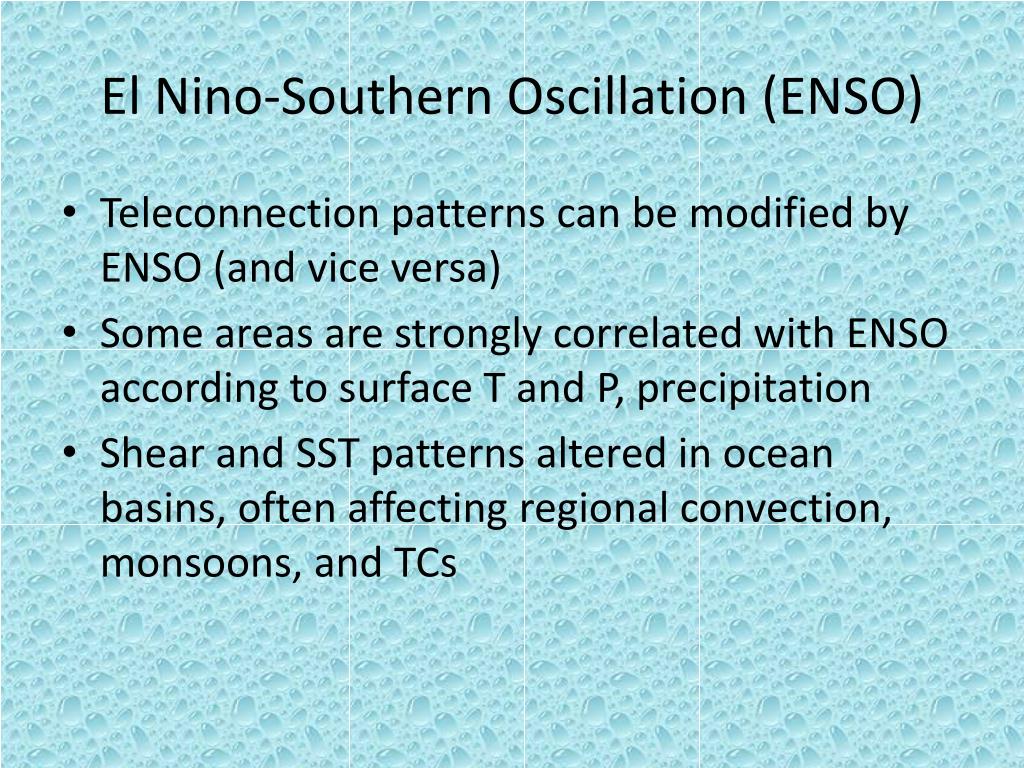

  19. El Nino-Southern Oscillation (ENSO) • Teleconnection patterns can be modified by ENSO (and vice versa) • Some areas are strongly correlated with ENSO according to surface T and P, precipitation • Shear and SST patterns altered in ocean basins, often affecting regional convection, monsoons, and TCs

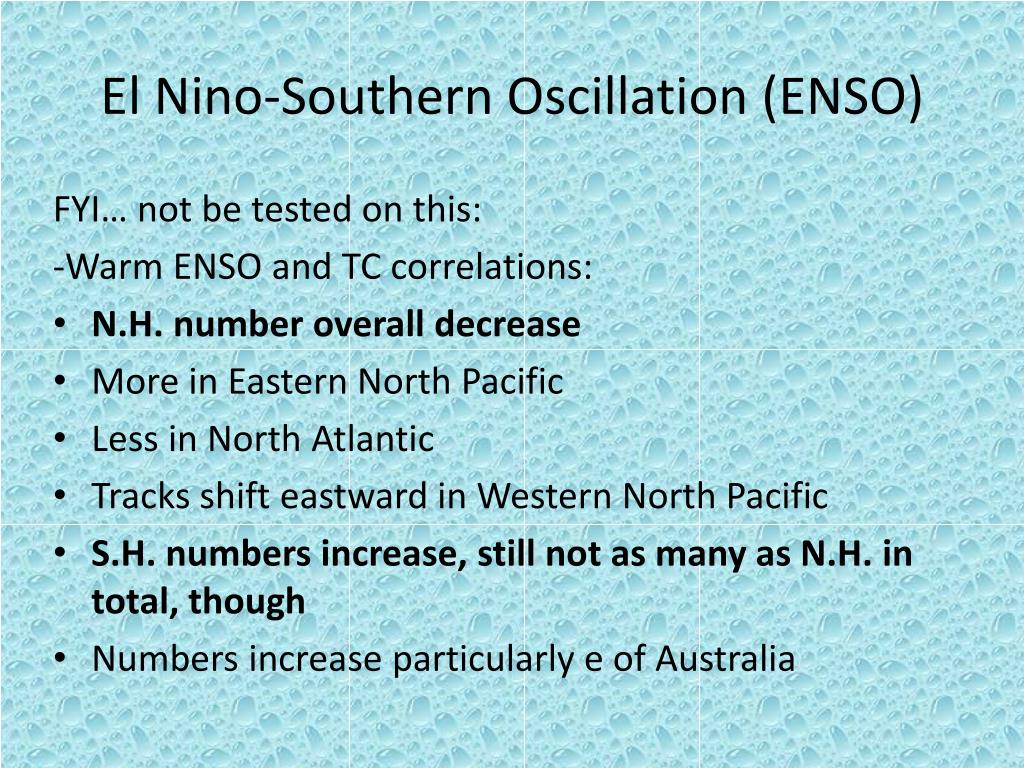

  20. El Nino-Southern Oscillation (ENSO) FYI… not be tested on this: -Warm ENSO and TC correlations: • N.H. number overall decrease • More in Eastern North Pacific • Less in North Atlantic • Tracks shift eastward in Western North Pacific • S.H. numbers increase, still not as many as N.H. in total, though • Numbers increase particularly e of Australia

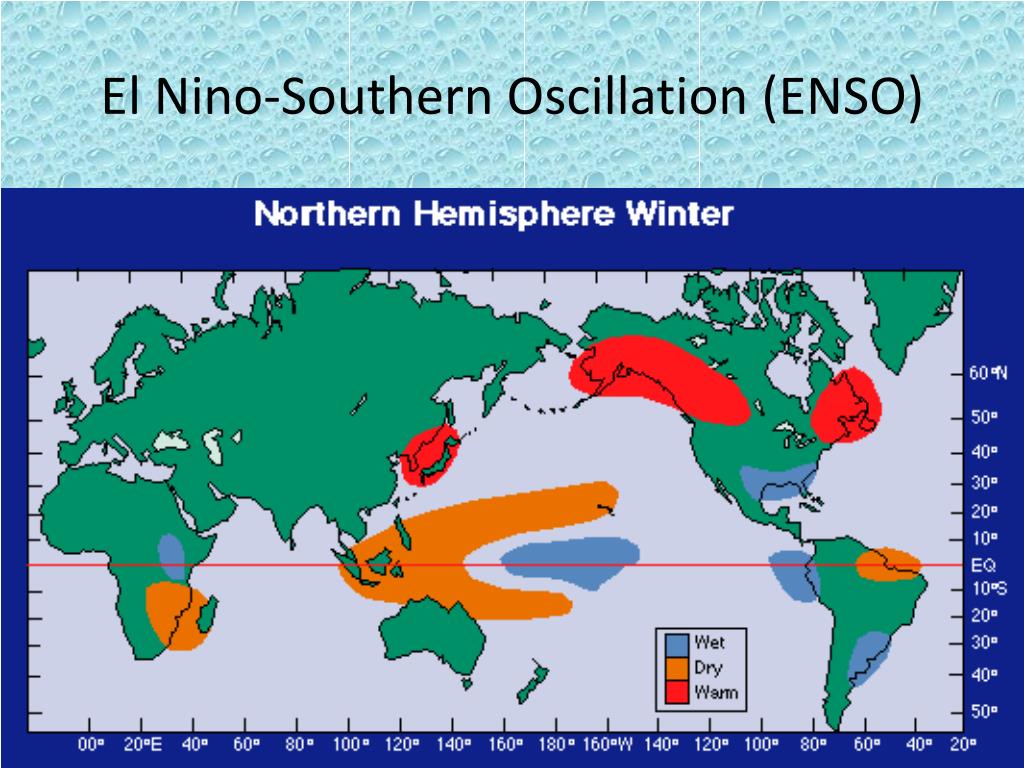

  21. El Nino-Southern Oscillation (ENSO)

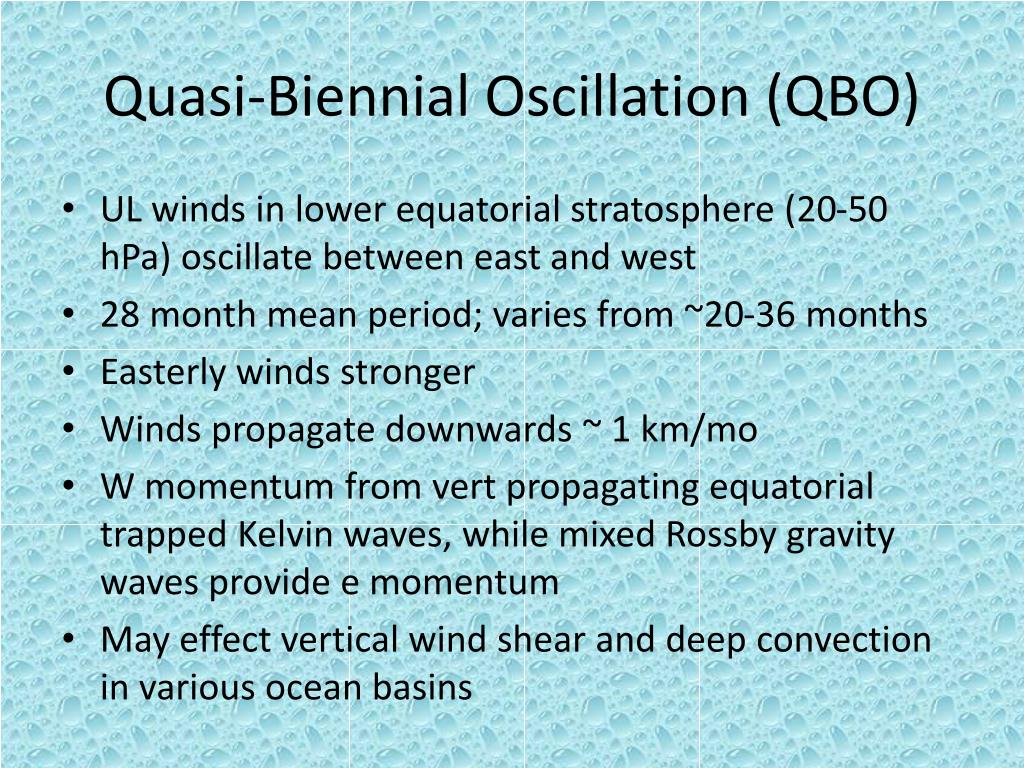

  22. Quasi-Biennial Oscillation (QBO) • UL winds in lower equatorial stratosphere (20-50 hPa) oscillate between east and west • 28 month mean period; varies from ~20-36 months • Easterly winds stronger • Winds propagate downwards ~ 1 km/mo • W momentum from vert propagating equatorial trapped Kelvin waves, while mixed Rossby gravity waves provide e momentum • May effect vertical wind shear and deep convection in various ocean basins

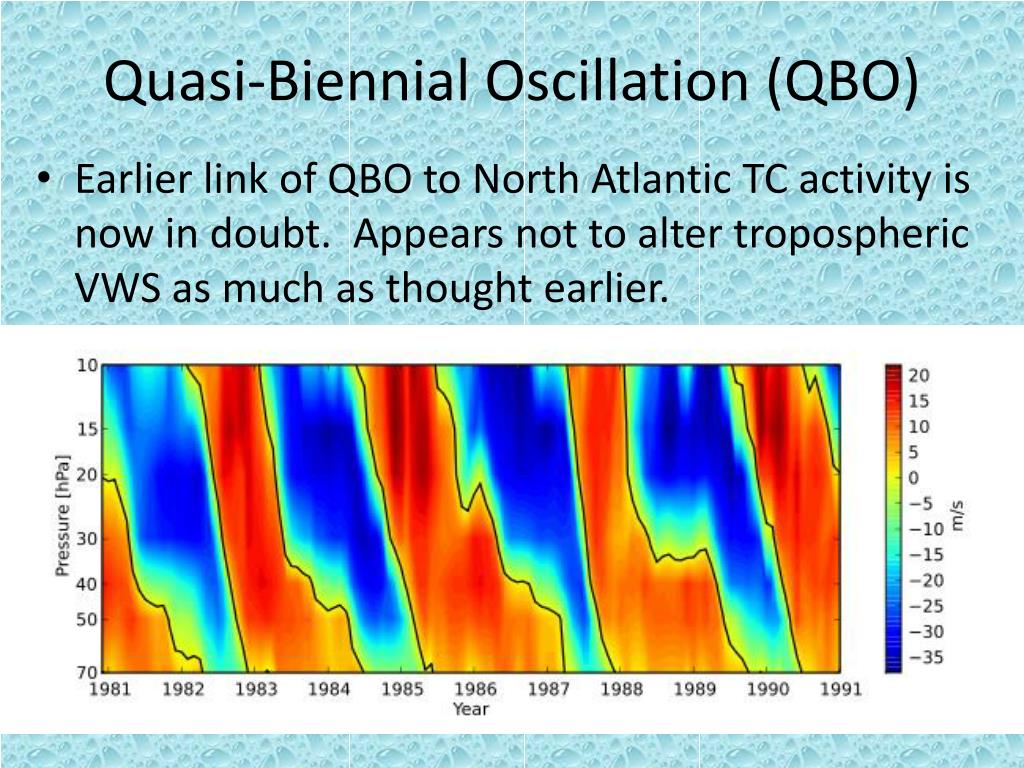

  23. Quasi-Biennial Oscillation (QBO) • Earlier link of QBO to North Atlantic TC activity is now in doubt. Appears not to alter tropospheric VWS as much as thought earlier.

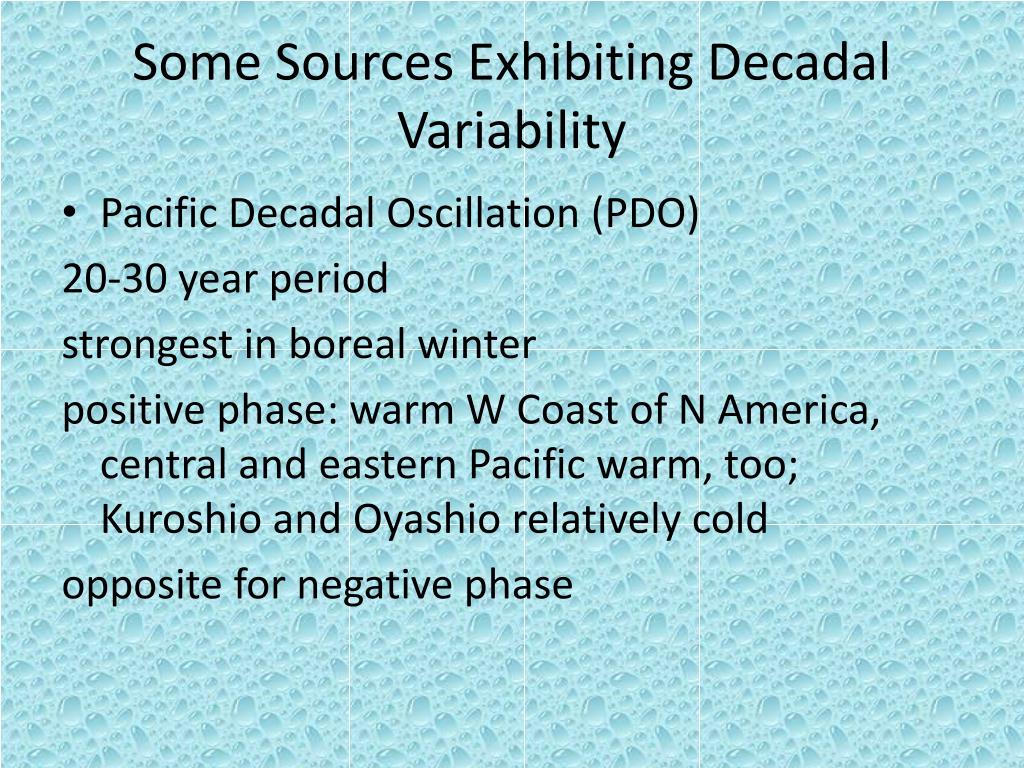

  24. Some Sources Exhibiting Decadal Variability • Pacific Decadal Oscillation (PDO) 20-30 year period strongest in boreal winter positive phase: warm W Coast of N America, central and eastern Pacific warm, too; Kuroshio and Oyashio relatively cold opposite for negative phase

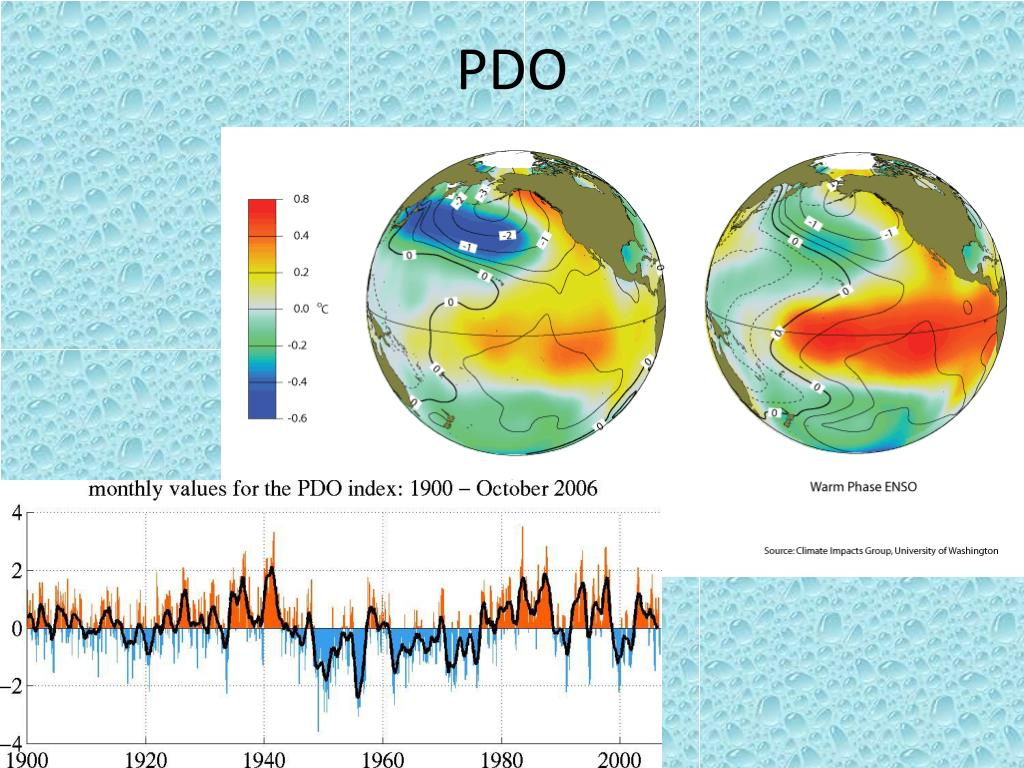

  25. PDO

  26. Some Sources Exhibiting Decadal Variability • Atlantic Multidecadal Oscillation (AMO): Period 20-40 yr in SST and VWS Shift in subtropical ridges and jets Warm phase, such as 1930’s: more hurricanes, less US rain and ne S America; weaker links also include more S Atlantic rain as well as in n Eur, w Afr, and se US; Midwest drought

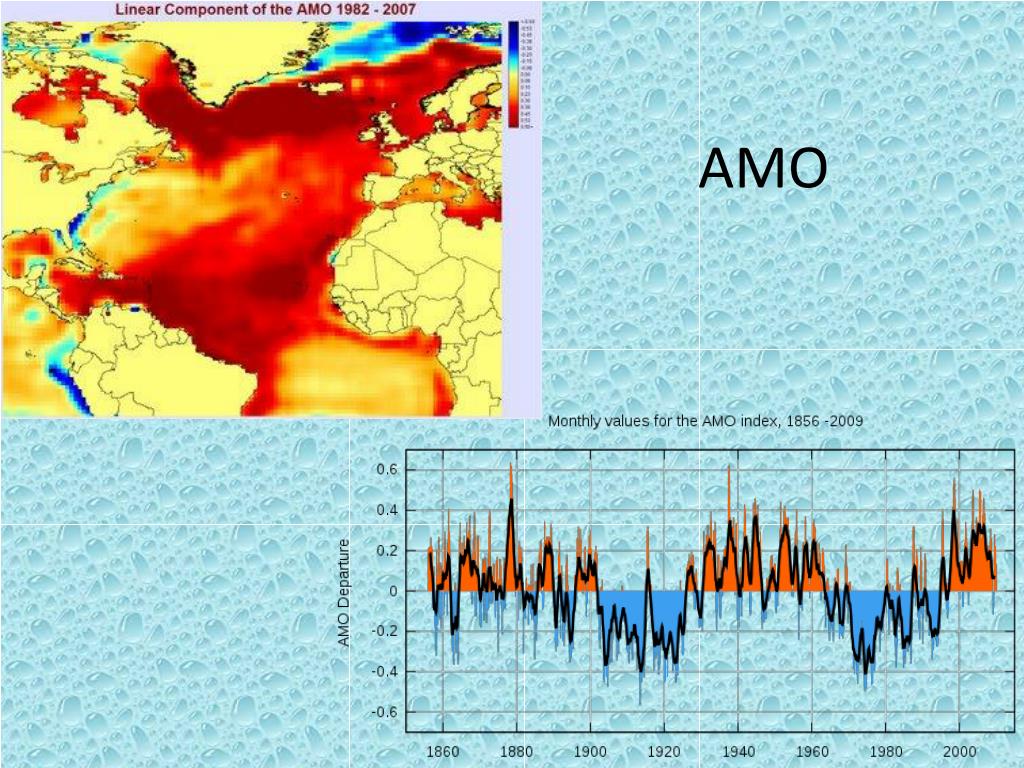

  27. AMO

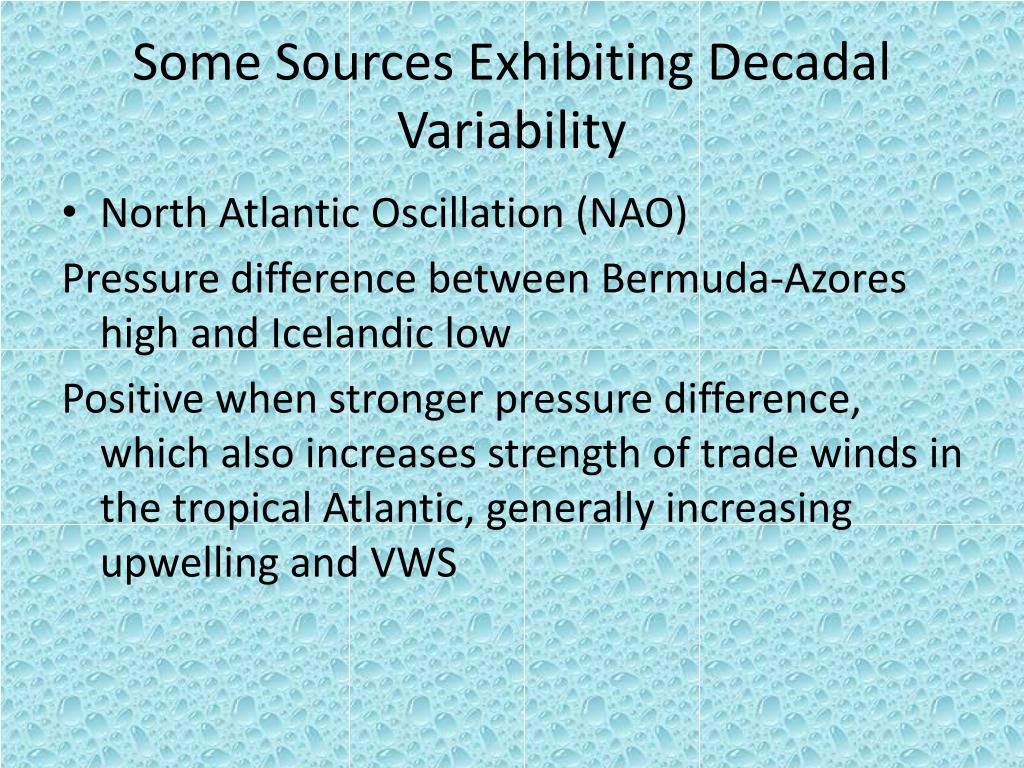

  28. Some Sources Exhibiting Decadal Variability • North Atlantic Oscillation (NAO) Pressure difference between Bermuda-Azores high and Icelandic low Positive when stronger pressure difference, which also increases strength of trade winds in the tropical Atlantic, generally increasing upwelling and VWS

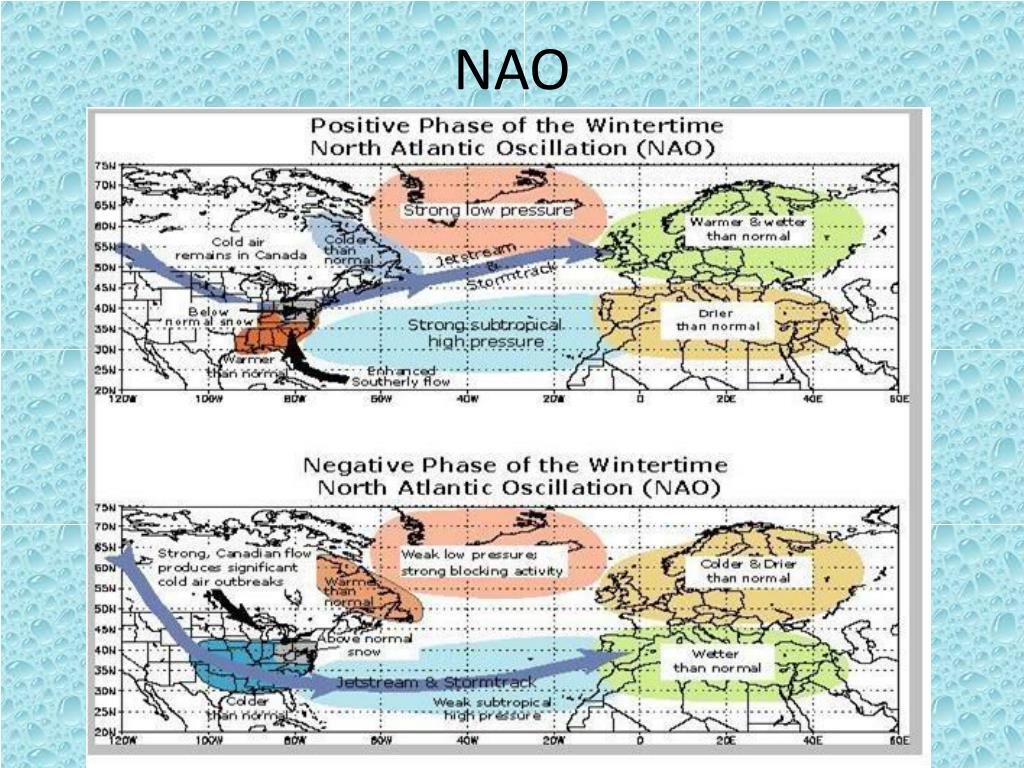

  29. NAO

  30. NAO

  31. End of Material for Test 2
