CHEM 515Spectroscopy

Vibrational Spectroscopy III


Normal modes in water molecule l.jpg

Normal Modes in Water Molecule

x

Q3

z

Q2

Q1


Internal coordinates l.jpg

Internal Coordinates

  • Mathematically, the mass-weighted Cartesian coordinates (Cartesian force constant model) are very convenient. Ab initio calculation utilizes such a model in molecule optimization.

  • A more recognizable way to define the atomic displacement in molecular modeling program is by utilizing internal coordinates.


Internal coordinate definitions l.jpg

Internal Coordinate Definitions

  • It is much convenient to transform from Cartesian coordinates to internal coordinates.

  • These are the main four internal coordinate out of which other internal coordinated can be defined.


Internal coordinate for water molecule l.jpg

r1

r2

θ

Internal Coordinate for Water Molecule

  • The internal displacement of atoms can be defined as change in the three coordinates.

  • Δr1

  • Δr2

  • Δθ


Symmetry coordinates l.jpg

Symmetry Coordinates

  • More preferably than internal coordinates is the use of symmetry coordinates.

  • The concept of molecule symmetry “group theory” is applied with help of projection operators to generate the required 3N – 6 symmetry coordinates.

Symmetry specie

Normalization factor

Projection operator

Operation

New coordinate obtained from Inti upon operation R

Character for symmetry specie γ


Symmetry coordinates7 l.jpg

Symmetry Coordinates

  • This totally symmetric projection operator is used to get a set of symmetric coordinates by linear combinations of internal coordinates.

  • This method is also known as “Symmetry-Adapted Linear Combinations; SALCs)” as proposed by A. F. Cotton.

Symmetry specie

Normalization factor

Operation

New coordinate obtained from Inti upon operation R

Character for symmetry specie γ


Symmetry coordinates of ethylene using salc method l.jpg

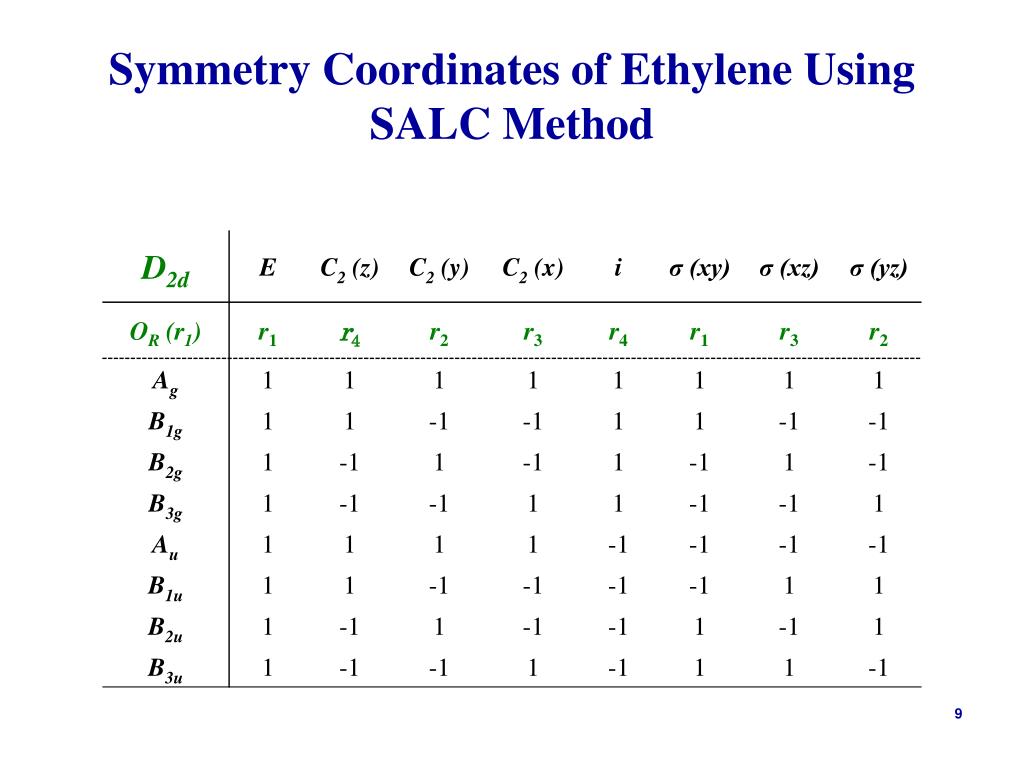

Symmetry Coordinates of Ethylene Using SALC Method


Symmetry coordinates of ethylene using salc method9 l.jpg

Symmetry Coordinates of Ethylene Using SALC Method


Determining the symmetry species for the vibrations in a molecule l.jpg

Determining the Symmetry Species for the Vibrations in a Molecule

  • We are very concerned with the symmetry of each normal mode of vibration in a molecule.

  • Each normal mode of vibration will form a basis for an irreducible representation (Γ) of the point group of the molecule.

  • The objective is to determine what the character (trace) is for the transformation matrix corresponding to a particular operation in a specific molecule.


Symmetry of normal modes of vibrations in h 2 o l.jpg

Symmetry of Normal Modes of Vibrations in H2O

  • H2O has C2v symmetry.

  • Operation E results in the following transformations:


Symmetry of normal modes of vibrations in h 2 o12 l.jpg

Symmetry of Normal Modes of Vibrations in H2O

  • The transformations in the x, y and z modes can be represented with the following matrix transformation:

  • Trace of E matrix is equal to 9.


Symmetry of normal modes of vibrations in h 2 o13 l.jpg

Symmetry of Normal Modes of Vibrations in H2O

  • The operation C2 is more interesting!

  • Operation C2 results in the following transformations:


Symmetry of normal modes of vibrations in h 2 o14 l.jpg

Symmetry of Normal Modes of Vibrations in H2O

  • The transformations in the x, y and z modes can be represented with the following matrix transformation:

  • Trace of C2 matrix is equal to –1.


Determining the symmetry species for the vibrations in a molecule a shorter way l.jpg

Determining the Symmetry Species for the Vibrations in a Molecule: a Shorter Way

  • The matrix transformation method is very cumbersome. However, it can be streamlined tremendously another procedure.

  • Alternative Method:

    • Count unshifted atoms per each operation.

    • Multiply by contribution per unshifted atom to get the reducible representation (Γ).

    • Determine (Γ) for each symmetry operation.

    • Subtract Γtrans and Γrot from Γtot.

      Γvib = Γtot – Γtrans – Γrot .


Determining the irreducible representation for the h 2 o molecule l.jpg

Determining the Irreducible Representation for the H2O Molecule

  • 1. Count unshifted atoms per each operation.


Determining the irreducible representation for the h 2 o molecule17 l.jpg

Determining the Irreducible Representation for the H2O Molecule

  • 2. Multiply by contribution per unshifted atom to get the reducible representation (Γ).


Determining the irreducible representation for the h 2 o molecule18 l.jpg

Determining the Irreducible Representation for the H2O Molecule

  • 2. Multiply by contribution per unshifted atom to get the reducible representation (Γ).


Determining the irreducible representation for the h 2 o molecule19 l.jpg

Determining the Irreducible Representation for the H2O Molecule

  • 3. Determine (Γ) for each symmetry operation.

    ηi : number of times the irreducible representation (Γ) appears for the symmetry operation i.

    h : order of the point group.

    R : an operation of the group.

    χR : character of the operation R in the reducible represent.

    χiR : character of the operation R in the irreducible represent.

    CR : number of members of class to which R belongs.


Determining the irreducible representation for the h 2 o molecule20 l.jpg

Determining the Irreducible Representation for the H2O Molecule


Determining the irreducible representation for the h 2 o molecule21 l.jpg

Determining the Irreducible Representation for the H2O Molecule


Determining the irreducible representation for the h 2 o molecule22 l.jpg

Determining the Irreducible Representation for the H2O Molecule

  • 3. Determine (Γ) for each symmetry operation.

Γtot = 3A1 + A2 + 2B1 + 3B2

  • Number of irreducible representations Γtot must equal to 3N for the molecule.


Determining the irreducible representation for the h 2 o molecule23 l.jpg

Determining the Irreducible Representation for the H2O Molecule

  • Subtract Γtrans and Γrot from Γtot.

Γtot = 3A1 + A2 + 2B1 + 3B2


Determining the irreducible representation for the h 2 o molecule24 l.jpg

Determining the Irreducible Representation for the H2O Molecule

  • Γvib = 2A1 + B2

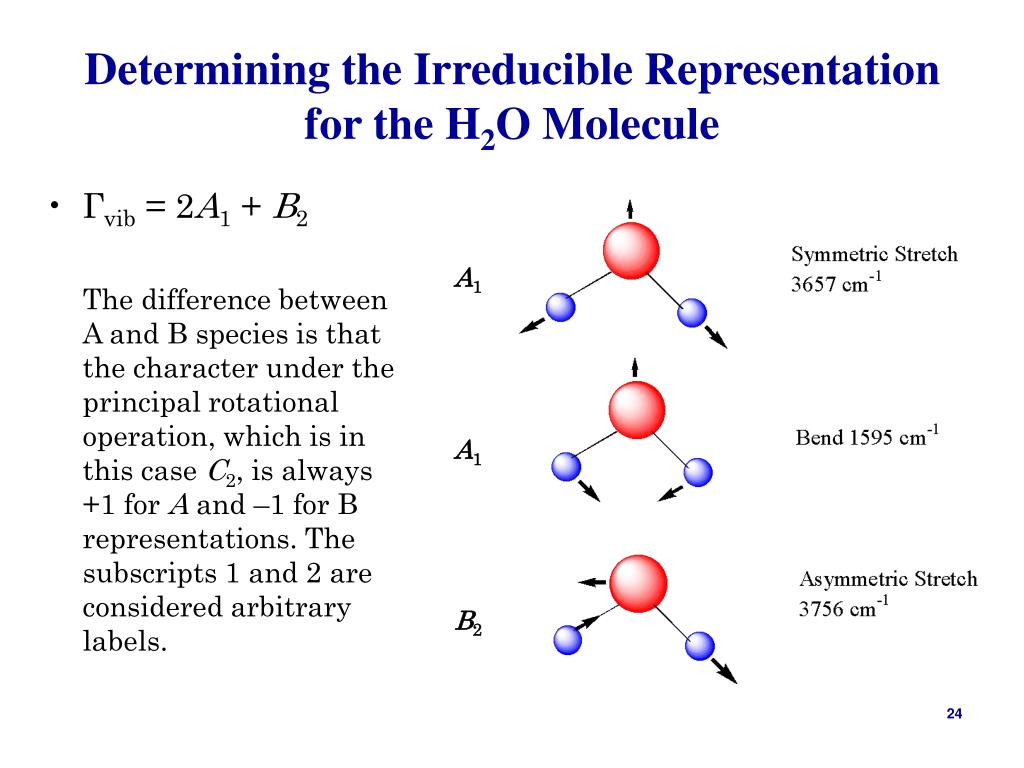

    The difference between A and B species is that the character under the principal rotational operation, which is in this case C2, is always +1 for A and –1 for B representations. The subscripts 1 and 2 are considered arbitrary labels.

A1

A1

B2


Determining the irreducible representation for the h 2 o molecule25 l.jpg

Determining the Irreducible Representation for the H2O Molecule

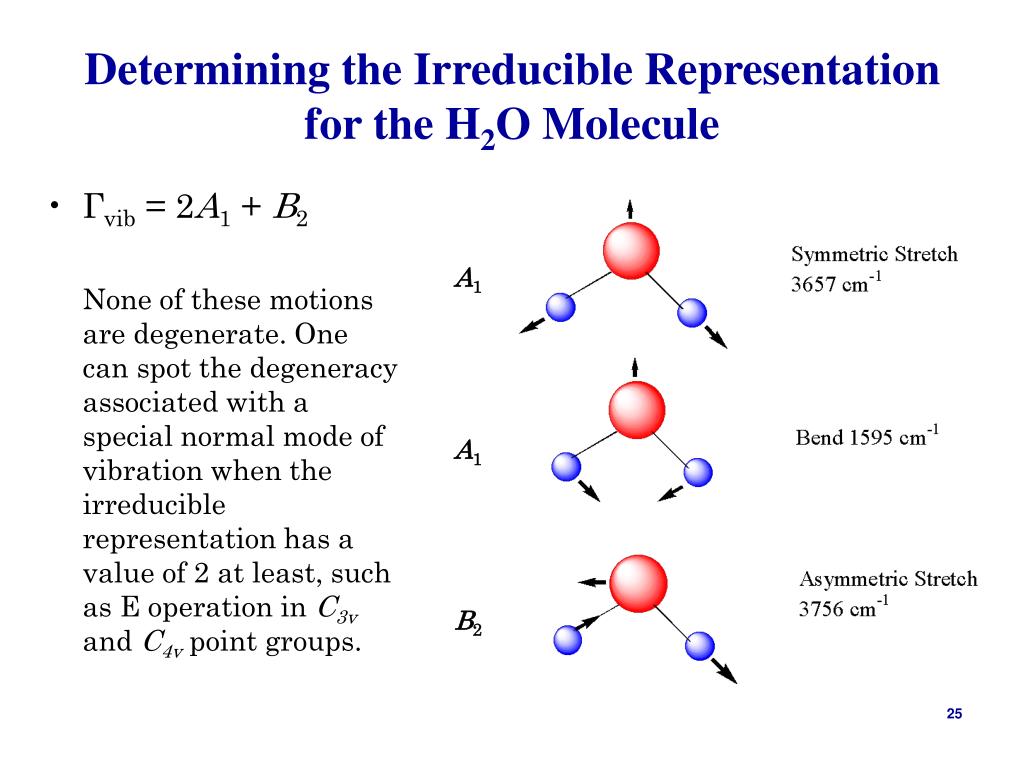

  • Γvib = 2A1 + B2

    None of these motions are degenerate. One can spot the degeneracy associated with a special normal mode of vibration when the irreducible representation has a value of 2 at least, such as E operation in C3v and C4v point groups.

A1

A1

B2


Determining the irreducible representation for ethene l.jpg

Determining the Irreducible Representation for Ethene


Determining the irreducible representation for ethene27 l.jpg

Determining the Irreducible Representation for Ethene


Determining the irreducible representation for ethene28 l.jpg

Determining the Irreducible Representation for Ethene


Normal modes in ethene l.jpg

Normal Modes in Ethene

Physical Chemistry

 By Robert G. Mortimer


Mutual exclusion principle l.jpg

Mutual Exclusion Principle

  • For molecules having a center of symmetry (i), the vibration that is symmetric w.r.t the center of symmetry is Raman active but not IR active, whereas those that are antisymmetric w.r.t the center of symmetry are IR active but not Raman active.


Vibrations in methyl and methylene groups l.jpg

Vibrations in Methyl and Methylene Groups

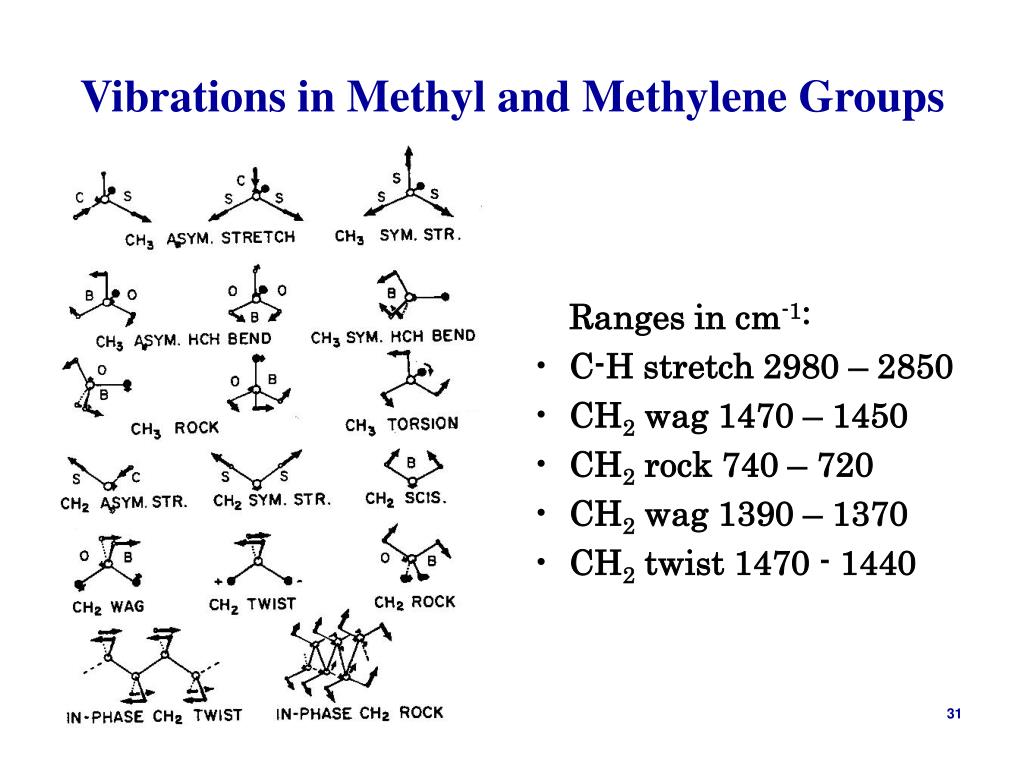

Ranges in cm-1:

  • C-H stretch 2980 – 2850

  • CH2 wag 1470 – 1450

  • CH2 rock 740 – 720

  • CH2 wag 1390 – 1370

  • CH2 twist 1470 - 1440
