Presentation Transcript

Monomeric g proteins

Monomeric G proteins

Alice Skoumalová

Monomeric g proteins

  • General features of chemical messengers - types of receptors

  • Endocrine, paracrine and autocrine actions

  • Examples of chemical messengers

Monomeric g proteins

Ion-channel receptors

Monomeric g proteins

Protein kinase receptors

Monomeric g proteins

Heptahelical receptors (G protein-coupled receptors)

Monomeric g proteins

G proteins = GTP binding proteins

  • They bind GTP (active conformation)

  • They regulate a wide variety of processes in the cell

  • Monomeric G proteins

  • = small G proteins or small GTPases

  • bind GTP (active GTP-bound conformation), interact with effectors, promote various cellular responses

  • catalyze the hydrolysis of the terminal phosphate group (inactive GDP-bound conformation)

  • Heterotrimeric G proteins

  • 3 subunits (α, β, γ)

  • α-subunit binds GTP, dissociates and interacts with an effector


Monomeric g proteins

  • Small GTPases

  • GDP/GTP-regulated molecular switches in signaling pathways („on“ and „off“)

  • two-state structural change that is fundamental for their biological function:

GTP-protein „on“

GDP-protein „off“

Regulatory proteins:

GEFs(guanine nucleotide exchange factors): increase the rate of nucleotide exchange

GAPs(GTPase-activating proteins): increase the rate of the GTP hydrolysis

GDIs(guanine nucleotide dissociation inhibitors): prevent nucleotide exchange

Monomeric g proteins

  • Classification of small GTPases

  • Over 150 mammalian proteins

  • The „Ras superfamily“ related proteins, further divided into families:

  • Ras, Rab, Rho, Arf, Rad, Ran, Rheb, Rit

Monomeric g proteins

Lipid post-translational modification (prenylation)

  • Farnesyltransferase (Ras): the covalent addition of a C15 farnesyl isoprenoid (F) lipid to the cysteine residue of the CAAX motif

  • Geranylgeranyltransferase I (Rho): the covalent addition of a C-20 geranylgeranyl isoprenoid (GG) lipid to the cysteine residue of the CAAX motif

  • Geranylgeranyltransferase II (Rab): the covalent addition of a C-20 geranylgeranyl isoprenoid (GG) lipid to the cysteine residue of the CC, CXC, CCX, CCXXX

Monomeric g proteins

Guanine nucleotide exchange factors (GEFs)

  • regulate activation of small GTPases and their downstream effects

  • responsible for exchanging free cytosolic GTP for bound GDP

Monomeric g proteins

Diverse extracellular signals promote Ras activation by stimulating GEFs

  • common CDC25 homology domain, catalyzes nucleotide exchange

  • different GEFs can be activated by different signals

Monomeric g proteins

GTPase activating proteins (GAPs)

  • accerelate the small GTPase hydrolysis

  • contain the GAP catalytic domain and additional sequences (involved in regulation)

The mutated Ras proteins found in human cancers - insensitive to GAP stimulation - are persistently GTP-bound - deregulated effector activation

Monomeric g proteins

Small GTPase structure

H-Ras functional domains


  • The G domain: four sequences involved in GTP-binding and GTPase activity (structurally similar among small GTPases)

  • The CAAX motif: Ras and Rho

  • Core effector domain: effector binding

  • Switches I and II: change in conformation in the GDP- and GTP-proteins

  • RHO insert: additional sequences

Monomeric g proteins

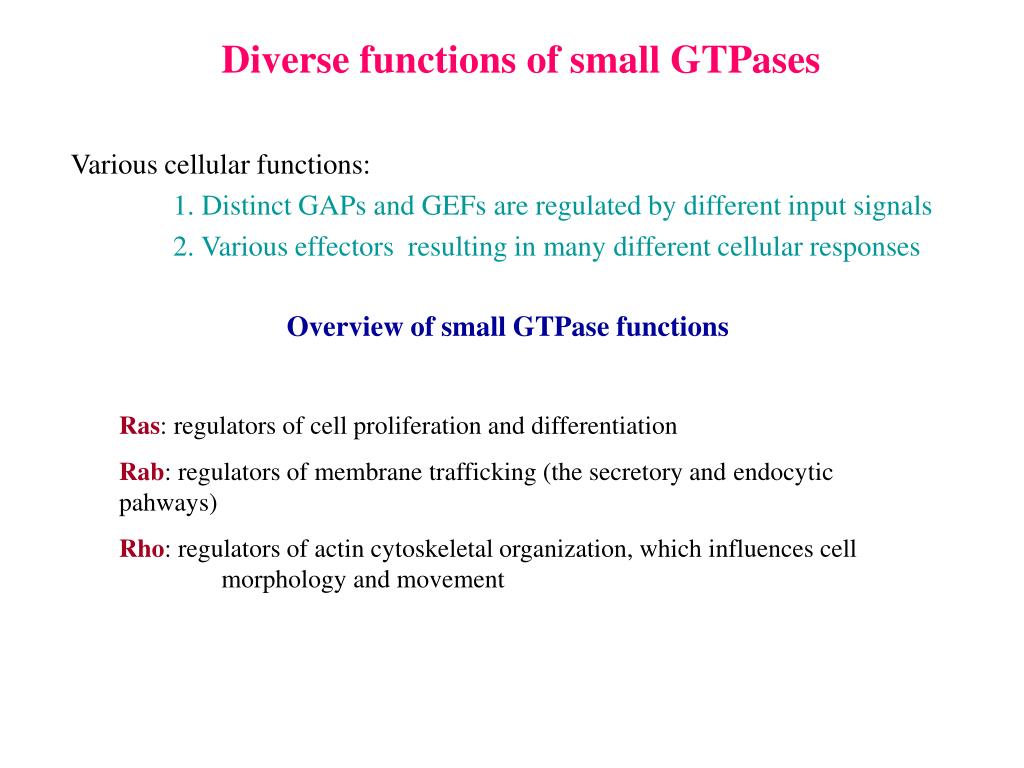

Diverse functions of small GTPases

Various cellular functions:

1. Distinct GAPs and GEFs are regulated by different input signals

2. Various effectors resulting in many different cellular responses

Overview of small GTPase functions

Ras: regulators of cell proliferation and differentiation

Rab: regulators of membrane trafficking (the secretory and endocytic pahways)

Rho: regulators of actin cytoskeletal organization, which influences cell morphology and movement

Monomeric g proteins

Ras GTPases

Function: cell proliferation and differentiation

  • The frequent mutations of Ras proteins in human cancers

Mutations that block GAP-stimulated GTP hydrolysis result in Ras proteins being locked in their active GTP-bound state (in various human tumors)

Monomeric g proteins

Ras effectors

Ras proteins serve as signaling nodes

1. Various extracellular signals converge on Ras proteins:

Growth factors (epidermal growth factor, platelet-derived growth factor)

Hormones (insulin)

Cytokines (interleukin-1)

The extracellular matrix proteins (via integrins)

2. Ras proteins regulate the activities of various effectors with divergent biochemical functions:

The Raf serine/threonine kinases (activate the Raf/Mek/Erk kinase cascade – the growth-regulatory functions)

The phosphatidylinositol 3-kinases (generate PIP3 – regulates various cascades)

Phospholipase Cε (generate DAG and Ca2+)

GEFs of other small GTPases (small GTPase cascades – Ral, Rac, Rab)

Monomeric g proteins

Rab GTPases

(Ras homologue from brain)

Function: membrane trafficking

  • the largest family of small GTPases (at least 60 members)

  • localizing to specific organelles of the secretory and endocytic pathway

  • ubiquitously expressed; but cell-type specific Rab3a (expressed in neurons) and Rab27 (expressed in melanocytes and platelets)

Monomeric g proteins

The cellular localization of Rab GTPases

Monomeric g proteins

Rabs and diseases

Mutation in Rab genes-membrane trafficking alterations-diseases

Griscelli syndrome (an autosomal recessive disorder)

  • Pigmentation defects, immunological defects, neurological dysfunction

  • Mutations in the Rab27a gene (regulates the transport of melanosomes to the periphery of melanocytes and the secretion of lytic granules in cytotoxic T lymphocytes) result in the loss of pigmentation and in the uncontrolled activation of T lymphocytes

    Choroideremia (an X-linked disease)

  • Degeneration of the pigment epithelium of the eye

  • Defect in the REP-1 gene (geranylgeranyltransferase that is essential for the prenylation of Rab27a in the retinal pigment epithelium) results in deficient melanosome transport in the pigment epithelium and lack of protection during light exposure

Monomeric g proteins

Rho GTPases

Function: Regulation of actin cytoskeletal organization (cell morphology and movement)

Modulation of various cellular processes:

1. Cell migration: regulation of the actin cytoskeleton, coordinated activation of Rho proteins

2. Secretion and endocytosis: vesicle trafficking

3. Proliferation and transformation: invasiveness of cancer cells

Monomeric g proteins

Rho GTPaseEffectorsFunction in cell biology

RhoA, B, CROCK I, IIActomyosin contractility,

cell migration

Rac1, 2, 3IRSp53Actin polymerization, lamellipodia formation, driving force in cell migration

Cdc42WASP/N-WASPActin polymerization, filopodia formation, sensor role in cell migration

Monomeric g proteins

Model of effector activation by Rho GTPases

Cdc42-induced WASP activation promotes filopodia

Monomeric g proteins


The principle of function of small GTPases, the cycle, regulations, activations

The principle of lipid post-translational modification

The structure of small GTPases

The function of the Ras proteins, the results of Ras mutations in human carcinoma

The function of the Rho and Rab proteins
