L13 design by contract

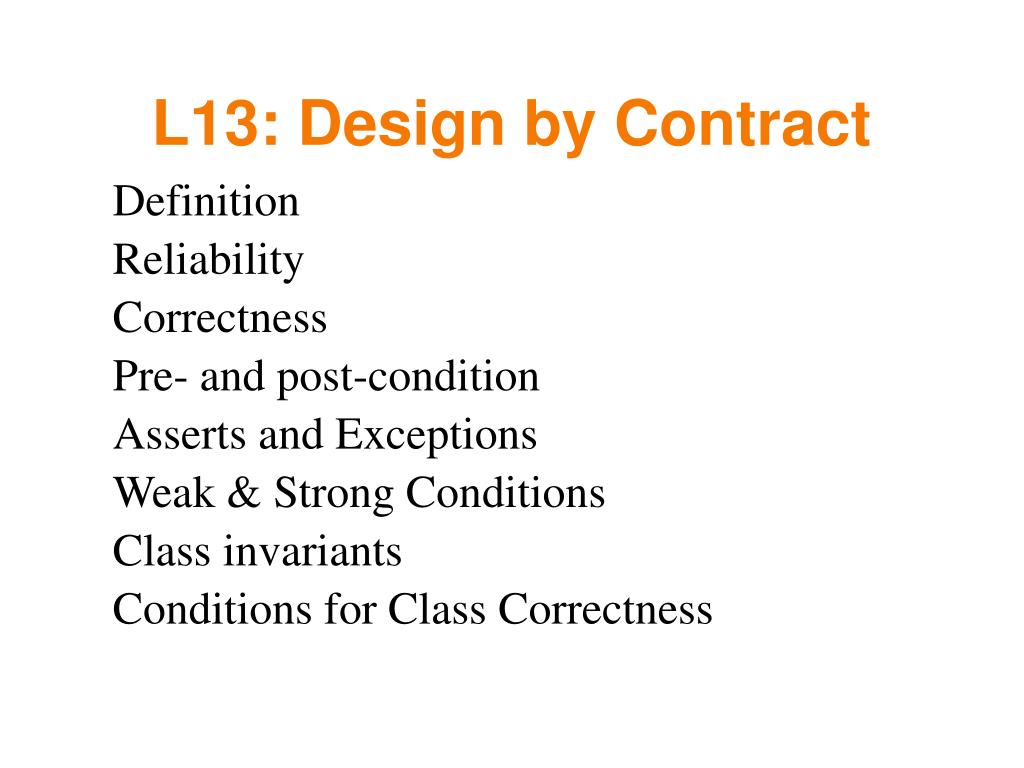

L13: Design by Contract

  • Definition

  • Reliability

  • Correctness

  • Pre- and post-condition

  • Asserts and Exceptions

  • Weak & Strong Conditions

  • Class invariants

  • Conditions for Class Correctness


Design by contract

Design by Contract

  • Introduced by Bertrand Meyer and supported by Eiffel.

  • Improves reliability


What is it

What is it?

  • Viewing the relationship between a class and its clients as a formal agreement, expressing each party’s rights and obligations!


What is reliability

What is Reliability?

Correctness: software must perform according to its specification

Robustness: software’s ability to react to cases not included in the specification


Correctness

Correctness

  • A software system or element is neither correct nor incorrect on its own

  • It is correct or incorrect with respect to a certain specification


Correctness formulae

Correctness Formulae

  • Is an expression of the form:

    {P} A {Q}

  • Which means:

    • Any execution of A, starting in a state where P holds, will terminate in a state where Q holds

  • Eg

    {x>=9} x=x+5 {x>=13}


Preconditions and postconditions

Preconditions and Postconditions

  • {P} and {Q} are examples of preconditions and postconditions respectively

  • For good programming, we need to:

    • document our pre- and postconditions

    • ensure the preconditions are true prior to executing a method

    • ensure the postconditions are true following method execution


How to

How to?

Two methods:

  • use asserts

  • use exceptions (L10: Exceptions)‏


Using assert

Using assert

#include <assert.h>

void sort(vector<int> *vec) {

// precondition

assert(vec!=NULL);

//... actually sort the vector

// postcondition

assert(is_sorted(*vec));

};


Alternative assert

Alternative assert

#include <assert.h>

void sort(vector<int> *vec) {

struct DBC {

DBC(vector<int> *v):vec(v){

assert(vec!=NULL);};

~DBC(){assert(is_sorted(*vec));};

vector<int> *vec;

} dbc(vec);

// ... actually do the sorting

}


L13 design by contract

class PrecondException {

PreconditionException() {}

}

class PostcondException {

PostconditionException() {}

}

class Assertion {

public:

static void require(boolean expr) {

if ( !expr )

throw PreconditionException();

}

static void ensure (boolean expr) {

if ( !expr )

throw PostconditionException();

}

}


An example stack

An Example - Stack

template <class T> class Stack {

private:

T *data;

int num_elements;

int max_elements;

public:

Stack(int ne): max_elements(ne),num_elements(0) {

data = new T[ne];

};

T pop(){...};

void push(T elem){...};

T peek(){...};

}


Push element

Push (element)‏

  • Require: stack is not full.

  • Ensure: stack is not empty, top = element, count++.


L13 design by contract

Pop()‏

  • Require: stack is not empty

  • Ensure: stack is not full, count--.


Weak and strong conditions

Weak and Strong Conditions

  • Weak conditions:

  • {...} A {True} // this ensures termination with a state.

  • {False} A {...}


Class invariants

Class Invariants

  • Are global properties of the instance of a class which must be preserved by all methods

  • Eg:

    (num_elements >= 0)&&

    (num_elements < data.length)‏


How do we apply them

How do we Apply Them?

  • In general, a class invariant means that for each method:

    {INV && pre} body {INV && post}

  • So, we should check at the start and end of each method.

  • But, since invariants are invariant, it makes sense to bundle these checks into a method of their own.


When is a class correct

When is a Class Correct?

  • A class is correct if and only if its implementation is consistent with the preconditions, postconditions and invariants.


Correctness defined

Correctness Defined

A class, C, is correct if and only if:

  • For any valid set of arguments, xp, to a constructor, p:

    {prep(xp)} Bodyp {postp(xp) && INV}

  • For every public method, r, and any set of valid arguments, xr:

    {prer(xr) && INV} Bodyr { postr(xr) && INV}
