Minimizing Travels by

Maximizing Breaks in Round Robin Tournament Schedules

Celso RIBEIRO

UFF and PUC-Rio, Brazil

Sebastián URRUTIA

PUC-Rio, Brazil

Minimizing travels by maximizing breaks


Summary l.jpg
Summary

  • Motivation

  • Tournament schedules and the traveling tournament problem

  • Connecting breaks with distances

  • Maximum number of breaks for SRR tournaments

  • Polygon method

  • Maximum number of breaks for TTP-constrained MDRR tournaments

  • Numerical results

  • Concluding remarks

Minimizing travels by maximizing breaks


Motivation l.jpg
Motivation

  • Motivation for this work:

    • Context: research group on applications of OR techniques to problems in sports management and scheduling

    • Effective algorithms for the Traveling Tournament Problem: the total distance traveled is an important variable to be minimized in tournament scheduling, to reduce traveling costs and to give more time to the players for resting and training.

    • Real life application: finding a good schedule to the Brazilian national soccer championship (26 teams)

Minimizing travels by maximizing breaks


Tournament schedules l.jpg
Tournament schedules

  • Conditions:

    • n (even) teams take part in a tournament.

    • Each team has its own stadium at its home city.

    • Each team is located at its home city in the beginning, to where it returns at the end.

    • Distances between the stadiums are known.

    • A team playing two consecutive away games goes directly from one city to the other, without returning to its home city.

Minimizing travels by maximizing breaks


Tournament schedules5 l.jpg
Tournament schedules

  • Conditions (cont’d):

    • Single round-robin tournament (SRR):

      • Each team plays every other team exactly once in n-1 prescheduled rounds.

    • Double round-robin tournament (DRR):

      • Each team plays every other team exactly twice in 2(n-1) prescheduled rounds (each of them with exactly n/2 games), once at home and once away.

Minimizing travels by maximizing breaks


Tournament schedules6 l.jpg
Tournament schedules

  • Conditions (cont’d):

    • Mirrored double round-robin tournament (MDRR):

      • Each team plays every other team exactly twice in 2(n-1) prescheduled rounds (each of them with exactly n/2 games), once at home and once away.

      • MDRR is a SRR tournament in the first (n-1) rounds, followed by the same SRR tournament with reversed venues in the last (n-1) rounds.

    • A tournament schedule determines at which round and in which stadium each game takes place.

Minimizing travels by maximizing breaks


Tournament schedules7 l.jpg
Tournament schedules

  • Home-away pattern (HAP):

    • Matrix with as many rows as teams (n) and as many columns as rounds in the tournament.

    • Each row of a HAP is a sequence of H’s and A’s.

    • An H (resp. A) in position r of row t means that team t has a home (resp. an away) game in round r.

    • A team has a break in round r if it has two consecutive home (or away) games in rounds r-1 and r.

Minimizing travels by maximizing breaks


Tournament schedules8 l.jpg
Tournament schedules

  • Schedule S:

    • B(S) = total number of breaks (sum of the number of breaks over all teams in the tournament)

    • There are no two equal rows in a HAP (every two teams have to play against each other at some round)

    • Number of home breaks = number of away breaks = B(S)/2

    • D(S) = total distance traveled (sum of the distances traveled by all teams in the tournament)

    • T(S) = total number of travels (number of times any team must travel from one stadium to another)

Minimizing travels by maximizing breaks


Tournament schedules9 l.jpg
Tournament schedules

  • Breaks minimization problems:

    • Schedules with a minimum number of breaks De Werra (1981,1988): constraints on geographical locations (complementary HAPs for teams in the same location, e.g. Mets and Yankees in NY), teams organized in divisions (weekday vs. weekend games), minimize the number of rounds with breaks

    • Minimize breaks when the order of games is fixed Elf, Junger & Rinaldi (2003)

Minimizing travels by maximizing breaks


Tournament schedules10 l.jpg
Tournament schedules

  • Distance minimization problems:

    • NHL schedule: minimize the total distance traveled (evolutionary tabu search) - Costa (1995)

    • Traveling tournament problem: minimize the total distance traveled, such that no team plays more than three consecutive away games or three consecutive home games - Easton, Nemhauser & Trick (2001,2004)

    • Mirrored TTP: Ribeiro & Urrutia (2004)

complexity?

Open!

  • Hard problem: previous largest instance

  • exactly solved to date had only n=6 teams!

  • (n=8 with 20 processors in 4 days CPU time)

Minimizing travels by maximizing breaks


Tournament schedules11 l.jpg
Tournament schedules

  • In this work:

    • Connection between breaks and distance problems

    • New class of instances for which distance minimization is equivalent to breaks maximization

    • Construction of schedules with maximum number of breaks and minimum distance traveled

    • Mirrored DRR schedules satisfying TTP contraints

    • Solution of larger TTP instances

Minimizing travels by maximizing breaks


Tournament schedules12 l.jpg

Variants:

no-repeaters

no synchronized rounds

multiple games (more than two, variable)

teams with complementary patterns in the same city

pre-scheduled games and TV constraints

stadium availability

minimize airfare and hotel costs, etc.

Tournament schedules

Minimizing travels by maximizing breaks


Connecting breaks with distances l.jpg
Connecting breaks with distances

  • Benchmark instances for distance minimization problems:

    • Structured circular instances with n = 4 to 20 teams

    • MLB instances with n = 4 to 16 teams

    • All available from Michael Trick’s web page

    • 2003 edition of the Brazilian national soccer championship with 24 teams

Minimizing travels by maximizing breaks


Connecting breaks with distances14 l.jpg

travels to play the first game

travels after playing the last game

travels to play in intermediary rounds if all teams were to travel,

discounted by the number of teams that do not travel (home breaks)

Connecting breaks with distances

  • New uniform instances: all distances equal to one D(S) = T(S)

  • R = number of rounds

  • T(S) = n/2 + n(R-1) – B(S)/2 + n/2 = nR – B(S)/2

Minimizing travels by maximizing breaks


Connecting breaks with distances15 l.jpg
Connecting breaks with distances

  • In the particular case of a uniform instance:

    D(S) = T(S)

    Then, D(S) = nR – B(S)/2

  • maximize breaks => minimize travels => => minimize distance traveled for uniform instances

  • Motivation: UB to breaks gives LB to distance

  • Consequence: implications in the solution of the TTP

Minimizing travels by maximizing breaks


Max breaks for srr tournaments l.jpg
Max breaks for SRR tournaments

  • SRR tournaments: maximum number of breaks for any team is (n-2): all home games or all away games

  • Only two teams may have (n-2) breaks: all games away and all games at home

  • Remaining (n-2) teams: at most (n-3) breaks each

  • Upper bound to the number of breaks:

    UBSRR = 2(n-2) + (n-2)(n-3) = n2 – 3n + 2

Minimizing travels by maximizing breaks


Polygon method l.jpg
Polygon method

  • Upper bound to the number of breaks:

    UBSRR = 2(n-2) + (n-2)(n-3) = n2 – 3n + 2

  • UBSRR bound is tight.

  • We use the polygon (or circle) method to build a schedule with exactly UBSRR breaks.

  • Phase 1: assign games to rounds

    • Graph with one edge for each game at each round

Minimizing travels by maximizing breaks


Polygon method18 l.jpg
Polygon method

6

Example:

“polygon method” for n=6

1

5

2

1st round

Phase 1:

game assignment

3

4

Minimizing travels by maximizing breaks


Polygon method19 l.jpg
Polygon method

6

Example:

“polygon method” for n=6

5

4

1

2nd round

Phase 1:

game assignment

2

3

Minimizing travels by maximizing breaks

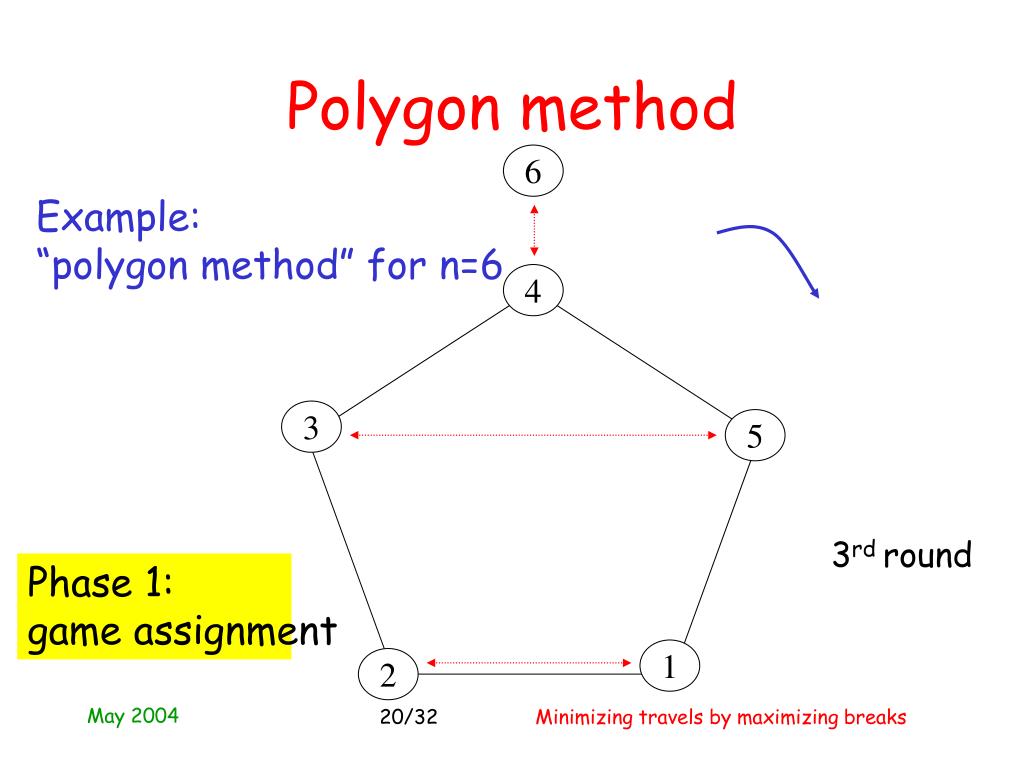

Polygon method20 l.jpg
Polygon method

6

Example:

“polygon method” for n=6

4

3

5

3rd round

Phase 1:

game assignment

1

2

Minimizing travels by maximizing breaks


Polygon method21 l.jpg
Polygon method

6

Example:

“polygon method” for n=6

3

2

4

4th round

Phase 1:

game assignment

5

1

Minimizing travels by maximizing breaks


Polygon method22 l.jpg
Polygon method

6

Example:

“polygon method” for n=6

2

1

3

5th round

Phase 1:

game assignment

4

5

Minimizing travels by maximizing breaks


Polygon method23 l.jpg
Polygon method

  • Phase 2: extension of the polygon method an orientation to each edge (oriented edge coloring)

  • Edge connecting nodes 1 and n is always oriented from 1 to n (in every round)

  • k=2,...,n/2: the edge connecting nodes k and n+1-k is oriented from the even (resp. odd) numbered node to the odd (resp. even) numbered node in odd (resp. even) rounds

  • Final extremity of each arc is the home team.

Minimizing travels by maximizing breaks

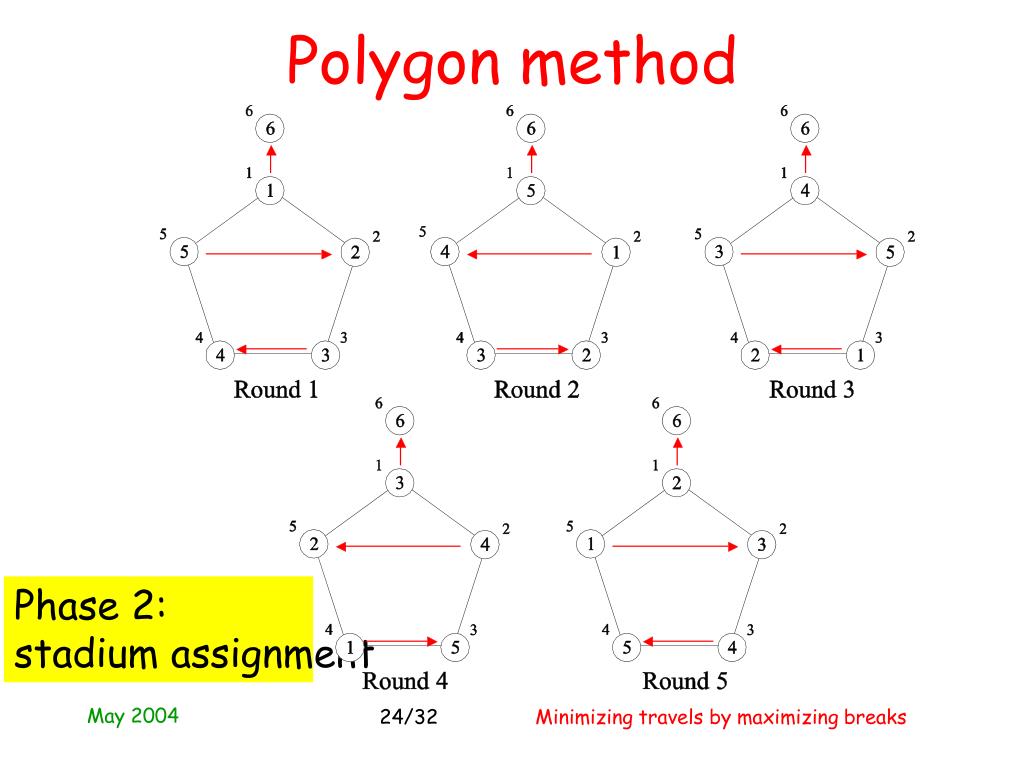

Polygon method24 l.jpg
Polygon method

Phase 2:

stadium assignment

Minimizing travels by maximizing breaks


Max breaks for ttp constrained mdrr tournaments l.jpg
Max breaks for TTP-constrainedMDRR tournaments

  • Similar tight bounds can also be obtained for equilibrated SRR, DRR, and MDRR tournaments.

  • Mirrored DRR tournaments in which each schedule must follow the same constraints of the traveling tournament problem:

    • No team can play more than three consecutive home games or more than three consecutive away games.

Minimizing travels by maximizing breaks


Max breaks for ttp constrained mdrr tournaments26 l.jpg
Max breaks for TTP-constrainedMDRR tournaments

  • Upper bounds to the number of breaks can be derived using similar (although much more elaborated) counting arguments:

Minimizing travels by maximizing breaks


Max breaks for ttp constrained mdrr tournaments27 l.jpg
Max breaks for TTP-constrainedMDRR tournaments

  • Since T(S) = 2n(n-1) – B(S)/2, the upper bound UBTTP can be used in the computation of lower bounds to T(S) and, for the uniform instances, also to D(S) = T(S).

  • Contrarily to the previous problems, a construction method to build schedules for TTP-constrained MDRR tournaments with exactly UBTTP breaks does not seem to exist to date.

Minimizing travels by maximizing breaks


Max breaks for ttp constrained mdrr tournaments28 l.jpg
Max breaks for TTP-constrainedMDRR tournaments

  • Use an effective TTP heuristic to find good approximate solutions (10 minutes):

    • Ribeiro & Urrutia (2004): better solutions in 10 minutes of CPU for benchmark instances than Anagnostopoulos, Michel, Van Hentenryck & Vergados (2003)in 5 days (similar machine); also best known solutions to circ18 and circ20

  • 2.0 GHz Pentium IV with 512 Mb RAM memory

  • Uniform instances with n = 4, 6, 8, ..., 18, 20

Minimizing travels by maximizing breaks

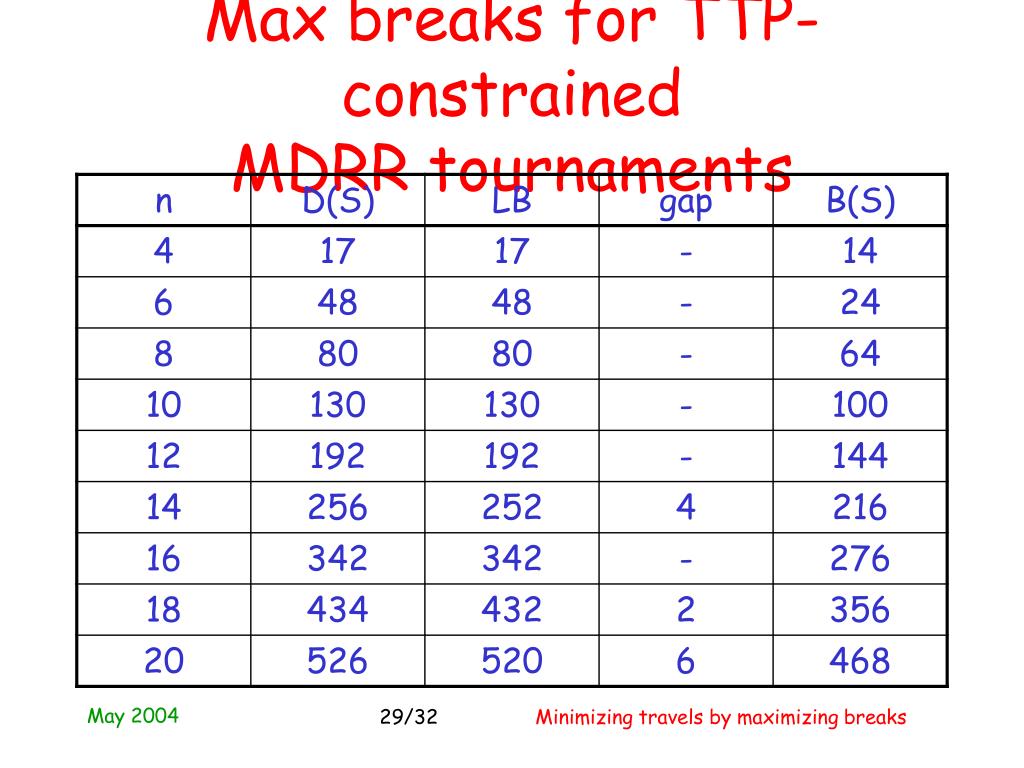

Max breaks for ttp constrained mdrr tournaments29 l.jpg
Max breaks for TTP-constrainedMDRR tournaments

Minimizing travels by maximizing breaks


Concluding remarks l.jpg
Concluding remarks

  • New class of uniform instances

  • Connection between breaks maximization and distance minimization problems

  • This connection is used to prove the optimality of approximate solutions found by an effective heuristic for the TTP.

  • New largest TTP instance exactly solved to date: n=16

Minimizing travels by maximizing breaks


Concluding remarks31 l.jpg
Concluding remarks

  • In spite of being easier than other classes of TTP instances, uniform instances could not be exactly solved for n > 16.

  • Complexity results for this new class will possibly shed some light on the complexity of the traveling tournament problem.

Minimizing travels by maximizing breaks


Concluding remarks32 l.jpg
Concluding remarks

  • Total distance traveled for the 2003 edition of the Brazilian soccer championship with 24 teams (instance br24) in 12 hours (Pentium IV 2.0 MHz):Realized (official draw): 1,048,134 kms

Our solution: 506,433 kms (52% reduction)

  • Approximate corresponding potential savings in airfares:US$ 1,700,000

Minimizing travels by maximizing breaks
