Digital Testing: Scan Design

Samiha Mourad

Santa Clara University


Outline
Outline

  • Problems with sequential testing

  • What is scan

  • Types of scan

  • Types of storage devices

  • Scan Architectures

  • Cost of Scan

  • Partial Scan

  • Stitching flip-flops

Copyrights(c) 2001, Samiha Mourad


Problems impeding testing
Problems Impeding Testing

  • Complexity testing sequential circuits due to

    • feedback loops

    • Placement of the circuit in a known state

    • high chance for hazard, essential hazard

  • Timing problems in general

Copyrights(c) 2001, Samiha Mourad


What is scan design

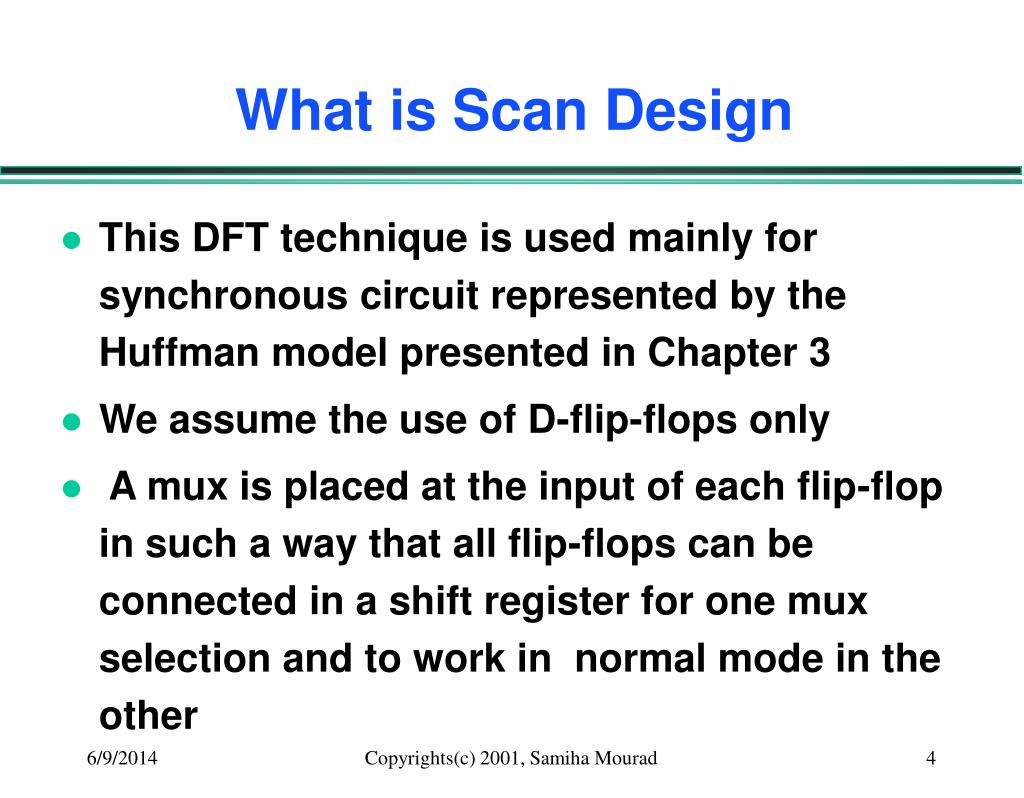

What is Scan Design

  • This DFT technique is used mainly for synchronous circuit represented by the Huffman model presented in Chapter 3

  • We assume the use of D-flip-flops only

  • A mux is placed at the input of each flip-flop in such a way that all flip-flops can be connected in a shift register for one mux selection and to work in normal mode in the other

Copyrights(c) 2001, Samiha Mourad


A generalized huffman model
A Generalized Huffman Model

Copyrights(c) 2001, Samiha Mourad


A generalized huffman model1
A Generalized Huffman Model

Copyrights(c) 2001, Samiha Mourad


What is scan design1
What is Scan Design

  • This DFT technique is used mainly for synchronous circuit represented by the Huffman model presented in Chapter 3

  • We assume the use of D-flip-flops only

  • A mux is placed at the input of each flip-flop in such a way that all flip-flops can be connected in a shift register for one mux selection and to work in normal mode in the other

Copyrights(c) 2001, Samiha Mourad


Possible scan scheme

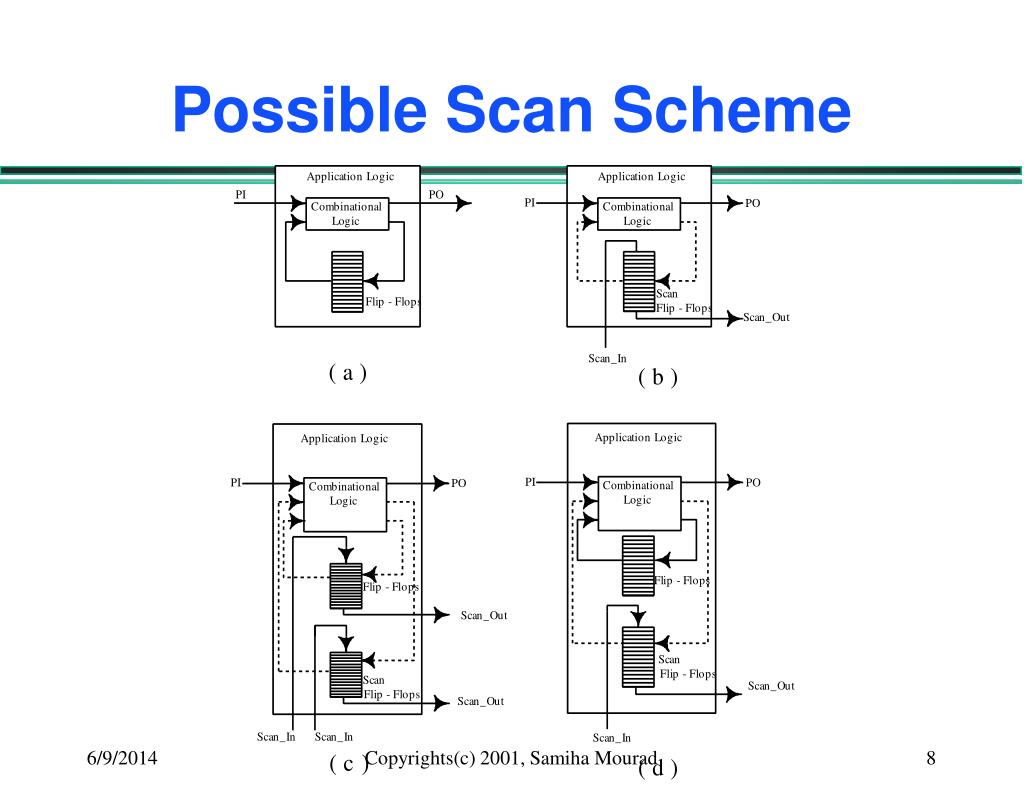

Possible Scan Scheme

Copyrights(c) 2001, Samiha Mourad


How scan dft works
How Scan DFT Works

  • The combinational part is partitioned:

    • Each input to the FF is considered an output to the circuit

    • each output of the FF is an input to the circuit

  • Connect the FF in a shift register and test them

  • Test the combinational part

Copyrights(c) 2001, Samiha Mourad


Testing the combinational part
Testing the Combinational Part

  • Repeat until all patterns are applied.

    • a. Set SE = 1, shift in the initial values on the flip-flops. (These are the signals at the output of the latches for the first test pattern.)

  • b. SE = 0, apply a pattern at the primary inputs.

    • c. Clock the circuit once and observe the results at the primary outputs.

  • d. Clock the circuit M times.

  • End repeat.

  • Copyrights(c) 2001, Samiha Mourad


    An example

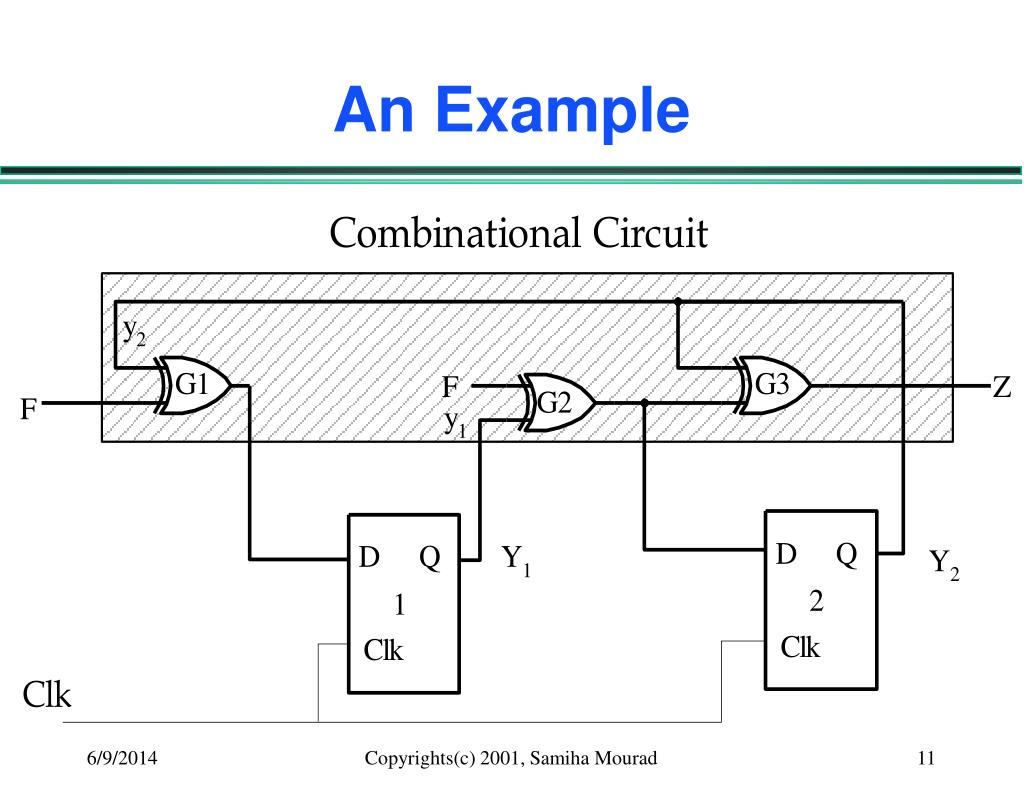

    An Example

    Copyrights(c) 2001, Samiha Mourad


    An example1
    An Example

    Copyrights(c) 2001, Samiha Mourad


    Inserting the muxes

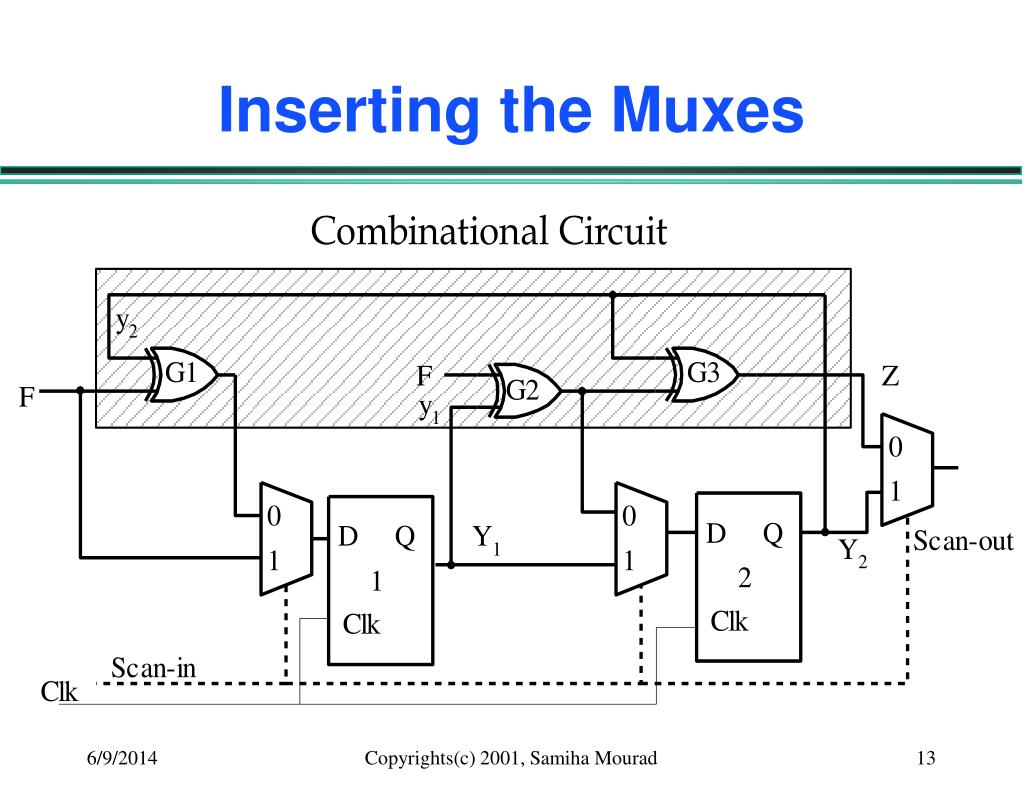

    Inserting the Muxes

    Copyrights(c) 2001, Samiha Mourad


    Test application
    Test Application

    Copyrights(c) 2001, Samiha Mourad


    Types of storage devices

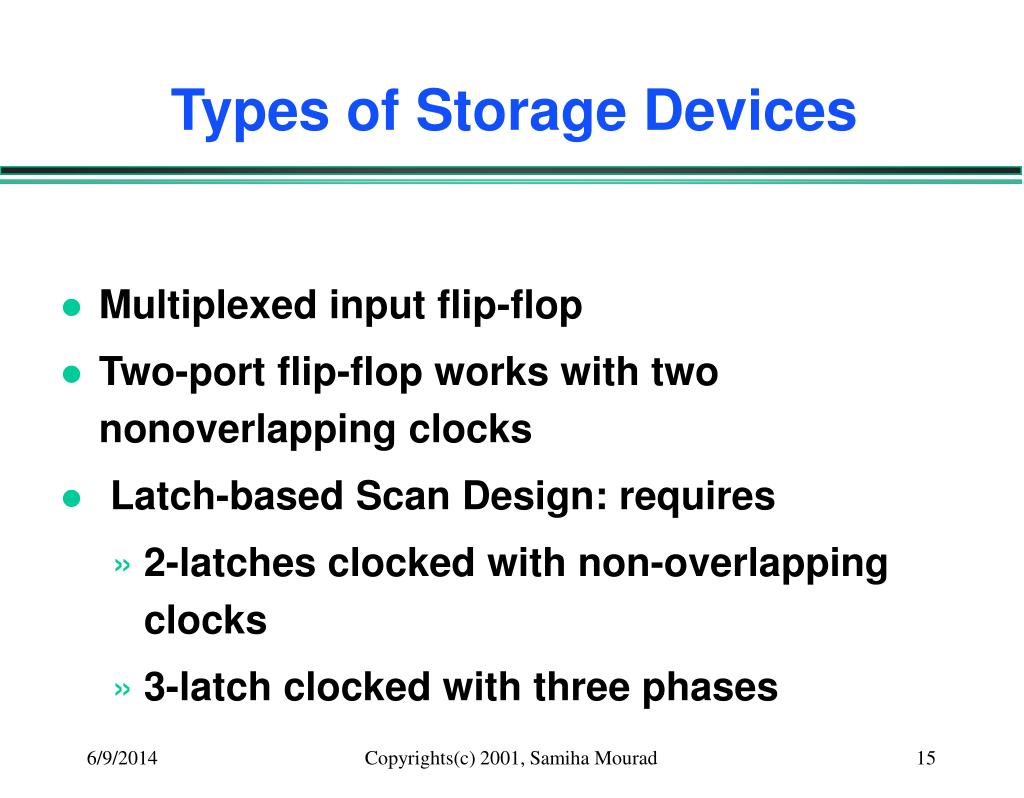

    Types of Storage Devices

    • Multiplexed input flip-flop

    • Two-port flip-flop works with two nonoverlapping clocks

    • Latch-based Scan Design: requires

      • 2-latches clocked with non-overlapping clocks

      • 3-latch clocked with three phases

    Copyrights(c) 2001, Samiha Mourad


    2 port flip flops
    2-Port Flip-flops

    • Port 1D works with CK1 in normal operation mode as well as at the capture mode of testing

    • Port 2D works with CK2 in shift mode

    • To avoid essential hazard during testing, CK1 and CK2 are non-overlapping phases. During t, non of them is working

    Copyrights(c) 2001, Samiha Mourad


    Clocked transparent latches
    Clocked Transparent Latches

    • (a) A D-latch implemented in NAND gates

    • (b) An extra NAND is added to suppress static hazard

    • (c) The corresponding Karnaugh map

    Copyrights(c) 2001, Samiha Mourad


    Latches versus flip flops

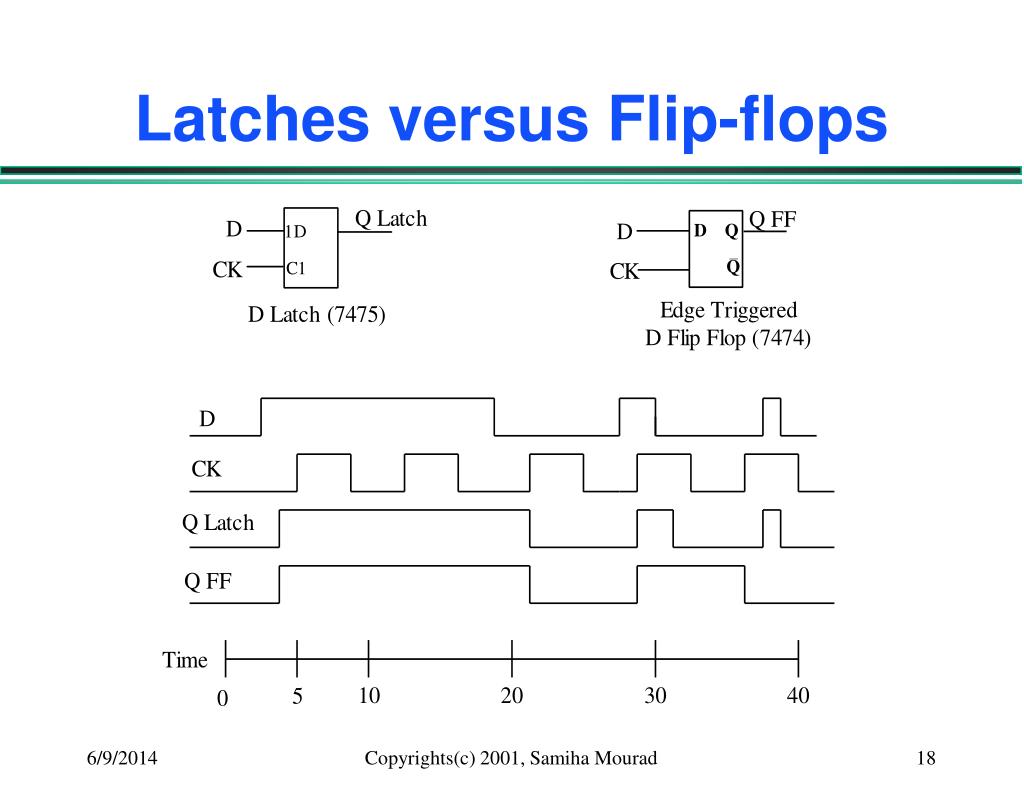

    Latches versus Flip-flops

    Copyrights(c) 2001, Samiha Mourad


    Latch based shift mode
    Latch-based Shift Mode

    • Because of the tranperancy property of the latches shown in the timing diagram of the previous slide

    • Latches cannot be used in a shift register unless every pairs works in a master-slave fashion as shown above

    • It is preferable that the two clocks be non-overlapping

    Copyrights(c) 2001, Samiha Mourad


    Level sensitive latch
    Level-sensitive Latch

    • The latch works with the 3 phases A, B and C

    • For normal operation, clocks B and C

    • For shift operation, clocks B and A

    • Two-port flip-flop works with two non-overlapping clocks

    Copyrights(c) 2001, Samiha Mourad


    Polarity hold latch ibm
    Polarity Hold Latch (IBM)

    Copyrights(c) 2001, Samiha Mourad


    Scan design architectures
    Scan Design Architectures

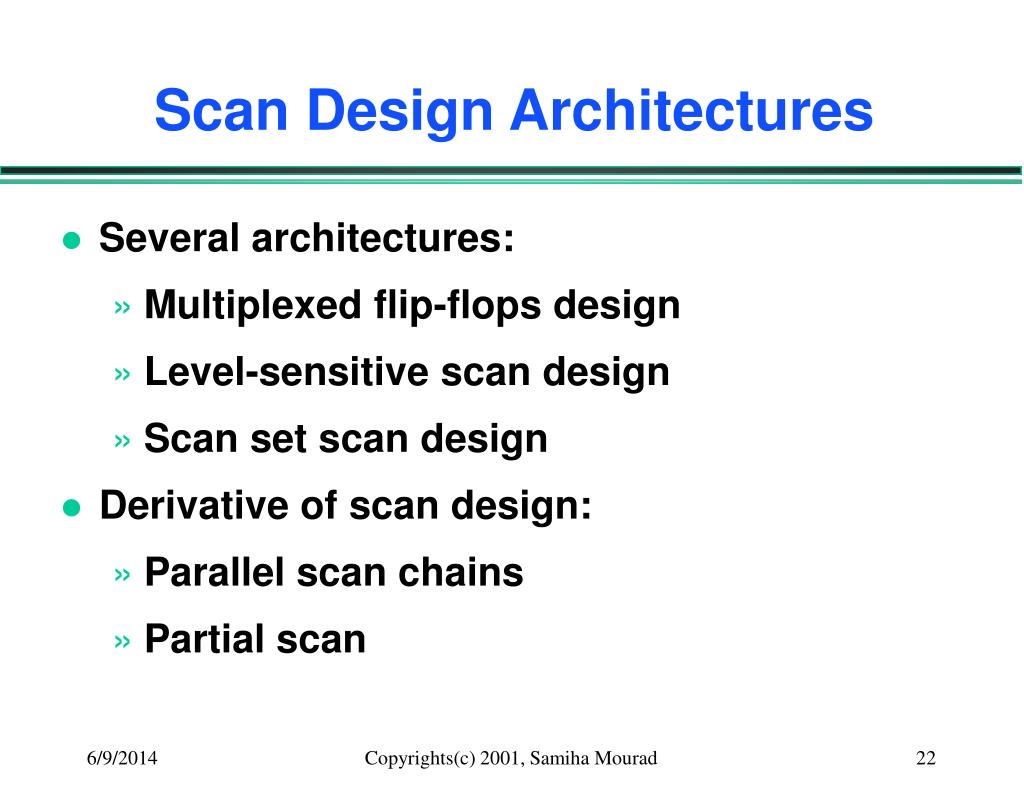

    • Several architectures:

      • Multiplexed flip-flops design

      • Level-sensitive scan design

      • Scan set scan design

    • Derivative of scan design:

      • Parallel scan chains

      • Partial scan

    Copyrights(c) 2001, Samiha Mourad


    Level sensitive scan design
    Level-Sensitive Scan Design

    • Each flip-flop of the original design is replaced by a polarity hold (an LSSD) latch

    • The configuration is shown in the next slide

    • The input of 2D in the first latch is scan-in

    • The output of the second latch of the last pair is scan-out

    • Of course here there is no scan control signal as in the muxed design studied earlier

    • Instead, the three phases A, B, and C operation control the normal and shift modes

    Copyrights(c) 2001, Samiha Mourad

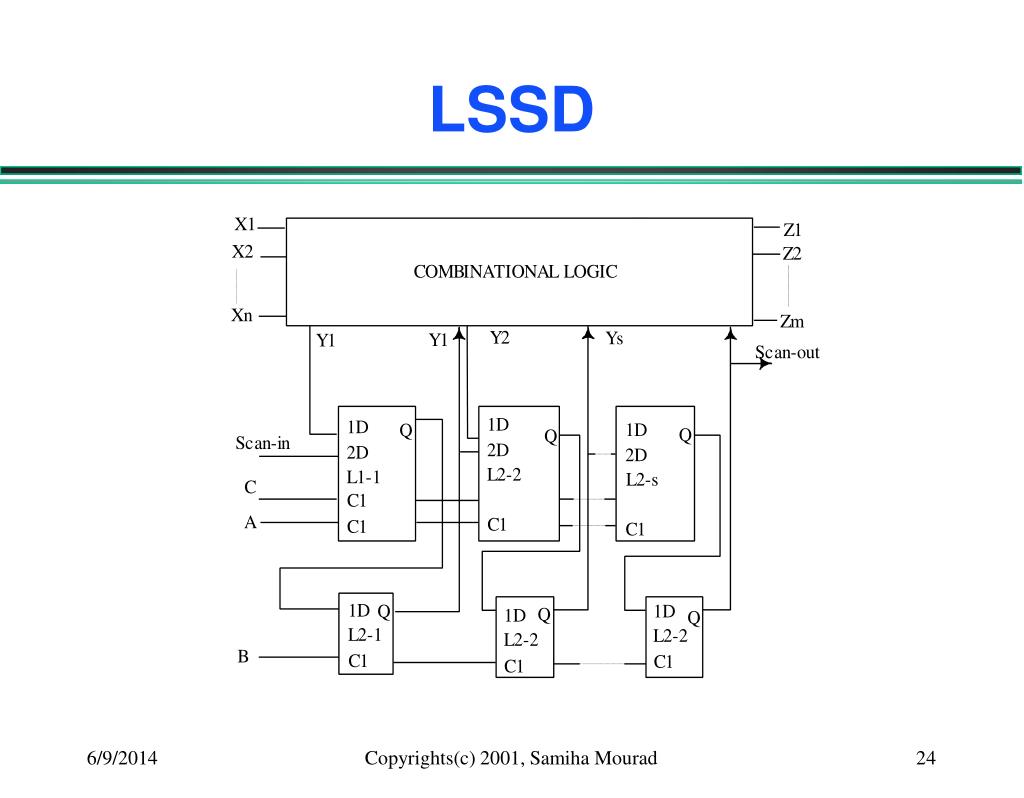

    LSSD

    Copyrights(c) 2001, Samiha Mourad


    How does lssd work
    How does LSSD Work?

    1. Test the latches.

    Set A = B = 1.

    Apply 0 and 1 alternatively at SI.

    Clock A, then clock B, N times.

    2. Initialize.

    Shift in the initial values on the flip-flops. (These are the signals at the output of the latches for the first test pattern)

    Copyrights(c) 2001, Samiha Mourad


    Lssd testing
    LSSD: Testing

    Repeat until all patterns are applied.

    a. Apply a pattern at the primary inputs.

    b. Clock C; then clock B once and observe the results at the primary outputs.

    c. Shift out the response

    Apply the initialization for the next pattern at SI.

    Clock A, then clock B, M times.

    Observe at the primary outputs and the SO pins.

    Copyrights(c) 2001, Samiha Mourad


    Scan set design

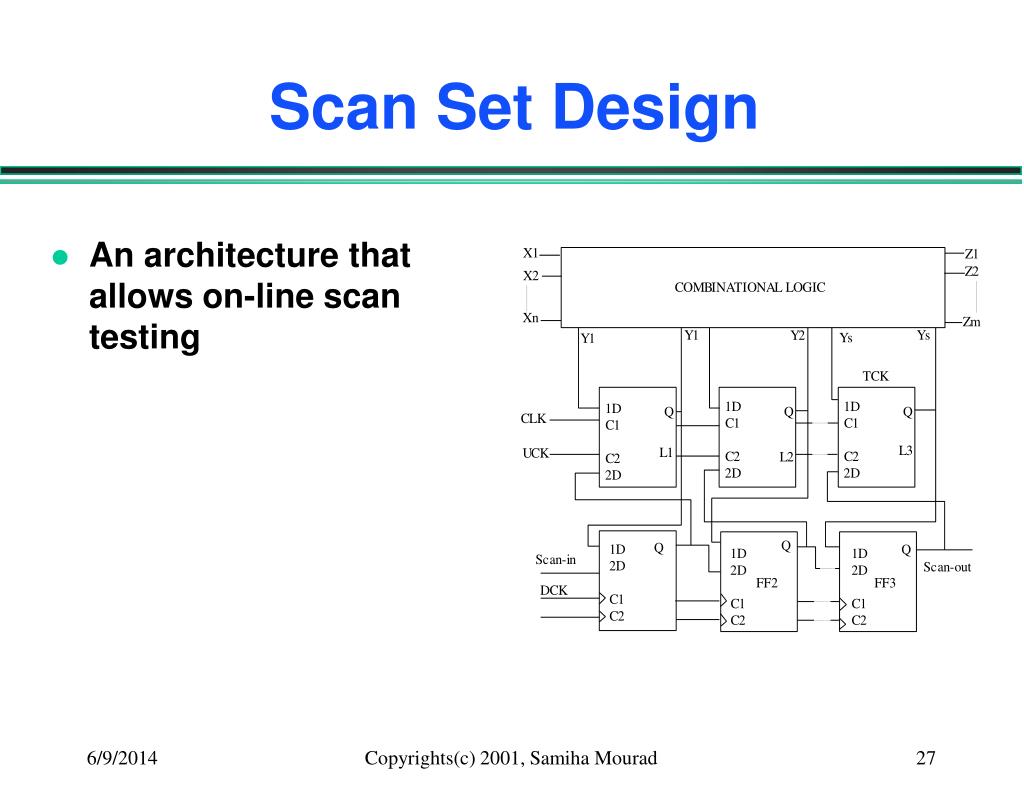

    Scan Set Design

    • An architecture that allows on-line scan testing

    Copyrights(c) 2001, Samiha Mourad

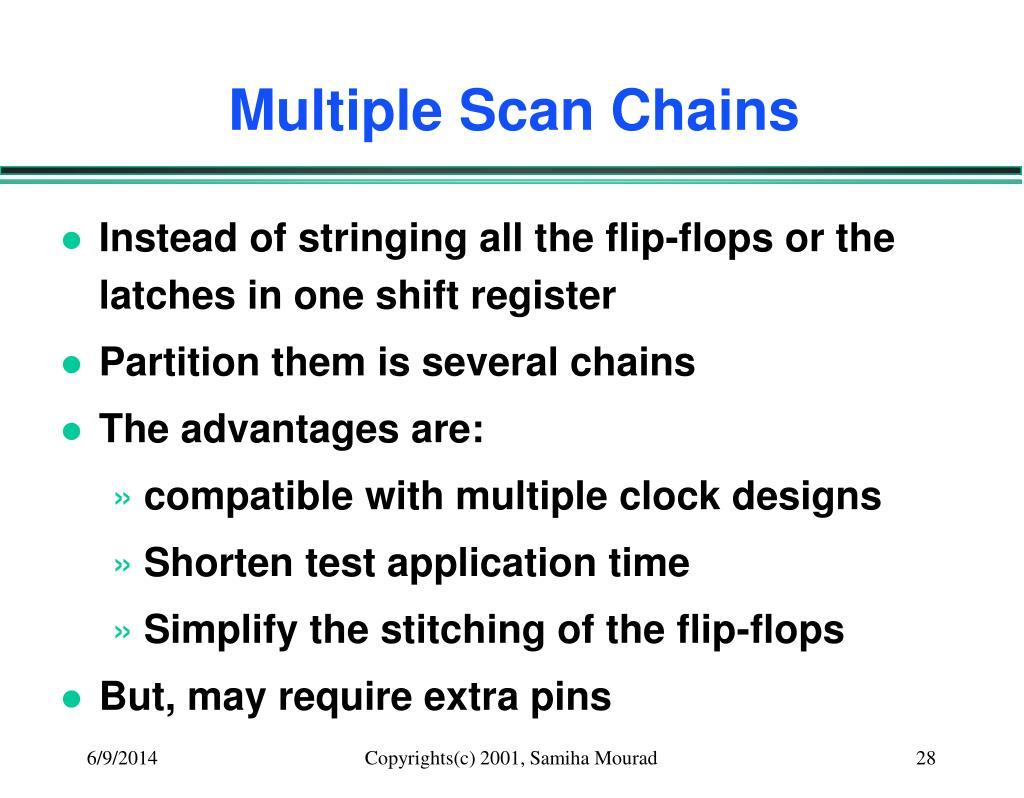

    Multiple scan chains

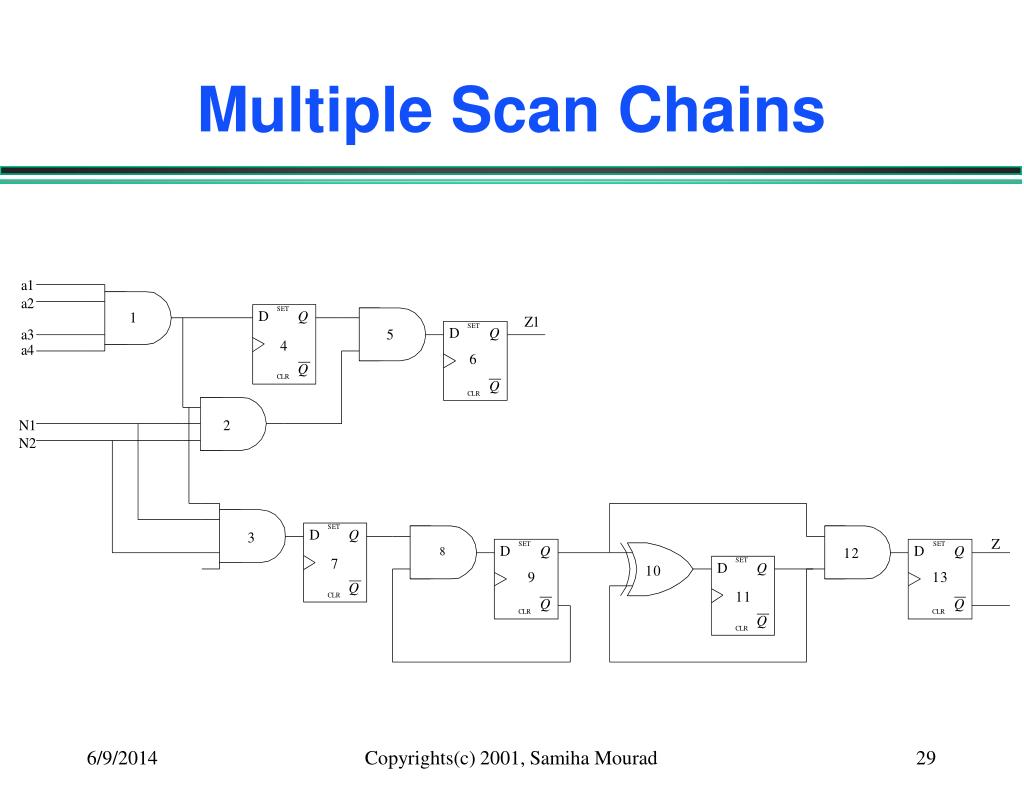

    Multiple Scan Chains

    • Instead of stringing all the flip-flops or the latches in one shift register

    • Partition them is several chains

    • The advantages are:

      • compatible with multiple clock designs

      • Shorten test application time

      • Simplify the stitching of the flip-flops

    • But, may require extra pins

    Copyrights(c) 2001, Samiha Mourad


    Multiple scan chains1
    Multiple Scan Chains

    Copyrights(c) 2001, Samiha Mourad


    What why partial scan design

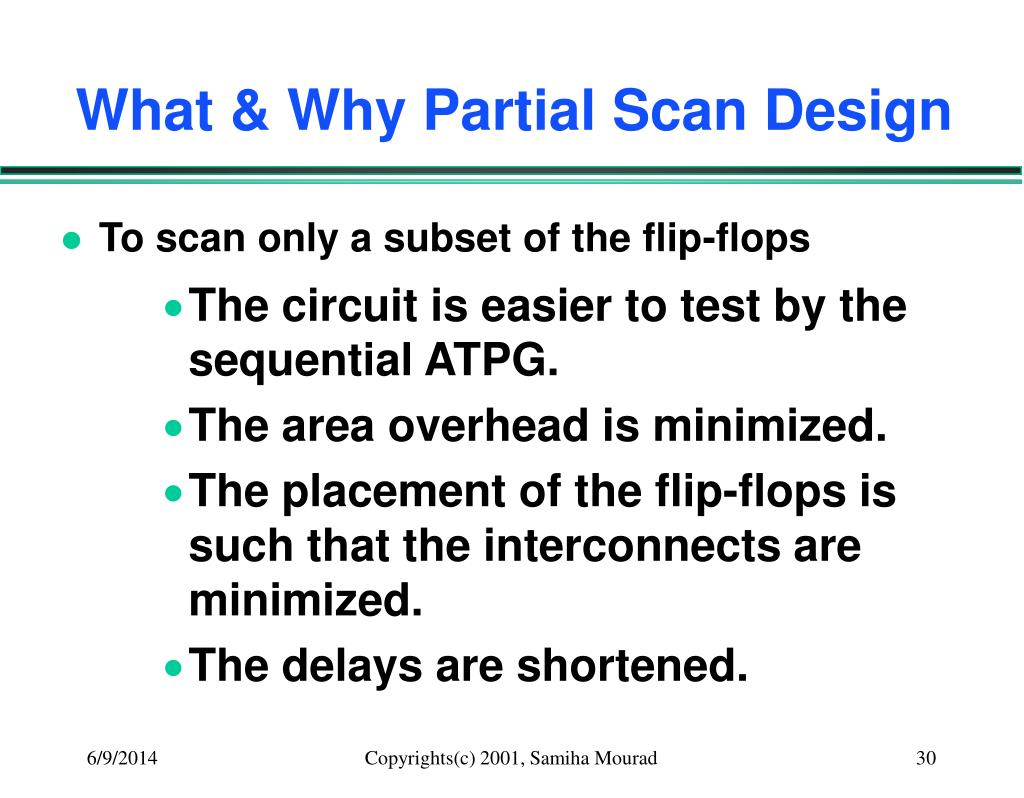

    What & Why Partial Scan Design

    • To scan only a subset of the flip-flops

      • The circuit is easier to test by the sequential ATPG.

      • The area overhead is minimized.

      • The placement of the flip-flops is such that the interconnects are minimized.

      • The delays are shortened.

    Copyrights(c) 2001, Samiha Mourad


    Partial scan design
    Partial Scan Design

    • To scan only a subset of the flip-flops

    • How to select this subset?

    • It is an NP-complete problem

    • Heuristics on graph model to select the minimum vertex set (MVS) to transform the FSM into an acyclic graph

    Copyrights(c) 2001, Samiha Mourad


    An example2
    An Example

    Copyrights(c) 2001, Samiha Mourad


    Fault coverage
    Fault Coverage

    • To scan only a subset of the flip-flops

    • How to select this subset?

    • It is an NP-complete problem

    • Heuristics on graph model to select the minimum vertex set (MVS) to transform the FSM into an acyclic graph

    Copyrights(c) 2001, Samiha Mourad


    Partial scan

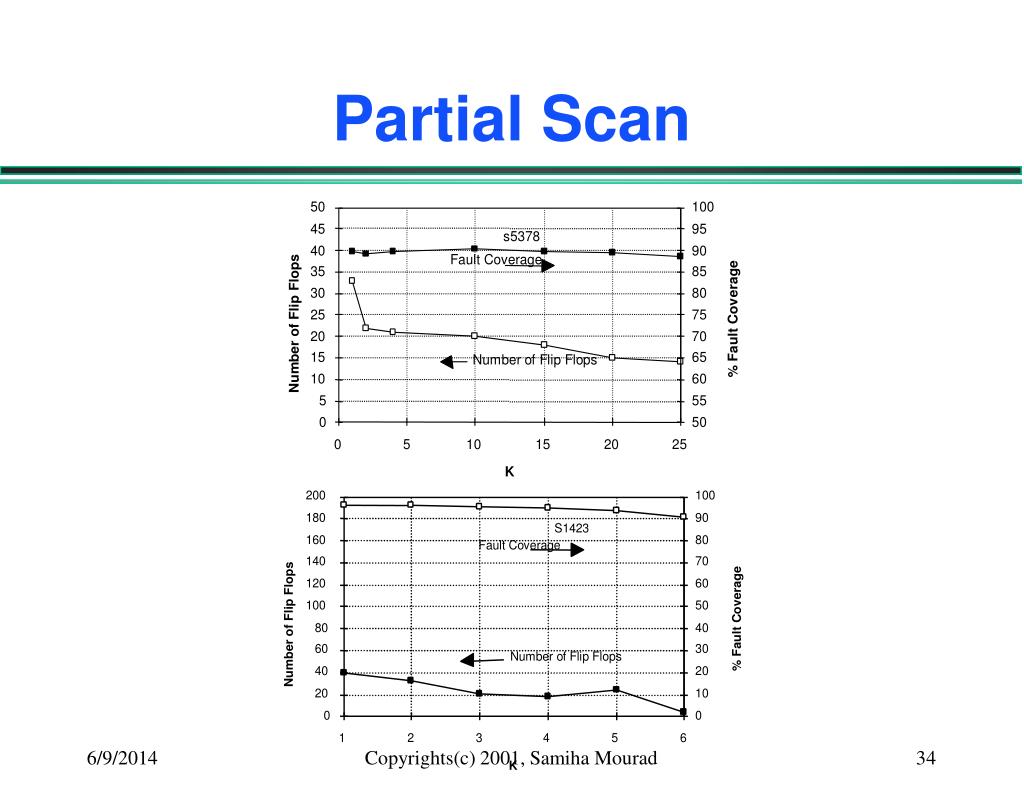

    Partial Scan

    Copyrights(c) 2001, Samiha Mourad


    Possible implementations

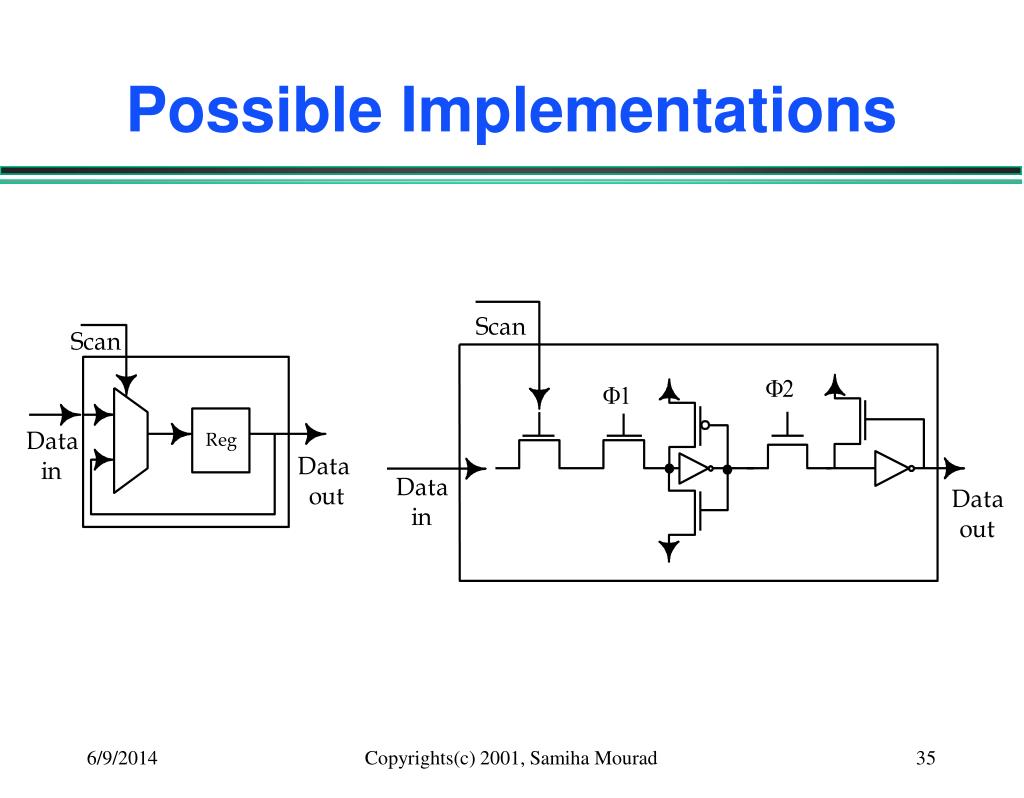

    Possible Implementations

    Copyrights(c) 2001, Samiha Mourad


    Scan chain order

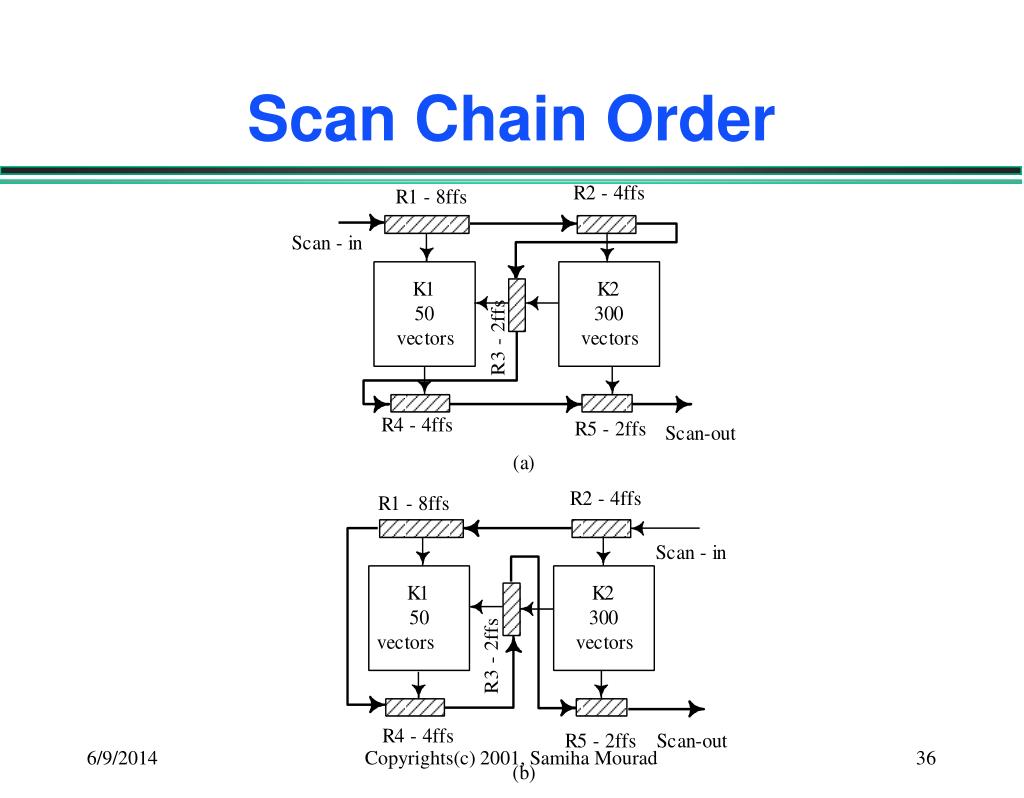

    Scan Chain Order

    Copyrights(c) 2001, Samiha Mourad


    The cost of scan design

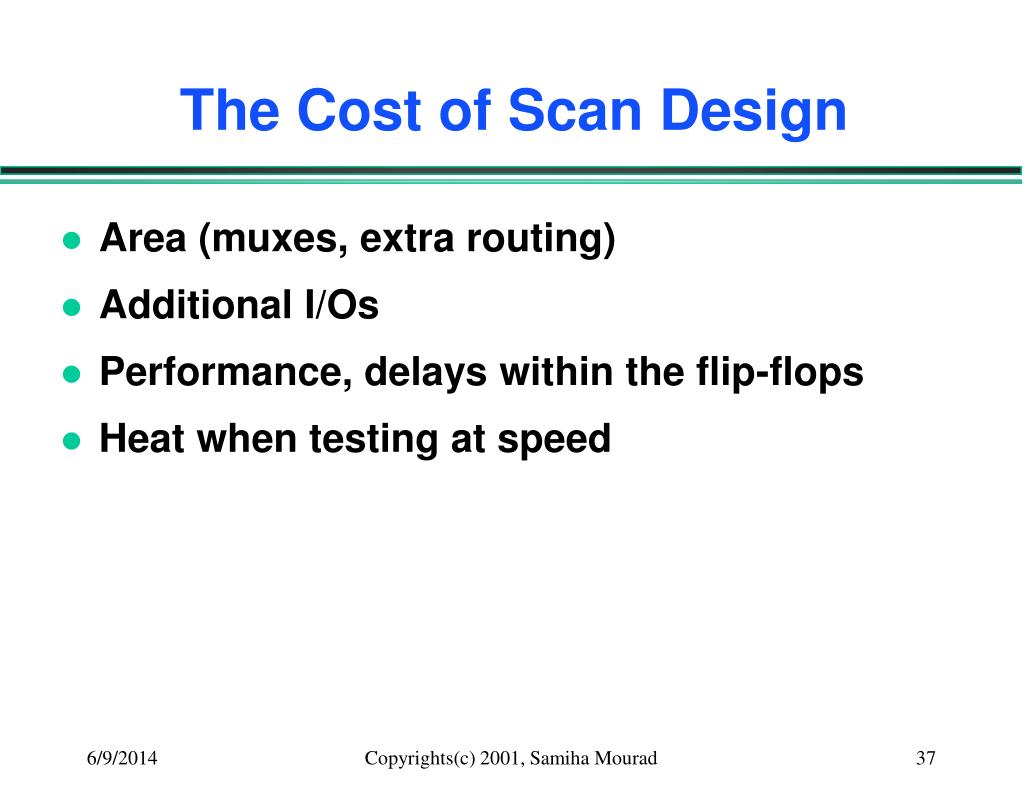

    The Cost of Scan Design

    • Area (muxes, extra routing)

    • Additional I/Os

    • Performance, delays within the flip-flops

    • Heat when testing at speed

    Copyrights(c) 2001, Samiha Mourad


    Stitching effect
    Stitching Effect

    Copyrights(c) 2001, Samiha Mourad
