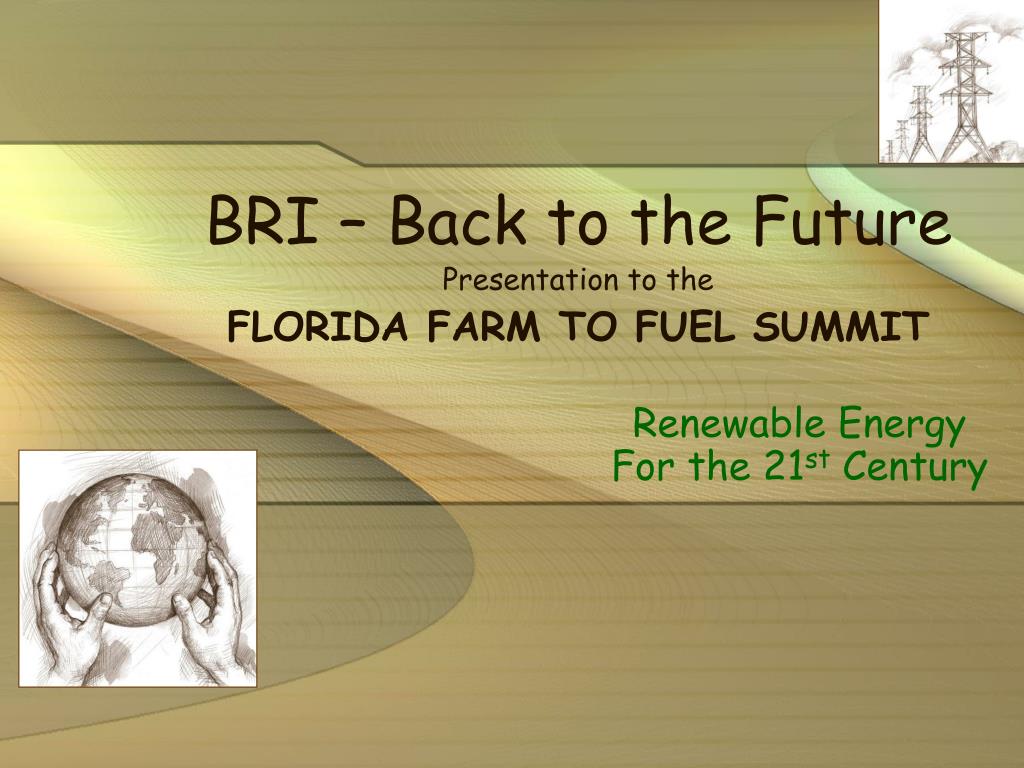

BRI – Back to the Future

Presentation to the

FLORIDA FARM TO FUEL SUMMIT

Renewable Energy

For the 21st Century


Future vision what if we could show the
Future Vision: What If We Could Show The

Global Community How To…

  • Move toward a world that is more regionally energy independent

  • Provide communities with affordable energy from renewable resources

  • Reduce dependence on landfills

  • Create a cleaner fuel for cars and trucks


Technology partners
Technology Partners

  • Parsons Corporation has reviewed and evaluated our technology and issued a report verifying our assertions regarding both the technology and the process.

    www.parsons.com

  • Katzen International will provide the process design, efficiency, optimization and technical support.

    www.katzen.com

  • Bio-Engineering Resources, Inc will provide the proprietary support for the bio-catalytic systems.


Required project elements
Required Project Elements

  • Secure commitments for feedstock

  • An interconnection to the electrical grid for the delivery of surplus energy

  • Secure option for disposal of the ash residue (about 15% by weight) of the feedstock

  • A site equal to approximately 8 acres


Bri technology
BRI Technology

Produces bioethanol and electricity from carbon also called “carbonaceous feedstock” that can be sourced from:

• Agricultural Residues

• Distillers Grain (DDG)

• Green Waste

• Bio-solids & Animal Wastes

• Wood Wastes

• Municipal Solid Waste

• Bio-Diesel “Bottoms”

• Refinery Tars & Waste Oils

• Used Tires & Plastics

• Coal & Other Hydrocarbons

A patented microorganism ingests synthesis gas (gasified wastes) and emits pure bioethanol


Bri technology benefits
BRI Technology Benefits

  • Consumes 85% of solid waste by converting the carbon content of the feedstock

  • Produces steam for industrial neighbors and applications

  • Generates renewable electricity

  • Provides a fuel oxygenate to reduce pollution from vehicle emissions via ethanol


Bioengineering resources inc
Bioengineering Resources, Inc.

Fayetteville, Arkansas


Biomass composition conversion by various conversion technologies
Biomass Composition/Conversionby various conversion technologies

Component Wt. % % to EtOH % to EtOH % to EtOH

CORN CELLULOSIC BRI

Hemicellulose 10 – 25 = 0 0 10 – 25

Cellulose 40 – 60 = 40 – 60 40 – 60 40 – 60

Lignin 10 – 20 = 0 0 10 – 20

Ash 2 – 5 = __0__ __0__ __0__

Total 100% 40 – 60% 40 – 60% 95 – 98%


Yields of ethanol from biomass

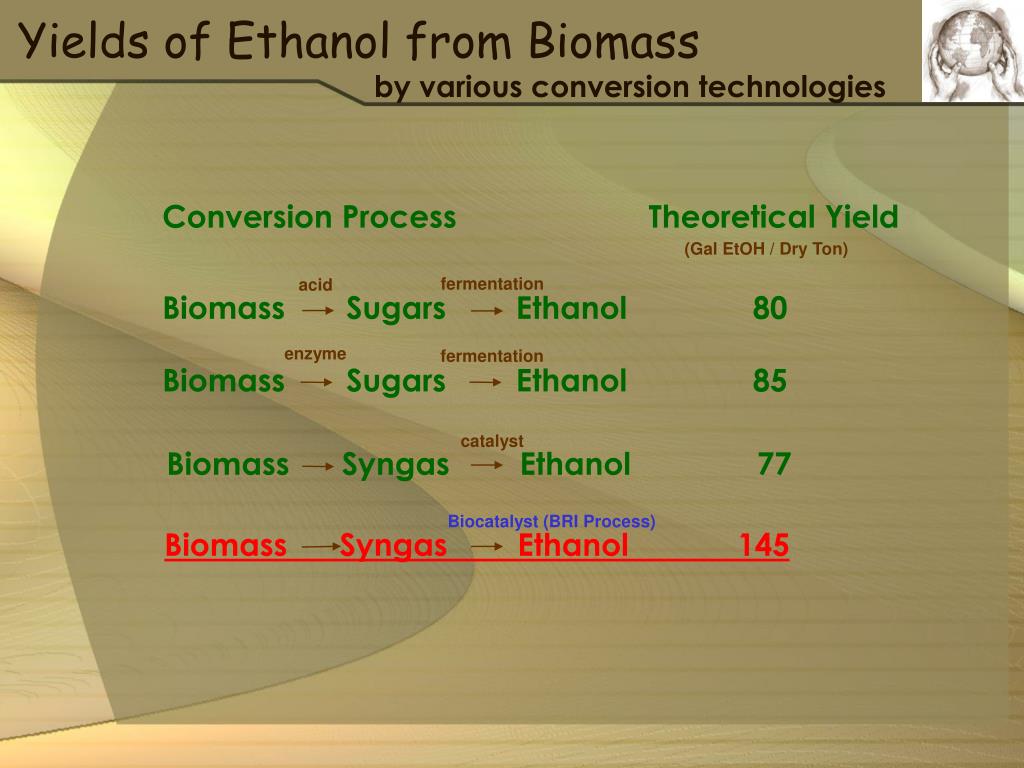

Yields of Ethanol from Biomass

by various conversion technologies

Conversion Process Theoretical Yield

(Gal EtOH / Dry Ton)

fermentation

acid

Biomass Sugars Ethanol 80

enzyme

fermentation

Biomass Sugars Ethanol 85

catalyst

Biomass Syngas Ethanol 77

Biocatalyst (BRI Process)

Biomass Syngas Ethanol 145





Emission streams

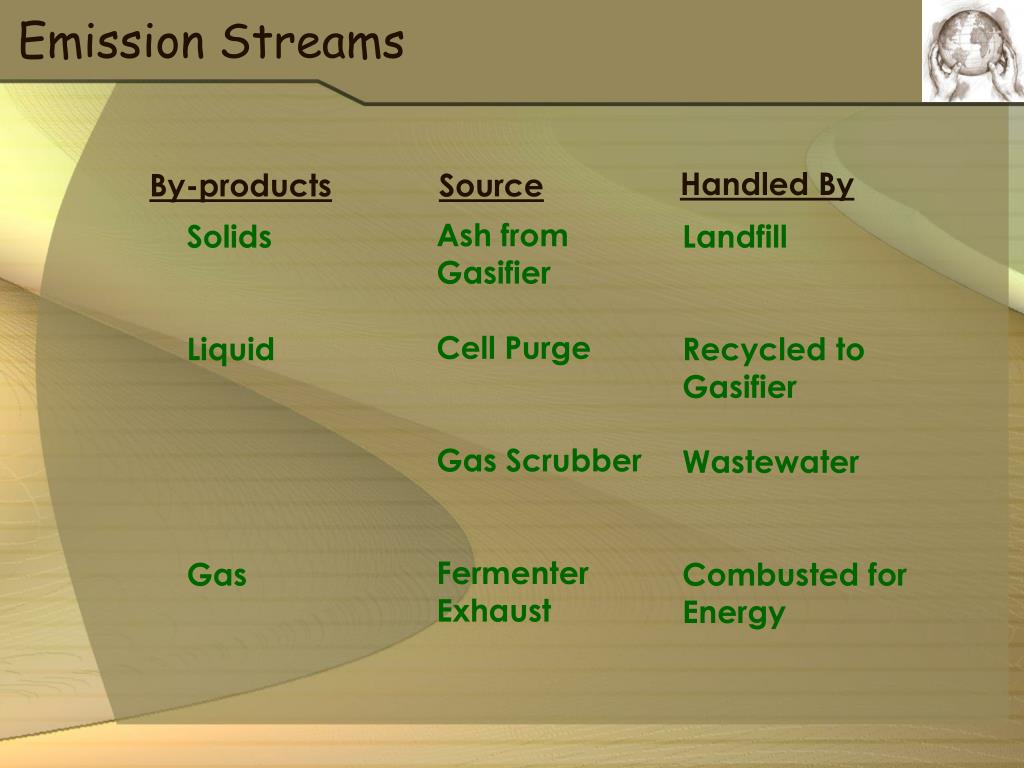

Emission Streams

Handled By

By-products

Source

Ash from

Gasifier

Cell Purge

Gas Scrubber

Fermenter

Exhaust

Solids

Liquid

Gas

Landfill

Recycled to

Gasifier

Wastewater

Combusted for

Energy


Bri process development
BRI Process Development

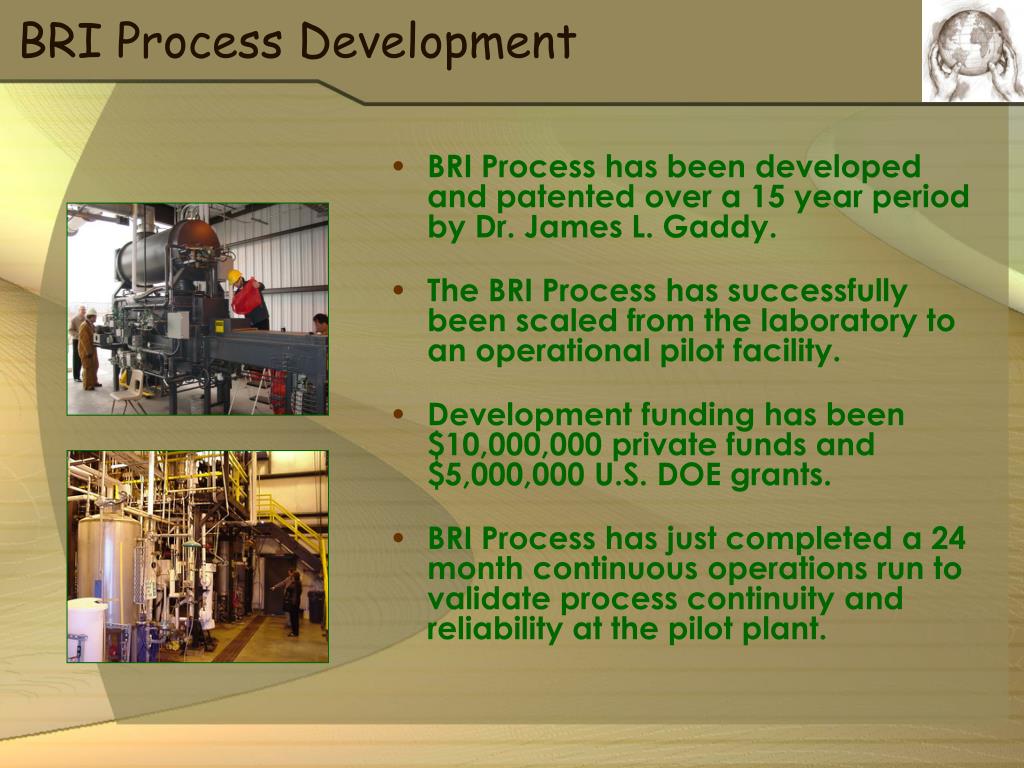

  • BRI Process has been developed and patented over a 15 year period by Dr. James L. Gaddy.

  • The BRI Process has successfully been scaled from the laboratory to an operational pilot facility.

  • Development funding has been $10,000,000 private funds and $5,000,000 U.S. DOE grants.

  • BRI Process has just completed a 24 month continuous operations run to validate process continuity and reliability at the pilot plant.


How does it work
How Does It Work?

  • The BRI technology uses a thermal gasification process to “crack” complex carbon molecules and reform them into simple carbon monoxide and carbon dioxide

  • The reformed gases (syngas) is delivered to a bioreaction fermentation vessel where the gasses are ingested by the active cultures

  • The result of this metabolic process is bioethanol, hydrogen and water

  • A standard distillation process is used to separate the bioethanol from the water


BRI Process Schematic

Molecular

Sieve

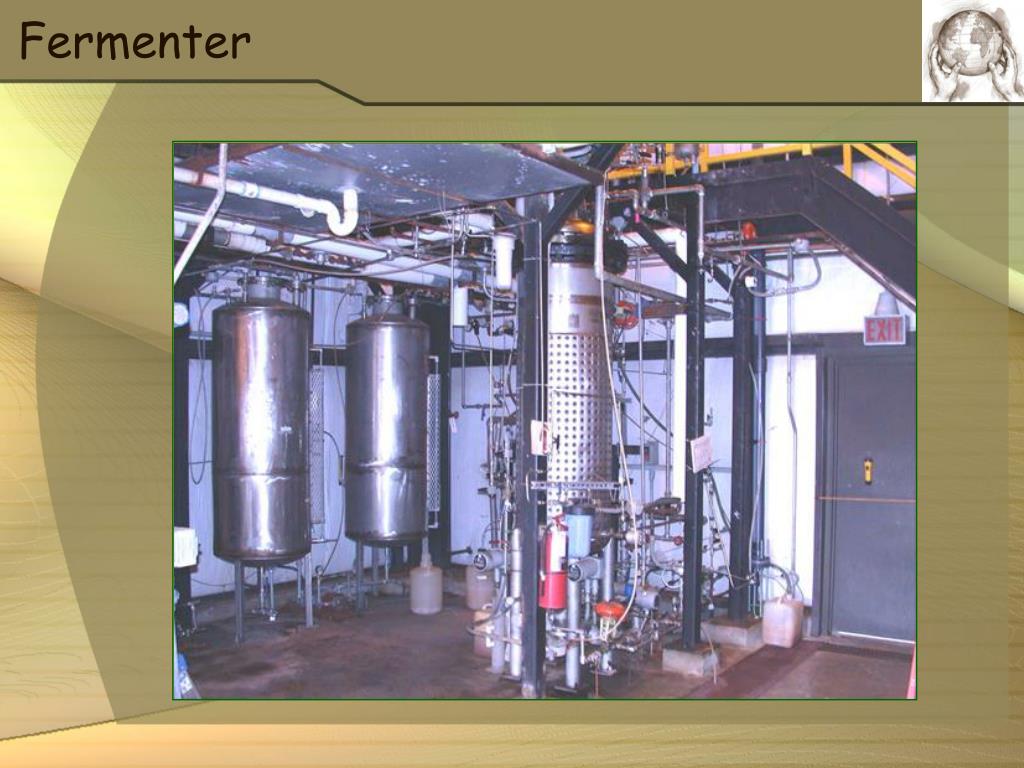

Fermenter

Gas clean-up and heat recovery

Gasifier

Biomass

Feedstock

99.5%

Anhydrous

Ethanol

Nutrients

95% Ethanol

Ash

Steam

Power

Dilute

Distillation

Cell Filtration

Ethanol

Exhaust Gas

To Fuel

Purge

Water Recycle


Patented micro organism
Patented Micro-Organism

Used for Production of Bioethanol

Clostridium ljungdahlii

Tanner, et. al., 1993


What is unique about bri s technology
What Is Unique About BRI’s Technology?

  • Different feedstocks can be blended

  • Handles up to 30% moisture content

    • Dry feedstock (Tires & Plastics) can be blended with wet feedstock to achieve the 30% moisture limit

  • The process is odorless

  • Can alternatively produce hydrogen


Bri plants are modular
BRI Plants are Modular

A single plant module will :

  • Process 50,000 tons of carbon and biomass annually

  • Produce 4,000,000 gallons of bioethanol annually

  • Generate 1.5 MW of excess electricity for sale to the grid

Carbon Fuel Bales

From MSW


Proven equipment
Proven Equipment

  • Plant will use proven energy equipment that has been used for over 50 years in the energy industry

  • The distillation and fermentation equipment is a standard in the global ethanol industry

  • The equipment is provided by established companies and is fully guaranteed


Who stands behind bri technology
Who Stands Behind BRI Technology?

BRI will stand behind their technology including support from their suppliers :

  • EPC agreement with a major multi-national engineering firm

  • Process design guarantee from Katzen International (Fermentation & Distillation)

  • Existing equipment guarantees from the component suppliers (Energy & Gasification)


Benefits of ethanol as a fuel

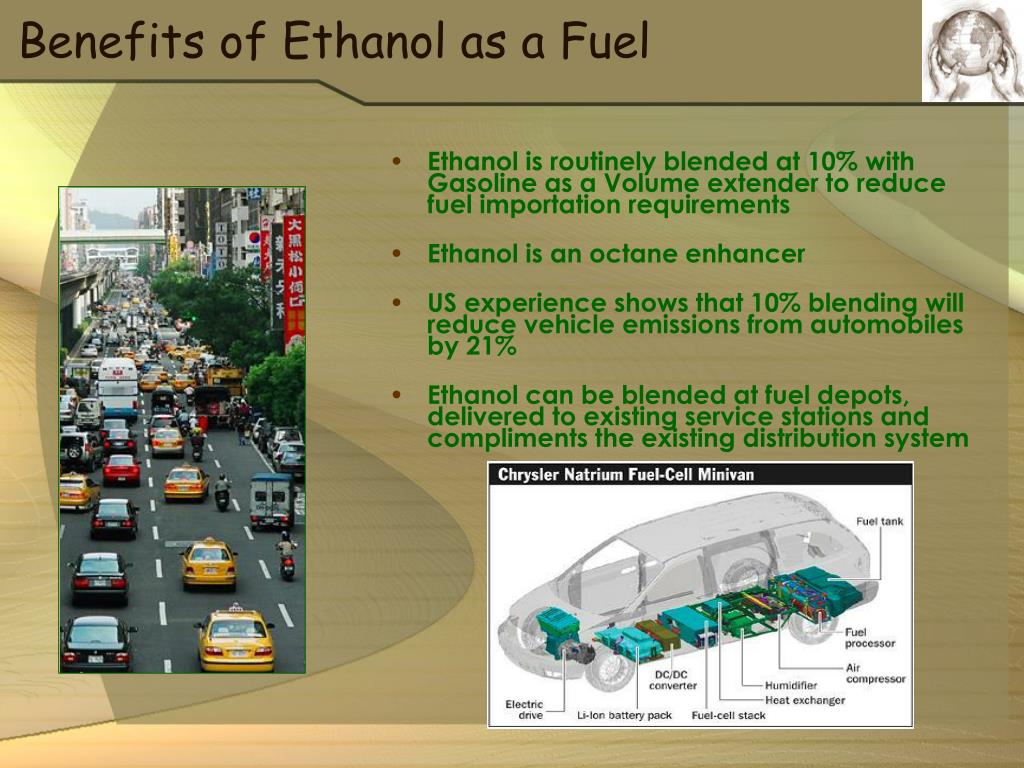

Benefits of Ethanol as a Fuel

  • Ethanol is routinely blended at 10% with Gasoline as a Volume extender to reduce fuel importation requirements

  • Ethanol is an octane enhancer

  • US experience shows that 10% blending will reduce vehicle emissions from automobiles by 21%

  • Ethanol can be blended at fuel depots, delivered to existing service stations and compliments the existing distribution system


Advantages of gasification fermentation
Advantages of Gasification-Fermentation

  • Flexible - raw materials may be blended

  • High Yield - single product - simple separation

  • Faster Fermentation - smaller reactors

  • Complete disposal of organic wastes

  • Accomplishes waste sterilization

  • Available waste heat


Does the bri process pollute

NO

The BRI process does not pollute. The emissions from the gasifier are fed to the microorganisms in the fermentation tank to assure all pollutants are eliminated.

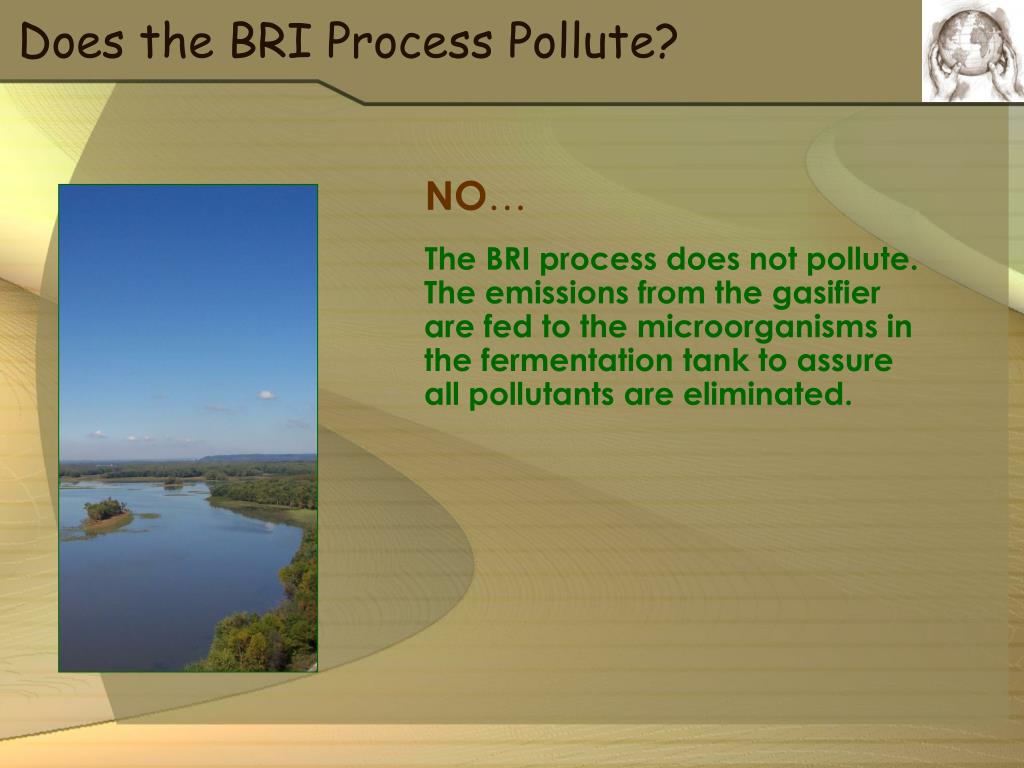

Does the BRI Process Pollute?


Air emissions

Gasification

There are no air emissions from the gasification step. The syngas is treated through “scrubbing” and activated carbon filtration and then fed directly to the fermentation vessels.

Electricity Generation

Waste heat from the cooling of the synthesis gases is used to create high temperature steam.

Syngas remaining after the fermentation stage has high concentrations of hydrogen that can be combusted to produce additional high temperature stream or the hydrogen can be reclaimed for external markets.

Air Emissions


Process byproducts
Process Byproducts

Ash

5% ash remains from organic material. Inerts or inorganics such as metals or glass will remain in the ash for landfilling or recycling. We estimate that the combinations of ash from the organics and the inorganics will total approximately 15%.

Wastewater

Syngas is “scrubbed” prior to introduction to the fermentation vessel resulting in a waste water that is treated for recycling. Excess water is treated and suitable for irrigation uses.

Air

Air emissions are minimal with low levels of hydrogen and CO2. The hydrogen can be reclaimed for available markets or discharged. The levels are far below U.S. EPA and international guidelines.
