MODULE 4

SHOULDER


Normal anatomy l.jpg

NORMAL ANATOMY

  • Positioning slides

  • Discuss three views versus four view series

  • AP - internal rotation

  • AP - external rotation

  • Abduction - baby arm, 90o/90o view

    • at least one view should demonstrate lung apices, usually baby arm


Lines of mensuration l.jpg

LINES OF MENSURATION

  • Axial angle of humerus in AP with external rotation

  • Humeral shaft line

  • Humeral head line

    • greater tubercle

    • medial/inferior articular surface


Lines of mensuration4 l.jpg

LINES OF MENSURATION

  • Humeral angle

    • average 60o in men

    • average 62o in female

  • Changes in angles could be due to fracture, dysplasia, or SLE


Slide5 l.jpg

Humeral shaft line=A

Humeral head line=B

Humeral angle=HA

Fig 2.68


Lines of mensuration6 l.jpg

LINES OF MENSURATION

  • Glenohumeral joint in AP with external rotation

  • Measure superior, middle, and inferior

  • Add and divide by three and report average (mobility versus stability)

  • 4-5 mm essential normal


Slide7 l.jpg

Glenohumeral joint

in AP with external rotation

Fig 2.69

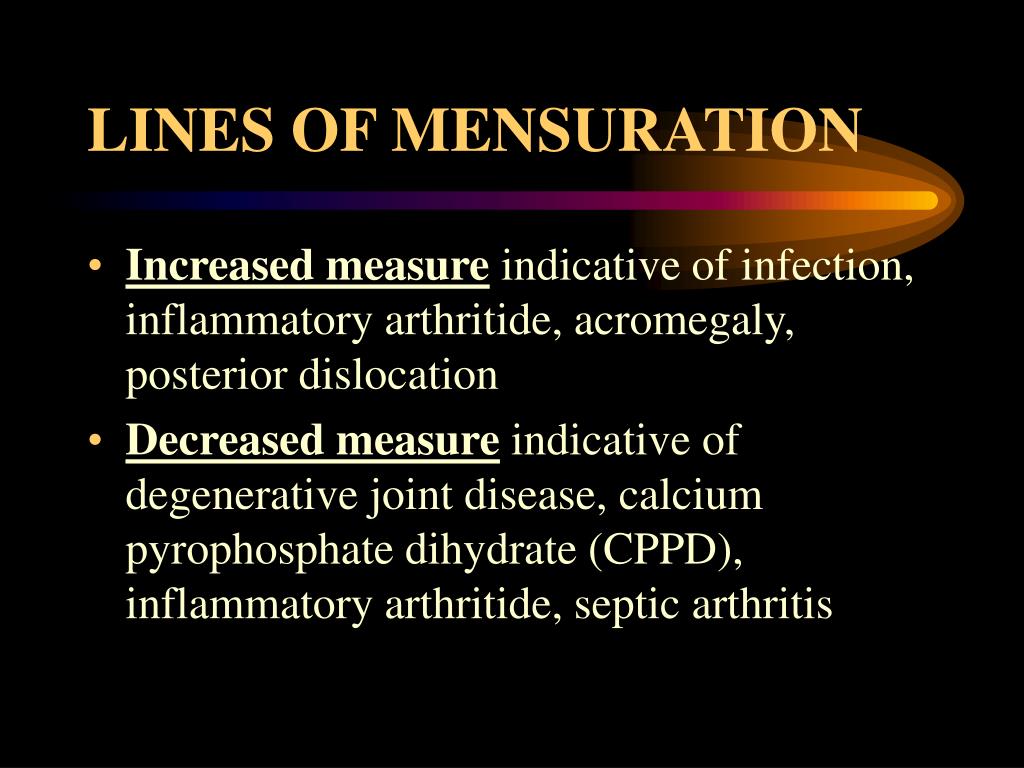

Lines of mensuration8 l.jpg

LINES OF MENSURATION

  • Increased measure indicative of infection, inflammatory arthritide, acromegaly, posterior dislocation

  • Decreased measure indicative of degenerative joint disease, calcium pyrophosphate dihydrate (CPPD), inflammatory arthritide, septic arthritis


Lines of mensuration9 l.jpg

LINES OF MENSURATION

  • Acromiohumeral joint space

  • AP shoulder (or external rotation)

  • Measure inferior surface of acromion to humeral head

  • Average 9.0mm (range 7-11mm)


Slide10 l.jpg

Acromiohumeral joint space

Fig 2.70


Lines of mensuration11 l.jpg

LINES OF MENSURATION

  • Decrease (<7.0mm) indicative of rotator cuff tear, degenerative tendonitis

  • Increase (>11.0mm) indicative of post-traumatic subluxation, dislocation, joint effusion, stroke, brachial plexus lesion (drooping shoulder)


Lines of mensuration12 l.jpg

LINES OF MENSURATION

  • Acromioclavicular joint space

  • AP, PA, external view

  • Measure superior and inferior surfaces and average the measurements

  • Males average 3.3 with a range of 2.5-4.1

  • Females average 2.9 with a range of 2.1-3.7


Slide13 l.jpg

Acromioclavicular joint space

Fig 2.71a

Good


Slide14 l.jpg

Acromioclavicular joint space

Fig 2.71b

Bad DJD Bad dog!!!

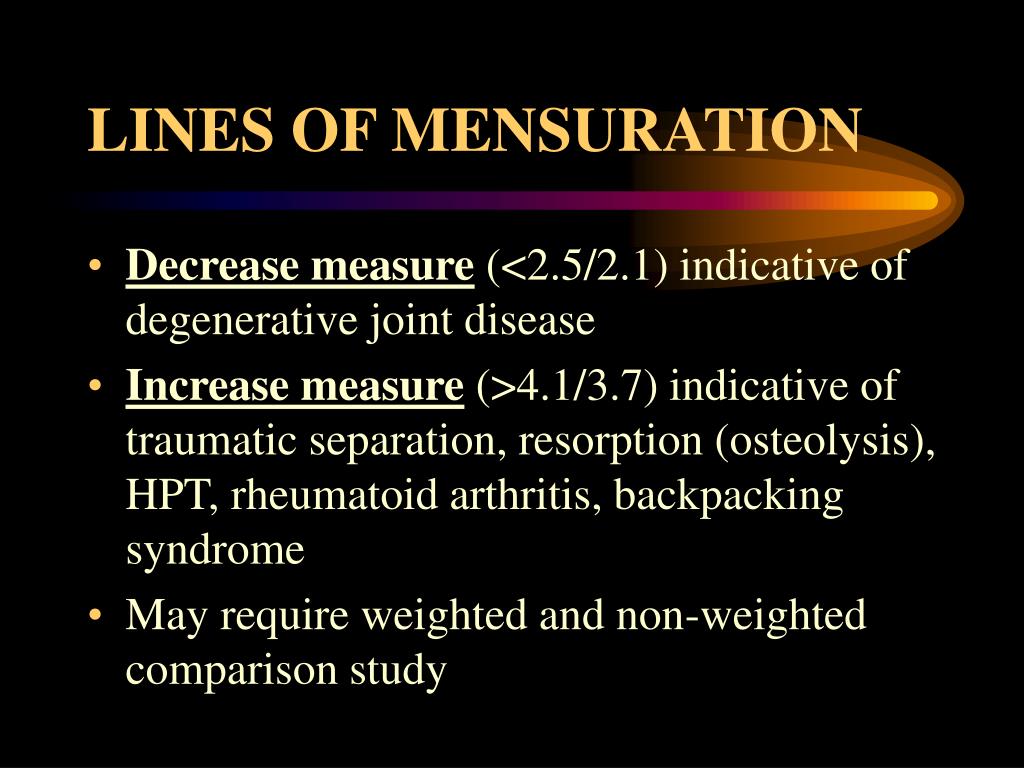

Lines of mensuration15 l.jpg

LINES OF MENSURATION

  • Decrease measure (<2.5/2.1) indicative of degenerative joint disease

  • Increase measure (>4.1/3.7) indicative of traumatic separation, resorption (osteolysis), HPT, rheumatoid arthritis, backpacking syndrome

  • May require weighted and non-weighted comparison study


Common conditions l.jpg

COMMON CONDITIONS

  • Degenerative joint disease

  • Rotator cuff tear

  • Calcific tendonitis

  • Dislocation and humerus fracture

  • Clavicle fracture

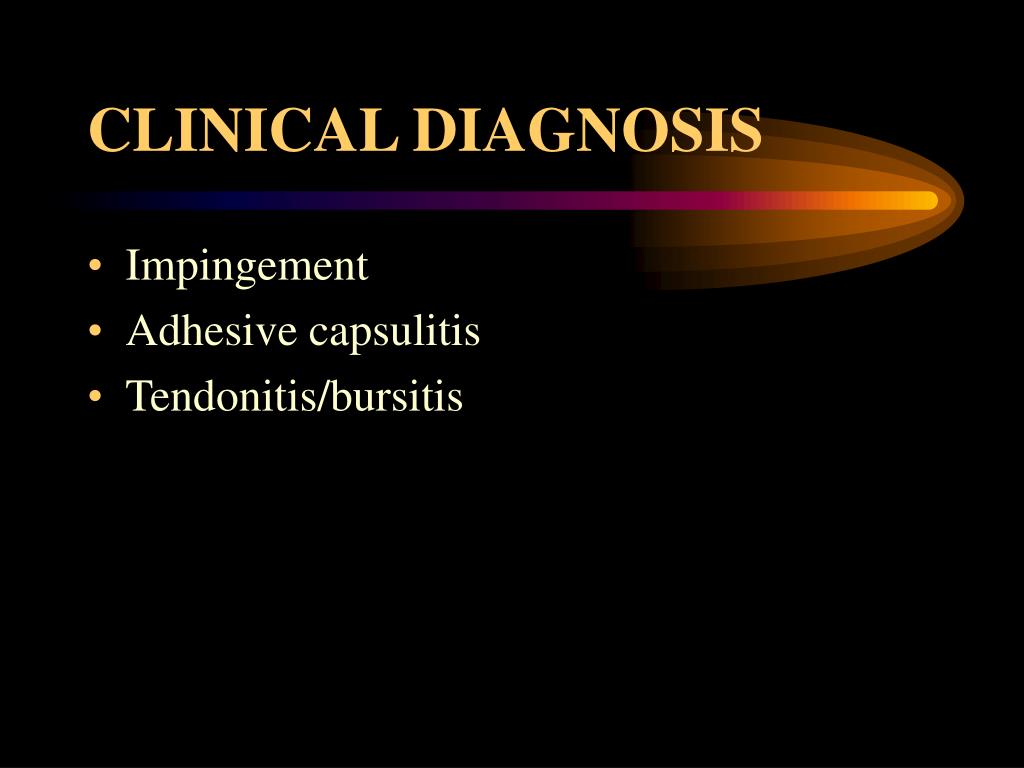

Clinical diagnosis l.jpg

CLINICAL DIAGNOSIS

  • Impingement

  • Adhesive capsulitis

  • Tendonitis/bursitis


Slides l.jpg

Normal positioning

Text measure

Gross specifications

Degenerative joint disease

Calcified tendonitis

Rotator cuff tear

Acromioclavicular separation Osteolysis

Scapula fracture

Clavicular fracture

Surgical sign of clavicle removal

Ischemic necrosis

Impingement

SLIDES


Mention l.jpg

MENTION

  • Adhesive capsulitis

  • Tendonitis/bursitis
