Presentation Transcript
Logo a language for learning l.jpg

Logo -- A Language for Learning

Liping Cai

11/21/2005


Agenda l.jpg
Agenda

  • What is Logo?

  • History

  • Syntax and Example

  • Demo

  • Reference


What is logo l.jpg
What is Logo?

  • Designed to manipulate language – Words and Sentences.

  • Designed to introduce children to programming concepts

  • Intended to be easy to learn, easy to use, easy to read, but also powerful and able to cope with complex problems.

  • Features: modularity, extensibility, interactivity, and flexibility

  • Areas of Application: Graphics (Turtle Graphics), Use with Language, Making Music

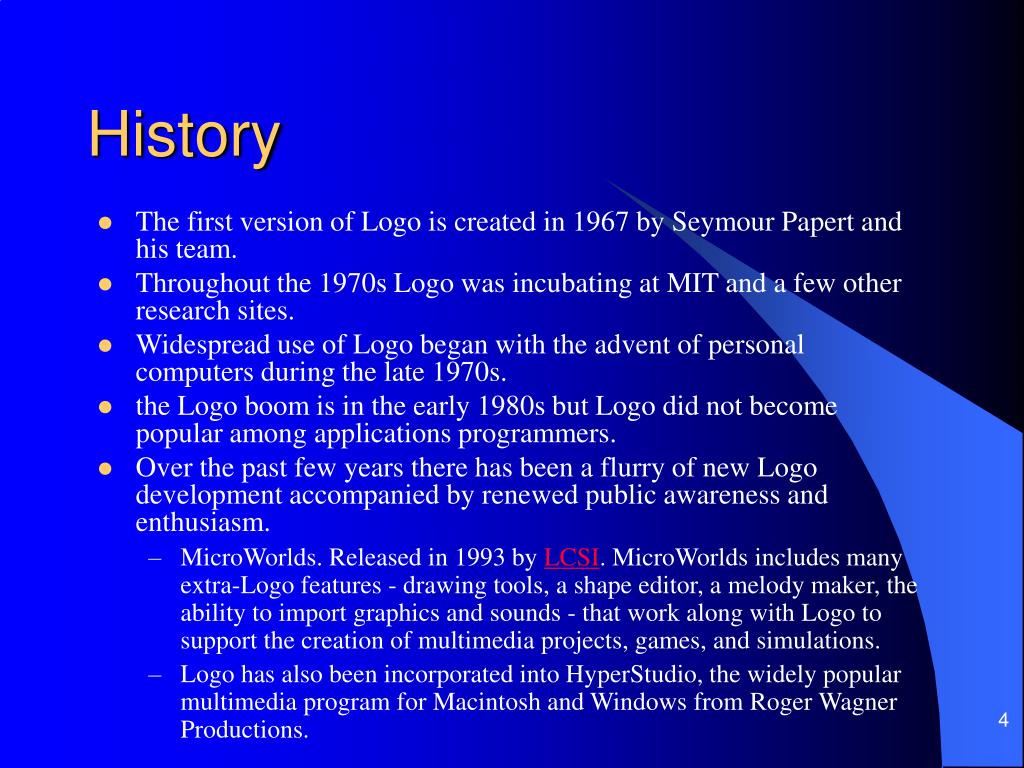

History l.jpg
History

  • The first version of Logo is created in 1967 by Seymour Papert and his team.

  • Throughout the 1970s Logo was incubating at MIT and a few other research sites.

  • Widespread use of Logo began with the advent of personal computers during the late 1970s.

  • the Logo boom is in the early 1980s but Logo did not become popular among applications programmers.

  • Over the past few years there has been a flurry of new Logo development accompanied by renewed public awareness and enthusiasm.

    • MicroWorlds. Released in 1993 by LCSI. MicroWorlds includes many extra-Logo features - drawing tools, a shape editor, a melody maker, the ability to import graphics and sounds - that work along with Logo to support the creation of multimedia projects, games, and simulations.

    • Logo has also been incorporated into HyperStudio, the widely popular multimedia program for Macintosh and Windows from Roger Wagner Productions.


Get to know logo l.jpg
Get to Know Logo

  • Turtle: Cursor for Logo

    -- set position of the logo:

    Turtle Screen Positions using <Setxy horizontal vertical>

  • Technical Terms:

    -- instruction: is what you type to Logo to tell it to do something. Print 17 is an example of an instruction.

    -- procedure: is a small piece of code that performs a single task ;Procedures are invoked by instructions. Print is a procedure.

    -- command: is a procedure that does not output a value but instead has some effect such as printing something on the screen, moving a turtle, or making a sound. Print is a command;

    -- operation: is a procedure that computes a value and outputs it.

    Sum and product are operations.


Simple commands l.jpg
Simple Commands

  • Forward 100 - moves the turtle forward 100 unit

  • Back 50 - moves the turtle back 50 units

  • Right 45 - turns the turtle 45 degrees to the right

  • Left 90 - turns the turtle 90 degrees to the left

  • Home - Returns the turtle to its origin

  • ClearSceen - Erases the screen

  • repeat 4 [FD 100 RT 90] – draw a square

  • Print “hello – print Hello on the screen


Primitive operations l.jpg
primitive operations

  • Sum: Print Sum 2 3 – 5

  • First: Print first “Hello – H; Print first [How are you?] – How

  • Butfrist: Print butfirst “hello – ello; Print butfirst [how are you?] – are you?

  • Item: Print item 3 “ how – w; Print item 3 [How are you] – you

  • Sentence: print sentence "hello "goodbye -- hello goodbye

    print sentence [this is] [a test] -- this is a test;

    print sentence "this [is one too] -- this is one too;

    print sentence [] [list of words] – list of words;

  • Word: print word "now "here – nowhere;

    print word "this [is a test] -- word doesn't like [is a test] as input

  • List: print list [this is] [a test] -- [this is] [a test];

    print list "this [is one too] -- this [is one too];

    print list [] [list of words] -- [] [list of words] ;


Define procedures variables l.jpg
Define Procedures & Variables:

  • To define a procedure:

    To procedure

    …. Statements

    End

  • To define a variable:

    MAKE "<variableName> <value>

    eg make "size 10. In this example the variable called "size" will now have a value of ten.

    make "position {1 2 3 4 5 6 7 8 9} -- make an array

  • Using variable in Procedure: colon(:) in front of variable name.

    to numberingmake "size 10label :sizeend


Predicates operator l.jpg
Predicates & Operator:

  • A predicate is an operation whose output is always either the word true or the word false.

    Listp -- return true if input is a list, false if not.

    print wordp "hello – true; print wordp [hello] – false

    print emptyp []-- true; print emptyp 0 –false

    print equalp 3 3.0-- true; print equalp "hello [hello]--false

  • Define custom Predicates:

    to vowelp :letter

    output memberp :letter [a e i o u]

    end

    print vowelp “e – true; print vowelp “h – false.

  • Operators: + - * /


Conditional commands iteration l.jpg
Conditional Commands & Iteration

  • If: if equalp 2 1+1 [print "Yup.] – Yup.

  • ifelse: ifelse 4 = 2+2 [print "Yup.] [print "Nope.] -- Yup

  • iftrue and iffalse :

    make "variable1 27make "variable2 33test :variable1 = :variable2iftrue [print [The values are the same.]]ifffalse [print [The values are different.]]  --The values are different.

  • Until, while : until [condition][action]; while [condition][action]

    until [:count > 10][print :count  make "count  :count + 1] -- 1 2 3 4 5 6 7 8 9 10

    where [:count < 10][print :count  make "count  :count + 1] -- 1 2 3 4 5 6 7 8 9

  • Do.until, do.while : do.until [action][condition] do.while [action][condition]

    do.until [print :count  make "count  :count + 1][:count > 10] --1 2 3 4 5 6 7 8 9 10

    do.while [print :count  make "count  :count + 1][:count < 10]--1 2 3 4 5 6 7 8 9


Conditional commands iteration continued l.jpg
Conditional Commands & Iteration (Continued)

  • For: for [variable_name starting_value limit_value, steps]

    for [number 4 7] [print :number] – 4 5 6 7

    for [value 4 11 3] [print :value] -- 4 7 1 0

  • Foreach : take each element in the list

    foreach [chocolate [rum raisin] pumpkin] [print sentence [I like] ?]

    -- I like chocolate

    I like rum raisin

    I like pumpkin

  • Map : collect the results of doing this for each of those

  • Macro: Berkeley Logo includes this mechanism, no other version has Macro, Like Lisp.


Recursion graphic example l.jpg
Recursion(Graphic Example)

to tree :size

if :size < 5 [forward :size back :size stop]

forward :size/3

left 30 tree :size*2/3 right 30

forward :size/6

right 25 tree :size/2 left 25

forward :size/3

right 25 tree :size/2 left 25

forward :size/6

back :size

End

Tree 100


References l.jpg
References

  • http://www.cs.berkeley.edu/~bh/v1-toc2.html

    Symbolic Computing, a Logo programming text that concentrates on natural language processing rather than the graphics most people associate with Logo.

  • http://www.cs.berkeley.edu/~bh/v2-toc2.html

    Advanced Techniques, in which discussions of more advanced Logo features alternate with sample projects using those features, with commentary on the structure and style of each.

  • http://www.cs.berkeley.edu/~bh/v3-toc2.html

    Beyond Programming, brief introductions to six college-level computer science topics.


More references l.jpg
More References

  • http://library.advanced.org/18446/eindex.shtml

  • Star Logo Home Page http://el.www.media.mit.edu/groups/el/projects/starlogo/

  • The Logo Foundation

    http://lcs.www.media.mit.edu/groups/logo-foundation/

  • Download a FREE version of MSW Logo

    http://www.softronix.com

  • Links to all sorts of Logo Resources http://lcs.www.media.mit.edu/groups/logo-foundation/links.html
