Introducing e-vispowering collaborative commerce

Yeon-Sik ChoiTSS Manager, UGS KoreaMarch 21, 2001


Agenda l.jpg

agenda

  • e-Vis: OEV(Open Enterprise Visualization overview

  • e-Vis: internet visual collaboration overview

  • e-Vis connect launch


E vis open enterprise visualization l.jpg

e-vis: open enterprise visualization

Legacy

Data

CAD

Integration

PDM

Integration

ERP

Integration

VisPublish3D

Digital

Publishing

VisConcept

1:1 Scale

Visualization

VisView

Viewing

and

MarkUp

VisMockUp

Digital

Prototyping

and

Collaboration

Common Integration Framework


Slide5 l.jpg

VisConcept

  • Only commercial solution focused on human-scale or "1:1" visualization

  • Designed to replace physical prototypes with highly realistic virtual prototypes and use them as the basis for communicating design intent within design reviews.

  • Full immersive interaction (no mouse, keyboard, or 2D GUI)

  • VisConcept Layout

  • For creating presentations on a typical (non-immersive) workstation

  • VisConcept Presenter

  • For immersive viewing and 1:1 interaction with virtual prototypes

  • Can be used with presentations created with VisConcept Layout or it can be linked to third-party applications such as AutoStudio by Alias/Wavefront or Unigraphics

A real-time image rendered at 1:1 scale with VisConcept


High performance enterprise wide visualization l.jpg

High performance enterprise-wide visualization

  • View, measure, markup and interact with very large assemblies and their related databases in a single visual environment

  • Unlocks 2D, 3D, and document data for use across the enterprise

  • CAD/PDM independence

    • Tight data integration with multiple CAD and PDM systems


Slide8 l.jpg

VisView

Product Hierarchy

Precise Measurement

Cross Section

2D/3D Markup

Simple Navigation


Features continued l.jpg

Features continued...

2D Formats

Ascii Text

AutoCAD DWF

BMP

Calcomp

CGM

Co/Create ME10

DWG

DXF

GIF

HPGL

IGES

TG4

JPEG

DGN

TIFF

PCX

PCT

PNG

Postscript

Zip formats

more...

  • View Sequence

  • Dynamic Cross Sectioning

    • Dynamically section 3D digital models to detect interference problems, perform measurements, and save section images

  • Very large number of supported file formats

3D Formats & CAD Interfaces

DirectModel

UG

CATIA

I-DEAS

Pro/E

Solid Edge

SolidWorks

CADDS

Step

IGES

vrml

more...

PDM Interfaces

iMAN

Metaphase

Sherpa

Matrix

CV Optegra

Enovia PM

more...


Real time digital prototyping l.jpg

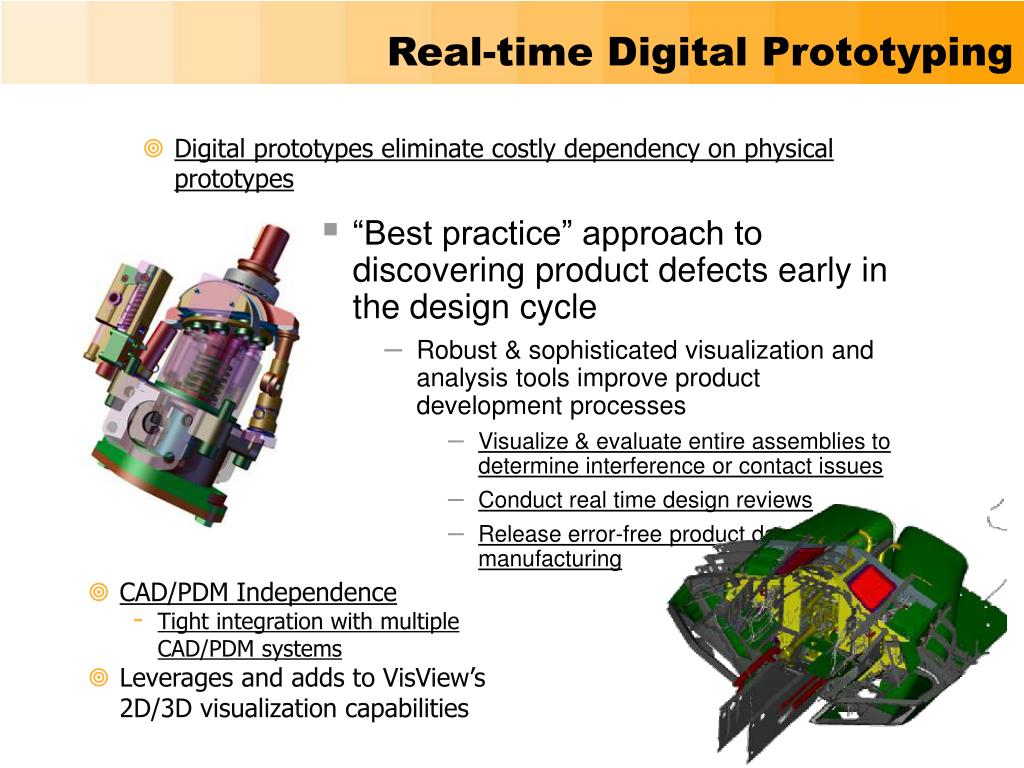

Real-time Digital Prototyping

  • Digital prototypes eliminate costly dependency on physical prototypes

  • “Best practice” approach to discovering product defects early in the design cycle

    • Robust & sophisticated visualization and analysis tools improve product development processes

      • Visualize & evaluate entire assemblies to determine interference or contact issues

      • Conduct real time design reviews

      • Release error-free product data to manufacturing

  • CAD/PDM Independence

    • Tight integration with multiple CAD/PDM systems

  • Leverages and adds to VisView’s 2D/3D visualization capabilities


Slide12 l.jpg

  • PMI

    • GD&T

    • Weld symbols

Outline Capture

3D Comparison

  • Tri-color mapping

  • Distance mapping

VisMockUp


Slide13 l.jpg

  • 3D Alignment

    • Align parts byselecting onmatching features

Filters

  • Volume (shown)

  • Attribute

VisMockUp


Additional analysis l.jpg

Additional analysis

VisMockUp

  • Static and Dynamic Clearance Analysis

    • Detect and display interference quickly during motion playback

    • Perform complete analysis on large, 3D product databases to locate and list problem areas, perform proximity calculations, and more…

  • Movie Capture


Animation creation l.jpg

Animation Creation

VisMockup: Assembly

Demonstrate assembly sequences


Cross section manager l.jpg

Cross Section Manager

VisMockup: Analysis

  • View and manage multiple cross sections in a single, managed environment

    • Tiled Views, Curve Display, Overlay View

  • Take multiple cross-sections along a curve or axis.

  • Save and print HPGL Output

  • Measure multiple concurrent sections in the Overlay View


Solution for low cost ergonomic analysis l.jpg

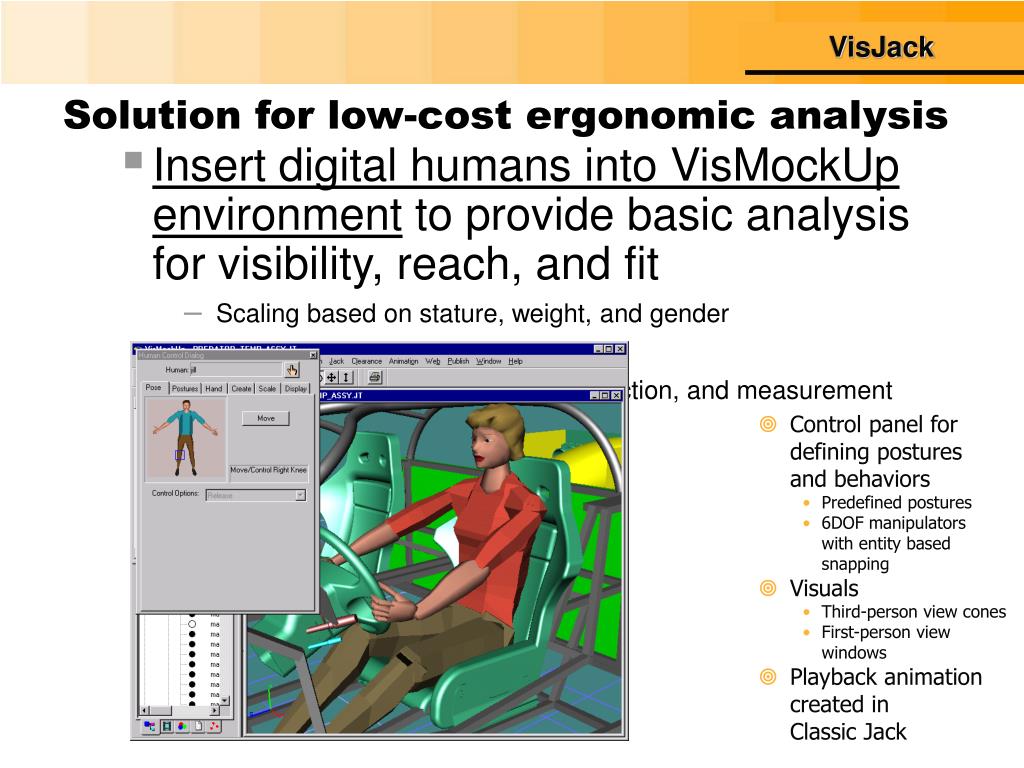

Solution for low-cost ergonomic analysis

VisJack

  • Insert digital humans into VisMockUp environment to provide basic analysis for visibility, reach, and fit

    • Scaling based on stature, weight, and gender

    • Predefined human models

    • Integration with clearance, cross-section, and measurement

  • Control panel for defining postures and behaviors

    • Predefined postures

    • 6DOF manipulatorswith entity based snapping

  • Visuals

    • Third-person view cones

    • First-person view windows

  • Playback animationcreated in Classic Jack


Vismockup l.jpg

VisMockup

  • Can your design be assembled?

  • Can you maintain and service your product?

  • Can human use your product?

  • Can your product be manufactured cost-effectively?


3d digital publishing l.jpg

3D Digital Publishing

VisPublish3D

  • New 3D digital paradigm based on repurposed product and process data

  • Integrates 2D and 3D environments

  • Automates maintenance of data content through geometry verification

  • Eliminates need for expensive technical illustration applications by leveraging VisMockUp’s core 2D/3D visualization functionalities

Fully collaboration enabled

Interacts with PDM & other file systems

Standard company base templates used to introduce new publishing environment: Illustration Books


Customers l.jpg

customers


Automotive industry customers l.jpg

Automotive industry Customers


Aerospace industry customers l.jpg

Aerospace industry customers


Consumer and industrial equipment l.jpg

Consumer and industrial equipment


Electronics and communications l.jpg

Electronics and communications


E vis internet visual collaboration l.jpg

e-vis: internet visual collaboration


Business challenges l.jpg

business challenges

  • Improve supply-chain communication

    • Complex, international supply chains

    • Heterogeneous technology

  • Improve innovation and quality

    • Majority of product made in supply chain

    • Supply chain must innovate to improve first-time quality

  • Reduce time-to-market

    • Reduce cycle times

    • Improve visibility across all phases of product lifecycle

  • Reduce costs

    • Reduce IT costs

    • Improve cost analysis and decision support


The evolution of collaboration l.jpg

the evolution of collaboration

“Collaboration has emerged as the defining concept in the vision of the extended enterprise.”

Meta Group

Gartner Group


Collaboration drives dramatic savings for manufacturing industry l.jpg

collaboration drives dramatic savings for manufacturing industry

Wasserstein-Perella report on automotive industry:

  • Collaboration will facilitate $19 billion savings in product development costs for the Big 3 automakers alone.

  • Product development time will be reduced by 50% over a five-year forecasting horizon.

  • Production costs will be lower $900 to $1,300 per vehicle.


Definition of visual collaboration l.jpg

definition of visual collaboration

Visual collaboration is

project collaboration integrated with

product visualization across the supply chain.

Project collaboration

  • Secure storage and organization for all kinds of data

  • General collaboration tools

  • XML APIs for customization

2D and 3D visualization

  • View, measure, mark up

  • Mockup and analysis

  • Integrated to project vault

  • Streaming (future)

Real-time Conferences

  • On any desktop application

  • On 2D and 3D data

  • Via a Web browser


E vis solutions l.jpg

e-vis solutions

e-vis connect

The secure, visual collaboration solution for enterprise and private exchanges

e-vis exchange

The secure, visual collaboration solution for

public B2B exchanges

UGS-hosted

version of

e-vis

e-vis.com


Slide32 l.jpg

October 18, 2000:

COVISINT chooses e-vis as visual collaboration service on world’s largest B2B Internet exchange


Introducing e vis connect l.jpg

Introducing …e-vis connect


What is e vis connect l.jpg

what is e-vis connect?

  • e-vis visual collaboration …

    • Secure project workspace

    • Real-time conferencing

    • Integrated 2D and 3D visualization

  • Optimized for deployment in an OEM’s intranet

  • To allow the OEM to collaborate both inside the firewall and across the extended enterprise

  • Accomplished through an unprecedented level of integration into existing business processes and enterprise data sources (CAD, PDM, ERP, legacy databases)


The best of both worlds internet and intranet collaboration l.jpg

the best of both worlds:internet and intranet collaboration

e-vis connect deployed inside a manufacturer’s firewall . . .

e-vis connect

e-vis exchange

. . . can connect with independent public exchanges through syndication

COVISINT

Automotive OEM


Slide36 l.jpg

visual collaboration via a web browser

Easy project member

administration

Simple project management

Store, organize and share any kind of data

Search engine

Change notification via e-mail

Easy conference setup

Real-time conferences on desktop applications

On-the-fly secure file sharing

Real-time conferences on 2D and 3D data


E vis users l.jpg

e-vis users

  • Engineering

    • Design reviews and travel costs

    • Integration of suppliers

    • Early involvement of downstream disciplines

  • Manufacturing

    • Integrate downstream disciplines into process

    • Reduce costs associated with suppliers of tooling

    • Review design with product development

  • Purchasing

    • Manage supplier Integration and data sharing

    • RFQ integrated with e-Vis Connect

  • Sales and Marketing

    • Early involvement of engineering and manufacturing

    • Customer approval and review

    • Review design materials

  • Service

    • Serviceability


Functionality overview l.jpg

Functionality overview


The e vis connect solution l.jpg

the e-vis connect solution


E vis connect features and benefits l.jpg

e-vis connect features and benefits

project collaboration and visualization

Key Features

  • Project Vault

  • Integrated 2D and 3D visualization

  • Digital mockup, analysis and publishing

  • Integrated, real-time conferencing

  • “Office collaboration”

    Benefits

  • Richer supplier communication

  • Visual content improves innovation


E vis connect features and benefits41 l.jpg

e-vis connect features and benefits

project collaboration and visualization: project vault

  • Shared virtual workspace

    • Secure environment to access data and applications

    • Revision control

    • Change notification

    • Multi-level security

  • Integration of desktop applications

    • Seamless editing from Microsoft Office

    • Microsoft WebFolders access to Project Vault

    • Integration with e-mail

  • Wizards

    • Project Setup

    • eRFQ


E vis connect features and benefits42 l.jpg

e-vis connect features and benefits

integrated 2D & 3D visualization

  • High-performance visualization

    • 2D and 3D lightweight viewer

    • Digital mockup and analysis

    • Digital publishing

    • eCAD viewer

  • Integrated with “office collaboration” tools

  • Cross-platform

    • Windows and UNIX

DirectModel (JT) is the de facto visualization standard for the auto industry


E v is c onnect features and benefits l.jpg

e-vis connect features and benefits

integrated 2D & 3D visualization:

digital mockup and analysis

  • Check interference, clearance, fit of parts and assemblies

  • CAD- and PDM-neutral

  • Discover defects early in design cycle

  • Reduce dependency on expensive physical prototypes


E vis connect features and benefits44 l.jpg

e-vis connect features and benefits

integrated 2D & 3D visualization:

real-time conferencing

Interference detectedbetween valve and seal

Interference detectedbetween valve and seal

  • . . . on 2D and 3D data

  • High performance

  • Global design reviews

  • . . . on any desktop application

  • Share any application

  • Windows and/or UNIX mixed!

  • . . . on a digital whiteboard

  • Simple sketching

  • Save results to e-vis


Conclusion l.jpg

conclusion

  • Best-of breed

  • Comprehensive

  • Flexible

  • CAD-PDM Independent

  • Hardware platform independent

  • Scalable

  • Easy to use and deploy

Visit www.e-vis.com


  • Login
