Smart Cards

Security & Applications


Outline l.jpg

Outline

  • What is a smart card ?

  • History & Contemporary Usage of Smart Cards.

  • Types of Smart Cards

  • Advantages

  • Smart Card & System Components

  • Biometrics

  • Security

  • Applications


What is a smart card l.jpg

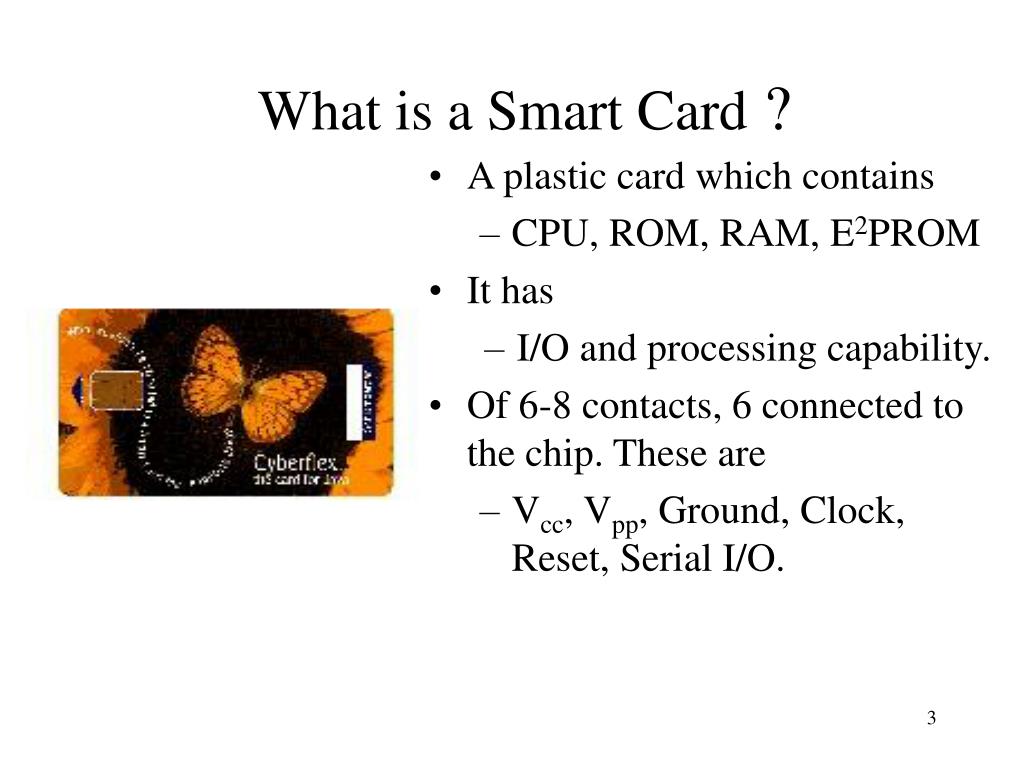

What is a Smart Card ?

  • A plastic card which contains

    • CPU, ROM, RAM, E2PROM

  • It has

    • I/O and processing capability.

  • Of 6-8 contacts, 6 connected to the chip. These are

    • Vcc, Vpp, Ground, Clock, Reset, Serial I/O.


Slide4 l.jpg

History

  • Speculations about the first Smart card.

  • 1968 - The idea of using plastic cards as the carrier for microchips was developed by Jergen Dethloff.

  • 1970 - The first smart cards were introduced in Japan.

  • 1974 - First patent by Roland Morena.

  • 1979 - Motorola produced a smart card with a chip.

  • 1984 - Microchips on Visa debit cards in France.

  • 1990 - Philips offer 512 bit RSA signature in 1.5 sec.

  • 1993 - France mandated microchips on all bank cards.


History cont d l.jpg

History (cont’d)

  • 1995 - Korea issues 1.5 million contactless smart cards for public transportation.

  • 1996 - At the Atlanta Olympics, athletes, team members, and staffs were issued with contactless smart cards containing their identification number, biometrics, etc.

  • 1996 - SGS Thompson offers RSA in 60 ms.

  • 1997 - MS plans smart card login support for Win 98/NT 5.0.


Slide6 l.jpg

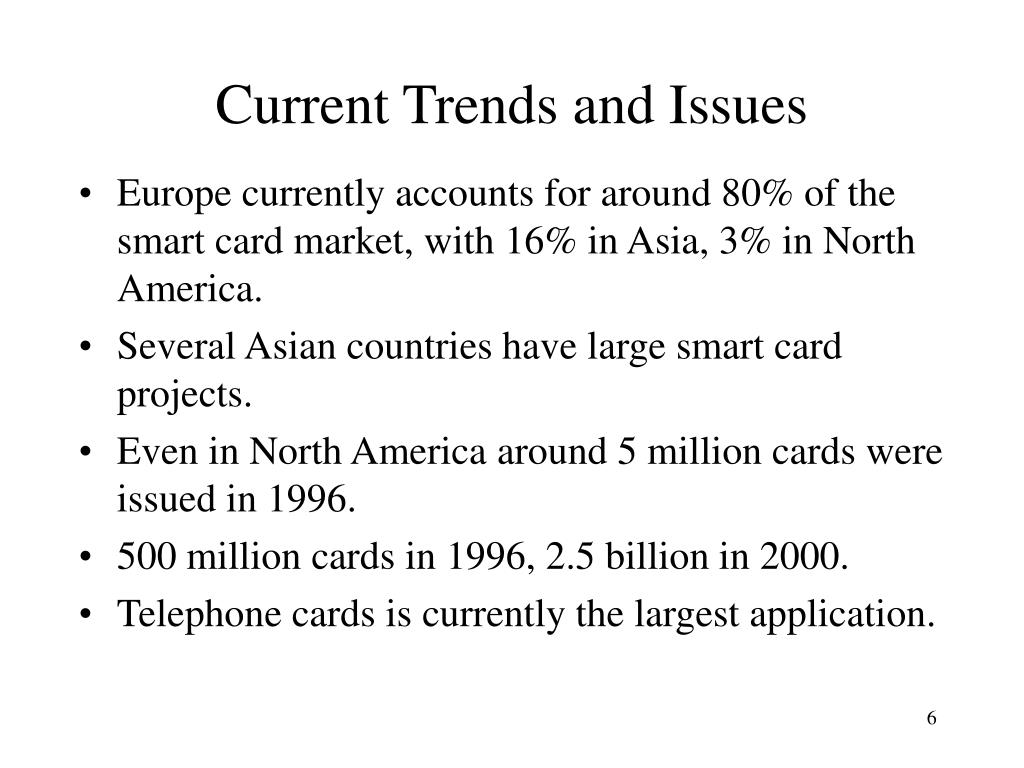

Current Trends and Issues

  • Europe currently accounts for around 80% of the smart card market, with 16% in Asia, 3% in North America.

  • Several Asian countries have large smart card projects.

  • Even in North America around 5 million cards were issued in 1996.

  • 500 million cards in 1996, 2.5 billion in 2000.

  • Telephone cards is currently the largest application.


Current trends and issues cont d l.jpg

Current Trends and Issues (cont’d)

Millions of Unit/Year


Slide8 l.jpg

Manufacturers

  • Motorola - MSC0402

    • ROM 23K

    • E2PROM 8K

    • RAM 384 Bytes

    • RNG

  • Hitachi- H8/300

    • ROM 16K

    • E2PROM 8K

    • RAM 512 Bytes

    • 2 I/O ports

  • Others

    • Japan : NEC, Toshiba, Oki.

    • US : Texas Instruments, Atmel, Catalyst

    • SGS-Thompson (France), Philips (Netherlands), Siemens (Germany).


Not every smart card is intelligent l.jpg

Not every Smart Card is Intelligent !

  • Memory Cards contain a memory with a fixed logic that enables to read from and write to this memory.

  • Cards, that use microcomputer ICs, are more commonly known as Smart Cards or Chip Cards.

  • Chip Cards are active devices.


Slide10 l.jpg

Types of Smart Cards

  • Contact Cards

    must be inserted into a reader

  • Contactless Cards

    powered by an RF signal using inductive coils.

  • Combi Cards

    can be powered by insertion or RF.


Advantages l.jpg

Advantages

  • Cannot be easily duplicated,

  • Tamper proof due to hardware technology,

  • Has processing power,

  • Incorporate cryptographic techniques,

  • Provide interactive authentication,

  • Flexible storage for biometrics, identification,

  • Organized information,


Slide12 l.jpg

Advantages (cont’d)

  • Fraud reduction,

  • High memory capacity,

  • Paperless transactions,

  • Convenience.


Slide13 l.jpg

Problems

  • Possible usage/registration fees,

  • Lack of internationally accepted standards,

  • Liability issues if card is lost/stolen/misused,

  • Downloading control,

  • System designers are not well informed about how to make use of the cryptographic products,

  • Inter-process protection in multi-application cards.

  • Contact/contactless cards.


Slide14 l.jpg

Problems (cont’d)

  • The difficulty of single terminal accepting all cards due to many card issuers and schemes.

  • Because of patents it is difficult to enter smart card market especially for chip and card manufacturers.

  • Multi-functionality issues.


Slide15 l.jpg

Inside the Smart Cards

BUS

CPU

MEMORY

CLOCK

PROTECTION

RESET

I/O


Slide16 l.jpg

Smart Card Components

  • Carrier - PVC, PETP.

  • Chip

    • Low-powerCMOS technology, operating at voltages between 2.2V and 5.5V: chips operating down to 1.5V and below are being designed.

    • 1 micron is now common, 0.2 micron is aimed

  • Microprocessor

    • 8 bit, Motorola 6805, Intel 8051 based.

    • Clock speed up to 5 MHz.

    • 16 bit processors are used in some newer chips.


Slide17 l.jpg

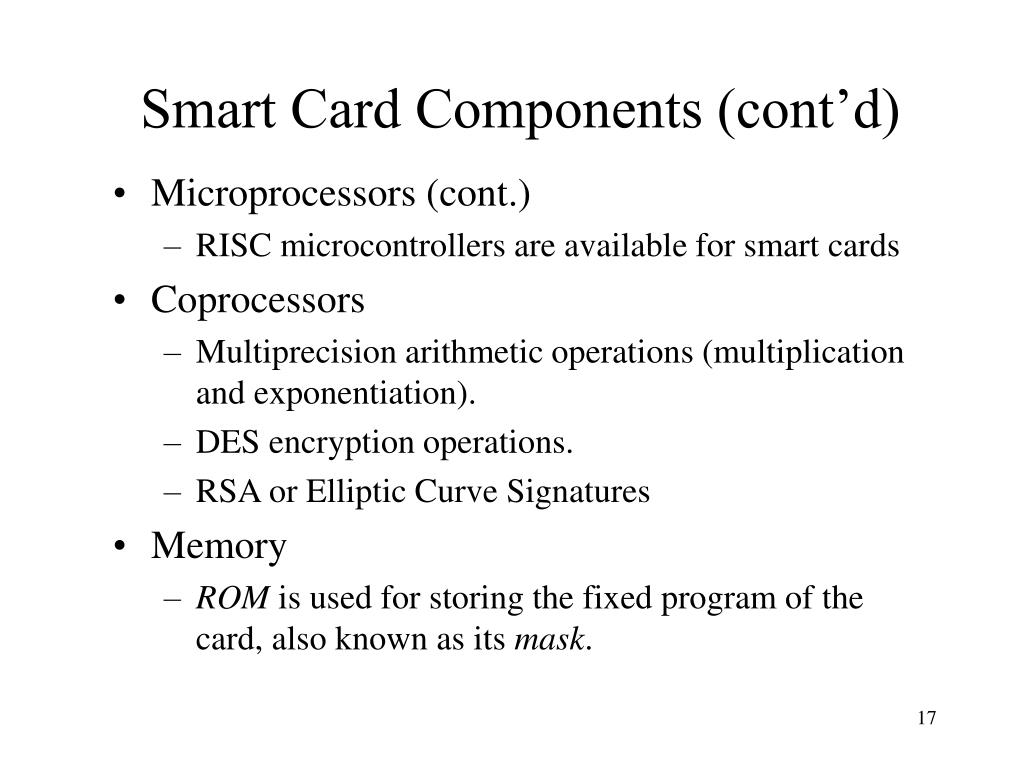

Smart Card Components (cont’d)

  • Microprocessors (cont.)

    • RISC microcontrollers are available for smart cards

  • Coprocessors

    • Multiprecision arithmetic operations (multiplication and exponentiation).

    • DES encryption operations.

    • RSA or Elliptic Curve Signatures

  • Memory

    • ROM is used for storing the fixed program of the card, also known as its mask.


Slide18 l.jpg

Smart Card Components (cont’d)

  • Memory (cont.)

    • PROM is used for loading a card’s serial numbers or other fixed values. (up to 32 Bytes)

    • Flash Memory is sometimes used for storing additional programs. It is becoming more common.

    • E2PROM is used for most data storage. Analogous to Hard drive in PC. It can be read and written any time. It accounts for more than half of the total chip area.

    • RAM is a temporary working storage. Volatile. 128 to 512 Bytes.

    • FERAM or FRAM (Ferro-electric RAM)is a new technology. Nonvolatile. A replacements for E2PROM.


Slide19 l.jpg

Smart Card Components (cont’d)

  • Memory (cont.)

    • FERAM (cont.), write time is about the same, writing requires less energy. It is important for contactless cards

  • Contacts

    • Up to 8 contacts, the position and designation are defined by ISO 7816-2.

  • Antenna

    • All input-output - and often the power - is transmitted by RF signals.

    • The distance can be up to 1m.


Slide20 l.jpg

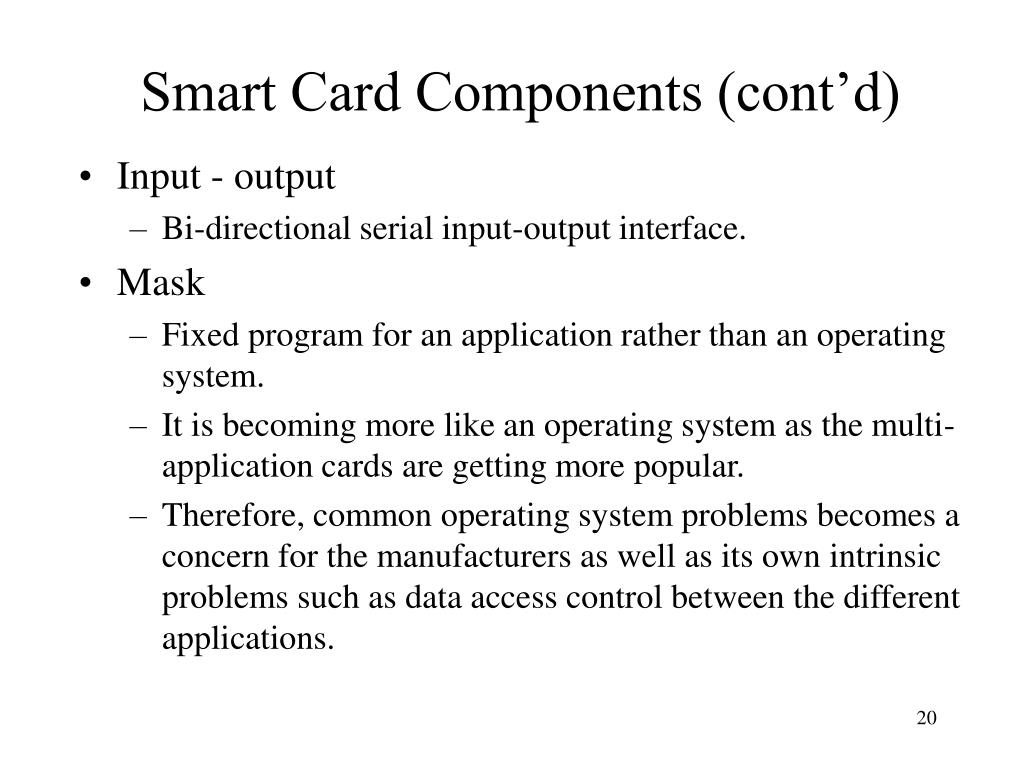

Smart Card Components (cont’d)

  • Input - output

    • Bi-directional serial input-output interface.

  • Mask

    • Fixed program for an application rather than an operating system.

    • It is becoming more like an operating system as the multi-application cards are getting more popular.

    • Therefore, common operating system problems becomes a concern for the manufacturers as well as its own intrinsic problems such as data access control between the different applications.


Slide21 l.jpg

Chip Security Features

  • Address scrambling of ROM and E2PROM.

  • Light, high and low-frequency, voltage and temperature detectors.

  • Protection layers to prevent scanning.

  • Null operations.

  • The buss is not accessible from outside.


System components l.jpg

System Components

  • A smart card is an element in a distributed computing system.

    • Readers, Terminals, PINpads, PC readers, EPOS or EFT-POS terminals, ATMs, Vending machines,

  • Trusted Third Parties

    • Authentication hosts, Evidence centers, Key escrow

Challenge

Response

1. Generates challenge

2. Signs

3. Response

Certificate

5. Checks certificate

4. Passes

6. Checks response


Slide23 l.jpg

Passwords and Biometrics

  • To identify or verify the identity of card holder.

  • Passwords or PIN numbers

    • Can be forgotten, given away, guessed

  • Tokens

    • Can be lost or stolen, lent or transferred to someone else deliberately.

  • Biometrics

    • Used in high security applications along with passwords, PINs or tokens.


Slide24 l.jpg

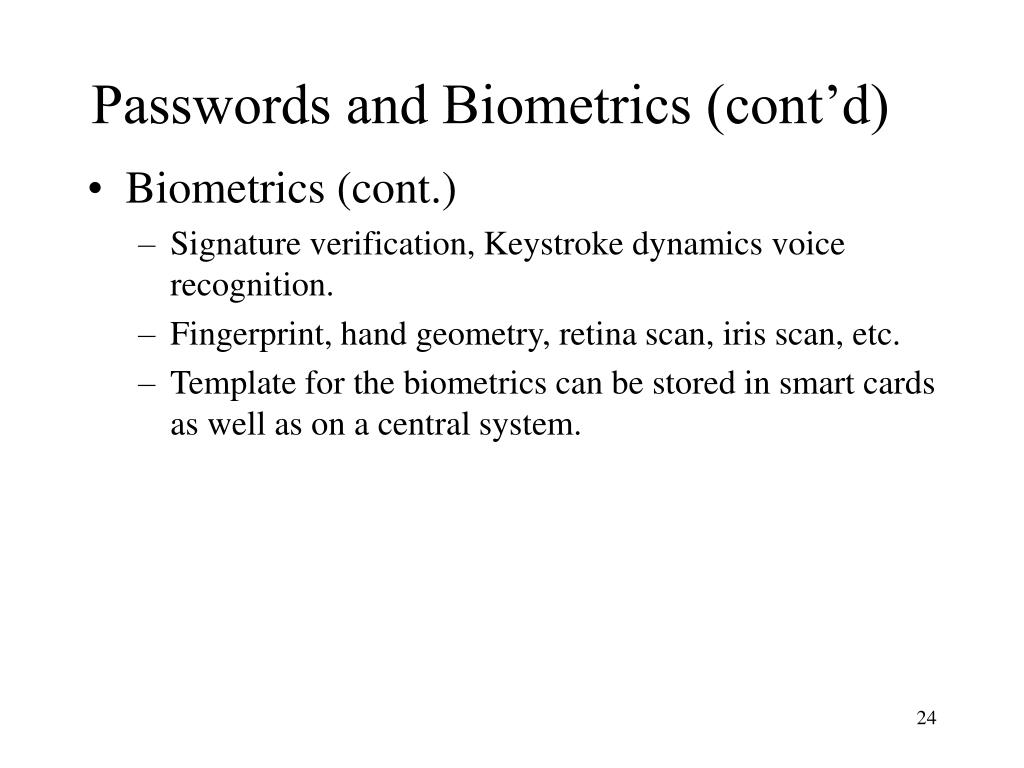

Passwords and Biometrics (cont’d)

  • Biometrics (cont.)

    • Signature verification, Keystroke dynamics voice recognition.

    • Fingerprint, hand geometry, retina scan, iris scan, etc.

    • Template for the biometrics can be stored in smart cards as well as on a central system.


Slide25 l.jpg

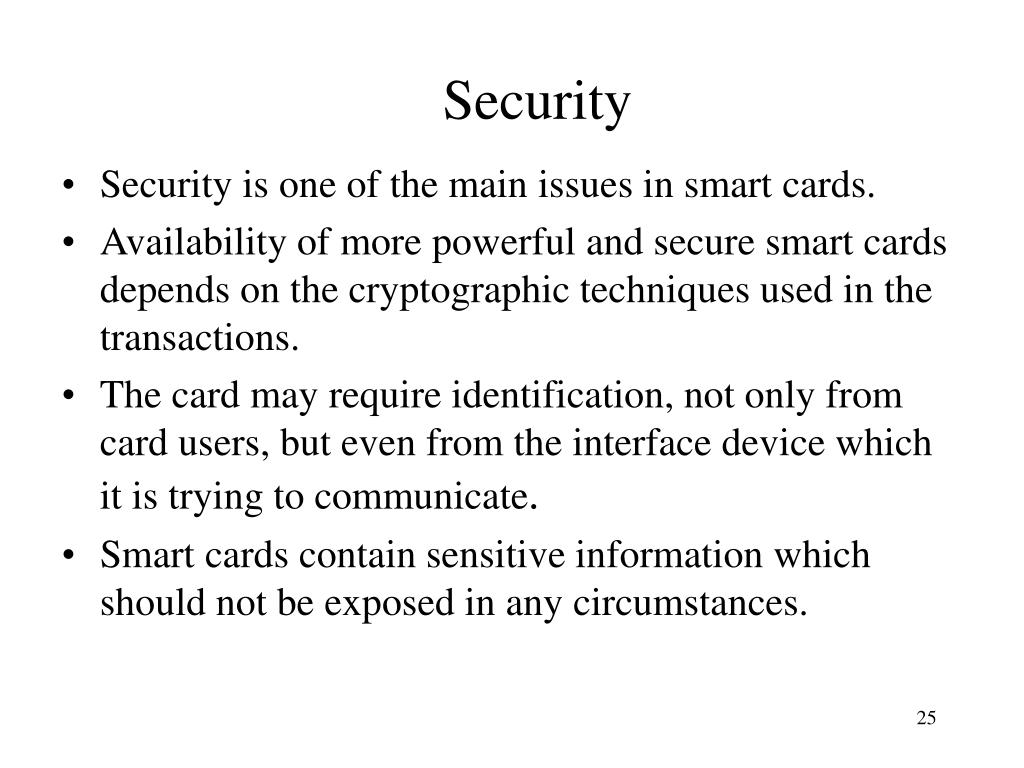

Security

  • Security is one of the main issues in smart cards.

  • Availability of more powerful and secure smart cards depends on the cryptographic techniques used in the transactions.

  • The card may require identification, not only from card users, but even from the interface device which it is trying to communicate.

  • Smart cards contain sensitive information which should not be exposed in any circumstances.


Slide26 l.jpg

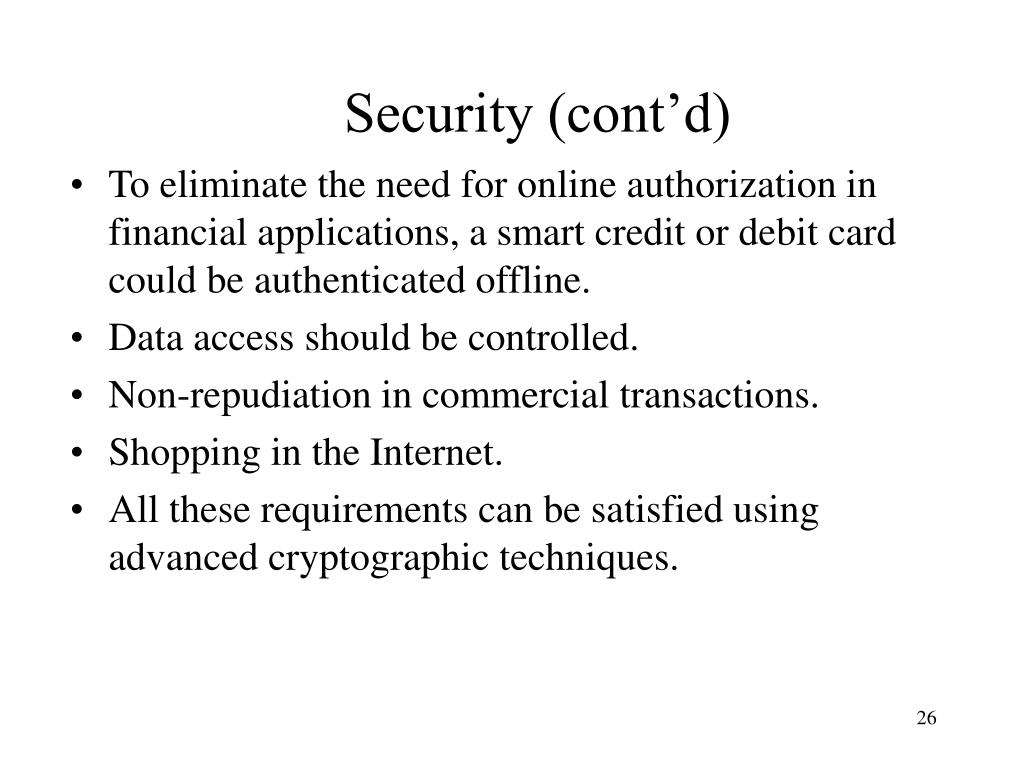

Security (cont’d)

  • To eliminate the need for online authorization in financial applications, a smart credit or debit card could be authenticated offline.

  • Data access should be controlled.

  • Non-repudiation in commercial transactions.

  • Shopping in the Internet.

  • All these requirements can be satisfied using advanced cryptographic techniques.


Slide27 l.jpg

Authentication

  • Replace password-based schemes.

  • Static Authentication

    • the card contains a certificate issued under the secret key of its card issuer, whose public key, signed by the scheme, also features on the card.

    • This scheme does not require cryptographic processing.

    • Only issuer has got private and public key pairs.

    • Simple, however not secure.


Slide28 l.jpg

Authentication (cont’d)

Scheme public key

Card Data :

- SDA Certificate

- Issuer Public Key

Certificate

1. Card Sends :

- selected card data

- card data certificate

- issuer public-key certificate

2. Terminal decodes issuer public key using scheme public key.

3. Verifies card certificate using issuer public key

4. Compares with hashed form of the card data

Static Data Authentication


Slide29 l.jpg

Authentication (cont’d)

  • Dynamic Authentication

    • Challenge-based.

    • The terminal issues a challenge to the card,

    • The card signs the card serial number and this challenge.

    • The terminal verifies this signature.

    • The card must incorporate the public-key encryption functions.

    • The private key is permanently stored in the card and protected by physical security features.

    • Key management issue.


Slide30 l.jpg

Reset card

Answer to reset

Select Application

Send Application Data

Auth. card & terminal

Terminal risk management

Request cryptogram

Card risk management

Send cryptogram

(Perform online Transaction)

Send Results

(Complete Transaction)

Authentication (cont’d)

EMV Transaction Model


Slide31 l.jpg

Public Key Algorithms Used in Smart Cards

  • RSA

    • Gemplus’ GPK4000 smart card features an advanced cryptographic co-processor and is the first public key smart card. The GPK4000’s functionality includes 1024-bit RSA-based digital signature with 4KBytes of application memory. Signing takes less than a second.

    • The Philips crypto-controller P83C858, utilizing RSA public-key cryptography, will be used in Visa smart card as a market trial in the United Kingdom and Japan.


Slide32 l.jpg

Public Key Algorithms Used in Smart Cards (cont’d)

  • ECC

    • It requires much less memory than RSA.

    • It does not require a co-processor

    • Currently, no smart card with ECC is available in the market.

    • In 1997, VeriFone, owned by HP, licenced Certicom’s Elliptic Curve Engine to secure its VeriSmart System and Personal ATM devices for downloading cash onto smart cards in the home. No product is available so far.


Slide33 l.jpg

Confidentiality

  • Sensitive data are stored in card memory in an encrypted form.

  • A smart card may be used on line for cryptographic transmission to remote users.

  • For encrypting data, in most cards DES is currently implemented.

  • TELEPASS is a proprietary algorithm which uses 48-bit key.

  • One time keys are used for data encryption. The technique is called digital envelope.


Slide34 l.jpg

Smart Card Keys

  • Manufacturer keys

    • Protection keys avoid access to special memory zones.

    • Personalization key is the card ID to allow applications to recognize the card.

  • Issuer keys are used to protect the issuer’s data and critical parts of the application as well as to recover a blocked card or to recycle outdated cards.


Slide35 l.jpg

Smart Card Keys (cont’d)

  • Secret keys are used for confidentiality and authentication. They are stored by the manufacturers or issuers.

  • User keys

    • Different PIN numbers to access to different applications

  • A typical smart card specifies one manufacturer key, one personalization key, one primary issuer key, four secondary issuer keys, and four user keys


Slide36 l.jpg

Applications

  • Telephony & Telecommunications

    • Prepaid phone cards

    • Reloadable and account cards

    • GSM cards

    • TV decryption

    • Computer system access

    • Internet purchases

    • Internet mail

    • Data and program confidentiality


Slide37 l.jpg

Financial Applications

Card scheme

  • ATM, Debit Credit and Charge cards.

  • Benefit Payments

  • Retailer Loyalty

  • Transaction Authorization

Merchant acquirer

Card issuer

Goods

Retailer

Card holder


Slide38 l.jpg

Financial Applications (cont’d)

1. Make purchase

  • Electronic purses : stored value cards.

    • mondex card & wallet.

    • card-to-card transactions.

    • disposable or reloadable

    • multiple currencies.

    • Europay (world), PayCard (Germany), Danmont (Denmark), Mcard (U.S.).

2. Make payment

3. Transaction

sent to host

computer


Slide39 l.jpg

Applications (Health)

  • Insurance Cards

  • Health Cards

    • Confidentiality is important.

    • Santal Cards in France.

    • Opto-smart card in Germany

    • ATM and debit cards in San Marino contains a health zone.

    • Exeter Care card in UK.


Slide40 l.jpg

Applications (Health)

Emergency

Administration

Dental care

Transplant

Children

Pharmacy

Home care

Blood donor

Pregnancy

Eye surgery

Hypertension

Family Care

Consultation

Hospital


Slide41 l.jpg

Applications (Transport)

  • Public Transportation

  • Electronic Ticketing

  • In-flight Entertainment

  • Road Tolling

  • Parking


Applications transport l.jpg

PTO 2

PTO 3

PTO 4

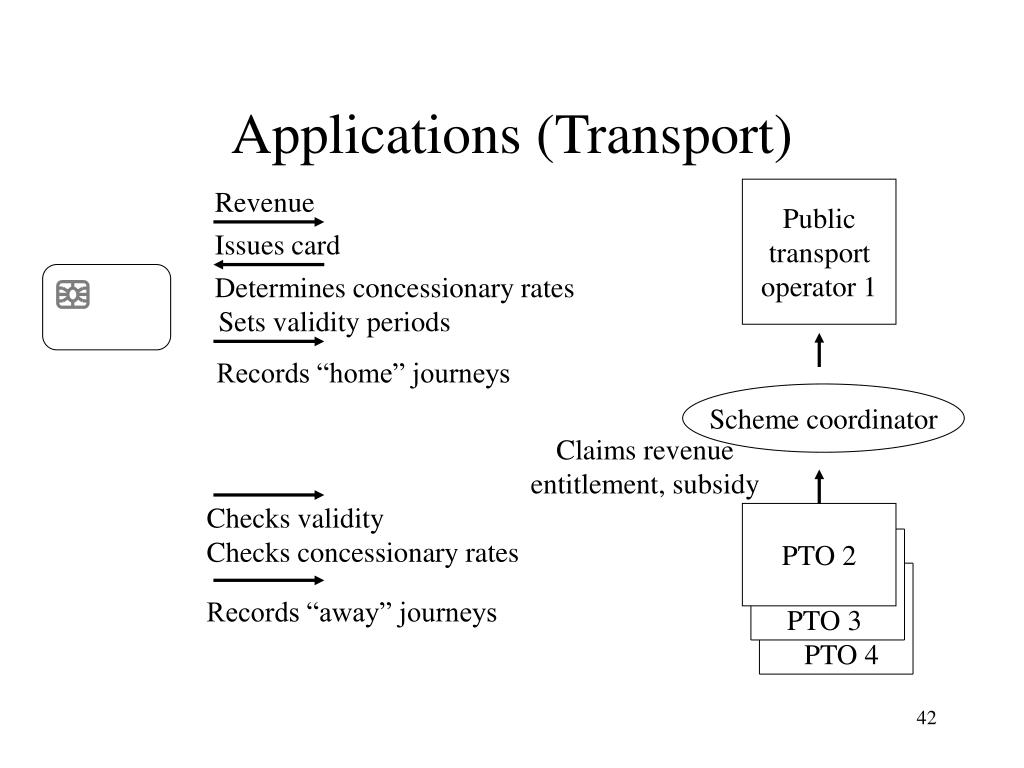

Applications (Transport)

Revenue

Public

transport

operator 1

Issues card

Determines concessionary rates

Sets validity periods

Records “home” journeys

Scheme coordinator

Claims revenue

entitlement, subsidy

Checks validity

Checks concessionary rates

Records “away” journeys


Application others l.jpg

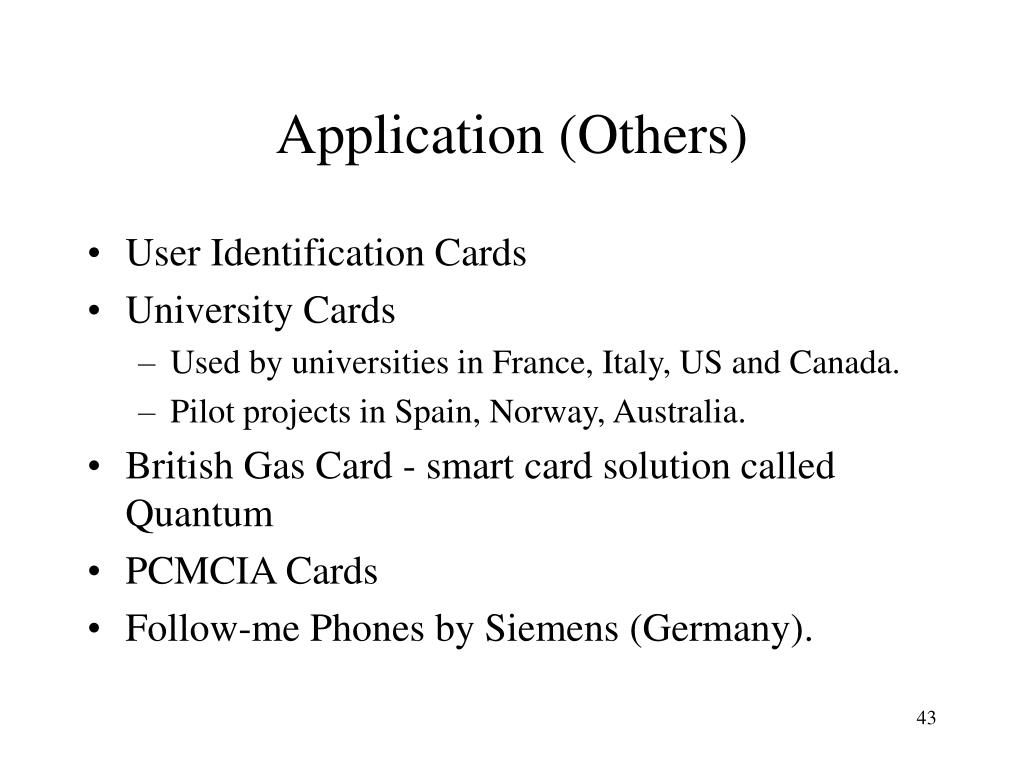

Application (Others)

  • User Identification Cards

  • University Cards

    • Used by universities in France, Italy, US and Canada.

    • Pilot projects in Spain, Norway, Australia.

  • British Gas Card - smart card solution called Quantum

  • PCMCIA Cards

  • Follow-me Phones by Siemens (Germany).


Application university card l.jpg

Application (University Card)

Coffee Shop

Book Shop

Information

Photocopiers

Car park

Health

Administration

Library


The future multi application cards l.jpg

The Future: Multi-application Cards

  • Secure operating system.

  • Downloading.

  • Hybrid card types

  • Card control

  • Issuer responsibility

  • Consumer issues

  • Interchange and compatibility with existing card types


Active smart card research and projects l.jpg

Active Smart Card Research And Projects

  • Third CARDIS conference (Sept 14-16) in Belgium.

    • IC architecture and techniques

    • Standards and fault tolerance

    • Specific co-processors for cryptography

    • Operating systems & application design

    • Algorithms & protocols for identification, authentication, verification

    • Convergence with portable PCs

    • Internet Payment System


  • Login
