Presentation Transcript


Battle command migration l.jpg

Battle Command Migration

“Partnering Day”

15 November 05

Paul Manz

Technical Director

PM Ground Combat C2

[email protected]


Purpose l.jpg

Purpose

  • Present an initial overview of Battle Command (BC) migration beyond ABCS 6.4 for near and mid-term

    • Define technical vision for future BC systems

    • Maintain relevance of fielded ABCS systems via key technology insertions

    • Maximize ROI by leveraging today’s capabilities into tomorrow

  • Establish a system of systems perspective:

    • Across all PEO C3T programs and Joint Interfaces

    • Technology improvements for interoperability and integration

    • Goal is life-cycle cost reduction

Provide a System of Systems Path Forward


Army battle command systems abcs l.jpg

Army Battle Command Systems (ABCS)

IMETS

Integrated Meteorological

Environmental Terrain System

MCS

Maneuver Control System

AIS

ABCS Information Server

FBCB2

Force XXI Battle

Command - Brigade

and Below

ASAS

All-Source

Analysis System

GCCS-A

Global Command

and Control

System - Army

DTSS

Digital Topographic

Support System

JTF HQS

BCS3

Battle CommandSustainment SupportSystem

TAIS

Tactical Airspace

Integration System

AFATDS

Advanced Field

Artillery Tactical

Data System

AMDWS

Air and Missile Defense Workstation

Tactical Operation

Centers

A FAMILY OF SYSTEMS


Developing the abcs 6 4 solution l.jpg

Developing the ABCS 6.4 Solution

Warfighter Perspective &

User Feedback

69 “Good Enough”

OperationalRequirements

TSM & PM technical

feasibility review

866 Technical Supporting

Reqts derived & prioritized

ABCS 6.4 software delivery

to system test in April ‘04

Constrained by OIF Driven Schedules

Field ABCS 6.4

across force within 48 months…


Current abcs product centric system implementation l.jpg

Current ABCS Product-Centric System Implementation


What have we learned l.jpg

What Have We Learned?

  • Disparate data formats

  • Interoperability

  • Utilization of Bandwidth

  • Collaboration

  • Difficult to configure

  • Too many systems to train

  • Stovepipe Design

    • Different user interface for each system

    • Many servers providing similar functionality

    • More expensive to maintain

    • Training impacts

Must leverage current capability to address these issues as ABCS evolves toward JC2 and FCS.


What happened since good enough l.jpg

What Happened since Good Enough?

ABCS“Good Enough”

Joint WebCOP

JTCW

DACT

C2PC

JBC-P

FBCB2

FCS

CPoF

WEEMC

JC2

VariousNCES

Horizontal Fusion

(18th ABN & JBFSA)

GCCS-A

GCCS-M

Need to incorporate initiatives into ABCS. Must maintain compatibility with ABCS 6.4.


Path forward l.jpg

Path Forward

Future

Today

Near-Term

GCCS

JC2

+

ABCS

with

technology

insertions

XXX

ABCS 6.4

JC2

XX

UA

X

X

FBCB2

FCS BC

JBC-P

FBCB2

Migration Plan under development


Migration plan key drivers and goals l.jpg

Migration Plan Key Drivers and Goals

Army at War

Modularity

  • Goals

  • Lower lifecycle cost

  • Reduce Complexity

  • Smaller footprint

  • Common User Interface

  • Reduced training and cognitive burden

  • Fewer soldiers needed to run/maintain the System of Systems

Joint

Migration Plan

Team produces requirements,

architecture, and schedule

ABCS Sustainment

NetCentricity

Technology Insertions


Bc system convergence vision l.jpg

DTSS

DTSS

DTSS

J-GES

J-GES

J-GES

FCS Sp 3

FCS Sp 1eval

FCS Sp 2

FCS Sp 1

Cap Block 1

In-Svc 06-09

Cap Block 2

In-Svc 08-11

Cap Block 3

In-Svc 10-13

Cap Block 4

In-Svc 12-15

Cap Block 5

In-Svc 14-17

Cap Block 6

In-Svc 16-19

GCCS-A

JC2v1

C2PC

JTCW

MCS

JC2v2

JC2v3

JC2v4

JC2v5

CPOF

TAIS

TAIS

AFATDS

AFATDS

AFATDS

AFATDS

AFATDS

AMDPCS

AMDPCS

AMDPCS

AMDPCS

AMDPCS

FCS BC

(Sp 4)

BCS3

BCS3

BCS3

BCS3

BCS3

ASAS-L or

ASAS-L

DCGS-A

(ISR comp.)

DCGS-A

(ISR comp.)

DCGS-A

(ISR comp.)

DCGS-A

(ISR comp.)

IMETS

FBCB2

JBC-P

JBC-P

JBC-P

JBC-P

JBC-P

ISYSCON

ISYSCON or

ISYSCONv4 or

WIN-T

WIN-T

WIN-T

WIN-T

WIN-T

AIS

PASS B1, IDM-T

TOC Srvr

PASS B2, IDM-T

(C2IEDM)

TOC Srvr

PASS B3, IDM-T

(JC3IEDM)

TOC Srvr

PASS B4, IDM-T

(JBCIEDMv1)

TOC Srvr

PASS B5, IDM-T

(JBCIEDMv2)

TOC Srvr

PASS B5, IDM-T

(JBCIEDMv3)

ABCS 6.4

Transition A

Transition B

Transition C

Transition D

Transition E

BC System Convergence Vision


Layered approach to bc software architecture l.jpg

Layered Approach to BC Software Architecture

OSI Layers

TCP/IP Layers

C2 Layers

Presentation Services

User-Centric Design, Common Role-based User Interface

Application

Presentation

Session

Transport

Network

Data Link

Physical

Application

(HCI)

Mapping/Overlays, Planning, Logistics, Airspace Mgmt & Deconfliction, Attack Analysis, Weapons Management, Target/Effects Queuing

Battle Command Services

Transport

Messaging, Collaboration, Discovery, IA, Data Dissemination, Comms

Network

Network Infrastructure Services

Network Management, QOS, Real-time Services

Network Access

LAN, Hardware (including servers) Routers, Hubs, Switches, Routing Protocols

Reduce cognitive burden by automating Battle Command and Network Infrastructure Services.


Bc path forward near term thrusts l.jpg

BC Path ForwardNear-Term Thrusts

  • Consolidation Of Servers/Services

    • Reduce Server Duplication

    • Centralize Servers/Service

  • “C2 Bridge To The Future”

    • Expose ABCS Capabilities As Services

    • Leverage Middleware Services Compliant with NCES

    • Positions BC Server For Transition To JC2 And FCS Spirals

  • Common Presentation Services

    • Leverage CPOF HCI “Goodness”

    • Role-Based User-Centric Design


Cleaning up product centric issues l.jpg

Cleaning Up Product-Centric Issues

Current

Near Term

  • Complex

  • Duplicative Unique Stovepipes

  • Heavy Training Burden

  • Product-Centric Systems Engineering and Acquisition

  • Drives the need for*:

  • Consistent Acquisition Strategy & Management Practices

  • Unified Systems Engineering and Integration

  • Common Architecture, Software and Hardware Solutions

  • Usability Strategy and Solutions


Server consolidation l.jpg

Server Consolidation


Application consolidation on jtcw framework l.jpg

TAIS

TAIS

Application Consolidation on JTCW Framework

Strategic

Strategic

GCCS-A

JC2

Application/injector

BCS3

BCS3 EIS app

Application/injector

CPOF

Application/injector

Tactical

Tactical

JTCW

BC Server

Application/injector

Common

JTCW Client

MCS

Application/injector

ISYSCON

Application/injector

AFATDS unique technical fire control

Application/injector

AFATDS

  • Common Role-based User Interface

  • Common Hardware, Software, and Architecture

  • Infrastructure and Application Service Consolidation

Application/injector

AMDWS unique

AD mgmt

C-RAM

AMDWS

TAIS unique

Airspace Mgmt

TAIS

AMPS unique

functions

AMPS

Platform

Platform

TIMS

JBC-P

FBCB2


What is cpof l.jpg

What is CPOF?

$62M being

Invested by DARPA

Since 1998

  • An executive level decision support system that provides situational awareness and collaborative tools tosupport decision making, planning, rehearsal and execution management.

  • Designed to allow operators to interactively collaborate, and share workspaces and plans.

CPOF

Servers

CPOF Workstation

CPOF Network Fielded

to 1st CAV and 3ID

May04 MOA Between

Army and DARPA

"We do virtually every rehearsal using the CPOF

tool." MG Peter Chiarelli

PM GC C2 Actively Working Transition To Support Apr06 Handoff


Objective abcs service based framework l.jpg

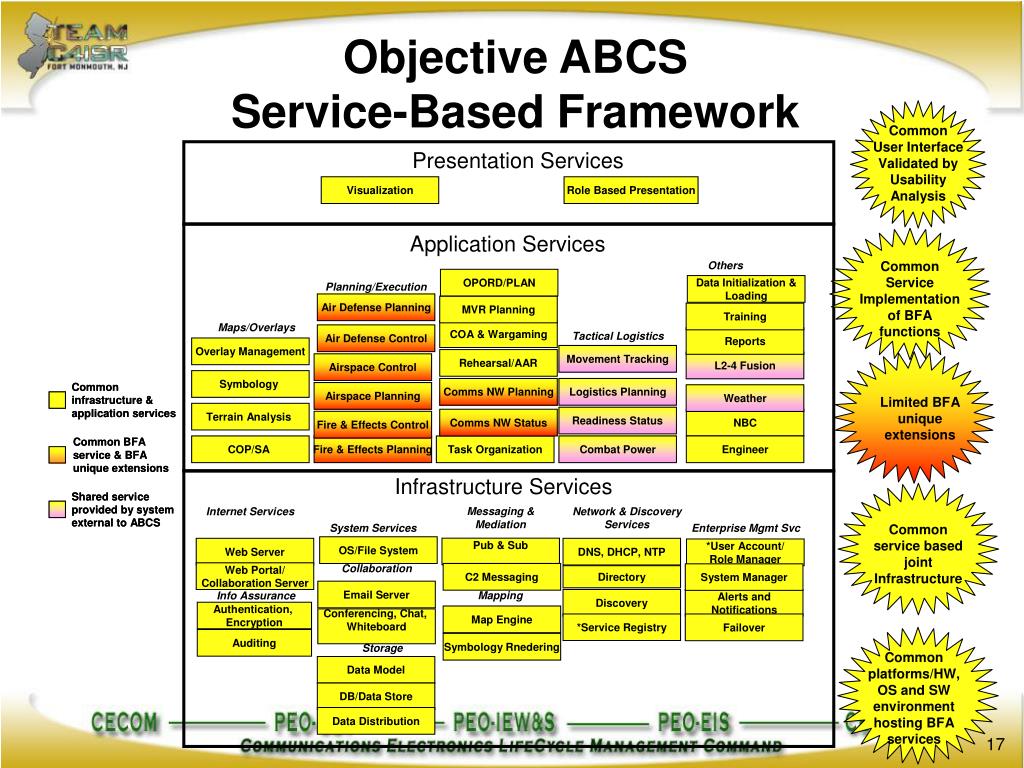

Objective ABCS Service-Based Framework


Where we re headed l.jpg

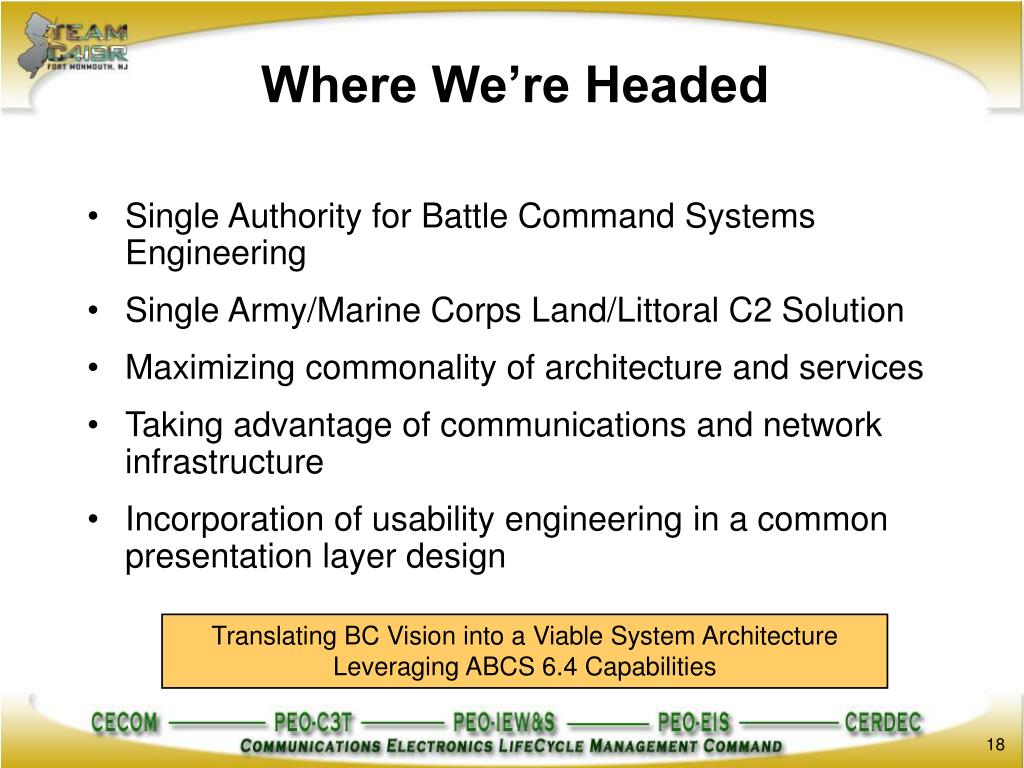

Where We’re Headed

  • Single Authority for Battle Command Systems Engineering

  • Single Army/Marine Corps Land/Littoral C2 Solution

  • Maximizing commonality of architecture and services

  • Taking advantage of communications and network infrastructure

  • Incorporation of usability engineering in a common presentation layer design

Translating BC Vision into a Viable System Architecture Leveraging ABCS 6.4 Capabilities
