Presentation Transcript

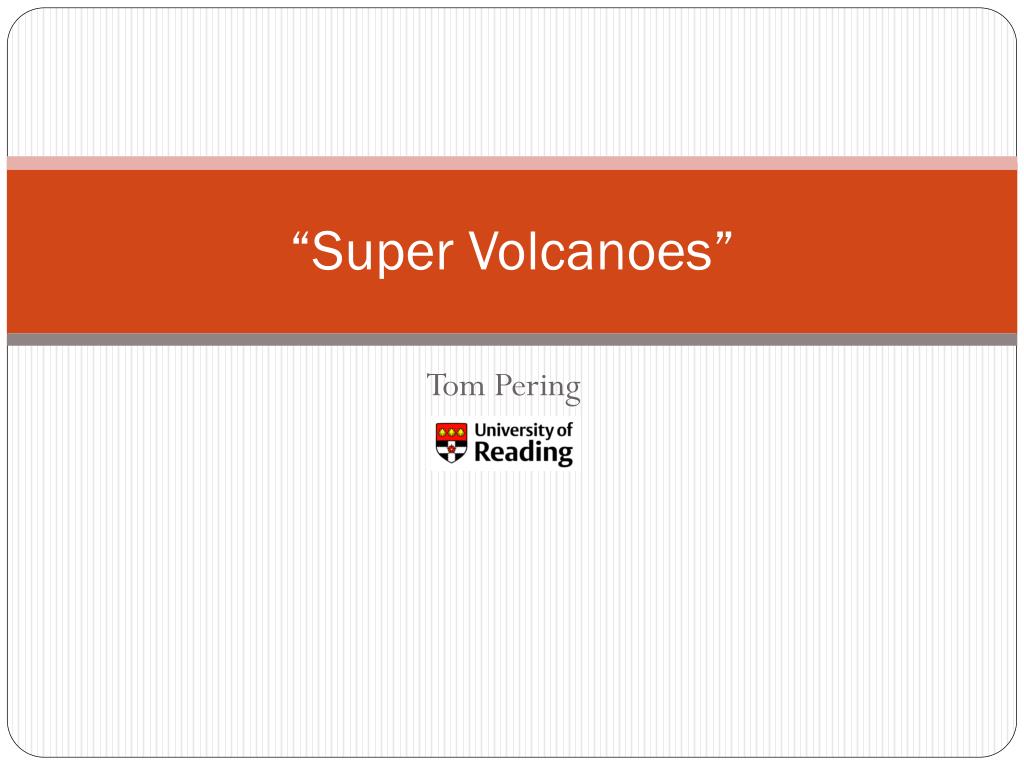

Super volcanoes

“Super Volcanoes”

Tom Pering


Today s topics

Today’s topics…

  • What is a super eruption?

  • Where do super eruptions occur?

  • What do super volcanoes look like?

  • “Super Volcanoes” around the world.

  • Yellowstone Caldera Chain

  • Yellowstone Now

  • What would an eruption at Yellowstone be like to live through?

  • What are the chances of an eruption occurring in our lifetime?

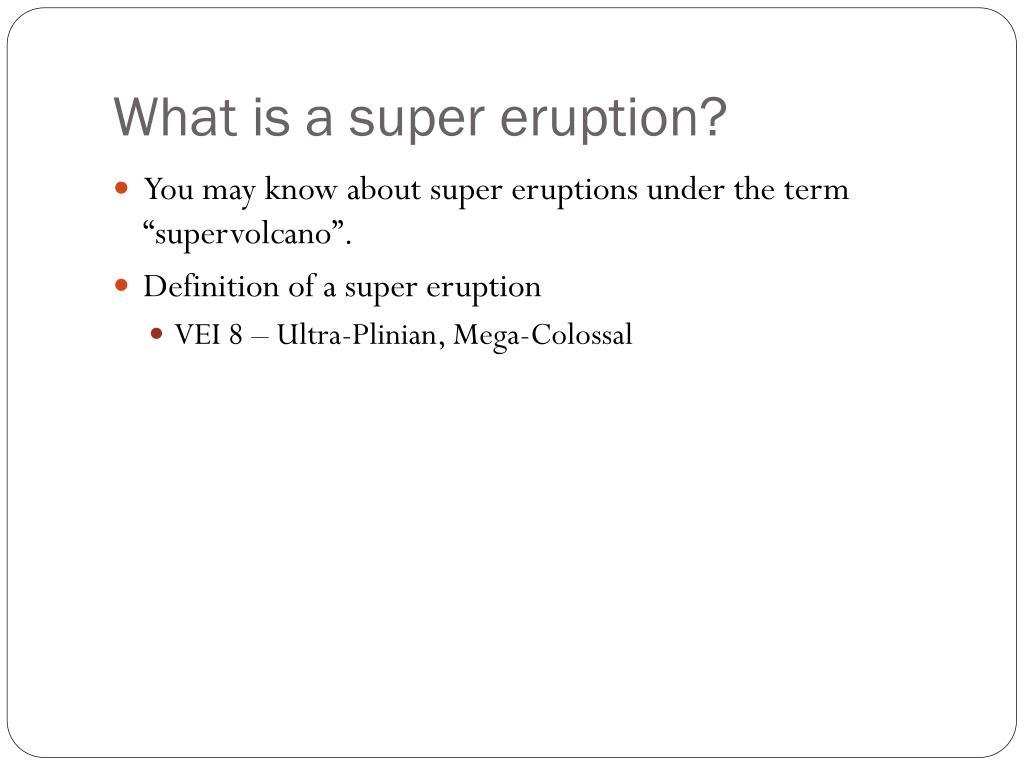

What is a super eruption

What is a super eruption?

  • You may know about super eruptions under the term “supervolcano”.

  • Definition of a super eruption

    • VEI 8 – Ultra-Plinian, Mega-Colossal


Lord byron darkness

Lord Byron - Darkness

“I had a dream, which was not all a dream.The bright sun was extinguished, and the starsDid wander darkling in the eternal space,Rayless, and pathless, and the icy earthSwung blind and blackening in the moonless air;Morn came and went -and came, and brought no day”

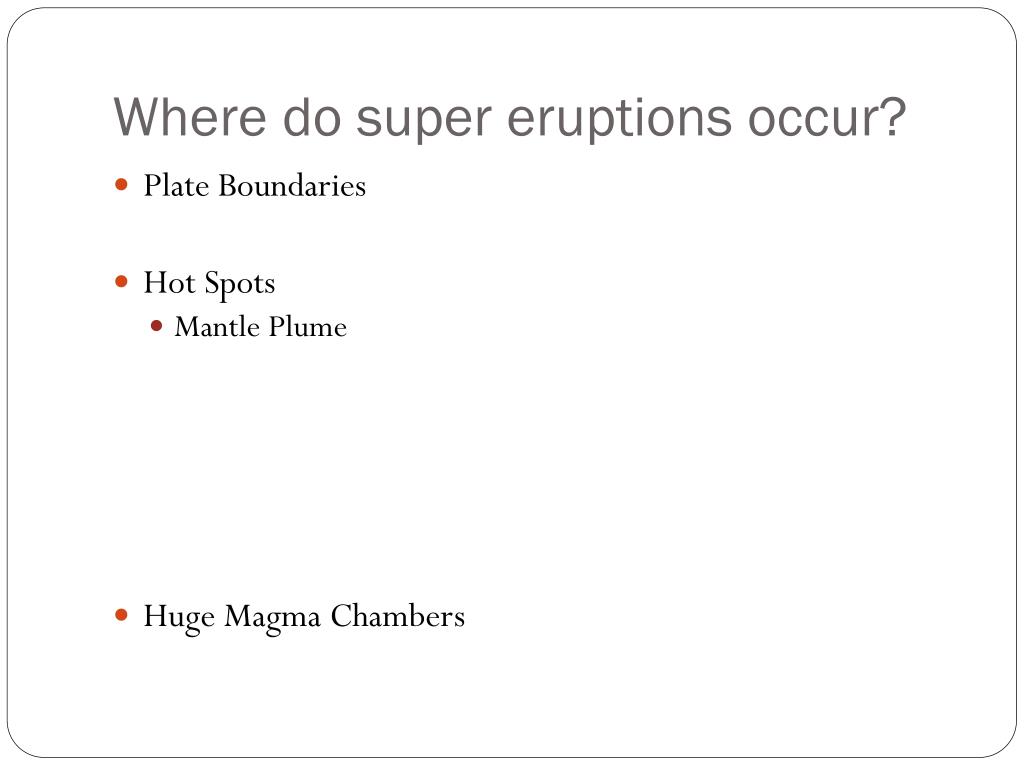

Where do super eruptions occur

Where do super eruptions occur?

  • Plate Boundaries

  • Hot Spots

    • Mantle Plume

  • Huge Magma Chambers


What do super volcanoes look like

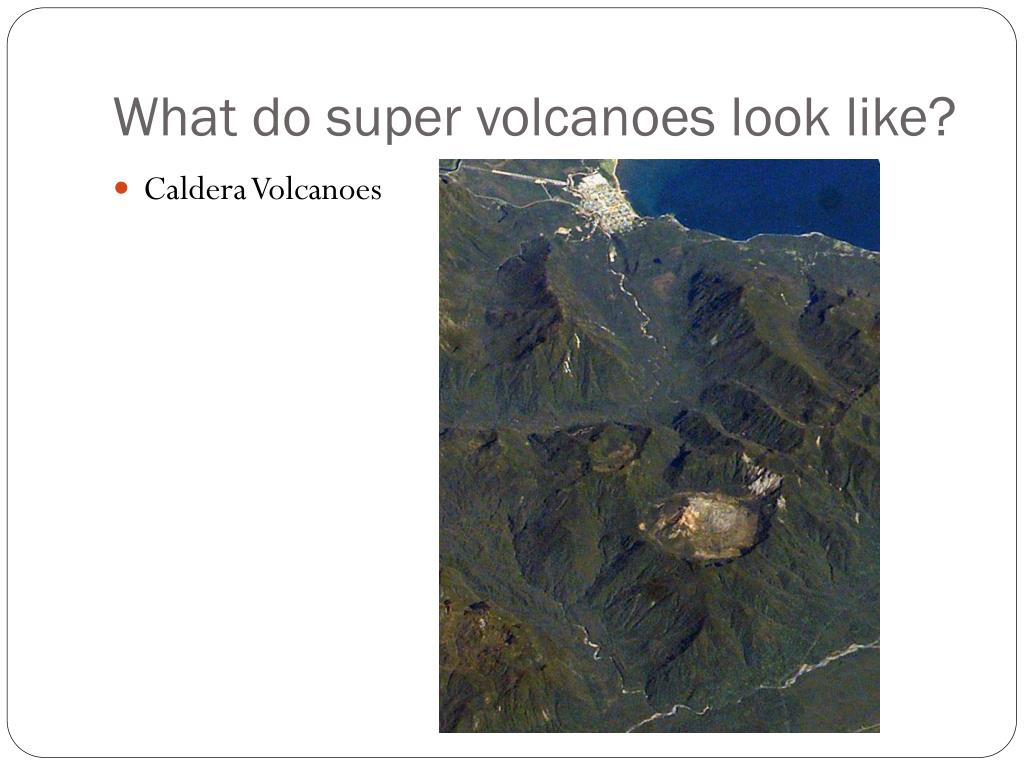

What do super volcanoes look like?

  • Caldera Volcanoes


Well known super volcanoes

Well known “super volcanoes”

  • Yellowstone, USA

  • Lake Toba, INDONESIA

  • Taupo, NEW ZEALAND

Not so well known “super volcanoes”

  • La Garita Caldera, USA

  • Cerro Galán, ARGENTINA

  • Glen Coe, SCOTLAND

  • Scafells, Lake District, ENGLAND


Glen coe scotland

Glen Coe, Scotland

  • Last eruption 420 million years ago

  • Silurian (Paleozoic Era)

  • 5 eruptions

  • Roughly 500,000 years apart.

  • Glaciations

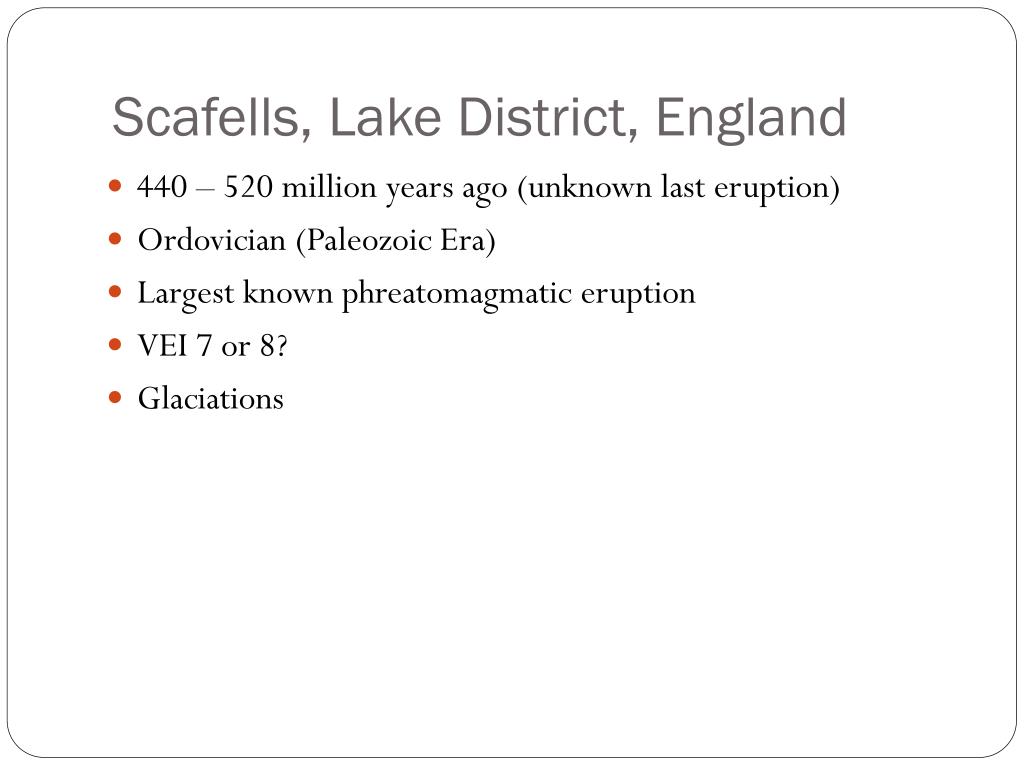

Scafells lake district england

Scafells, Lake District, England

  • 440 – 520 million years ago (unknown last eruption)

  • Ordovician (Paleozoic Era)

  • Largest known phreatomagmatic eruption

  • VEI 7 or 8?

  • Glaciations


Lake toba indonesia

Lake Toba, Indonesia

  • 74,000 years ago

  • Largest Volcanic Lake in world

  • Mankind survived


Taupo new zealand

Taupo, New Zealand

  • First Eruption – 300,000 years ago

  • Oruanui Eruption

    • 26,500 years ago

  • Lots of volcanic activity nearby


La garita caldera usa

La Garita Caldera, USA

  • Colorado

  • 26 million years ago

    • Largest known eruption

  • 5000 km³


Cerro gal n argentina

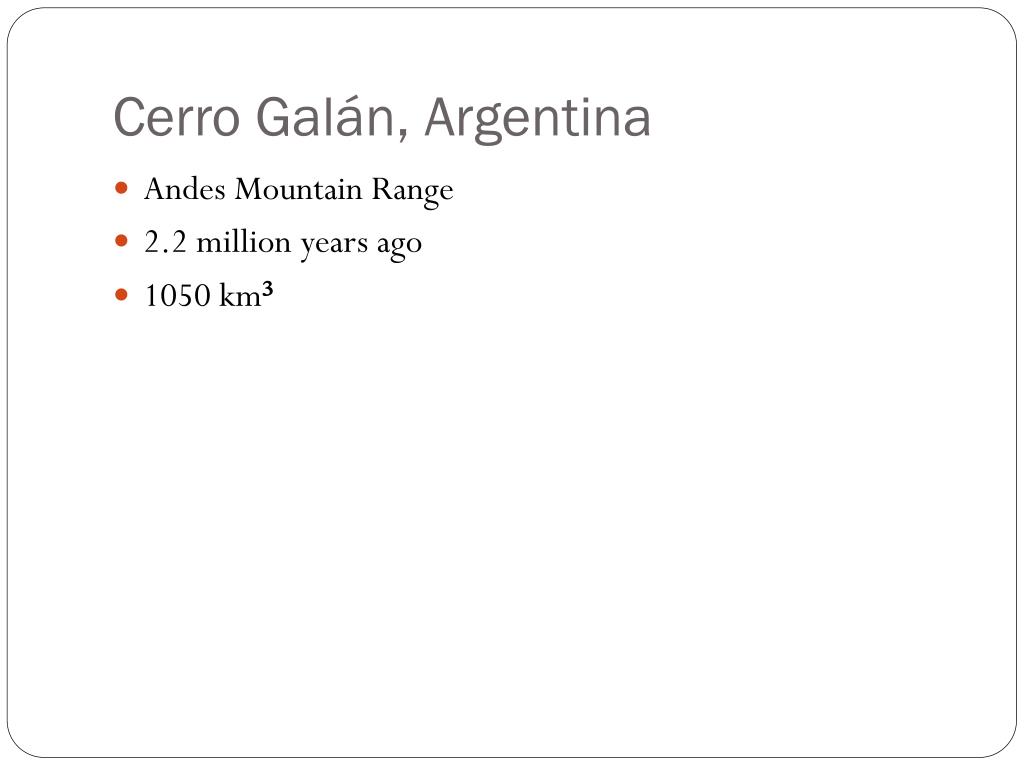

Cerro Galán, Argentina

  • Andes Mountain Range

  • 2.2 million years ago

  • 1050 km³


Yellowstone caldera chain

Yellowstone Caldera Chain


Yellowstone eruptions

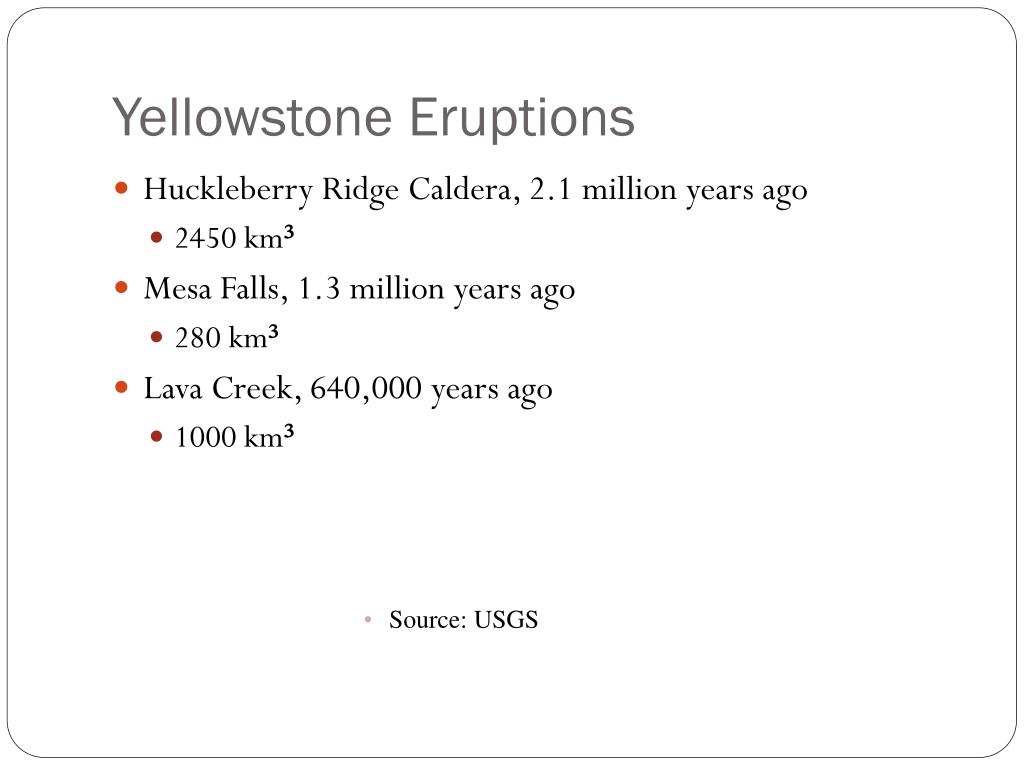

Yellowstone Eruptions

  • Huckleberry Ridge Caldera, 2.1 million years ago

    • 2450 km³

  • Mesa Falls, 1.3 million years ago

    • 280 km³

  • Lava Creek, 640,000 years ago

    • 1000 km³

      • Source: USGS


Yellowstone

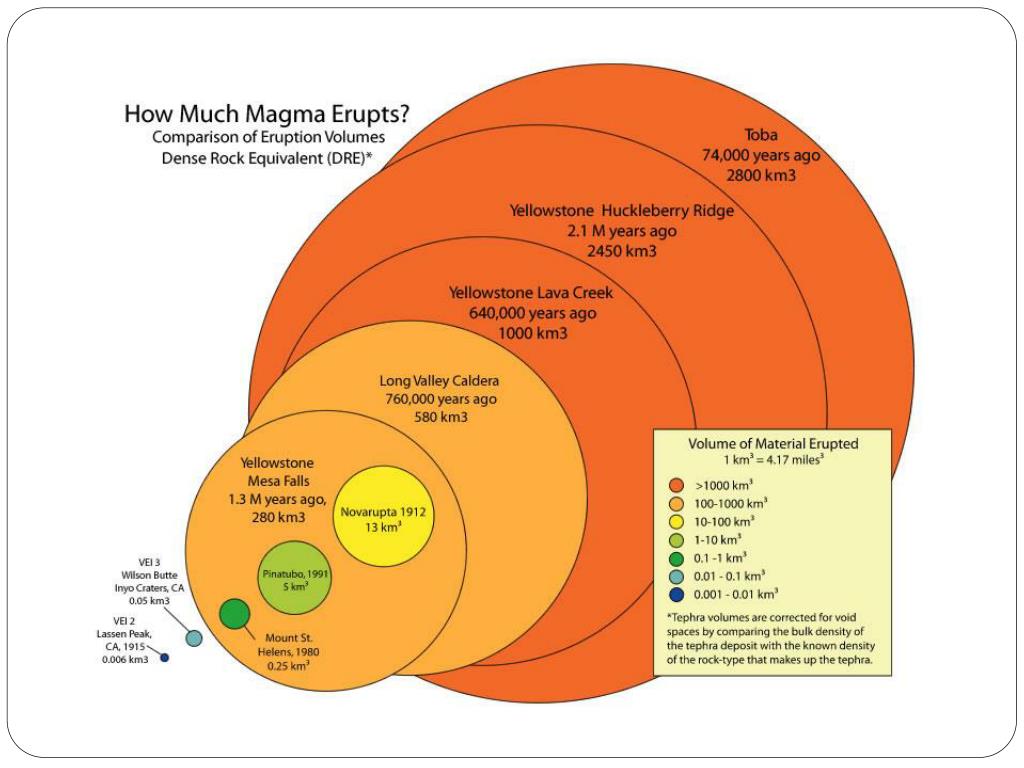

Yellowstone


Yellowstone now

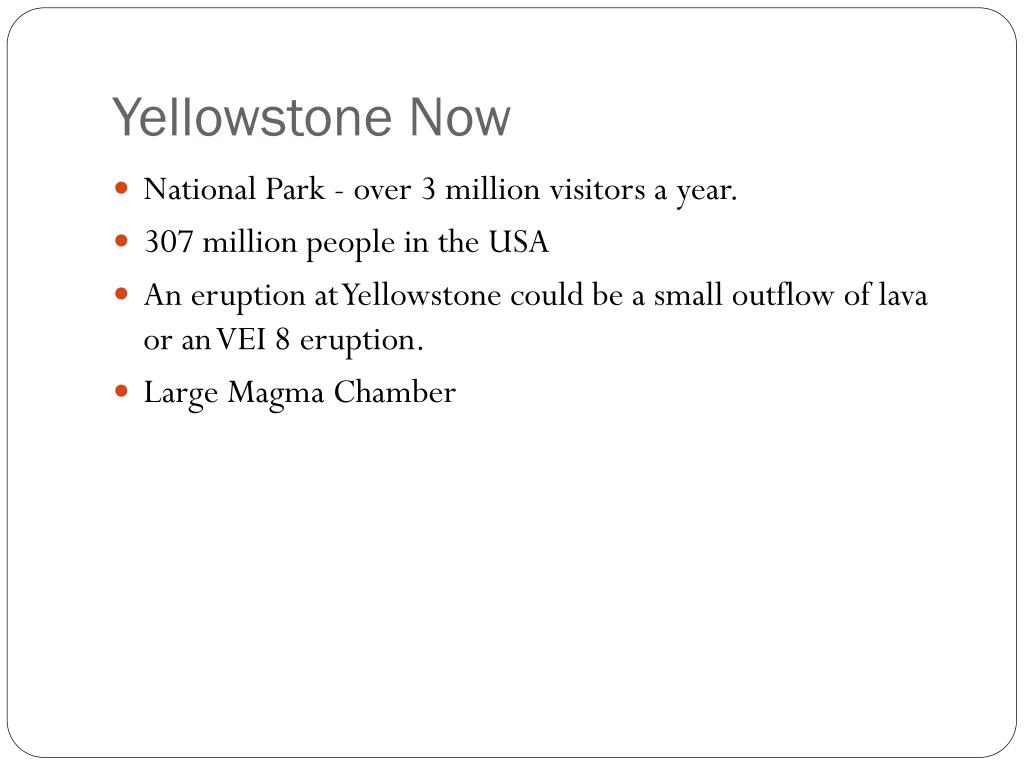

Yellowstone Now

  • National Park - over 3 million visitors a year.

  • 307 million people in the USA

  • An eruption at Yellowstone could be a small outflow of lava or an VEI 8 eruption.

  • Large Magma Chamber


Warning signs of an imminent eruption

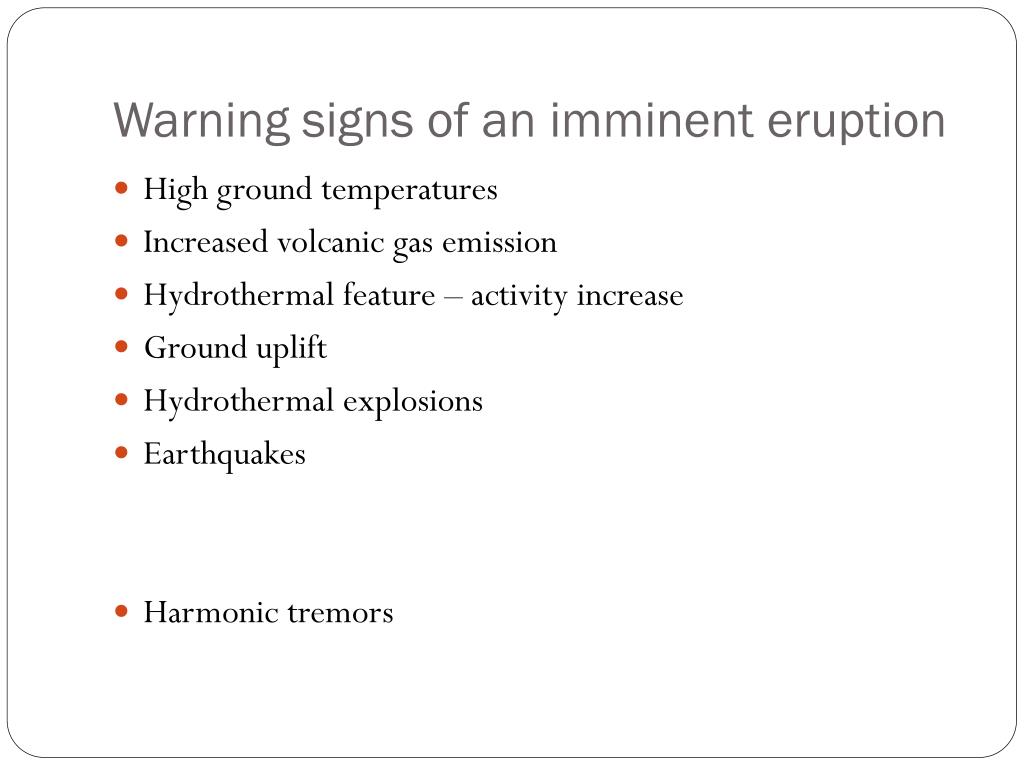

Warning signs of an imminent eruption

  • High ground temperatures

  • Increased volcanic gas emission

  • Hydrothermal feature – activity increase

  • Ground uplift

  • Hydrothermal explosions

  • Earthquakes

  • Harmonic tremors

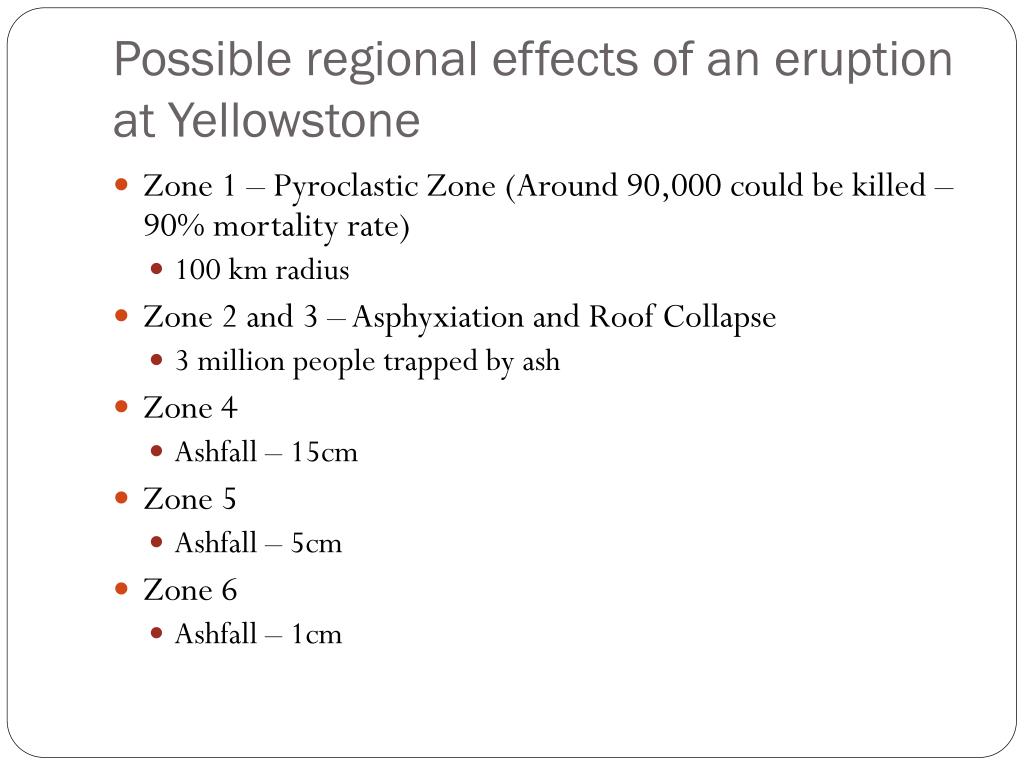

Possible regional effects of an eruption at yellowstone

Possible regional effects of an eruption at Yellowstone

  • Zone 1 – Pyroclastic Zone (Around 90,000 could be killed – 90% mortality rate)

    • 100 km radius

  • Zone 2 and 3 – Asphyxiation and Roof Collapse

    • 3 million people trapped by ash

  • Zone 4

    • Ashfall – 15cm

  • Zone 5

    • Ashfall – 5cm

  • Zone 6

    • Ashfall – 1cm

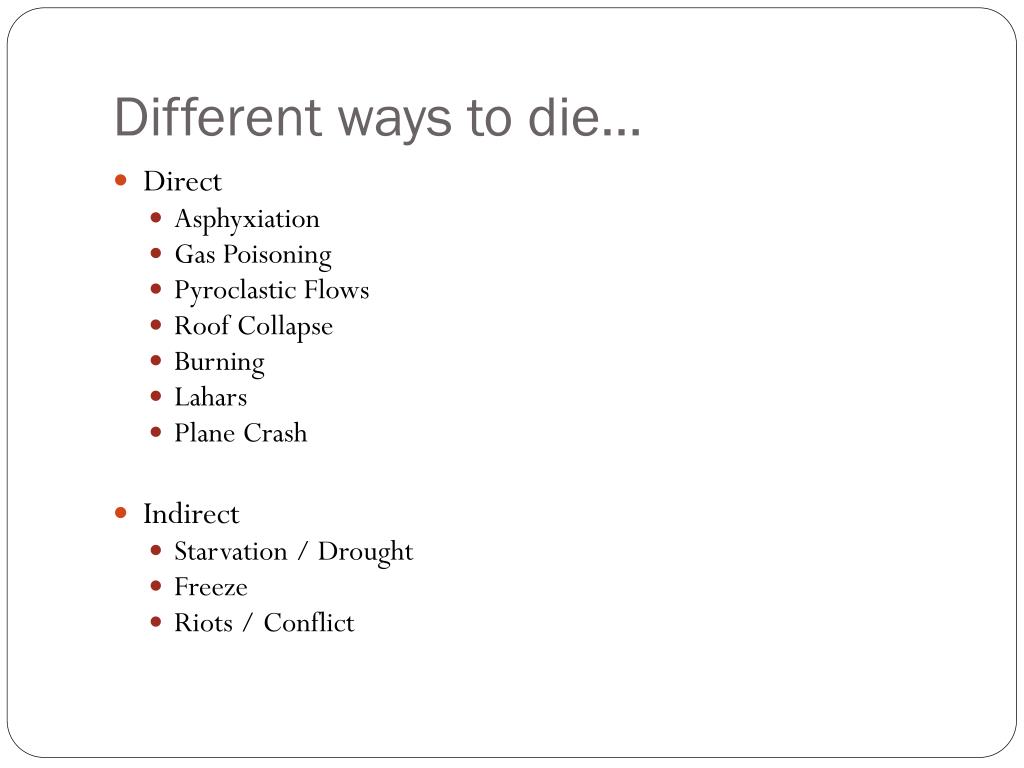

Different ways to die

Different ways to die…

  • Direct

    • Asphyxiation

    • Gas Poisoning

    • Pyroclastic Flows

    • Roof Collapse

    • Burning

    • Lahars

    • Plane Crash

  • Indirect

    • Starvation / Drought

    • Freeze

    • Riots / Conflict

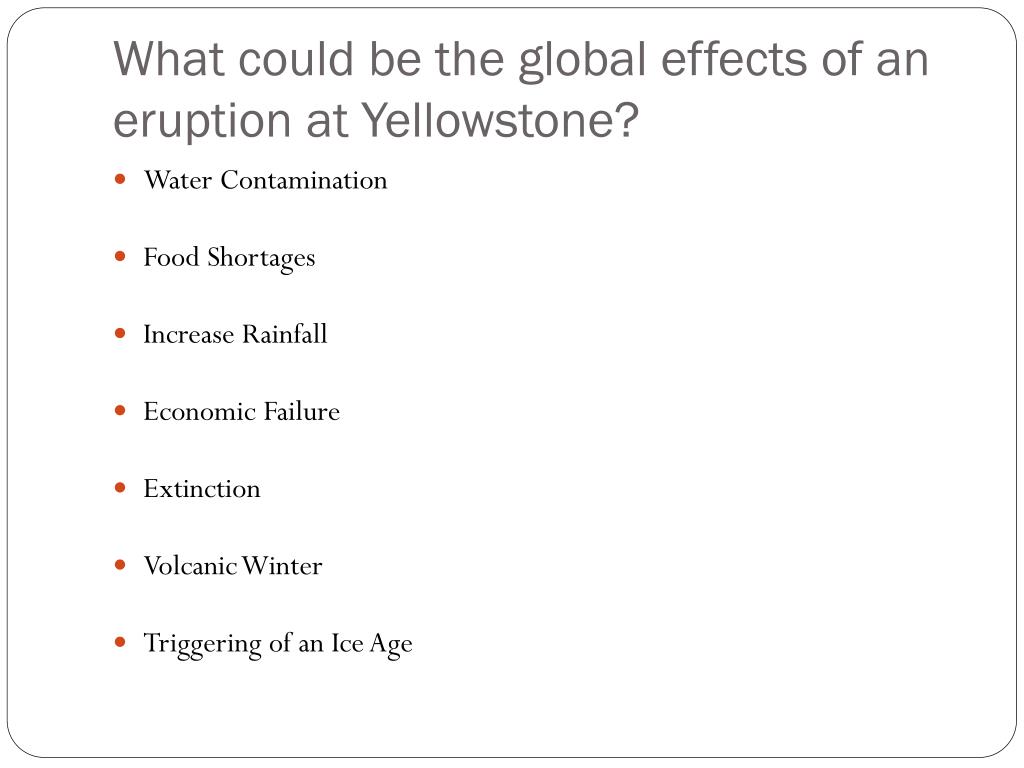

What could be the global effects of an eruption at yellowstone

What could be the global effects of an eruption at Yellowstone?

  • Water Contamination

  • Food Shortages

  • Increase Rainfall

  • Economic Failure

  • Extinction

  • Volcanic Winter

  • Triggering of an Ice Age


What are the chances of a super eruption occurring in our lifetimes

What are the chances of a super eruption occurring in our lifetimes?

  • Are we overdue?


Further reading

Further Reading

  • http://www.yellowstonenationalpark.com/calderas.htm

  • Yellowstone Volcano Observatory

  • USGS

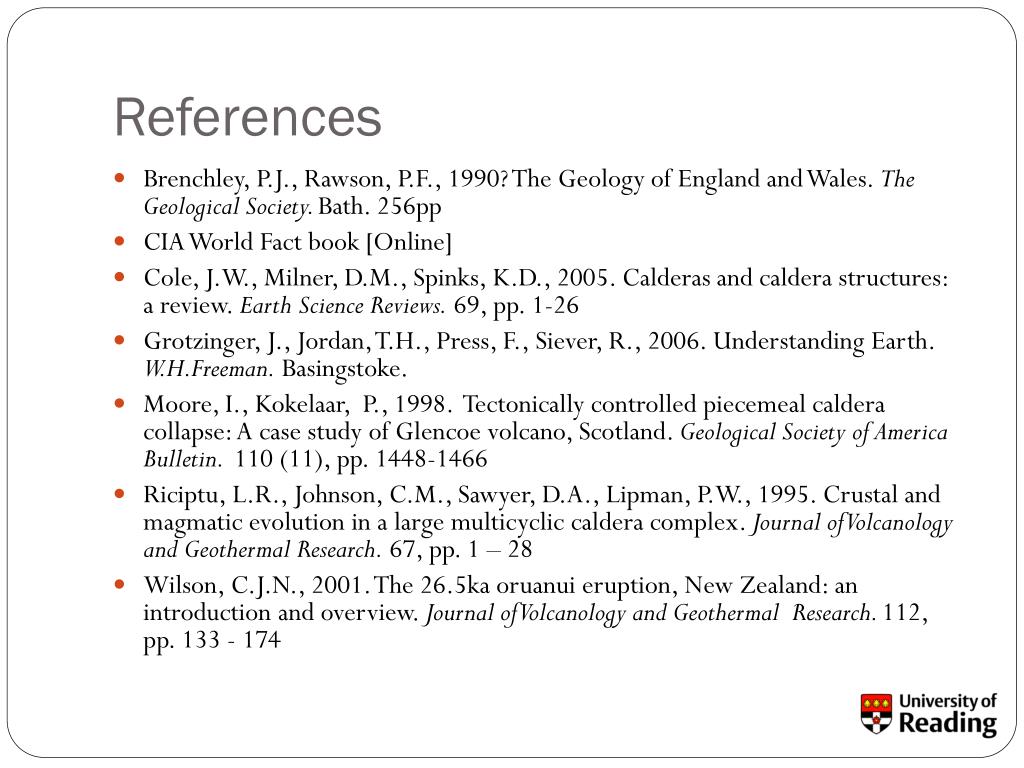

References

References

  • Brenchley, P.J., Rawson, P.F., 1990? The Geology of England and Wales. The Geological Society. Bath. 256pp

  • CIA World Fact book [Online]

  • Cole, J.W., Milner, D.M., Spinks, K.D., 2005. Calderas and caldera structures: a review. Earth Science Reviews. 69, pp. 1-26

  • Grotzinger, J., Jordan, T.H., Press, F., Siever, R., 2006. Understanding Earth. W.H.Freeman. Basingstoke.

  • Moore, I., Kokelaar, P., 1998. Tectonically controlled piecemeal caldera collapse: A case study of Glencoe volcano, Scotland. Geological Society of America Bulletin. 110 (11), pp. 1448-1466

  • Riciptu, L.R., Johnson, C.M., Sawyer, D.A., Lipman, P.W., 1995. Crustal and magmatic evolution in a large multicyclic caldera complex. Journal of Volcanology and Geothermal Research. 67, pp. 1 – 28

  • Wilson, C.J.N., 2001. The 26.5ka oruanui eruption, New Zealand: an introduction and overview. Journal of Volcanology and Geothermal Research. 112, pp. 133 - 174
