  1. StoneBeat Training Classroom Requirements

  2. Lab Sites Each lab siteconsists of • 2 Cluster nodes • 1 test client for StoneBeat HA 3.1 and FullCluster Cluster nodes must have supported hardware and software • Cluster nodes in a same lab site have to run identical operating systems • both, Windows NT and Sun Solaris are acceptable Maximum of 3 students per site (2 recommended) • Maximum of 12 students per 4 site classroom (8 recommended)

  3. Classroom Hardware Requirements For each Cluster site • 2 Cluster hosts with monitors, keyboards and mice • 3 supported Ethernet NICs in each • For StoneBeat HA 3.1 one serial cable for backup heartbeat (optional) • 1 client machine with monitor, keyboard and mouse • 3 hubs • 1 external hub (100Mb recommended) • 1 internal hub (100Mb recommended) • 1 control hub or cross-over ethernet cable • 6 to 8 ethernet cables (8 if control hub 6 if not)

  4. Classroom Hardware Requirements Shared hardware • 1 external host • 1 hub for the external host (100Mb recommended)

  5. Classroom Software Requirements • Operating systems • Windows NT 4.0 with SP4 or later • Solaris 2.6 (32-bit mode) with suggested patches • Solaris 7 (32-bit mode) with cluster patches • Red Hat Linux 6.1 • Underlying software for the Cluster nodes • StoneBeat Clustering software

  6. Software Licenses • Stonesoft provides licenses for StoneBeat Clustering products • Available at http://ats.stonebeat.com/ • ATS Partner is responsible for all the other software licenses (e.g. operating system)

  7. Instructor Equipment • One computer with video projector • Video projector is required for the training presentations

  8. Lab Network Routing • Use static routes from Cluster nodes to corresponding internal networks • Use static routes from FTP server to corresponding internal networks

  9. The basic tests • Always test the classroom network before each training course • Ping every IP address from every host • With StoneBeat FullCluster and StoneBeat HA 3.1, ping all internal network clients from the external network server and vice versa • Install and configure underlying software • Check the system and software operation • Make a routine for lab testing to ensure pleasant training for the students and the instructor

  10. Lab Network Topology for StoneBeat FullCluster

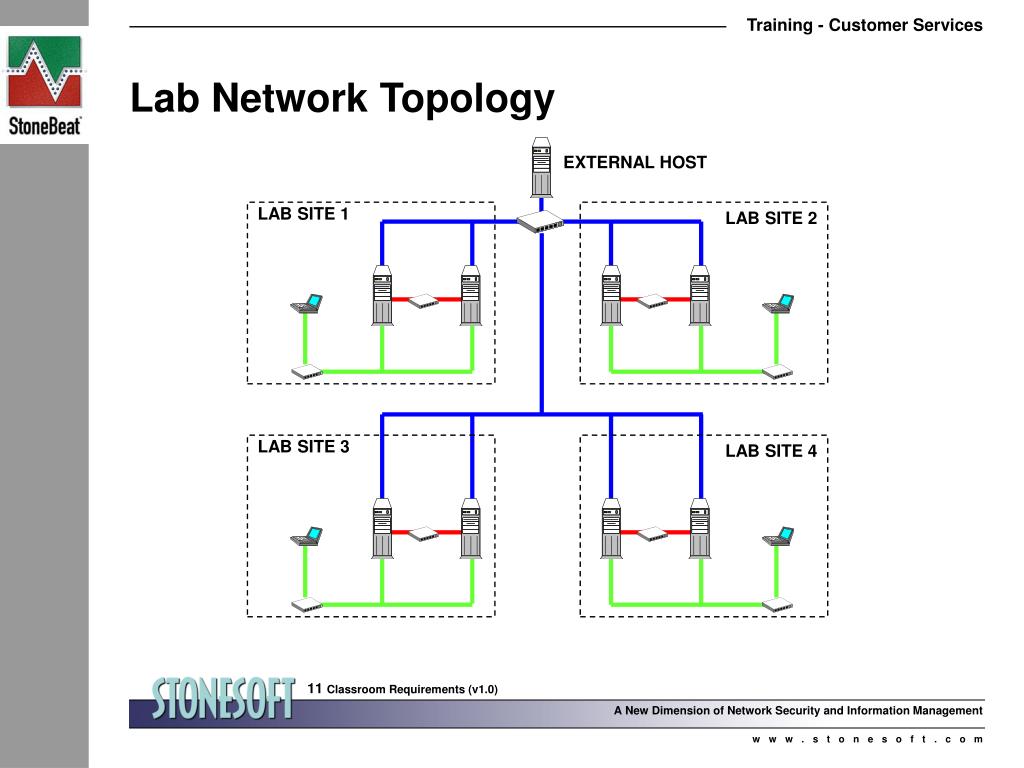

  11. EXTERNAL HOST LAB SITE 1 LAB SITE 2 LAB SITE 3 LAB SITE 4 Lab Network Topology

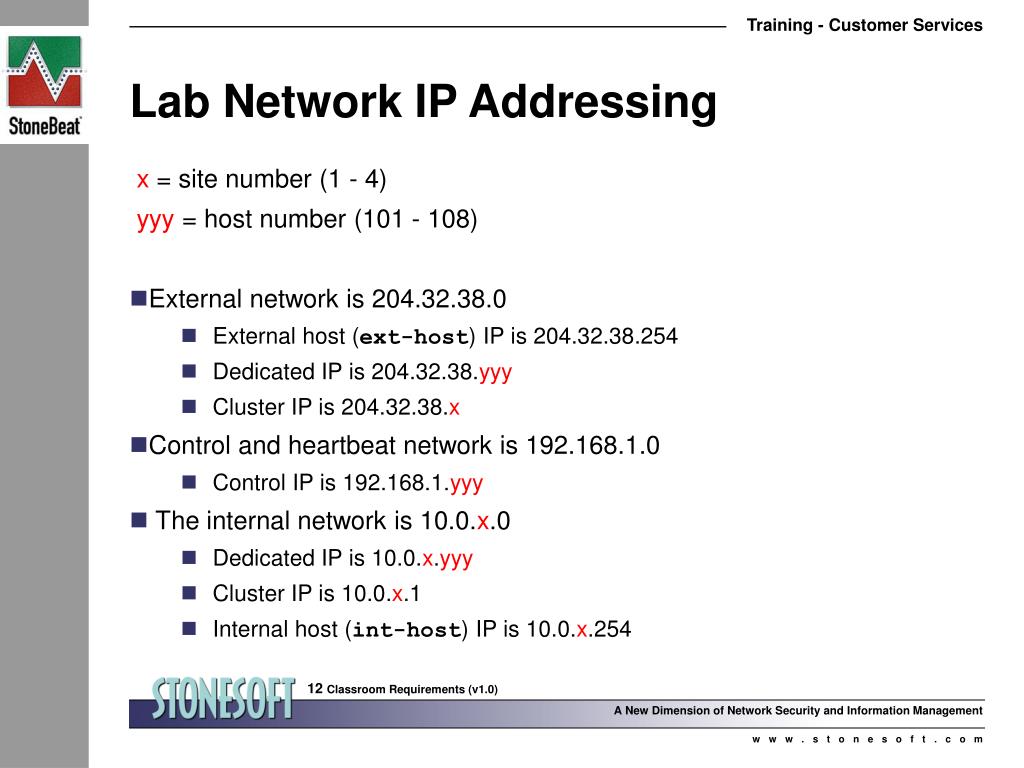

  12. x = site number (1 - 4) yyy = host number (101 - 108) External network is 204.32.38.0 External host (ext-host) IP is 204.32.38.254 Dedicated IP is 204.32.38.yyy Cluster IP is 204.32.38.x Control and heartbeat network is 192.168.1.0 Control IP is 192.168.1.yyy The internal network is 10.0.x.0 Dedicated IP is 10.0.x.yyy Cluster IP is 10.0.x.1 Internal host (int-host) IP is 10.0.x.254 Lab Network IP Addressing

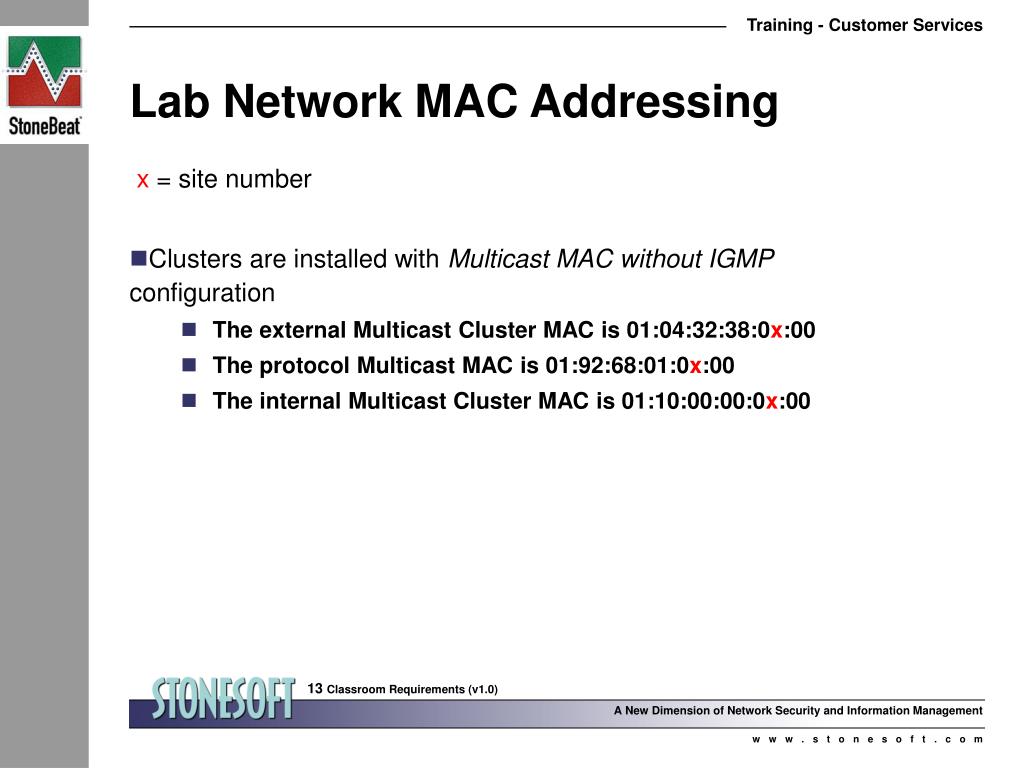

  13. x = site number Clusters are installed with Multicast MAC without IGMP configuration The external Multicast Cluster MAC is 01:04:32:38:0x:00 The protocol Multicast MAC is 01:92:68:01:0x:00 The internal Multicast Cluster MAC is 01:10:00:00:0x:00 Lab Network MAC Addressing

  14. x = site number (1 - 4) yyy = host number (101 - 108) ext-host IP 204.32.38.254 EXTERNAL: Dedicated IP 204.32.38.yyy Cluster IP 204.32.38.x Cluster MAC 01:04:32:38:0x:00 EXTERNAL: Dedicated IP 204.32.38.yyy Cluster IP 204.32.38.x Cluster MAC 01:04:32:38:0x:00 Hostname: SBFCyyy Control IP 192.168.1.yyy Heartbeat MAC 01:92:68:01:0x:00 Hostname: SBFCyyy Control IP 192.168.1.yyy Heartbeat MAC 01:92:68:01:0x:00 INTERNAL: Dedicated IP 10.0.x.yyy Cluster IP 10.0.x.1 Cluster MAC 01:10:00:00:0x:00 INTERNAL: Dedicated IP 10.0.x.yyy Cluster IP 10.0.x.1 Cluster MAC 01:10:00:00:0x:00 int-host IP 10.0.x.254

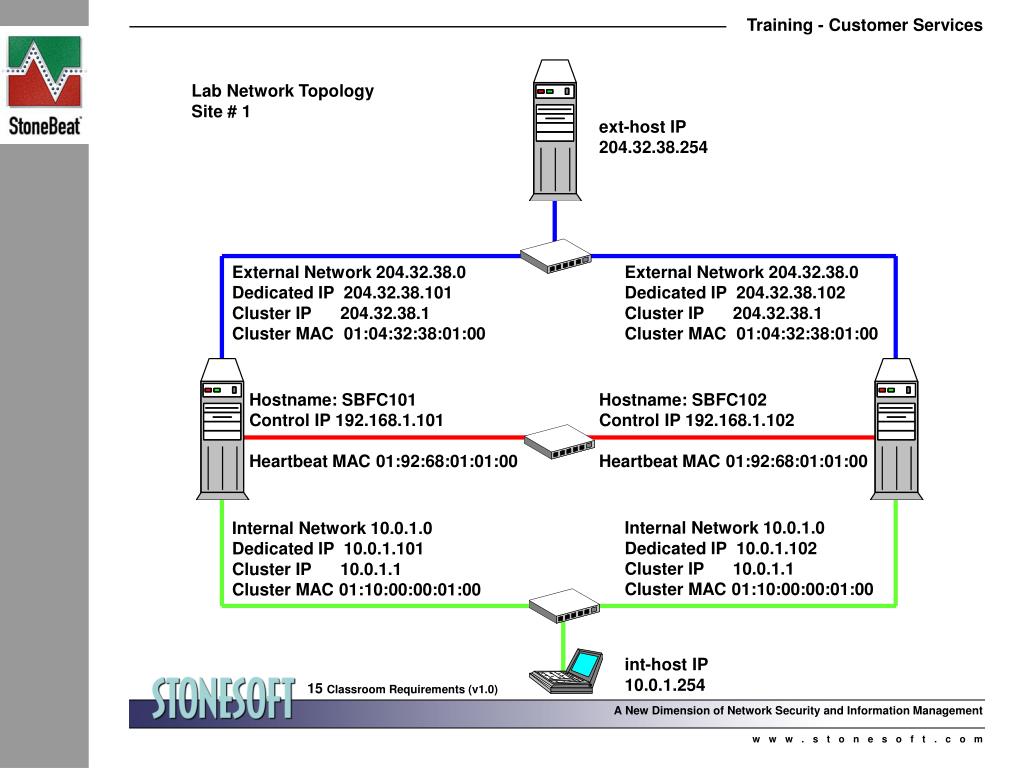

  15. Lab Network Topology Site # 1 ext-host IP 204.32.38.254 External Network 204.32.38.0 Dedicated IP 204.32.38.101 Cluster IP 204.32.38.1 Cluster MAC 01:04:32:38:01:00 External Network 204.32.38.0 Dedicated IP 204.32.38.102 Cluster IP 204.32.38.1 Cluster MAC 01:04:32:38:01:00 Hostname: SBFC101 Control IP 192.168.1.101 Heartbeat MAC 01:92:68:01:01:00 Hostname: SBFC102 Control IP 192.168.1.102 Heartbeat MAC 01:92:68:01:01:00 Internal Network 10.0.1.0 Dedicated IP 10.0.1.102 Cluster IP 10.0.1.1 Cluster MAC 01:10:00:00:01:00 Internal Network 10.0.1.0 Dedicated IP 10.0.1.101 Cluster IP 10.0.1.1 Cluster MAC 01:10:00:00:01:00 int-host IP 10.0.1.254

  16. Lab Network Topology Site # 2 ext-host IP 204.32.38.254 External Network 204.32.38.0 Dedicated IP 204.32.38.103 Cluster IP 204.32.38.2 Cluster MAC 01:04:32:38:02:00 External Network 204.32.38.0 Dedicated IP 204.32.38.104 Cluster IP 204.32.38.2 Cluster MAC 01:04:32:38:02:00 Hostname: SBFC103 Control IP 192.168.1.103 Heartbeat MAC 01:92:68:01:02:00 Hostname: SBFC104 Control IP 192.168.1.104 Heartbeat MAC 01:92:68:01:02:00 Internal Network 10.0.2.0 Dedicated IP 10.0.2.104 Cluster IP 10.0.2.1 Cluster MAC 01:10:00:00:02:00 Internal Network 10.0.2.0 Dedicated IP 10.0.2.103 Cluster IP 10.0.2.1 Cluster MAC 01:10:00:00:02:00 int-host IP 10.0.2.254

  17. Lab Network Topology Site # 3 ext-host IP 204.32.38.254 External Network 204.32.38.0 Dedicated IP 204.32.38.105 Cluster IP 204.32.38.3 Cluster MAC 01:04:32:38:03:00 External Network 204.32.38.0 Dedicated IP 204.32.38.106 Cluster IP 204.32.38.3 Cluster MAC 01:04:32:38:03:00 Hostname: SBFC105 Control IP 192.168.1.106 Heartbeat MAC 01:92:68:01:03:00 Hostname: SBFC106 Control IP 192.168.1.106 Heartbeat MAC 01:92:68:01:03:00 Internal Network 10.0.3.0 Dedicated IP 10.0.1.105 Cluster IP 10.0.3.1 Cluster MAC 01:10:00:00:03:00 Internal Network 10.0.3.0 Dedicated IP 10.0.1.105 Cluster IP 10.0.3.1 Cluster MAC 01:10:00:00:03:00 int-host IP 10.0.3.254

  18. Lab Network Topology Site # 4 ext-host IP 204.32.38.254 External Network 204.32.38.0 Dedicated IP 204.32.38.107 Cluster IP 204.32.38.4 Cluster MAC 01:04:32:38:04:00 External Network 204.32.38.0 Dedicated IP 204.32.38.108 Cluster IP 204.32.38.4 Cluster MAC 01:04:32:38:04:00 Hostname: SBFC107 Control IP 192.168.1.107 Heartbeat MAC 01:92:68:01:04:00 Hostname: SBFC108 Control IP 192.168.1.108 Heartbeat MAC 01:92:68:01:04:00 Internal Network 10.0.4.0 Dedicated IP 10.0.4.108 Cluster IP 10.0.4.1 Cluster MAC 01:10:00:00:04:00 Internal Network 10.0.4.0 Dedicated IP 10.0.4.107 Cluster IP 10.0.4.1 Cluster MAC 01:10:00:00:04:00 int-host IP 10.0.4.254

  19. Lab Network Topology for Other StoneBeat Clustering Products

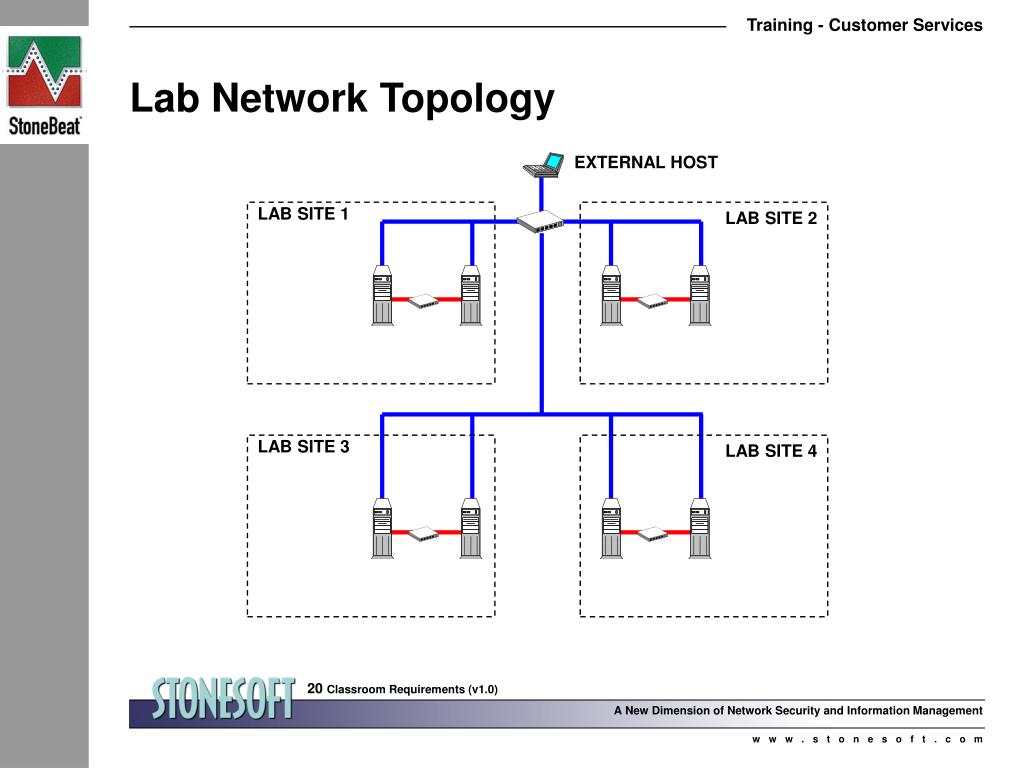

  20. EXTERNAL HOST LAB SITE 1 LAB SITE 2 LAB SITE 3 LAB SITE 4 Lab Network Topology

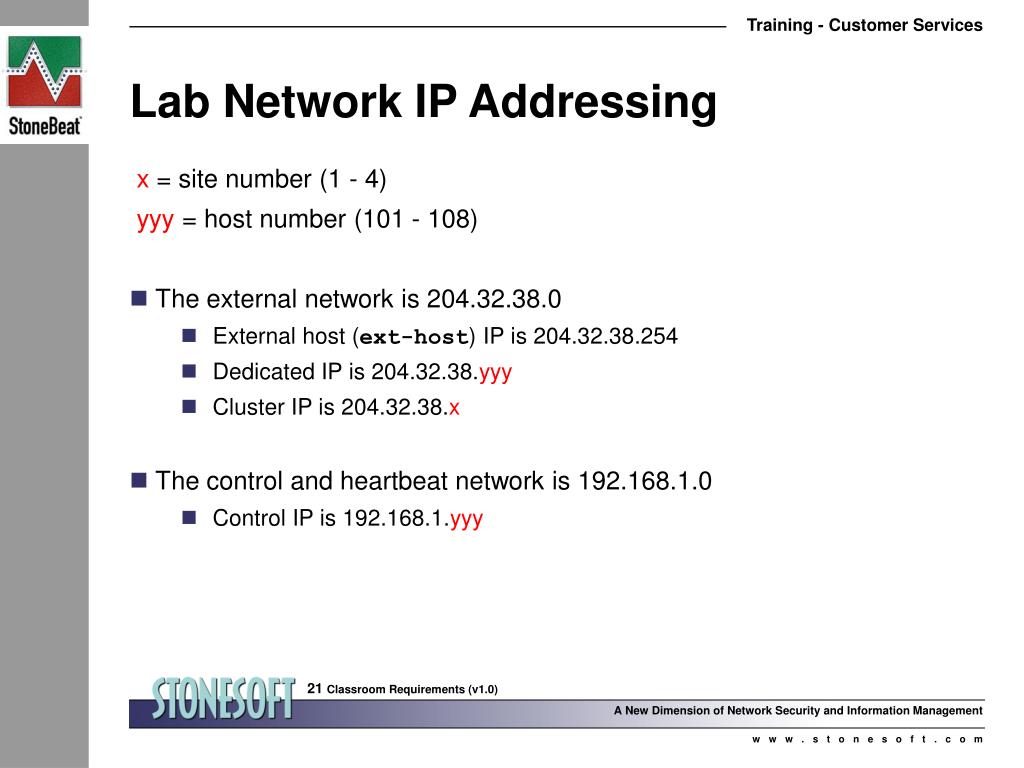

  21. x = site number (1 - 4) yyy = host number (101 - 108) The external network is 204.32.38.0 External host (ext-host) IP is 204.32.38.254 Dedicated IP is 204.32.38.yyy Cluster IP is 204.32.38.x The control and heartbeat network is 192.168.1.0 Control IP is 192.168.1.yyy Lab Network IP Addressing

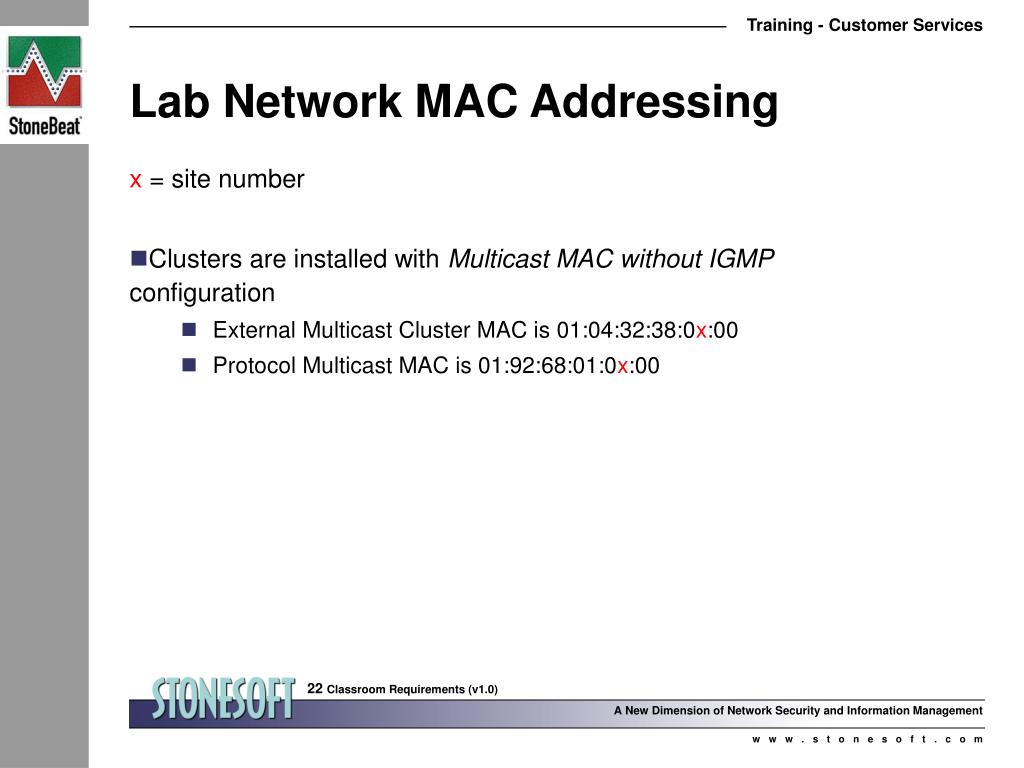

  22. x = site number Clusters are installed with Multicast MAC without IGMP configuration External Multicast Cluster MAC is 01:04:32:38:0x:00 Protocol Multicast MAC is 01:92:68:01:0x:00 Lab Network MAC Addressing

  23. x = site number (1 - 4) yyy = host number (101 - 108) ext-host IP 204.32.38.254 EXTERNAL: Dedicated IP 204.32.38.yyy Cluster IP 204.32.38.x Cluster MAC 01:04:32:38:0x:00 EXTERNAL: Dedicated IP 204.32.38.yyy Cluster IP 204.32.38.x Cluster MAC 01:04:32:38:0x:00 Hostname: SBFCyyy Control IP 192.168.1.yyy Heartbeat MAC 01:92:68:01:0x:00 Hostname: SBFCyyy Control IP 192.168.1.yyy Heartbeat MAC 01:92:68:01:0x:00

  24. ext-host IP 204.32.38.254 Dedicated IP 204.32.38.101 Cluster IP 204.32.38.1 Cluster MAC 01:04:32:38:01:00 Dedicated IP 204.32.38.102 Cluster IP 204.32.38.1 Cluster MAC 01:04:32:38:01:00 Hostname: SBFC101 Control IP 192.168.1.101 Heartbeat MAC 01:92:68:01:01:00 Hostname: SBFC102 Control IP 192.168.1.102 Heartbeat MAC 01:92:68:01:01:00 Lab Network Topology Site # 1

  25. ext-host IP 204.32.38.254 Dedicated IP 204.32.38.103 Cluster IP 204.32.38.2 Cluster MAC 01:04:32:38:02:00 Dedicated IP 204.32.38.104 Cluster IP 204.32.38.2 Cluster MAC 01:04:32:38:02:00 Hostname: SBFC103 Control IP 192.168.1.103 Heartbeat MAC 01:92:68:01:02:00 Hostname: SBFC104 Control IP 192.168.1.104 Heartbeat MAC 01:92:68:01:02:00 Lab Network Topology Site # 2

  26. ext-host IP 204.32.38.254 Dedicated IP 204.32.38.105 Cluster IP 204.32.38.3 Cluster MAC 01:04:32:38:03:00 Dedicated IP 204.32.38.106 Cluster IP 204.32.38.3 Cluster MAC 01:04:32:38:03:00 Hostname: SBFC105 Control IP 192.168.1.106 Heartbeat MAC 01:92:68:01:03:00 Hostname: SBFC106 Control IP 192.168.1.106 Heartbeat MAC 01:92:68:01:03:00 Lab Network Topology Site # 3

  27. Lab Network Topology Site # 4 ext-host IP 204.32.38.254 Dedicated IP 204.32.38.107 Cluster IP 204.32.38.4 Cluster MAC 01:04:32:38:04:00 Dedicated IP 204.32.38.108 Cluster IP 204.32.38.4 Cluster MAC 01:04:32:38:04:00 Hostname: SBFC107 Control IP 192.168.1.107 Heartbeat MAC 01:92:68:01:04:00 Hostname: SBFC108 Control IP 192.168.1.108 Heartbeat MAC 01:92:68:01:04:00

  28. Lab Network Topology for StoneBeat HA 3.1

  29. Classroom Software Requirements • Operating system • Windows NT 4.0 with SP4 or later • Solaris 2.5.1, 2.6 or 7 SPARC • HP-UX 10.20 or 11 • IBM AIX 4.2.1, 4.3.2 or 4.3.3 • Check Point FireWall-1 • StoneBeat HA 3.1 software

  30. EXTERNAL HOST LAB SITE 1 LAB SITE 2 LAB SITE 3 LAB SITE 4 Lab Network Topology

  31. x = site number (1 - 4) yyy = host number (101 - 108) External network is 192.168.1.0 External FTP / WWW server IP is 192.168.1.254 External IP is 192.168.1. x Control and heartbeat network is 204.32.38.0 ID CNIC IP is 204.32.38.yyy The internal network is 10.0.x.0 Internal IP is 10.0.x.1 Internal FTP client IP is 10.0.x.254 Lab Network IP Addressing

  32. x = site number (1 - 4) yyy = host number (101 - 108) FTP Server 192.168.1.254 External Network 192.168.1.0 External IP 192.168.1.x Hostname: SByyy ID CNIC IP 204.32.38.yyy Hostname: SByyy ID CNIC IP 204.32.38.yyy Internal Network 10.0.x.0 Internal IP 10.0.x.1 FTP Client 10.0.x.254

  33. Lab Network Topology Site # 1 FTP Server 192.168.1.254 External Network 192.168.1.0 External IP 192.168.1.1 Hostname: SB101 ID CNIC IP 204.32.38.101 Hostname: SB102 ID CNIC IP 204.32.38.102 Internal Network 10.0.1.0 Internal IP 10.0.1.1 FTP Client 10.0.1.254

  34. Lab Network Topology Site # 2 FTP Server 192.168.1.254 External Network 192.168.1.0 External IP 192.168.1.2 Hostname: SB103 ID CNIC IP 204.32.38.103 Hostname: SB104 ID CNIC IP 204.32.38.104 Internal Network 10.0.2.0 Internal IP 10.0.2.1 FTP Client 10.0.2.254

  35. Lab Network Topology Site # 3 FTP Server 192.168.1.254 External Network 192.168.1.0 External IP 192.168.1.3 Hostname: SB105 ID CNIC IP 204.32.38.105 Hostname: SB106 ID CNIC IP 204.32.38.106 Internal Network 10.0.3.0 Internal IP 10.0.3.1 FTP Client 10.0.3.254

  36. Lab Network Topology Site # 4 FTP Server 192.168.1.254 External Network 192.168.1.0 External IP 192.168.1.4 Hostname: SB107 ID CNIC IP 204.32.38.107 Hostname: SB108 ID CNIC IP 204.32.38.108 Internal Network 10.0.4.0 Internal IP 10.0.4.1 FTP Client 10.0.4.254
