  1. Chapter 8: The QuantumMechanical Atom Chemistry: The Molecular Nature of Matter, 6E Jespersen/Brady/Hyslop

  2. Electromagnetic Energy Electromagnetic Radiation • Light energy or wave • Travels through space at speed of light in vacuum • c = speed of light = 2.9979 x 108 m/s • Successive series of these waves or oscillations Waves or Oscillations • Systematic fluctuations in intensities of electrical and magnetic forces • Varies rhythmically with time • Exhibit wide range of energy

  3. Properties of Waves Wavelength () • Distance between two successive peaks or troughs • Unit = meter Frequency () • number of waves per second that pass a given point in space • Unit = Hertz (Hz) = cycles/sec = 1/sec = s1 Related by    = c

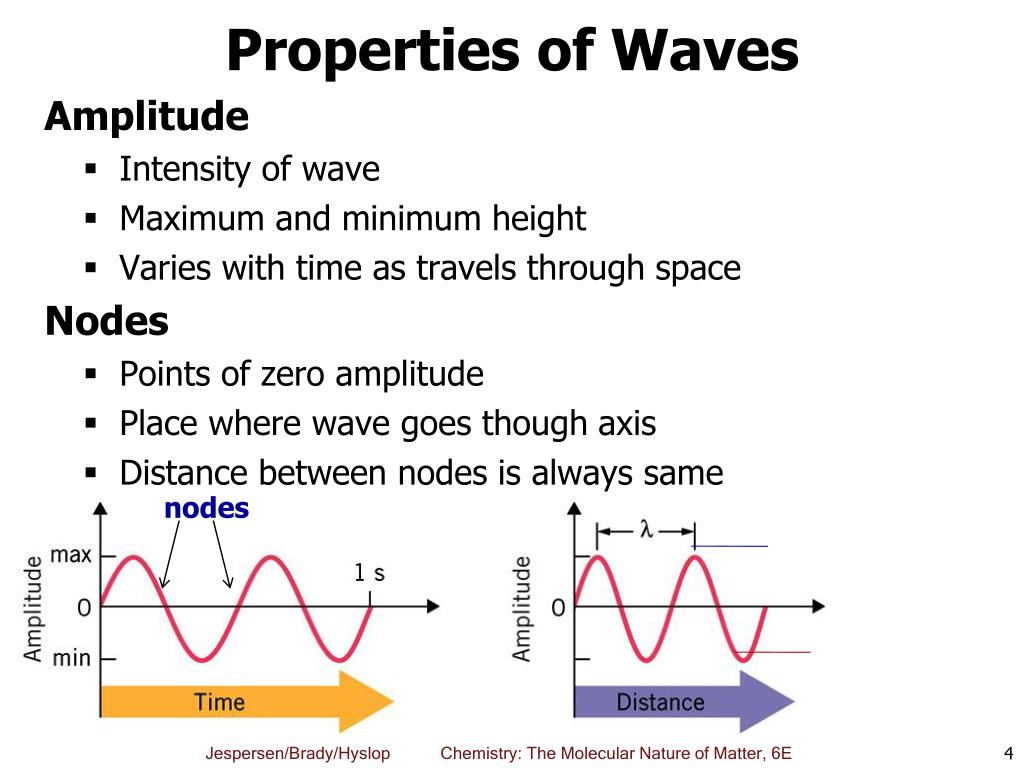

  4. Properties of Waves Amplitude • Intensity of wave • Maximum and minimum height • Varies with time as travels through space Nodes • Points of zero amplitude • Place where wave goes though axis • Distance between nodes is always same nodes

  5. Learning Check: Converting from Wavelength to Frequency The bright red color in fireworks is due to emission of light when Sr(NO3)2 is heated. If the wavelength is ~650 nm, what is the frequency of this light?  = 4.61 × 1014 s–1 = 4.61 × 1014 Hz

  6. Your Turn! WCBS broadcasts at a frequency of 880 kHz. What is the wavelength of their signal? • 341 m • 293 m • 293 mm • 341 km • 293 mm

  7. Electromagnetic Spectrum • Comprised of all frequencies of light • Divided into regions according to wavelengths of radiation high energy, short waves low energy, long waves

  8. Electromagnetic Spectrum Visible Light • Band of ’s that human eyes can see • 400 to 700 nm • Make up spectrum of colors • 700 nm ROYGBIV 400 nm • White light • Equal amount of all these colors • Can separate by passing through prism

  9. Important Experiments in Atomic Theory Late 1800’s: • Classical physics incapable of describing atoms and molecules • Matter and energy believed to be distinct • Matter: made up of particles • Energy: light waves Beginning of 1900’s: • Several experiments proved this idea incorrect • Experiments showed that electrons acted like: • Tiny charged particles in some experiments • Waves in other experiments

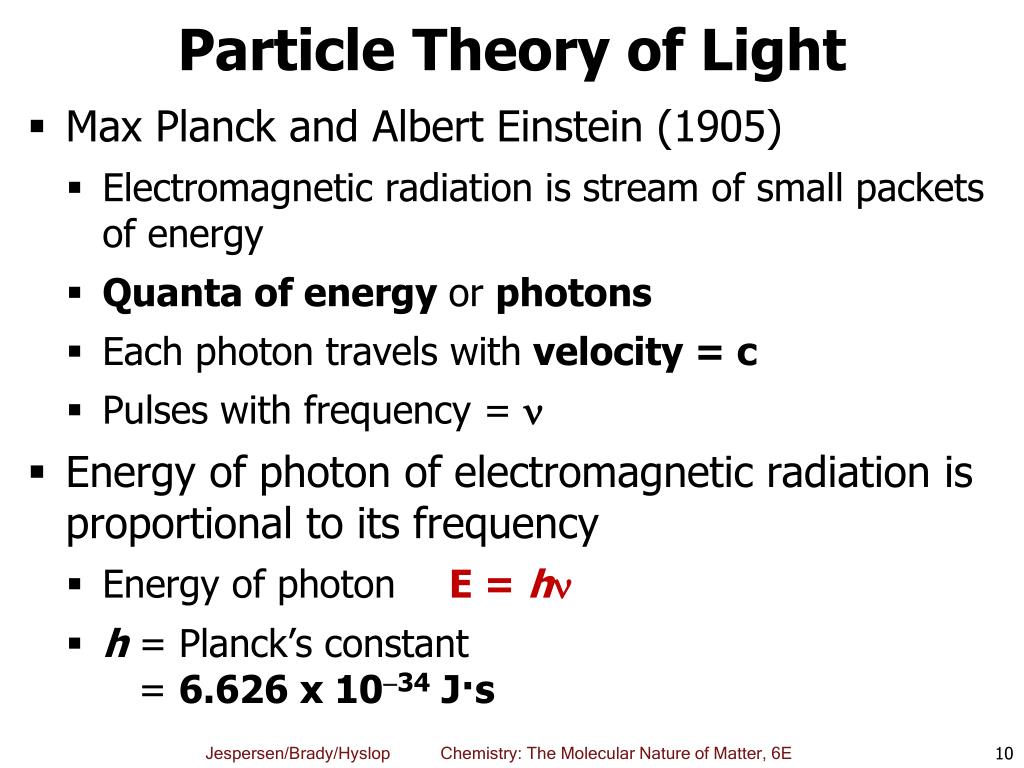

  10. Particle Theory of Light • Max Planck and Albert Einstein (1905) • Electromagnetic radiation is stream of small packets of energy • Quanta of energy or photons • Each photon travels with velocity = c • Pulses with frequency =  • Energy of photon of electromagnetic radiation is proportional to its frequency • Energy of photon E =h • h = Planck’s constant = 6.626 x 1034 J·s

  11. Learning Check What is the frequency, in sec–1, of radiation which has an energy of 3.371 x 10–19 joules per photon?  = 5.087×1014 s–1

  12. Your Turn! A microwave oven uses radiation with a frequency of 2450 MHz (megahertz, 106 s–1) to warm up food. What is the energy of such photons in joules? • 1.62 x 10–30 J • 3.70 x 1042 J • 3.70 x 1036 J • 1.62 x 1044 J • 1.62 x 10–24 J

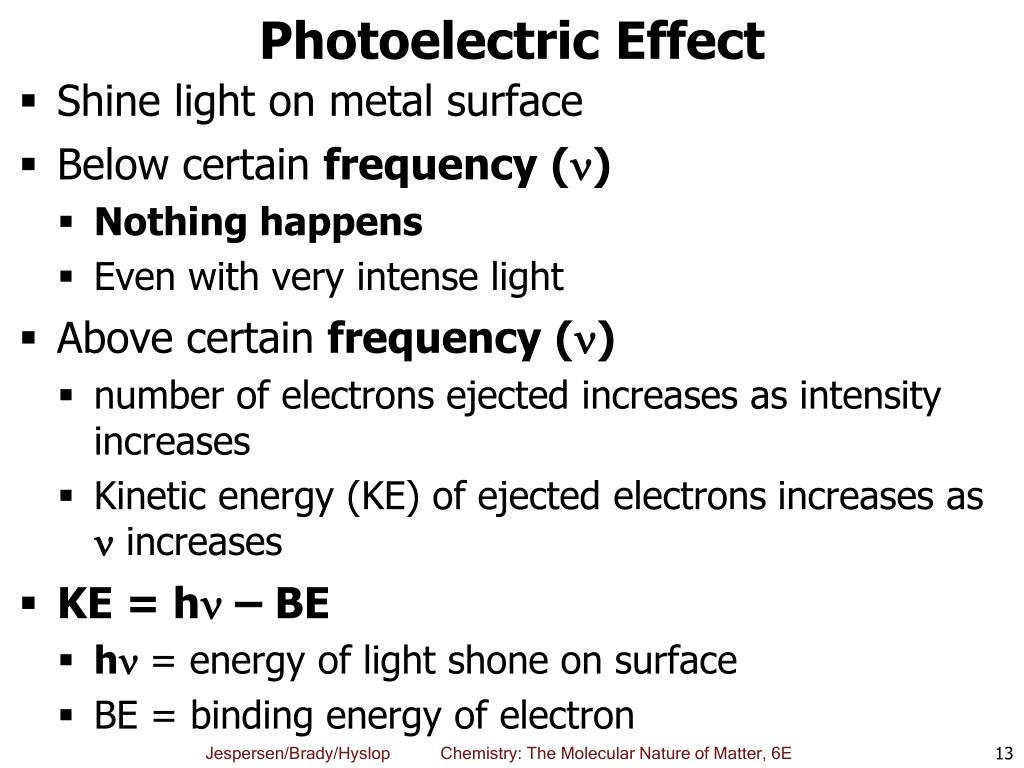

  13. PhotoelectricEffect • Shine light on metal surface • Below certain frequency () • Nothing happens • Even with very intense light • Above certain frequency () • number of electrons ejected increases as intensity increases • Kinetic energy (KE) of ejected electrons increases as  increases • KE = h – BE • h = energy of light shone on surface • BE = binding energy of electron

  14. Means that Energy is Quantized • Can occur only in discrete units of size h • 1 photon = 1 quantum of energy • Energy gained or lost in whole number multiples of h E = nh • If n = NA, then one mole of photons gained or lost E = NAh If light required to start reaction • Must have light above certain frequency to start reaction • Below minimum threshold E, brightness is NOT important

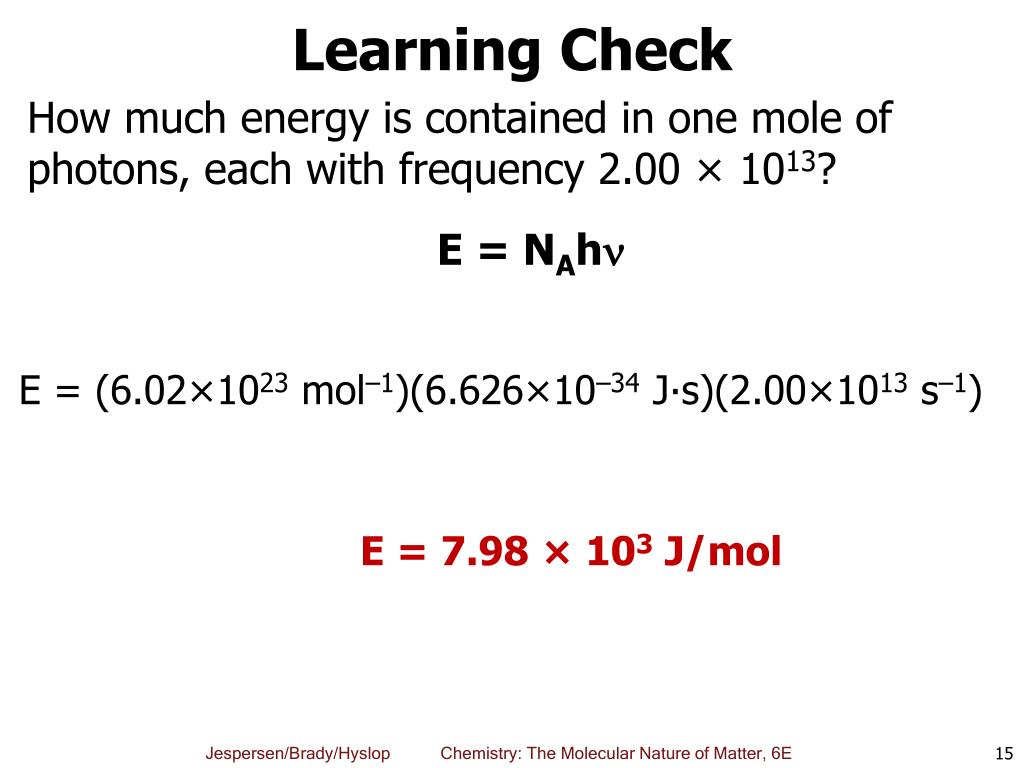

  15. Learning Check How much energy is contained in one mole of photons, each with frequency 2.00 × 1013? E = NAh E = (6.02×1023 mol–1)(6.626×10–34 J∙s)(2.00×1013 s–1) E = 7.98 × 103 J/mol

  16. Your Turn! If a mole of photons has an energy of 1.60 × 10–3 J/mol, what is the frequency of each photon? Assume all photons have the same frequency. • 8.03 × 1028 Hz • 2.12 × 10–14 Hz • 3.20 × 1019 Hz • 5.85 × 10–62 Hz • 1.33 × 105 Hz

  17. Ex. Photosynthesis • If you irradiate plants with IR and MW radiation • No photosynthesis • Regardless of light intensity • If you irradiate plants with Visible Light • Photosynthesis occurs • Brighter light now means more photosynthesis

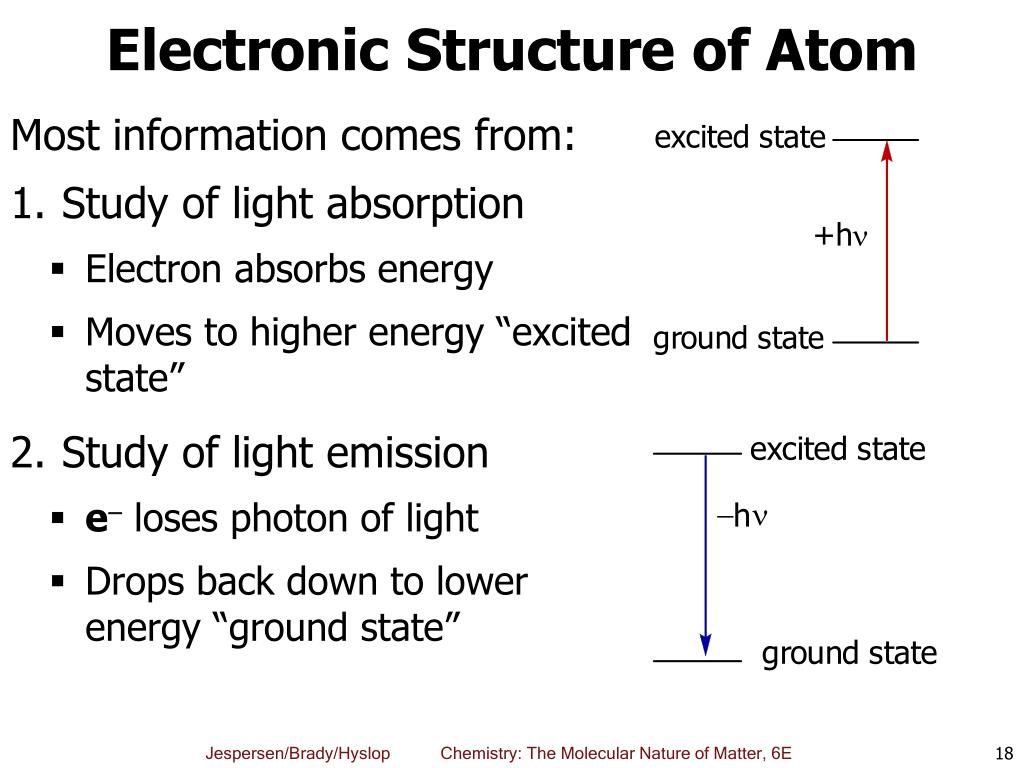

  18. Electronic Structure of Atom Most information comes from: 1. Study of light absorption • Electron absorbs energy • Moves to higher energy “excited state” 2. Study of light emission • e loses photon of light • Drops back down to lower energy “ground state”

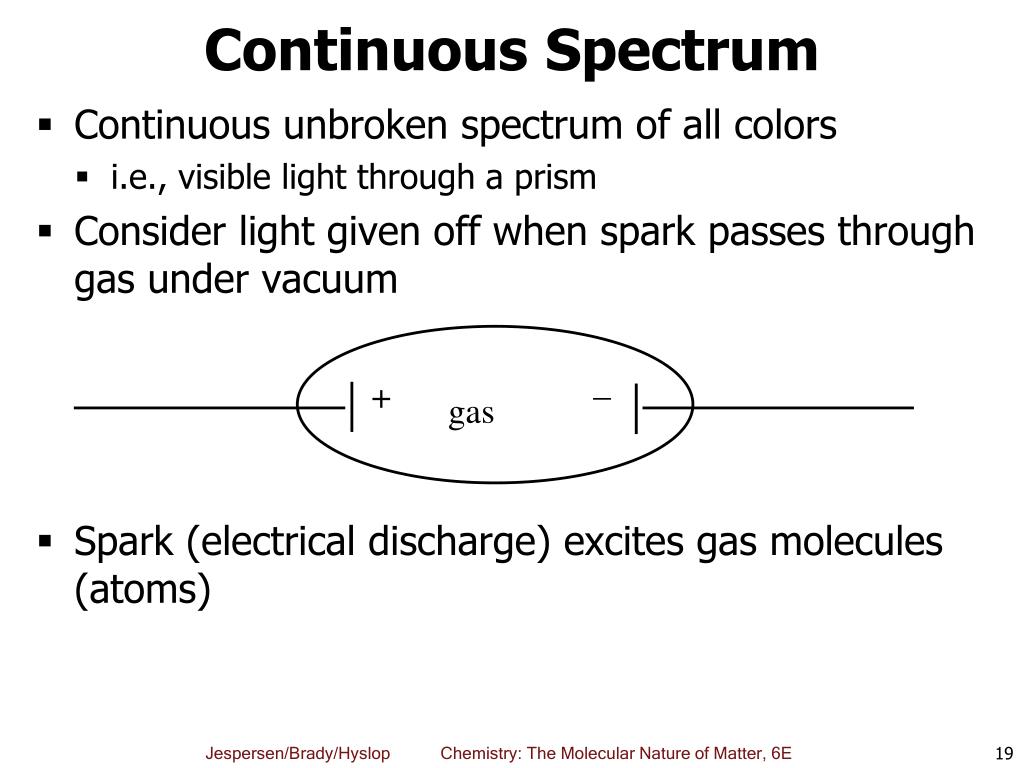

  19. Continuous Spectrum • Continuous unbroken spectrum of all colors • i.e., visible light through a prism • Consider light given off when spark passes through gas under vacuum • Spark (electrical discharge) excites gas molecules (atoms)

  20. Line Spectrum • Spectrum that has only a few discrete lines • Also called atomic spectrum or emission spectrum • Each element has unique emission spectrum

  21. Atomic Spectra • Atomic line spectra are rather complicated • Line spectrum of hydrogen is simplest • Single electron • 1st success in explaining quantized line spectra • 1st studied extensively • J.J. Balmer • Found empirical equation to fit lines in visible region of spectrum • J. Rydberg • More general equation explains all emission lines in H atom spectrum (IR, Vis, and UV)

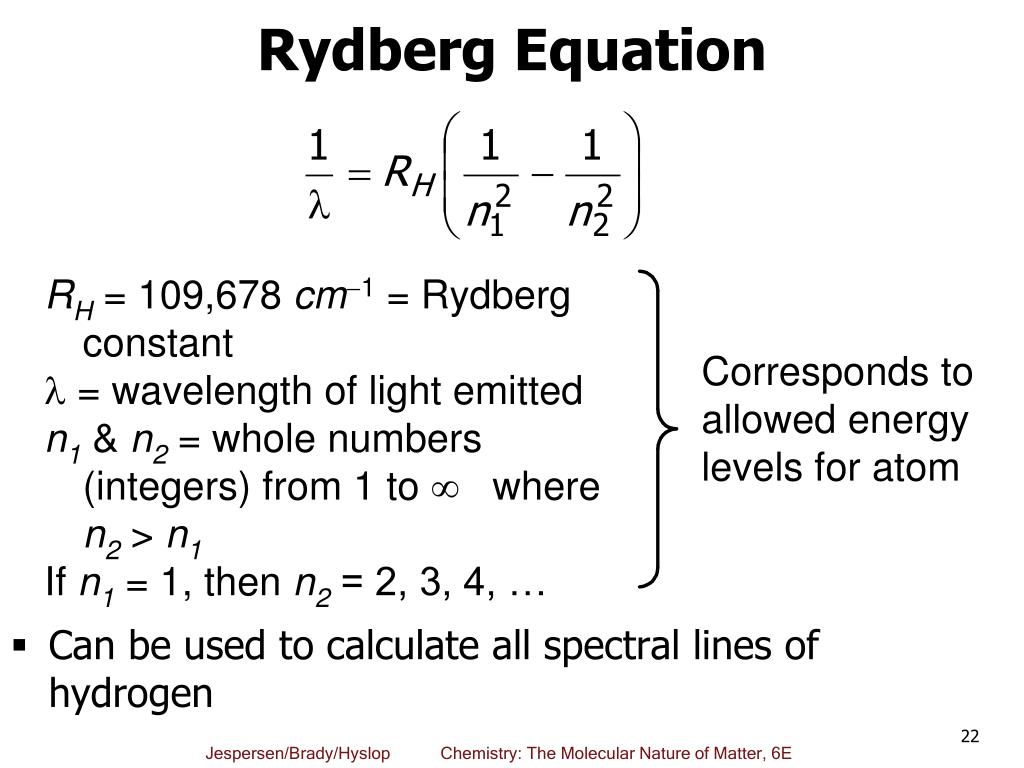

  22. Rydberg Equation • Can be used to calculate all spectral lines of hydrogen Corresponds to allowed energy levels for atom

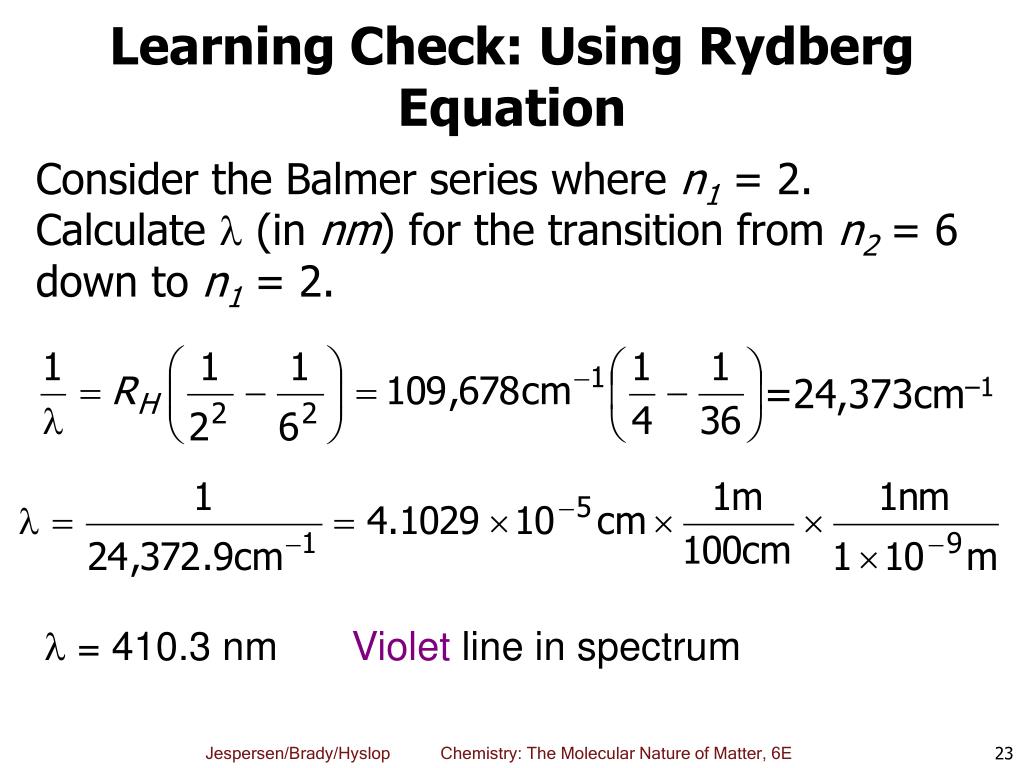

  23. Learning Check: Using Rydberg Equation Consider the Balmer series where n1 = 2. Calculate  (in nm) for the transition from n2 = 6 down to n1 = 2. =24,373cm–1  = 410.3 nm Violet line in spectrum

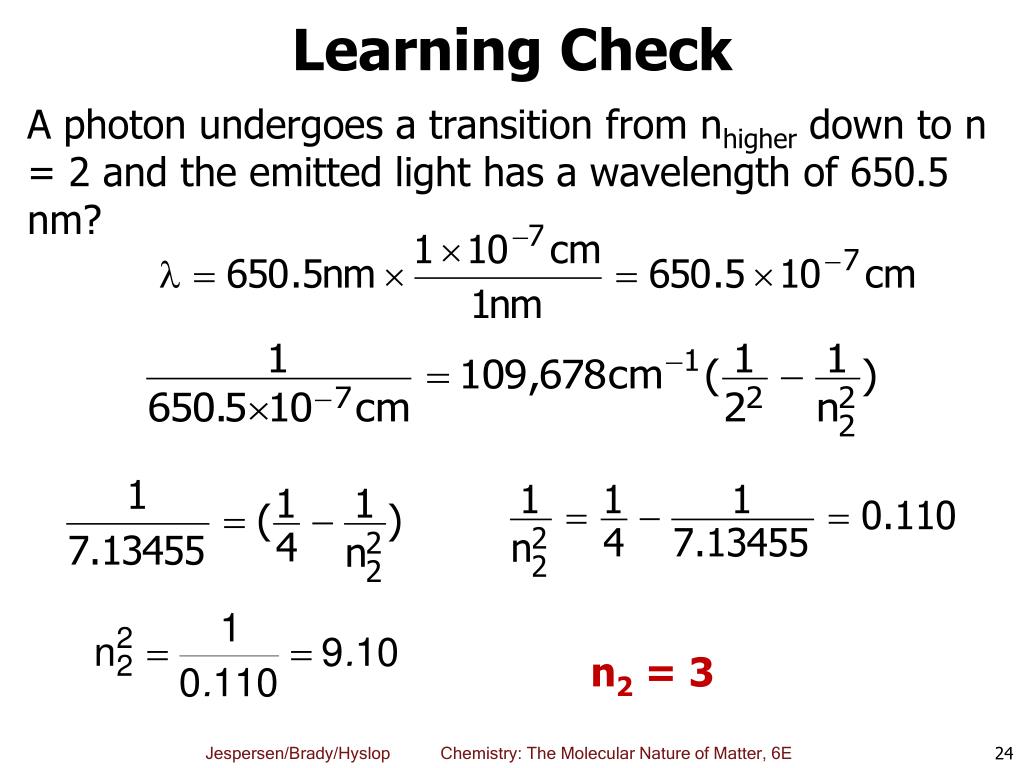

  24. Learning Check A photon undergoes a transition from nhigher down to n = 2 and the emitted light has a wavelength of 650.5 nm? n2= 3

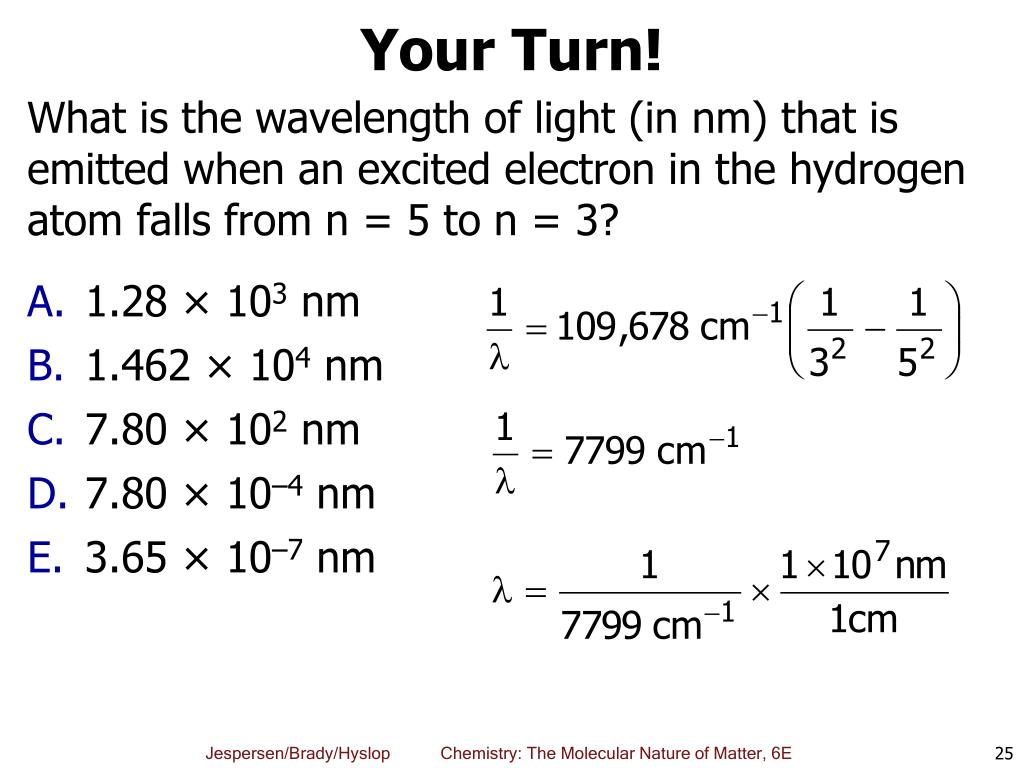

  25. Your Turn! What is the wavelength of light (in nm) that is emitted when an excited electron in the hydrogen atom falls from n = 5 to n = 3? • 1.28 × 103 nm • 1.462 × 104 nm • 7.80 × 102 nm • 7.80 × 10–4 nm • 3.65 × 10–7 nm

  26. Significance of Atomic Spectra • Atomic line spectra tells us • When excited atom loses energy • Only fixed amounts of energy can be lost • Only certain energy photons are emitted • Electron restricted to certain fixed energy levels in atoms • Energy of electron is quantized • Simple extension of Planck's Theory • Any theory of atomic structure must account for • Atomic spectra • Quantization of energy levels in atom

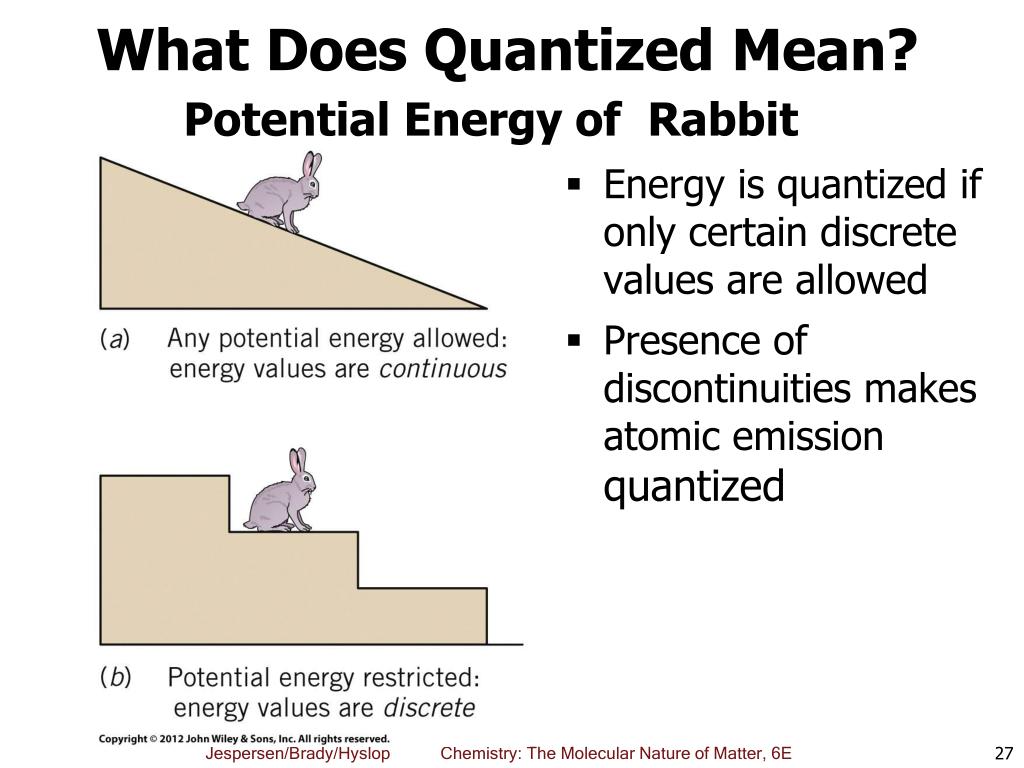

  27. What Does Quantized Mean? • Energy is quantized if only certain discrete values are allowed • Presence of discontinuities makes atomic emission quantized Potential Energy of Rabbit

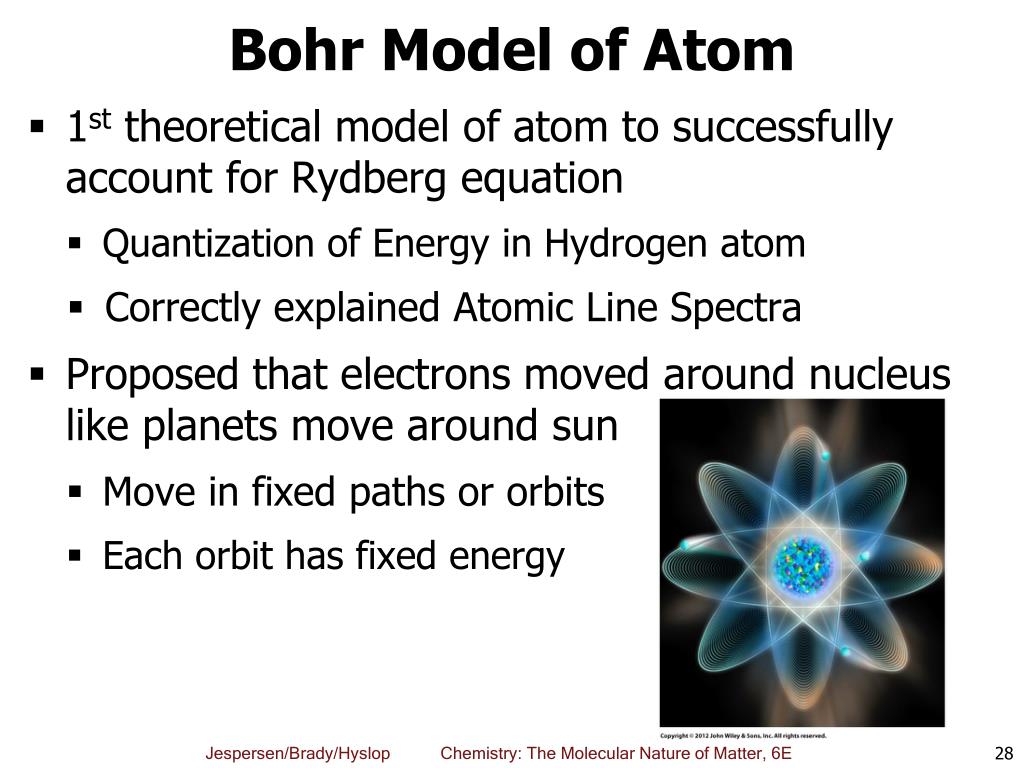

  28. Bohr Model of Atom • 1st theoretical model of atom to successfully account for Rydberg equation • Quantization of Energy in Hydrogen atom • Correctly explained Atomic Line Spectra • Proposed that electrons moved around nucleus like planets move around sun • Move in fixed paths or orbits • Each orbit has fixed energy

  29. Energy for Bohr Model of H • Equation for energy of e in H atom • Ultimately b relates to RH by b = RHhc • OR • where b = RHhc = 2.1788 x 1018J/atom • Allowed values of n = 1, 2, 3, 4, … • n = Quantum number • Used to identify orbit

  30. Energy Level Diagram for H Atom • Absorption of photon • Electron raised to higher energy level • Emission of photon • Electron falls to lower energy level • E s are quantized • Every time e drops from n = 3 to n = 1 • Same frequency photon is emitted • Yields line spectra

  31. Bohr Model of H • E is negative number • Reference point E = 0 when n =  • e not attached to nucleus • Sign arises from Coulombic attraction between + and – charges (oppositely charged bodies) • Coulomb's Law Attractive force • Stronger attractive force = more negative E

  32. Bohr Model of H • n = 1 1st Bohr orbit • Most stable E state = ground state = Lowest E state • Electron remains in lowest E state unless disturbed How to disturb the atom? • Add E = h • e raised higher n orbit n = 2, 3, 4, …  • Higher n orbits = excited states = less stable • So e quickly drops to lower E orbit and emits photon of E equal to E between levels E = Eh – Elh = higher l = lower

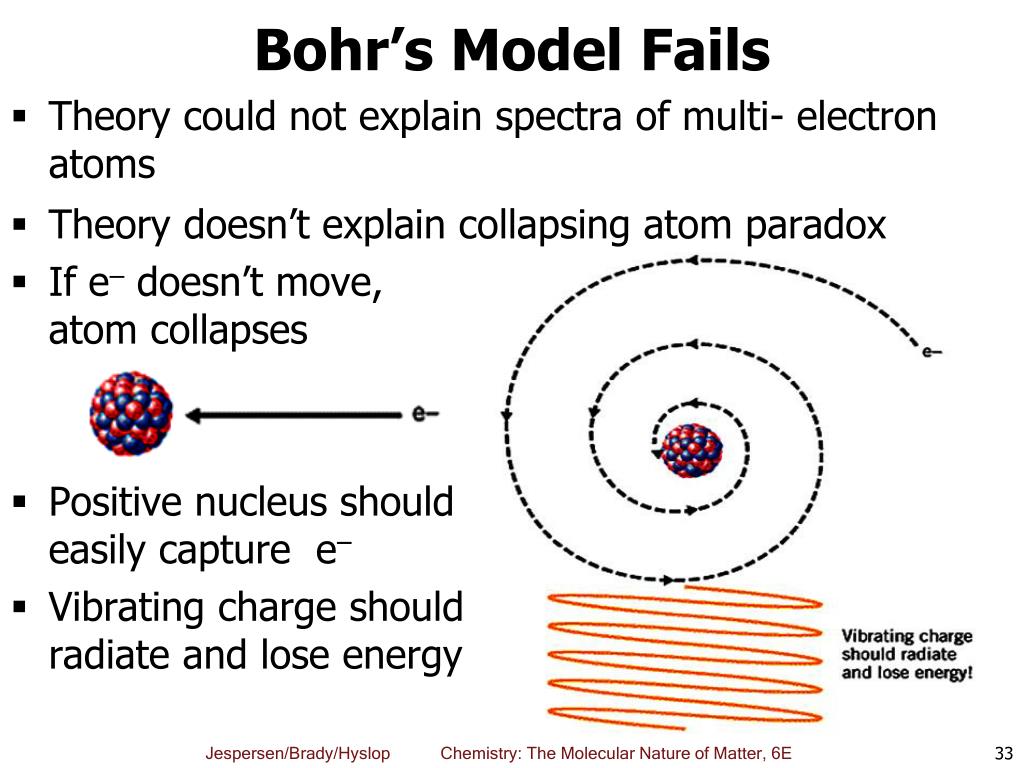

  33. Bohr’s Model Fails • Theory could not explain spectra of multi- electron atoms • Theory doesn’t explain collapsing atom paradox • If e– doesn’t move, atom collapses • Positive nucleus should easily capture e– • Vibrating charge should radiate and lose energy

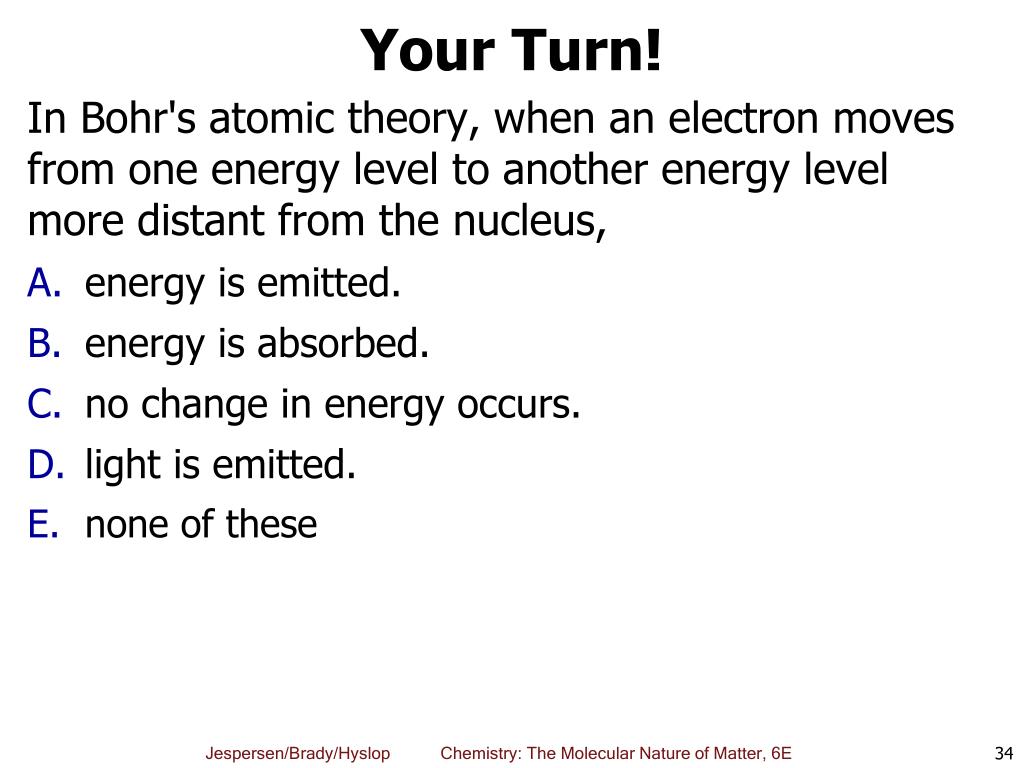

  34. Your Turn! In Bohr's atomic theory, when an electron moves from one energy level to another energy level more distant from the nucleus, • energy is emitted. • energy is absorbed. • no change in energy occurs. • light is emitted. • none of these

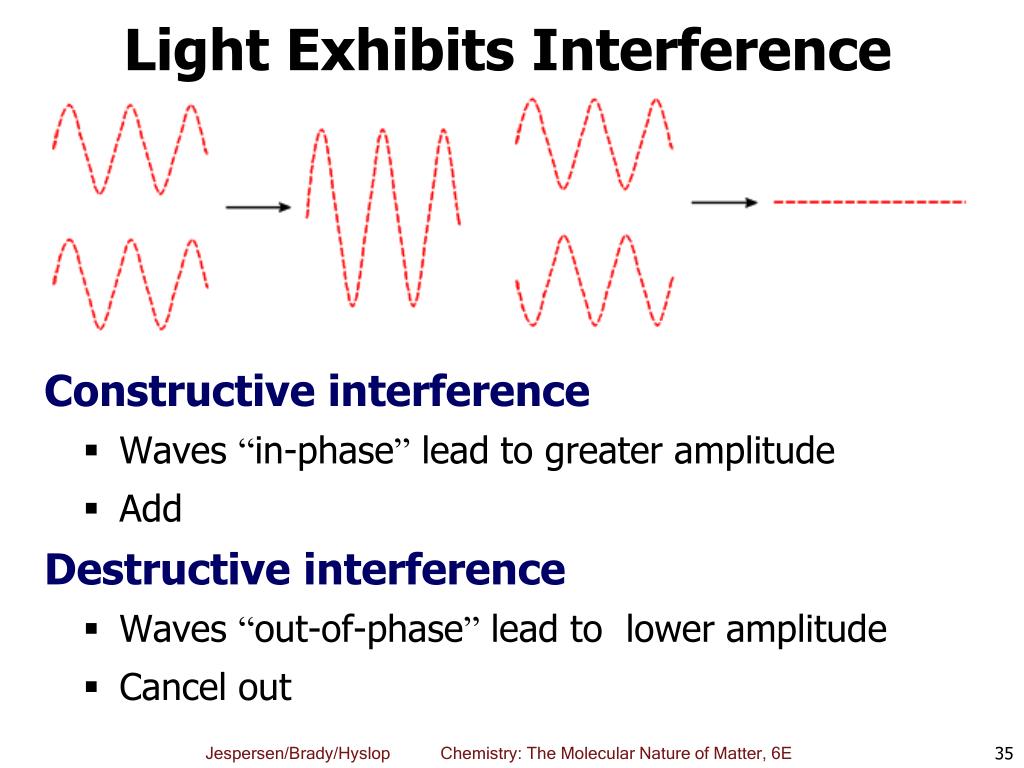

  35. Light Exhibits Interference Constructive interference • Waves “in-phase” lead to greater amplitude • Add Destructive interference • Waves “out-of-phase” lead to lower amplitude • Cancel out

  36. Diffraction and Electrons • Light • Exhibits interference • Has particle nature • Electrons • Known to be particles • Also demonstrate interference

  37. Standing vs. Traveling Waves Traveling wave • Produced by wind on surfaces of lakes and oceans Standing wave • Produced when guitar string is plucked • Center of string vibrates • Ends remain fixed

  38. Bead on a Wire • Any energy is possible, even zero • Same chance of finding bead anywhere on wire • Can know exact position and velocity of bead simultaneously

  39. Wave on a Wire • Integer number (n) of peaks and troughs is required • Wavelength is quantized:

  40. How Do We Describe an Electron? • Has both wave and particle properties • Confining electron makes its behavior more wavelike • Free electrons behave more like particles • Energy of moving electron is E=½ mv2

  41. Electron on Wire—Theories Standing wave • Half-wavelength must occur integer number of times along wire’s length de Broglie’s equation links these • m = mass of particle • v = velocity of particle Combining gives:

  42. de Broglie Explains Quantized Energy • Electron energy quantized • Depends on integer n • Energy level spacing changes when positive charge in nucleus changes • Line spectra different for each element • Lowest energy allowed is for n =1 • Energy cannot be zero, hence atom cannot collapse

  43. Learning Check: Calculate  for e- What is the deBroglie wavelength associated with an electron of mass 9.11 x 10–31 kg traveling at a velocity of 1.0 x 107 m/s?  = 7.27 x 10–11m

  44. Your Turn! Calculate the deBroglie wavelength of a baseball with a mass of 0.10 kg and traveling at a velocity of 35 m/s. • 1.9 × 10–35m • 6.6 × 10–33m • 1.9 × 10–34m • 2.3 × 10–33m • 2.3 × 10–31m

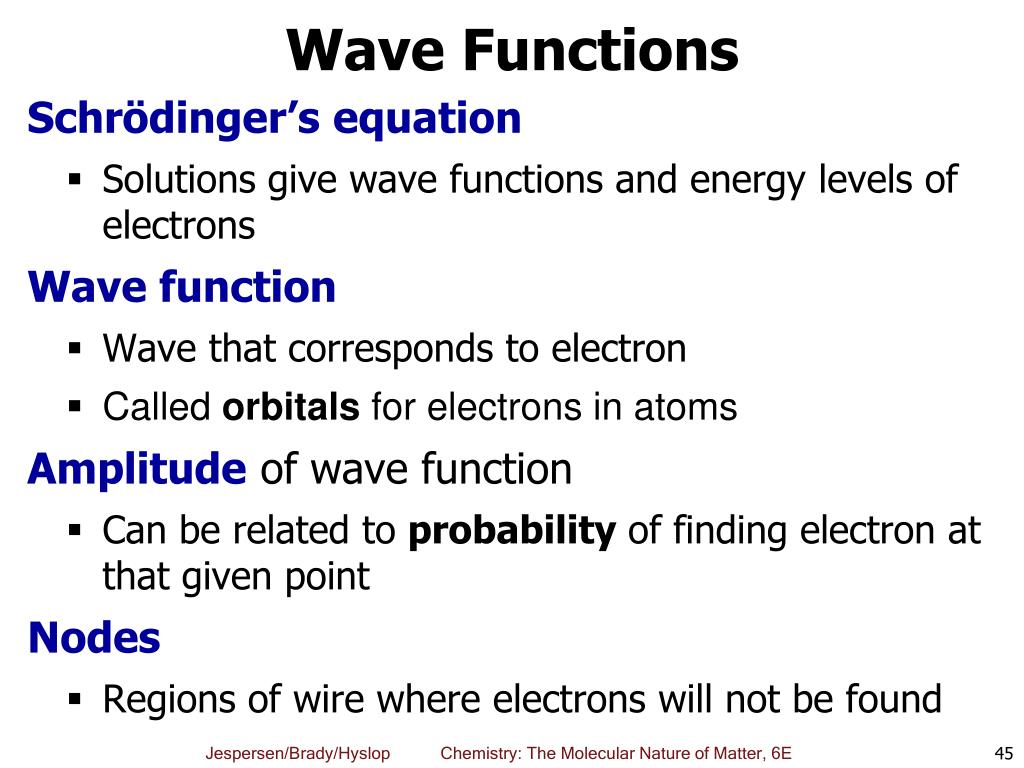

  45. Wave Functions Schrödinger’s equation • Solutions give wave functions and energy levels of electrons Wave function • Wave that corresponds to electron • Called orbitals for electrons in atoms Amplitude of wave function • Can be related to probability of finding electron at that given point Nodes • Regions of wire where electrons will not be found

  46. Orbitals Characterized by Three Quantum Numbers: Quantum Numbers: • Shorthand • Describes characteristics of electron’s position • Predicts its behavior n = principal quantum number • All orbitals with same n are in same shell ℓ = secondary quantum number • Divides shells into smaller groups called subshells mℓ = magnetic quantum number • Divides subshells into individual orbitals

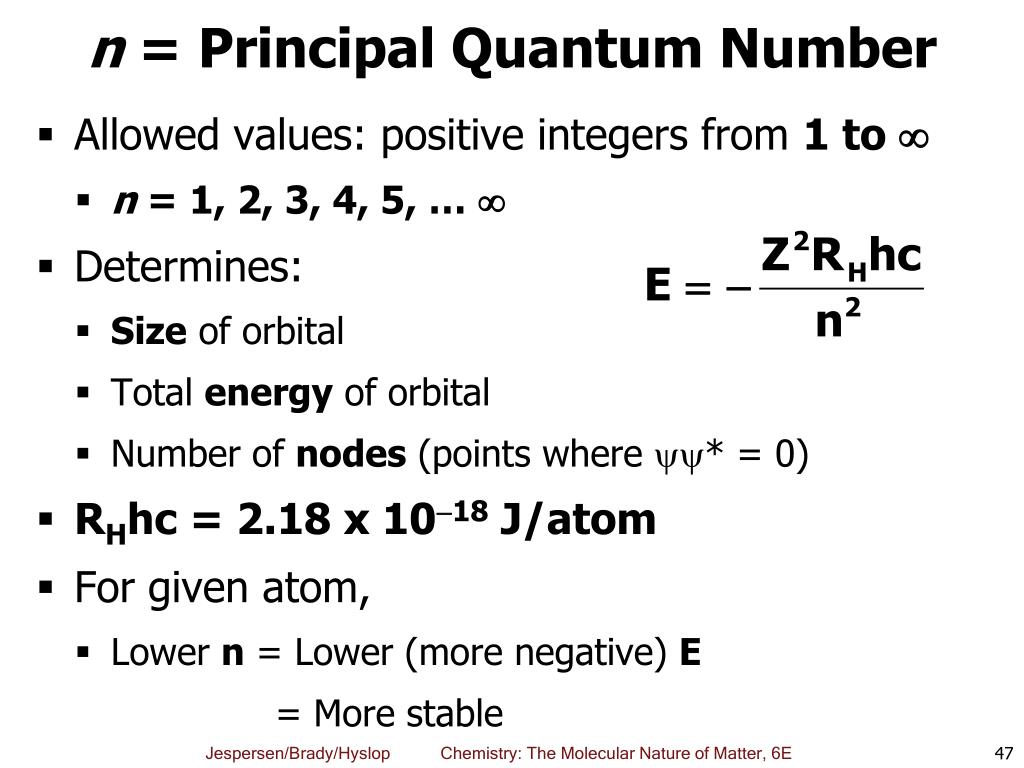

  47. n = Principal Quantum Number • Allowed values: positive integers from 1 to  • n = 1, 2, 3, 4, 5, …  • Determines: • Size of orbital • Total energy of orbital • Number of nodes (points where * = 0) • RHhc = 2.18 x 1018 J/atom • For given atom, • Lower n = Lower (more negative) E = More stable

  48. ℓ = Orbital Angular Momentum QN • Allowed values: 0, 1, 2, 3, 4, 5…(n – 1) • Letters: s, p, d, f, g, h Orbital designation • numbernℓletter • Possible values of ℓ depend on n • n different values of ℓ for given n • Specifies orbital angular momentum of e • Determines • Shape of orbital • Angular variation of e path • Kinetic energy of orbital

  49. mℓ = Magnetic Quantum Number • Allowed values: • mℓ= ℓ, ℓ+1, ℓ+2, …, 0 , …, ℓ2, ℓ1, ℓ • Possible values of mℓ depend on ℓ • There are 2ℓ +1 different values of mℓ for given ℓ • z axis component of orbital angular momentum • Determines orientation of orbital in space • To designate specific orbital, you need three quantum numbers • (n, ℓ, mℓ)

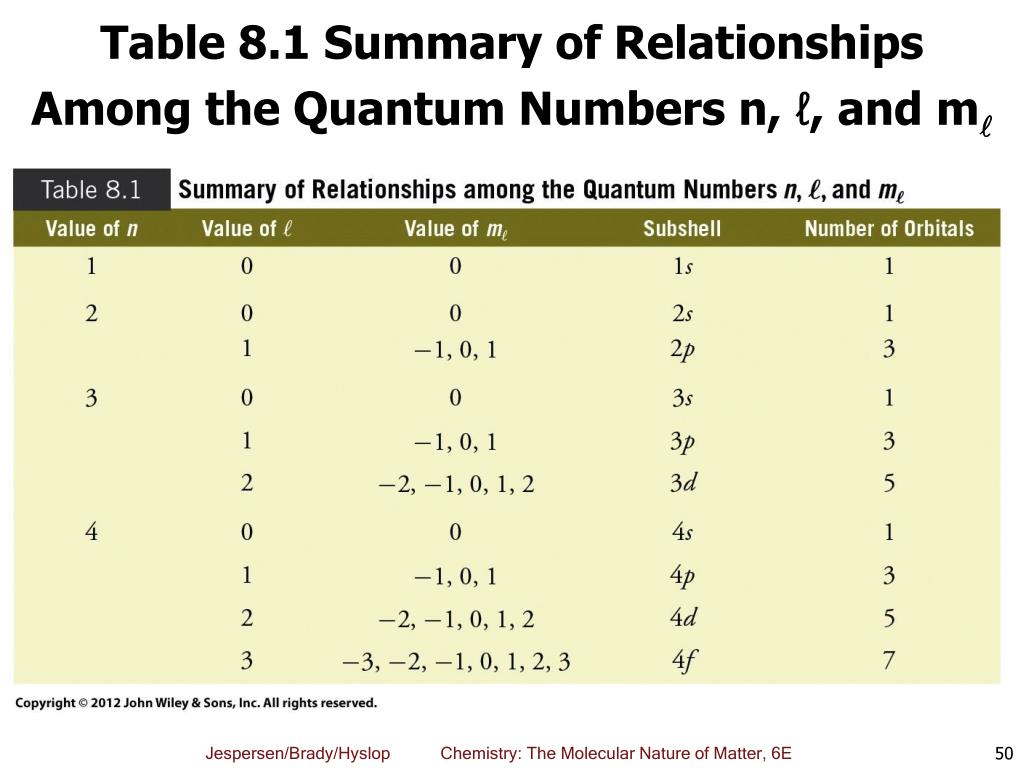

  50. Table 8.1 Summary of Relationships Among the Quantum Numbers n, ℓ, and m
