Presentation Transcript


Three coloring triangle free planar graphs in linear time soda 09 l.jpg

Three-coloring triangle-free planar graphs in linear time (SODA 09’)

Zdenek Dvorak, Ken-ichi Kawarabayashi, Robin Thomasz

Presented By Chen Yang


Basic concept l.jpg

Basic Concept

  • Planar Graph

    • no subgraph that is isomorphic to or is a subdivision of K5 or K3, 3

  • Triangle-free graph

    • no three vertices forming a triangle of edges


Triangle free planar graph sample l.jpg

Triangle-Free Planar Graph Sample


Gr tzsch s theorem l.jpg

Grötzsch's theorem

  • Every triangle-free planar graph can be colored with only 3 colors.

    • Not every non-planar triangle-free graph is 3-colorable.

    • Cannot be generalized to all planar K4-free graphs.


Related work l.jpg

Related Work

  • Thomassen presented an quadratic time algorithm.

    • J. Gimbel and C. Thomassen, Coloring graphs with fixed genus and girth, Trans. Amer. Math. Soc., 349 (1997), pp. 4555--4564.

  • Kowalik and Kurowski achieved an O (nlogn) time by providing a sophisticated structure.

    • Lukasz Kowalik: Fast 3-Coloring Triangle-Free Planar Graphs. ESA 2004: 436-447

    • Lukasz Kowalik, Maciej Kurowski: Oracles for bounded-length shortest paths in planar graphs. ACM Transactions on Algorithms 2(3): 335-363 (2006)


Introduction l.jpg

Introduction

  • This paper presents a linear time algorithm for three coloring triangle-free planar graph.

  • It avoids any complex data structure and easy to implement.

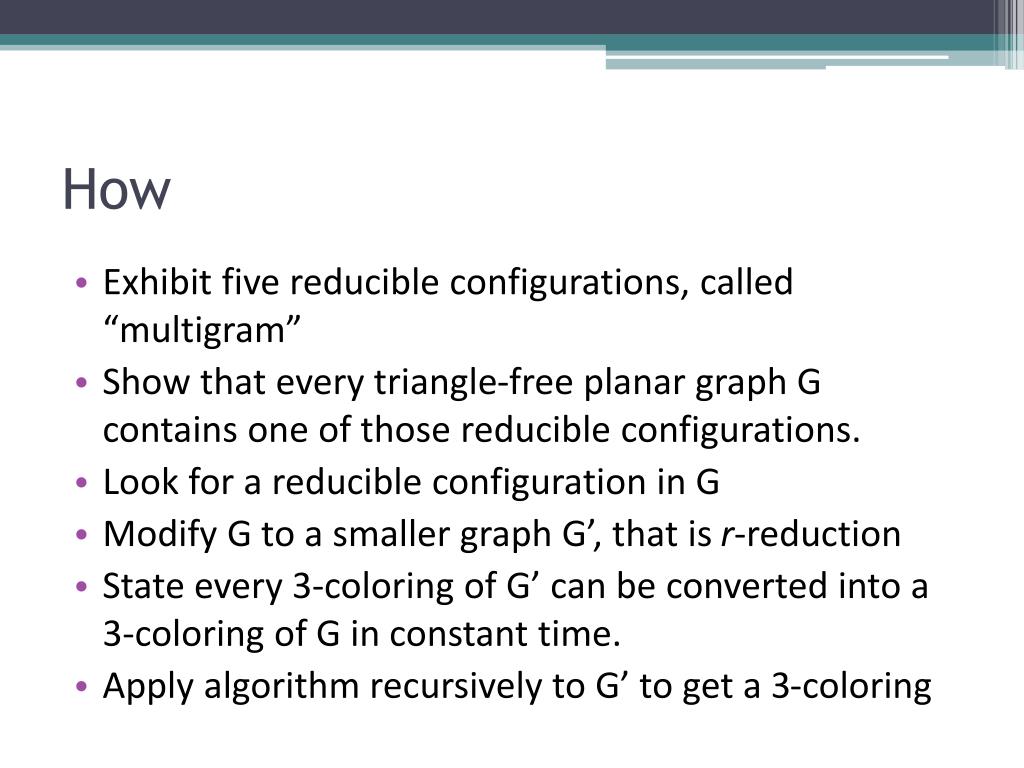

Slide7 l.jpg

How

  • Exhibit five reducible configurations, called “multigram”

  • Show that every triangle-free planar graph G contains one of those reducible configurations.

  • Look for a reducible configuration in G

  • Modify G to a smaller graph G’, that is r-reduction

  • State every 3-coloring of G’ can be converted into a 3-coloring of G in constant time.

  • Apply algorithm recursively to G’ to get a 3-coloring


Reducible configurations l.jpg

Reducible Configurations

  • Tetragram

    • A sequence (v1, v2, v3, v4) of vertices which form a facial cycle in G in the order listed.

  • Hexagram

    • A sequence, (v1, v2, v3…, v6) is defined similarly.

  • Pentagram

    • A sequence (v1, v2, v3, v4, v5) of vertices which form a facial cycle in G in the order listed

    • v1, v2, v3, v4 all have degree exactly 3


Reducible configurations9 l.jpg

Reducible Configurations

  • Decagram:

    • A pentagram (v1,v2..v5) is called a decagram if v5 has degree exactly three.

  • Monogram:

    • A sequence (v) comprised of a vertex v belonging to V(G) of degree at most two.


Lemma 2 1 l.jpg

Lemma 2.1

  • Let G be a connected triangle-free plane graph and let f0 be the unbounded face f0 of G. Assume that the boundary of f0 is a cycle C of length at most six, and that every vertex of G not on C has degree at least three. If G doesn’t equal C, then G has either a tetragram or a pentagram (v1, v2, v3, v4, v5) such that v1, v2, v3, v4 are not in V(C).


Safe tetragram hexagram l.jpg

Safe Tetragram & Hexagram

  • Tetragram: it is safe if every path in G of length at most three with ends v1 and v3 if a subgraph of the cycle v1v2...vk.

  • Hexagram: the safety definition is the same with Tetragram.


Safe pentagram l.jpg

Safe Pentagram

  • For i=1,2,3,4, let xi be the neighbor of vi distinct from vi-1 and vi+1(where v0 = v5 ). Then xi that are not in {v1…v5} because G is triangle-free.

    • The vertices x1, x2, x3, v4 are pairwise distinct and pairwise non-adjacent.

    • No path in G \ {v1, v2, v3, v4} of length at most three from x2 to x5.

    • Every path in G\{v1,v2,v3,v4} of length at most three from x3 to x4 has length exactly two, and its completion via the path x3v3v4x4 results in a facial cycle of length five in G. in particular, there is at most one such path.


Lemma 2 2 l.jpg

Lemma 2.2

  • Every triangle-free plane graph G of minimum degree at least three has a safe tetragram, pentagram or hexagram.


By product proof of gr tzsch s theorem l.jpg

By-Product: Proof of Grötzsch's Theorem

  • Lemma 2.1 makes sure that the connected triangle-free plane graph has either a tetragram, or a pentagram.

  • Define what is safe tetra, penta and hexagram.

  • Lemma 2.2 states that every triangle-free plane graph G of minimum degree at least 3 has a safe tetra-, penta- or hexagram.

  • Proof if G contains safe tetra-, penta- or hexagram, it will be 3-colorable.

    • If k = 4 or k = 6, then apply induction to the graph obtained from G by identifying v1 and v3. It follows from the definition of safety that the new graph has no triangles, and clearly every 3-coloring of the new graph extends to a 3-coloring of G.


Constant time operations d 47 here l.jpg

Constant Time Operations(D=47 here)

  • Remove an edge.

  • Add an edge, assuming that the edges preceding and following it in the facial walks are specified.

  • Remove an isolated vertex.

  • Determine the degree of a vertex v if deg(v) ≤ D or prove that deg(v) > D

  • Check whether two vertices u and v such that min (deg(u), dev(v)) ≤ D are adjacent.

  • Check whether the distance between two vertices u and v such that max(deg(u), deg(v)) ≤ D is at most two.

  • Given an edge e of a face f, either output all vertices incident with the component of the boundary of f that contains e, or establish that the length of f is strictly larger than six.

  • Output the subgraph consisting of vertices which is reachable from a vertex v0 through a path v0, v1…. vt of length t ≤ D, such that deg (vi) ≤ D for 0≤i≤t.


Essential concepts l.jpg

Essential Concepts

  • Two essential concepts were introduced, C-admissible and C-forbidden under these assumptions:

    • G: plane graph

    • k ∈ {1, 4, 5, 6}

    • r = (v1, v2... vk) be a mono, tera, penta or hexgram in G.

    • C is a subgraph of G.

    • A vertex of G is big if it has degree at least 48, and small otherwise.

  • A vertex v belonging to V(G) is C-admissible if it is small and does not belong to C; otherwise it is C-forbidden.


Lemma 4 1 l.jpg

Lemma 4.1

  • Suppose G is a triangle-free plane graph, r is a safe multigram in G, and let G’ be the r-reduction of G. Then G’ is triangle-free, and every 3-coloring of G’ can be converted to a 3-coloring of G in constant time.


R reduction l.jpg

r-reduction

  • If r is a monogram, it is always safe

    • it is C-secure if v1 doesn’t belong V(C).

  • G’:=G\v1


  • R reduction19 l.jpg

    r-reduction

    • If r is a tetragram,

      • itis safe if the only paths in G of length at most three with ends v1 and v3 are subgraphs of facial cycle v1v2v3v4.

      • if r is safe, v1 is C-admissible and has degree exactly three, r is C-secure. Letting x denote the neighbor of v1 other than v2 and v4, the vertex x is C-admissible and either v3 is C-admissible, or every neighbor of x is C-admissible.

  • G’ is obtained from G by identifying the vertices v1 and v3 and deleting one edge from each of the two pairs of parallel edges.


  • R reduction20 l.jpg

    r-reduction

    • If r is a decagram

      • For i = 1, 2, 3, 4 let xi be the neighbor of vi other than vi-1 or vi+1, v0 means v5.

      • r is safe if x1, x3 are distinct, non-adjacent and there is no path of length two between them. Also r is C-secure if it is safe and the vertices v1, v2 … v5, x1, x3 are all C-admissible.

  • G’ is obtained from G\{v1,v2…v5} by adding the edge x1x3.


  • R reduction21 l.jpg

    r-reduction

    • If r is a pentagram,

      • r is C-secure if it is safe, the vertices v1, v2 … v5, x1, x2, x3, x4 are all C-admissible, either v5 or x2 has not C-forbidden neighbor and either x3 or x4 has no C-forbidden neighbor.

  • G’ is obtained from G\{v1,v2,v3,v4} by identifying x2 and v5; identifying x3 and x4; and deleting one of the parallel edges should x3 and x4 have a common neighbor.


  • R reduction22 l.jpg

    r-reduction

    • If r is a hexagram

      • r is safe if every path of length at most three in G between v1 and v3 is the path v1v2v3.

      • r is C-secure if v1, v3, v6 are C-admissible, v1 has degree exactly three, and the neighbor of v1 other than v2 or v6 is C-admissible.

    • G’ is obtained from G be identifying the vertices v1 and v3 and deleting one of the parallel edges


    Algorithm 1 l.jpg

    Algorithm 1

    • Algorithm 4.1. There is an algorithm with following specifications:

    • Input: A triangle-free planar graph.

    • Output: A proper 3-coloring of G.

    • Running time: O(|V(G)|).

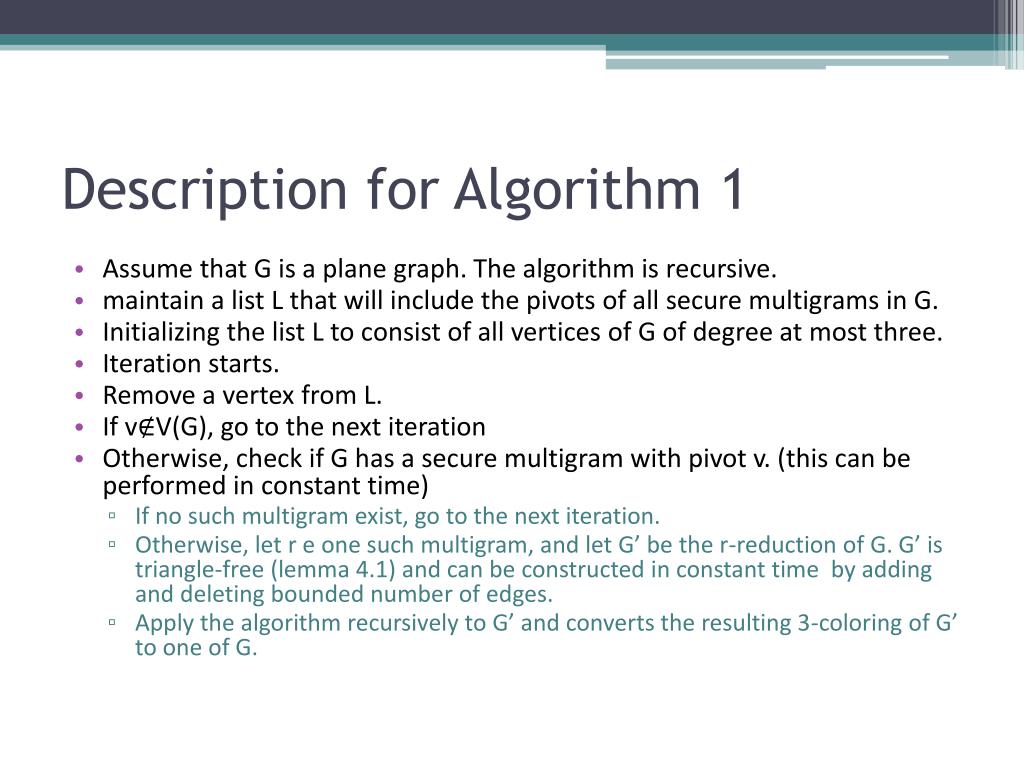

    Description for algorithm 1 l.jpg

    Description for Algorithm 1

    • Assume that G is a plane graph. The algorithm is recursive.

    • maintain a list L that will include the pivots of all secure multigrams in G.

    • Initializing the list L to consist of all vertices of G of degree at most three.

    • Iteration starts.

    • Remove a vertex from L.

    • If v∉V(G), go to the next iteration

    • Otherwise, check if G has a secure multigram with pivot v. (this can be performed in constant time)

      • If no such multigram exist, go to the next iteration.

      • Otherwise, let r e one such multigram, and let G’ be the r-reduction of G. G’ is triangle-free (lemma 4.1) and can be constructed in constant time by adding and deleting bounded number of edges.

      • Apply the algorithm recursively to G’ and converts the resulting 3-coloring of G’ to one of G.


    Lemma 4 2 l.jpg

    Lemma 4.2

    • Given a triangle-free plane graph G and a vertex v∈V(G), it can be decided in constant time whether G has a secure multigram with pivot v.

      • The vertex v1 will be called the pivot of the multigram (v1; v2; ….; vk).


    Algorithm 2 l.jpg

    Algorithm 2

    • Input: A triangle-free plane graph G, a facial cycle C in G of length at most five and a proper 3-coloring ∅ of C.

    • Output; A proper 3-coloring of G whose restriction to V(C) is equal to ∅.

    • Running time: O(|V(G)|).


    Description for algorithm 2 l.jpg

    Description for Algorithm 2

    • Same as Algorithm 1, but use “C-secure” rather than “secure”

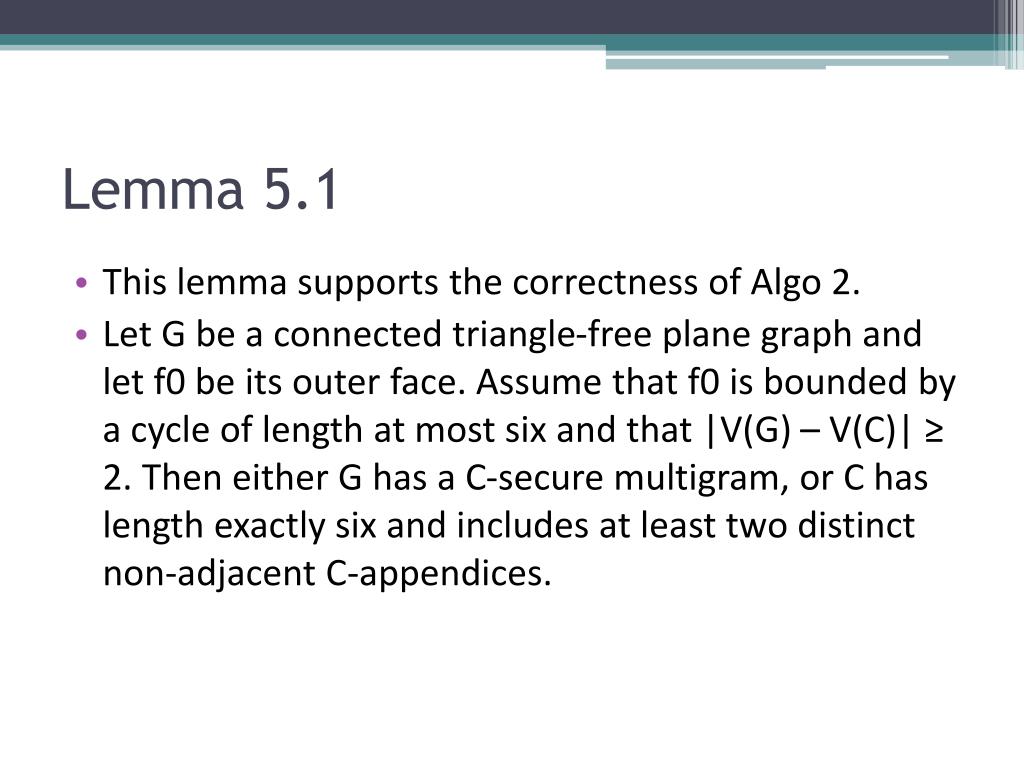

    Lemma 5 1 l.jpg

    Lemma 5.1

    • This lemma supports the correctness of Algo 2.

    • Let G be a connected triangle-free plane graph and let f0 be its outer face. Assume that f0 is bounded by a cycle of length at most six and that |V(G) – V(C)| ≥ 2. Then either G has a C-secure multigram, or C has length exactly six and includes at least two distinct non-adjacent C-appendices.


    Further works of authors since this paper l.jpg

    Further works of authors since this paper

    • Zdenek Dvorak and Robin Thomas

      • Three-coloring triangle-free graphs on surfaces I. Extending a coloring to a disk with one triangle

        • CoRR abs/1010.2472

      • It proved that a 3-coloring of C does not extend to a 3-coloring of G if and only if C has length exactly six.
