  1. INDIA Geospatial Forum - 2014 Advancements in Satellite data outreach R Nagaraja

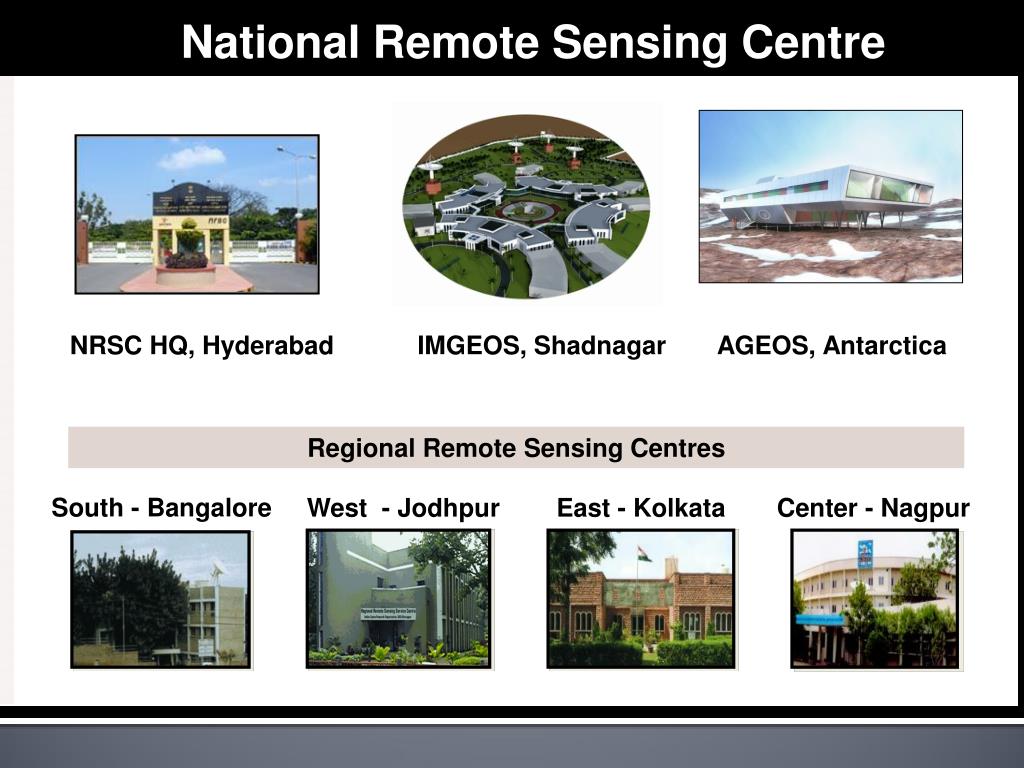

  2. National Remote Sensing Centre Regional Remote Sensing Centres South - Bangalore West - Jodhpur East - Kolkata Center - Nagpur NRSC HQ, Hyderabad IMGEOS, Shadnagar AGEOS, Antarctica

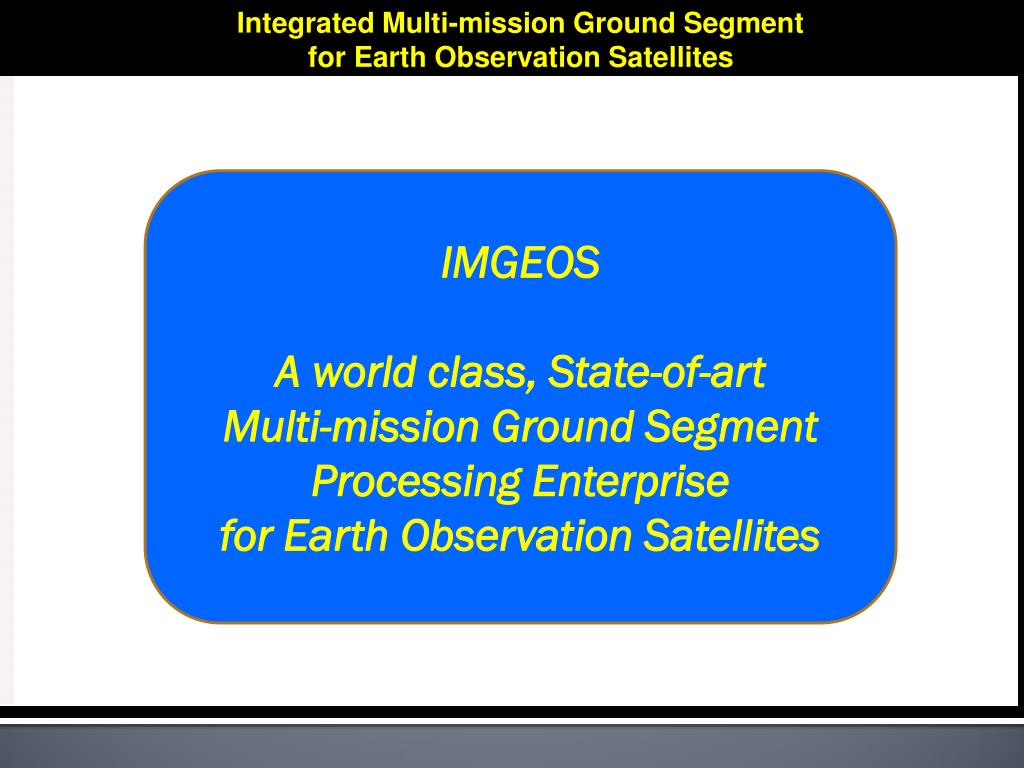

  3. Integrated Multi-mission Ground Segment for Earth Observation Satellites IMGEOS A world class, State-of-art Multi-mission Ground Segment Processing Enterprise for Earth Observation Satellites

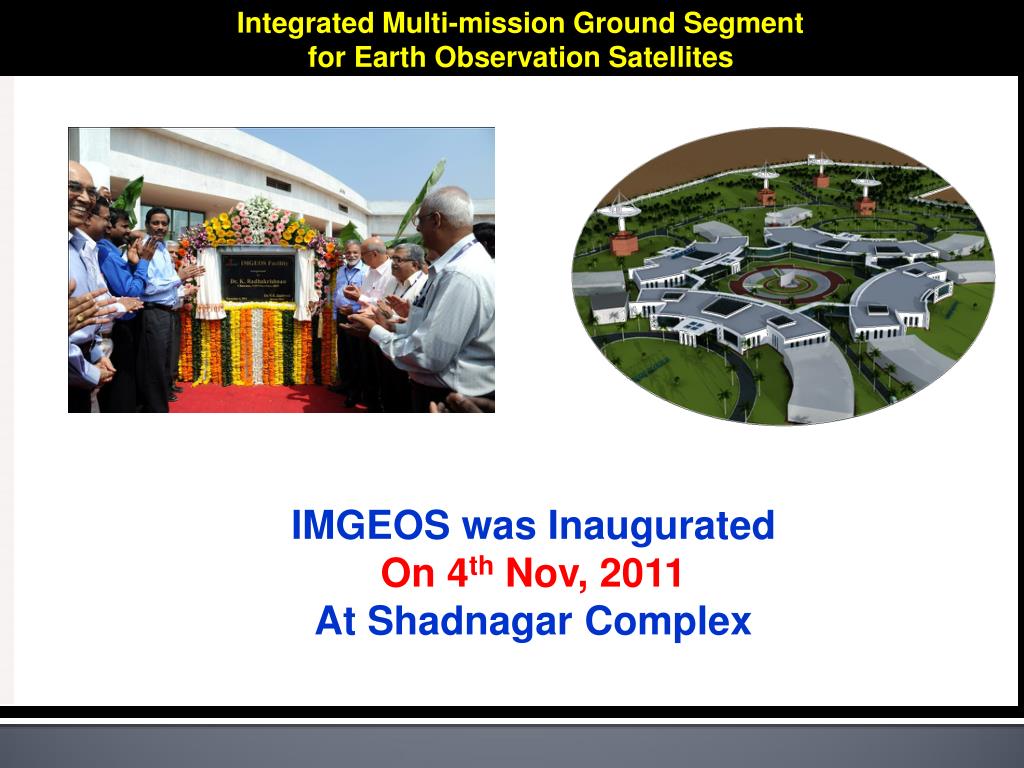

  4. Integrated Multi-mission Ground Segment for Earth Observation Satellites IMGEOS was Inaugurated On 4th Nov, 2011 At Shadnagar Complex

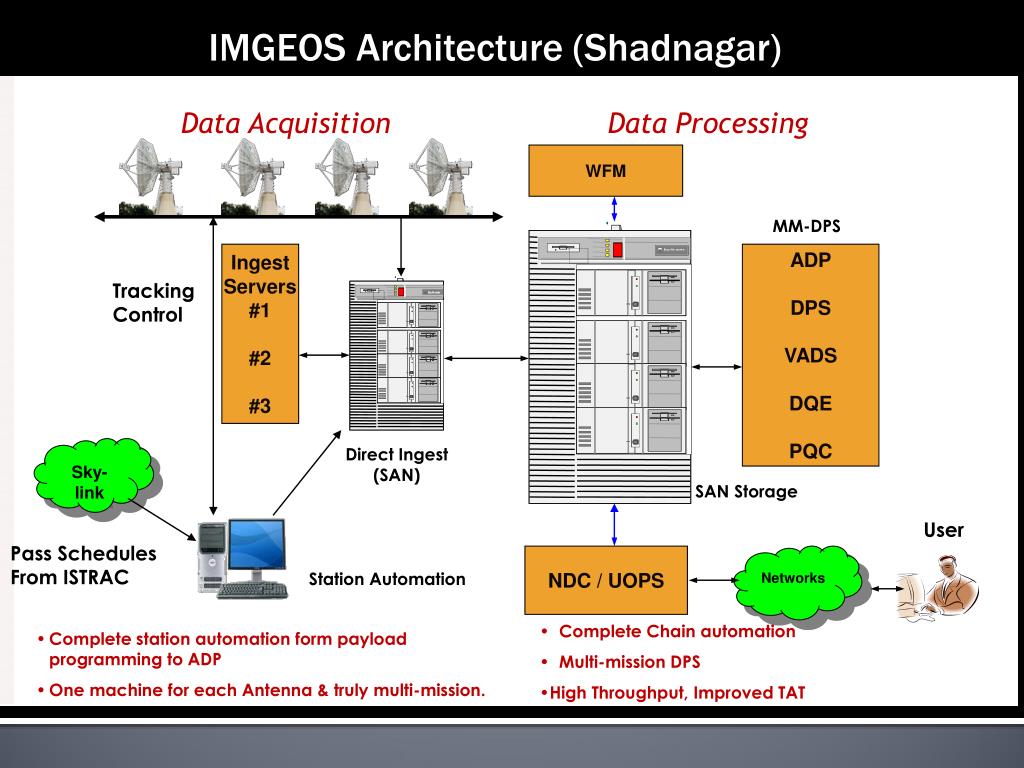

  5. B B a a y y N N e e w w o o r r k k s s IMGEOS Architecture (Shadnagar) Data Acquisition Data Processing WFM MM-DPS Ingest Servers #1 #2 #3 ADP DPS VADS DQE PQC Tracking Control t Sky-link Direct Ingest (SAN) SAN Storage User Pass Schedules From ISTRAC NDC / UOPS Networks Station Automation • Complete Chain automation • Multi-mission DPS • High Throughput, Improved TAT • Complete station automation form payload programming to ADP • One machine for each Antenna & truly multi-mission.

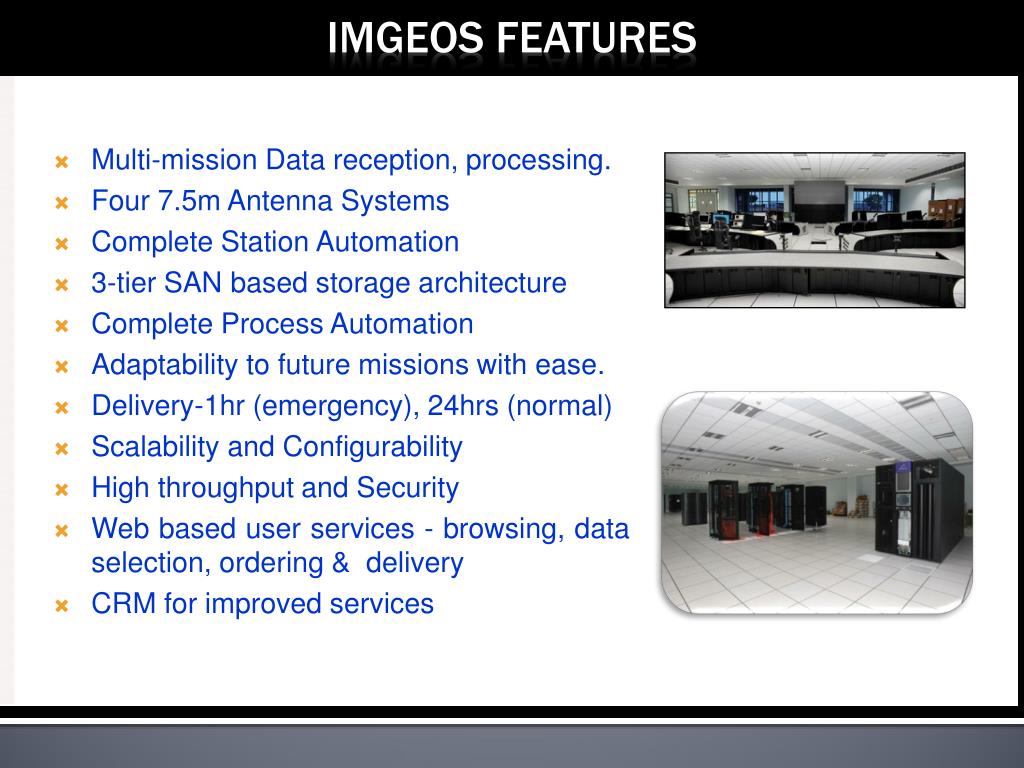

  6. IMGEOS FEATURES • Multi-mission Data reception, processing. • Four 7.5m Antenna Systems • Complete Station Automation • 3-tier SAN based storage architecture • Complete Process Automation • Adaptability to future missions with ease. • Delivery-1hr (emergency), 24hrs (normal) • Scalability and Configurability • High throughput and Security • Web based user services - browsing, data selection, ordering & delivery • CRM for improved services

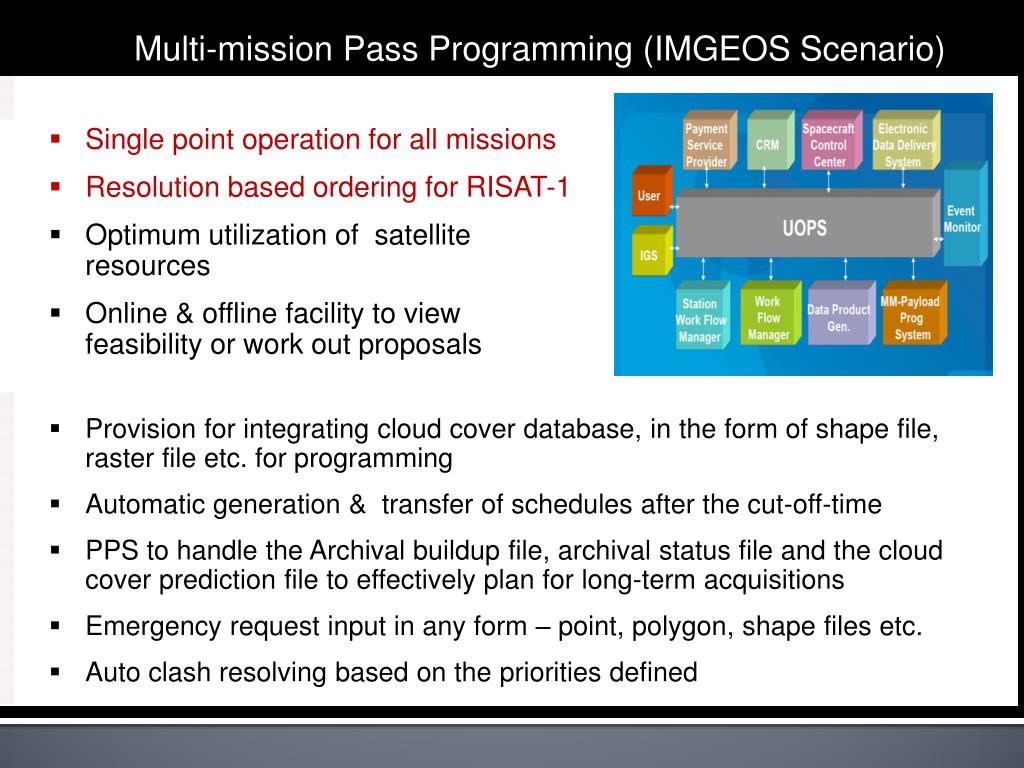

  7. Multi-mission Pass Programming (IMGEOS Scenario) • Single point operation for all missions • Resolution based ordering for RISAT-1 • Optimum utilization of satellite resources • Online & offline facility to view feasibility or work out proposals • Provision for integrating cloud cover database, in the form of shape file, raster file etc. for programming • Automatic generation & transfer of schedules after the cut-off-time • PPS to handle the Archival buildup file, archival status file and the cloud cover prediction file to effectively plan for long-term acquisitions • Emergency request input in any form – point, polygon, shape files etc. • Auto clash resolving based on the priorities defined

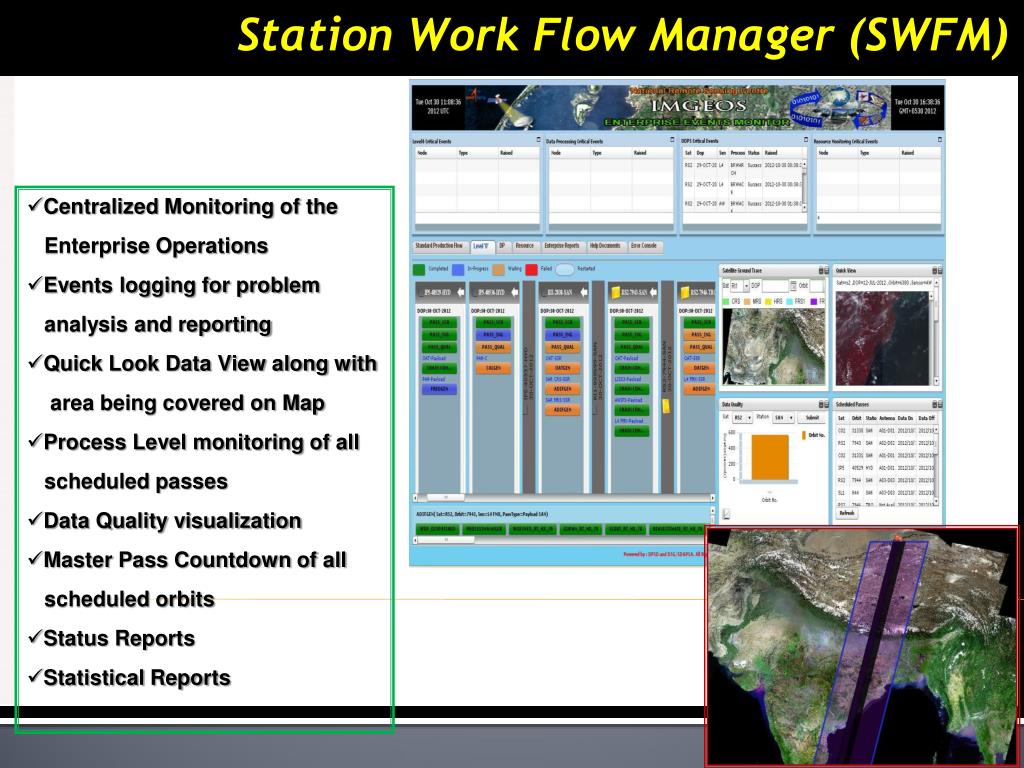

  8. Station Work Flow Manager (SWFM) • Centralized Monitoring of the • Enterprise Operations • Events logging for problem • analysis and reporting • Quick Look Data View along with • area being covered on Map • Process Level monitoring of all • scheduled passes • Data Quality visualization • Master Pass Countdown of all • scheduled orbits • Status Reports • Statistical Reports

  9. Data Processing Work Flow Manager (DP-WFM) • Production chain visualization • Tracking of product status • Drill down feature up to product • level • Monitoring of priority Products • Status Reports • Work Center wise • Mission wise • Product type wise • Reports for statistical Analysis.

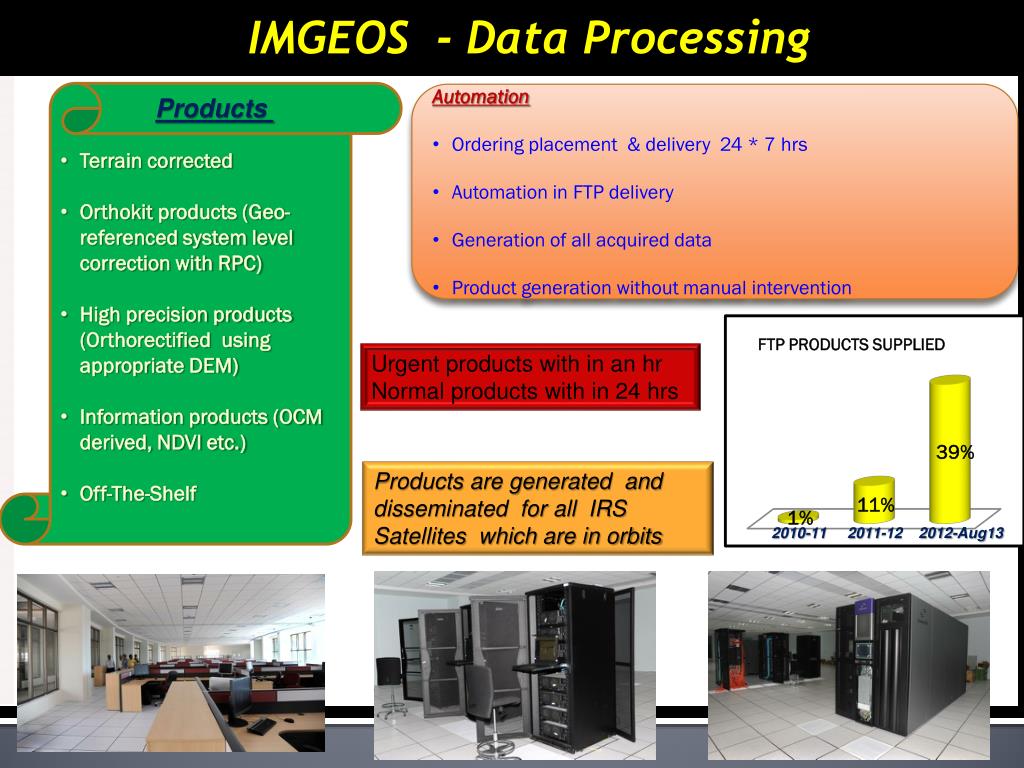

  10. IMGEOS - Data Processing • Terrain corrected • Orthokit products (Geo-referenced system level correction with RPC) • High precision products (Orthorectified using appropriate DEM) • Information products (OCM derived, NDVI etc.) • Off-The-Shelf • Automation • Ordering placement & delivery 24 * 7 hrs • Automation in FTP delivery • Generation of all acquired data • Product generation without manual intervention Products Urgent products with in an hr Normal products with in 24 hrs Products are generated and disseminated for all IRS Satellites which are in orbits 2010-11 2011-12 2012-Aug13

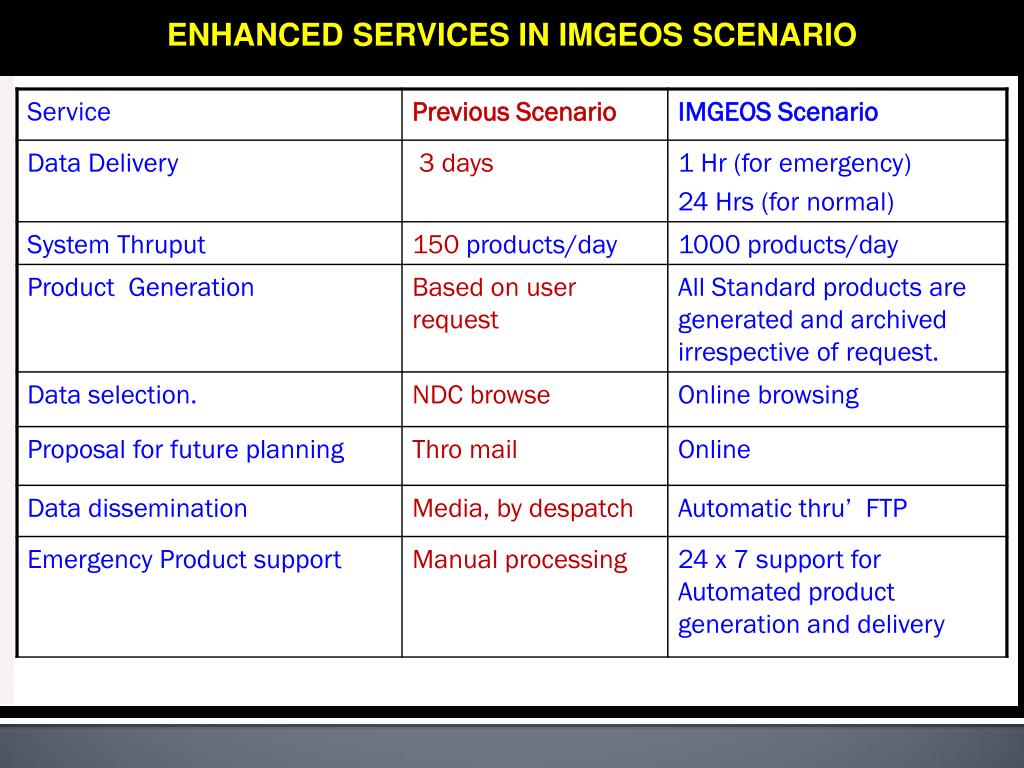

  11. Enhanced services in IMGEOS Scenario

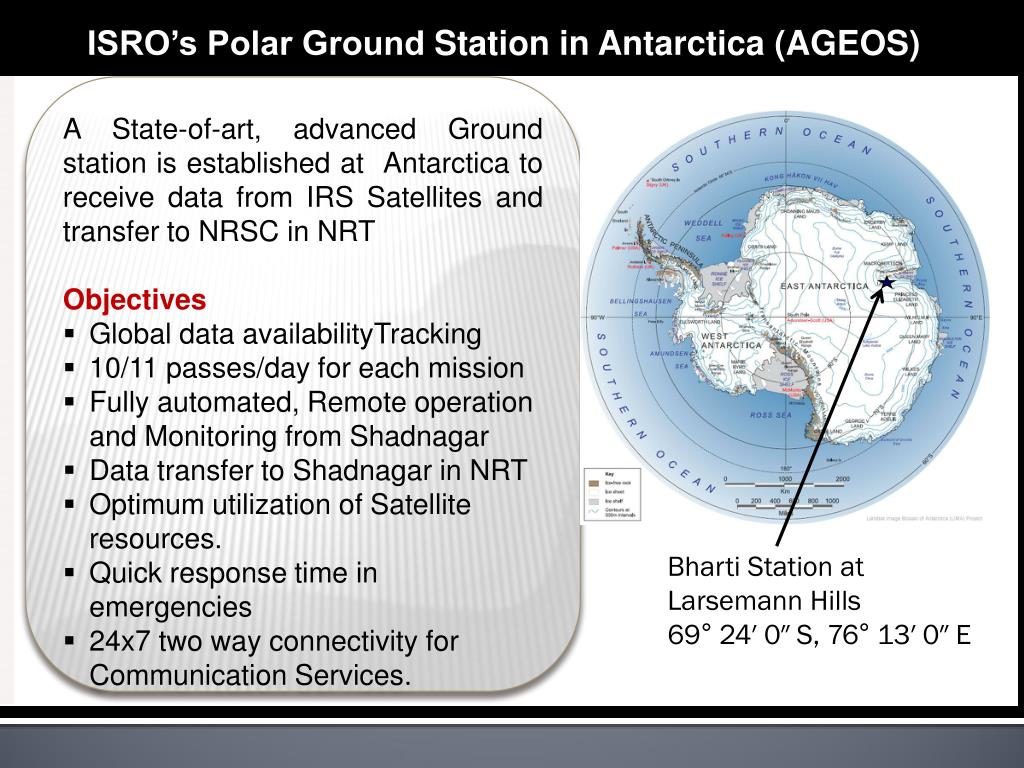

  12. ISRO’s Polar Ground Station in Antarctica (AGEOS) • A State-of-art, advanced Ground station is established at Antarctica to receive data from IRS Satellites and transfer to NRSC in NRT • Objectives • Global data availabilityTracking • 10/11 passes/day for each mission • Fully automated, Remote operation and Monitoring from Shadnagar • Data transfer to Shadnagar in NRT • Optimum utilization of Satellite resources. • Quick response time in emergencies • 24x7 two way connectivity for Communication Services. Bharti Station at Larsemann Hills 69° 24′ 0″ S, 76° 13′ 0″ E

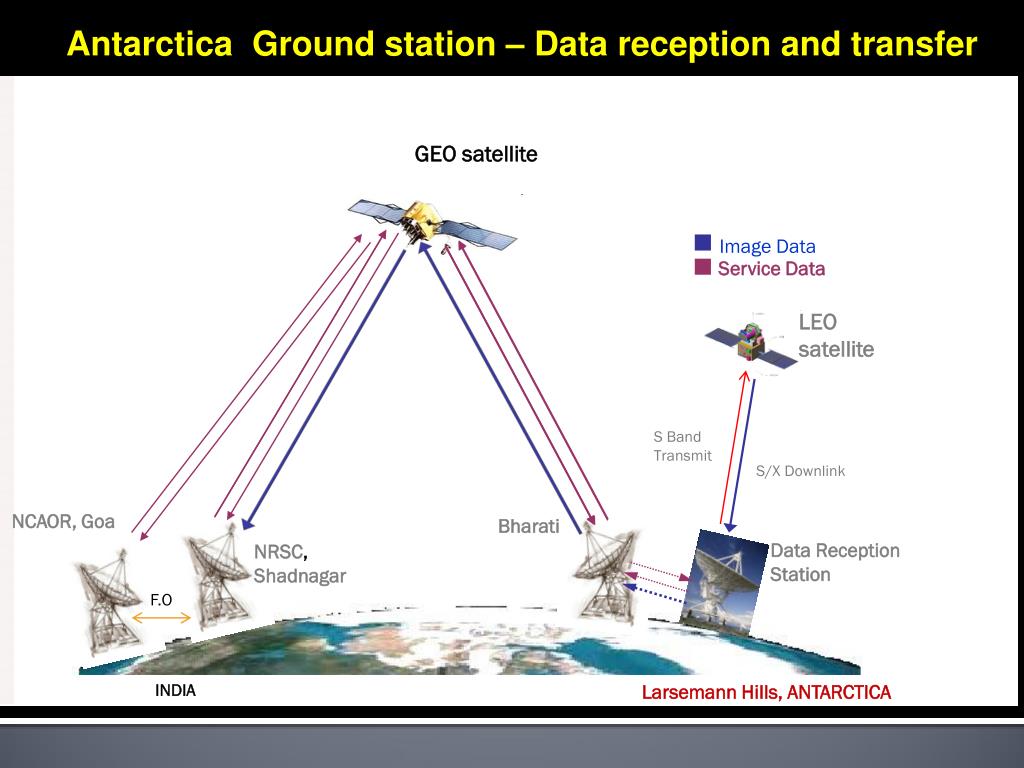

  13. Antarctica Ground station – Data reception and transfer GEO satellite Image Data Service Data LEO satellite S Band Transmit S/X Downlink Bharati Data Reception Station NRSC, Shadnagar F.O NCAOR, Goa INDIA Larsemann Hills, ANTARCTICA

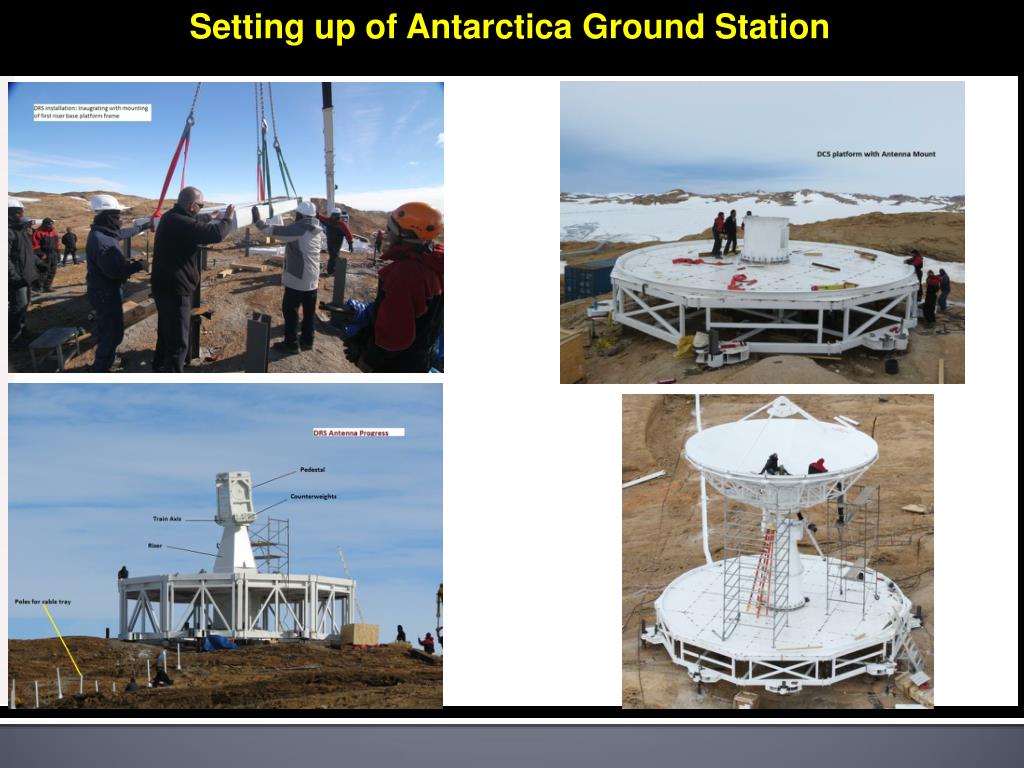

  14. Setting up of Antarctica Ground Station

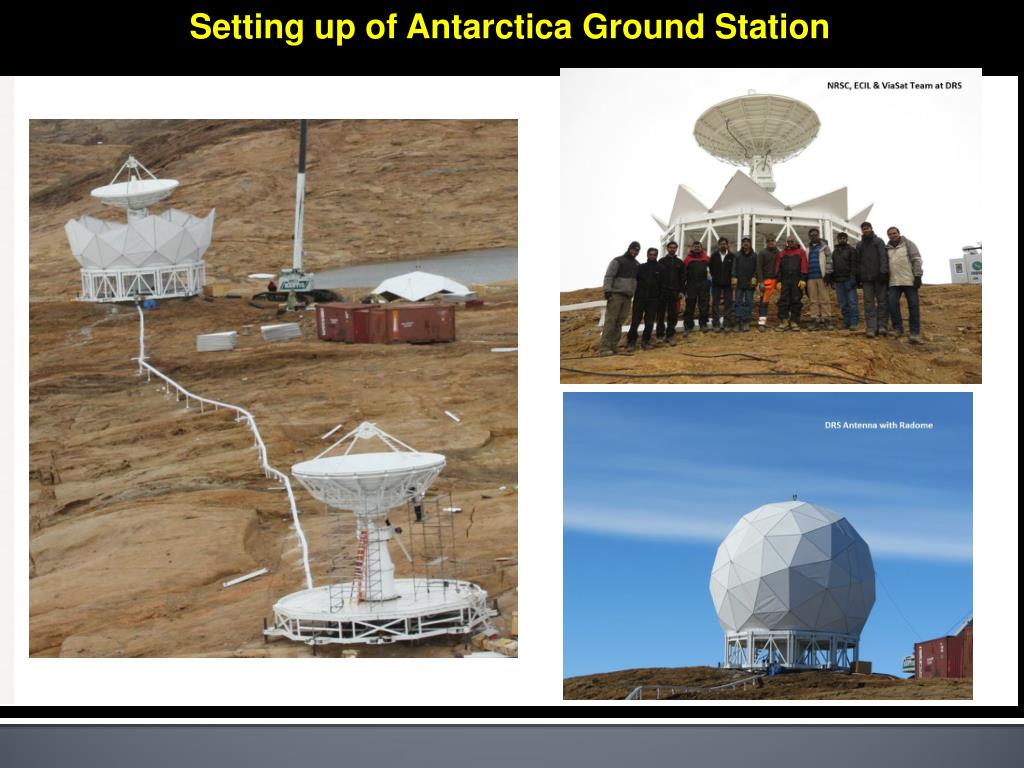

  15. Setting up of Antarctica Ground Station

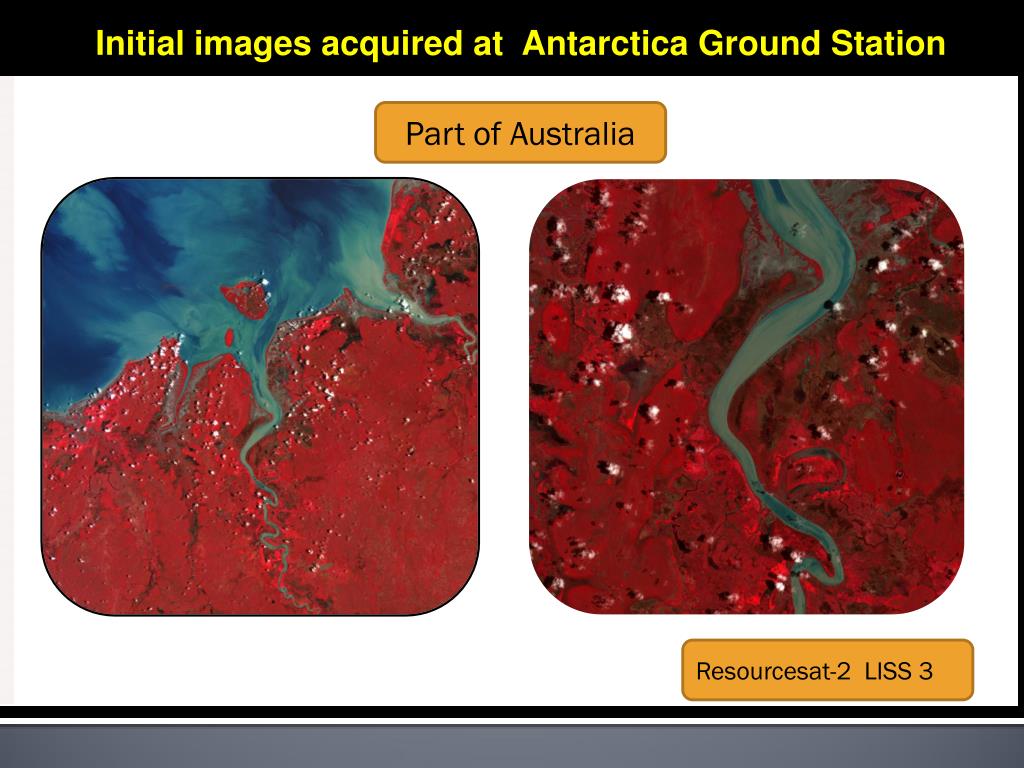

  16. Initial images acquired at Antarctica Ground Station Part of Australia Resourcesat-2 LISS 3

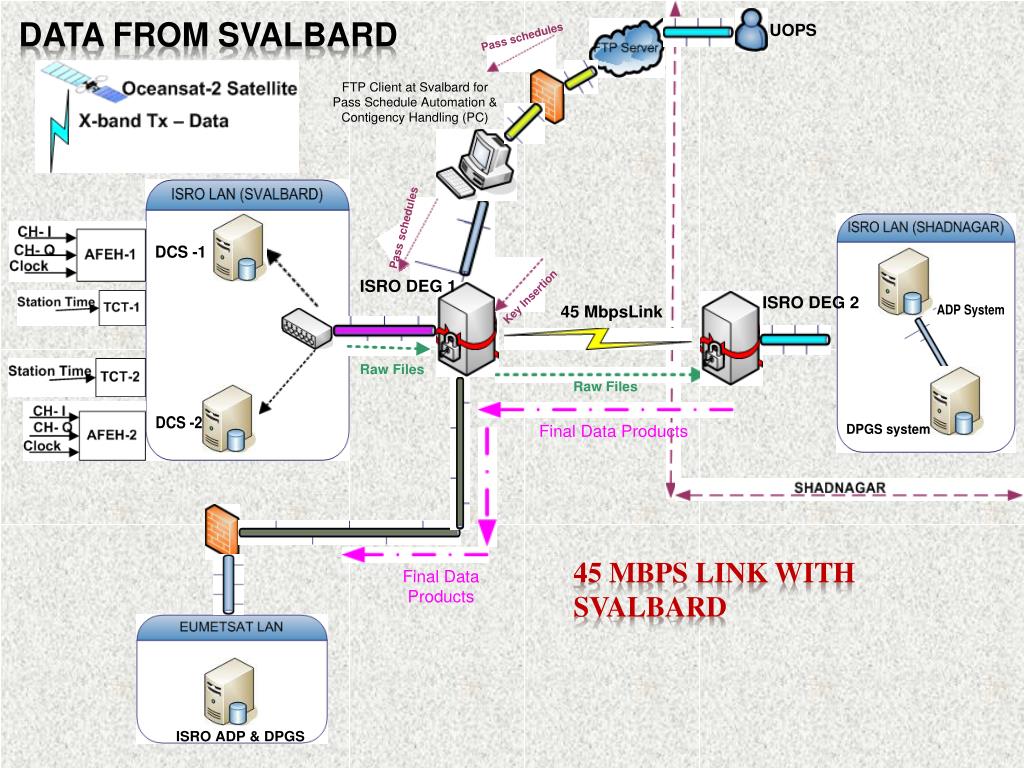

  17. Data from Svalbard 45 Mbps Link with Svalbard

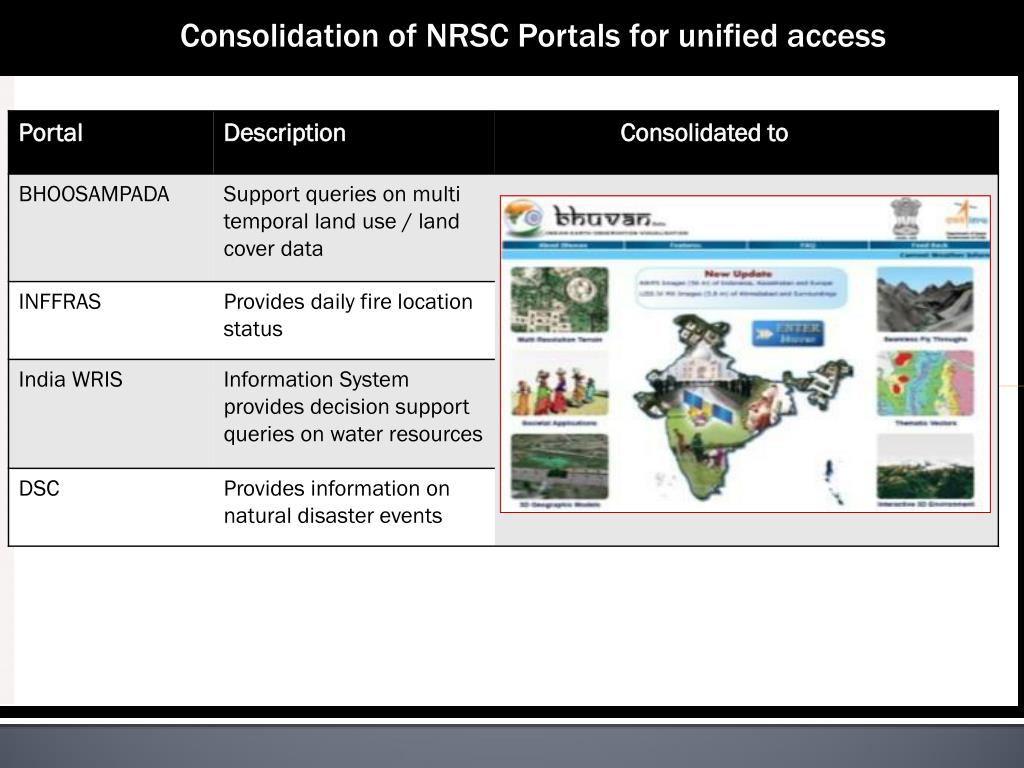

  18. Consolidation of NRSC Portals for unified access

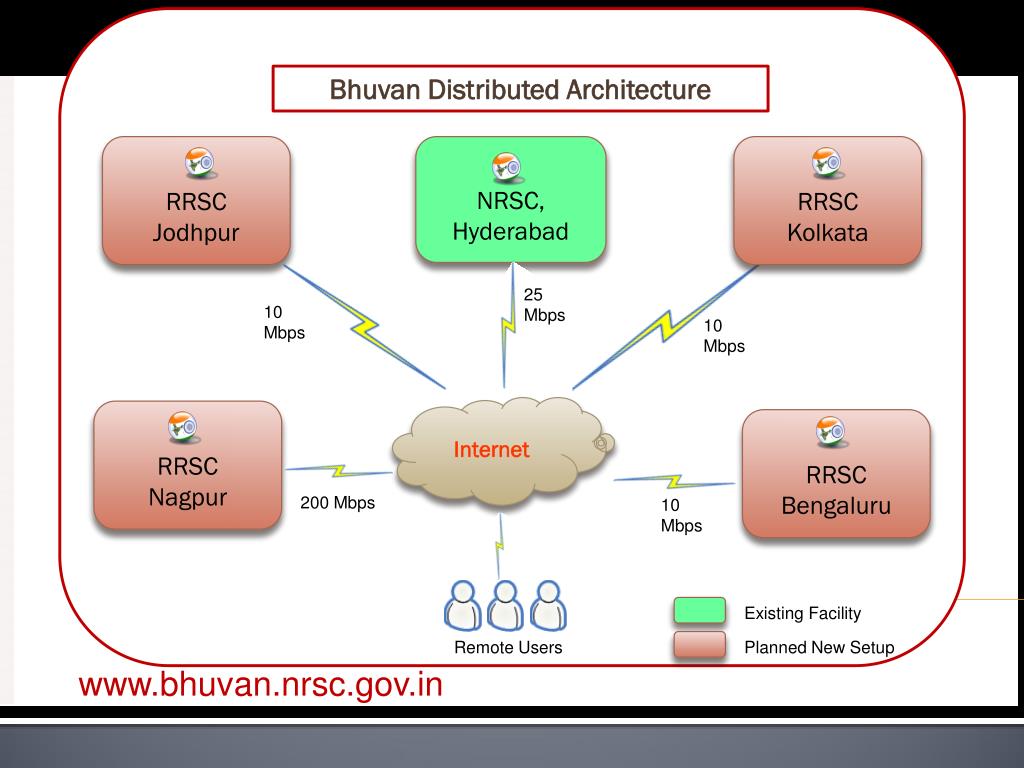

  19. Bhuvan Distributed Architecture RRSC Jodhpur NRSC, Hyderabad RRSC Kolkata 25 Mbps 10 Mbps 10 Mbps Internet RRSC Nagpur RRSC Bengaluru 200 Mbps 10 Mbps Existing Facility Remote Users Planned New Setup www.bhuvan.nrsc.gov.in

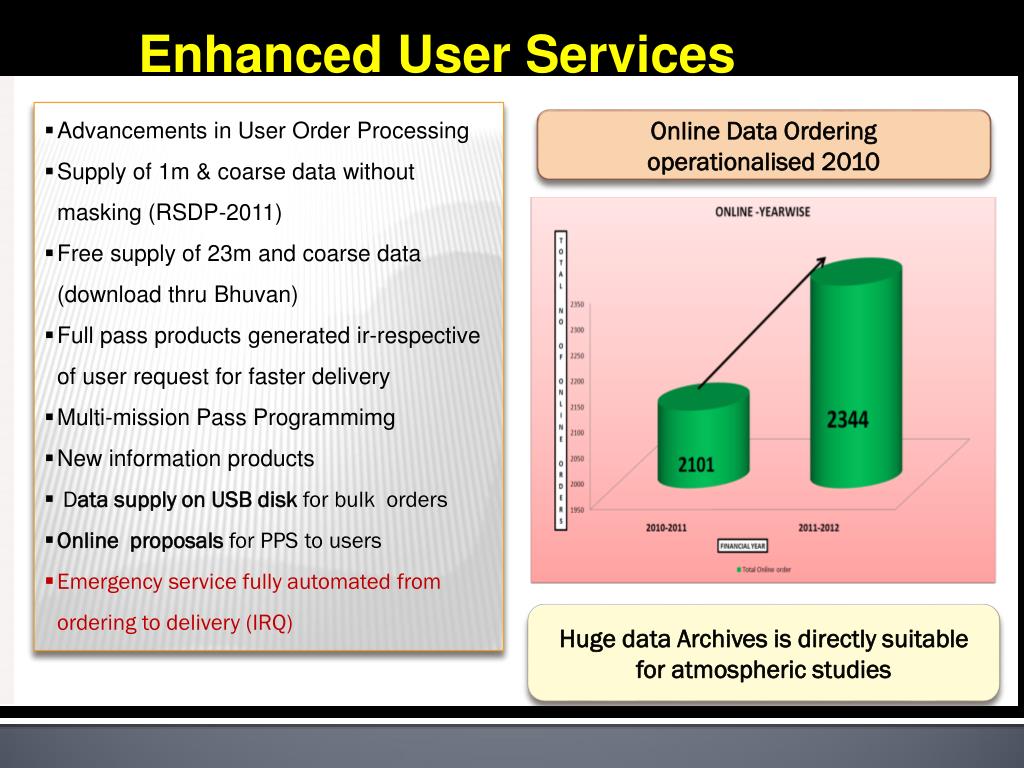

  20. Enhanced User Services • Advancements in User Order Processing • Supply of 1m & coarse data without masking (RSDP-2011) • Free supply of 23m and coarse data (download thru Bhuvan) • Full pass products generated ir-respective of user request for faster delivery • Multi-mission Pass Programmimg • New information products • Data supply on USB disk for bulk orders • Online proposals for PPS to users • Emergency service fully automated from ordering to delivery (IRQ) Online Data Ordering operationalised 2010 Huge data Archives is directly suitable for atmospheric studies

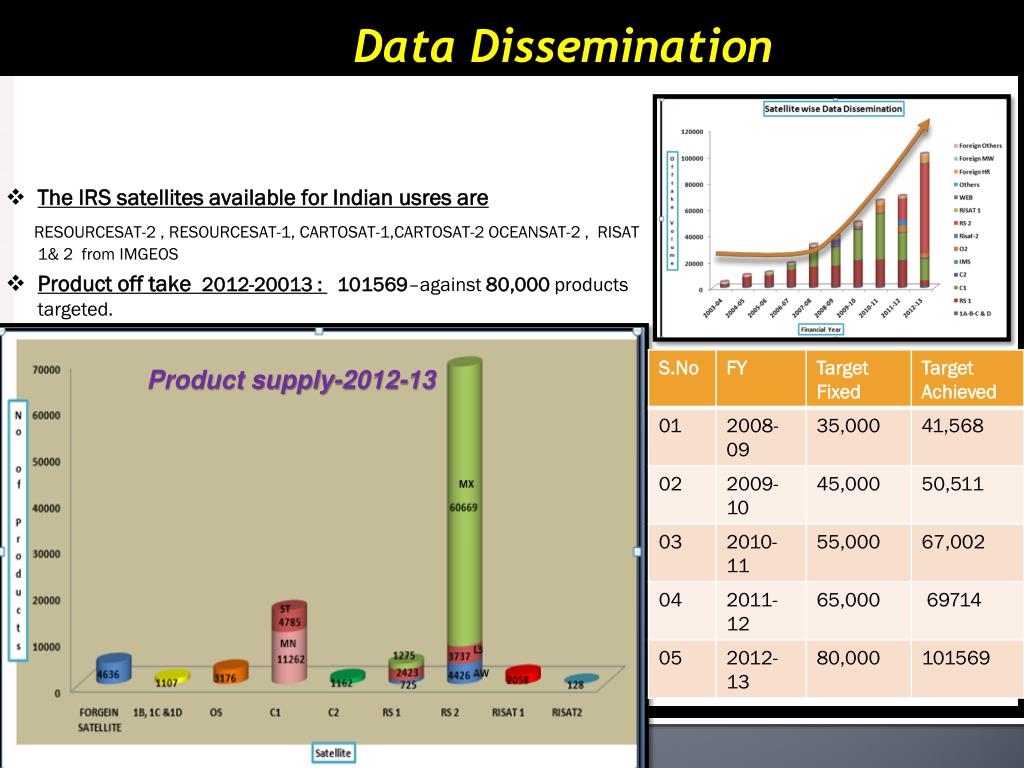

  21. Data Dissemination • The IRS satellites available for Indian usres are RESOURCESAT-2 , RESOURCESAT-1, CARTOSAT-1,CARTOSAT-2 OCEANSAT-2 , RISAT 1& 2 from IMGEOS • Product off take 2012-20013 : 101569–against 80,000products targeted. Product supply-2012-13

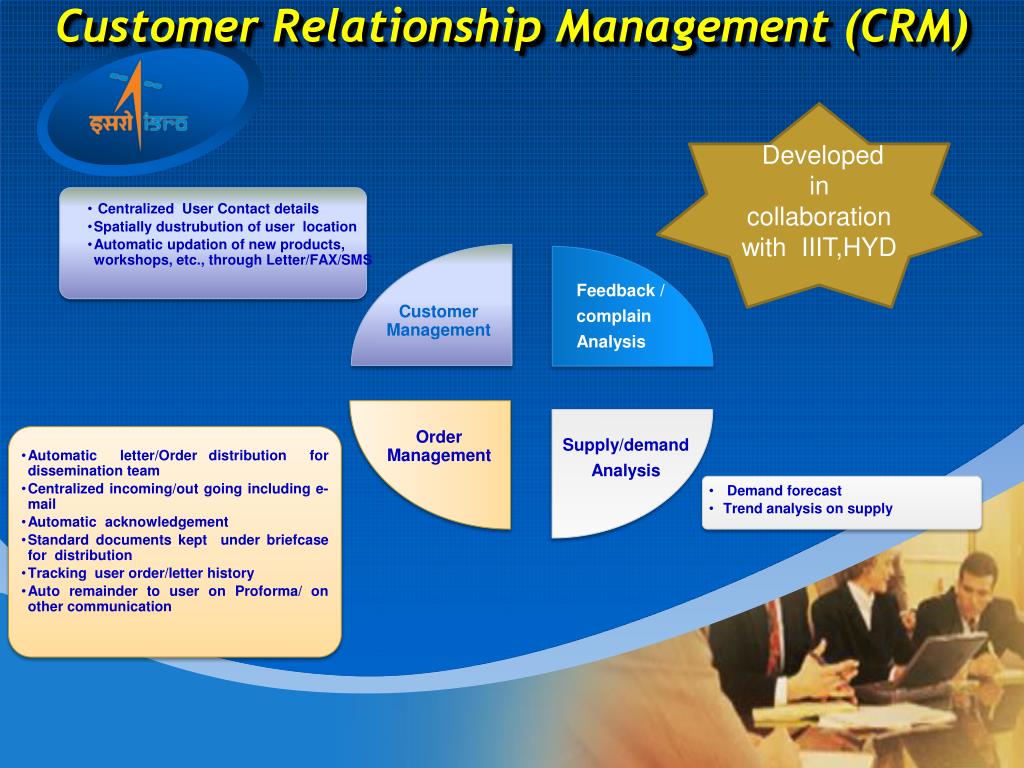

  22. Centralized User Contact details • Spatially dustrubution of user location • Automatic updation of new products, workshops, etc., through Letter/FAX/SMS Feedback / complain Analysis Customer Management Customer Relationship Management (CRM) • Automatic letter/Order distribution for dissemination team • Centralized incoming/out going including e-mail • Automatic acknowledgement • Standard documents kept under briefcase for distribution • Tracking user order/letter history • Auto remainder to user on Proforma/ on other communication Developed in collaboration with IIIT,HYD Order Management Supply/demand Analysis • Demand forecast • Trend analysis on supply

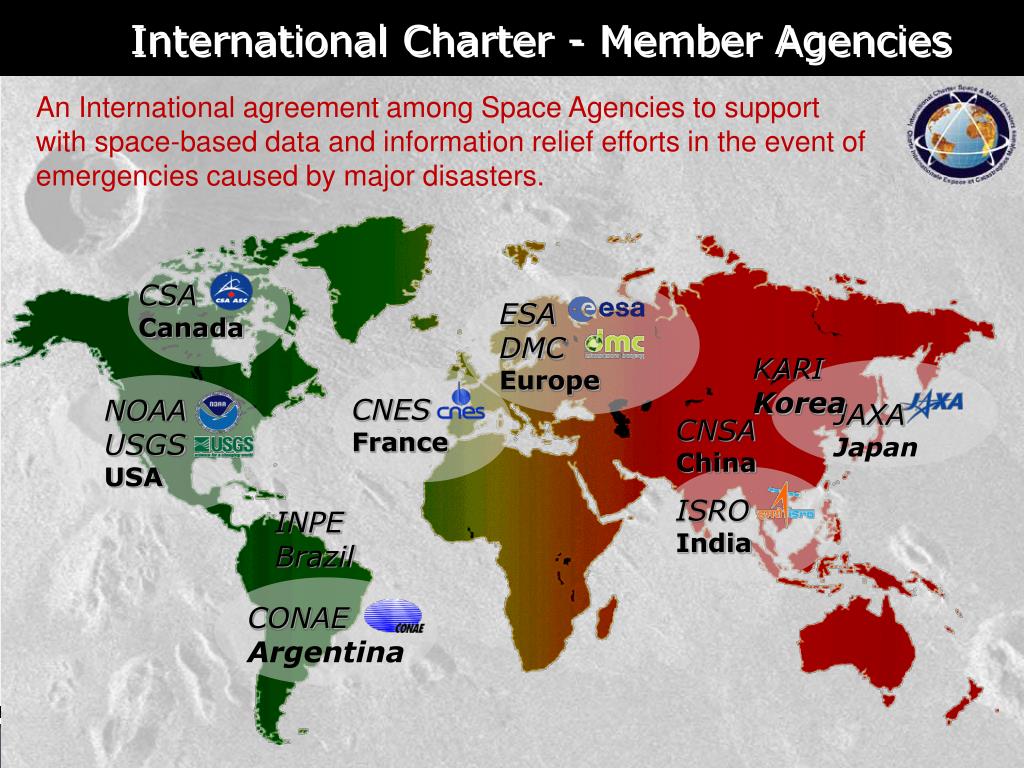

  23. International Charter - Member Agencies An International agreement among Space Agencies to support with space-based data and information relief efforts in the event of emergencies caused by major disasters. CSACanada ESADMC Europe KARI Korea CNESFrance NOAA USGS USA JAXA Japan CNSA China ISRO India INPE Brazil CONAE Argentina

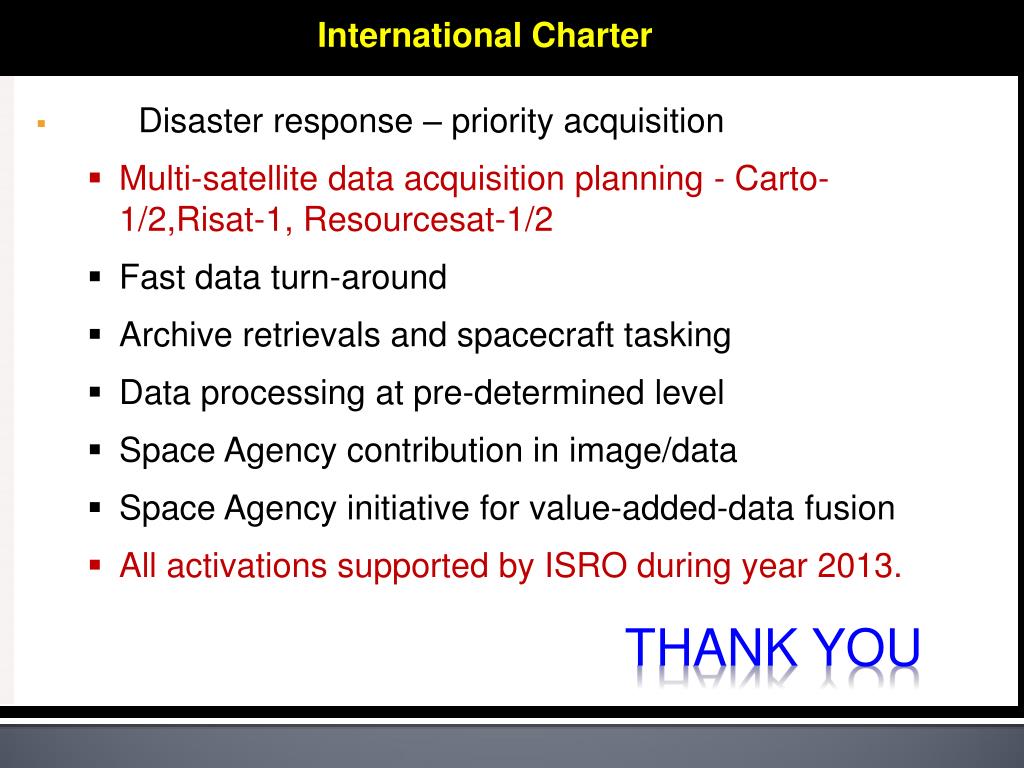

  24. International Charter • Disaster response – priority acquisition • Multi-satellite data acquisition planning - Carto-1/2,Risat-1, Resourcesat-1/2 • Fast data turn-around • Archive retrievals and spacecraft tasking • Data processing at pre-determined level • Space Agency contribution in image/data • Space Agency initiative for value-added-data fusion • All activations supported by ISRO during year 2013. Thank you
