Presentation Transcript


Serialization sets a dynamic dependence based parallel execution model

Serialization SetsA Dynamic Dependence-Based Parallel Execution Model

Matthew D. Allen

SrinathSridharan

Gurindar S. Sohi

University of Wisconsin-Madison


Motivation

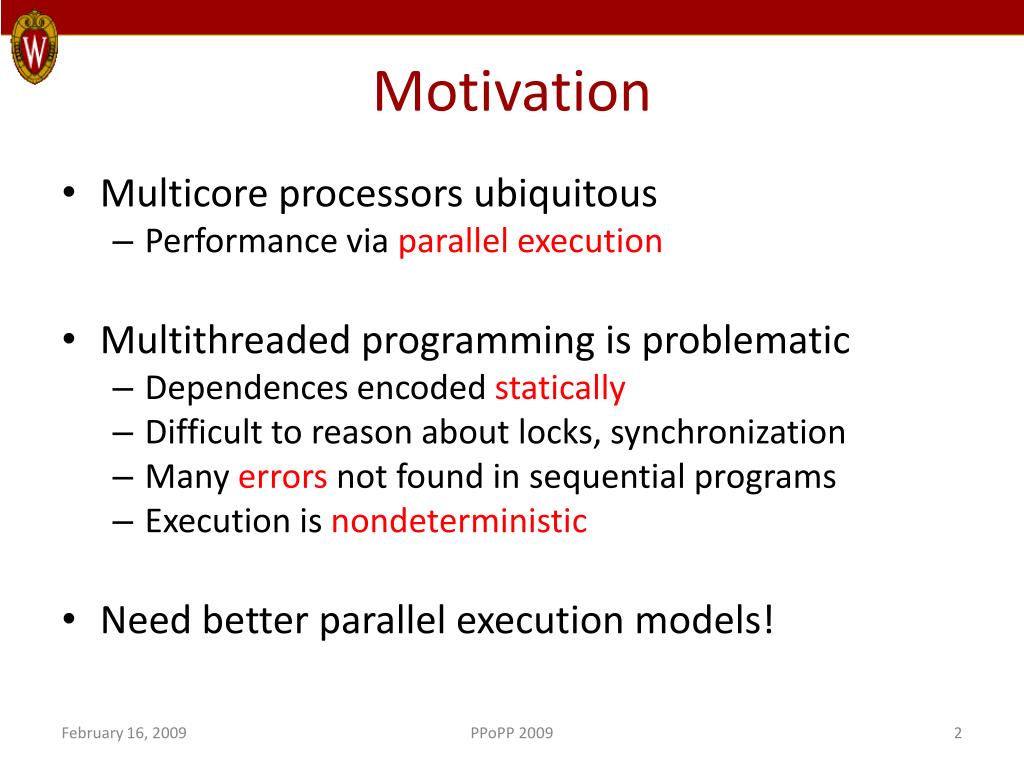

Motivation

  • Multicore processors ubiquitous

    • Performance via parallel execution

  • Multithreaded programming is problematic

    • Dependences encoded statically

    • Difficult to reason about locks, synchronization

    • Many errors not found in sequential programs

    • Execution is nondeterministic

  • Need better parallel execution models!

PPoPP 2009

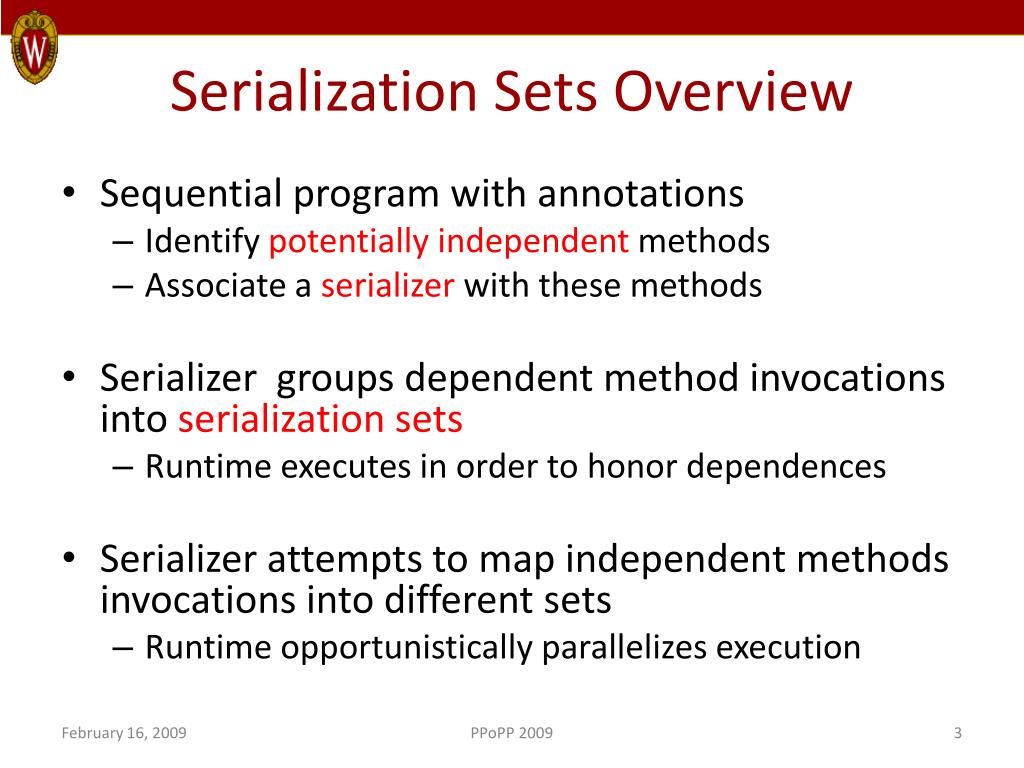

Serialization sets overview

Serialization Sets Overview

  • Sequential program with annotations

    • Identify potentially independent methods

    • Associate a serializer with these methods

  • Serializer groups dependent method invocations into serialization sets

    • Runtime executes in order to honor dependences

  • Serializer attempts to map independent methods invocations into different sets

    • Runtime opportunistically parallelizes execution

PPoPP 2009

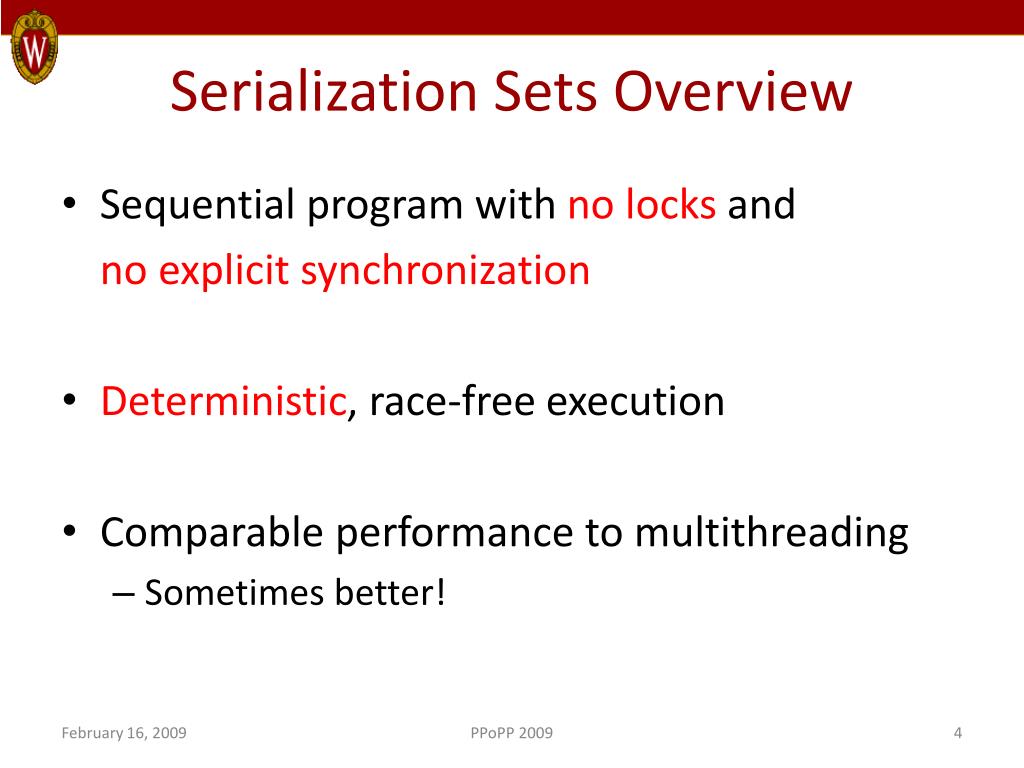

Serialization sets overview1

Serialization Sets Overview

  • Sequential program with no locks and

    no explicit synchronization

  • Deterministic, race-free execution

  • Comparable performance to multithreading

    • Sometimes better!

PPoPP 2009


Outline

Outline

  • Overview

  • Serialization Sets Execution Model

  • Prometheus: C++ Library for SS

  • Experimental Evaluation

  • Related Work & Conclusions

PPoPP 2009


Running example

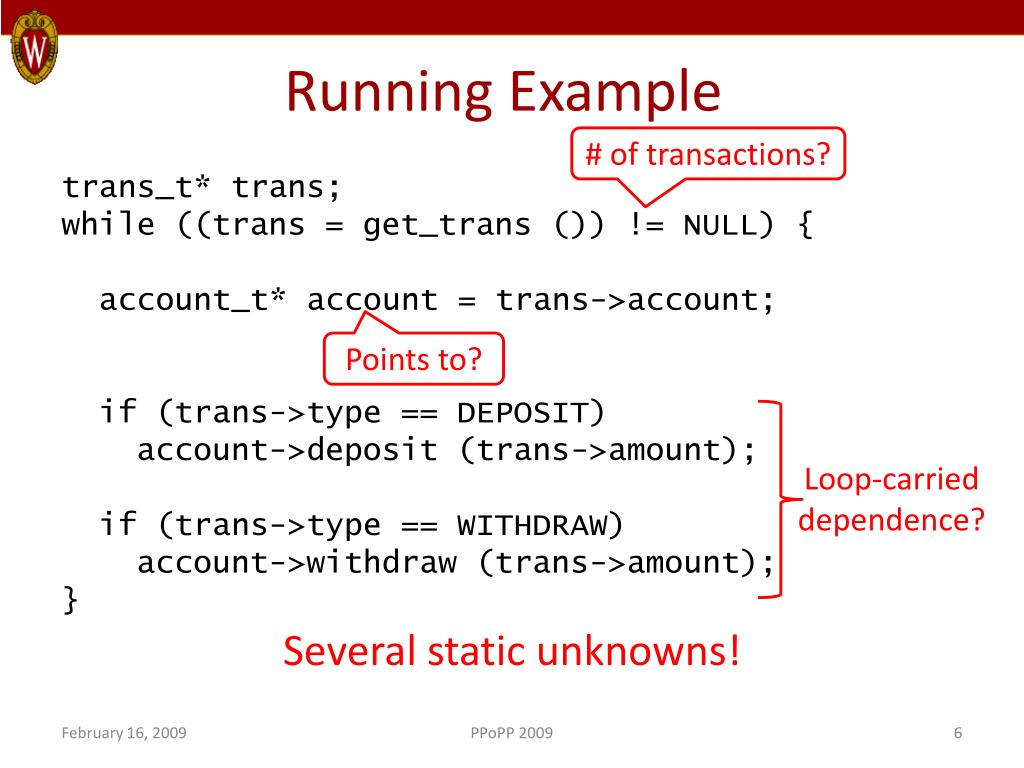

Running Example

# of transactions?

trans_t* trans;

while ((trans = get_trans ()) != NULL) {

account_t* account = trans->account;

if (trans->type == DEPOSIT)

account->deposit (trans->amount);

if (trans->type == WITHDRAW)

account->withdraw (trans->amount);

}

Points to?

Loop-carried dependence?

Several static unknowns!

PPoPP 2009


Multithreading strategy

Multithreading Strategy

Oblivious to what accounts each thread may access!

→ Methods must lock account to

→ ensure mutual exclusion

trans_t* trans;

while ((trans = get_trans ()) != NULL) {

account_t* account = trans[i]->account;

if (trans->type == DEPOSIT)

account->deposit (trans->amount);

if (trans->type == WITHDRAW)

account->withdraw (trans->amount);

}

  • Read all transactions into an array

  • Divide chunks of array among multiple threads

PPoPP 2009

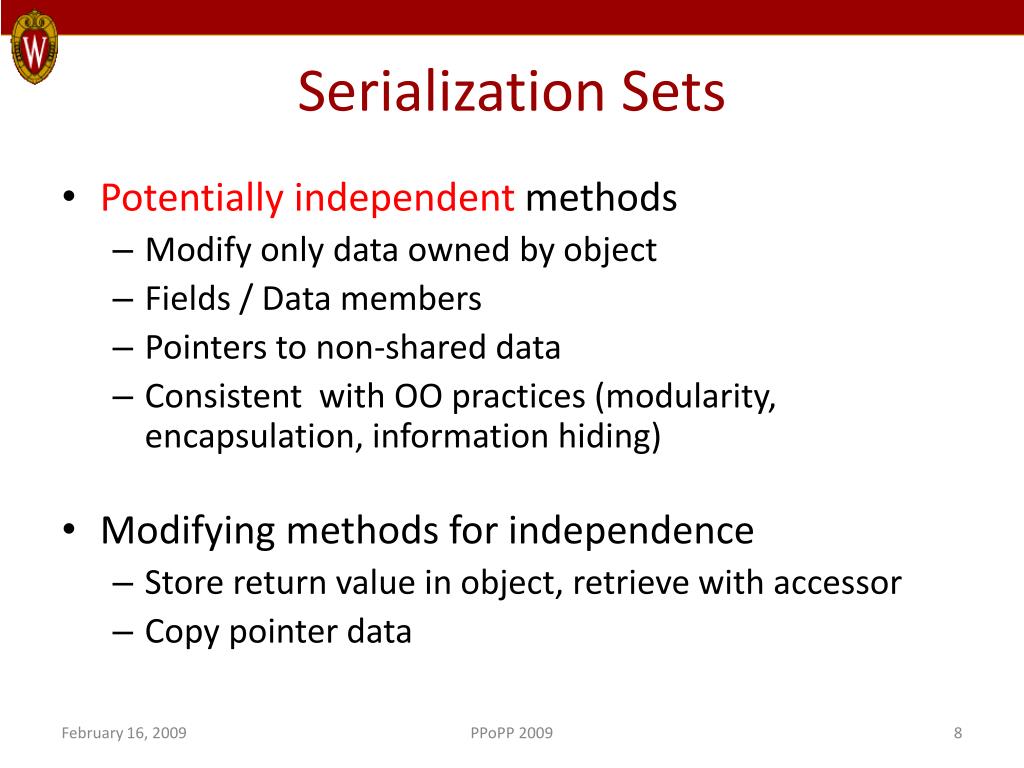

Serialization sets

Serialization Sets

  • Potentially independent methods

    • Modify only data owned by object

    • Fields / Data members

    • Pointers to non-shared data

    • Consistent with OO practices (modularity, encapsulation, information hiding)

  • Modifying methods for independence

    • Store return value in object, retrieve with accessor

    • Copy pointer data

PPoPP 2009


Serialization sets1

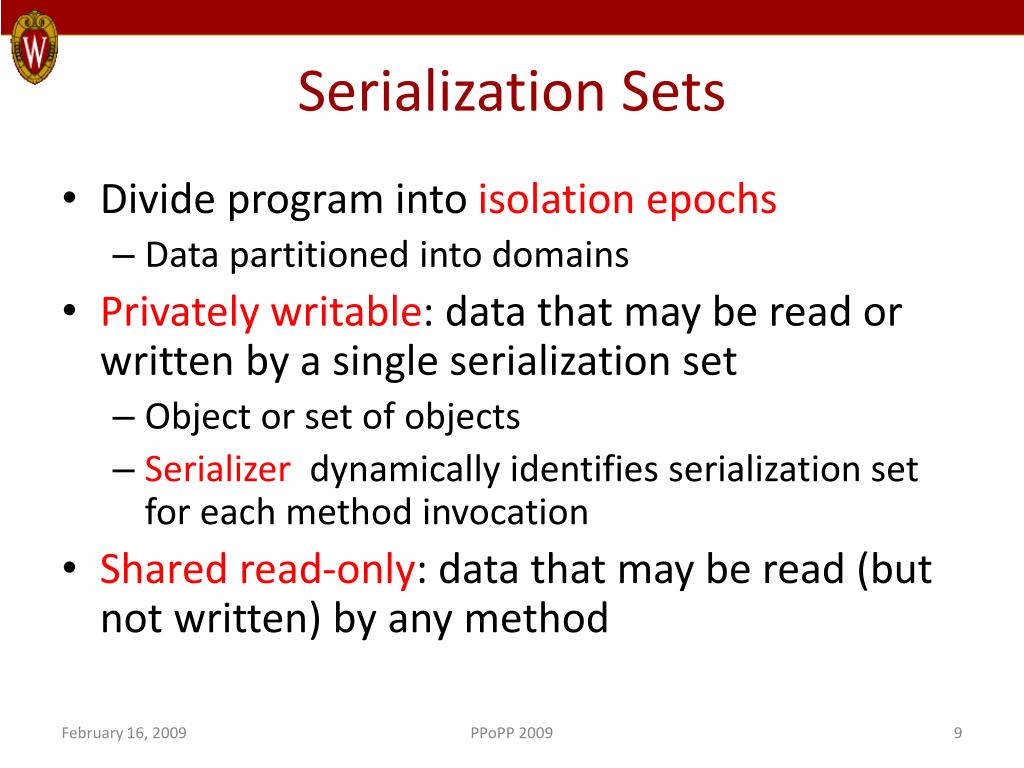

Serialization Sets

  • Divide program into isolation epochs

    • Data partitioned into domains

  • Privately writable: data that may be read or written by a single serialization set

    • Object or set of objects

    • Serializer dynamically identifies serialization set for each method invocation

  • Shared read-only: data that may be read (but not written) by any method

PPoPP 2009


Example with serialization sets

Example with Serialization Sets

writable <account_t, acct_ser_t> pw_account_t;

begin_isolation ();

trans_t* trans;

while ((trans = get_trans ()) != NULL) {

pw_account_t* account = trans->account;

if (trans->type == DEPOSIT)

delegate(account, deposit, trans->amount);

if (trans->type == WITHDRAW)

delegate(account, withdraw, trans->amount);

}

end_isolation ();

Declare privately-writable account

Serializer type: uses account number to compute serialization set

Delegate indicates potentially-independent operations

  • At execution, delegate:

  • Executes serializer

  • Identifies serialization set

  • Inserts invocation in serialization set

Begin isolation epoch

End isolation epoch

PPoPP 2009


Serialization sets a dynamic dependence based parallel execution model

Delegate context

Program context

SS #100

SS #200

SS #300

delegate

deposit

acct=100

$2000

deposit

acct=100

$300

withdraw

acct=100

$50

withdraw

acct=100

$20

delegate

delegate

delegate

withdraw

acct=200

$1000

withdraw

acct=200

$1000

delegate

delegate

delegate

delegate

withdraw

acct=300

$350

deposit

acct=300

$5000

Serializer: computes SS with account number

ss_t ss = account->get_number();

PPoPP 2009


Serialization sets a dynamic dependence based parallel execution model

Delegate threads

Delegate context

Program thread

Program context

SS #100

Delegate 0

SS #200

Delegate 1

SS #300

delegate

withdraw

acct=100

$50

withdraw

acct=100

$20

deposit

acct=100

$2000

deposit

acct=100

$300

withdraw

acct=100

$50

withdraw

acct=100

$20

deposit

acct=100

$300

deposit

acct=100

$2000

delegate

delegate

delegate

withdraw

acct=200

$1000

withdraw

acct=200

$1000

withdraw

acct=200

$1000

withdraw

acct=200

$1000

delegate

delegate

delegate

delegate

withdraw

acct=300

$350

withdraw

acct=300

$350

deposit

acct=300

$5000

deposit

acct=300

$5000

Race-free, deterministic execution without synchronization!

PPoPP 2009

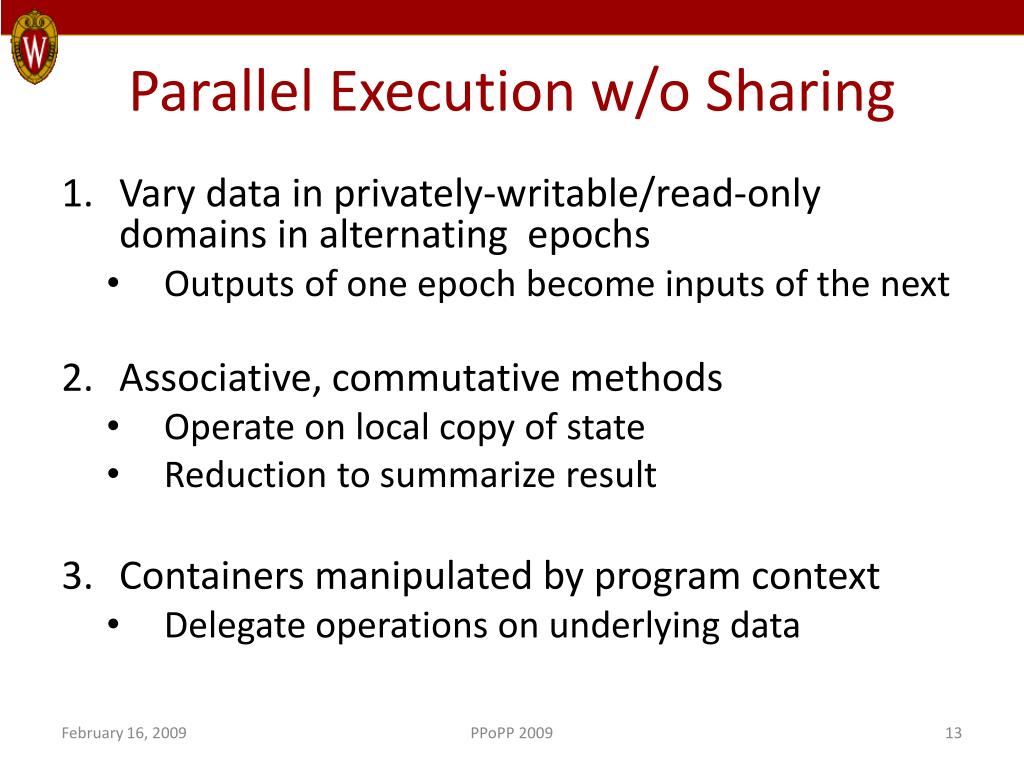

Parallel execution w o sharing

Parallel Execution w/o Sharing

  • Vary data in privately-writable/read-only domains in alternating epochs

    • Outputs of one epoch become inputs of the next

  • Associative, commutative methods

    • Operate on local copy of state

    • Reduction to summarize result

  • Containers manipulated by program context

    • Delegate operations on underlying data

PPoPP 2009


Outline1

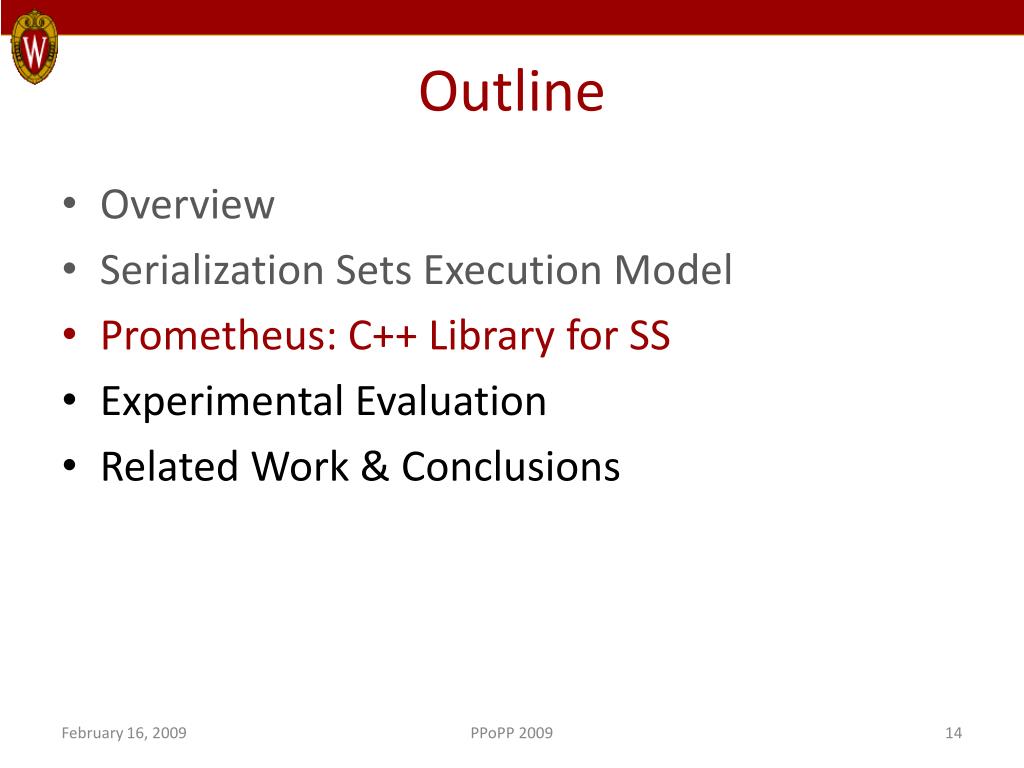

Outline

  • Overview

  • Serialization Sets Execution Model

  • Prometheus: C++ Library for SS

  • Experimental Evaluation

  • Related Work & Conclusions

PPoPP 2009

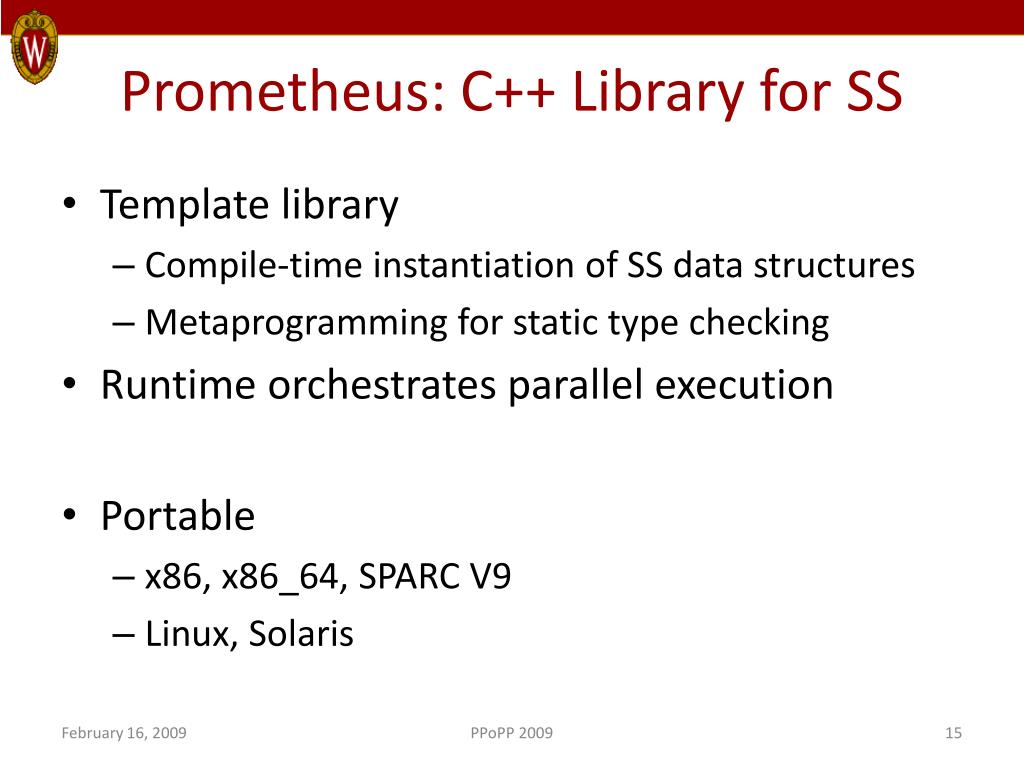

Prometheus c library for ss

Prometheus: C++ Library for SS

  • Template library

    • Compile-time instantiation of SS data structures

    • Metaprogramming for static type checking

  • Runtime orchestrates parallel execution

  • Portable

    • x86, x86_64, SPARC V9

    • Linux, Solaris

PPoPP 2009


Prometheus serializers

Prometheus Serializers

  • Serializers

    • Subclass serializer base class and override method

    • Or use built-in serializer supplied by library

  • Reducibles

    • Subclass reducible base class and override virtual reduce method

    • Reduction automatically performed on first use after isolation epoch ends

PPoPP 2009


Prometheus runtime

Prometheus Runtime

Program Thread

Delegate Thread 0

Delegate Thread 2

Delegate Thread 1

Delegate assignment:

SS % NUM_THREADS

Communication queues:

Fast-Forward [PPoPP 2008] +

Polymorphic interface

PPoPP 2009


Debugging support

Debugging Support

  • Tag all data accessed by serialization set

    • Objects

    • Smart pointers

  • Any data accessed by multiple serialization sets indicates programmer error

  • Problem: can’t detect some kinds of missing annotations

    • Future work: static checking of annotations

PPoPP 2009


Debugging support1

Debugging Support

  • Deterministic model means we can simulate SS execution in sequential program

    • Prometheus support for compiling debug version

    • Do all debugging on sequential program!

  • Correct sequential → correct parallel

    (caveat: for a given input)

PPoPP 2009


Outline2

Outline

  • Overview

  • Serialization Sets Execution Model

  • Prometheus: C++ Library for SS

  • Experimental Evaluation

  • Related Work & Conclusions

PPoPP 2009


Evaluation methodology

Evaluation Methodology

  • Benchmarks

    • Lonestar, NU-MineBench, PARSEC, Phoenix

  • Conventional Parallelization

    • pthreads, OpenMP

  • Prometheus versions

    • Port program to sequential C++ program

    • Idiomatic C++: OO, inheritance, STL

    • Parallelize with serialization sets

PPoPP 2009

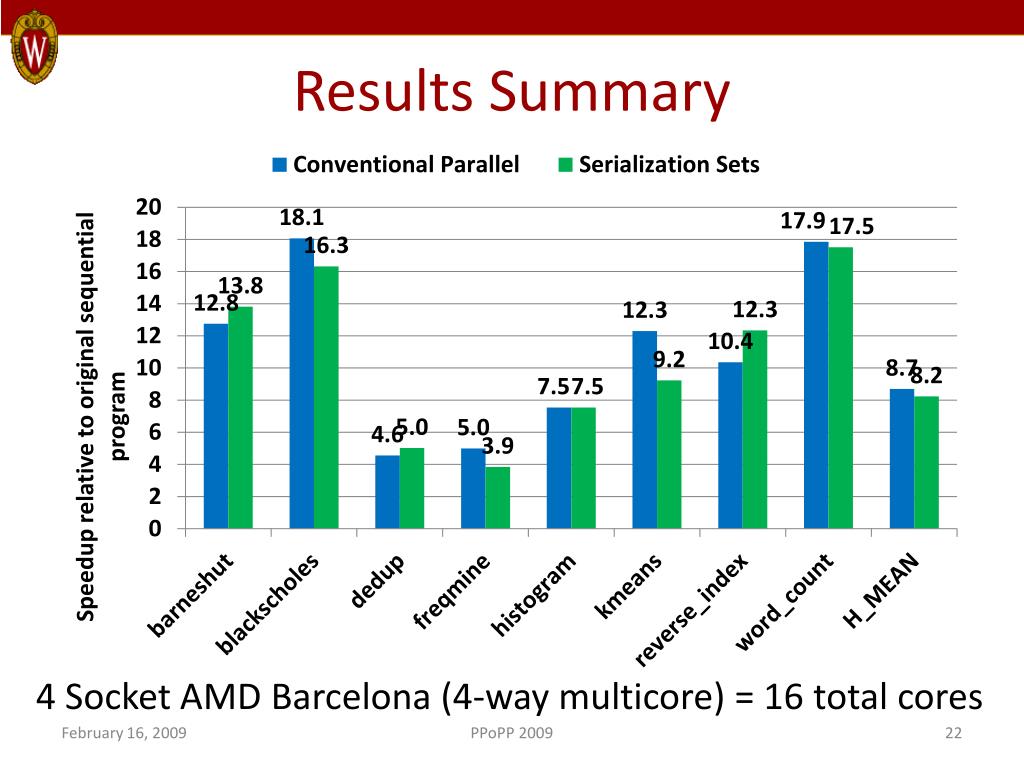

Results summary

Results Summary

4 Socket AMD Barcelona (4-way multicore) = 16 total cores

PPoPP 2009


Results summary1

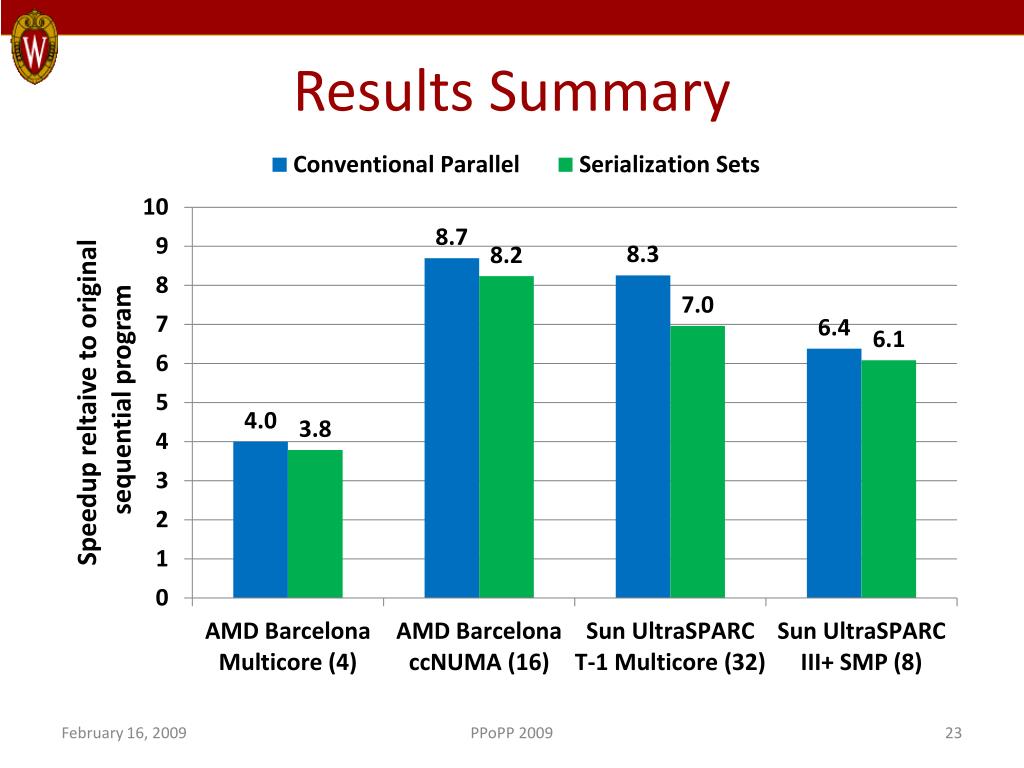

Results Summary

PPoPP 2009

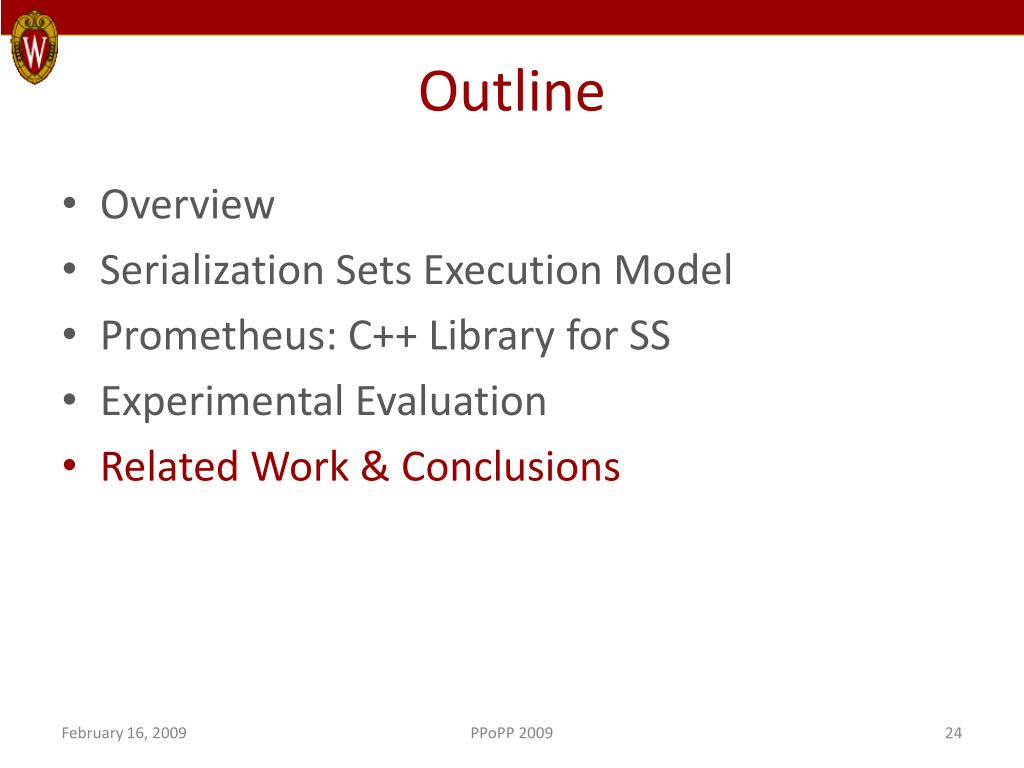

Outline3

Outline

  • Overview

  • Serialization Sets Execution Model

  • Prometheus: C++ Library for SS

  • Experimental Evaluation

  • Related Work & Conclusions

PPoPP 2009


Related work

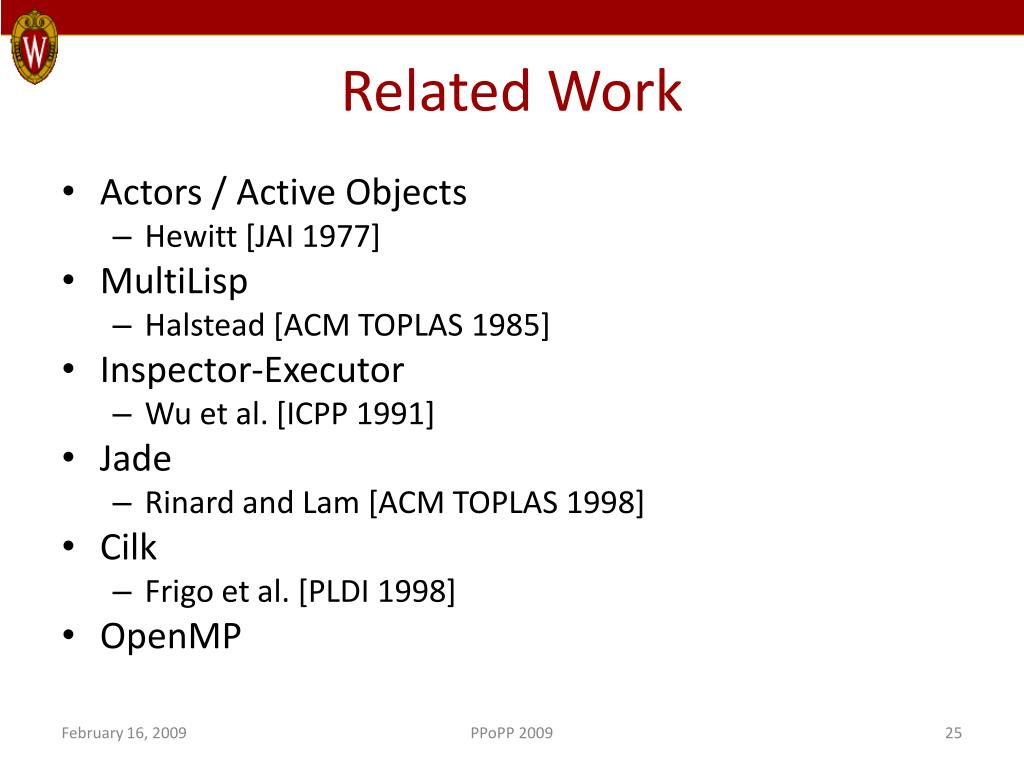

Related Work

  • Actors / Active Objects

    • Hewitt [JAI 1977]

  • MultiLisp

    • Halstead [ACM TOPLAS 1985]

  • Inspector-Executor

    • Wu et al. [ICPP 1991]

  • Jade

    • Rinard and Lam [ACM TOPLAS 1998]

  • Cilk

    • Frigo et al. [PLDI 1998]

  • OpenMP

PPoPP 2009


Conclusions

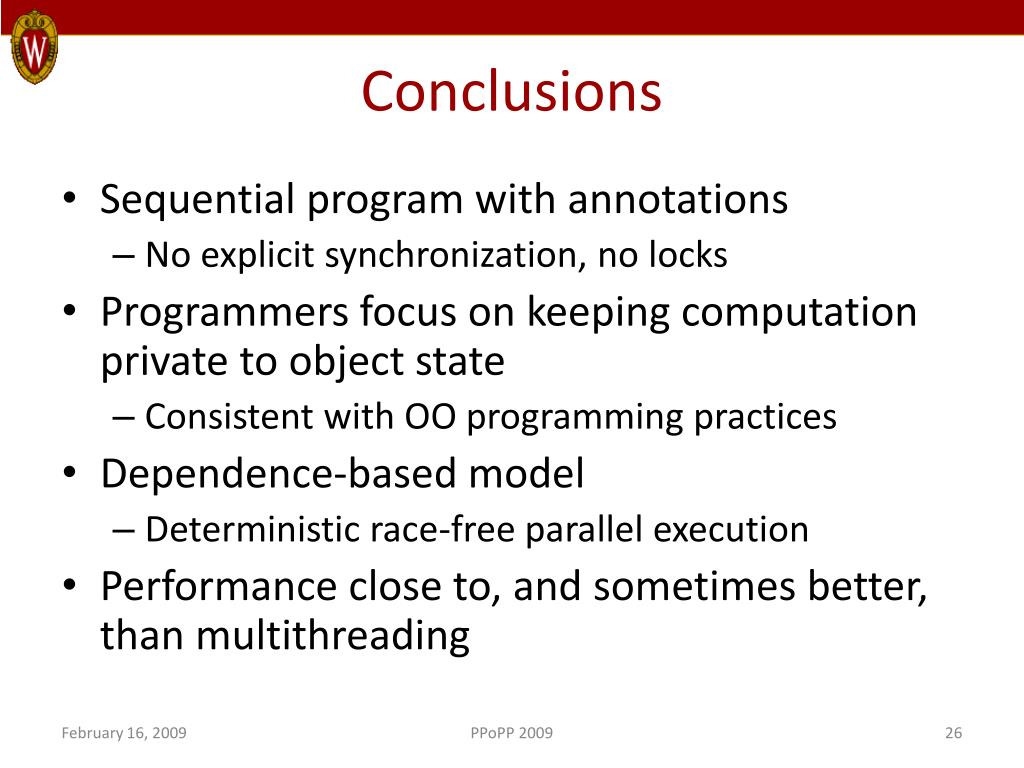

Conclusions

  • Sequential program with annotations

    • No explicit synchronization, no locks

  • Programmers focus on keeping computation private to object state

    • Consistent with OO programming practices

  • Dependence-based model

    • Deterministic race-free parallel execution

  • Performance close to, and sometimes better, than multithreading

PPoPP 2009


Questions

Questions

PPoPP 2009
