History of Vowel Charts

History of Vowel Charts. Vowel charts date back to the 19 th century. Melville Bell – Phonetic quality of vowels is derived from the position and height of tongue constriction Daniel Jones – The cardinal vowels quadrilateral which is still in use today !. Vowel Chart Quadrilateral.

beate
Download Presentation

History of Vowel Charts

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. History of Vowel Charts Vowel charts date back to the 19th century. Melville Bell – Phonetic quality of vowels is derived from the position and height of tongue constriction Daniel Jones – The cardinal vowels quadrilateral which is still in use today ! A.Hatzis , P.D.Green

  2. Vowel Chart Quadrilateral Vowel chart of F1 (vertical) vs F2-F1 (horizontal). (Ladefoged) A.Hatzis , P.D.Green

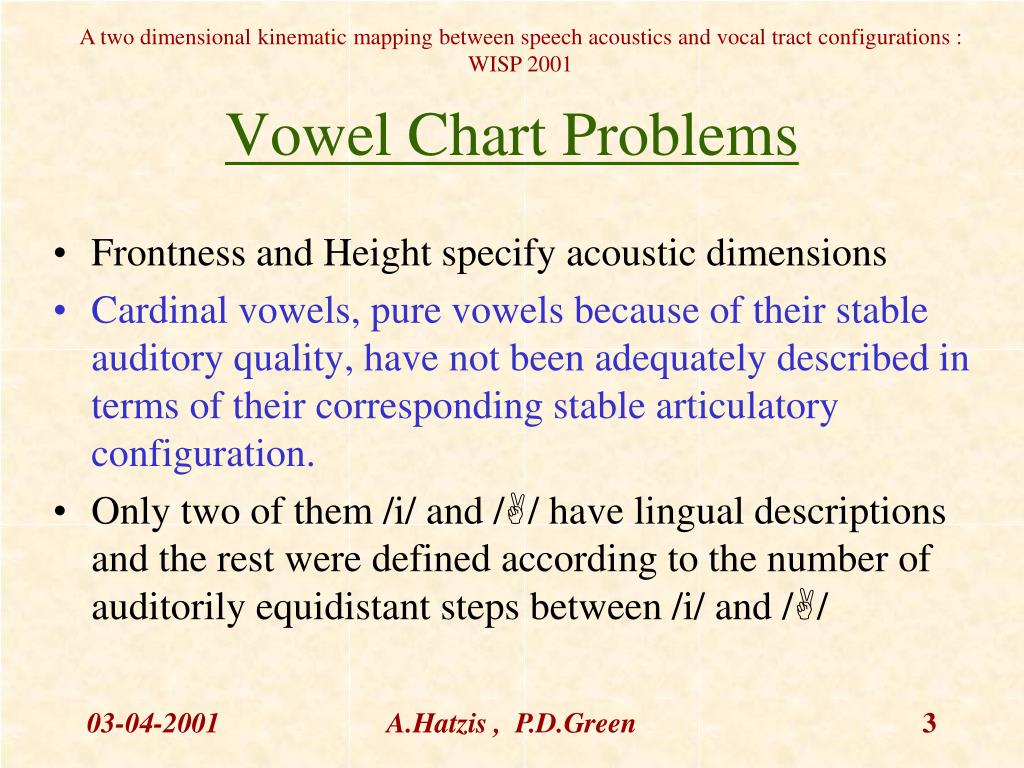

  3. Vowel Chart Problems • Frontness and Height specify acoustic dimensions • Cardinal vowels, pure vowels because of their stable auditory quality, have not been adequately described in terms of their corresponding stable articulatory configuration. • Only two of them /i/ and // have lingual descriptionsand the rest were defined according to the number of auditorily equidistant steps between /i/ and // A.Hatzis , P.D.Green

  4. Vowel Chart Problems • Vowel charts used in computer based speech training aids are often based on formant frequencies. Front-back corresponds to F2-F1 and high-low to F1. • Algorithms for formants extraction • Consonants • Misarticulated sounds • Secondary articulation, e.g. nasality A.Hatzis , P.D.Green

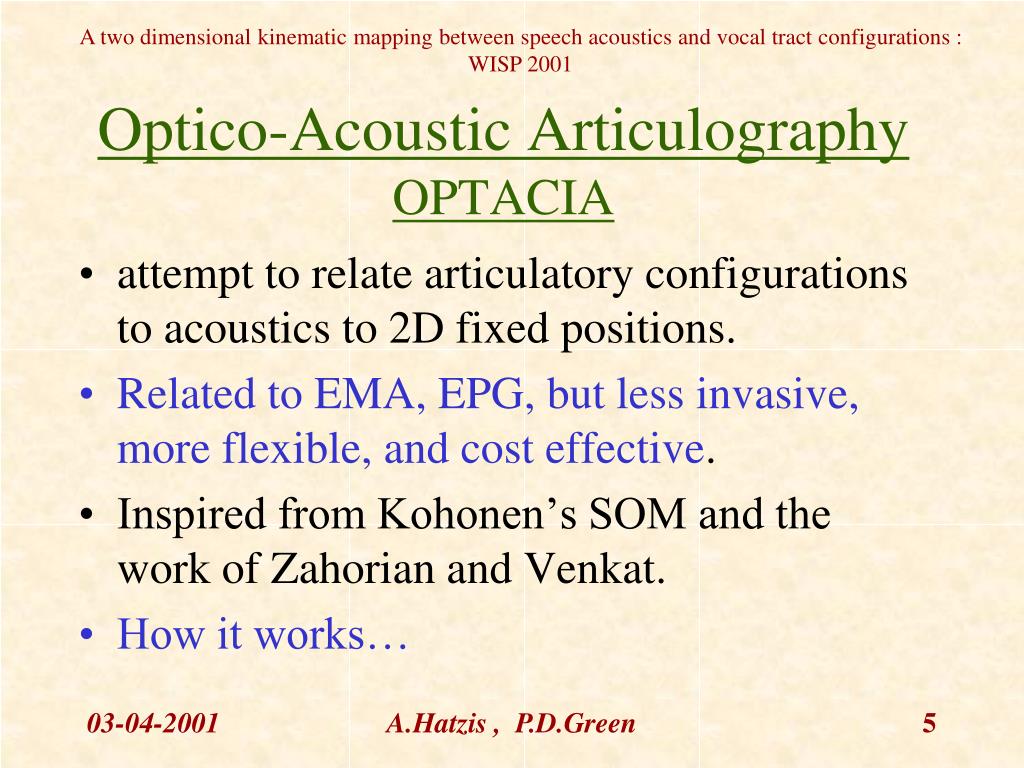

  5. Optico-Acoustic Articulography OPTACIA • attempt to relate articulatory configurations to acoustics to 2D fixed positions. • Related to EMA, EPG, but less invasive, more flexible, and cost effective. • Inspired from Kohonen’s SOM and the work of Zahorian and Venkat. • How it works… A.Hatzis , P.D.Green

  6. Optacia Mapping ANN 2D fixed positions Acoustic vector representation Reference Gestures Cardinals A.Hatzis , P.D.Green

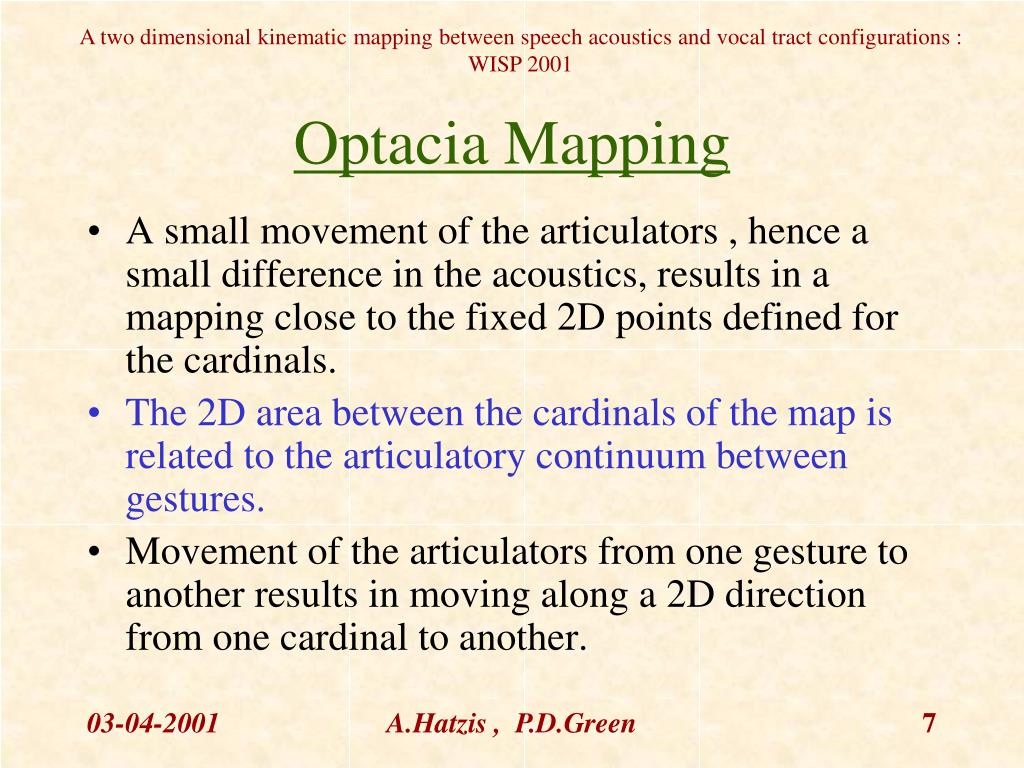

  7. Optacia Mapping • A small movement of the articulators , hence a small difference in the acoustics, results in a mapping close to the fixed 2D points defined for the cardinals. • The 2D area between the cardinals of the map is related to the articulatory continuum between gestures. • Movement of the articulators from one gesture to another results in moving along a 2D direction from one cardinal to another. A.Hatzis , P.D.Green

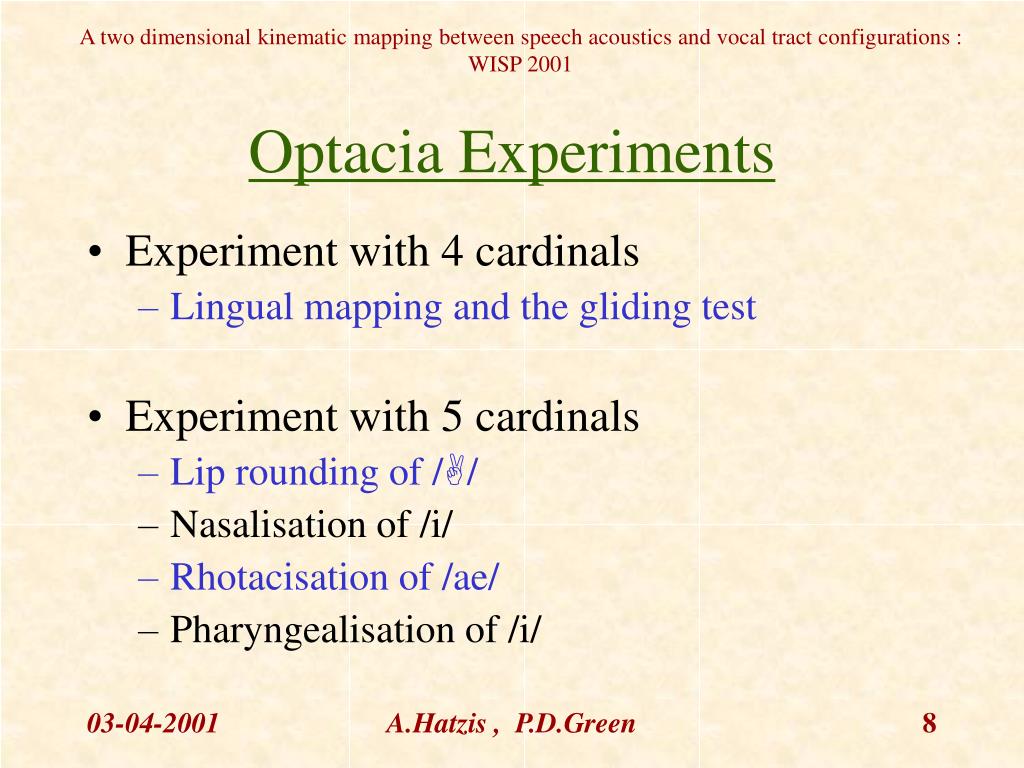

  8. Optacia Experiments • Experiment with 4 cardinals • Lingual mapping and the gliding test • Experiment with 5 cardinals • Lip rounding of // • Nasalisation of /i/ • Rhotacisation of /ae/ • Pharyngealisation of /i/ A.Hatzis , P.D.Green

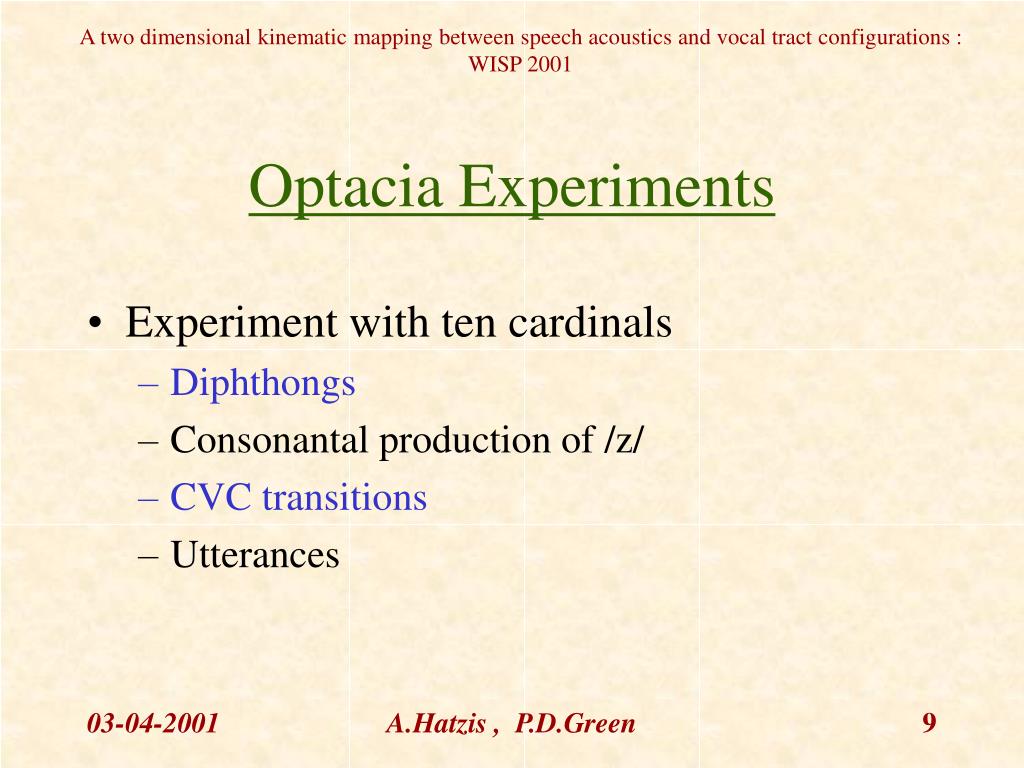

  9. Optacia Experiments • Experiment with ten cardinals • Diphthongs • Consonantal production of /z/ • CVC transitions • Utterances A.Hatzis , P.D.Green

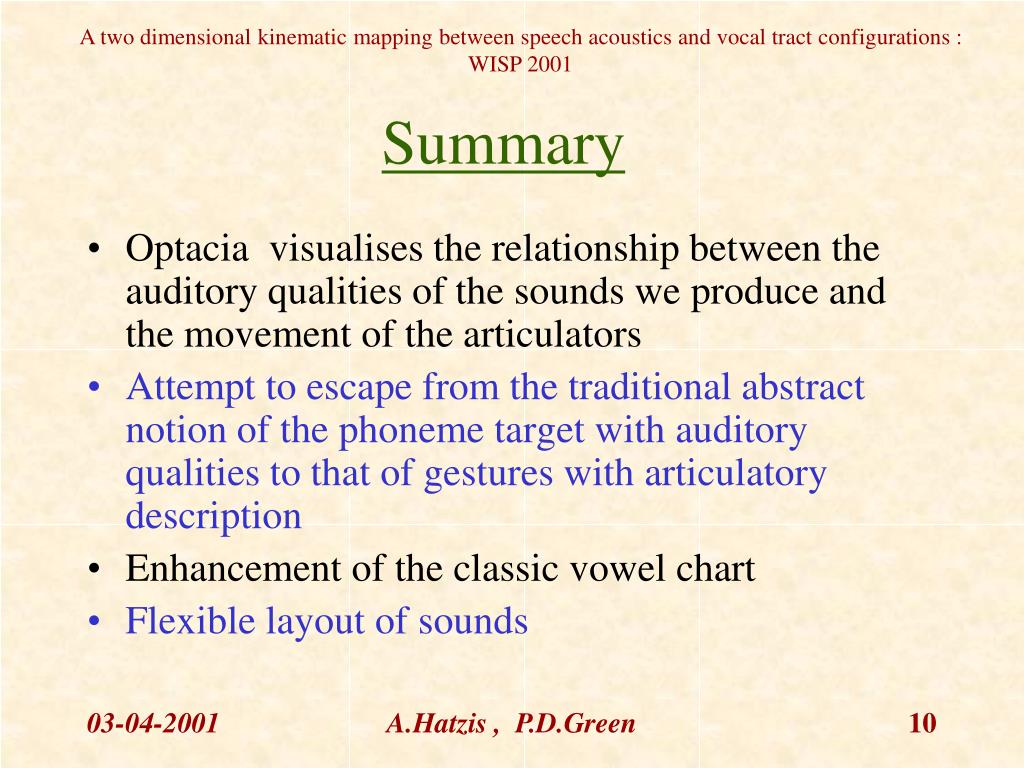

  10. Summary • Optacia visualises the relationship between the auditory qualities of the sounds we produce and the movement of the articulators • Attempt to escape from the traditional abstract notion of the phoneme target with auditory qualities to that of gestures with articulatory description • Enhancement of the classic vowel chart • Flexible layout of sounds A.Hatzis , P.D.Green

  11. Further Investigation • Use a different acoustic vector • Think about how to use different parameters of visual modality to portray the varying properties of the articulators • Study the relationship between vocal tract area, acoustics, and positions on the map. • Find how one can move the articulators to glide from one gesture to another A.Hatzis , P.D.Green
