Presentation Transcript
Thalassaemia pathogenesis and lab diagnosis l.jpg

Thalassaemia:Pathogenesis and Lab Diagnosis

Dr. M Sadequel Islam TalukderMBBS, M Phil (Pathology), MACPAssistant ProfessorDepartment of PathologyDinajpur Medical College

Presentation at Seminar on observation of World Thalassaemia Day 2009

Presentation: 10 May 2009, Dinajpur Medical College

Pathogenesis l.jpg

Genetically determined

Heterogenous group of disorder

Reduced synthesis of one or more types of normal haemoglobin polypeptide chain

Reduced haemoglobin involving affected chain

Normal haemoglobin l.jpg
Normal Haemoglobin

  • HbA - α2β2

  • HbA2 - α2δ2

  • HbF – α2γ2

Slide4 l.jpg

Each goblin chain have separate genetic control

α –thalassaemia affect α-chain synthesis

β –thalassaemia affect β-chain synthesis

Thalassaemia l.jpg

β Chain synthesis

An absence or deficiency of β-chain synthesis of adult HbA


γ and δ chain

Hb-A = α2β2

Slide6 l.jpg

On the basis of synthetic ability β-genes are designated as

  • β gene – can synthesize normal amount of β-chain

  • β+ gene – can synthesize reduced amount of β-chain

  • β0 gene – cannot synthesize β-chain

Slide7 l.jpg

  • β-thalassaemia major

    • Mutation of normal β-gene β0-gene  absence HbA  increased HA2 and HbF

    • genotype – β0β0

  • β-thalassaemia intermedia

    • ↑HbA2

    • ↑HbF

    • ↓HbA

    • Genotype β+β+ or β0β

  • β-thalassaemia minor

    • ↑HbA2

    • HbA normal

    • HbF normal

Pathophysiology of thalassaemia l.jpg
Pathophysiology of β-Thalassaemia

Various mutation in β-gene

Complete or partial absence of β-chain

Decreased adult HbA

α-chain synthesis remain normal

Free complementary α-chain – unstable and precipitate within normoblasts as insoluble inclusions

Cell membrane damage & impaired DNA synthesis apoptosis i.e. ineffective erythropoeisis

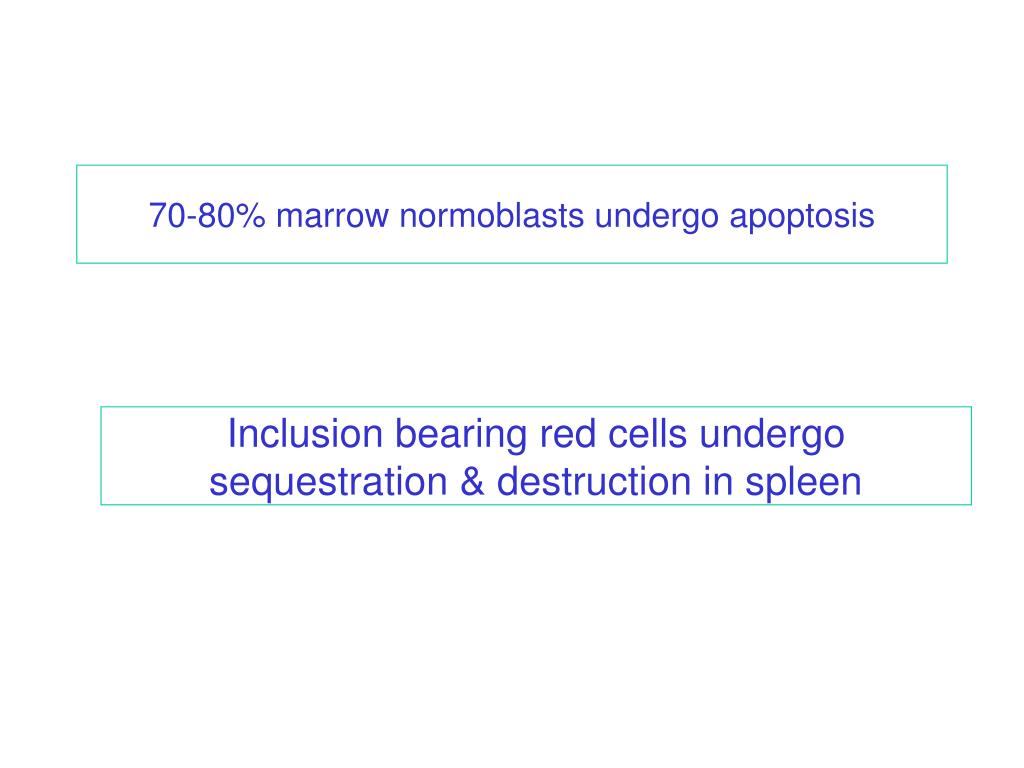

70 80 marrow normoblasts undergo apoptosis l.jpg
70-80% marrow normoblasts undergo apoptosis

Inclusion bearing red cells undergo sequestration & destruction in spleen

Partial or lack of hba synthesis mchc mch hypochromia microcytosis l.jpg
Partial or lack of HbA synthesis ↓MCHC & MCH Hypochromia & microcytosis



Slide11 l.jpg

Reticulocytes undergo intramedullary death

Inadequate production + ineffective erythropoiesis + haemolysis Anaemia

Slide12 l.jpg

↑Haemolysis ↑demands of phagocytic function  hyperplasia of phagocytes Hepatosplenomegaly

To compensate anaemia extramedullary haemopoiesis in liver, spleen & brain Organomegaly

Slide13 l.jpg

↑Erythropoiesismarrow expansion & thinning of cortex of skull bone Thalassaemia facies

Thassaemia l.jpg

An absence or deficiency of α-chain synthesis due to delation of α-genes.

Pathogenesis of thalassaemia l.jpg
Pathogenesis of α-Thalassaemia

  • In normal individual HbA, HbA2 and HbF need α-chain for their formation.

  • 4 genes of α-chain, each pair on short arm of chromosome 16 present with genotype α,α/α,α.

  • In α-thalassaemia, delation of α-genes reduction or absence of synthesis of α-chain depending on number of α-gene delation.

Slide16 l.jpg

  • α-chain synthesis free γ-chain in the fetus & β-chain in infant of 6 months, and continue in the rest of life.

  • Complementary 4γ and 4β are aggregated  Hb Bart (4γ ) and HbH (4β ), respectively.

Variants of thalassaemia l.jpg
Variants of α-Thalassaemia

  • Silent carrier

    • Delation of single α-gene

    • Genotype α/αα

    • Asymptomatic

    • Absence of RBC abnormality

  • Thalasaemia trait

    • Delation of 2 α-genes

    • Genotype --/αα

    • Asymptometic, minimal or no anaemia

    • Minimal RBC abnormalities

Slide18 l.jpg

  • Hb H disease

    • Delation of 3 α-genes

    • Genotype --/- α

    • 75% reduction of α-chain

    • 25% α-chain synthesis small amount of HbF, HbA, & HbA2

    • Fetus can survive

    • Severe anaemia

    • Severe RBC abnormalites

  • Hydrops fetalis

    • Delation of all α-genes

    • Genotype --/--

    • Absence of α-chain synthsis

    • Only Hb Bart (γ4) is produced (High affinity for O2 and can not dissociate O2 to tissue)

Laboratory findings l.jpg
Laboratory Findings

  • Hb concentration – Decreased

  • ESR – Mild increased

  • WBC – Neutrophilic leucocytosis or normal

  • RBC count – Markedly decreased

  • PCV – Markedly decreased

  • MCV, MCH, MCHC – reduced

  • Reticulocyte count – Increased

  • Platelet count – May be increased

Morphology of pbf l.jpg


Marked anisocytosis, polikilocytosis, microcytosis, frequent target cells, basophilic stippling, fragmented cells or schistocytosis, polychromatic macrocytes and nucleated cells


Whin normal or neutrophilic leucocytosis


Normal or increased

Morphology of PBF

Haemoglobin electrophoresis l.jpg
Haemoglobin Electrophoresis

  • Different types of haemoglobins contain different surface charge which determine the elecrtrophoretic mobility and gives a specific bands on the electrophoretic papers when haemolysate is undergone eletrophoresis.

  • HbF, HbA, HbA2, HbC, HbE, HbD, HbS, HbH and Hb Bart can be measured accurately by electrophoresis
