Presentation Transcript

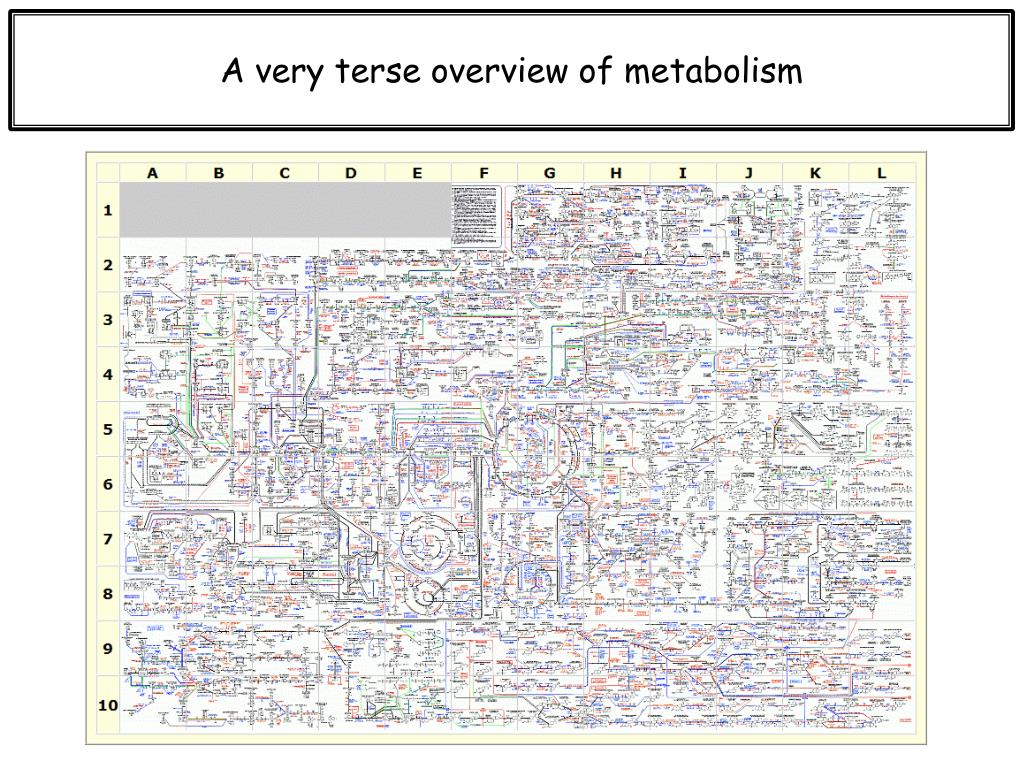

  1. A very terse overview of metabolism

  2. Anabolism vs. Catabolism “lysis” i.e., glycolysis “genesis” i.e., gluconeogenesis

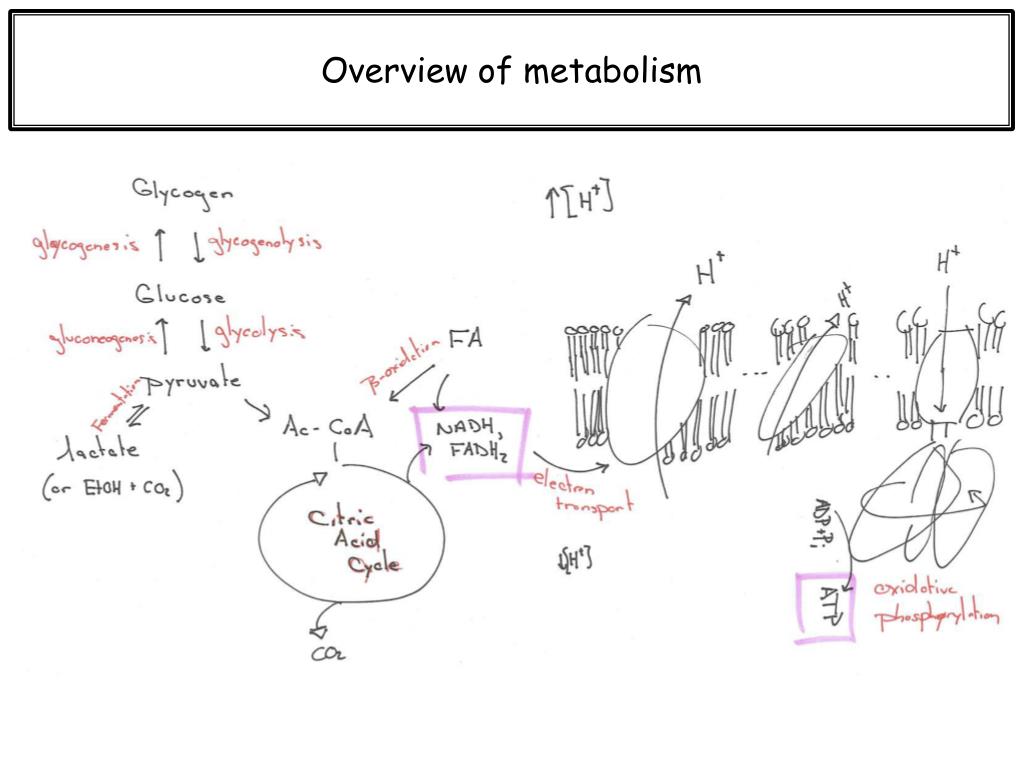

  3. Overview of metabolism

  4. Overview of metabolism

  5. The key parts (three high-level views)

  6. Glycolysis (Chapter 14)

  7. Glycolysis, cont.

  8. Three possible fates of pyruvate

  9. Three possible fates of pyruvate Lower organisms (i.e., yeast) Higher organisms (i.e., mammals)

  10. Three possible fates of pyruvate

  11. The traditional, but largely incorrect, view of anaerobic catabolism of glucose First half of glycolysis: -2 ATP Second half of glycolysis: +4 ATP +2 NADH +2 Pyruvate Fermentation: -2 NADH -2 Pyruvate +2 Lactate (or +2 EtOH) Net: +2 ATP + a bunch of other stuff

  12. Let’s take a quick step back… Where did the glucose come from to start glycolysis?

  13. The opposing pathways of glycolysis and gluconeogenesis (note most differences include kinases) Kinase vs. phosphatase: Its not always this simple, but this is typically correct.

  14. Chapter 16: The Citric Acid Cycle (aka TriCarboxylicAcid Cycle or Krebs Cycle) Citrate

  15. The Citric Acid Cycle

  16. The Citric Acid Cycle The TCA cycle involves a series of oxidation reactions that produce a large number of NADH, which -- as you recall -- has accepted a hydride (electrons!) The NADH molecules produced by TCA (and elsewhere) will be used in electron transport to a proton ion gradient (a battery). The potential energy in this battery will be used to drive oxidative phosphorylation, which is the synthesis of ATP (see purple box on previous slide).

  17. Pyruvate  Acetyl-CoA The irreversible commitment to TCA Note: this is technically an oxidation of the pyruvate a-carbon (carbonyl to thioester), which is why NADH is produced.

  18. Pyruvate  Acetyl-CoA The irreversible commitment to TCA

  19. The Citric Acid Cycle

  20. The Citric Acid Cycle Note the CO2

  21. Keeping track up to this point Glycolysis (net): +2 ATP +2 NADH +2 Pyruvate Pyr->Ac-CoA: -2 Pyruvate +2 NADH (1 per pyruvate) +2 Ac-CoA TCA:-2 Ac-CoA +6 NADH (3 per Ac-CoA) +2 GTP (1 per Ac-CoA) +2 FADH2 (1 per Ac-CoA) +CO2 and some other carbon bodies Net: +4 ATP (b/c GTP = ATP) +10 NADH +2 FADH2

  22. Fatty acid catabolism is called b-oxidation (Chapter 17)

  23. Amino acid catabolism (Chapter 18)

  24. A [H+] gradient is produced using the free energy produced from electron transport (Chapter 19)

  25. Diffusion and electrochemical gradients

  26. A [H+] gradient is produced using the free energy produced from electron transport (Chapter 19) Molecular oxygen is the final electron acceptor

  27. Cytochrome C

  28. Oxidative phosphorylation using ATP synthase (also Chapter 19)

  29. How does ATP Synthase work? Experimental demonstration of rotation

  30. The final score (sorta) Glycolysis (net): +2 ATP +2 NADH +2 Pyruvate Pyr->Ac-CoA: -2 Pyruvate +2 NADH (1 per pyruvate) +2 Ac-CoA TCA:-2 Ac-CoA +6 NADH (3 per Ac-CoA) +2 GTP (1 per Ac-CoA) +2 FADH2 (1 per Ac-CoA) +CO2 and some other carbon bodies Net: +4 ATP (b/c GTP = ATP) +10 NADH = +30 ATP (assuming 3 ATP per NADH) +2 FADH2 = +4 ATP (assuming 2 ATP per FADH2) ----------------------------------------------------------------------- +38 ATP (4 from substrate phosphorylation; 34 from oxidative phosphorylation)

  31. How come lactate gets such a bad rap?

  32. Lactate is actually an important fuel The lactate shuttle (middle image). On the left a white muscle fiber producing lactate. This lactate then travels to neighboring muscle tissues ("Ox Fiber") as well as distant tissues like the heart and other muscle cells, where it is used as a fuel. In the middle you see the liver, representing the conversion of lactate to glucose (the Cori Cycle), the traditional view most medical students learn, which is the typical textbook view of lactate (right image). Source: Matthew L. Goodwin, PhD

  33. Lactate is actually an important fuel (Part of) The Proof. Lactate replacing glucose as a fuel in mammalian hippocampus slices. Two groups of tissues were studied in vitro. In both, glucose was removed from solution (@ first arrow). Both tissues began to fail (spike amplitude falling to 0). In one group nothing was changed after that (closed circles); in the other group (open circles) 10 mM lactate was added at the second arrow. The lactate fully replaced glucose as a fuel and the tissue returned to normal vitality. Restored activity Source: Matthew L. Goodwin, PhD

  34. Lactate threshold Lactate threshold is actually all about the rate at which your muscles clear lactate from the blood (as it is used as a fuel within other tissues), and not simply an indicator of the point that aerobic metabolism stops. In fact, trained athletes produce AND reuse far more lactate at threshold than untrained people. At LT in both samples above, the blood [lactate] is about the same, but – in fact – the trained group is producing about 60% more lactate, and thus also clearing it 60% faster. In moderate to well-trained runners, LT is roughly the pace at which he/she can run for one hour.
