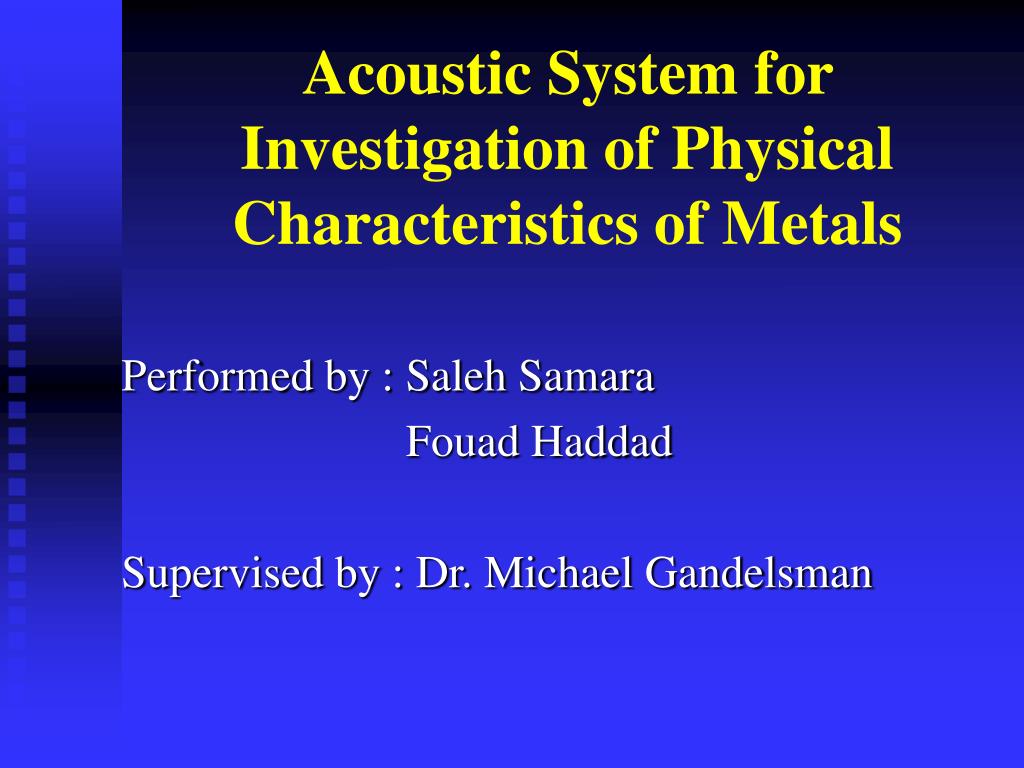

  1. Acoustic System for Investigation of Physical Characteristics of Metals Performed by : Saleh Samara Fouad Haddad Supervised by : Dr. Michael Gandelsman

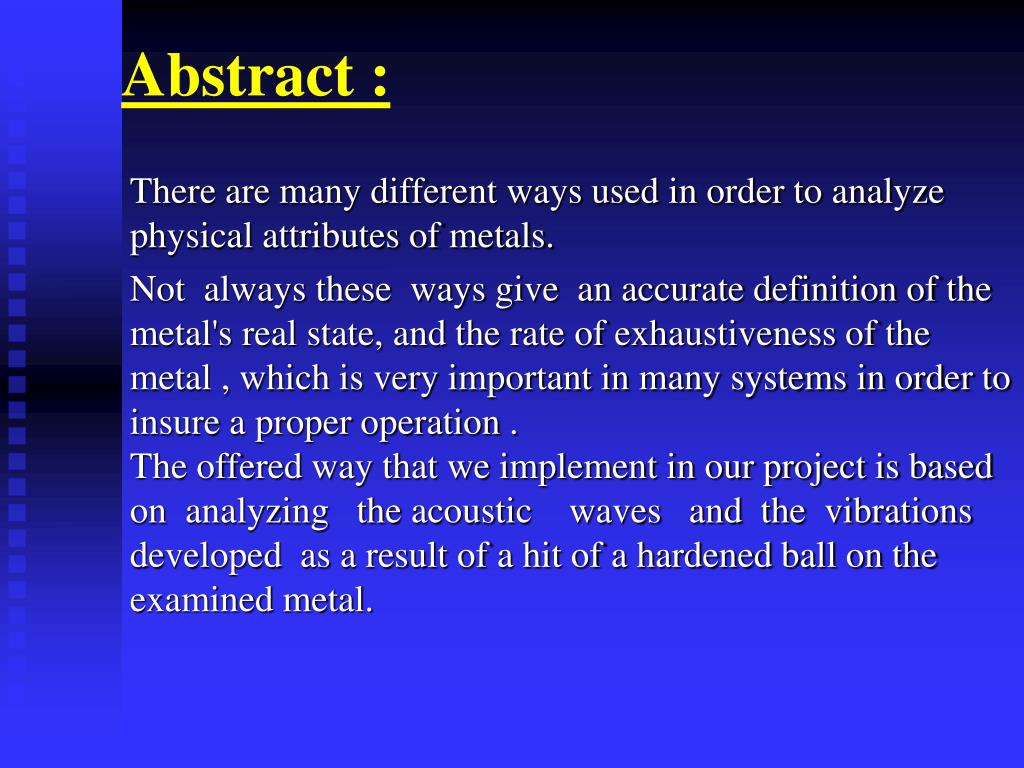

  2. Abstract : There are many different ways used in order to analyze physical attributes of metals. Not always these ways give an accurate definition of the metal's real state, and the rate of exhaustiveness of the metal , which is very important in many systems in order to insure a proper operation .The offered way that we implement in our project is based on analyzing the acoustic waves and the vibrations developed as a result of a hit of a hardened ball on the examined metal.

  3. Control Unit Display Control DAQc I/O pins AI channel AI channel AI channel AI channel Amplifying and Filtering Control Acquisition And Storage Of the Signal Samples Input x10 Acoustic signal Filter דרגת דגימה(DAQc) Vibrations X Filter Vibrations Y Filter Vibrations Z Filter PC System Description

  4. Specifications Hardware : DAQ Card , ( E series - PCI6034). Amplifying & Filtering Card : MAX291 filters. AD8041 Amplifier. NMH0505S Dc-to-Dc Converter. Solid State Relay. Software : LABVIEW 6i. Graphical user interface. Device driver.

  5. Graphical user Interface :
