Toward a simulation model of open source software patrick wagstrom

Toward a Simulation Model of Open Source Software

Patrick Wagstrom

Department of Engineering and Public Policy

Center for the Computational Analysis of Social and Organizational Systems

Carnegie Mellon University

June 28, 2004

[email protected]

http://patrick.wagstrom.net/


Overview

Overview

  • The Chaos that is Open Source

  • The NK Model and the edge of chaos

  • OSSim

  • Some interesting results

  • Moving on

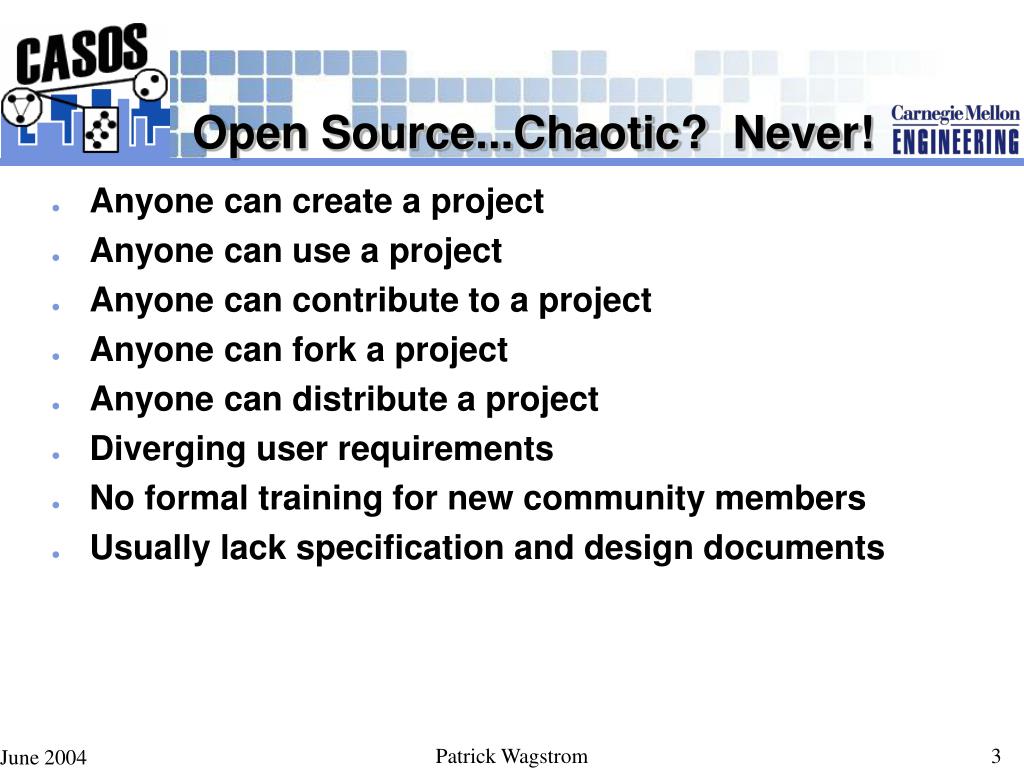

Open source chaotic never

Open Source...Chaotic? Never!

  • Anyone can create a project

  • Anyone can use a project

  • Anyone can contribute to a project

  • Anyone can fork a project

  • Anyone can distribute a project

  • Diverging user requirements

  • No formal training for new community members

  • Usually lack specification and design documents

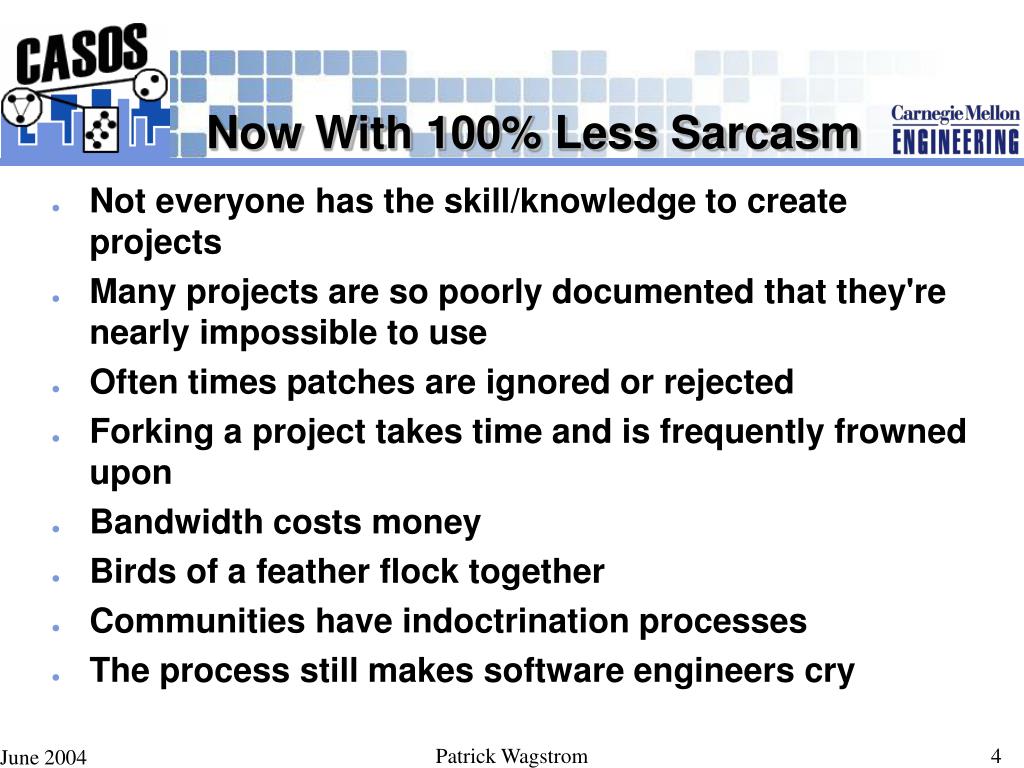

Now with 100 less sarcasm

Now With 100% Less Sarcasm

  • Not everyone has the skill/knowledge to create projects

  • Many projects are so poorly documented that they're nearly impossible to use

  • Often times patches are ignored or rejected

  • Forking a project takes time and is frequently frowned upon

  • Bandwidth costs money

  • Birds of a feather flock together

  • Communities have indoctrination processes

  • The process still makes software engineers cry


Nk model

N=15

011

111

110

100

001

011

110

101

011

111

110

101

011

110

101

K=2

0.15 + 0.19 + 0.20 + 0.46 + 0.34 + 0.85 + 0.67 + 0.12 + 0.77 + 0.91 + 0.85 + 0.55 + 0.72 + 0.06 + 0.59

15

0.4913

NK Model

Agents have a genotype bit string of length N

0 1 1 1 0 0 1 1 0 1 1 1 0 1 1

Each bit is associated with K neighbors to create alleles

Each allele has is evaluated against the randomly generated fitness landscape for that position. Overall fitness is the average of these values.


Mutation in the nk model

0 1 1 1 1 0 1 1 0 1 1 1 0 1 1

011

111

110

100

001

011

111

111

110

101

011

110

101

011

111

011

110

101

011

111

110

101

011

110

101

110

101

011

110

101

0.15 + 0.19 + 0.82 + 0.31 + 0.74 + 0.85 + 0.67 + 0.12 + 0.77 + 0.91 + 0.85 + 0.55 + 0.72 + 0.06 + 0.59

0.15 + 0.19 + 0.20 + 0.46 + 0.34 + 0.85 + 0.67 + 0.12 + 0.77 + 0.91 + 0.85 + 0.55 + 0.72 + 0.06 + 0.59

15

15

0.5493

Mutation in the NK Model

Selects a bit at random, flip it, and evaluate new fitness

0 1 1 1 0 0 1 1 0 1 1 1 0 1 1

K=2

0.4913


Ossim

OSSim

  • Pronounced AWESOME!!

    • Make sure to say the exclamation points

  • Multi-agent simulation

  • Two classes of agents

    • People

    • Projects

  • People agents have a genotype string

    • Represents desired feature set

  • People may have ability to modify projects

    • Like real people, skill varies

  • Project agents have a fitness landscape


Ossim1

OSSim

  • Initially, people associate with project that gives highest fitness

  • Each tick, agents that can modify the project, make some random modifications

    • Increase fitness of one phenotype and decrease fitness of another

    • Example: Emacs is great editor, but a lousy web browser

  • People vote on which modifications to accept

  • Cycle repeats per simulation parameters

  • If too long goes without improvement

    • Tolerance decreases

    • More likely to switch to another project

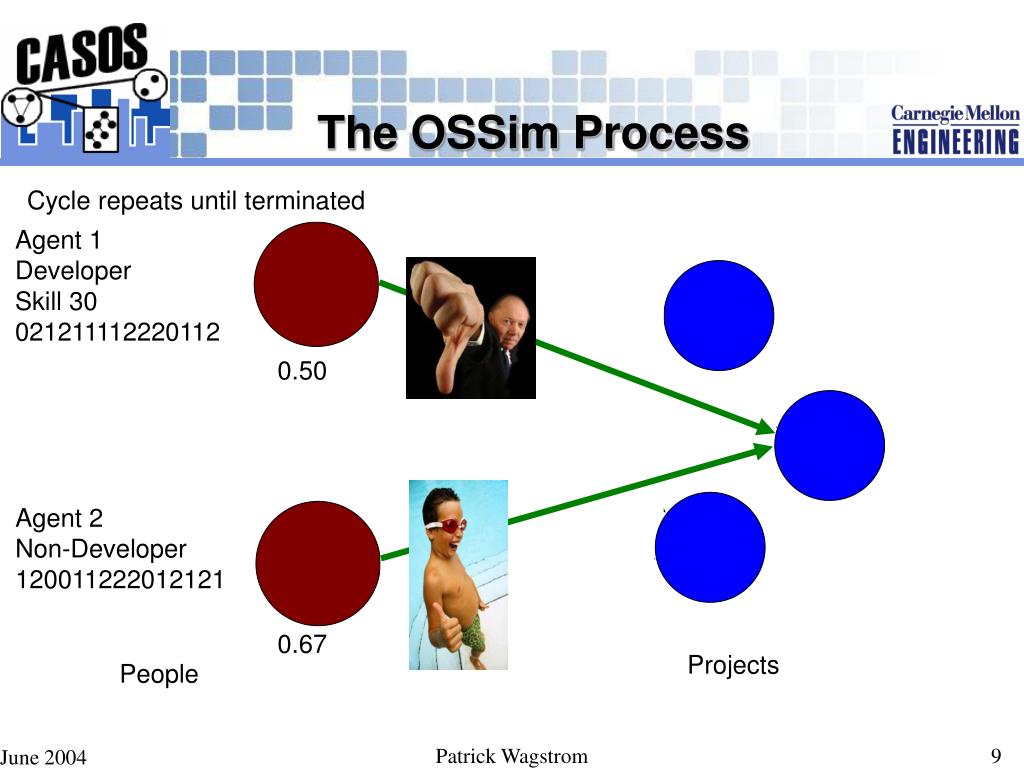

The ossim process

Agents evaluate problem string against each project

We'll focus on just two agents

Associate with project that provides highest fitness

Developer agents modify fitness landscape of projects

People evaluate new fitness

Vote to accept changes, ties settled by fitness

Agent 1

Developer

Skill 30

021211112220112

0.43

0.52

0.50

0.52

0.33

0.39

0.61

Agent 2

Non-Developer

120011222012121

0:010 +0.13

3:222 -0.05

12:121 +0.22

4:201 -0.08

.

.

.

0.57

0.67

0.61

Projects

People

The OSSim Process

A pool of people and projects is initially created

Cycle repeats until terminated


Basic results

Basic Results

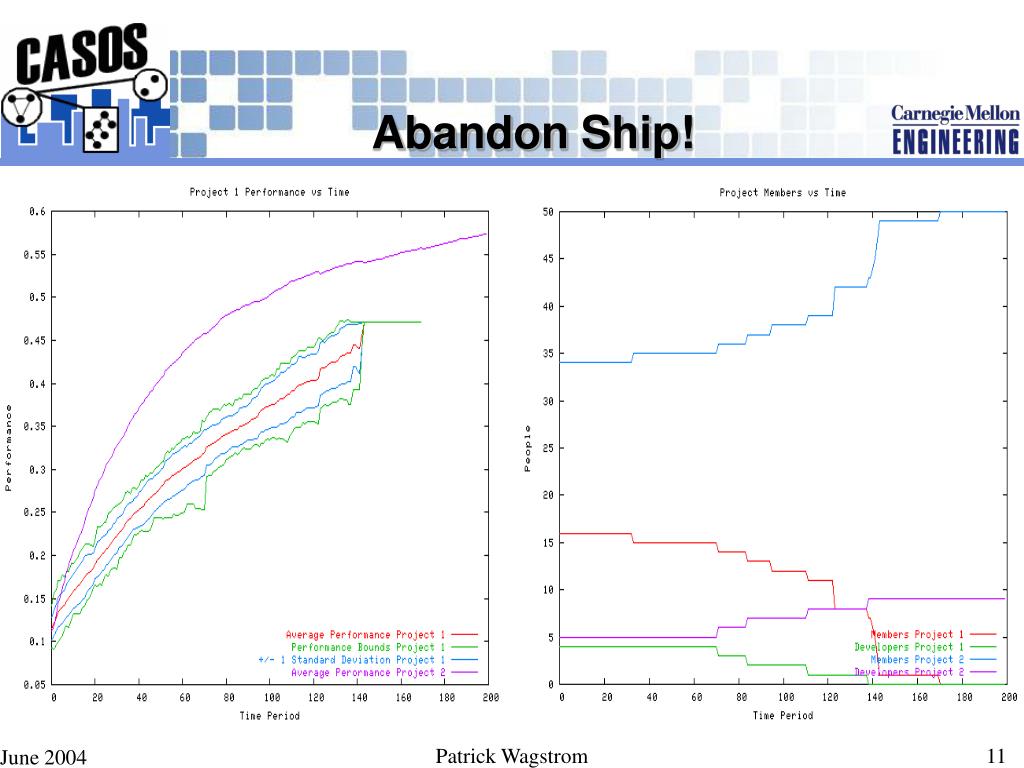

Abandon ship

Abandon Ship!

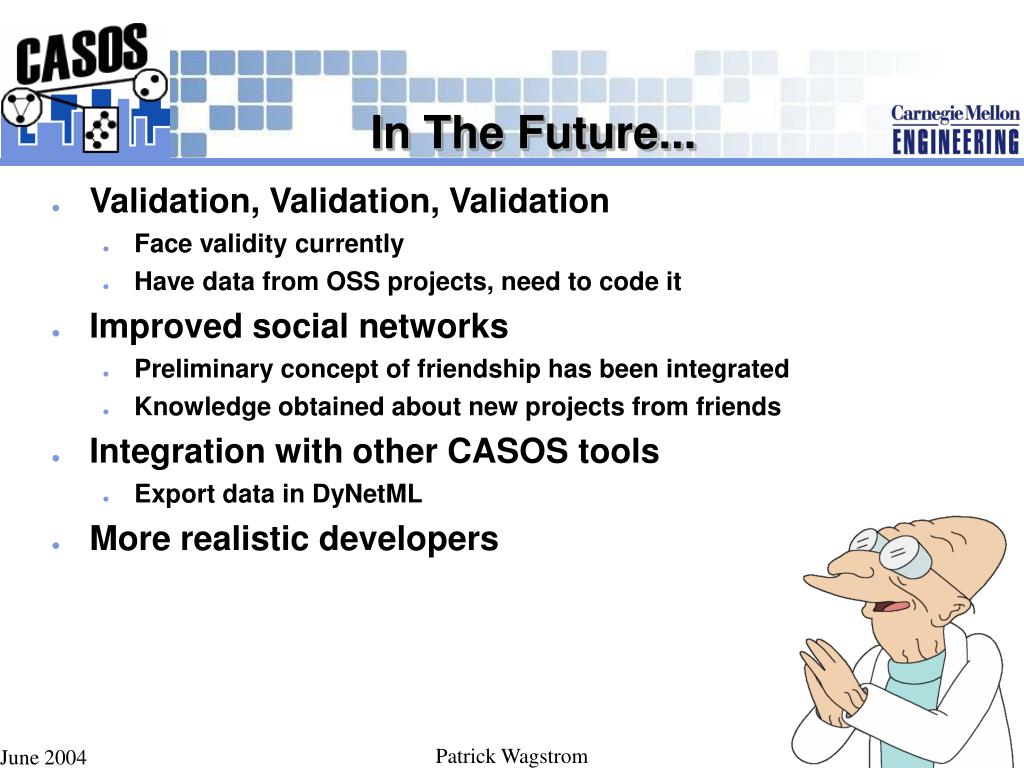

In the future

In The Future...

  • Validation, Validation, Validation

    • Face validity currently

    • Have data from OSS projects, need to code it

  • Improved social networks

    • Preliminary concept of friendship has been integrated

    • Knowledge obtained about new projects from friends

  • Integration with other CASOS tools

    • Export data in DyNetML

  • More realistic developers


  • Login
