  1. Derivation of fTAnd fMAXof a MOSFET

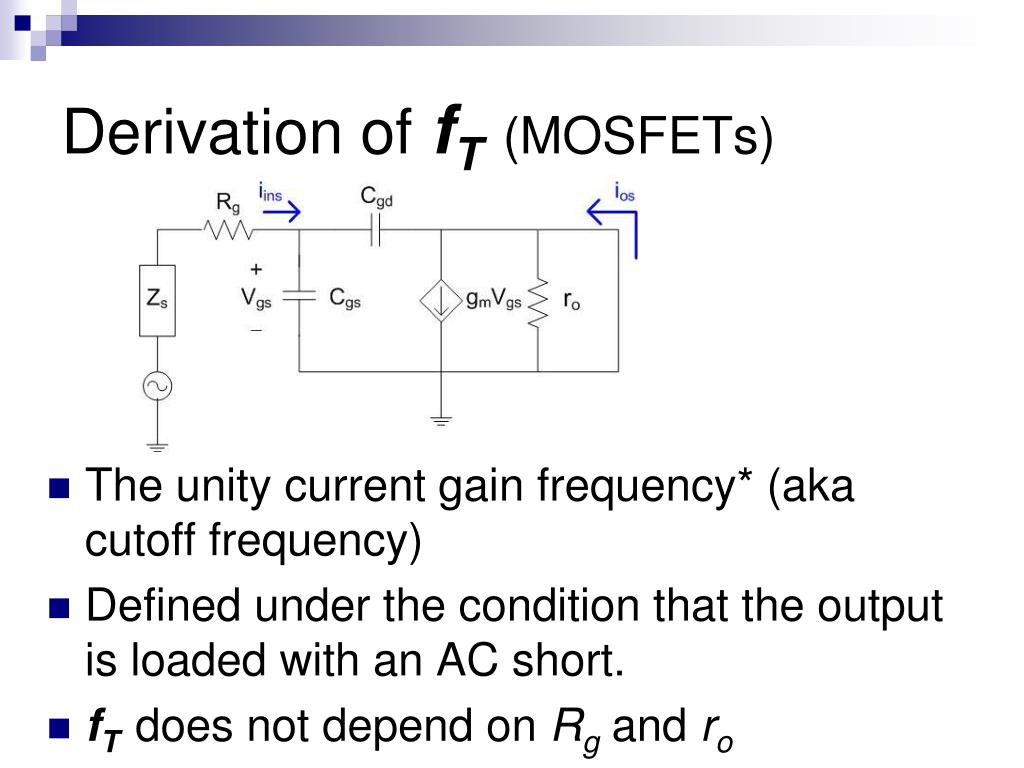

  2. Derivation of fT(MOSFETs) The unity current gain frequency* (aka cutoff frequency) Defined under the condition that the output is loaded with an AC short. fT does not depend on Rg and ro

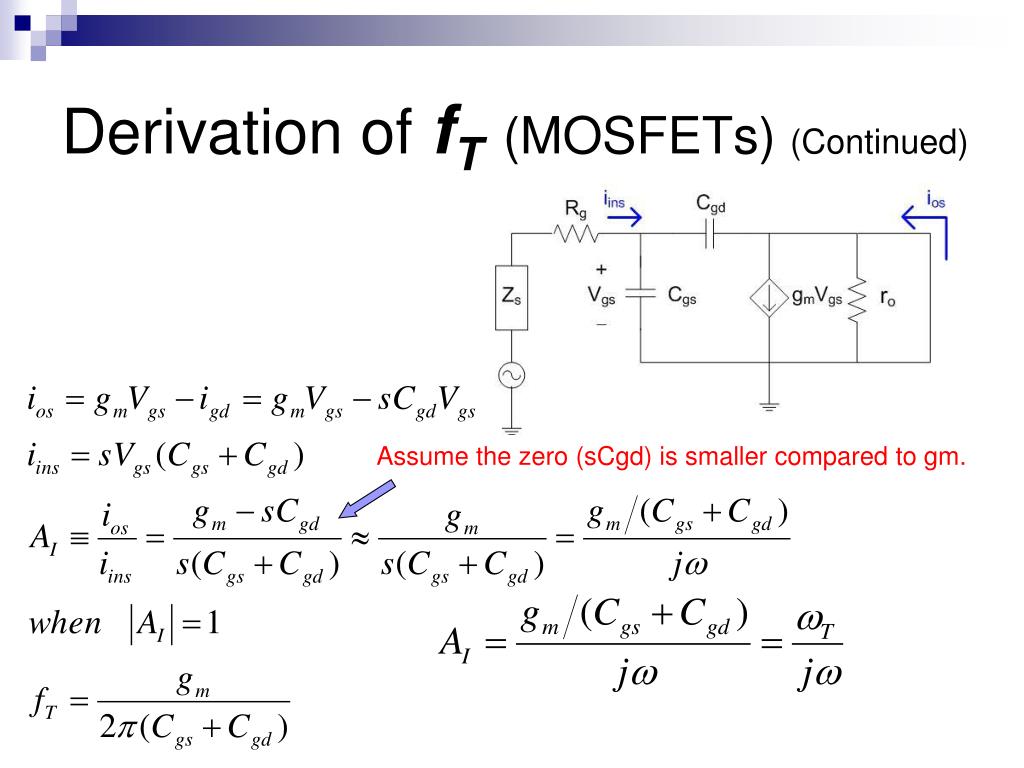

  3. Derivation of fT(MOSFETs) (Continued) Assume the zero (sCgd) is smaller compared to gm.

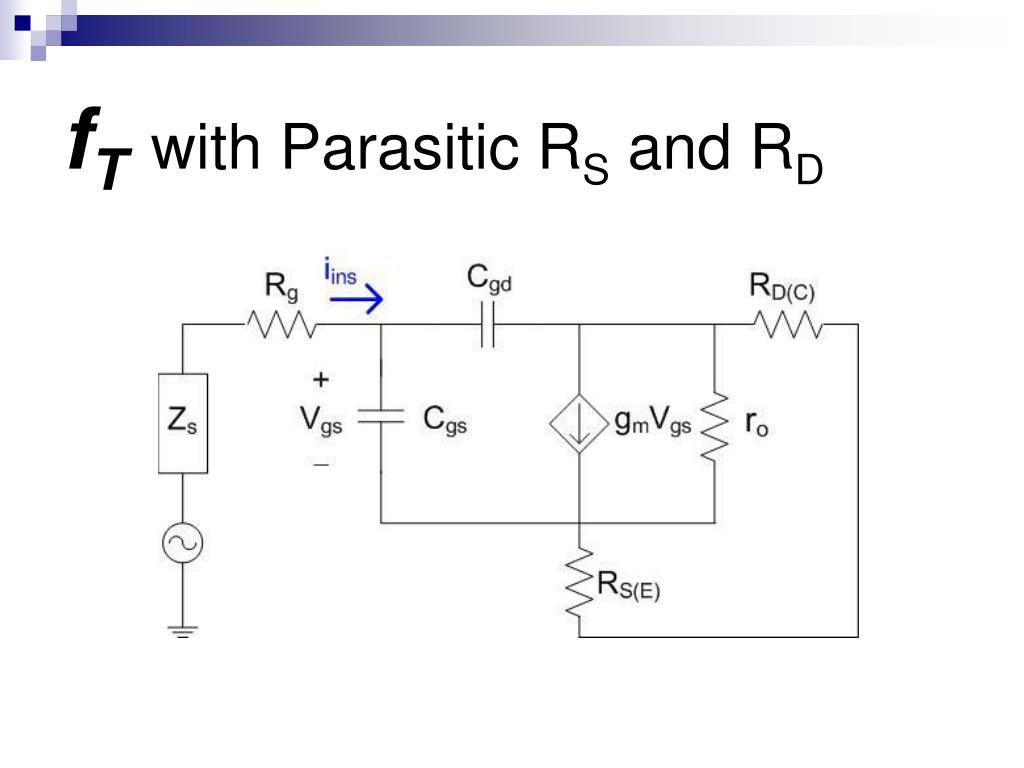

  4. fTwith Parasitic RS and RD

  5. Derivation of fT(MOSFETs) (Continued)(RS and RD are included) Miller’s Approximation

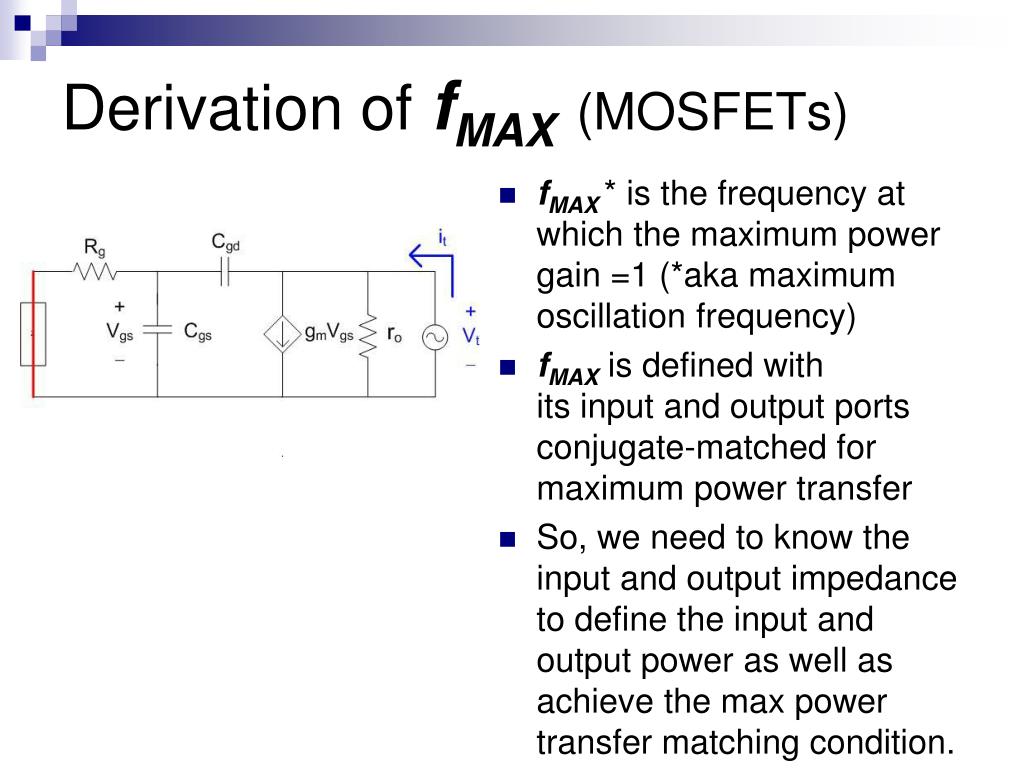

  6. Derivation of fMAX(MOSFETs) • fMAX* is the frequency at which the maximum power gain =1 (*aka maximum oscillation frequency) • fMAX is defined with its input and output ports conjugate-matched for maximum power transfer • So, we need to know the input and output impedance to define the input and output power as well as achieve the max power transfer matching condition.

  7. Derivation of fMAX(MOSFETs) At high frequency (close to fmax), we can assume that So, Rg is independent of RL

  8. Derivation of fMAX(MOSFETs)(Continued) Conjugate match at the input: Conjugate match at the output: For the matching conditions,

  9. Power Gain (Under Conjugate Match) Using the definition of fT

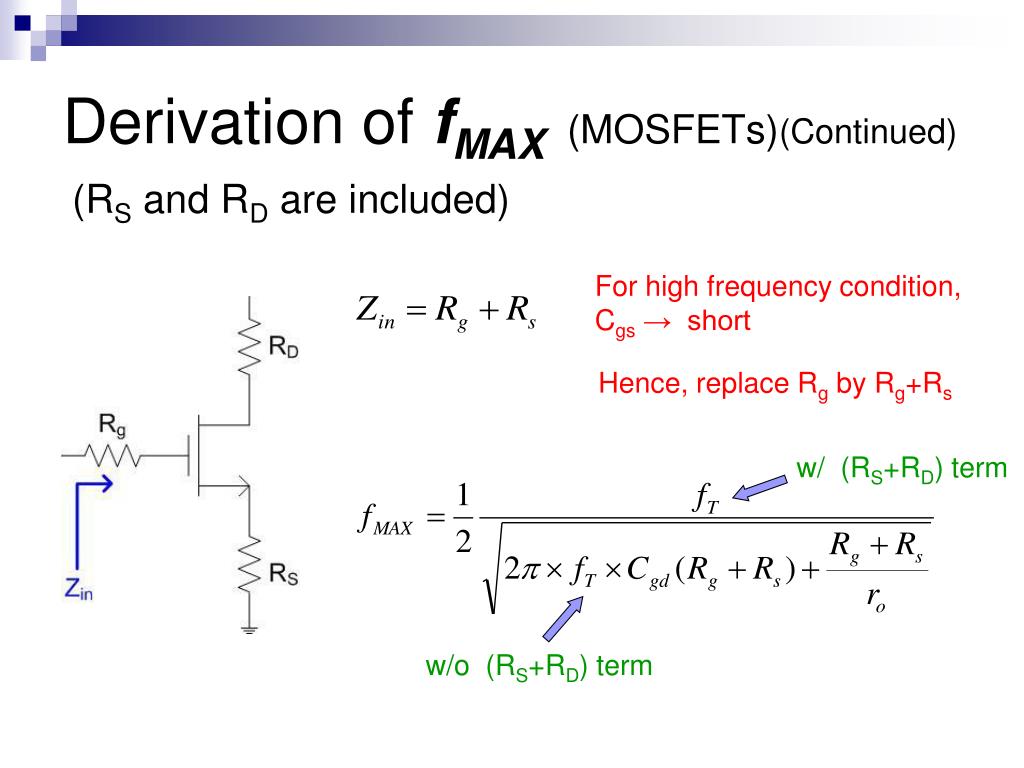

  10. Derivation of fMAX(MOSFETs)(Continued)(RS and RD are included) For high frequency condition, Cgs → short Hence, replace Rg by Rg+Rs w/ (RS+RD) term w/o (RS+RD) term

  11. Derivation of fTAnd fMAXof a BJT

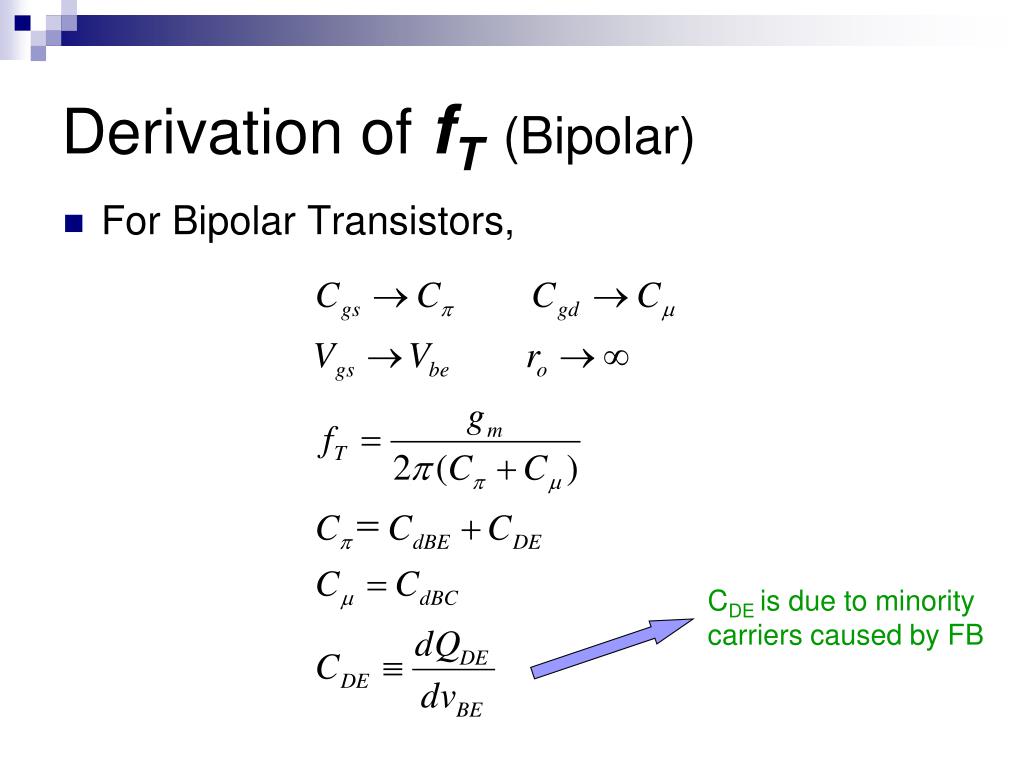

  12. Derivation of fT(Bipolar) • For Bipolar Transistors, CDE is due to minority carriers caused by FB

  13. Derivation of fT(Bipolar) (Continued) QE = minority holes stored in emitter QB = minority electrons stored in base QBE = electrons induced by the current through the depletion region of BE-junction QBC = electrons induced by the current through the depletion region of BC-junction

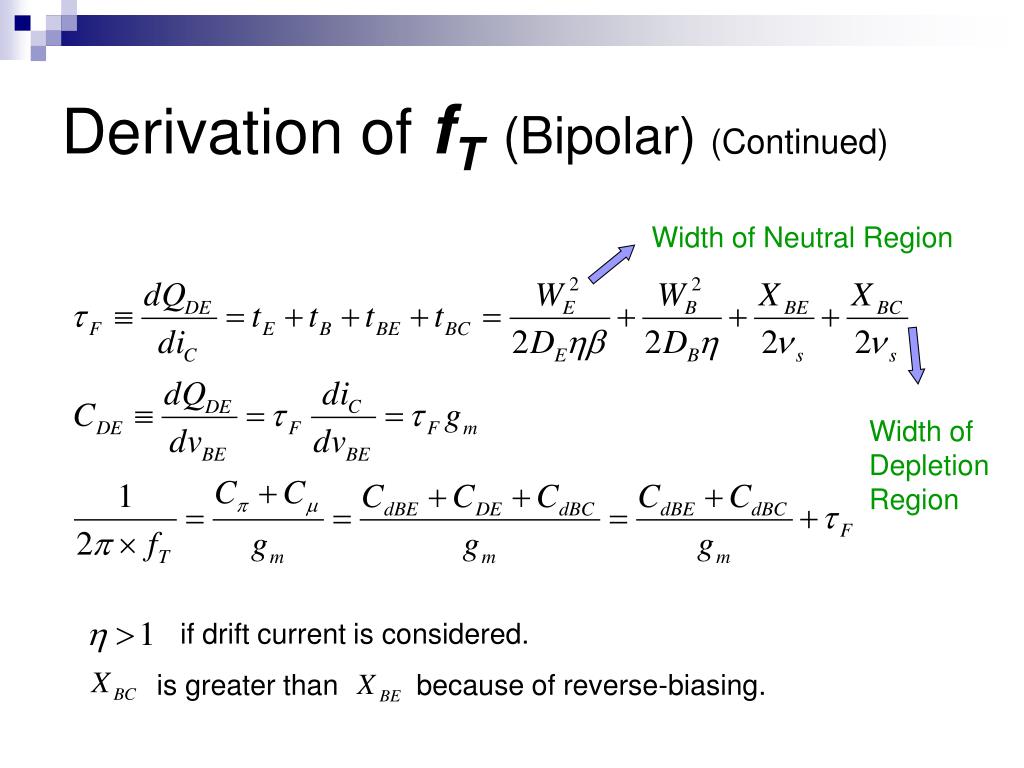

  14. Derivation of fT(Bipolar) (Continued) Width of Neutral Region Width of Depletion Region if drift current is considered. is greater than because of reverse-biasing.

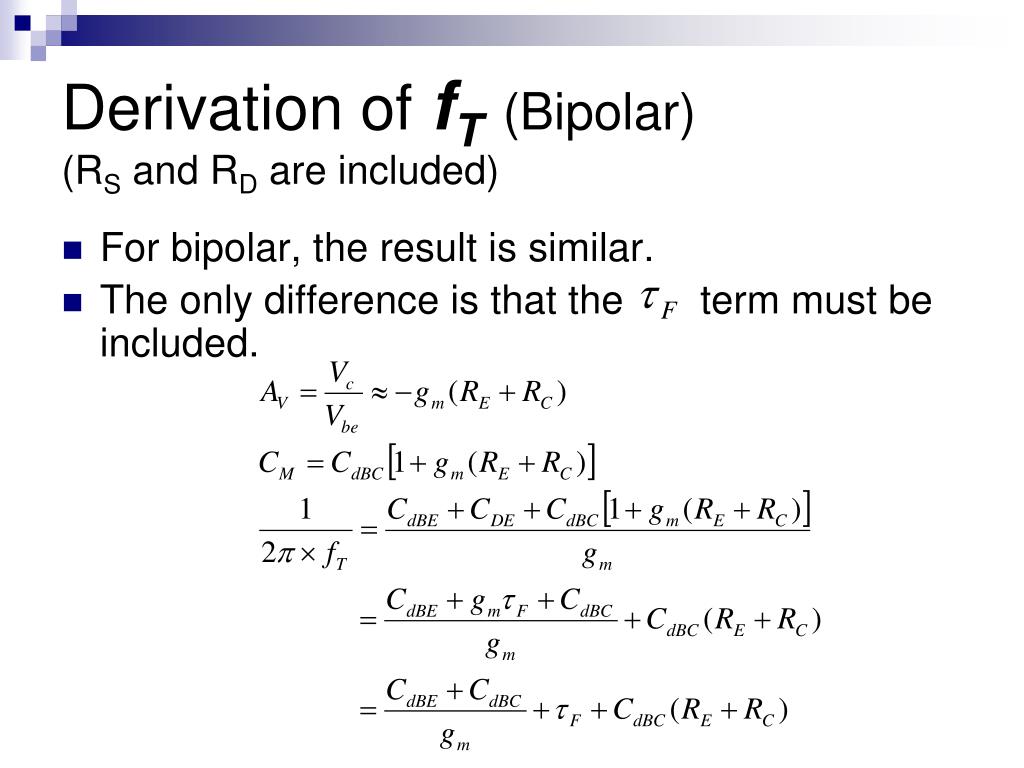

  15. Derivation of fT(Bipolar) (RS and RD are included) • For bipolar, the result is similar. • The only difference is that the term must be included.

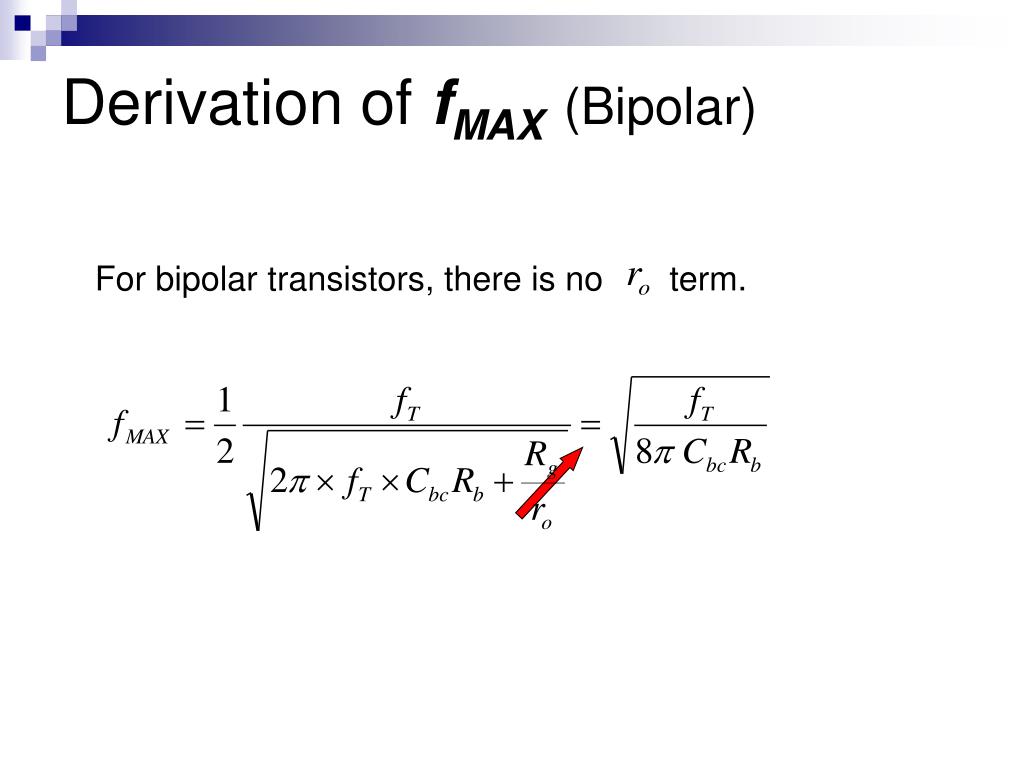

  16. Derivation of fMAX(Bipolar) For bipolar transistors, there is no term.
