  1. SVX software restructuring Hubert van Hecke, LANL May 02 2008 Hubert van Hecke - VTX Software 02 May 2008

  2. new code • svx.f constructs: • barrel • supports etc. fvtx.f constructs: 8 new fvtx planes calls or ifvtx.f constructs: 4 ldrd pixel planes or fvtx_old.f constructs: 8 old fvtx planes Hubert van Hecke - VTX Software 02 May 2008

  3. non-tilted planes Maki’s code merged No-tilt layers 3, 4 Ready to commit Hubert van Hecke - VTX Software 02 May 2008

  4. phnx.par $sili_cg_par common support structures, fvtx cages $sili_br_par barrel ladders, barrel cables and supports, big wheels $sili_endcap_par endcaps planes $sili_endcap_old_par old endcaps $sili_ifvtx_par LDRD pixel planes Hubert van Hecke - VTX Software 02 May 2008

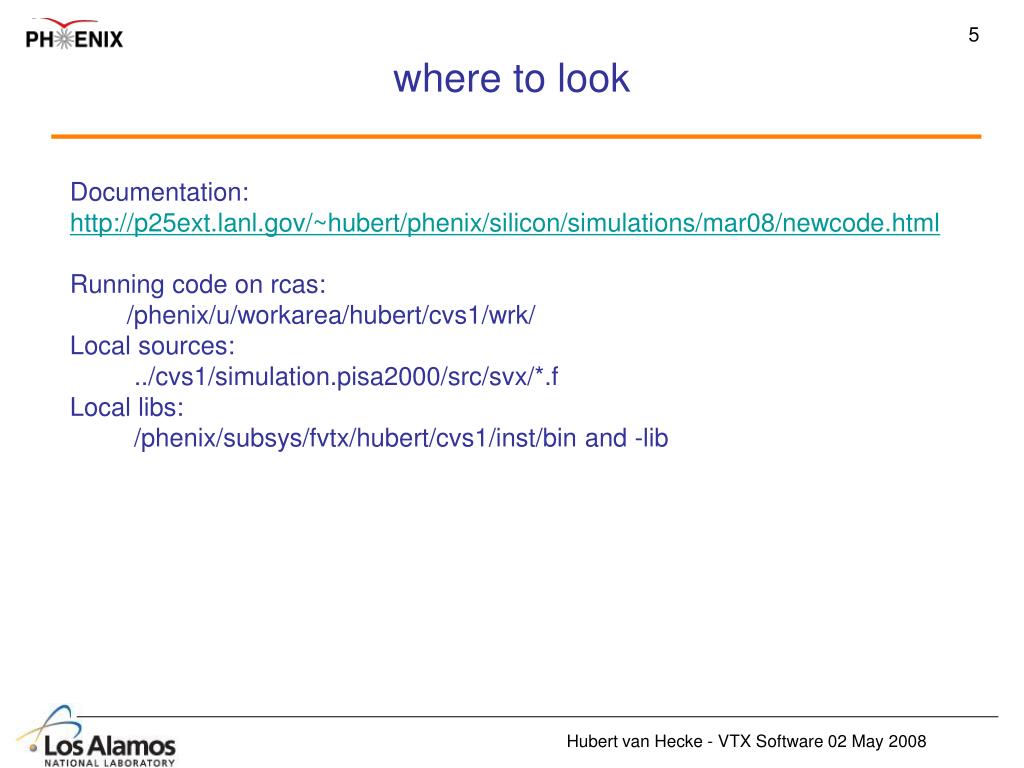

  5. where to look Documentation: http://p25ext.lanl.gov/~hubert/phenix/silicon/simulations/mar08/newcode.html Running code on rcas: /phenix/u/workarea/hubert/cvs1/wrk/ Local sources: ../cvs1/simulation.pisa2000/src/svx/*.f Local libs: /phenix/subsys/fvtx/hubert/cvs1/inst/bin and -lib Hubert van Hecke - VTX Software 02 May 2008
