Minicrates status

MiniCrates Status

  • ComponentsStatus (BTIM, TRB, CCB, SB)

  • MC production: quantity and rate, past and future

  • Production Schedule for the near future

Flavio Dal Corso INFN-Pd


Minicrates status

BTIM

  • Production completed (12500 modules).

  • Production of spare modules (≈600) still in progress.

CCB & SB

  • Production completed (250 boards + 40 spares)

Flavio Dal Corso INFN-Pd


Minicrates status

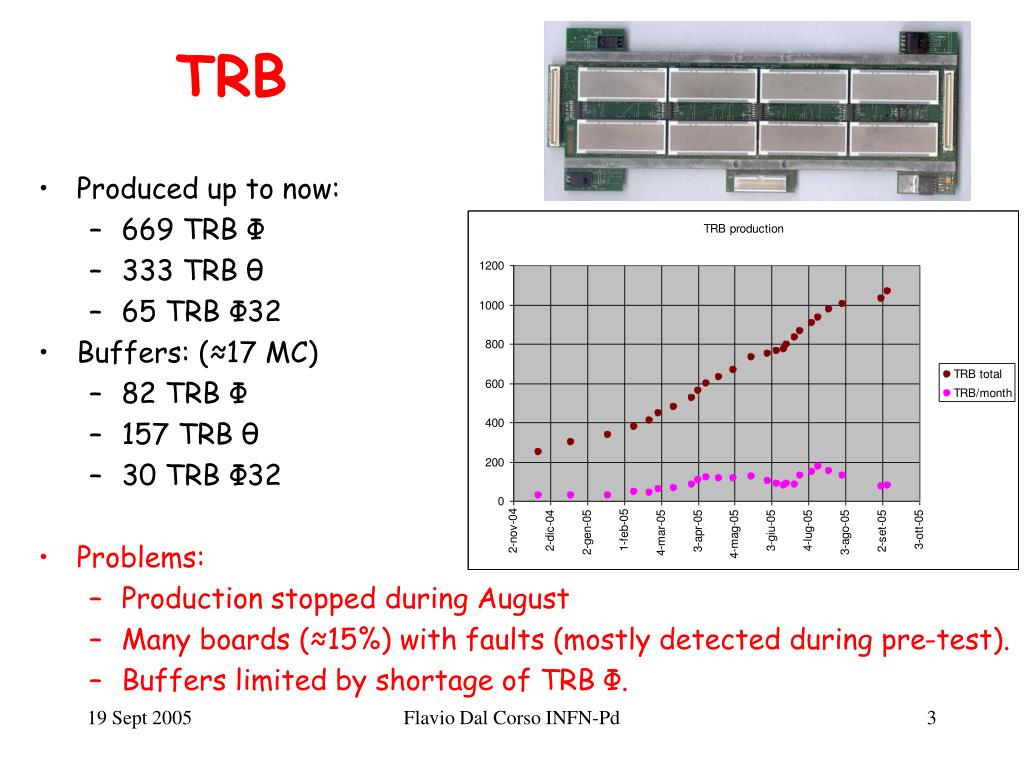

TRB

  • Produced up to now:

    • 669 TRB Φ

    • 333 TRB θ

    • 65 TRB Φ32

  • Buffers: (≈17 MC)

    • 82 TRB Φ

    • 157 TRB θ

    • 30 TRB Φ32

  • Problems:

    • Production stopped during August

    • Many boards (≈15%) with faults (mostly detected during pre-test).

    • Buffers limited by shortage of TRB Φ.

Flavio Dal Corso INFN-Pd


Minicrates status

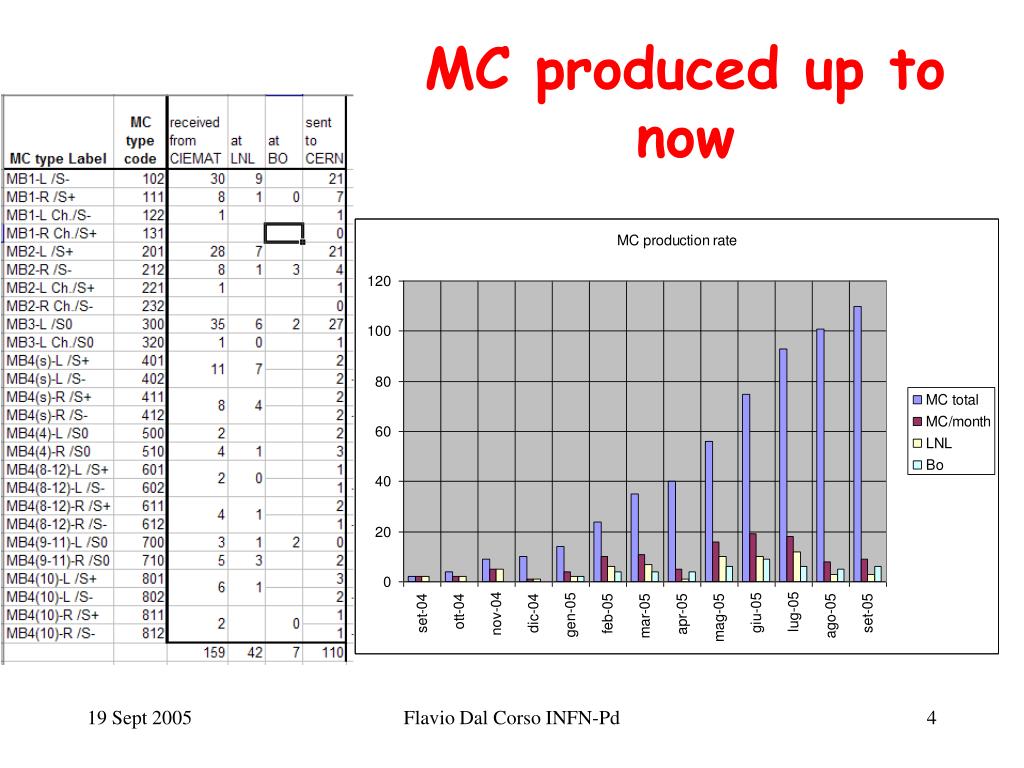

MC produced up to now

Flavio Dal Corso INFN-Pd


Mc produced details

110 MC delivered

71 installed

9 for the September installation (100% of the chambers to be installed)

21 for the November-December installation (67%)

9 for further installations.

MC produced: details

Flavio Dal Corso INFN-Pd


Forecast for the future

forecast for the future

Note: n. of TRB expressed as n. of equivalent MC. TRB production (and manpower) are the limiting factors.

Flavio Dal Corso INFN-Pd


Production schedule

Production Schedule

MC to be moved to Bologna

MC to be received from CIEMAT

Flavio Dal Corso INFN-Pd
