  1. Middleware and Muddleware:A Progress Report Ken Klingenstein, Project Director, Internet2 Middleware Initiative Chief Technologist, University of Colorado at Boulder

  2. Internet1 to Internet2 Challenges • Video • Sci apps • Multimodia • Telnet • web • email • Directories • Security • Agents • IP v4 • DNS • QoS • Multicast • IPv6

  3. Early Harvest results CIO study group and dissemination Next steps PKI - products and policies .eduorgperson tools Agenda

  4. eh? NSF goals best practices accelerate campus progress inform NSF Sept 23-24 Denver Workshop Dissemination Early Harvest Workshop

  5. Daniel Arrasjid SUNY, Buffalo Bob Brentrup Dartmouth Keith Brown Duke Mark Bruhn Indiana *Steve Carmody Brown Alan Crosswell Columbia Bill Doster Michigan *Michael Gettes Georgetown Frank Grewe Minnesota Annette Haworth Reading, England Keith Hazelton Wisconsin Paul Hill MIT Steve Kellogg Penn State ** Bob Morgan Washington * Mark Poepping Carnegie-Mellon David Wasley California President's Office Norm Wiseman JISC Steve Worona Cornell Participants

  6. Cuttings: Identifiers • “Any problem in Computer Science can be solved with another level of indirection” • Butler Lampson • “Except the problem of indirection complexity” • Bob Morgan

  7. General Identifier Characteristics • Uniqueness (within a given context) • Dumb vs intelligent (i.e. whether subfields have meaning) • Readability (machine vs human vs device) • Affordance (centrally versus locally provided) • Resolver approach (how identifier is mapped to its associated object) • Metadata (both associated with the assignment and resolution of an identifier) • Persistence (permanence of relationship between identifier and specific object) • Granularity (degree to which an identifier denotes a collection or component) • Format (checkdigits) • Versions (can the defining characteristics of an identifier change over time) • Capacity (size limitations imposed on the domain or object range) • Extensibility (the capability to intelligently extend one identifier to be the basis for another identifier).

  8. Major campus identifiers • UUID • Person registry id • Account login/ Netid • Email address • Library/deptl id • Publicly visible id (and pseudossn) • Pseudononmyous id

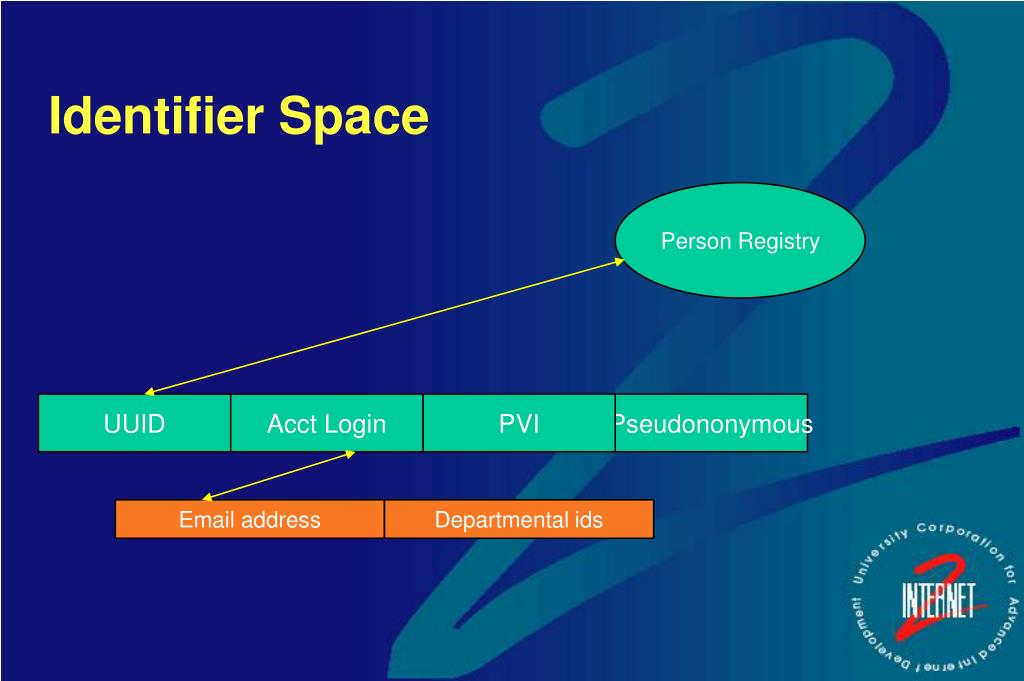

  9. Identifier Space Person Registry UUID Acct Login PVI Pseudononymous Email address Departmental ids

  10. UUID • Purpose - primary internal identifier, used for file access, group membership • Characteristics - machine readable, centrally provided, eternal, large capacity

  11. Person registry id • Purpose - resolve ambiguities on identity; critical to distributed and outreaching activities • Characteristics - opaque, centrally provided but locally administered, eternal, very large capacity, • Very labor intensive; resolver is human • Stored in a database, not a directory • Keyed off of UUID where possible

  12. Account login/Net • Purpose - login to campus resources (email, net) • Characteristics - human readable, centrally provided, resolved via authentication process, not necessarily eternal, limited capacity, extensible to groups

  13. Email Address • Purpose - email, human-friendly global identifier • Characteristics - human-readable, centrally provided, resolved via sendmail or LDAP, • Less agreement - persistence

  14. Departmental Id • Purpose • Characteristics

  15. Publicly visible identifier • Purpose - post grades publicly, resolve directory inquiries • Characteristics - human readable but dumb, resolved through directory, centrally afforded, need not be eternal,

  16. Pseudononymous identifier • Purpose - access academic resources such as Libraries • Characteristics - centrally provided, machine readable, • Uncertain - persistence, capacity

  17. Cuttings: Authentication • user password management - crack, change, compromise • central password management - change, audit, • first password assignment - secure delivery • policies and practices - scope of use

  18. User password management • Good practices • Precrack new passwords • Confirm new passwords are different than old • Require password change if possibly compromised • Use shared secrets or positive photo-id to reset forgotten passwords • Password aging seems to do more harm than good

  19. First password assignment • Good practices • USmail a one-time password • In-person with a photo id (some require two) • For remote faculty or staff,, an authorized departmental rep in person coupled with a faxed photo-id. • Uncommon approaches

  20. Beyond Passwords • Shared secrets • Challenge-response (S/Key, Smart Card) - for certain secure accounts • X.509 - no one using yet • Biometrics - no one using yet

  21. Cuttings: Directories • Overall campus directory services model • Enterprise directory design and implementation • Departmental directories • Security and directories

  22. Overall Campus Directory Structure Border directory Metadirectory Enterprise directory Departmental directories OS directories (MS, Novell, etc) Dir DB

  23. Key directory issues • legacies -DCE, NDS, NT, etc. • applications - Peoplesoft, SAP • future application development platforms • authority and data ownership

  24. Enterprise directory issues • Schema, referrals and redundancy • Naming • Attributes • Replication and synchronization • Groups

  25. Schema Issues • Overall logical design • Inheritance of policy and attributes • Referral to other parts of the tree • Delegation, replication, synchronization

  26. Schema Best Practices • People, machines, services • Be very flat in people space • Create a “campus person” • Keep accounts as attributes, not as an ou • Replication not a primary driver in schema • Group policies not a primary driver in schema • New DNS hack to serve directory locations • No trolling permitted; more search than read

  27. Naming Issues • RDN • Other keys • Preserving name space

  28. Naming Best Practices • dc= as a name versus c=, ou= • RDN may well be UUID

  29. Attribute Best Practices • Never repurpose an RFC defined field; add new attributes • Adding attributes is easier than thought • Keep schema checking on, unless it is done in the underlying database; watch performance • Most LDAP clients do not treat multi-valued attributes well, but doing multiple fields and separate dn’s no better.

  30. Groups Best Practices • Limit size and use (e.g. no email) but allow user creation • Web access to group lists avoids multivalue problems • Supply key institutional groups (class lists, Y2K coords) centrally • Performance issues need to be watched

  31. Groups Uncertainties • no consensus on where to store • as a schema attribute for individuals • as a separate entry within overall hierarchy • some variations on naming • within user name space • may augment with group or owner indicator

  32. CIO Study Group • Not the usual suspects • Commitment to move implementation forward • Provided some training and facilitated support • RFP this month

  33. Dissemination • Web Site • Educause articles • Presentation at I2 Fall meeting, Educause Conf, CNI • Regional workshops

  34. Next steps • PKI • .eduorgperson • killer glue • viable products

  35. PKI Components • X.509 certificates, PKCS • CA’s and CRLS • profiles, policies and practices • trust models • viable products

  36. X.509 and PKCS • X.509 defines certificates, trust models, and uses • PKCS defines critical implementation details - eg specific encryption algorithm choices, key formats for portability, etc. • PKCS is RSA-oriented; patent burning party next year.

  37. Higher Ed PKI Open Issues • profiles - common certificate templates for standard academic uses • policies - stating eligibilities, roles and responsibilities • practices - standard specific operating conventions • trust models - hierarchy, bridge, none; on and off-campus • viable products - cost, flexible, mobility, integration with embedded bases, public domain/open source alternatives • research opportunities - apps that use policies

  38. PKI process issues • how should planning and direction be done? • How can the research opportunities be realized?

  39. .eduorgperson • Is there a need for a multicampus subschema • What is the right granularity - BigN, CSG, I2, edu • How to define and populate to minimize redundancies • Is there an oid arc for education/research

  40. Killer Glue • Interoperable web page authentication - an Apache module • Interoperable secure directories bindings • Retooling apps to use @ identifiers • Enable interinstitutional resource sharing • Encourage transition from htaccess protection to LDAP protection • Corporate help?

  41. Vendor discounts/ public domain • Directory and metadirectory software • DCE • PKI • fPKI work - • http://csrc.nist.gov/pki/twg/welcome.html • Van Dyke and Associates; Cygnacom public domain pieces • Jonah from IBM
