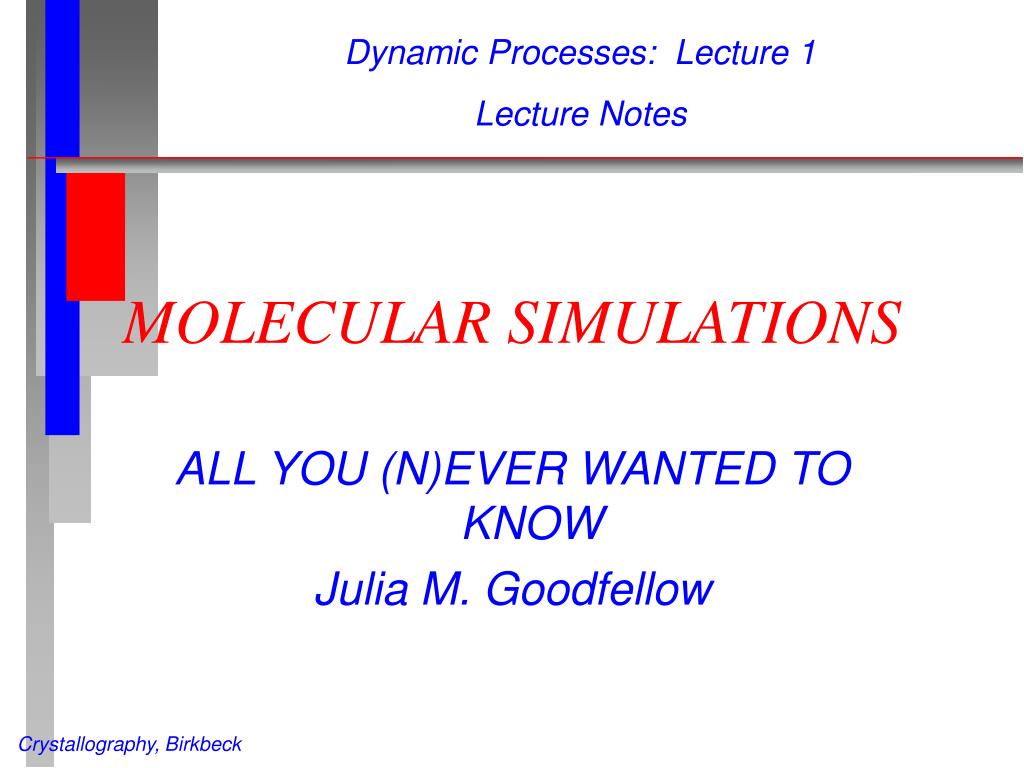

Molecular simulations

Dynamic Processes: Lecture 1

Lecture Notes

MOLECULAR SIMULATIONS

ALL YOU (N)EVER WANTED TO KNOW

Julia M. Goodfellow


Why do simulations
WHY DO SIMULATIONS?

Numerical simulations fall between experiments and theoretical methods

  • Where there are no available experimental data

  • Where it is difficult or impossible to get exptl data

  • Add atomic insight

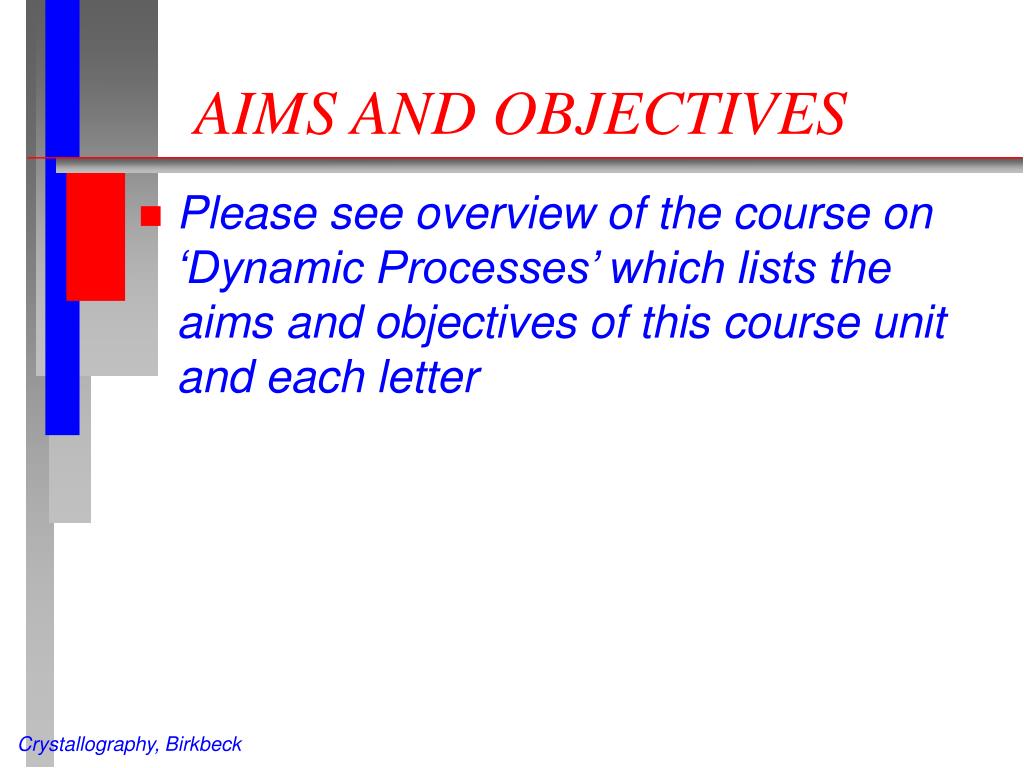

Aims and objectives
AIMS AND OBJECTIVES

  • Please see overview of the course on ‘Dynamic Processes’ which lists the aims and objectives of this course unit and each letter

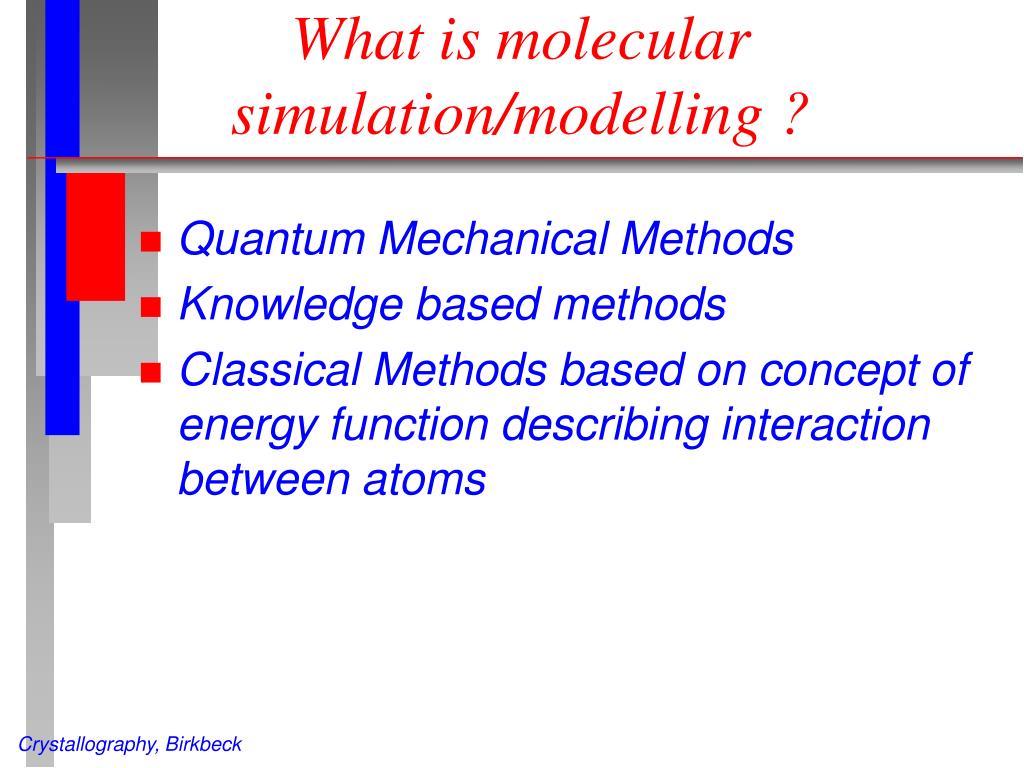

What is molecular simulation modelling
What is molecular simulation/modelling ?

  • Quantum Mechanical Methods

  • Knowledge based methods

  • Classical Methods based on concept of energy function describing interaction between atoms


Conformation

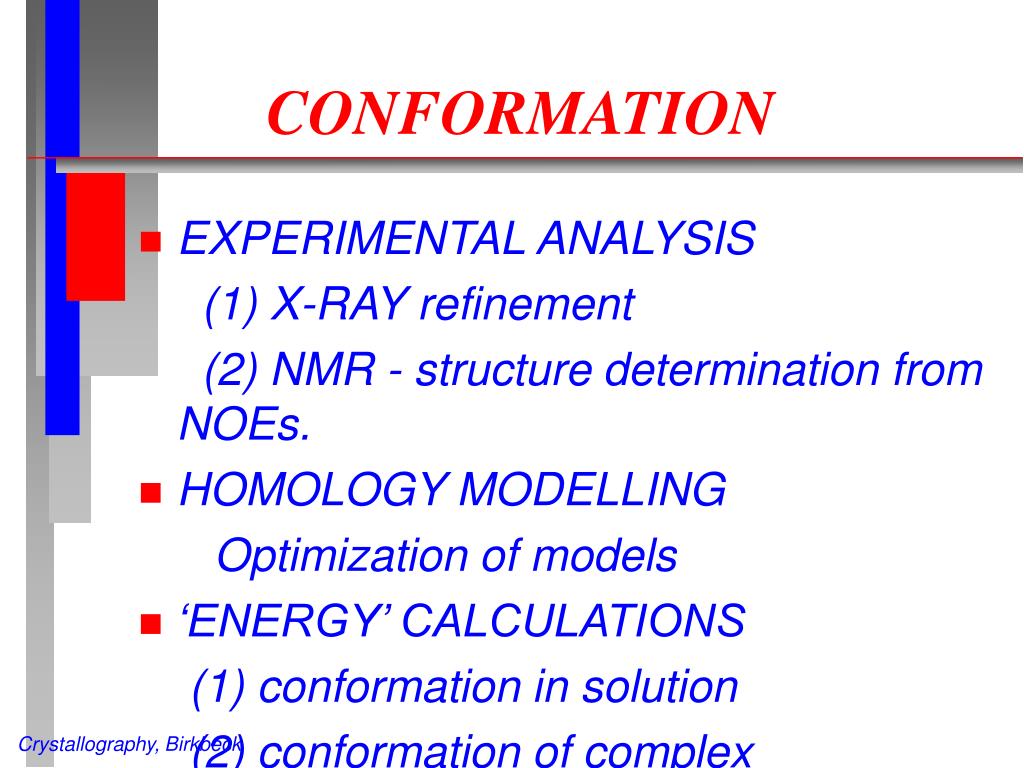

CONFORMATION

  • EXPERIMENTAL ANALYSIS

    (1) X-RAY refinement

    (2) NMR - structure determination from NOEs.

  • HOMOLOGY MODELLING

    Optimization of models

  • ‘ENERGY’ CALCULATIONS

    (1) conformation in solution

    (2) conformation of complex

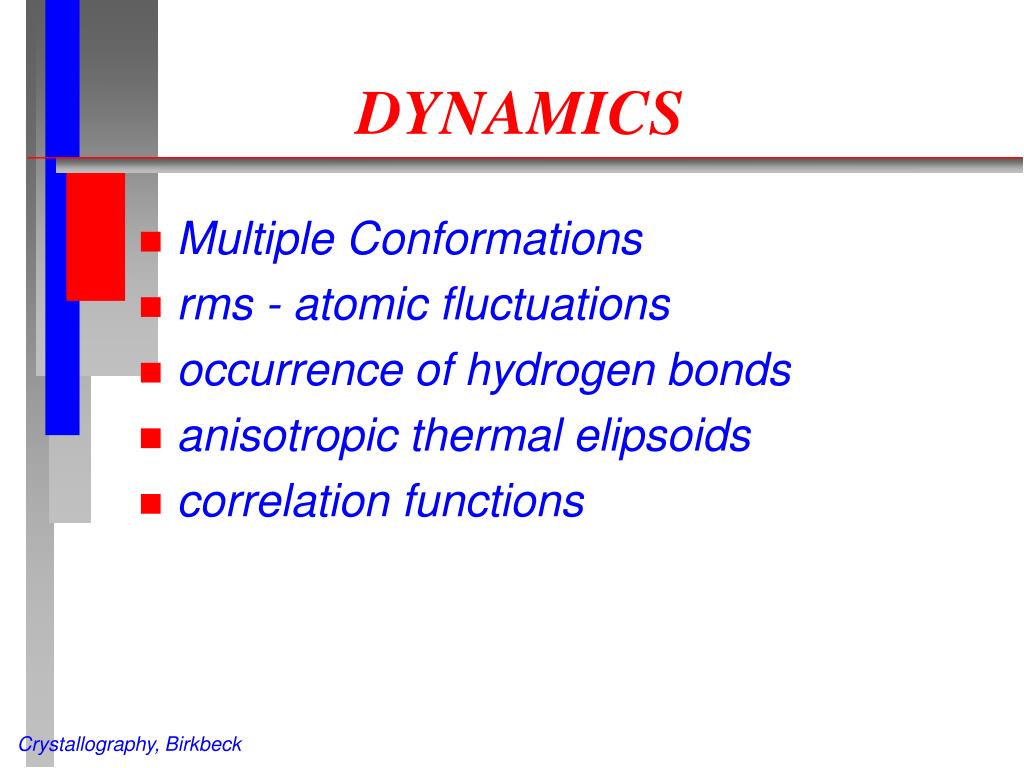

Dynamics
DYNAMICS

  • Multiple Conformations

  • rms - atomic fluctuations

  • occurrence of hydrogen bonds

  • anisotropic thermal elipsoids

  • correlation functions

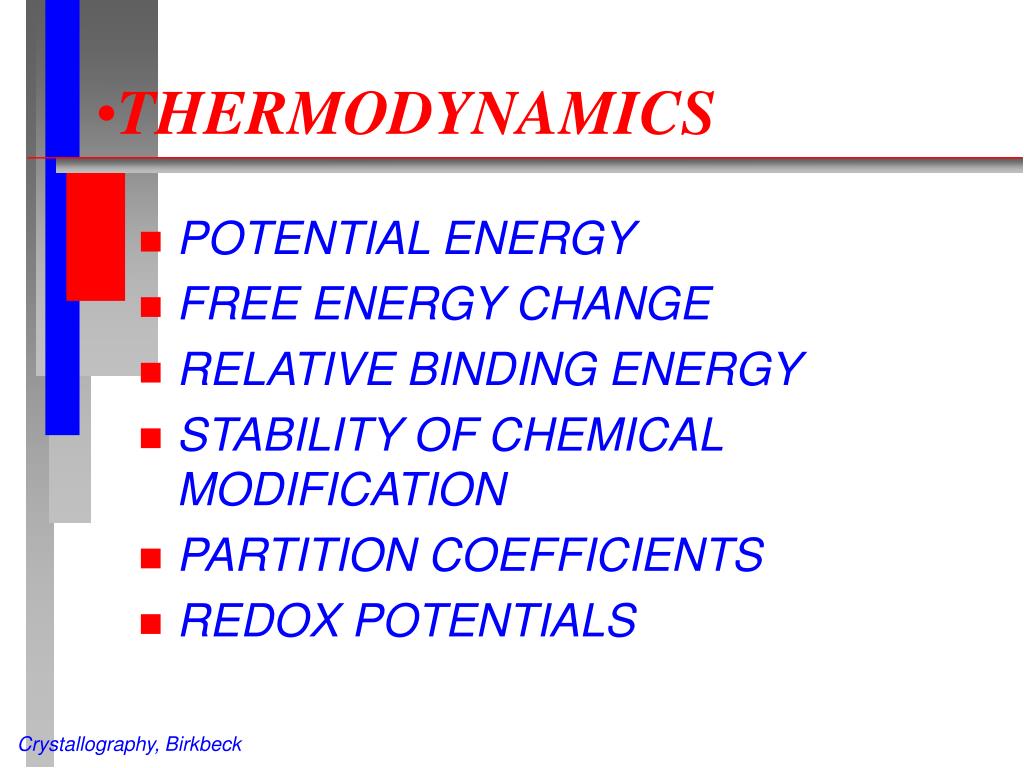

Thermodynamics
THERMODYNAMICS

  • POTENTIAL ENERGY

  • FREE ENERGY CHANGE

  • RELATIVE BINDING ENERGY

  • STABILITY OF CHEMICAL MODIFICATION

  • PARTITION COEFFICIENTS

  • REDOX POTENTIALS

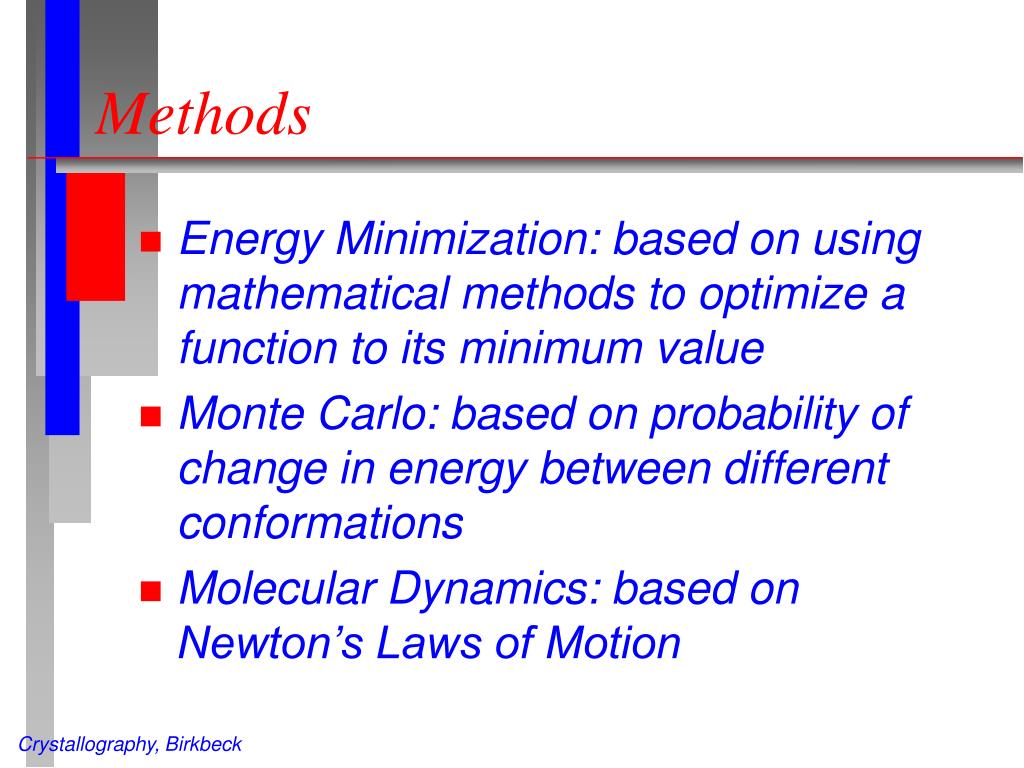

Methods
Methods

  • Energy Minimization: based on using mathematical methods to optimize a function to its minimum value

  • Monte Carlo: based on probability of change in energy between different conformations

  • Molecular Dynamics: based on Newton’s Laws of Motion


Monte carlo simulations

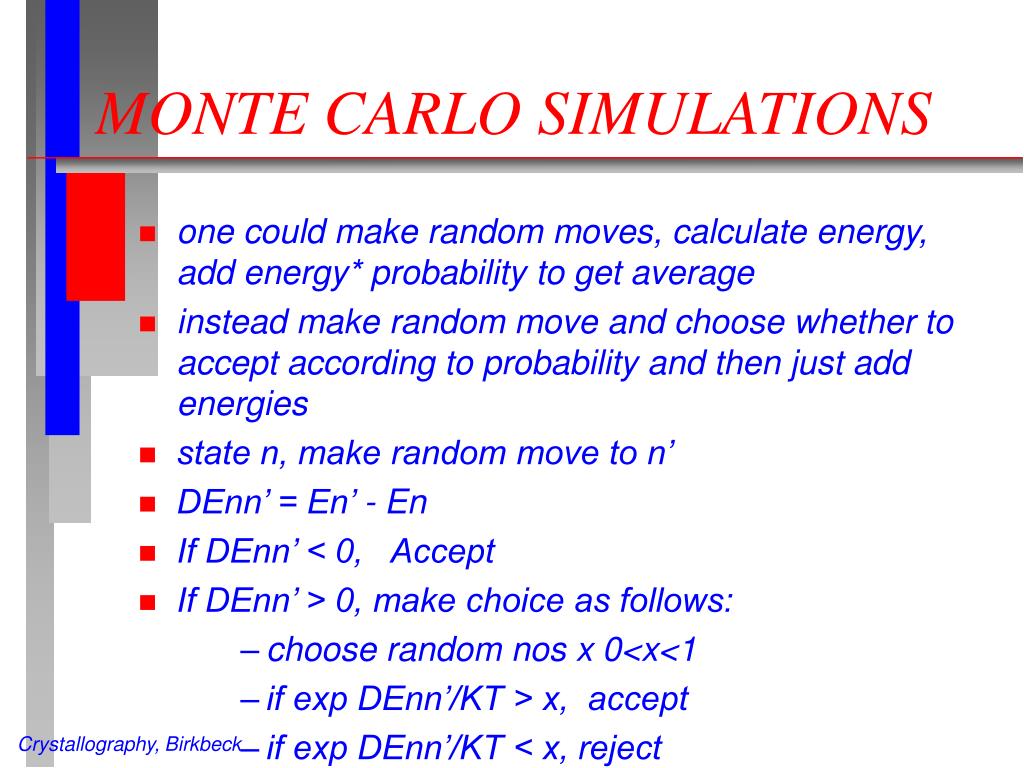

MONTE CARLO SIMULATIONS

  • one could make random moves, calculate energy, add energy* probability to get average

  • instead make random move and choose whether to accept according to probability and then just add energies

  • state n, make random move to n’

  • DEnn’ = En’ - En

  • If DEnn’ < 0, Accept

  • If DEnn’ > 0, make choice as follows:

    • choose random nos x 0<x<1

    • if exp DEnn’/KT > x, accept

    • if exp DEnn’/KT < x, reject


Molecular dynamics
Molecular Dynamics

  • Uses time trajectory as systems evolves due to Newton’s Laws of Motion

  • F = M x A

  • know mass & calculate force from derivative of potential energy, so get acceleration A

  • a = dV/dt where v is velocity

  • v = dx/dt where x is position

  • Solve differential equations numerically using standard methods Verlet, Beeman, Gear

  • solutions are iterative over small time steps typically 1 fs;

  • generates trajectory through microstates which obey ensemble constraint (NVT) and hence one can calculate averages


Non standard techniques

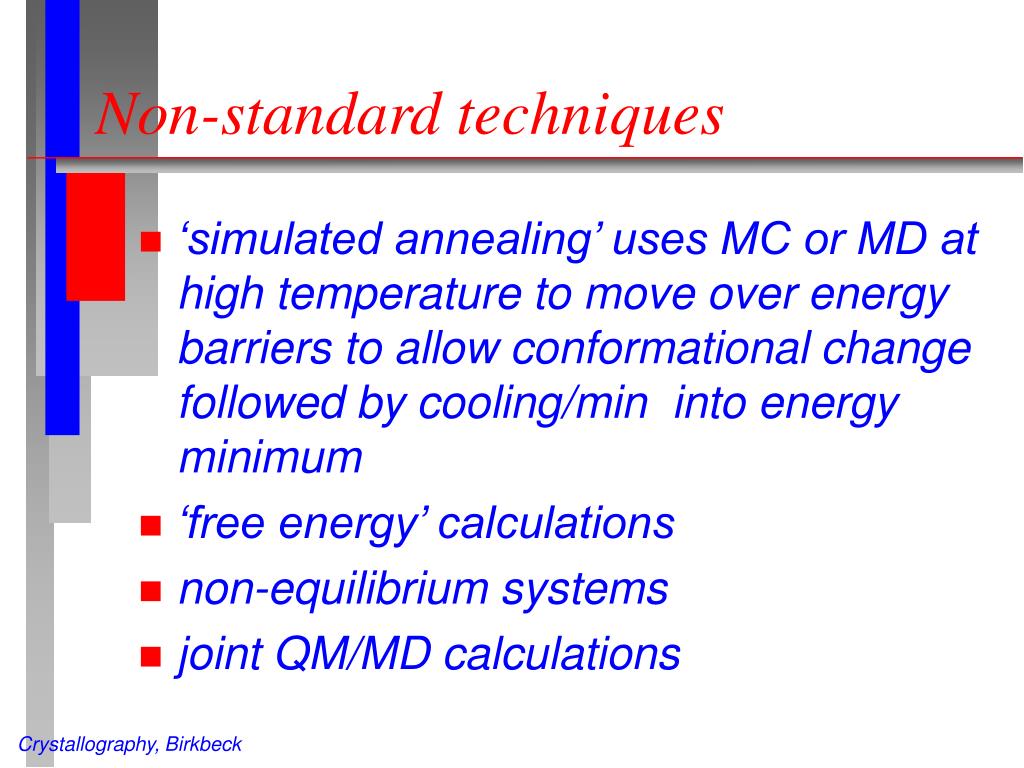

Non-standard techniques

  • ‘simulated annealing’ uses MC or MD at high temperature to move over energy barriers to allow conformational change followed by cooling/min into energy minimum

  • ‘free energy’ calculations

  • non-equilibrium systems

  • joint QM/MD calculations


Statistical mechanics

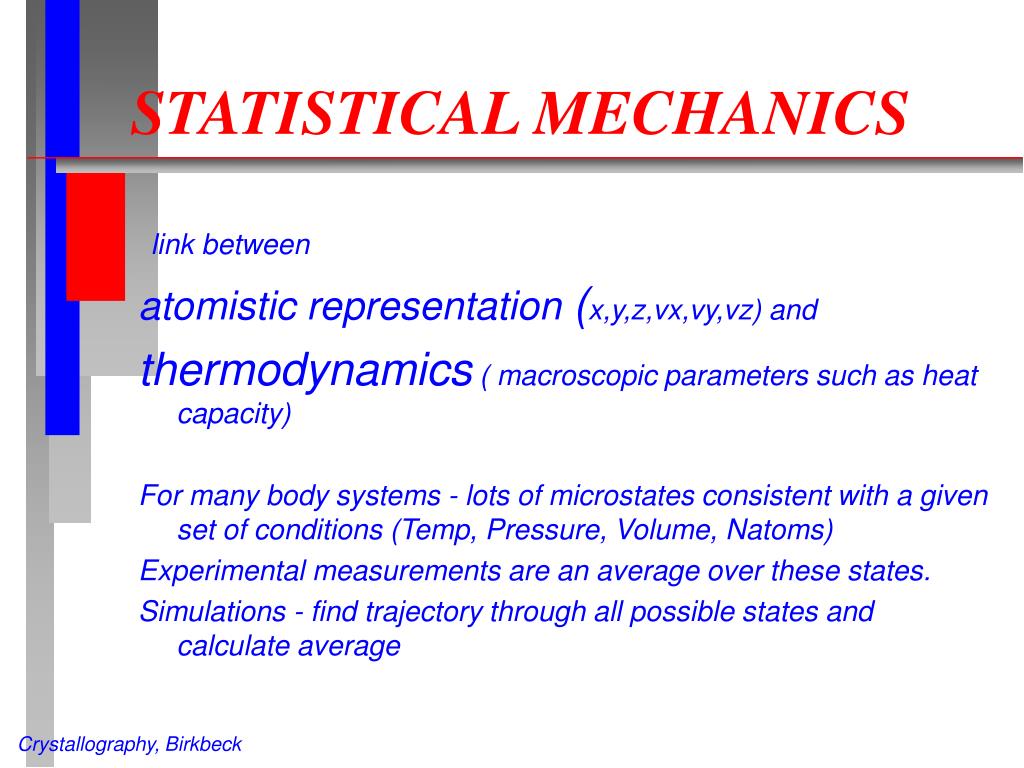

STATISTICAL MECHANICS

link between

atomistic representation (x,y,z,vx,vy,vz) and

thermodynamics ( macroscopic parameters such as heat capacity)

For many body systems - lots of microstates consistent with a given set of conditions (Temp, Pressure, Volume, Natoms)

Experimental measurements are an average over these states.

Simulations - find trajectory through all possible states and calculate average


Force fields
FORCE FIELDS

  • What interactions are important ?

  • How do you represent them ?

  • How do you parameterize them ?

    Bond deformation, Bond Angle deform.,

    Torsion angles, improper torsion, cross-terms

    van der Waals, electrostatics, 1-4 electrostatics

    hydrogen bonding

    Solvent


Software and hardware

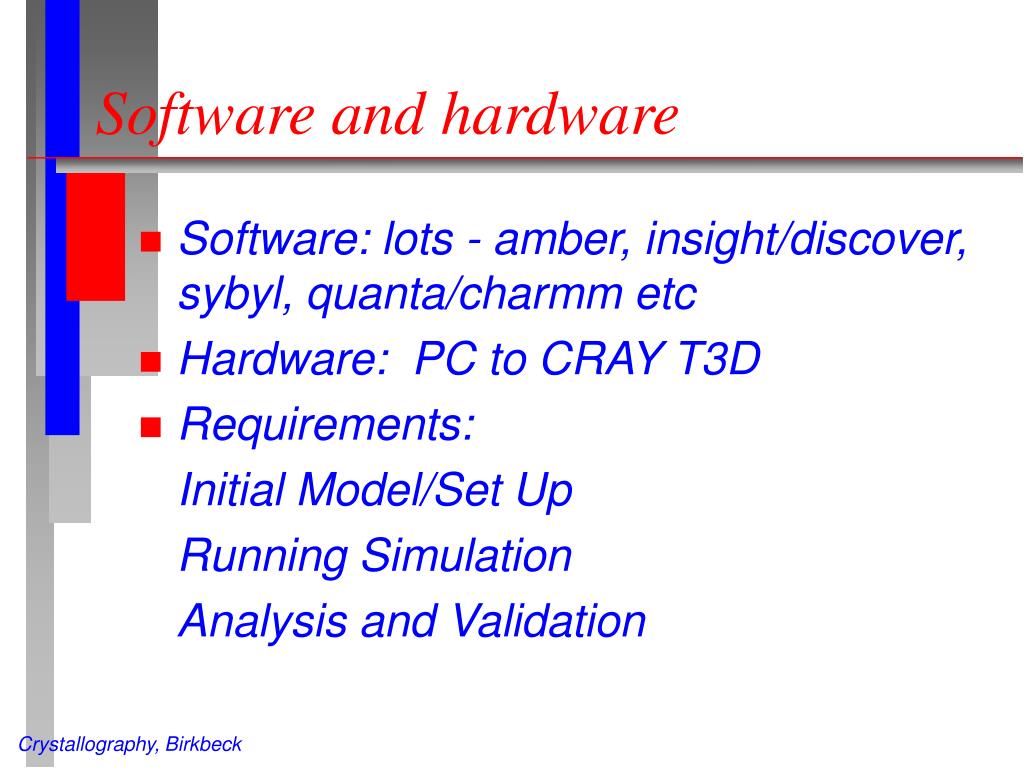

Software and hardware

  • Software: lots - amber, insight/discover, sybyl, quanta/charmm etc

  • Hardware: PC to CRAY T3D

  • Requirements:

    Initial Model/Set Up

    Running Simulation

    Analysis and Validation


Initial requirements

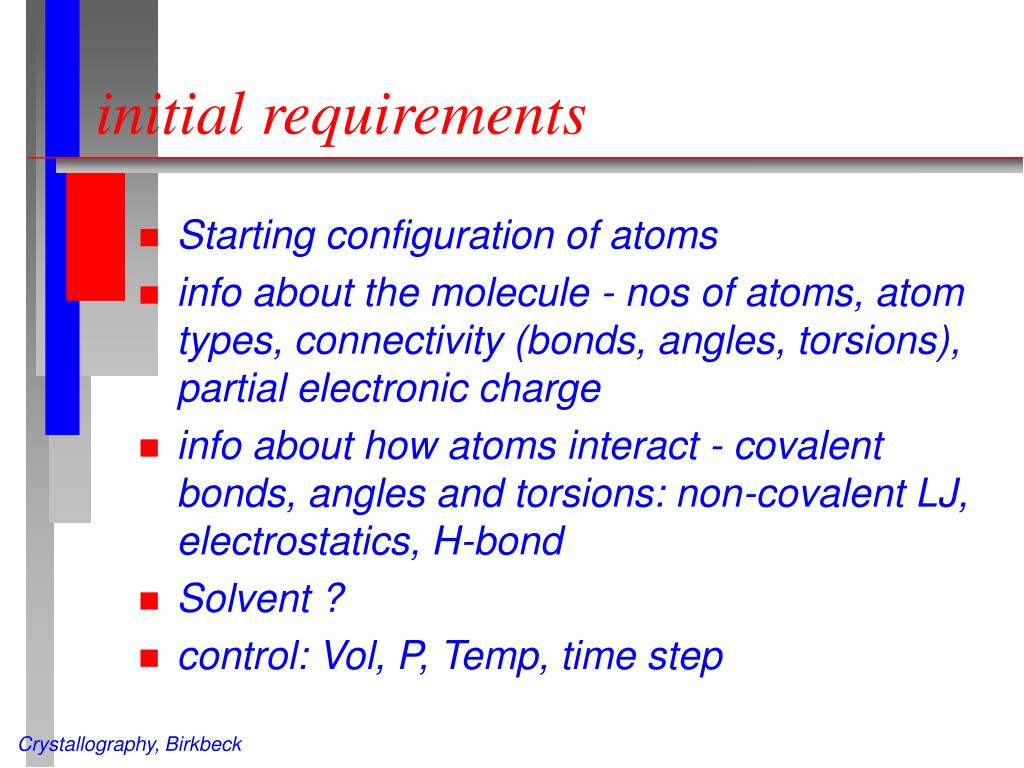

initial requirements

  • Starting configuration of atoms

  • info about the molecule - nos of atoms, atom types, connectivity (bonds, angles, torsions), partial electronic charge

  • info about how atoms interact - covalent bonds, angles and torsions: non-covalent LJ, electrostatics, H-bond

  • Solvent ?

  • control: Vol, P, Temp, time step


Validation

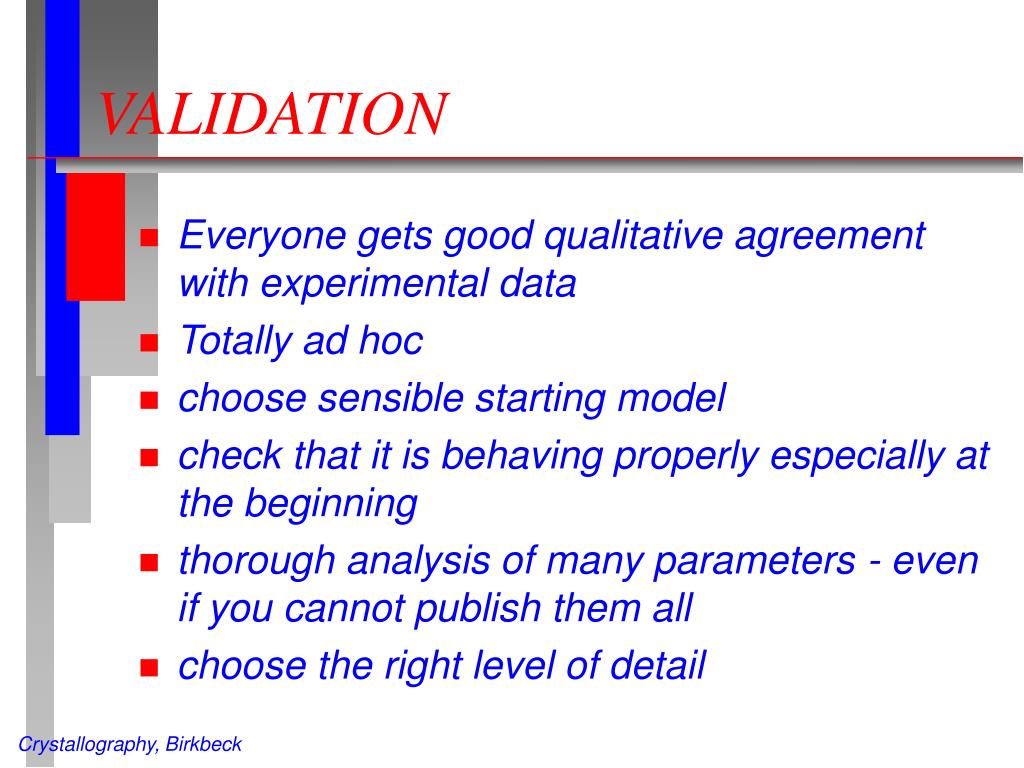

VALIDATION

  • Everyone gets good qualitative agreement with experimental data

  • Totally ad hoc

  • choose sensible starting model

  • check that it is behaving properly especially at the beginning

  • thorough analysis of many parameters - even if you cannot publish them all

  • choose the right level of detail

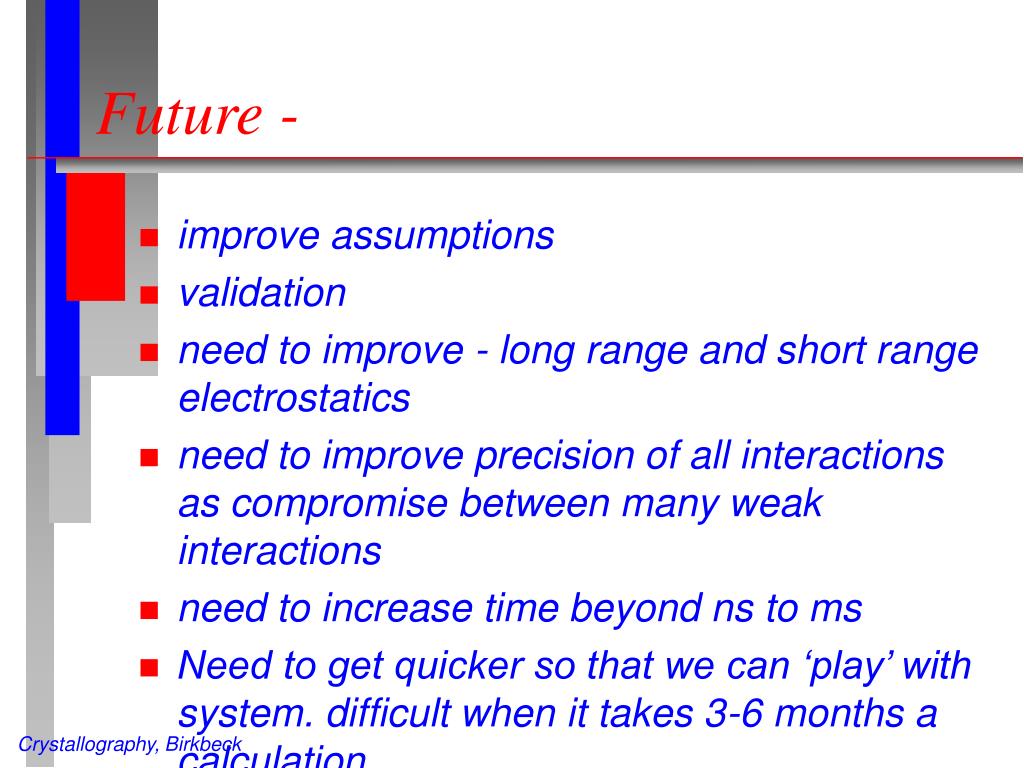

Future
Future -

  • improve assumptions

  • validation

  • need to improve - long range and short range electrostatics

  • need to improve precision of all interactions as compromise between many weak interactions

  • need to increase time beyond ns to ms

  • Need to get quicker so that we can ‘play’ with system. difficult when it takes 3-6 months a calculation


Atomistic simulations
ATOMISTIC SIMULATIONS

  • APPLICATION AREAS

    (A) environmental effects on peptide stability: role of solvents in stabilising/ destabilising secondary structure

    (B) conformation of chemically modified dnas

  • NOVEL ALGORITHMS

    Protein folding/unfolding - solvent insertion into cavities; stability and unfolding of different protein architecture

  • VALIDATION

    development of systematic protocols for assessing simulations
