  1. Shield Metal Arc Welding BY AKEEL JAMES BIGGART 8TH AUGUST 2013

  2. What is Shield Metal Arc Welding • An arc welding process that uses a flux-coated consumable rod electrode and it also referred to as SMAW or stick welding.

  3. OSHA WELDING SAFETY • Safety Work Procedures For Shield Metal Arc Welding

  4. Personal Protective Equipment

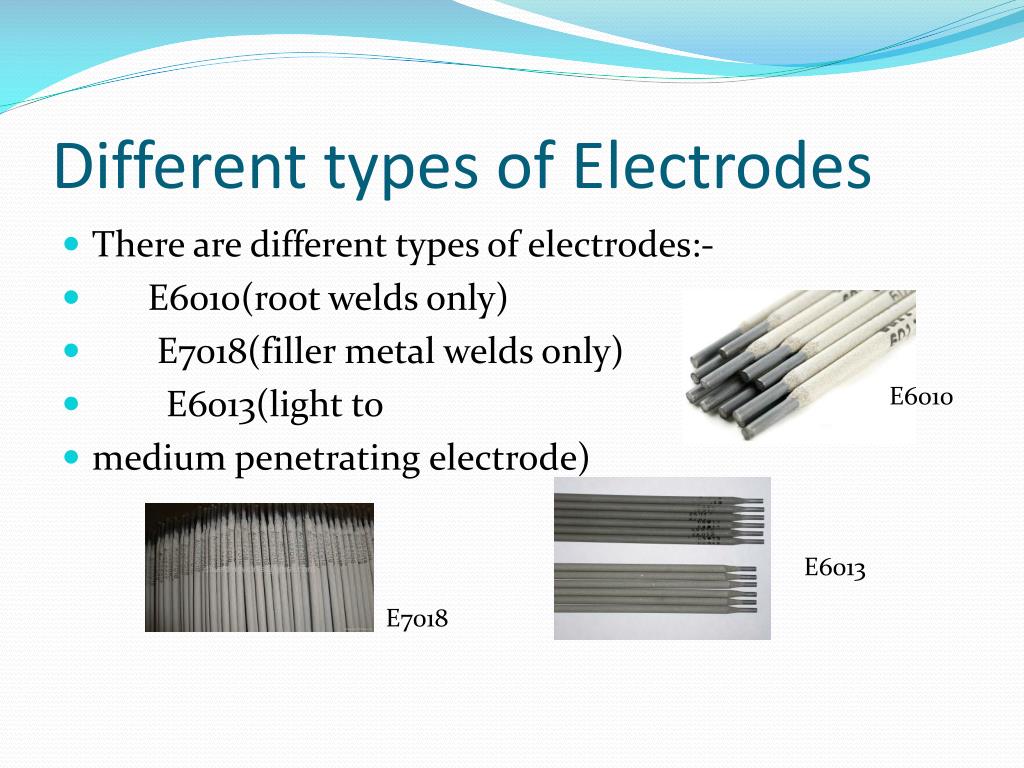

  5. Different types of Electrodes • There are different types of electrodes:- • E6010(root welds only) • E7018(filler metal welds only) • E6013(light to • medium penetrating electrode) E6010 E6013 E7018

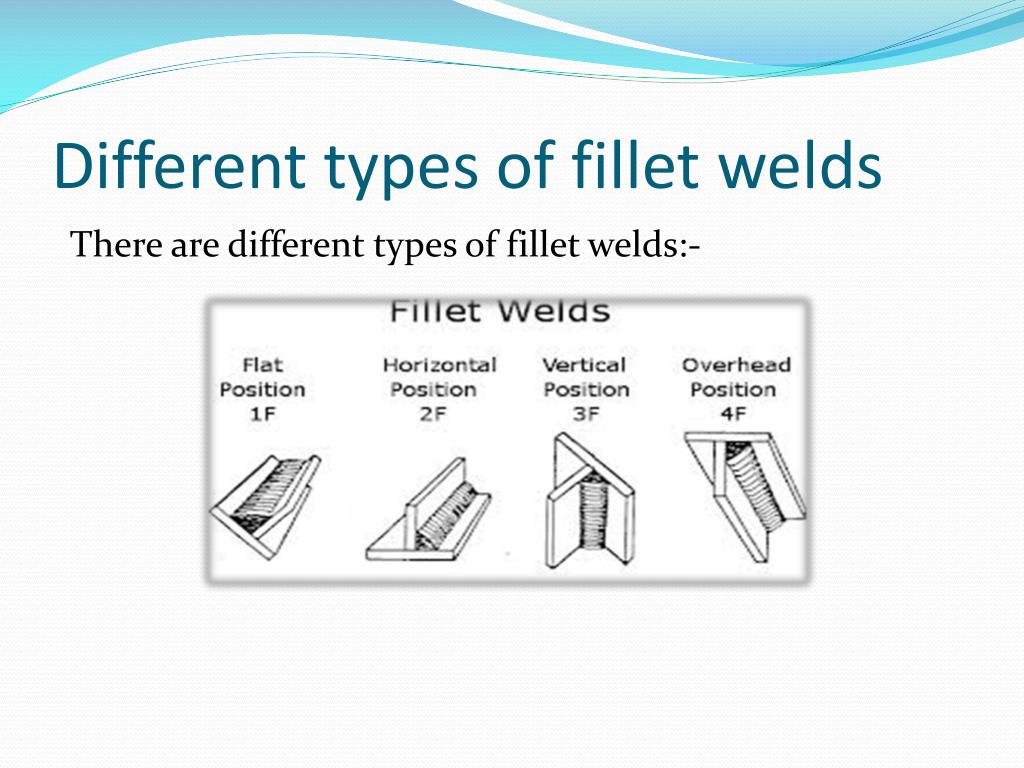

  6. Different types of fillet welds There are different types of fillet welds:-

  7. Different types of groove welds • There are different types of groove welds:-

  8. Injuries about Shield Metal Arc Welding

  9. Pictures relating on Shield Metal Arc Welding Injuries

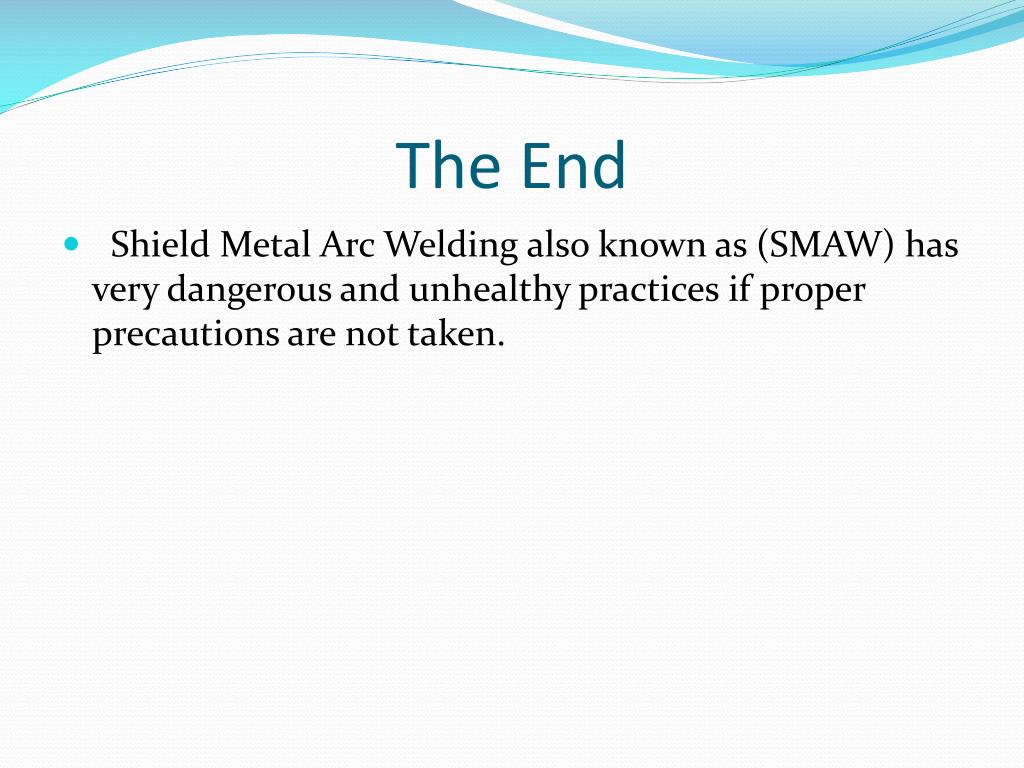

  10. The End • Shield Metal Arc Welding also known as (SMAW) has very dangerous and unhealthy practices if proper precautions are not taken.
