  1. HydraCAD V50 Spring 2009

  2. The Top 21 (in no particular order) • #1 – No Gold Key- easier to transport between computers

  3. The Top 21 (in no particular order) • #2 – No Drawing Limits - positive or negative coordinates

  4. The Top 21 (in no particular order) • #3 – No Limit to Number of Heads and Pipes ∞

  5. The Top 21 (in no particular order) • #4 – SMaRT Drawing All The Time- no need to figure riser nipples, drops, sprigs, head elevations, hanger lengths - even sloping pipe!

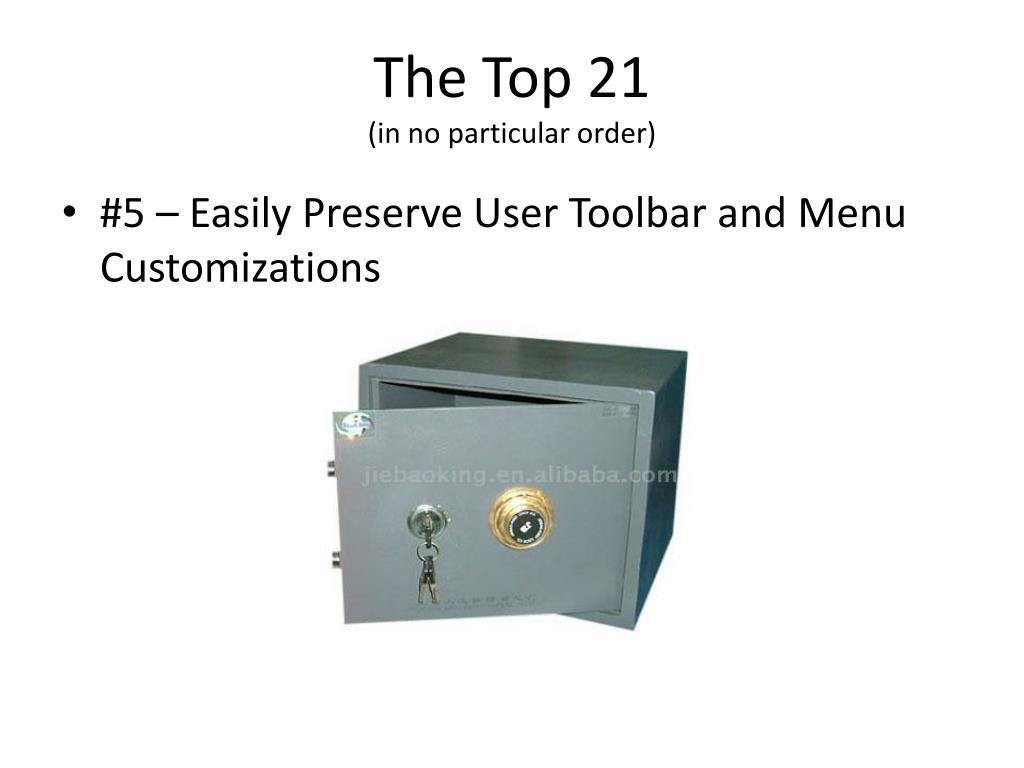

  6. The Top 21 (in no particular order) • #5 – Easily Preserve User Toolbar and Menu Customizations

  7. The Top 21 (in no particular order) • #6 – Move Main/Move Line Commands • - Erase Main and Erase Line, too!

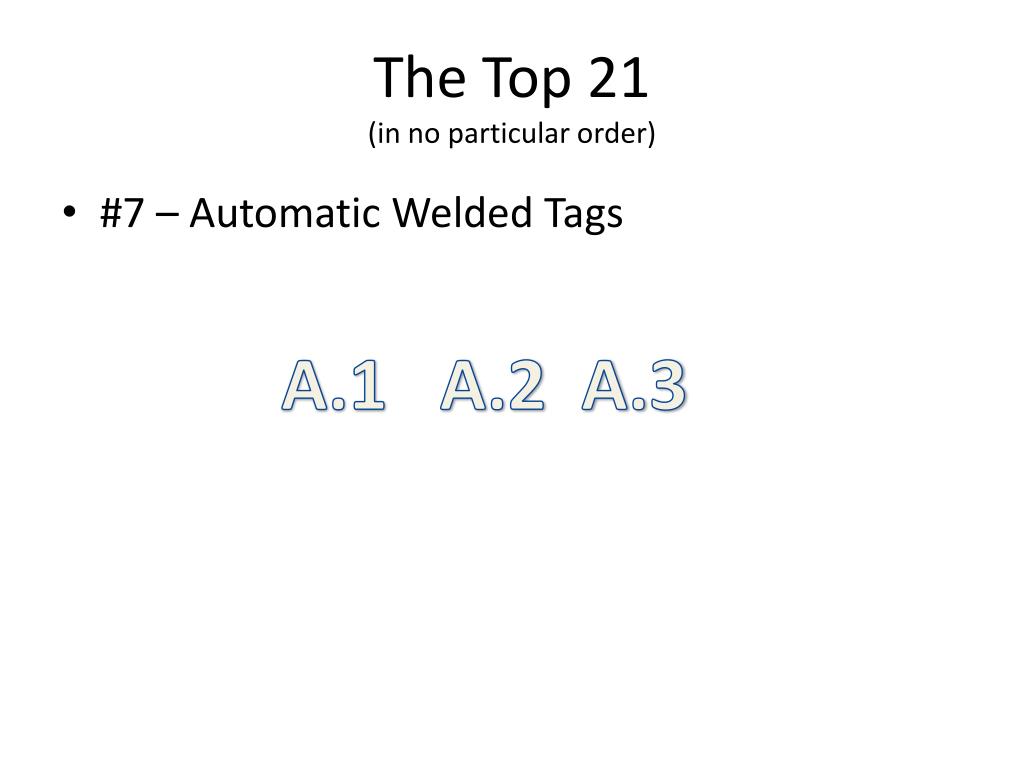

  8. The Top 21 (in no particular order) • #7 – Automatic Welded Tags A.1 A.2 A.3

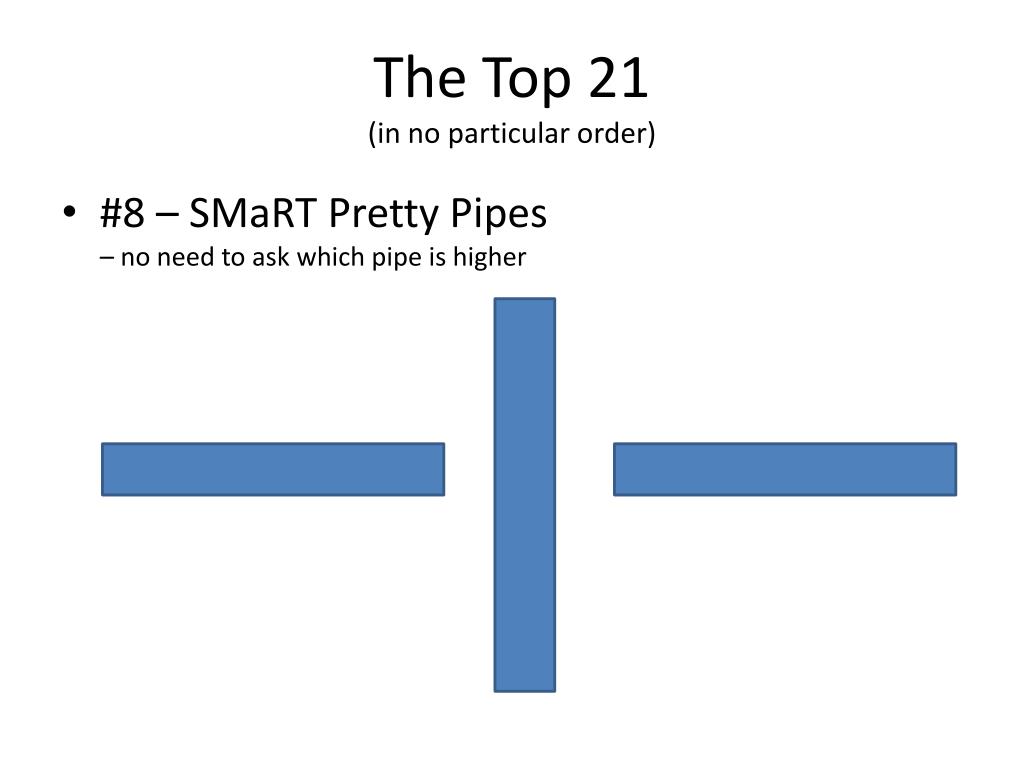

  9. The Top 21 (in no particular order) • #8 – SMaRT Pretty Pipes – no need to ask which pipe is higher

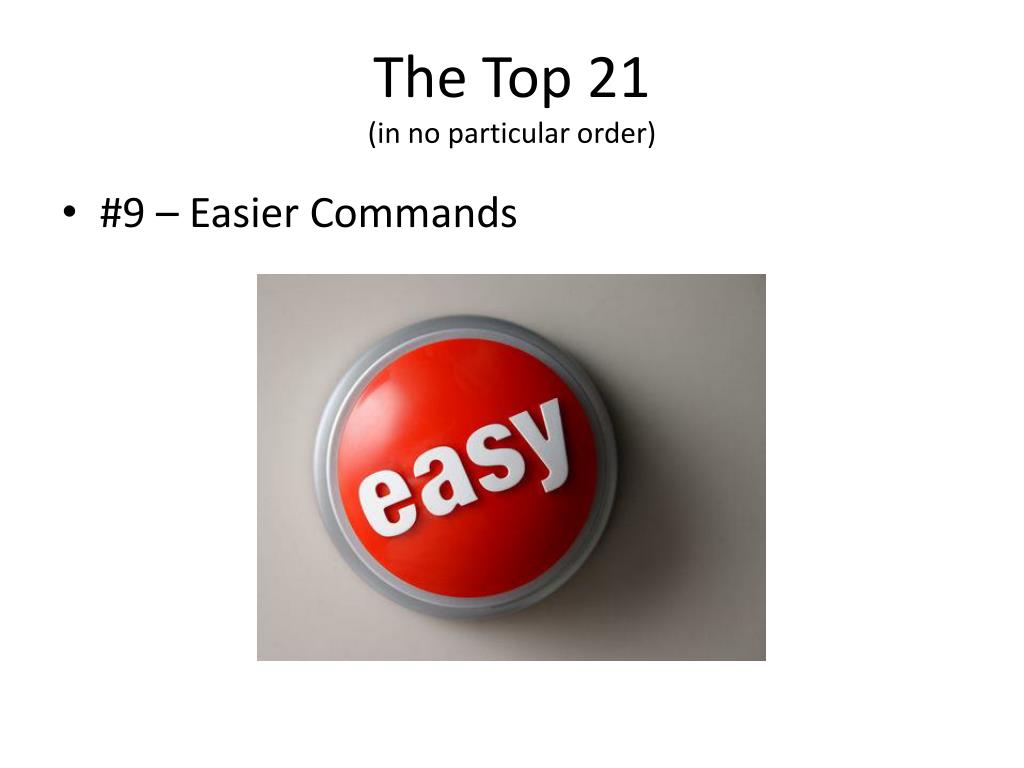

  10. The Top 21 (in no particular order) • #9 – Easier Commands

  11. The Top 21 (in no particular order) • #10 – Faster, and More Coupling Commands

  12. The Top 21 (in no particular order) • #11 – New Underground Layer – speed up AutoCalc

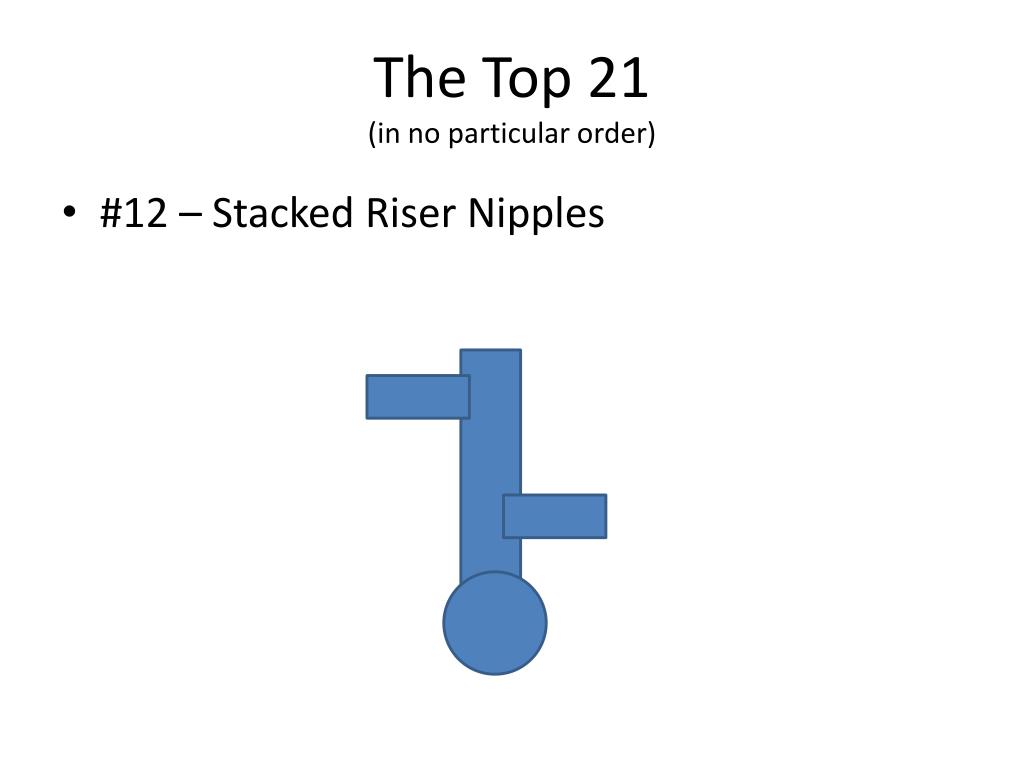

  13. The Top 21 (in no particular order) • #12 – Stacked Riser Nipples

  14. The Top 21 (in no particular order) • #13 – Elimination of 21’ 0 ½” Main Lengths 21’ 0 ½”

  15. The Top 21 (in no particular order) • #14 – Easier AutoCalcs– no drawing size limits- easier pipe schedule- easier reference points– easier remote area command

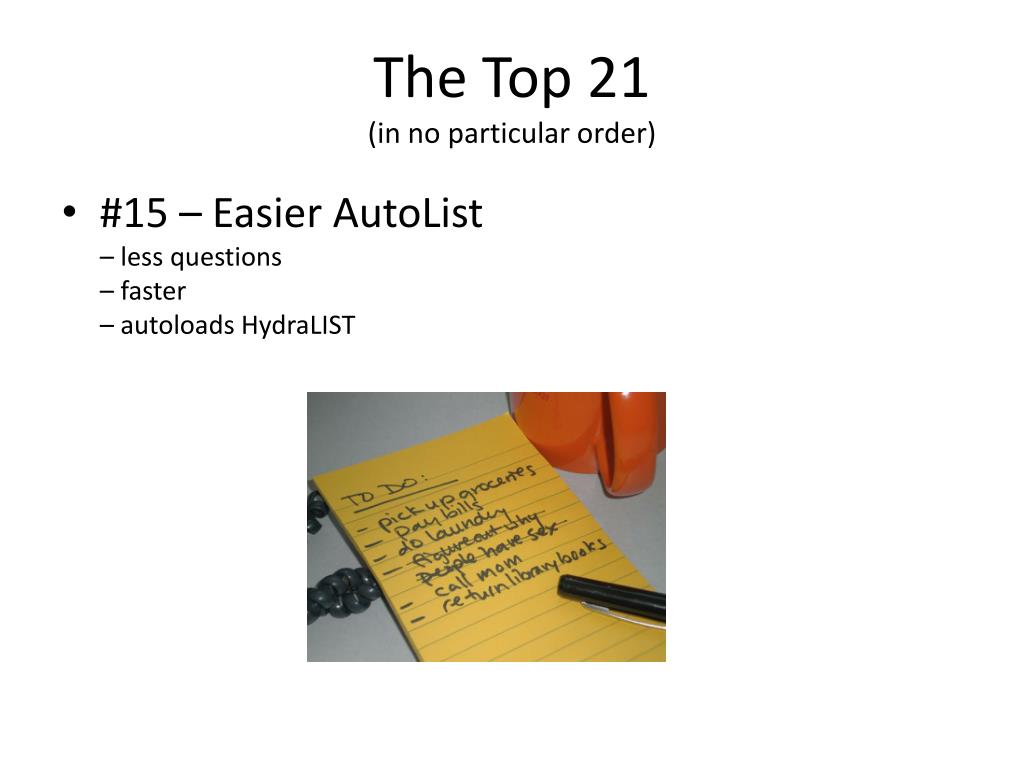

  16. The Top 21 (in no particular order) • #15 – Easier AutoList– less questions– faster– autoloads HydraLIST

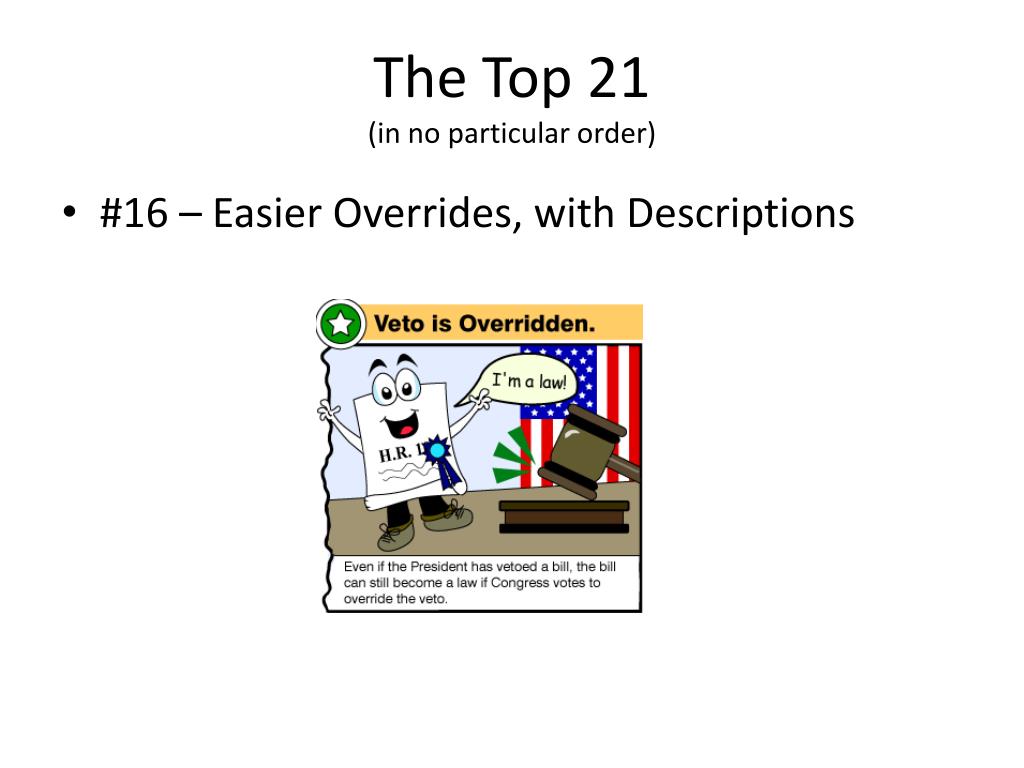

  17. The Top 21 (in no particular order) • #16 – Easier Overrides, with Descriptions

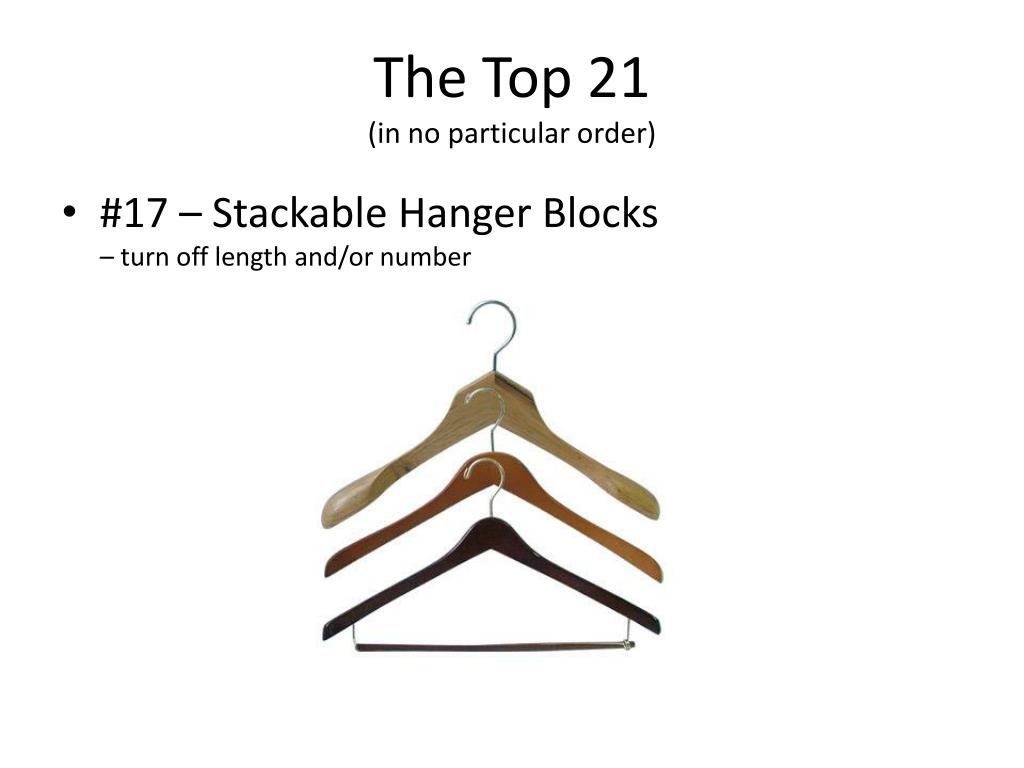

  18. The Top 21 (in no particular order) • #17 – Stackable Hanger Blocks– turn off length and/or number

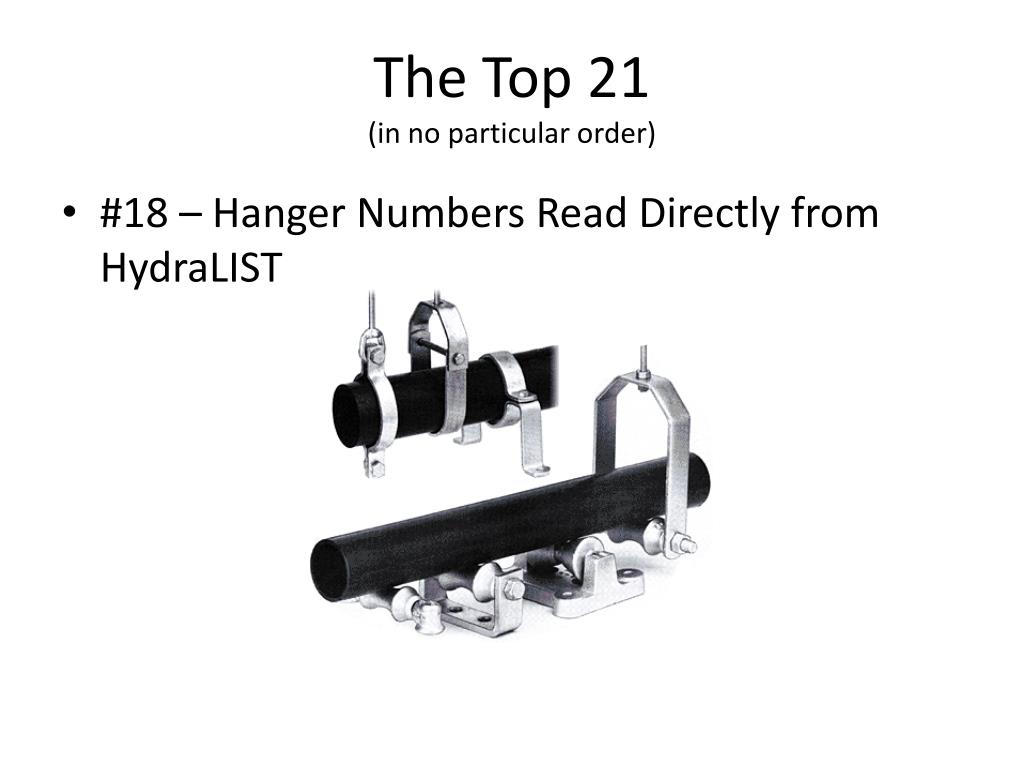

  19. The Top 21 (in no particular order) • #18 – Hanger Numbers Read Directly from HydraLIST

  20. The Top 21 (in no particular order) • #20 – New Drawing Ribbons (2009) and Tool Palettes- makes customizing blocks easier

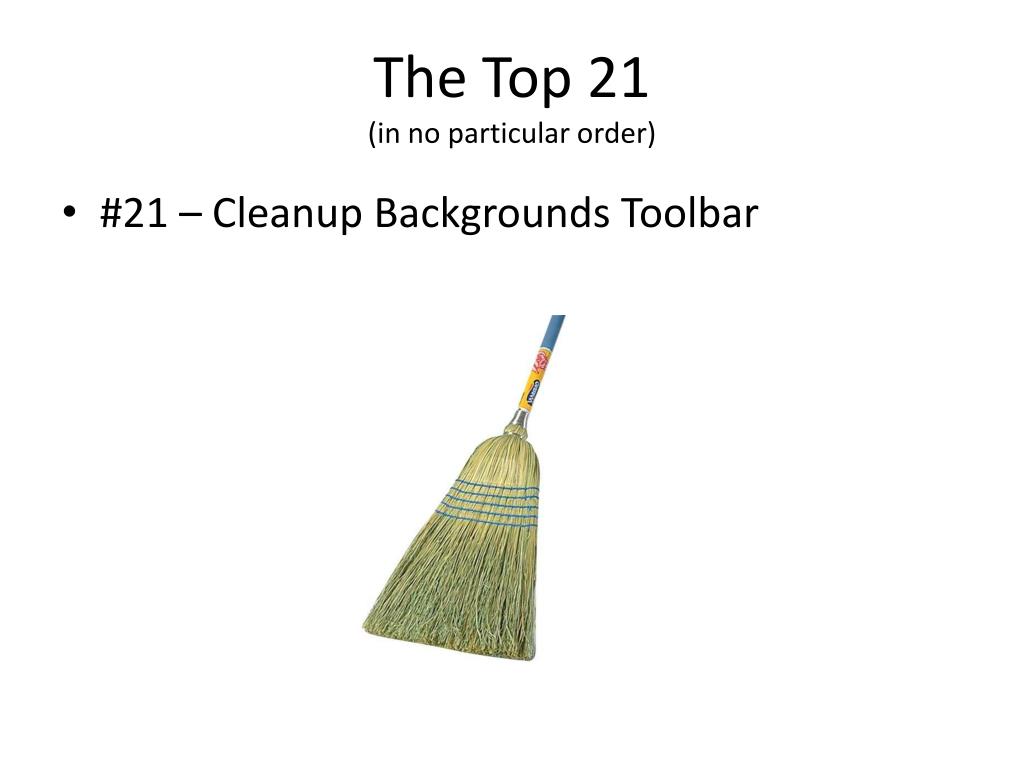

  21. The Top 21 (in no particular order) • #21 – Cleanup Backgrounds Toolbar
