  1. Process Manager Update – May 6 • The Process Manager component (PM) • The Process Manager implementation (MPD2) • Issues generated for other components by process management

  2. The Process Manager Component • Added limits to interface definition • Example on next page • Not implemented yet in terms of parsing and passing on to MPD • Dynamic jobs (MPI_Comm_spawn) • Current interface allows the process manager to be given a list of nodes and a number of processes to start, independently. • Process manager implementation can then use unused nodes to start spawned processs (or not) • MPI_UNIVERSE_SIZE allows MPI job to get hint about how many processes can usefully be spawned

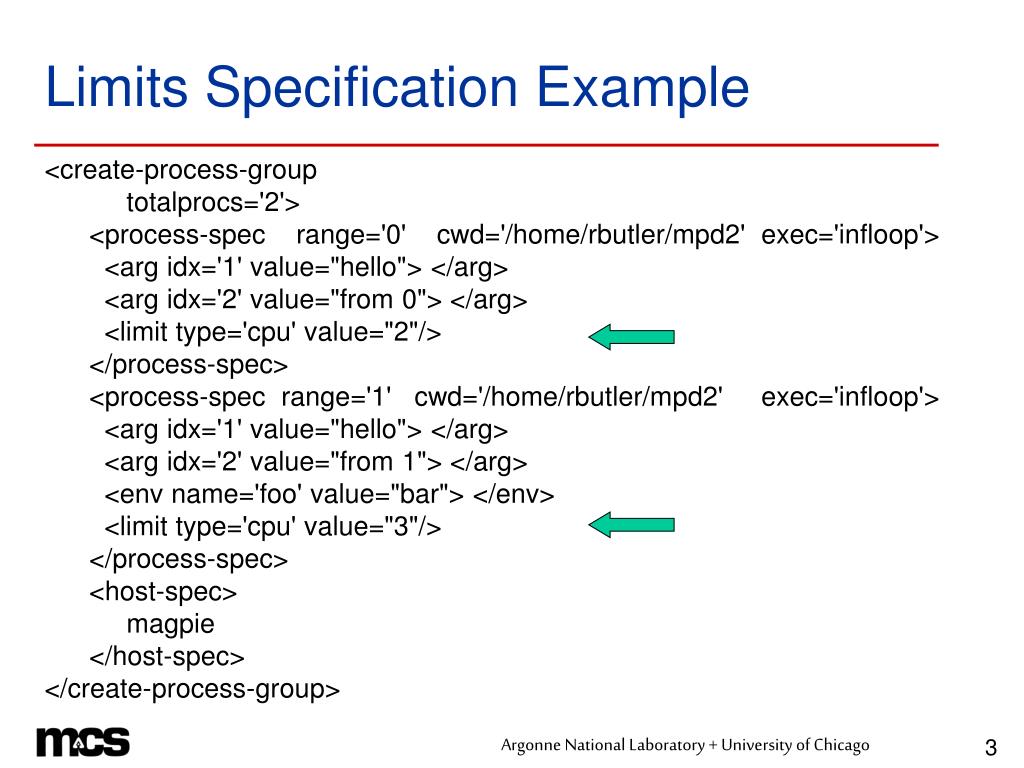

  3. Limits Specification Example <create-process-group            totalprocs='2'>       <process-spec    range='0'    cwd='/home/rbutler/mpd2'  exec='infloop'>         <arg idx='1' value="hello"> </arg>         <arg idx='2' value="from 0"> </arg>         <limit type='cpu' value="2"/>       </process-spec>       <process-spec  range='1'   cwd='/home/rbutler/mpd2'     exec='infloop'>         <arg idx='1' value="hello"> </arg>         <arg idx='2' value="from 1"> </arg>         <env name='foo' value="bar"> </env>         <limit type='cpu' value="3"/>       </process-spec>       <host-spec>            magpie       </host-spec> </create-process-group>

  4. The Process Manager Implementation • Improvements to MPD resulting from production use on Chiba • Mostly in recovering from errors and crashes by applications • Support for limits (those supported in setrlimit) • Improvements in configuring and building along with MPICH2 • Support for MPI_Comm_spawn through PMI interface to MPICH2 application • Interactive debugging via mpigdb

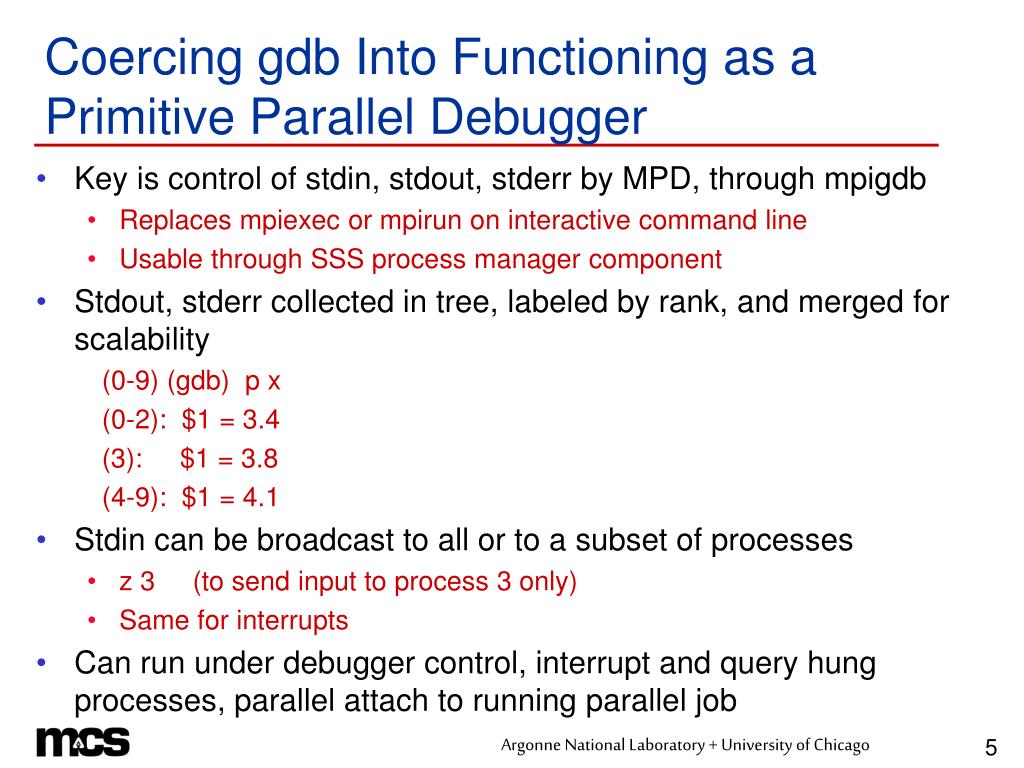

  5. Coercing gdb Into Functioning as a Primitive Parallel Debugger • Key is control of stdin, stdout, stderr by MPD, through mpigdb • Replaces mpiexec or mpirun on interactive command line • Usable through SSS process manager component • Stdout, stderr collected in tree, labeled by rank, and merged for scalability (0-9) (gdb) p x (0-2): $1 = 3.4 (3): $1 = 3.8 (4-9): $1 = 4.1 • Stdin can be broadcast to all or to a subset of processes • z 3 (to send input to process 3 only) • Same for interrupts • Can run under debugger control, interrupt and query hung processes, parallel attach to running parallel job

  6. Issues Generated For Other Components • Job steps • Option 1: QM handles (preferred) • Process manager starts process groups directly • Need public definition of user interface to QM • Option 2: PM implementation handles PBS-like scripts from QM • A bit weird: mpirun in a PBS script is trapped by extra layer (MPISH) because the “real” mpirun is a call to MPD itself • In use on Chiba • QM interface for requesting allocation of some number of nodes but starting up on different number of nodes, particularly for option 1. • QM interface for requesting dynamic rebuilds • Limits in QM interface?

  7. Tale of Two Queue Manager Implementations Same XML syntax; different content QM Interface (XML) qsub1 QM1 totalprocs=1, exec=myscript mycript contains: mpirun –np 64 cpi (mpirun intercepted) PM Different XML syntax Underlying process manager (MPD) totalprocs=64, exec=cpi qsub2 QM2 (mpirun is interactive interface to underlying process manager) QM Interface (XML)
