Presentation Transcript

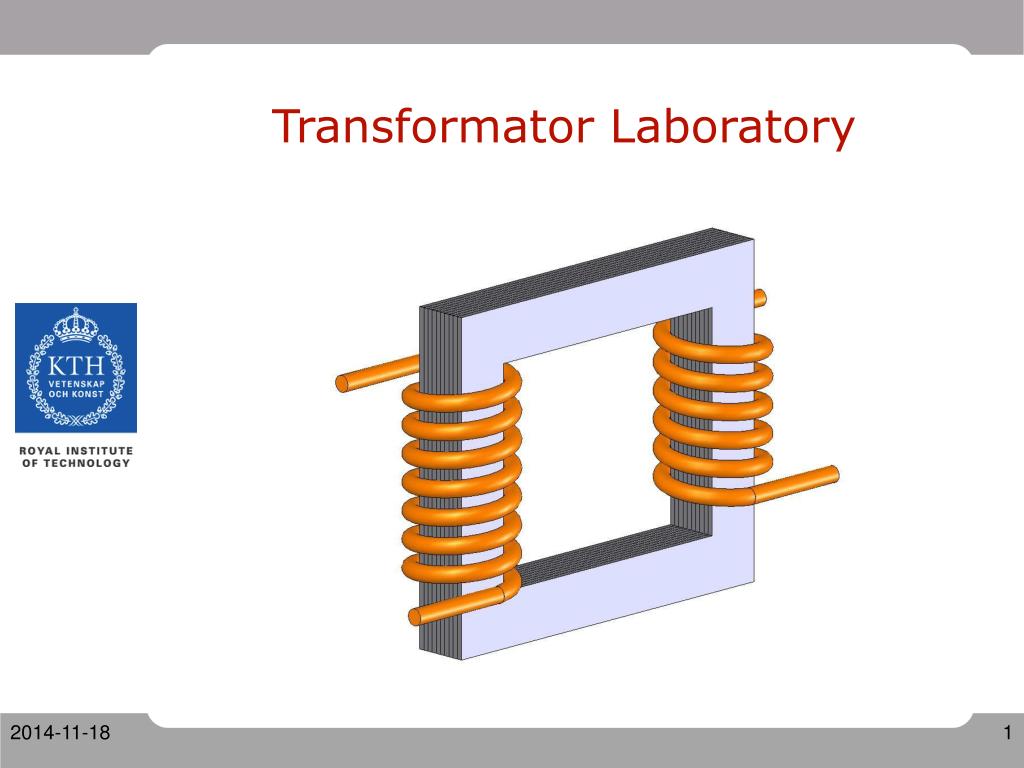

Transformator laboratory

Transformator Laboratory

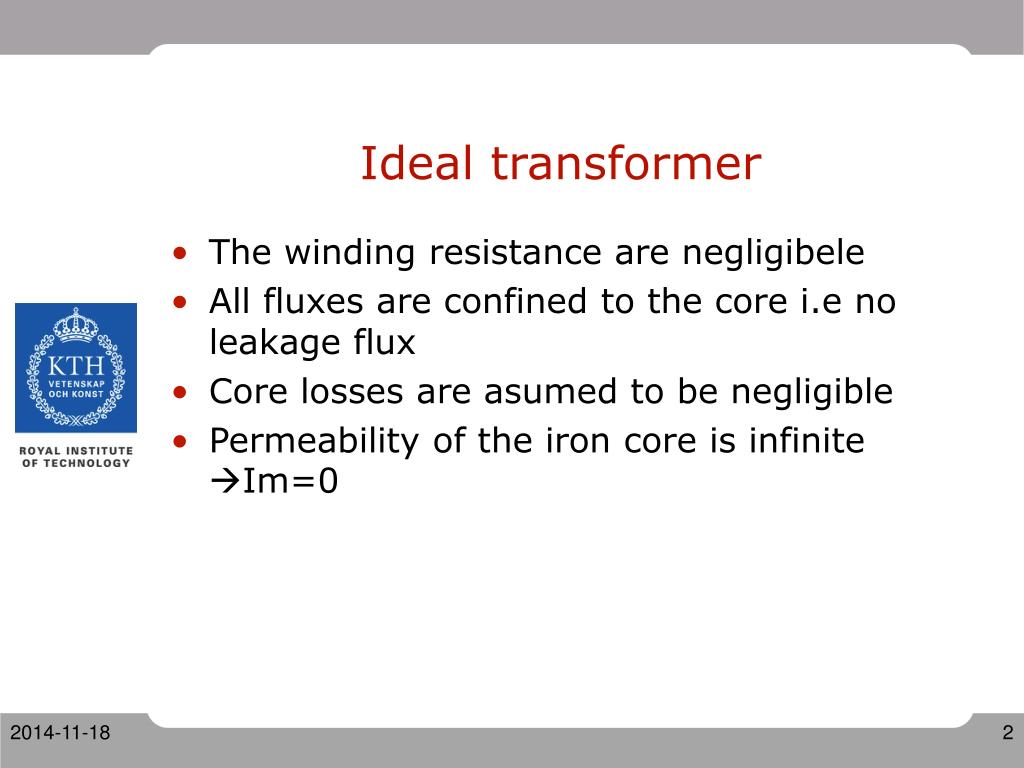

Ideal transformer

Ideal transformer

  • The windingresistance are negligibele

  • All fluxes are confined to the core i.e no leakage flux

  • Core losses are asumed to be negligible

  • Permeability of the iron core is infinite Im=0


Polarity

Polarity

  • The dot mark means that the currents entering these terminals produce fluxes in the same direction in the core. Common time varying flux linking both windings will induce a voltages in such a way that in any instance of time when terminal 1 is positive the terminal 3 will also be positive. Voltages e12 and e34 are in phase.


Practical transformer

Practical transformer

  • Leakage flux

  • Core losses


Equivalent circuit

Equivalent circuit


Phase shift in a three phase transformer

Phase shift in a three phase transformer

  • Phase shift can be achieved by connecting the secondary side in d-, y- or z connection.

  • z-connection is achieved with the help of two identical windings on each leg of a transformer. One phase is achieved with the help of windings from two different legs.

  • Phase shifts that can be achieved are even multiples of 30 degrees and that is why hour marks on a clock-face are used to indicate the phase shifts.

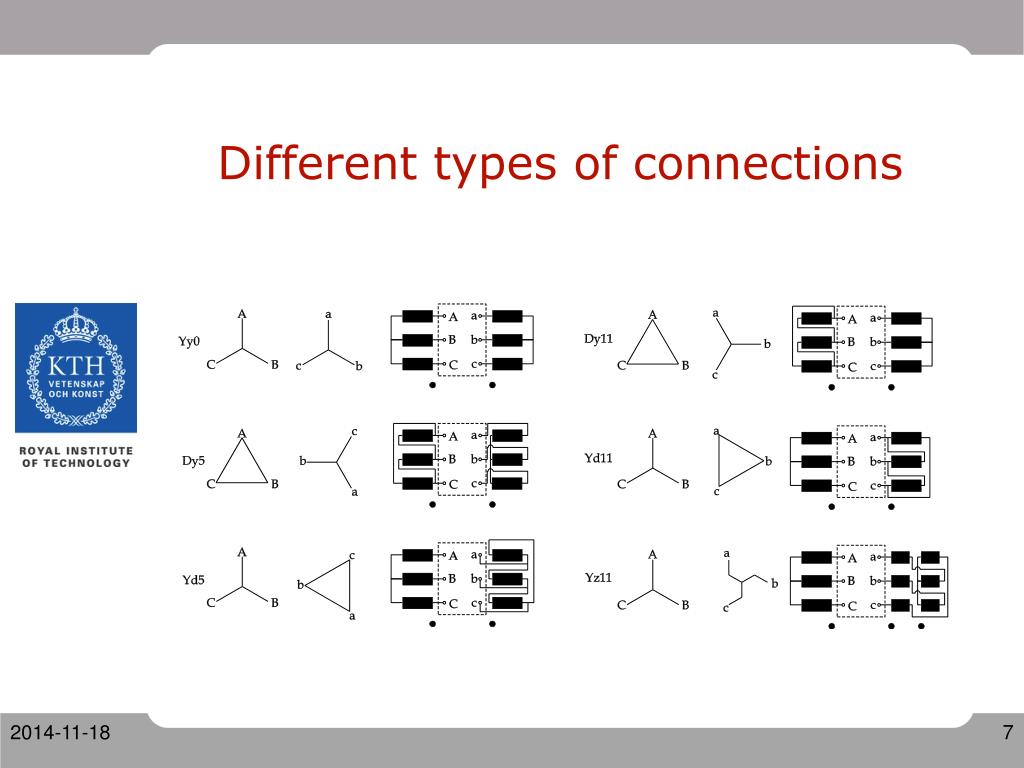

Different types of connections

Different types of connections

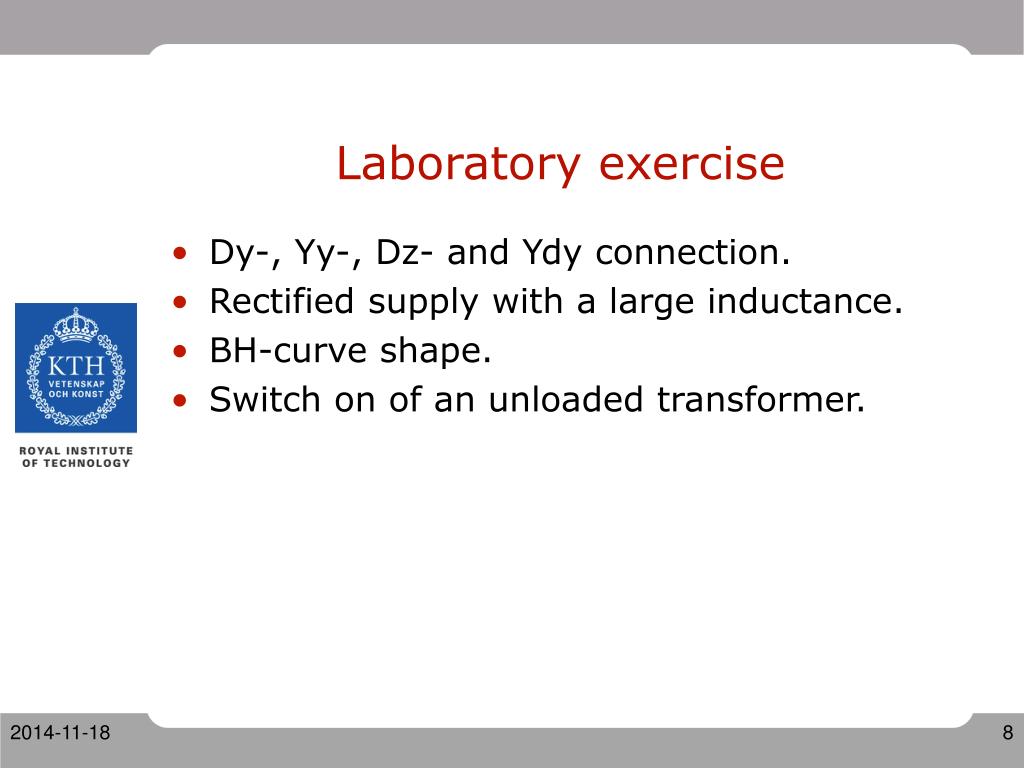

Laboratory exercise

Laboratory exercise

  • Dy-, Yy-, Dz- and Ydy connection.

  • Rectified supply with a large inductance.

  • BH-curve shape.

  • Switch on of an unloaded transformer.


Transformator laboratory

Dz10

  • Practical connection.

  • Phase diagram and schematic connection.
