Virginia Commonwealth University

School of Engineering

DEPARTMENT OF ELECTRICAL AND COMPUTER ENGINEERING

 Embedded Systems-EGRE 631

TECHNO*

Toward an Interactive Environment for Embedded Systems Design

Fadi Obaidat

Dr. Jerry Tucker

[April 2009]


  • Embedded Systems:

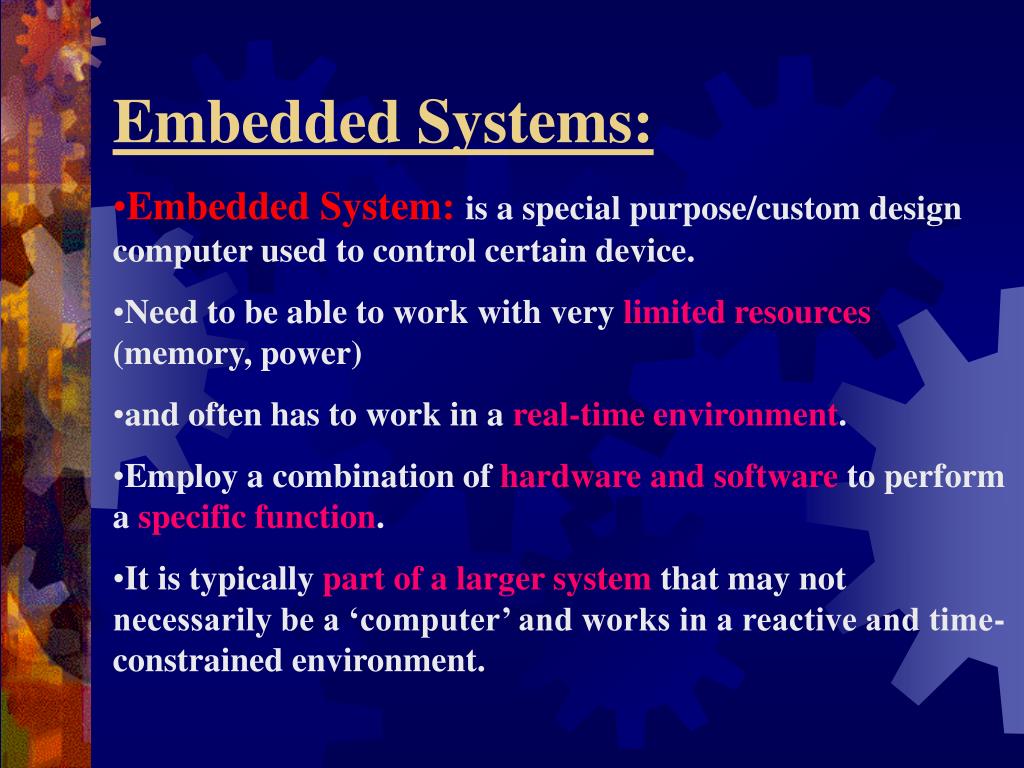

  • Embedded System:is a special purpose/custom design computer used to control certain device.

  • Need to be able to work with very limited resources (memory, power)

  • and often has to work in a real-time environment.

  • Employ a combination of hardware and software to perform a specific function.

  • It is typically part of a larger system that may not necessarily be a ‘computer’ and works in a reactive and time-constrained environment.


Using of embedded systems
Using Of Embedded Systems:

  • Cars Industry

  • Flight Control Systems

  • Mars Exploration Rover

  • Medical equipments and many other applications …


Fpgas based embedded systems
FPGAs Based Embedded Systems:

  • High performance.

  • Design Flexibility.

  • Low cost.

  • Reconfigurability.


Objectives

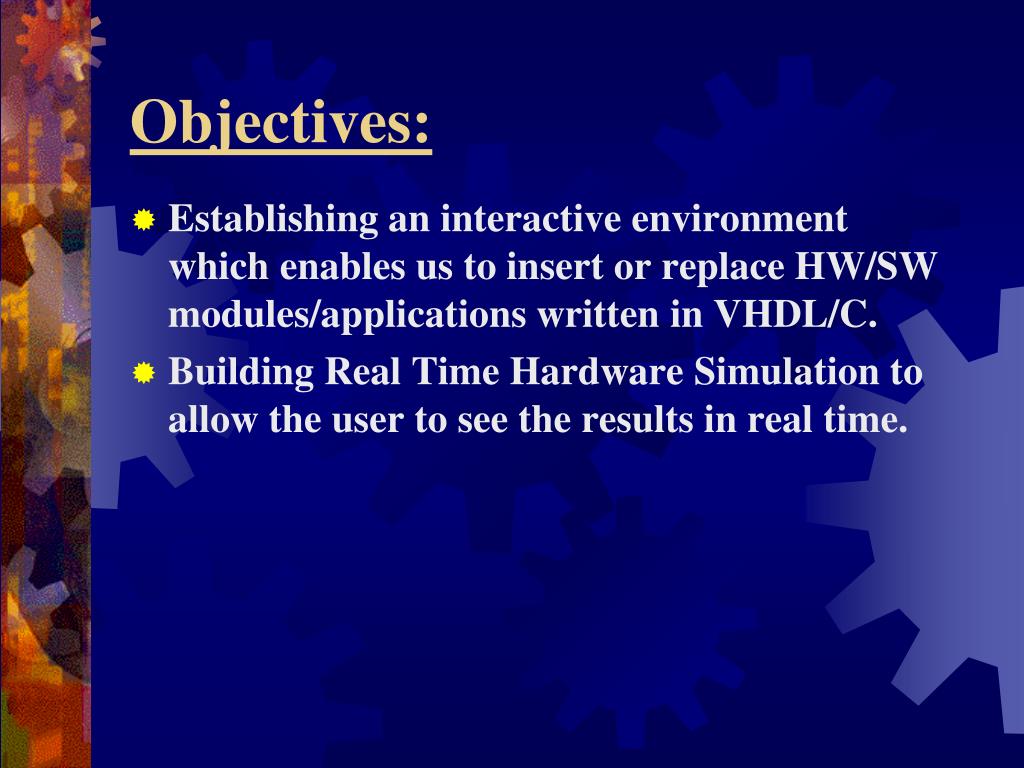

Objectives:

  • Establishing an interactive environment which enables us to insert or replace HW/SW modules/applications written in VHDL/C.

  • Building Real Time Hardware Simulation to allow the user to see the results in real time.


About techno system
About TECHNO* System:

  • Xilinx Spartan 3E FPGA 500K:

    • HDL: custom design, coprocessor…

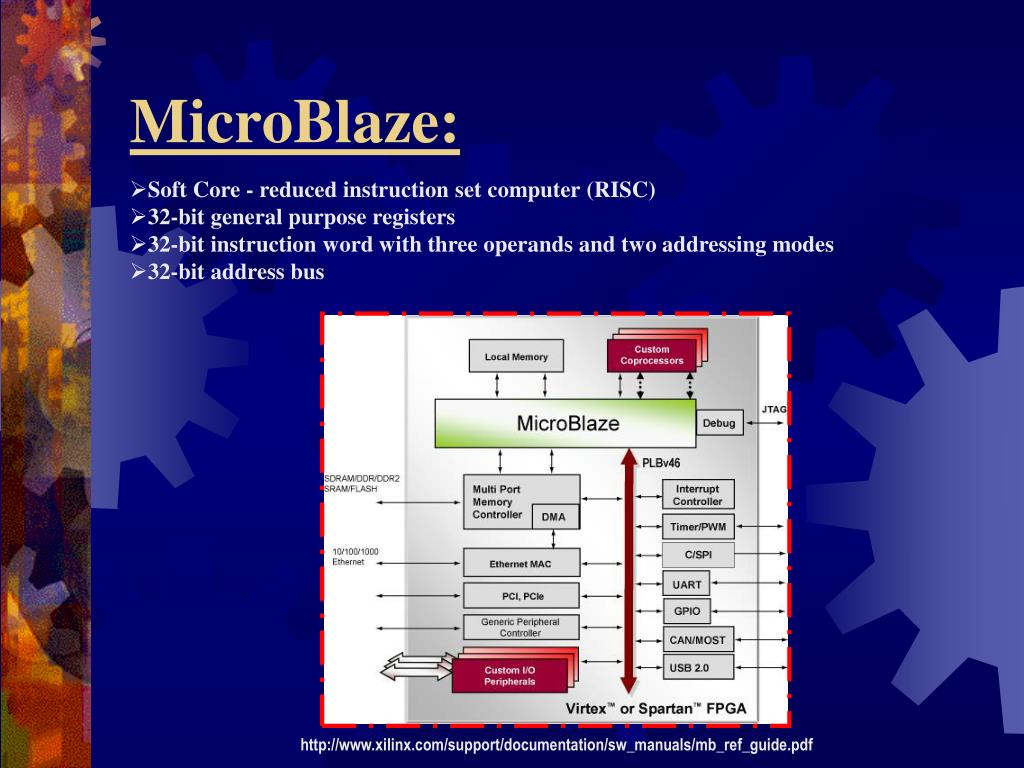

  • Soft-core MicroBlaze Processor

    • C: either simple applications or under uClinux

  • HDL interfaces for the monitor and keyboard….

  • To achieve and test the objectives of the project, and to show the capabilities of the system, Two HW/SW applications were implemented and chosen because of the need to the HW speed and time-accuracy, and the SW flexibility.

    • Frequency Counter

    • Cycle Accurate Counter


Components and resources
Components and Resources:

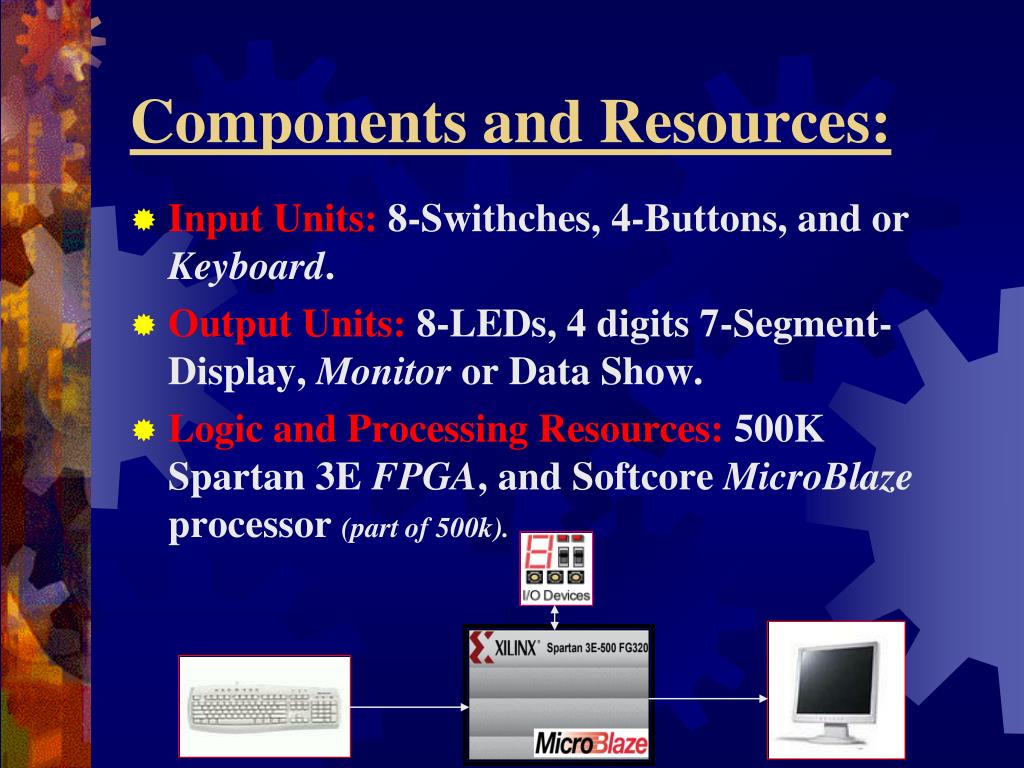

  • Input Units: 8-Swithches, 4-Buttons, and or Keyboard.

  • Output Units: 8-LEDs, 4 digits 7-Segment-Display, Monitor or Data Show.

  • Logic and Processing Resources: 500K Spartan 3E FPGA, and Softcore MicroBlaze processor (part of 500k).


Digilent nexys2 board
Digilent Nexys2 Board:

http://www.digilentinc.com/Data/Products/NEXYS2/Nexys2_rm.pdf


Spartan 3e

http://www.xilinx.com/support/documentation/data_sheets/ds312.pdfhttp://www.xilinx.com/support/documentation/data_sheets/ds312.pdf

Spartan 3E 500K FPGA

Digilent Board

Spartan 3E:


Main hdl modules

Monitorhttp://www.xilinx.com/support/documentation/data_sheets/ds312.pdf Interface

ROM (.coe file)

RAM (Look Up Table)

Character Converter

Clock Divider

FrequencyCounter

Cycle Accurate Counter

…... Not in use Keyboard Interface, buttons and 7-Sigment-Display…

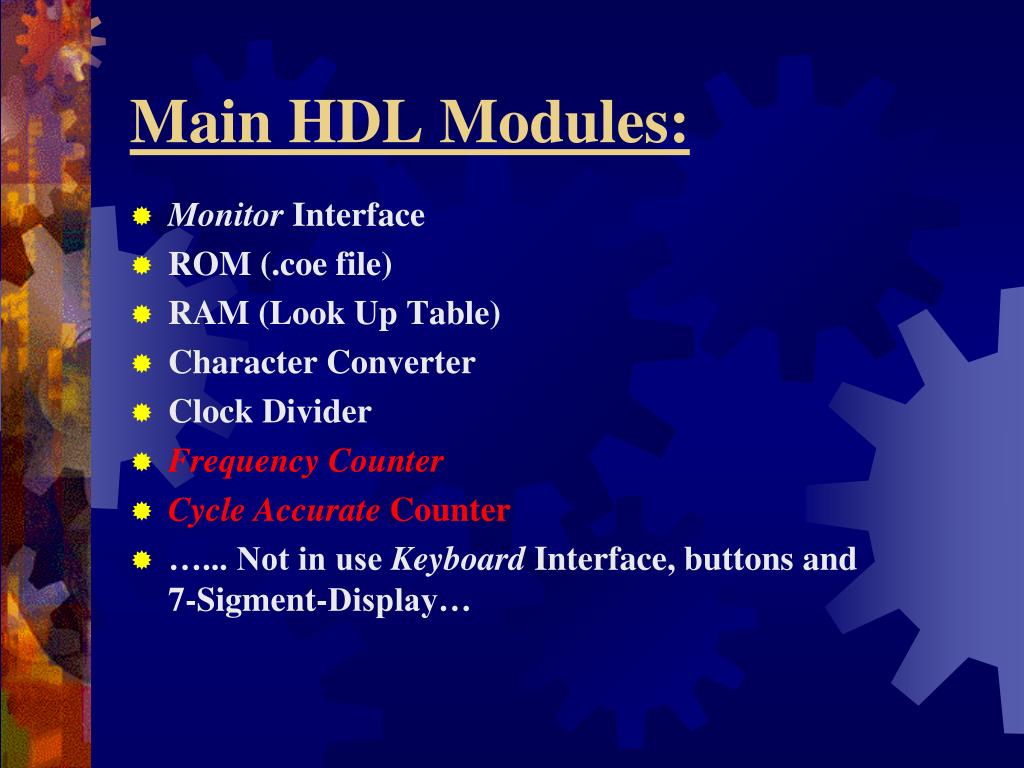

Main HDL Modules:


In this area:http://www.xilinx.com/support/documentation/data_sheets/ds312.pdf

You can add or replace

any VHDL module or C function.

Interface

Cycle Acc. Counter

ROM

Monitor

Monitor Card

Keyboard Card

Keyboard

Conv. Number

Char. Converter

RAM

Frequency Counter

Clock Divider

IC12 pin#5

50 MHz

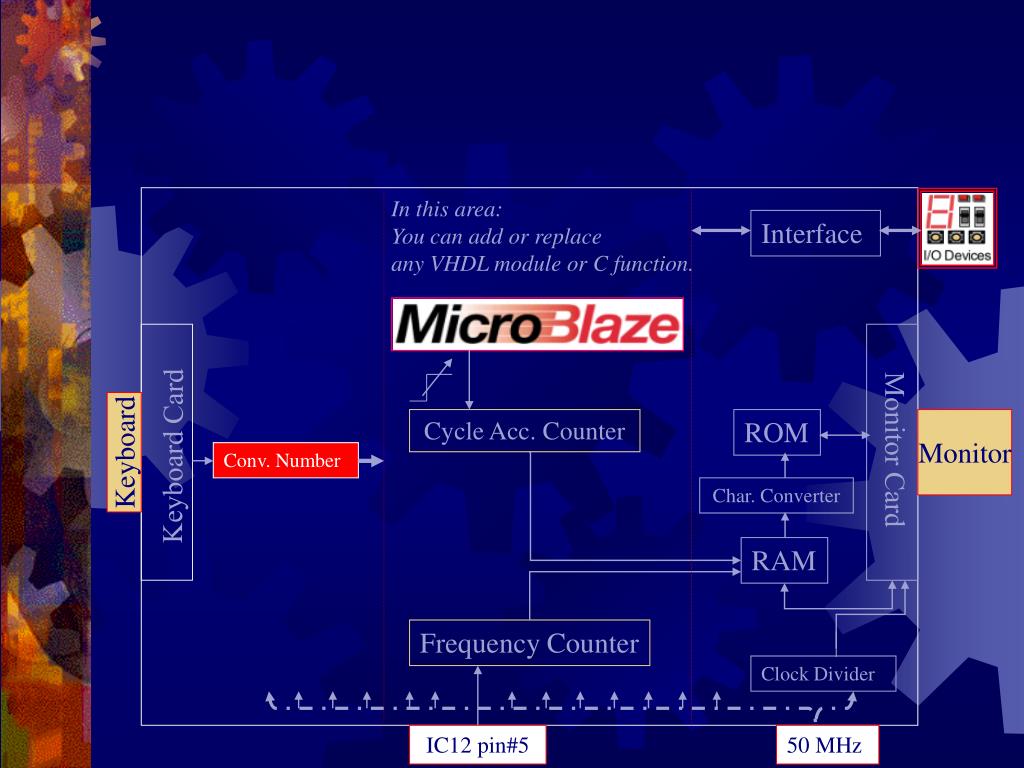

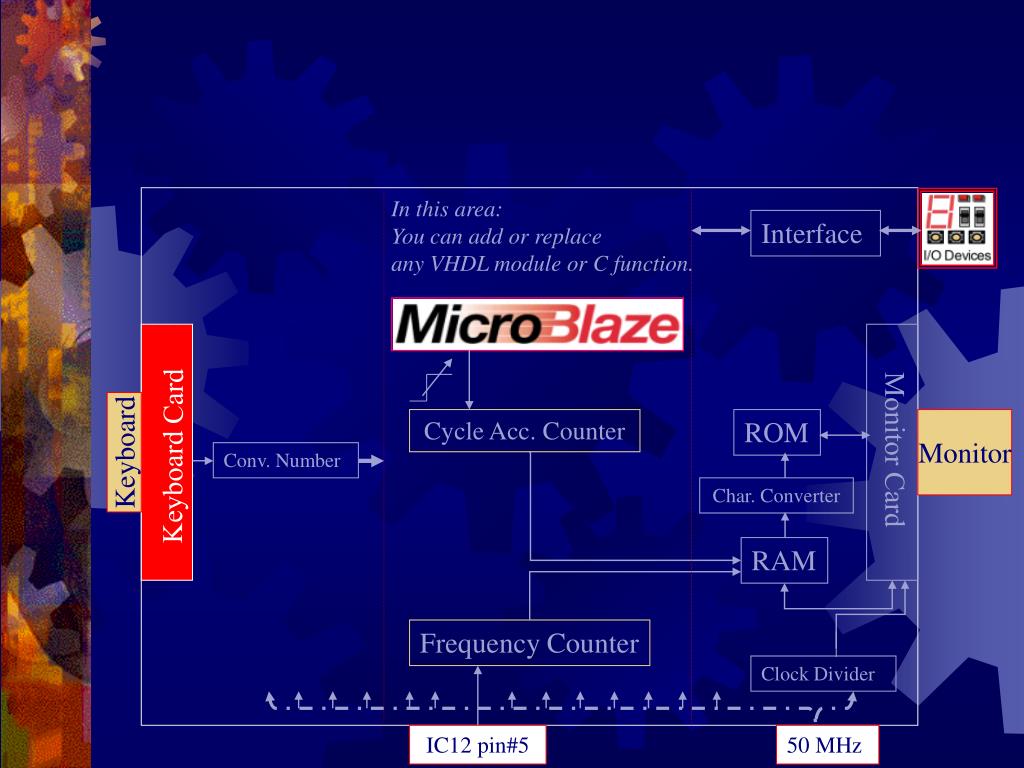

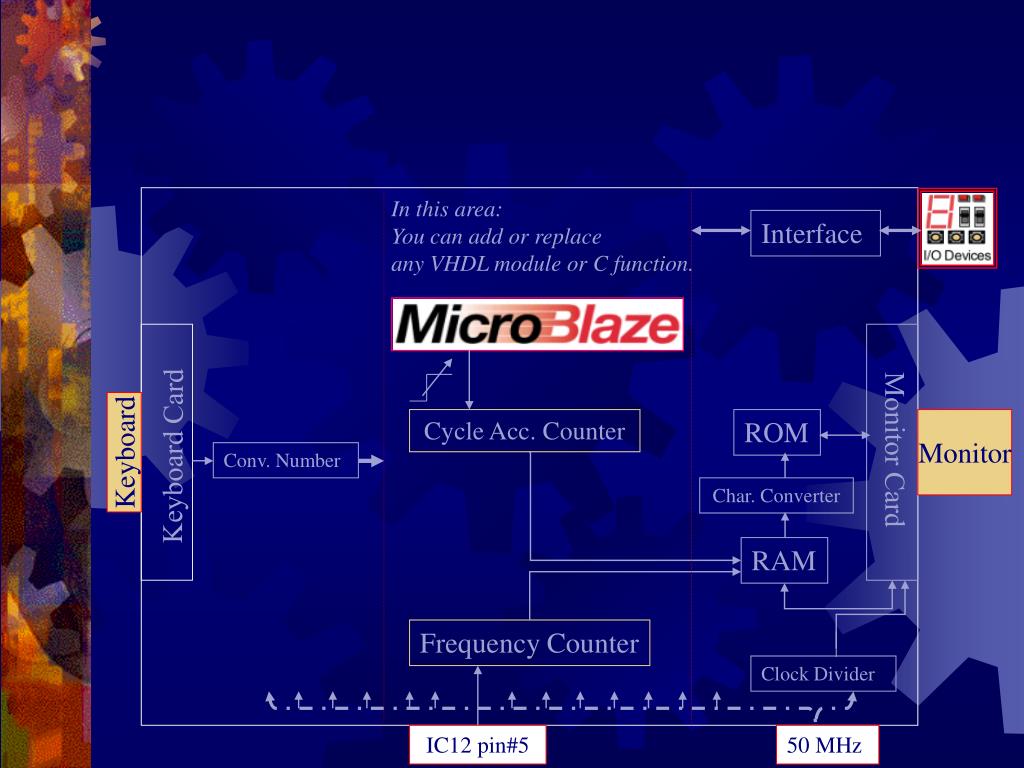

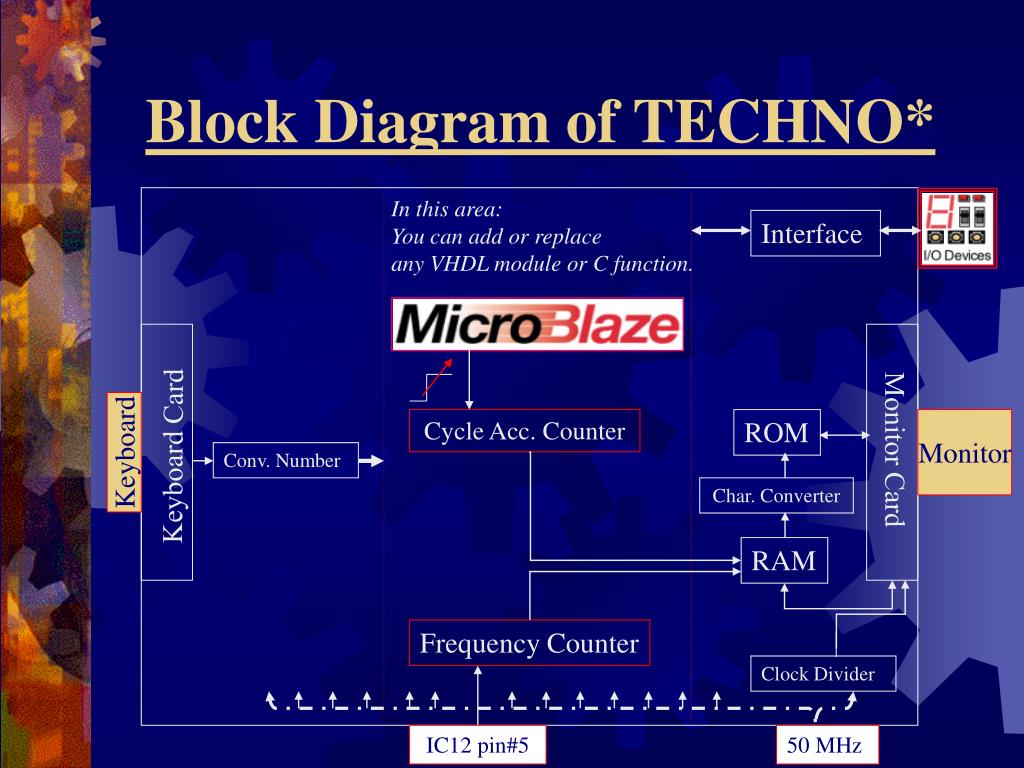

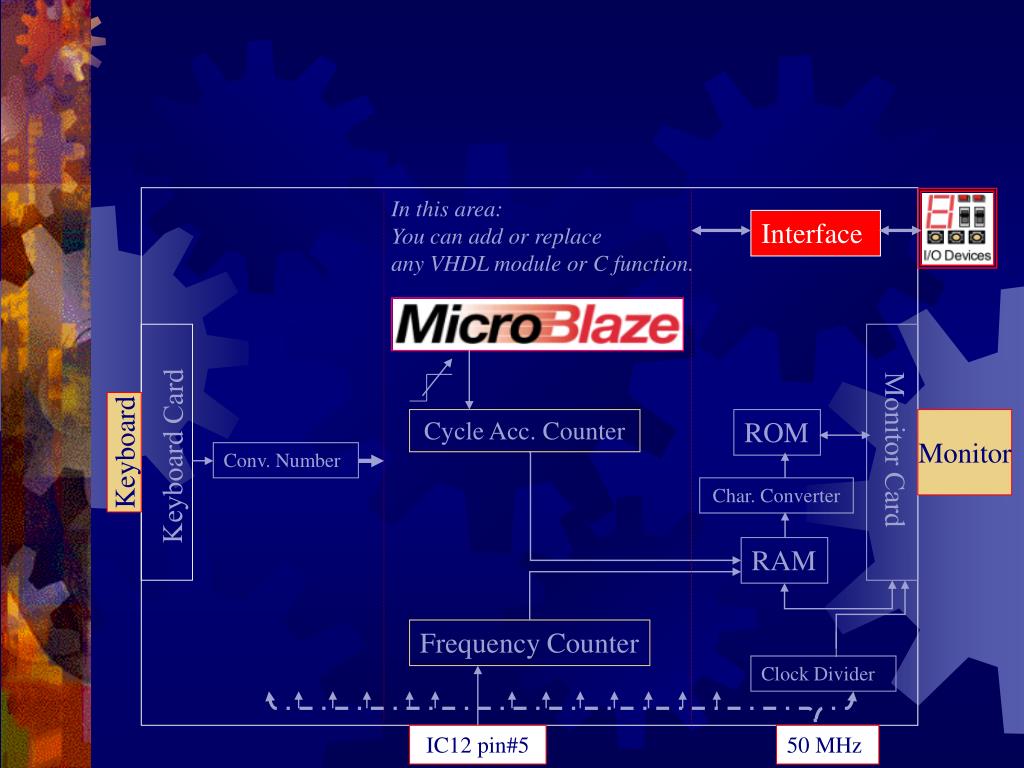

Block Diagram of TECHNO*


In this area:http://www.xilinx.com/support/documentation/data_sheets/ds312.pdf

You can add or replace

any VHDL module or C function.

Interface

Cycle Acc. Counter

ROM

Monitor

Monitor Card

Keyboard Card

Keyboard

Conv. Number

Char. Converter

RAM

Frequency Counter

Clock Divider

IC12 pin#5

50 MHz


In this area:http://www.xilinx.com/support/documentation/data_sheets/ds312.pdf

You can add or replace

any VHDL module or C function.

Interface

Cycle Acc. Counter

ROM

Monitor

Monitor Card

Keyboard Card

Keyboard

Conv. Number

Char. Converter

RAM

Frequency Counter

Clock Divider

IC12 pin#5

50 MHz


Ram lut 20 6
RAM http://www.xilinx.com/support/documentation/data_sheets/ds312.pdfLUT(20*6):

Inputs: row_address[5..0], column_address[5..0], input_data[3..0], & clock_25Mhz.

Outputs: output_data[3..0].

Function: takes the results of any algorithm and time stores them in specific registers attached to specific location on the screen, in the same time it outs its contents to the ROM through character converter module.

Value to be shown

on screen at this

moment

Current location address on screen

row_address[5..0]

column_address[5..0]

input_data[3..0]

0001

output_data[3..0]

Data to be shown on screen

clock_25Mhz

RAM (20*6)


In this area:http://www.xilinx.com/support/documentation/data_sheets/ds312.pdf

You can add or replace

any VHDL module or C function.

Interface

Cycle Acc. Counter

ROM

Monitor

Monitor Card

Keyboard Card

Keyboard

Conv. Number

Char. Converter

RAM

Frequency Counter

Clock Divider

IC12 pin#5

50 MHz


In this area:http://www.xilinx.com/support/documentation/data_sheets/ds312.pdf

You can add or replace

any VHDL module or C function.

Interface

Cycle Acc. Counter

ROM

Monitor

Monitor Card

Keyboard Card

Keyboard

Conv. Number

Char. Converter

RAM

Frequency Counter

Clock Divider

IC12 pin#5

50 MHz

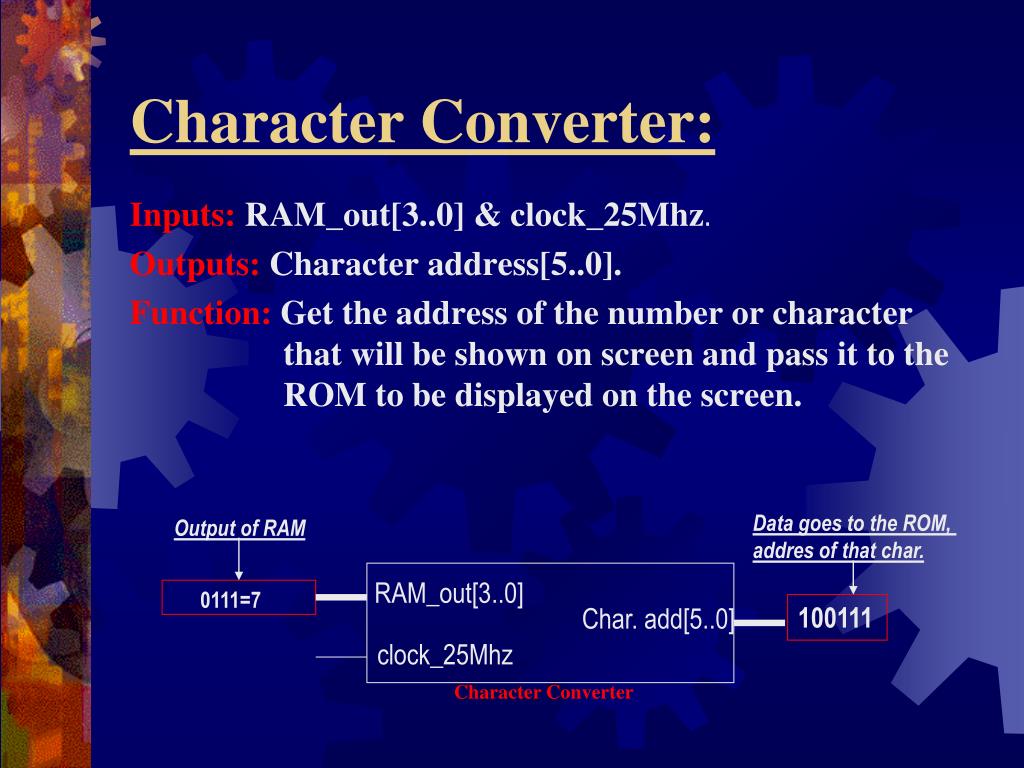

Character converter
Character Converter:http://www.xilinx.com/support/documentation/data_sheets/ds312.pdf

Inputs: RAM_out[3..0] & clock_25Mhz.

Outputs: Character address[5..0].

Function: Get the address of the number or character that will be shown on screen and pass it to the ROM to be displayed on the screen.

Data goes to the ROM,

addres of that char.

Output of RAM

RAM_out[3..0]

0111=7

100111

Char. add[5..0]

clock_25Mhz

Character Converter


In this area:http://www.xilinx.com/support/documentation/data_sheets/ds312.pdf

You can add or replace

any VHDL module or C function.

Interface

Cycle Acc. Counter

ROM

Monitor

Monitor Card

Keyboard Card

Keyboard

Conv. Number

Char. Converter

RAM

Frequency Counter

Clock Divider

IC12 pin#5

50 MHz


In this area:http://www.xilinx.com/support/documentation/data_sheets/ds312.pdf

You can add or replace

any VHDL module or C function.

Interface

Cycle Acc. Counter

ROM

Monitor

Monitor Card

Keyboard Card

Keyboard

Conv. Number

Char. Converter

RAM

Frequency Counter

Clock Divider

IC12 pin#5

50 MHz

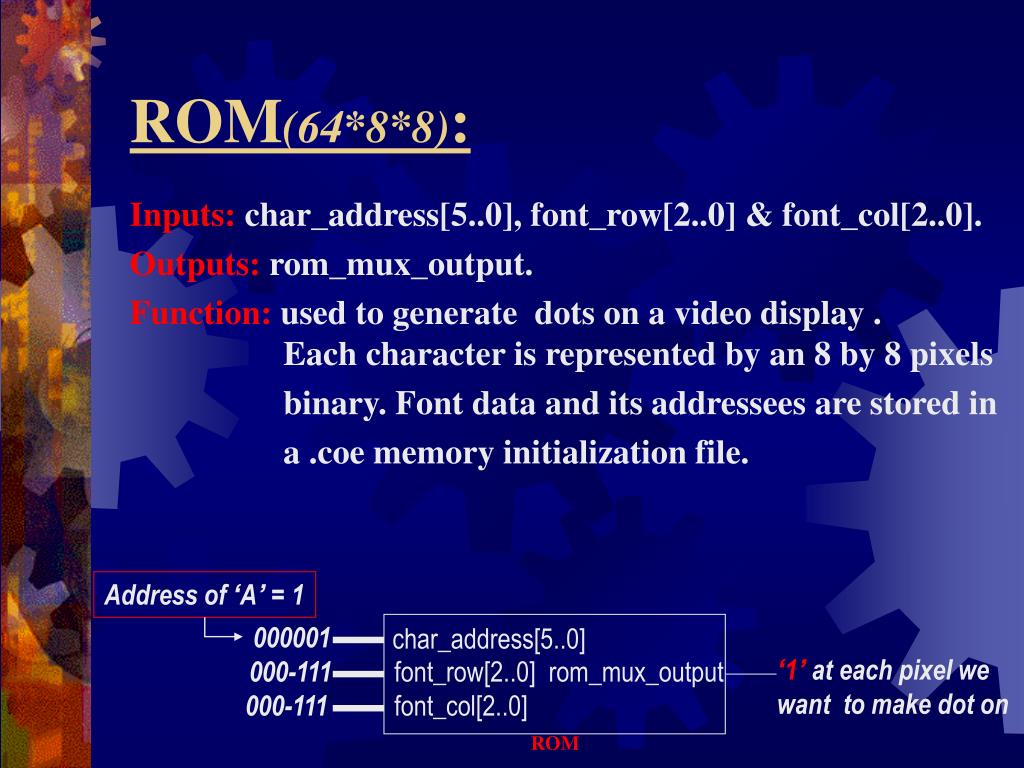

Rom 64 8 8
ROMhttp://www.xilinx.com/support/documentation/data_sheets/ds312.pdf(64*8*8):

Inputs: char_address[5..0], font_row[2..0] & font_col[2..0].

Outputs: rom_mux_output.

Function: used to generate dots on a video display . Each character is represented by an 8 by 8 pixels

binary. Font data and its addressees are stored in

a .coe memory initialization file.

Address of ‘A’ = 1

000001

char_address[5..0]

‘1’at each pixel we

want to make dot on

000-111

font_row[2..0]

rom_mux_output

000-111

font_col[2..0]

ROM


Rom contents
ROM contents:http://www.xilinx.com/support/documentation/data_sheets/ds312.pdf

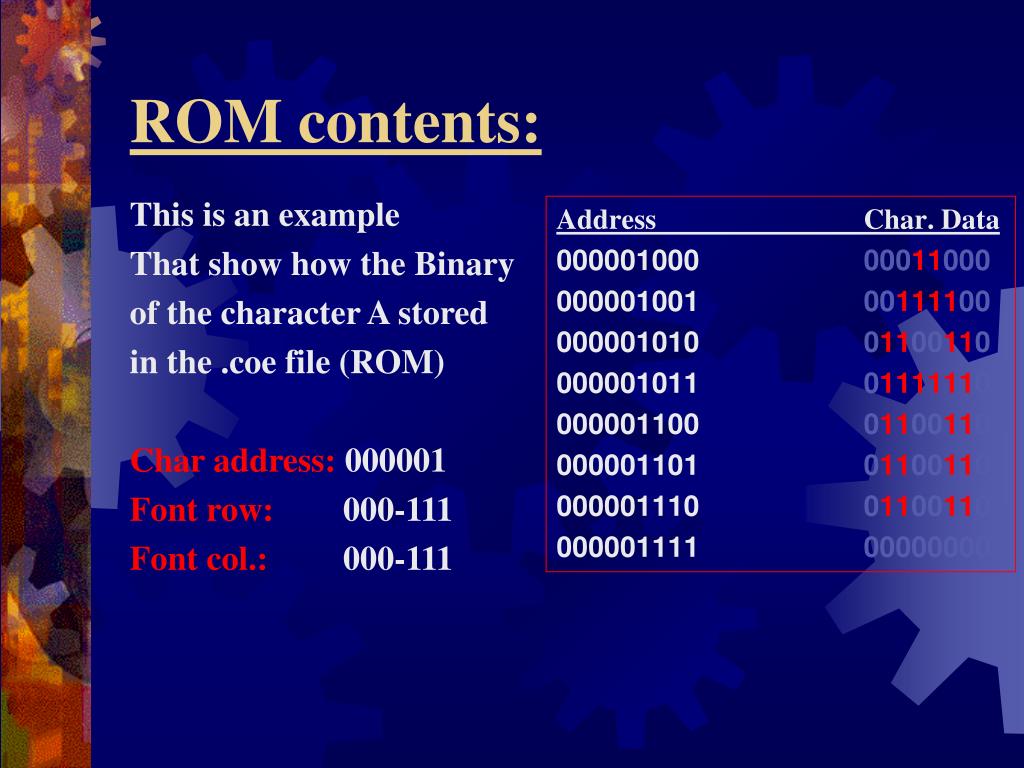

Address Char. Data

000001000 00011000

000001001 00111100

000001010 01100110

000001011 01111110

000001100 01100110

000001101 01100110

000001110 01100110

000001111 00000000

This is an example

That show how the Binary

of the character A stored

in the .coe file (ROM)

Char address: 000001

Font row: 000-111

Font col.: 000-111


In this area:http://www.xilinx.com/support/documentation/data_sheets/ds312.pdf

You can add or replace

any VHDL module or C function.

Interface

Cycle Acc. Counter

ROM

Monitor

Monitor Card

Keyboard Card

Keyboard

Conv. Number

Char. Converter

RAM

Frequency Counter

Clock Divider

IC12 pin#5

50 MHz


In this area:http://www.xilinx.com/support/documentation/data_sheets/ds312.pdf

You can add or replace

any VHDL module or C function.

Interface

Cycle Acc. Counter

ROM

Monitor

Monitor Card

Keyboard Card

Keyboard

Conv. Number

Char. Converter

RAM

Frequency Counter

Clock Divider

IC12 pin#5

50 MHz

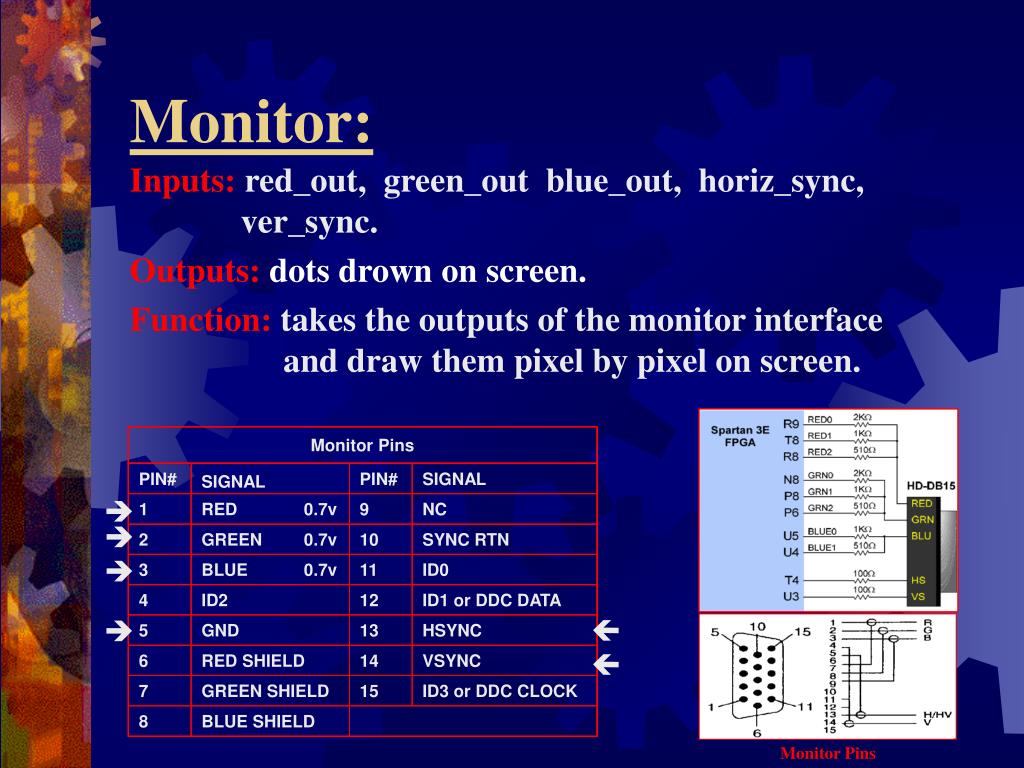

Monitor

Monitor Pinshttp://www.xilinx.com/support/documentation/data_sheets/ds312.pdf

PIN#

SIGNAL

PIN#

SIGNAL

1

RED 0.7v

9

NC

2

GREEN 0.7v

10

SYNC RTN

3

BLUE 0.7v

11

ID0

4

ID2

12

ID1 or DDC DATA

5

GND

13

HSYNC

6

RED SHIELD

14

VSYNC

7

GREEN SHIELD

15

ID3 or DDC CLOCK

8

BLUE SHIELD

Monitor:

Inputs: red_out, green_out blue_out, horiz_sync, ver_sync.

Outputs: dots drown on screen.

Function: takes the outputs of the monitor interface and draw them pixel by pixel on screen.

Monitor Pins


Monitor interface 60 frame sec

hhttp://www.xilinx.com/support/documentation/data_sheets/ds312.pdf

v

Monitor Interface (60 frame/sec):

Inputs: 3-red, 3-green, 2-blue, & clock_25Mhz.

Outputs: 3-red_out, 3-green_out, 2-blue_out, horiz_sync, ver_sync, pixel_row[9..0]& pixel_column[9..0].

Function: generates horizontal and vertical signals to synchronize the drown eight bit colors on each

pixel.

go to the RAM and ROM to make sync between pixels and Char

Tell monitor to refresh anew row of 640pixels

3-red_out

3-green_out

0

red

2-blue_out

green

0

horiz_sync_out

1

blue

ver_sync_out

clock_25Mhz

pixel_row[9..0]

pixel_column[9..0]

Monitor

Monitor Interface

http://www.altera.com/literature/univ/upds.pdf


In this area:http://www.xilinx.com/support/documentation/data_sheets/ds312.pdf

You can add or replace

any VHDL module or C function.

Interface

Cycle Acc. Counter

ROM

Monitor

Monitor Card

Keyboard Card

Keyboard

Conv. Number

Char. Converter

RAM

Frequency Counter

Clock Divider

IC12 pin#5

50 MHz


In this area:http://www.xilinx.com/support/documentation/data_sheets/ds312.pdf

You can add or replace

any VHDL module or C function.

Interface

Cycle Acc. Counter

ROM

Monitor

Monitor Card

Keyboard Card

Keyboard

Conv. Number

Char. Converter

RAM

Frequency Counter

Clock Divider

IC12 pin#5

50 MHz

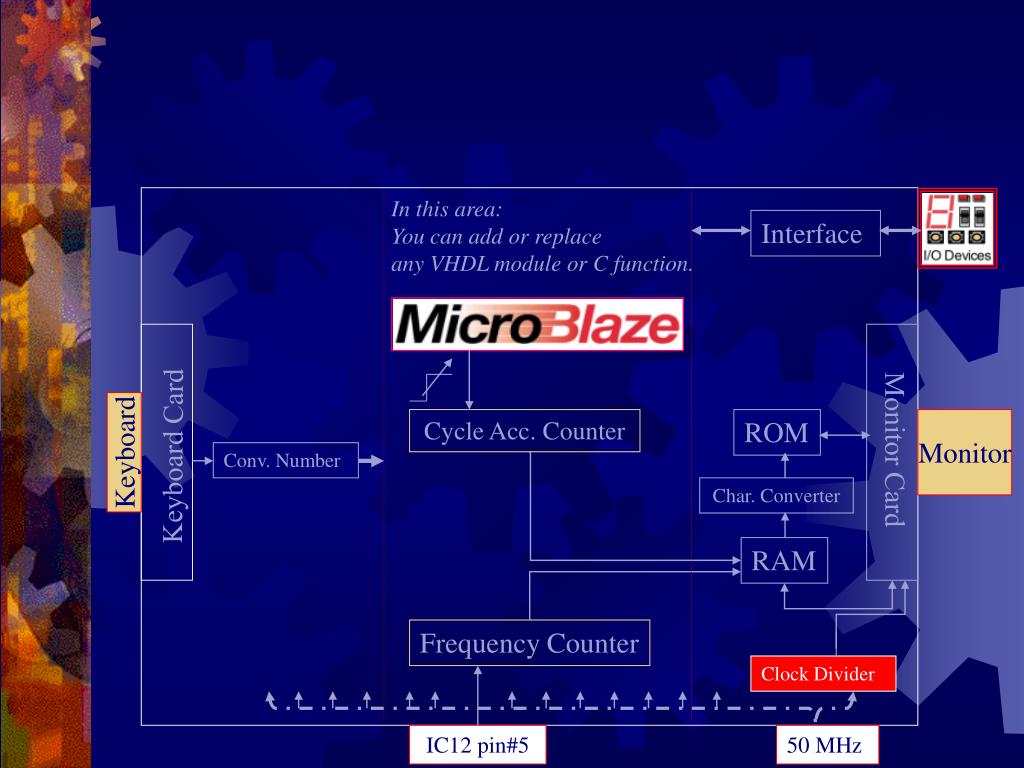

Clock divider
Clock Divider:http://www.xilinx.com/support/documentation/data_sheets/ds312.pdf

Inputs: clock_50Mhz.

Outputs: clock_25MHz.

Function: used to generate appropriate, a 25MHz, clock signal to be used by monitor interface.

50Mhz

25 MHz

clock_50Mhz

clock_25MHz

Clock Divider


In this area:http://www.xilinx.com/support/documentation/data_sheets/ds312.pdf

You can add or replace

any VHDL module or C function.

Interface

Cycle Acc. Counter

ROM

Monitor

Monitor Card

Keyboard Card

Keyboard

Conv. Number

Char. Converter

RAM

Frequency Counter

Clock Divider

IC12 pin#5

50 MHz


In this area:http://www.xilinx.com/support/documentation/data_sheets/ds312.pdf

You can add or replace

any VHDL module or C function.

Interface

Cycle Acc. Counter

ROM

Monitor

Monitor Card

Keyboard Card

Keyboard

Conv. Number

Char. Converter

RAM

Frequency Counter

Clock Divider

IC12 pin#5

50 MHz


Techno applications
TECHNO* Applications:http://www.xilinx.com/support/documentation/data_sheets/ds312.pdf

  • Frequency Counter:

    Measure the frequency of an external signal.

  • Cycle Accurate Counter:

    Measure the number of cycles needed to execute certain C function or program.


In this area:http://www.xilinx.com/support/documentation/data_sheets/ds312.pdf

You can add or replace

any VHDL module or C function.

Interface

Cycle Acc. Counter

ROM

Monitor

Monitor Card

Keyboard Card

Keyboard

Conv. Number

Char. Converter

RAM

Frequency Counter

Clock Divider

IC12 pin#5

50 MHz


In this area:http://www.xilinx.com/support/documentation/data_sheets/ds312.pdf

You can add or replace

any VHDL module or C function.

Interface

Cycle Acc. Counter

ROM

Monitor

Monitor Card

Keyboard Card

Keyboard

Conv. Number

Char. Converter

RAM

Frequency Counter

Clock Divider

IC12 pin#5

50 MHz


Frequency counter
Frequency Counter:http://www.xilinx.com/support/documentation/data_sheets/ds312.pdf

Inputs: IC12 pin#5 external clk and 50MHz clk.

Outputs: 1-8 decimal digits represent the frequency in Hz.

Function: Counting the number of positive edges of the guest signal and store the result in 8 registers to be displayed on the screen.

Reg7

Reg6

Reg5

Reg4

Reg3

Reg2

Reg1

Reg0

Guest CLK

Frq_value [32..0]

frq_clk

50Mhz

clock_50Mhz

Frequency Counter


In this area:http://www.xilinx.com/support/documentation/data_sheets/ds312.pdf

You can add or replace

any VHDL module or C function.

Interface

Cycle Acc. Counter

ROM

Monitor

Monitor Card

Keyboard Card

Keyboard

Conv. Number

Char. Converter

RAM

Frequency Counter

Clock Divider

IC12 pin#5

50 MHz


In this area:http://www.xilinx.com/support/documentation/data_sheets/ds312.pdf

You can add or replace

any VHDL module or C function.

Interface

Cycle Acc. Counter

ROM

Monitor

Monitor Card

Keyboard Card

Keyboard

Conv. Number

Char. Converter

RAM

Frequency Counter

Clock Divider

IC12 pin#5

50 MHz


Accurate cycle counter
Accurate Cycle Counter:http://www.xilinx.com/support/documentation/data_sheets/ds312.pdf

Inputs: Start_Done’ [C program]and 50MHz clk.

Outputs: decimal digits represent number of cycles/prog.

Function: Counting the number of clocks between the start flag and the end flag => Logic Analyzer .

//C_Function

Done_Start++;//=01;

Function()

{ ……….

……….

………

}

Done_Start++;//=10;

Start_Done’

#clks [32..0]

50Mhz

clock_50Mhz

Frequency Counter


In this area:http://www.xilinx.com/support/documentation/data_sheets/ds312.pdf

You can add or replace

any VHDL module or C function.

Interface

Cycle Acc. Counter

ROM

Monitor

Monitor Card

Keyboard Card

Keyboard

Conv. Number

Char. Converter

RAM

Frequency Counter

Clock Divider

IC12 pin#5

50 MHz


In this area:http://www.xilinx.com/support/documentation/data_sheets/ds312.pdf

You can add or replace

any VHDL module or C function.

Interface

Cycle Acc. Counter

ROM

Monitor

Monitor Card

Keyboard Card

Keyboard

Conv. Number

Char. Converter

RAM

Frequency Counter

Clock Divider

IC12 pin#5

50 MHz


Microblaze
MicroBlaze:http://www.xilinx.com/support/documentation/data_sheets/ds312.pdf

  • Soft Core - reduced instruction set computer (RISC)

  • 32-bit general purpose registers

  • 32-bit instruction word with three operands and two addressing modes

  • 32-bit address bus

http://www.xilinx.com/support/documentation/sw_manuals/mb_ref_guide.pdf


In this area:http://www.xilinx.com/support/documentation/data_sheets/ds312.pdf

You can add or replace

any VHDL module or C function.

Interface

Cycle Acc. Counter

ROM

Monitor

Monitor Card

Keyboard Card

Keyboard

Conv. Number

Char. Converter

RAM

Frequency Counter

Clock Divider

IC12 pin#5

50 MHz


In this area:http://www.xilinx.com/support/documentation/data_sheets/ds312.pdf

You can add or replace

any VHDL module or C function.

Interface

Cycle Acc. Counter

ROM

Monitor

Monitor Card

Keyboard Card

Keyboard

Conv. Number

Char. Converter

RAM

Frequency Counter

Clock Divider

IC12 pin#5

50 MHz

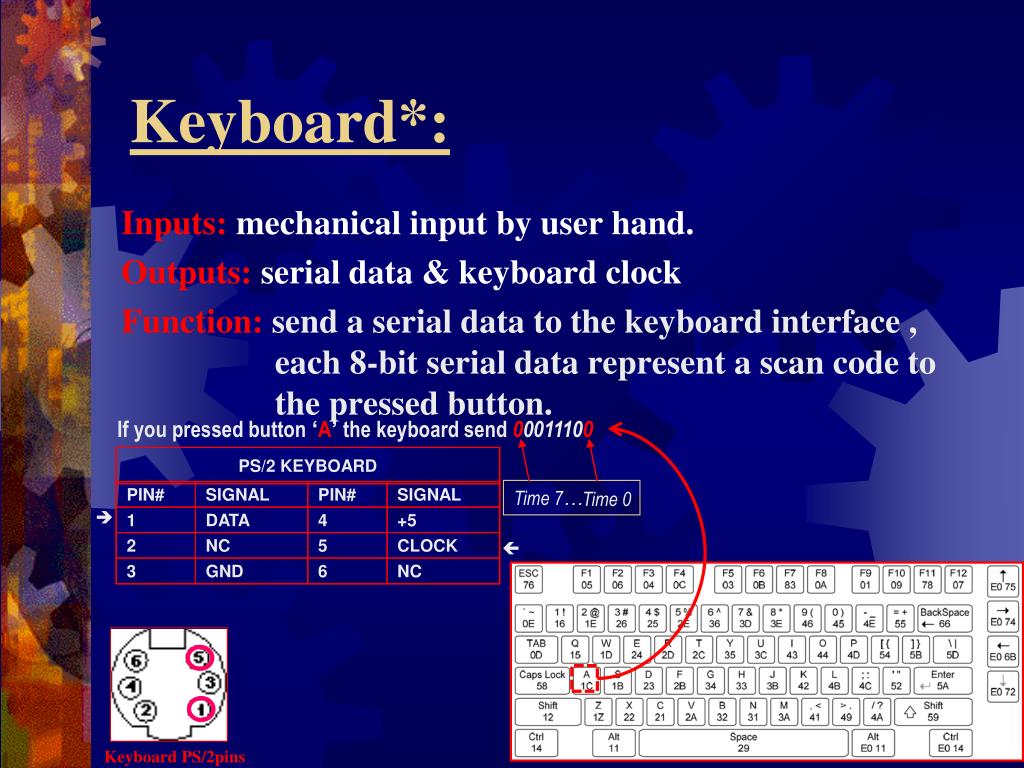

Keyboard

PS/2 KEYBOARDhttp://www.xilinx.com/support/documentation/data_sheets/ds312.pdf

PIN#

SIGNAL

PIN#

SIGNAL

1

DATA

4

+5

2

NC

5

CLOCK

3

GND

6

NC

Keyboard*:

Inputs: mechanical input by user hand.

Outputs: serial data & keyboard clock

Function: send a serial data to the keyboard interface , each 8-bit serial data represent a scan code to the pressed button.

If you pressed button ‘A’ the keyboard send 00011100

Time 7…

Time 0

Keyboard PS/2pins


Keyboard interface

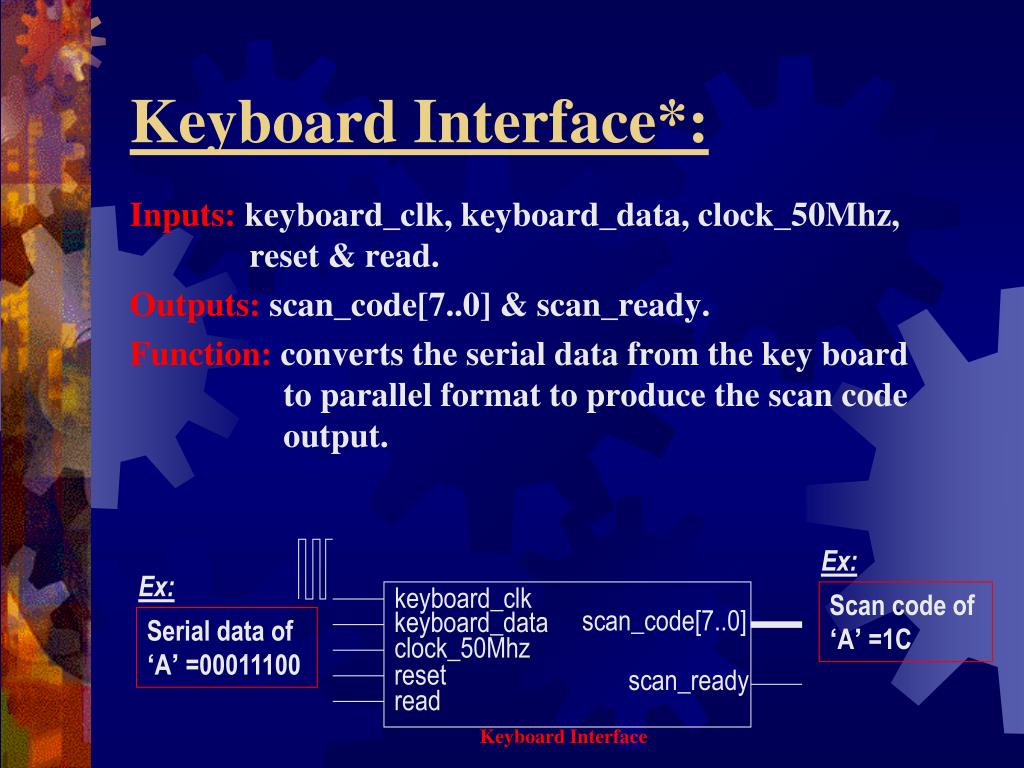

Keyboard Interface*:http://www.xilinx.com/support/documentation/data_sheets/ds312.pdf

Inputs: keyboard_clk, keyboard_data, clock_50Mhz, reset & read.

Outputs: scan_code[7..0] & scan_ready.

Function: converts the serial data from the key board to parallel format to produce the scan code output.

Ex:

Ex:

keyboard_clk

Scan code of

‘A’ =1C

scan_code[7..0]

keyboard_data

Serial data of

‘A’ =00011100

clock_50Mhz

reset

scan_ready

read

Keyboard Interface


In this area:http://www.xilinx.com/support/documentation/data_sheets/ds312.pdf

You can add or replace

any VHDL module or C function.

Interface

Cycle Acc. Counter

ROM

Monitor

Monitor Card

Keyboard Card

Keyboard

Conv. Number

Char. Converter

RAM

Frequency Counter

Clock Divider

IC12 pin#5

50 MHz


In this area:http://www.xilinx.com/support/documentation/data_sheets/ds312.pdf

You can add or replace

any VHDL module or C function.

Interface

Cycle Acc. Counter

ROM

Monitor

Monitor Card

Keyboard Card

Keyboard

Conv. Number

Char. Converter

RAM

Frequency Counter

Clock Divider

IC12 pin#5

50 MHz


Converting number
Converting Number*:http://www.xilinx.com/support/documentation/data_sheets/ds312.pdf

Inputs: scan_code[7..0] & clock_50Mhz.

Outputs: total_binary_no.[7..0].

Function: level I:convert the scan code of the number to its real value .

level II: calculate the total number entered by keyboard .

Data from keyboard intr. After conv. it to its real values

254 = 00000010 00000101 00000100

Data to VHDL Module

Scan code of 2

11111110

2=0E=00001110

scan_code[7..0]

total_binary_no.[7..0]

(2*100)+(5*10)+(4)

clock_50Mhz

Converting Number

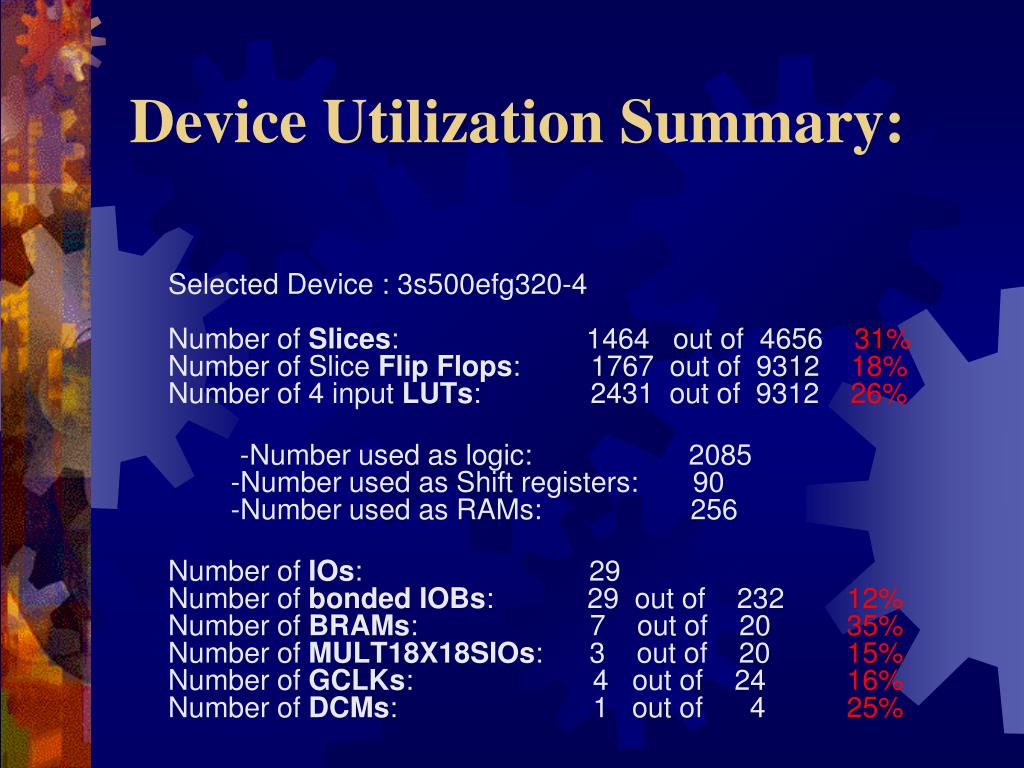

Device utilization summary
Device Utilization Summary:http://www.xilinx.com/support/documentation/data_sheets/ds312.pdf

Selected Device : 3s500efg320-4 Number of Slices:                        1464  out of  4656    31% Number of Slice Flip Flops:        1767  out of  9312    18%Number of 4 input LUTs:            2431  out of  9312    26%

-Number used as logic:                  2085      -Number used as Shift registers:      90        -Number used as RAMs:                256

Number of IOs:                          29Number of bonded IOBs:            29  out of    232    12% Number of BRAMs:                    7  out of    20    35% Number of MULT18X18SIOs:      3  out of    20    15% Number of GCLKs:                    4  out of    24    16% Number of DCMs:                      1  out of      4    25%

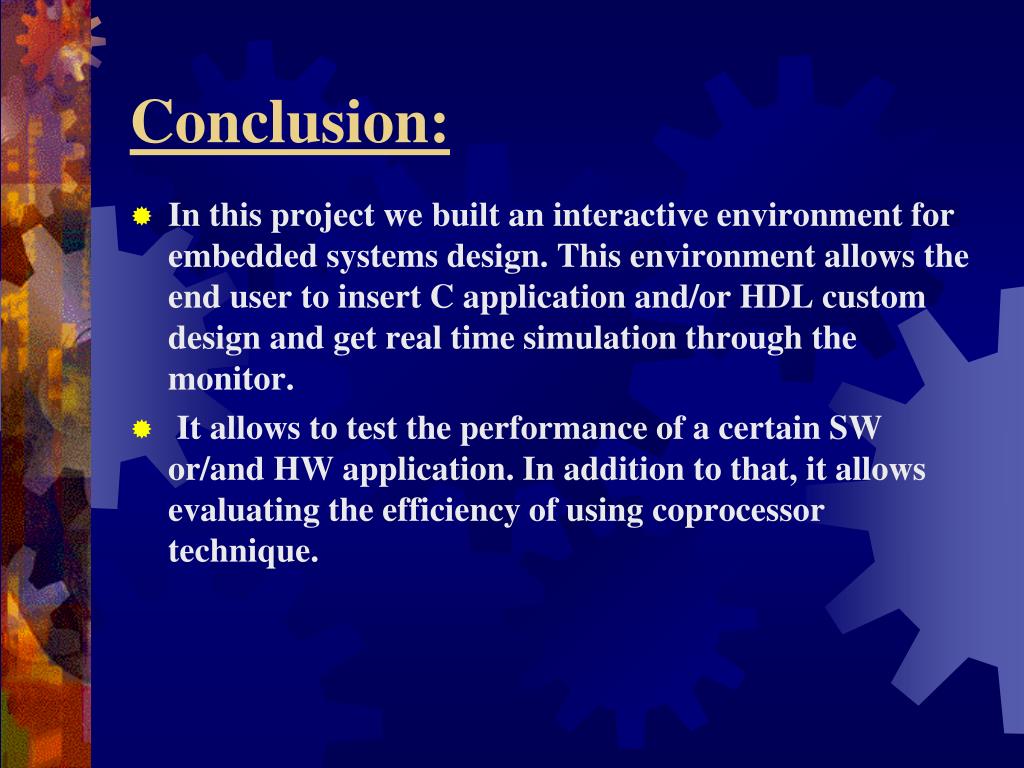

Conclusion
Conclusion:http://www.xilinx.com/support/documentation/data_sheets/ds312.pdf

  • In this project we built an interactive environment for embedded systems design. This environment allows the end user to insert C application and/or HDL custom design and get real time simulation through the monitor.

  • It allows to test the performance of a certain SW or/and HW application. In addition to that, it allows evaluating the efficiency of using coprocessor technique.

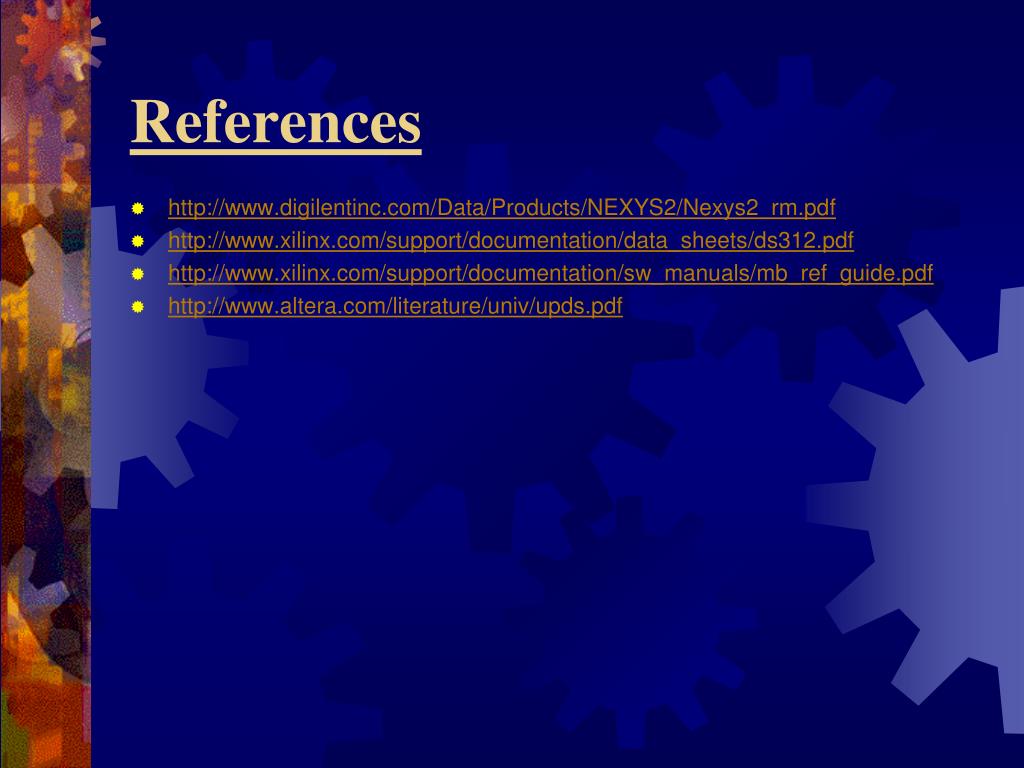

References
Referenceshttp://www.xilinx.com/support/documentation/data_sheets/ds312.pdf

  • http://www.digilentinc.com/Data/Products/NEXYS2/Nexys2_rm.pdf

  • http://www.xilinx.com/support/documentation/data_sheets/ds312.pdf

  • http://www.xilinx.com/support/documentation/sw_manuals/mb_ref_guide.pdf

  • http://www.altera.com/literature/univ/upds.pdf


Any question
Any Questionhttp://www.xilinx.com/support/documentation/data_sheets/ds312.pdf


ad
