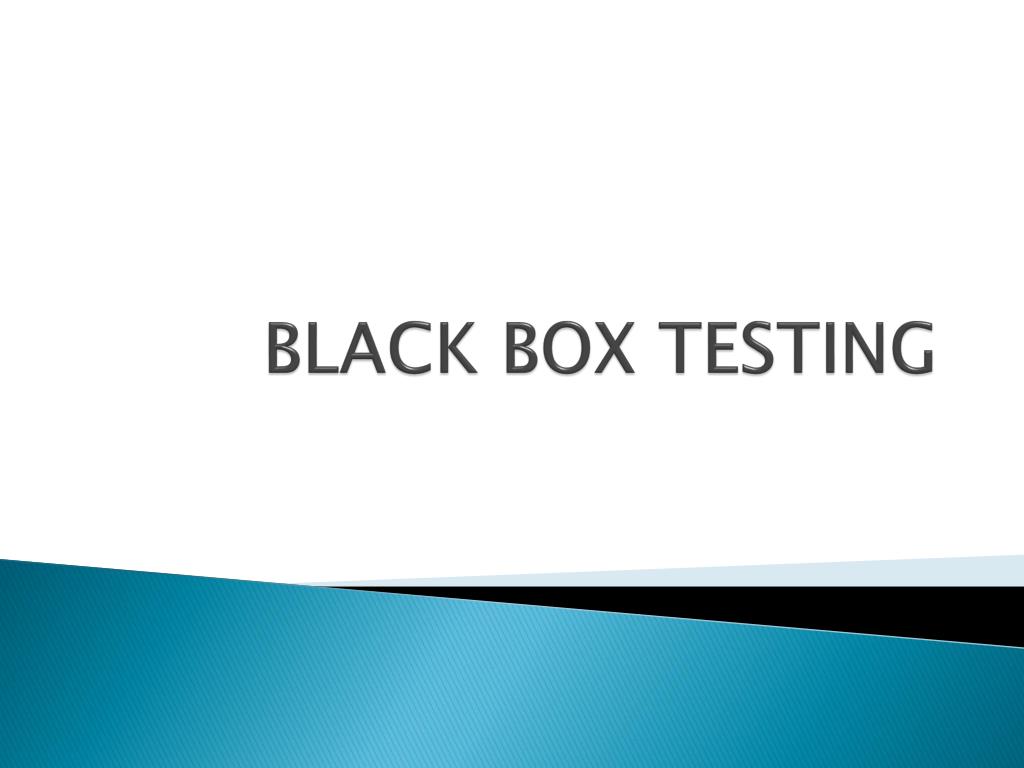

  1. BLACK BOX TESTING

  2. Pendahuluan • Fokus pada faktor Fungsionalitas dan spesifikasi Perangkat Lunak • Fokus pada informasi domain • Tidak membutuhkan pengetahuan mengenai,alur internal, struktur Software Under Test • Bukan alternatif dari ujicoba whitebox, tetapi merupakan pendekatan yang melengkapi untuk menemukan kesalahan lainnya

  3. Kategori Kesalahan (Black Box) • Fungsi – fungsi yang salah atau hilang • Kesalahan Interface • Kesalahan dalam struktur data • Kesalahan dalam akses database eksternal • Kesalahan performa • Kesalahan inisialisasi dan terminasi

  4. Pertanyaan Black Box Testing • Bagaimana validitas fungsionalitasnya diuji? • Jenis input seperti apa yang akan menghasilkan kasus uji yang baik? • Apakah sistem sensitif terhadap nilai input tertentu? • Bagaimana batasan-batasan kelas diisolasi? • Berapa rasio data dan jumlah data yang dapat di toleransi oleh sistem? • Apa akibat dari kombinasi spesifik data pada sistem operasi?

  5. Proses dalam Black Box Testing • Menganalisa kebutuhan dan spesifikasi perangkat lunak • Pemilihan jenis input yang mungkin menghasilkan output yang benar • Pengujian dilakukan dengan input-input yang benar-benar telah diseleksi • Pembandingan output yang dihasilkan dengan output yang diharapkan • Menentukan fungsionalitas yang harusnya ada pada perangkat lunak yang diuji

  6. Kapan pengujian nya? • Blackbox Testing dapat dilakukan di setiap level pembangunan sistem

  7. Kelebihan & Kekurangan • Kelebihan • Dapat memilih subset test yang secara efektif dan efisien dapat menemukan cacat • Membantu meminimalkan testing cost • Kelemahan • Tester tidak yakin sepenuhnya atas perangkat lunak yang telah diuji

  8. Jenis – jenis BB Testing • Equivalence Partitioning • Boundary Value Analysis/Limit Testing • Comparison Testing • Sample Testing • Robustness Testing • Behavior Testing • Requirement Testing • Performance Testing • Endurance Testing • Cause-Effect Relationship Testing

  9. Equivalence Partitioning • Divide the input domain into classes of data for which test cases can be generated. • Attempting to uncover classes of errors. • Based on equivalence classes for input conditions. • An equivalence class represents a set of valid or invalid states • An input condition is either a specific numeric value, range of values, a set of related values, or a boolean condition. • Equivalence classes can be defined by: • If an input condition specifies a range or a specific value, one valid and two invalid equivalence classes defined. • If an input condition specifies a boolean or a member of a set, one valid and one invalid equivalence classes defined. • Test cases for each input domain data item developed and executed.

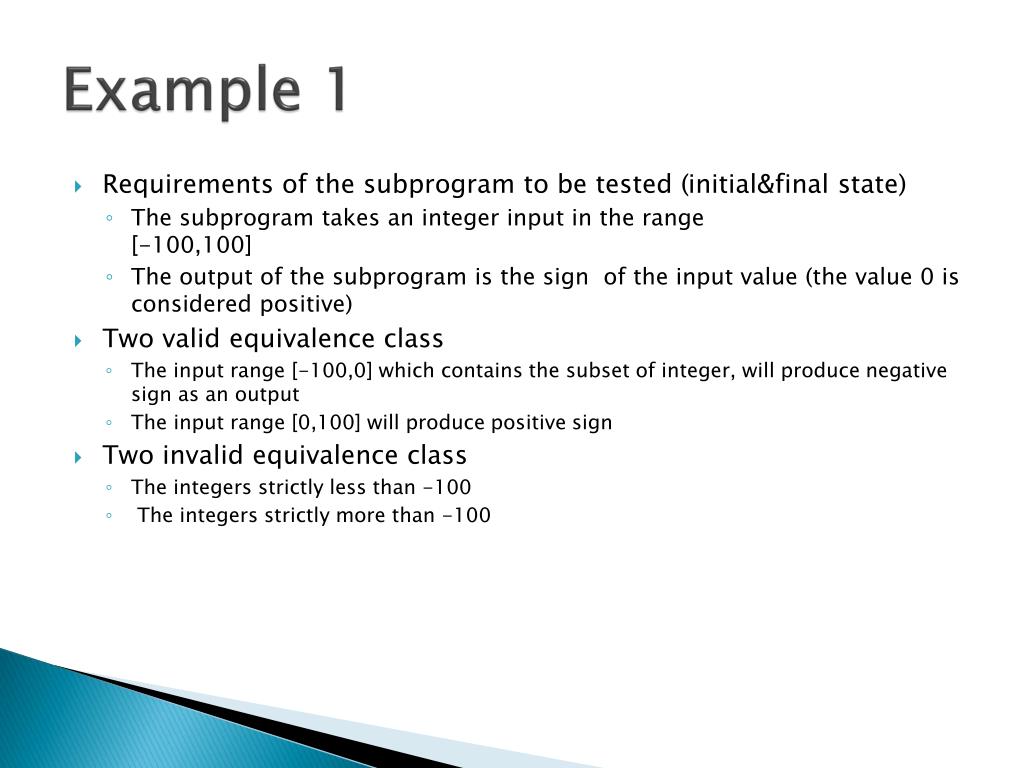

  10. Example 1 • Requirements of the subprogram to be tested (initial&final state) • The subprogram takes an integer input in the range [-100,100] • The output of the subprogram is the sign of the input value (the value 0 is considered positive) • Two valid equivalence class • The input range [-100,0] which contains the subset of integer, will produce negative sign as an output • The input range [0,100] will produce positive sign • Two invalid equivalence class • The integers strictly less than -100 • The integers strictly more than -100

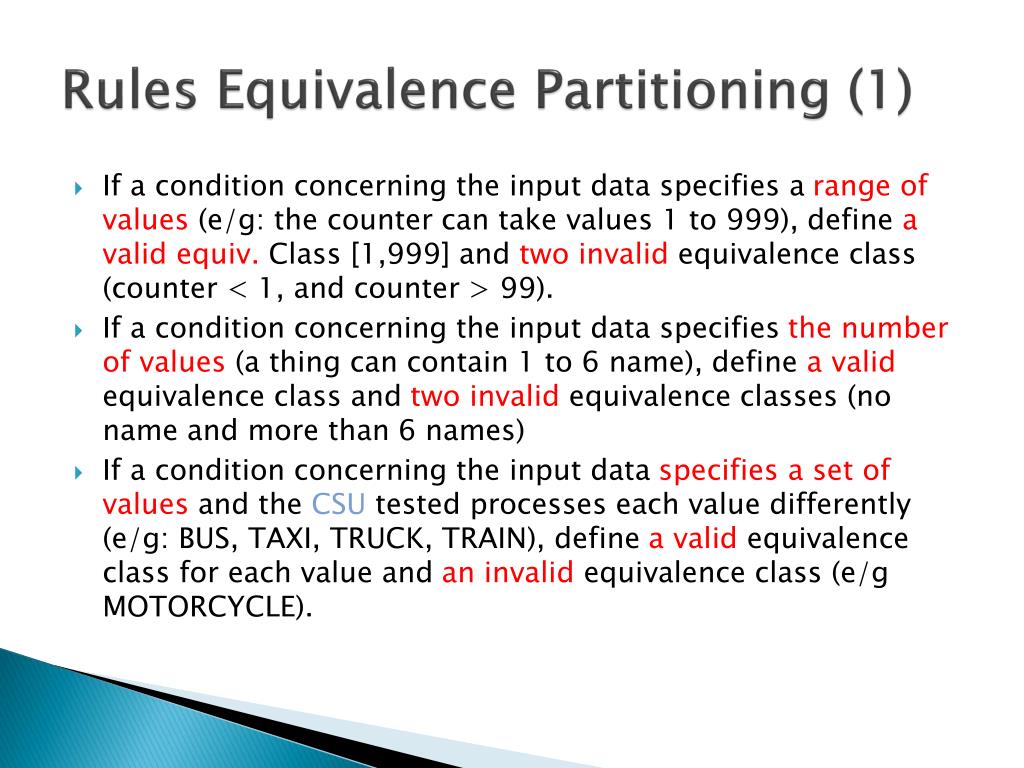

  11. Rules Equivalence Partitioning (1) • If a condition concerning the input data specifies a range of values (e/g: the counter can take values 1 to 999), define a valid equiv. Class [1,999] and two invalid equivalence class (counter < 1, and counter > 99). • If a condition concerning the input data specifies the number of values (a thing can contain 1 to 6 name), define a valid equivalence class and two invalid equivalence classes (no name and more than 6 names) • If a condition concerning the input data specifies a set of values and the CSU tested processes each value differently (e/g: BUS, TAXI, TRUCK, TRAIN), define a valid equivalence class for each value and an invalid equivalence class (e/g MOTORCYCLE).

  12. Rules Equivalence Partitioning (2) • If an input condition is expressed by a sentence containing ‘must be’ (e/g the first character must be a letter), define a valid equivalence class ( a letter) and an invalid equivalence class ( not a letter)

  13. Example 2 • Requirements • Given three values, represent the length of side of triangle, determine if it is equilateral, isosceles and scalene • Three valid equivalence class • 3 equal values positive • 3 positive values and 2 which are equal and the sum of two is greater than the third value • 3 positive values and the sum of two values is greater than the third value • Two invalid equivalence classes • 2 positive values and a negative/zero • 3 positive values such that the sum of two is equal/less

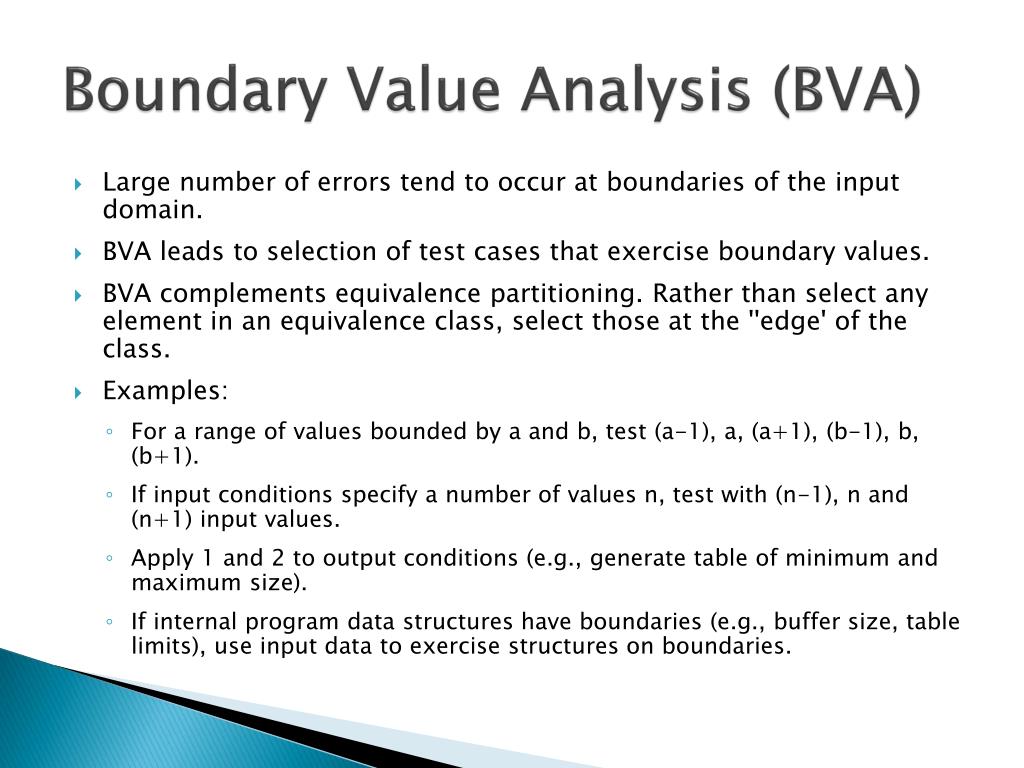

  14. Boundary Value Analysis (BVA) • Large number of errors tend to occur at boundaries of the input domain. • BVA leads to selection of test cases that exercise boundary values. • BVA complements equivalence partitioning. Rather than select any element in an equivalence class, select those at the ''edge' of the class. • Examples: • For a range of values bounded by a and b, test (a-1), a, (a+1), (b-1), b, (b+1). • If input conditions specify a number of values n, test with (n-1), n and (n+1) input values. • Apply 1 and 2 to output conditions (e.g., generate table of minimum and maximum size). • If internal program data structures have boundaries (e.g., buffer size, table limits), use input data to exercise structures on boundaries.
