  1. magicolor 2300 DL Color Laser Printer Great Color Comes in Small Packages All specifications & pricing are subject to change without notice

  2. “The main problem with most color laser printers, aside from cost, is that they are generally huge and heavy, making them unsuitable for a SOHO or a manager printing sensitive documents.” - CRN.com, March 2002 MINOLTA-QMS introduces the solution...

  3. High throughput and performance • Exceptional print quality • Easy to use • Robust • Compact! • Affordable! $799

  4. magicolor 2300 DL Color Laser Printer • Small price • affordable for individuals and businesses • a smart ink jet alternative • Small size • perfect fit for desktop or tabletop • Great performance • powerful enough for a small Windows workgroup • effective monochrome printer replacement • Free 10/100BaseTX Ethernet network interface • Easy to use • simple enough for the home user

  5. magicolor 2300 DL Color Laser Printer Standard Features 4 ppm 16 ppm 2400 x 600 dpi Polymerized for fine detail 200 sheets 200 sheets Up to 8.5 x 14 inches 32 MB Windows 10/100BaseTX Ethernet, USB 1.1, Parallel Speed - color Speed - b&w Resolution Toner Paper input Paper output Paper size Memory Platform Interfaces

  6. magicolor 2300 DL Color Laser Printer Optional Features 500-sheet feeder Automatic duplexer Up to 288 MB Support for 802.11B & Bluetooth for wireless adapters Paper input Paper handling Memory Interfaces

  7. magicolor 2300 DL Color Laser Printer • Full-featured for these customers • Small office or home office (SOHO) • Small businesses • Small- and medium-sized workgroups within larger organizations • Handles every office printing need • B&W documents • E-mail and Web pages • Color presentations • Desktop publishing

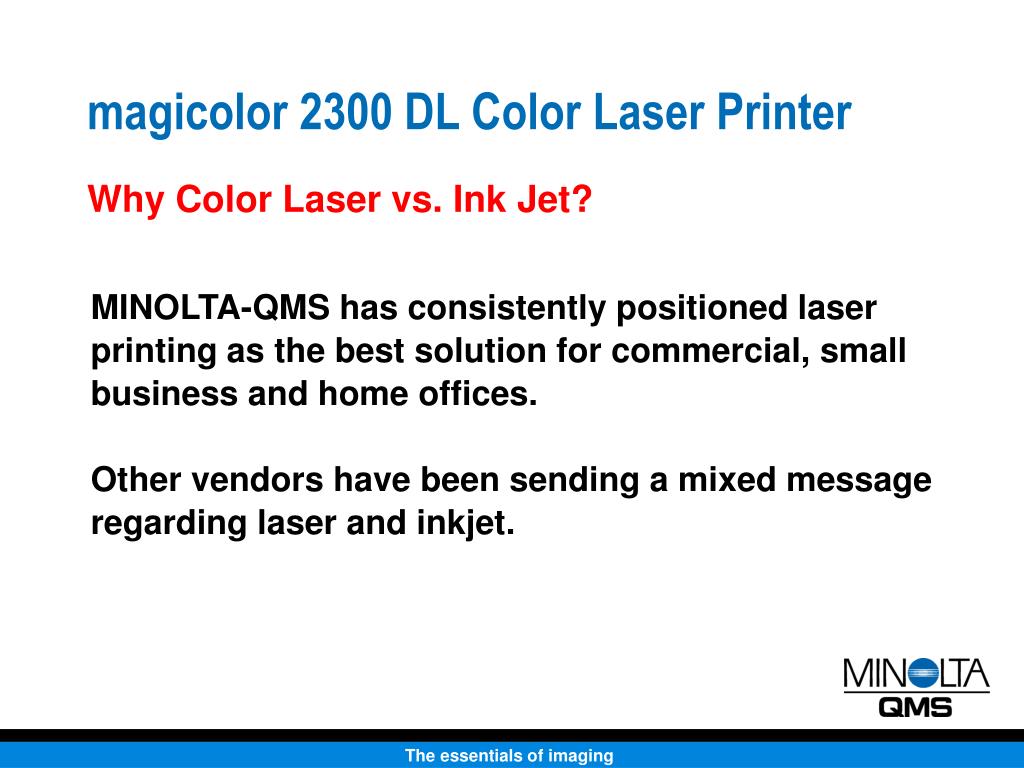

  8. magicolor 2300 DL Color Laser Printer Why Color Laser vs. Ink Jet? MINOLTA-QMS has consistently positioned laser printing as the best solution for commercial, small business and home offices. Other vendors have been sending a mixed message regarding laser and inkjet.

  9. magicolor 2300 DL Color Laser Printer Why Color Laser vs. Ink Jet? LASER Print speed consistent regardless ofprint quality High duty cycle sustains use by multiple people on a network High consumable yields prevent workflow interruptions Output durable and resistant No special print media required for best output INK JET Print speed slows dramatically as printquality increases Duty cycle typically not designed for network use Limited consumable yields mean frequent replacement Output subject to smearing and fading. Drying time required Premium media (at a premium price) required for best output

  10. magicolor 2300 DL Color Laser Printer Newest member of the color line Color Line magicolor 2210 GN magicolor 3100 DN magicolor 2210 • $1799* • letter/legal • 5/20 ppm • 1200 dpi • multi-platform magicolor 3100 • $1999* • letter/legal • 16/16 ppm • 1200 dpi • multi-platform magicolor 2300 DL • $799* • letter/legal • 4/16 ppm • 2400 dpi • Windows NEW *Manufacturer’s estimated street price.

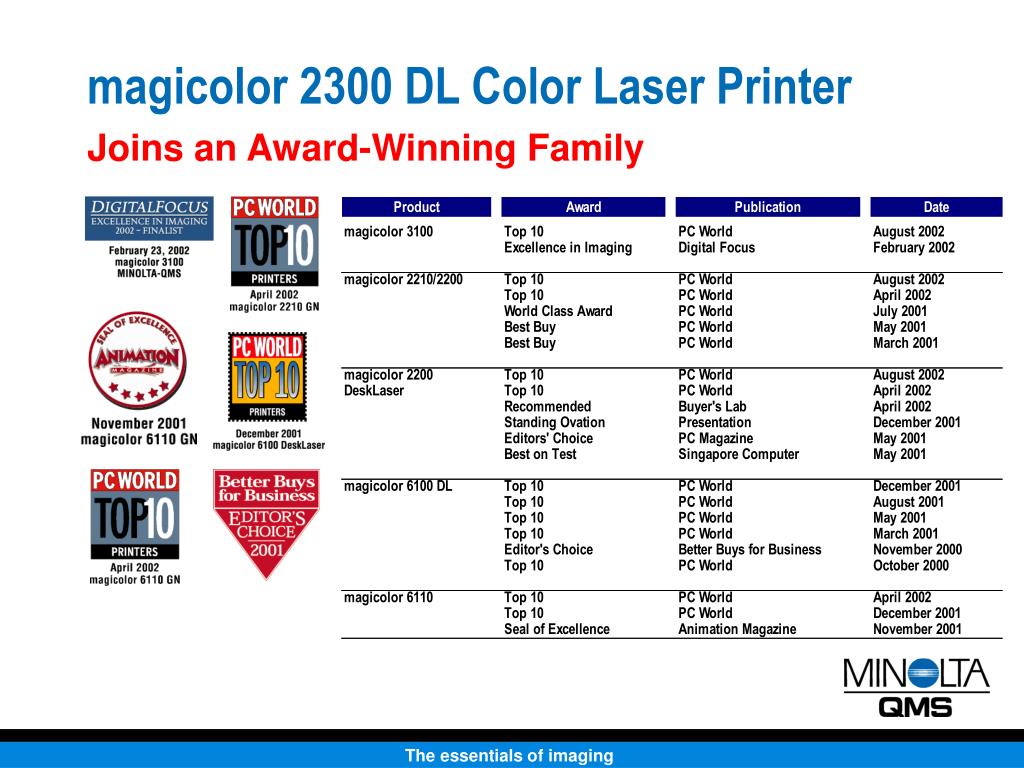

  11. magicolor 2300 DL Color Laser Printer Joins an Award-Winning Family

  12. magicolor 2300 DL Color Laser Printer Replaces the hot-selling magicolor 2200 DeskLaser magicolor 2200 DeskLaser magicolor 2300 DL *Manufacturer’s estimated street price.

  13. magicolor 2300 DL Color Laser Printer The competition’s a heavy weight! HP Color LaserJet 4550N magicolor 2300 DL *Manufacturer’s estimated street price.

  14. 19.7 14 22.4 19.7 magicolor 2300 DL Color Laser Printer Compared to a leading competitor, the HP Color LaserJet 4550, the magicolor 2300 DL is significantly smaller to fit practically anywhere 37% Smaller 276 sq. in. M-Q magicolor 2300 DL 441 sq. in. HP Color LaserJet 4550

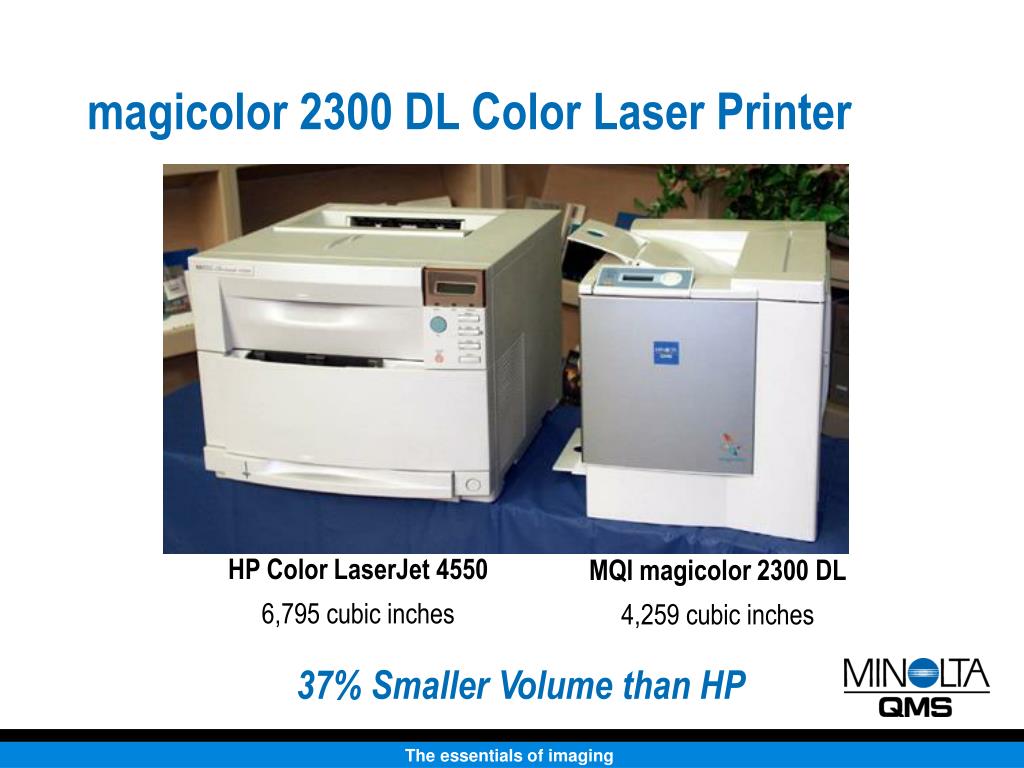

  15. magicolor 2300 DL Color Laser Printer HP Color LaserJet 4550 6,795 cubic inches MQI magicolor 2300 DL 4,259 cubic inches 37% Smaller Volume than HP

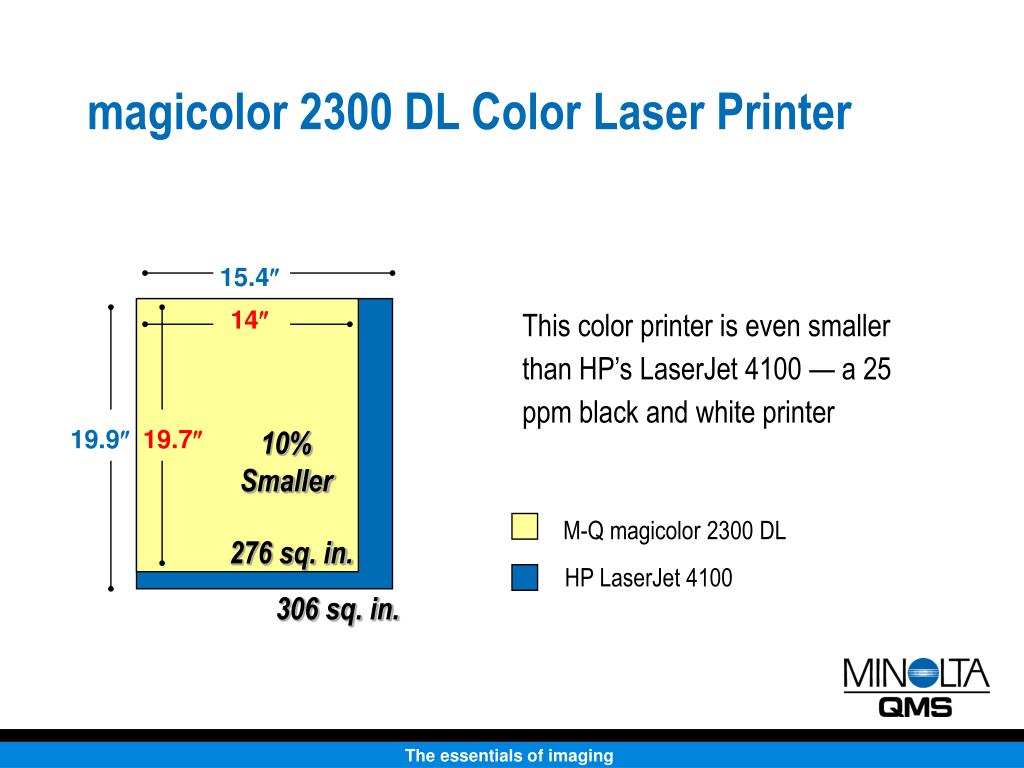

  16. magicolor 2300 DL Color Laser Printer 15.4 14 This color printer is even smaller than HP’s LaserJet 4100 — a 25 ppm black and white printer 19.9 19.7 10% Smaller M-Q magicolor 2300 DL 276 sq. in. HP LaserJet 4100 306 sq. in.

  17. magicolor 2300 DL Color Laser Printer US A4 Desktop Color Laser Market Share CY 2001 CY 2000 From 2000-2001, MINOLTA-QMS’ share almost triples! Source: IDC 2002

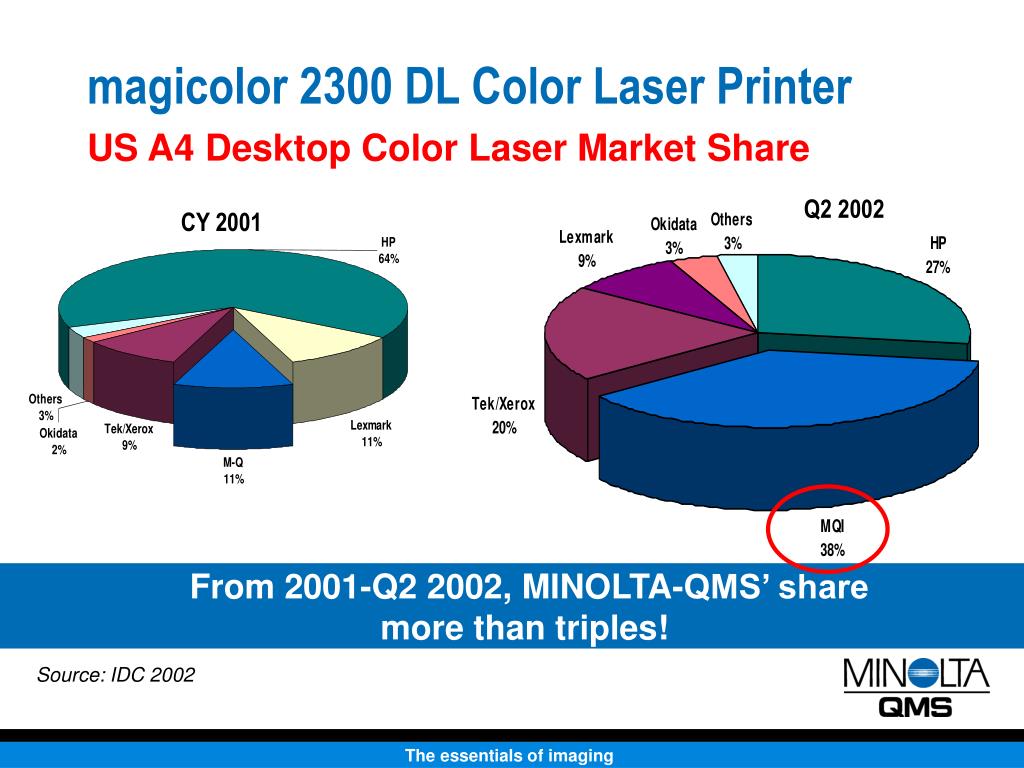

  18. magicolor 2300 DL Color Laser Printer US A4 Desktop Color Laser Market Share Q2 2002 CY 2001 From 2001-Q2 2002, MINOLTA-QMS’ share more than triples! Source: IDC 2002

  19. magicolor 2300 DL Color Laser Printer US Retail Color Laser Printer Sales MQI HP Other MINOLTA-QMS grabs significant share from HP Source: NPD Intelect

  20. magicolor 2300 DL Color Laser Printer Print Engine Small to place practically anywhere • Weight • 55 lbs. (25 kg) • Dimensions(W x D x H) • 14 x 19.7 x 15.4-inches • Duty Cycle • Up to 35,000 pages/month (50/50 mix of color and monochrome) • Warranty • One year* exchange Lightweight for easy installation • * Not available in all areas.

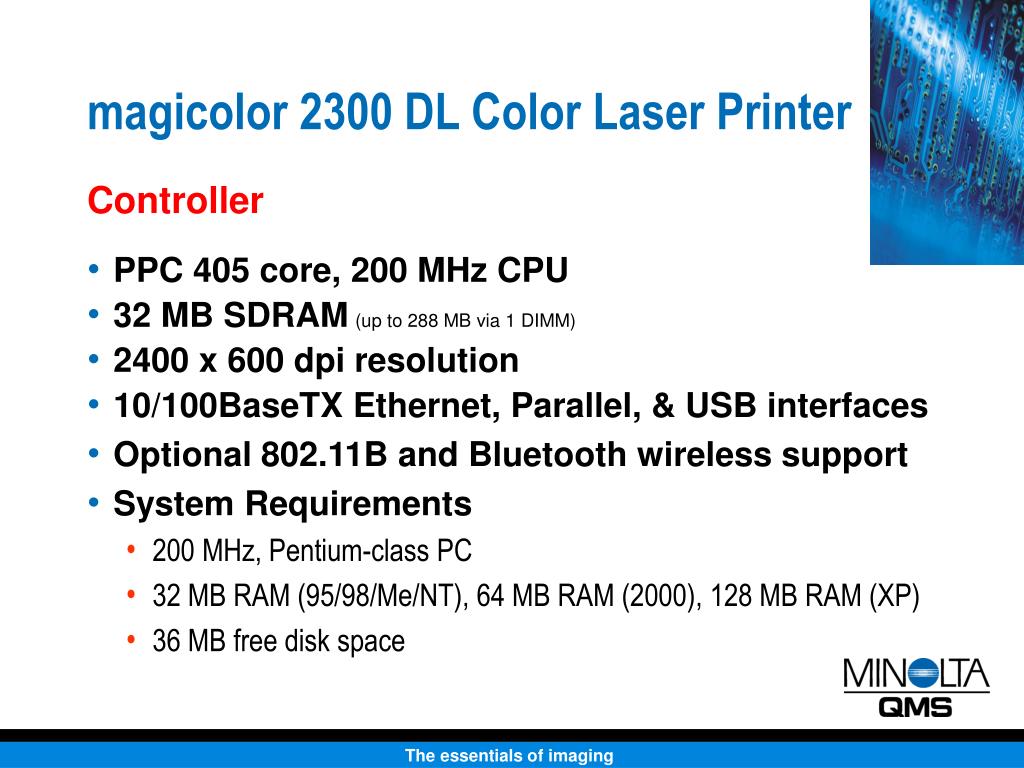

  21. magicolor 2300 DL Color Laser Printer Controller • PPC 405 core, 200 MHz CPU • 32 MB SDRAM(up to 288 MB via 1 DIMM) • 2400 x 600 dpi resolution • 10/100BaseTX Ethernet, Parallel, & USB interfaces • Optional 802.11B and Bluetooth wireless support • System Requirements • 200 MHz, Pentium-class PC • 32 MB RAM (95/98/Me/NT), 64 MB RAM (2000), 128 MB RAM (XP) • 36 MB free disk space

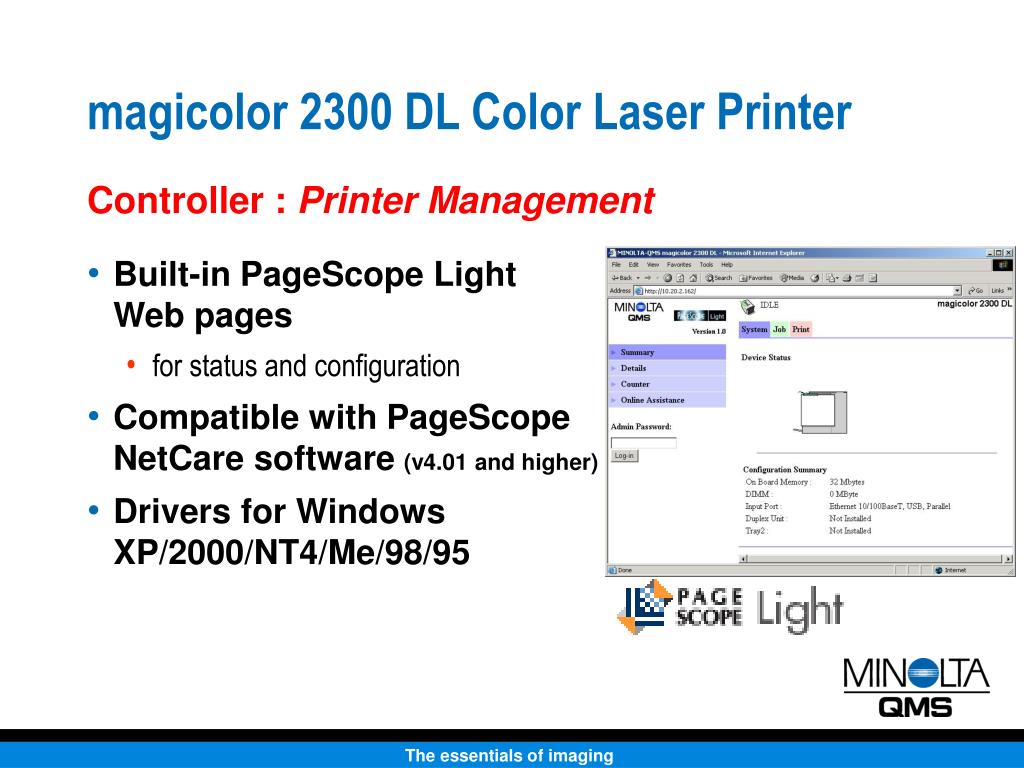

  22. magicolor 2300 DL Color Laser Printer Controller : Printer Management • Built-in PageScope Light Web pages • for status and configuration • Compatible with PageScope NetCare software (v4.01 and higher) • Drivers for Windows XP/2000/NT4/Me/98/95

  23. magicolor 2300 DL Color Laser Printer Controller : Color Support • eAIDC (Enhanced Automatic Image Density Control) • For great quality without hands-on adjustments • ICC-based color matching • Generates best possible color based on a page’s contents • ICC device profiles • Supports Windows ICM and other ICC color management systems

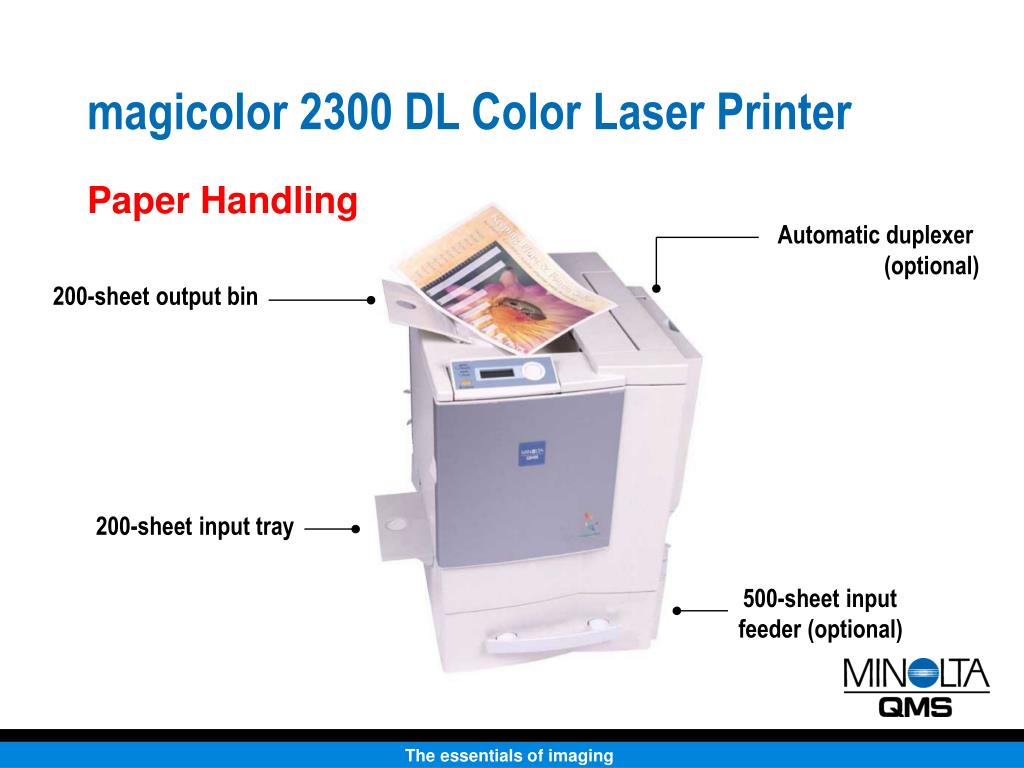

  24. Automatic duplexer (optional) magicolor 2300 DL Color Laser Printer Paper Handling 200-sheet output bin 200-sheet input tray 500-sheet input feeder (optional)

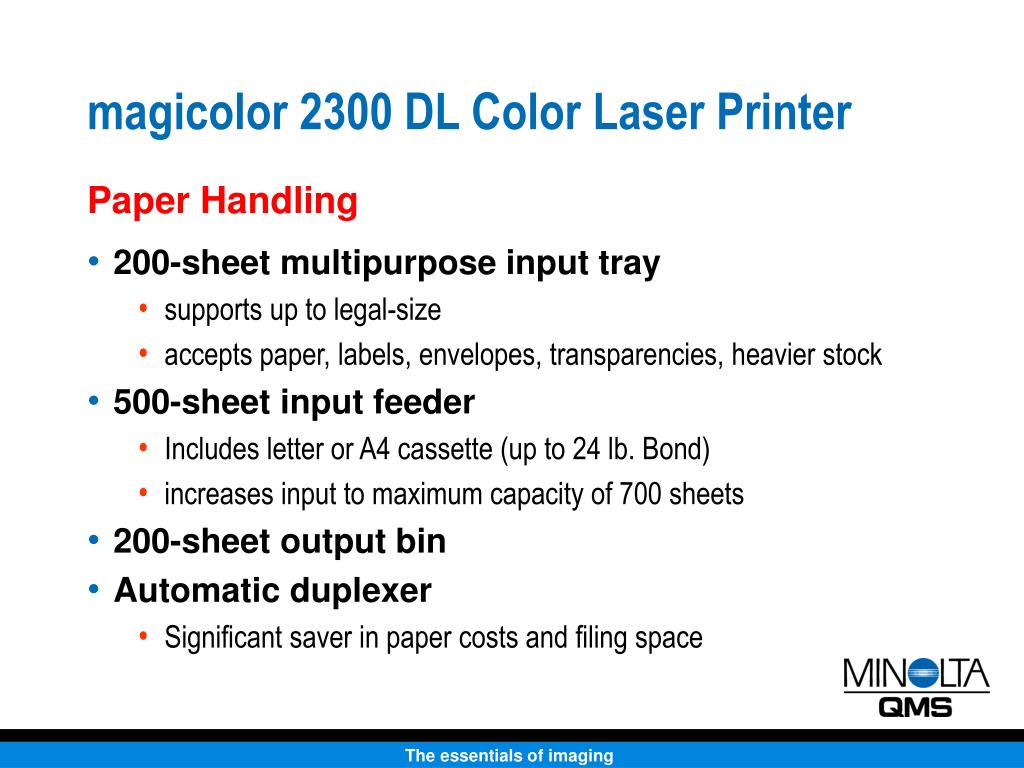

  25. magicolor 2300 DL Color Laser Printer Paper Handling • 200-sheet multipurpose input tray • supports up to legal-size • accepts paper, labels, envelopes, transparencies, heavier stock • 500-sheet input feeder • Includes letter or A4 cassette (up to 24 lb. Bond) • increases input to maximum capacity of 700 sheets • 200-sheet output bin • Automatic duplexer • Significant saver in paper costs and filing space

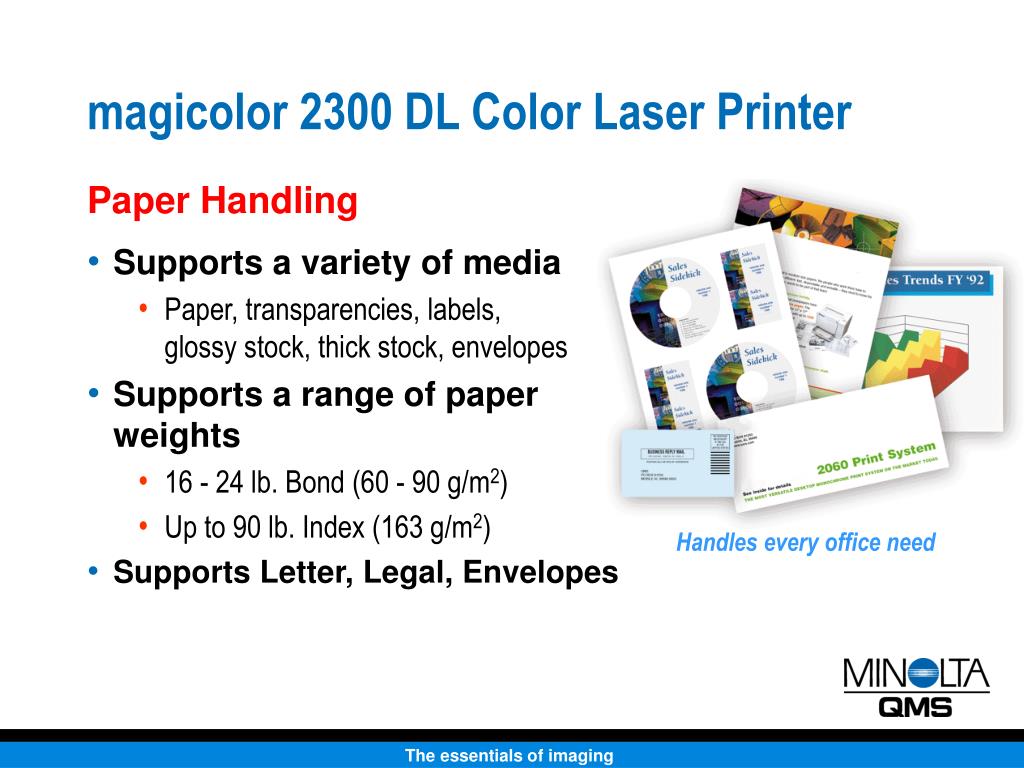

  26. magicolor 2300 DL Color Laser Printer Paper Handling • Supports a variety of media • Paper, transparencies, labels, glossy stock, thick stock, envelopes • Supports a range of paper weights • 16 - 24 lb. Bond (60 - 90 g/m2) • Up to 90 lb. Index (163 g/m2) • Supports Letter, Legal, Envelopes Handles every office need

  27. magicolor 2300 DL Color Laser Printer Print Quality • 2400 x 600 dpi resolution • 1200 x 600 dpi, 600 x 600 dpi available • Automatic color calibration • No effort to achieve best quality output • New polymerized toner • Produces sharper detail in text, lines, and graphics Bright, crisp color without a lot of effort!

  28. magicolor 2300 DL Color Laser Printer Print Quality : New Toner Technology • Smaller particle, uniform in size & shape • Produces finer lines, more detailed lines, better halftones Polymerized Conventional

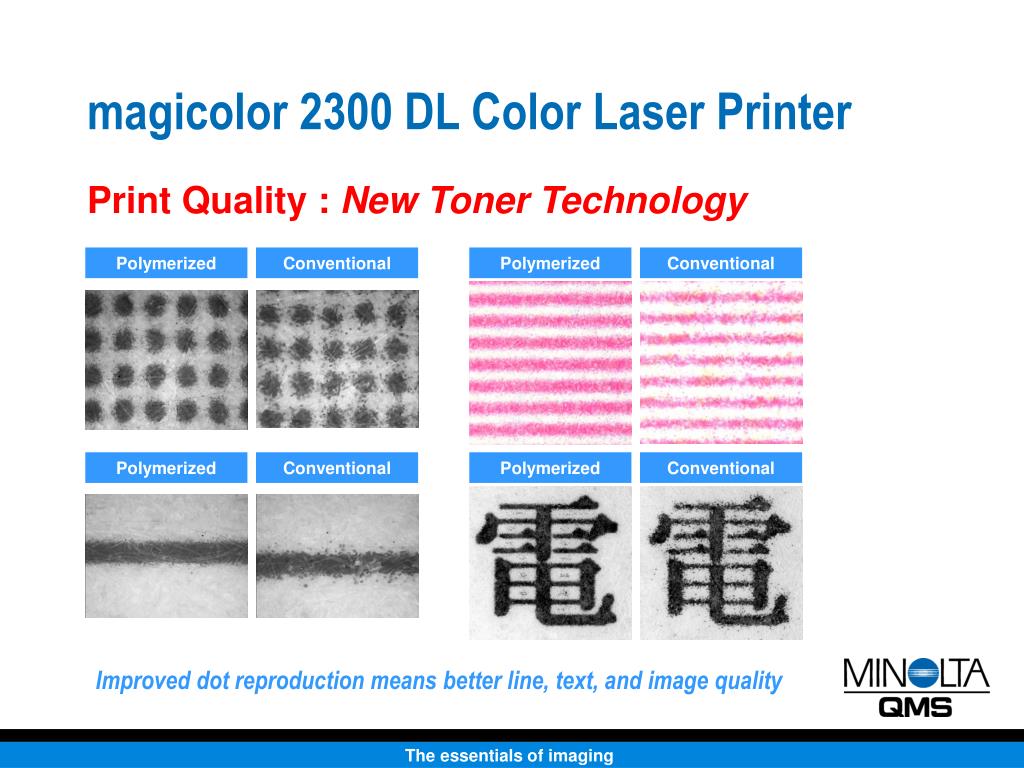

  29. magicolor 2300 DL Color Laser Printer Print Quality : New Toner Technology Polymerized Conventional Polymerized Conventional Polymerized Conventional Polymerized Conventional Improved dot reproduction means better line, text, and image quality

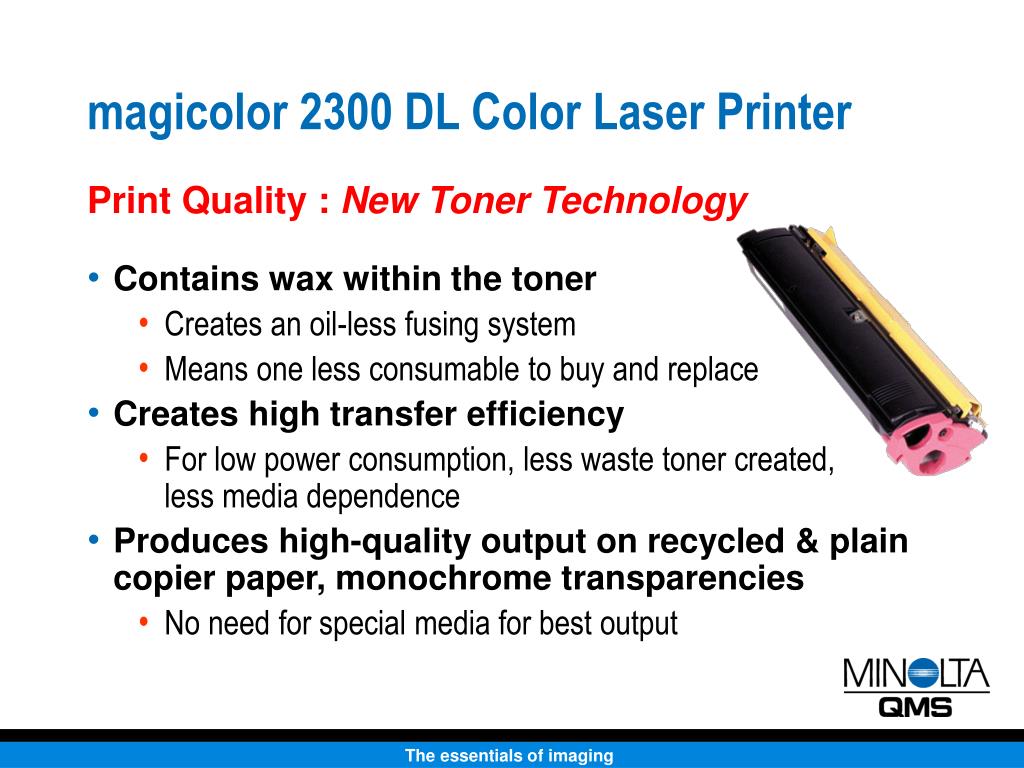

  30. magicolor 2300 DL Color Laser Printer Print Quality : New Toner Technology • Contains wax within the toner • Creates an oil-less fusing system • Means one less consumable to buy and replace • Creates high transfer efficiency • For low power consumption, less waste toner created, less media dependence • Produces high-quality output on recycled & plain copier paper, monochrome transparencies • No need for special media for best output

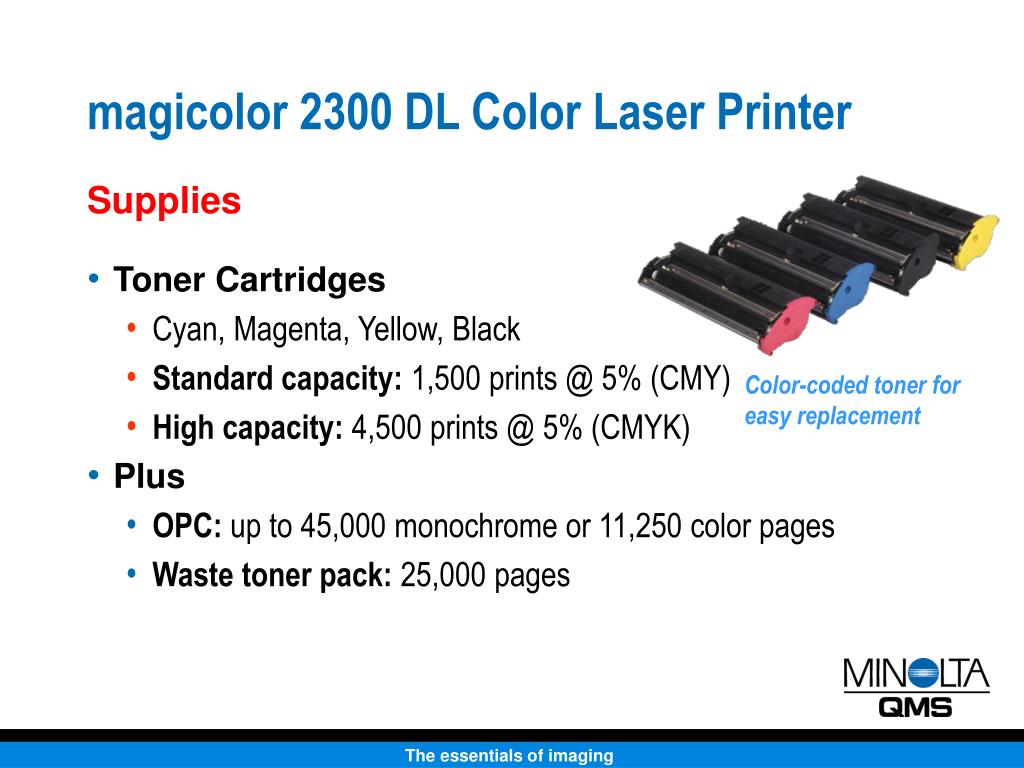

  31. magicolor 2300 DL Color Laser Printer Supplies • Toner Cartridges • Cyan, Magenta, Yellow, Black • Standard capacity: 1,500 prints @ 5% (CMY) • High capacity: 4,500 prints @ 5% (CMYK) • Plus • OPC: up to 45,000 monochrome or 11,250 color pages • Waste toner pack: 25,000 pages Color-coded toner for easy replacement

  32. magicolor 2300 DL Color Laser Printer Supplies • Low cost per print • affordable to use for every print job 2¢ 11¢ • Figures based on 5% black / 20% color coverage on letter-size page

  33. Printer M-Q magicolor 2300 DL Lexmark C710sbe HP 4550 Xerox Phaser 750N Street Price $799 $1,072 $2,380 $1,900 Speed 4 color16 b&w 3 color16 b&w 4 color16 b&w 3.5 color16 b&w Compatibility Win XP/2000/NT4/Me/98/95 PostScript, PCL 6, PDF PostScript, PCL 6 PostScript, PCL 5c, PDF Paper Handling 200 std700 max 300 std800max 400 std900 max 350 std850 max Resolution(std / max) 2400 x 6002400 x 600 1200 IQ1200 x 1200 600 x 6002400 ReT 1200 x 6001200 x 1200 Ethernet 100Base std 100Base opt 100Base opt 100Base std magicolor 2300 DL Color Laser Printer A Competitive Comparison • Items in RED denote best in class • Competitor’s pricing based on ARS Research, Inc. street prices, 8/15/02

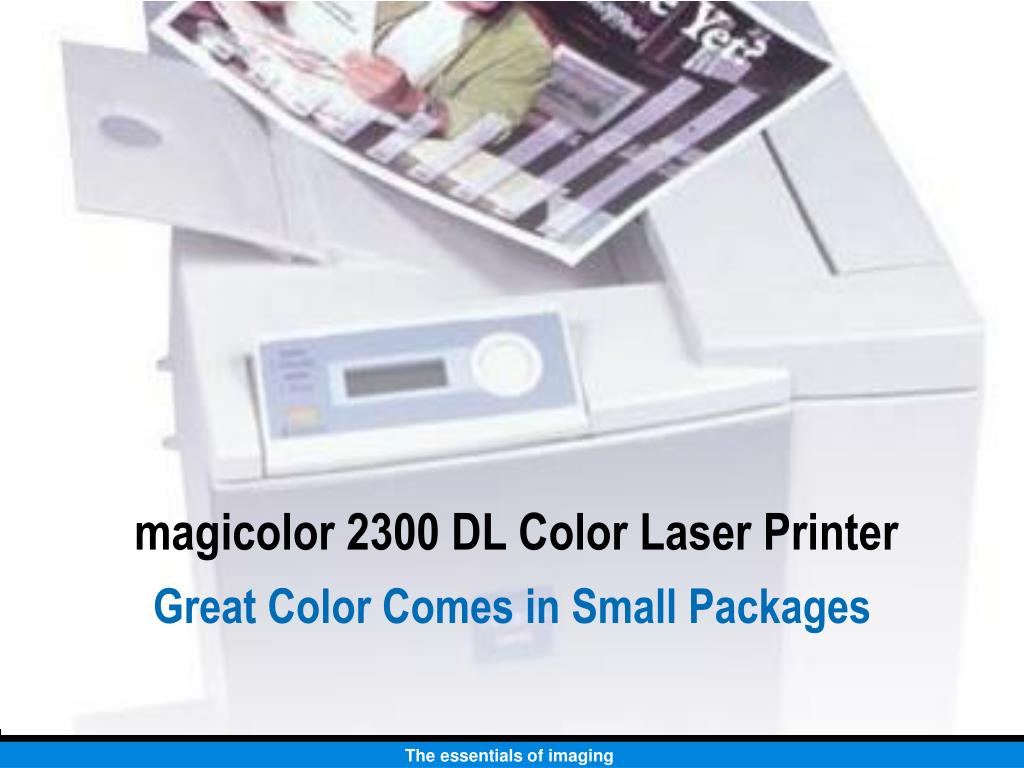

  34. magicolor 2300 DL Color Laser Printer Great Color Comes in Small Packages
