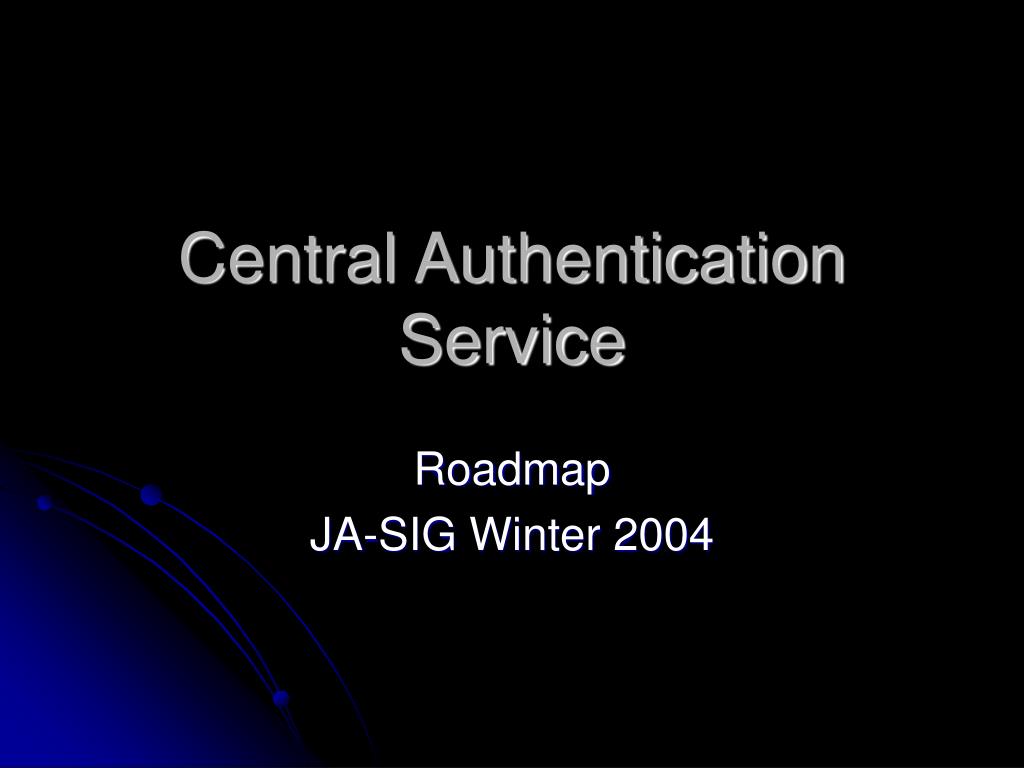

  1. Central Authentication Service Roadmap JA-SIG Winter 2004

  2. A new CAS Presentation • What is CAS? (Enterprise Single Sign On) • What’s new with CAS? (new CAS Java Client) • What’s using CAS? (Acegi) • Where is CAS going? (Roadmap) • Resources?

  3. What is CAS? • Enterprise Web Single-sign-on • Your users authenticate to CAS • Only CAS sees user passwords • Your applications receive assurance of authentication from CAS

  4. CAS as Trusted • CAS is the Trusted Intermediary

  5. The Bad Old Days

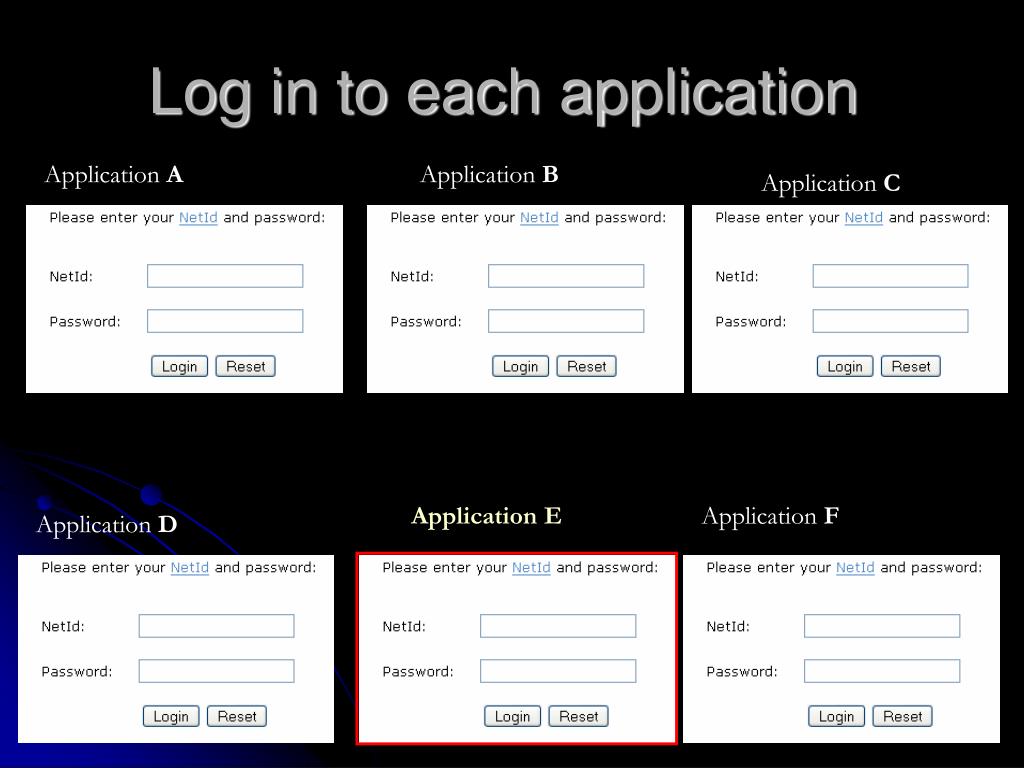

  6. Log in to each application Application A Application B Application C Application E Application F Application D

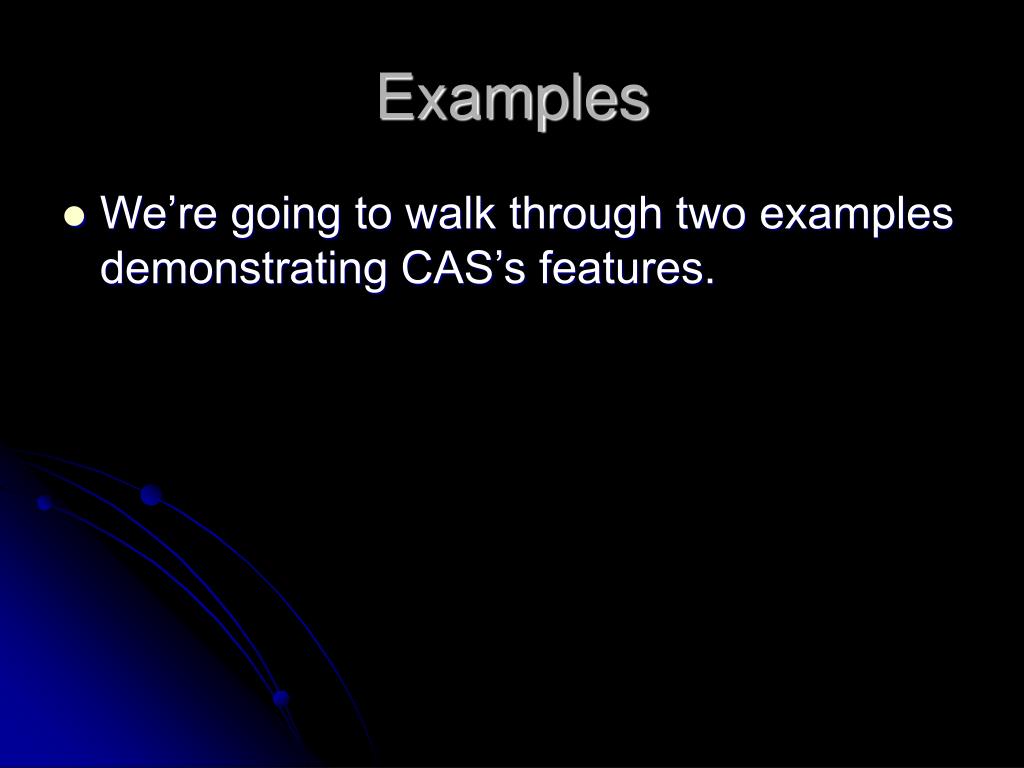

  7. Examples • We’re going to walk through two examples demonstrating CAS’s features.

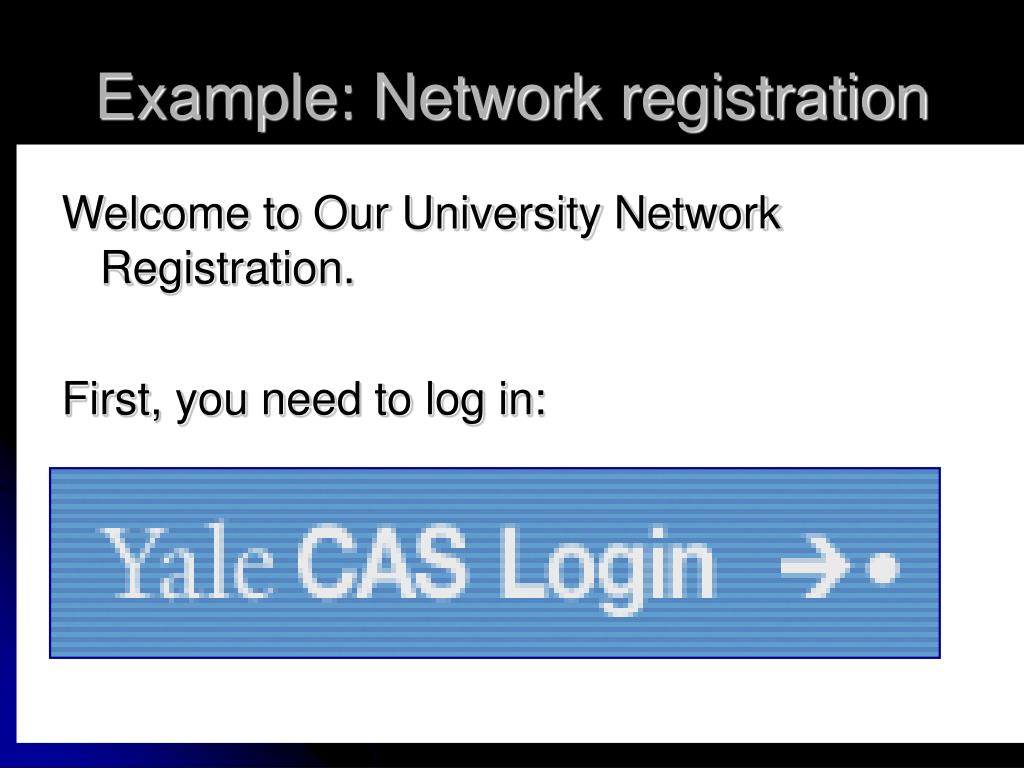

  8. Example: Network registration Welcome to Our University Network Registration. First, you need to log in:

  9. CAS Login

  10. CAS redirects back to application • Places ticket=ABCDEFG123 on the request

  11. Application receives ticket • Validates ticket with CAS server <cas:serviceResponse xmlns:cas='http://www.yale.edu/tp/cas'> <cas:authenticationSuccess> <cas:user>awp9</cas:user> </cas:authenticationSuccess> </cas:serviceResponse>

  12. Okay, user is authenticated • Notice: The user didn’t give her password to the application itself.

  13. CAS Vocabulary • Ticket – it’s longish random String. • Ticket Granting Ticket / Ticket Granting Cookie – a CAS session identifier • Service Ticket • Proxy Granting Ticket • Proxy Ticket

  14. Example 2: uPortal & SSO • Great, we’ve authenticated. Now let’s visit our uPortal:

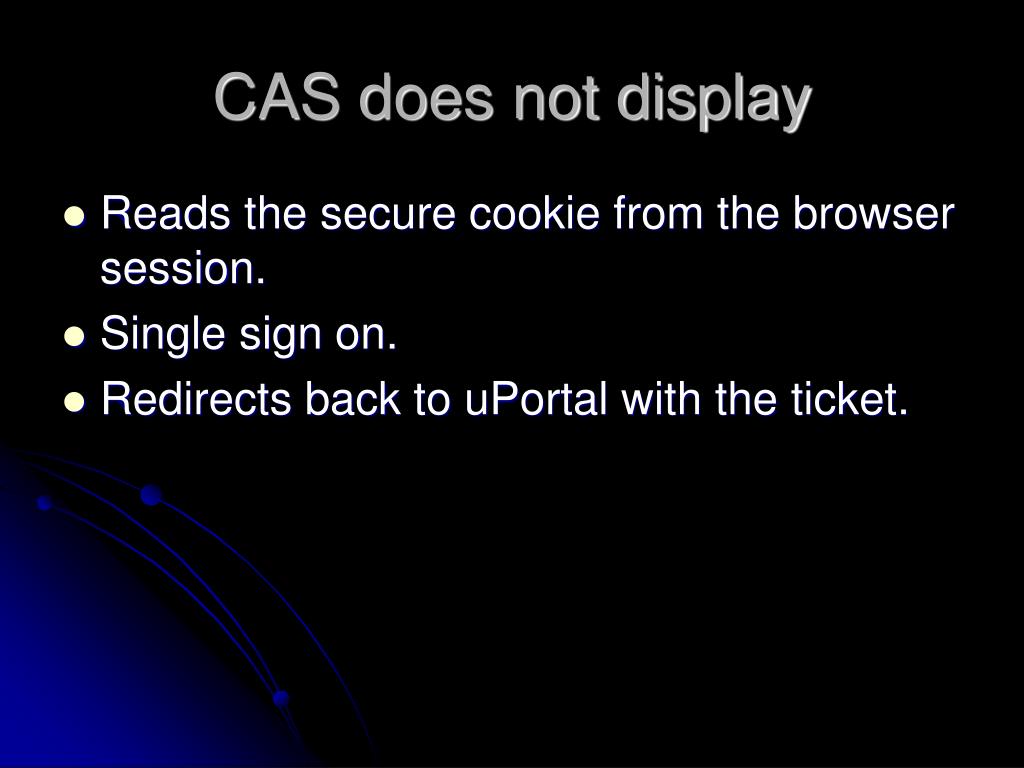

  15. CAS does not display • Reads the secure cookie from the browser session. • Single sign on. • Redirects back to uPortal with the ticket.

  16. uPortal validates the ticket • And requests a Proxy Granting Ticket.

  17. Authenticated to uPortal

  18. Proxying to get my mail • uPortal uses PGT to get PT for mail XML service, requests mail XML service • Mail XML service receives PT, validates it, and gets a PGT. • Mail XML service gets PT for IMAP server, presents to IMAP server. • IMAP server delegates to PAM_CAS to validate the PT.

  19. The result

  20. Recent Email Channel CAS NetID ProxyIDs PT PGT S PT Email Servlet uPortal IMAP Server PT XML NetID IMAP session

  21. What is CAS? • CAS is web SSO. • CAS is a concrete (Java Servlets) implementation. • CAS is a constellation of client libraries, including PAM, Apache modules, Java .jars, php, perl, …

  22. What’s new? CAS Java Client • Version 2.1.0

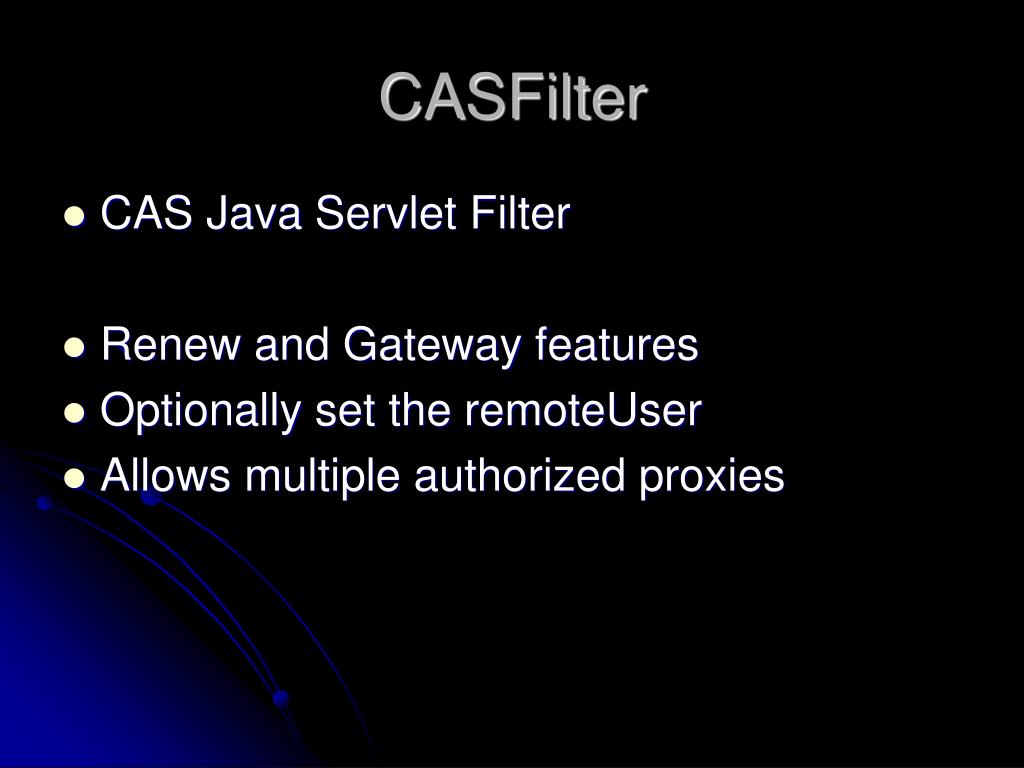

  23. CASFilter • CAS Java Servlet Filter • Renew and Gateway features • Optionally set the remoteUser • Allows multiple authorized proxies

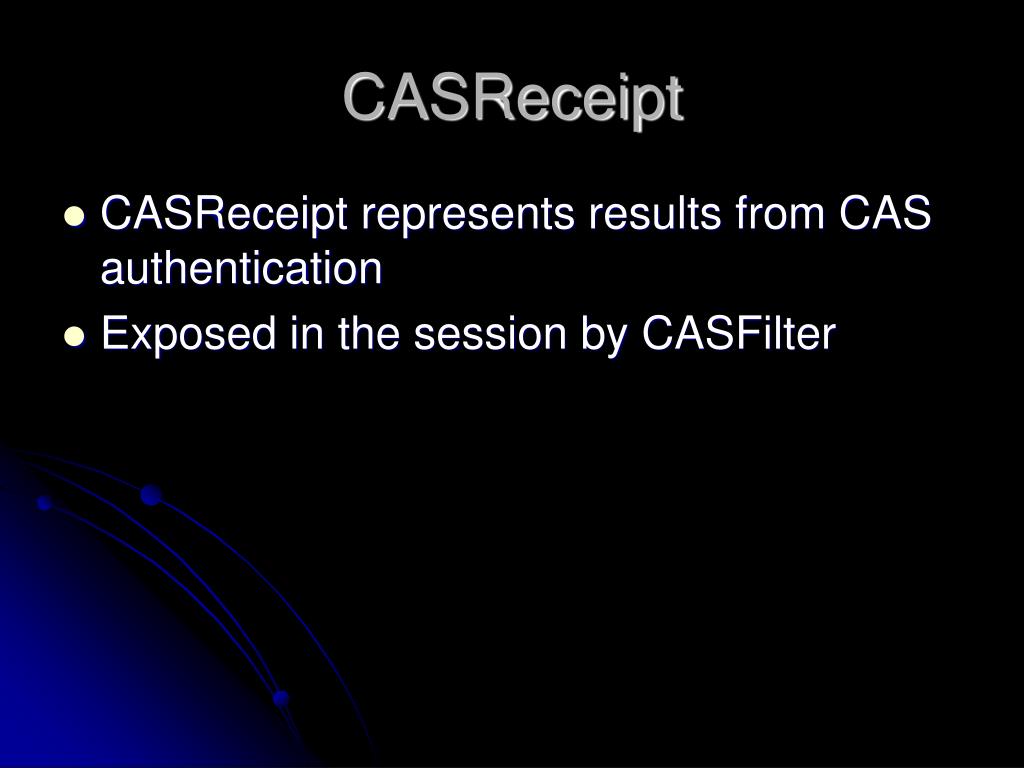

  24. CASReceipt • CASReceipt represents results from CAS authentication • Exposed in the session by CASFilter

  25. Filter Composition • Subsequent filters can examine the results of CAS authentication: • ProxyChainScrutinizerFilter

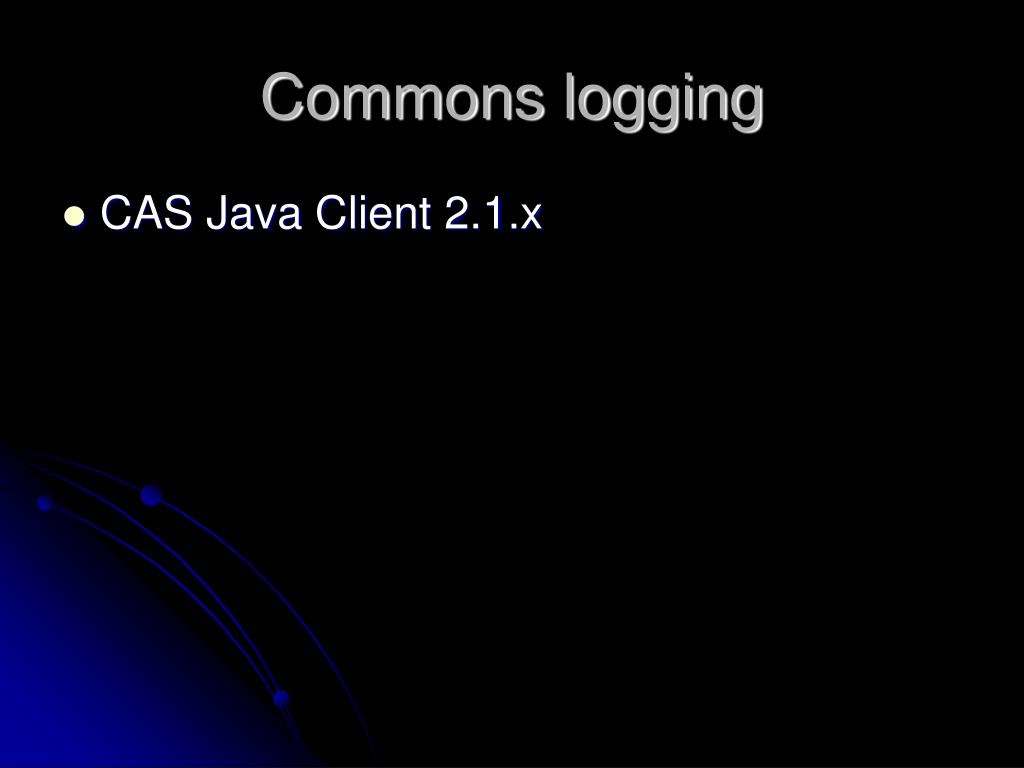

  26. Commons logging • CAS Java Client 2.1.x

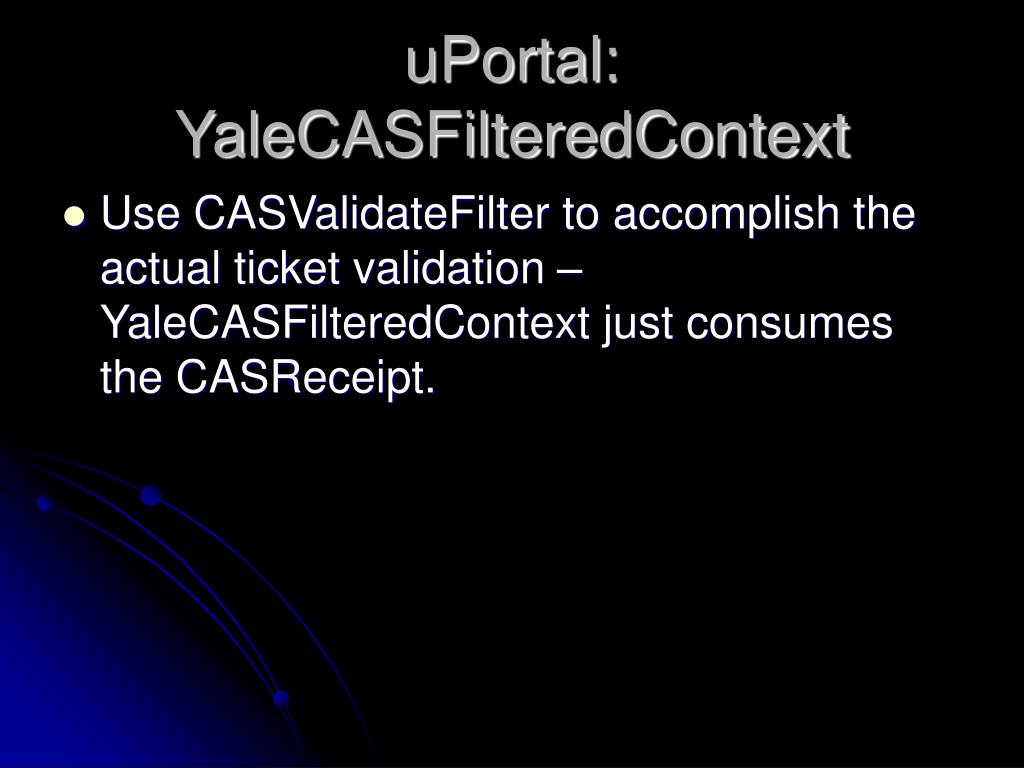

  27. uPortal: YaleCASFilteredContext • Use CASValidateFilter to accomplish the actual ticket validation – YaleCASFilteredContext just consumes the CASReceipt.

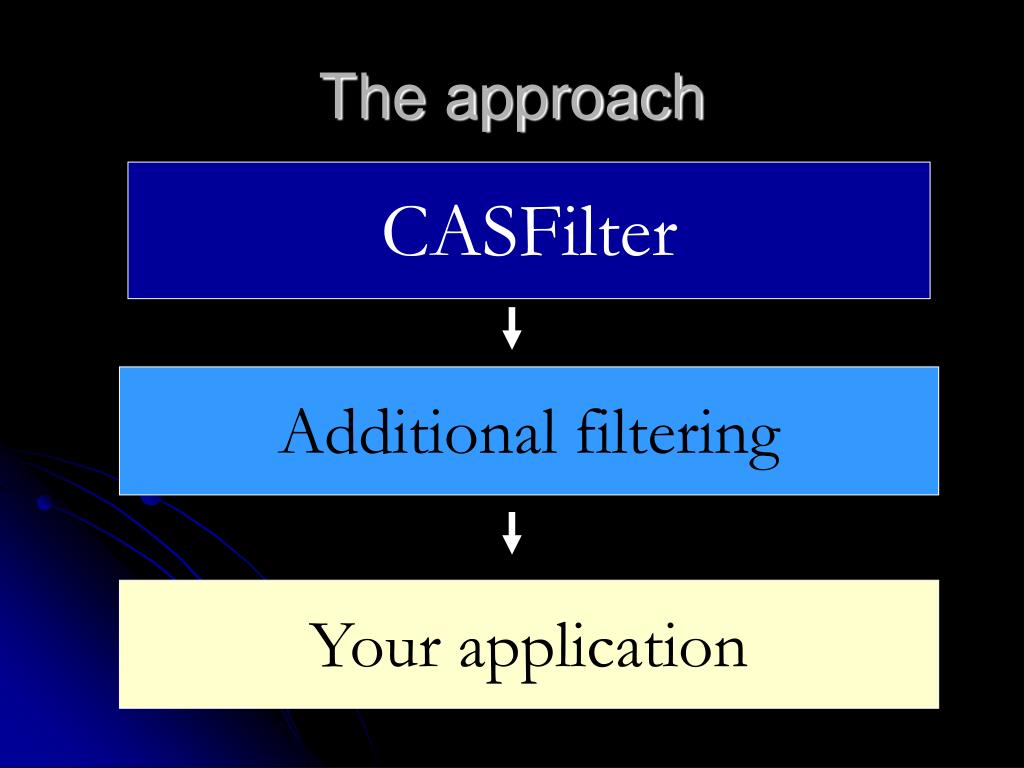

  28. The approach CASFilter Additional filtering Your application

  29. What’s new: Acegi

  30. What’s new: Acegi • Acegi is an authentication/authorization framework that works well with Spring • It supports CAS for enterprise single sign on • A layer of abstraction beyond the CAS Java Client.

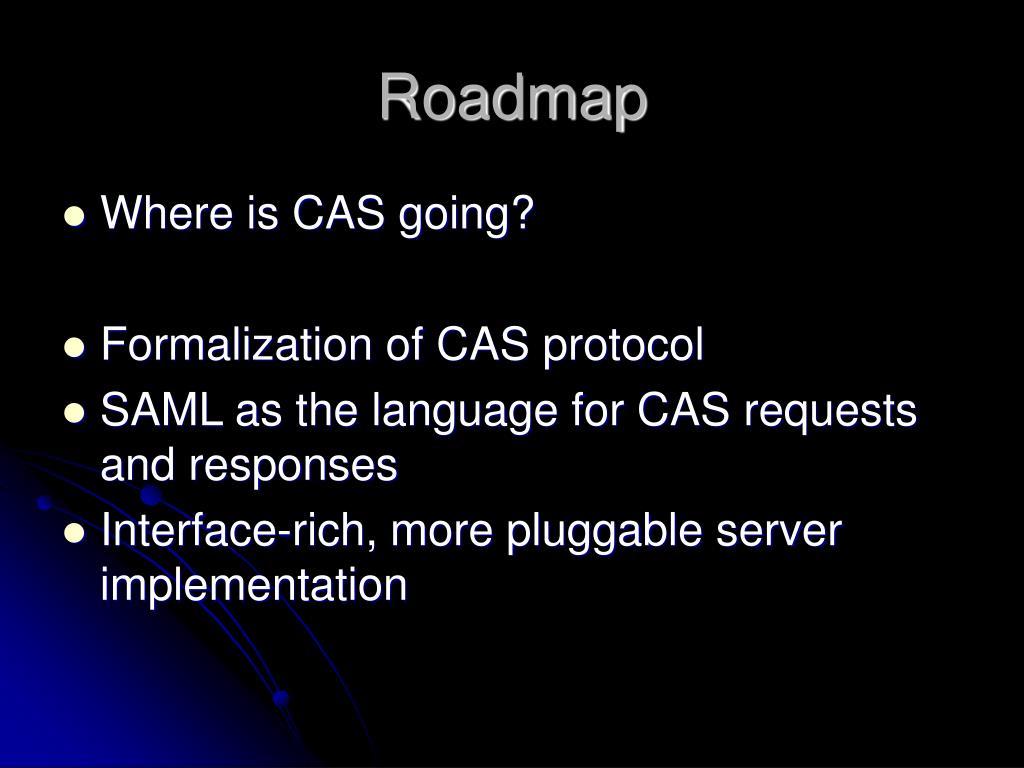

  31. Roadmap • Where is CAS going? • Formalization of CAS protocol • SAML as the language for CAS requests and responses • Interface-rich, more pluggable server implementation

  32. Formalization of CAS protocol • Before CAS can be re-implemented, we need a formal specification of exactly what protocol it implemented the first time.

  33. SAML • CAS 2.0 uses ad-hoc XML. This was simple, worked well. • CAS 3.0 will additionally support SAML. More complex, but more standards compliant. • CAS as the authentication piece in a Shibboleth installation.

  34. Assertions • CAS SAML assertions of who logged in how when • Attribute assertions • PGTs are attributes? • Details not yet fully defined

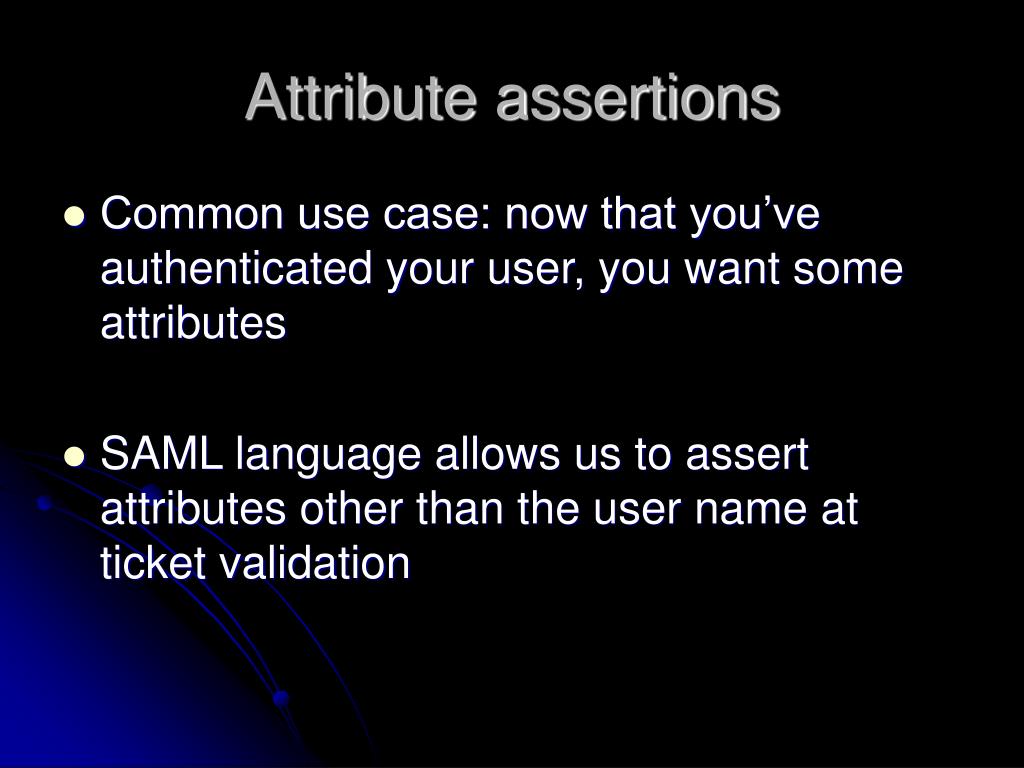

  35. Attribute assertions • Common use case: now that you’ve authenticated your user, you want some attributes • SAML language allows us to assert attributes other than the user name at ticket validation

  36. SSL callback and client certs • CAS uses an https: callback to authenticate the service • Signed SAML requests provide us an alternative

  37. Interface-rich, more pluggable • Old model: you download CAS and then hack away at it to make it meet your needs. • New model: you plug in local changes at well-defined extension points

  38. Load Balancing CAS • Why not to do this • Default: ticket store backed by in-memory cache • Possible: ticket store backed by RDBMS • Possible: ticket store backed by [pick your favorite cache implementation]

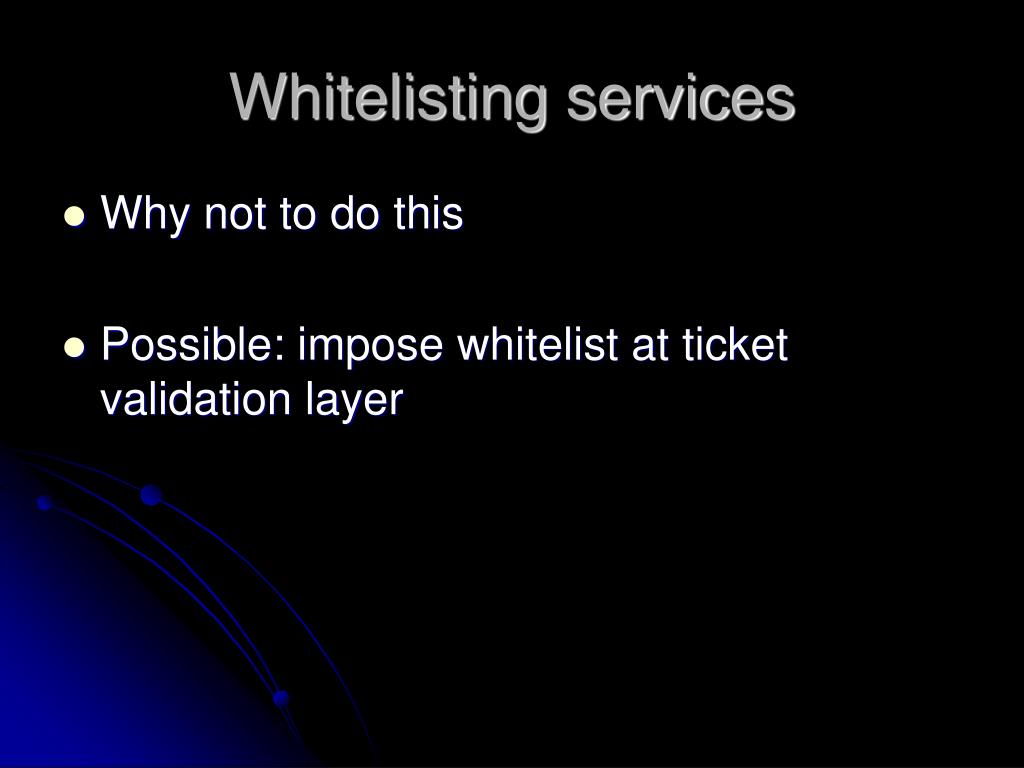

  39. Whitelisting services • Why not to do this • Possible: impose whitelist at ticket validation layer

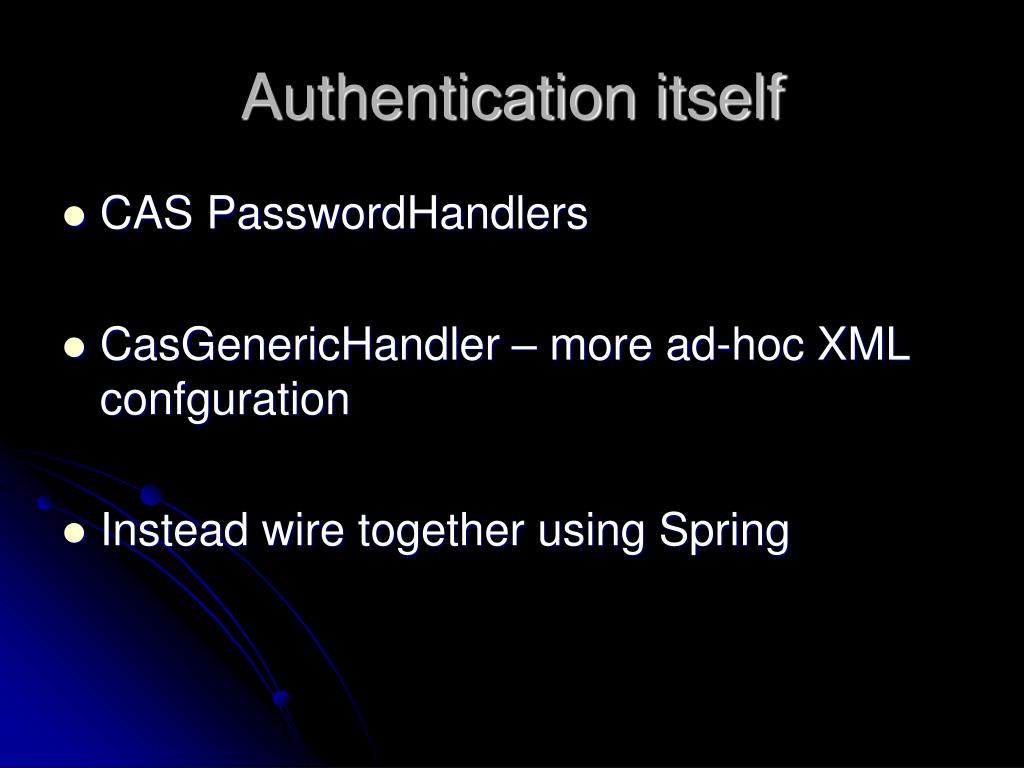

  40. Authentication itself • CAS PasswordHandlers • CasGenericHandler – more ad-hoc XML confguration • Instead wire together using Spring

  41. “Single Sign Out” • Why not to do this • But if we’re going to do this, let’s at least make it easier to maintain the local mod • Or maybe an optional aspect of the protocol – standardize without requiring

  42. Extension points? • Others?

  43. Rutgers and their fine work

  44. Resources • New CAS documentation (Wiki) • Active mailing list • The larger CAS community

  45. Contact information • http://www.yale.edu/its/tp/ • andrew.petro@yale.edu • drew.mazurek@yale.edu • cas@tp.its.yale.edu
