  1. The Atom Atomic Number and Mass Number Isotopes LecturePLUS Timberlake

  2. Atoms, Elements, Subatomic Particles • Atoms: The basic unit of a chemical element. • Elements: each of more than one hundred substances that cannot be chemically inter-converted or broken down into simpler substances and are primary constituents of matter. • Subatomic Particles: A particle smaller than an atom. LecturePLUS Timberlake

  3. Atomic Theory • Atoms are building blocks of elements • Similar atoms in each element • Different from atoms of other elements • Two or more different atoms bond in simple ratios to form compounds LecturePLUS Timberlake

  4. Subatomic Particles Particle Symbol Charge Relative Mass Electron e- 1- 0 Proton p+ + 1 Neutron n 0 1 LecturePLUS Timberlake

  5. Location of Subatomic Particles 10-13 cm electrons protons neutrons 10-8 cm nucleus LecturePLUS Timberlake

  6. Atomic Number Counts the number of protons in an atom LecturePLUS Timberlake

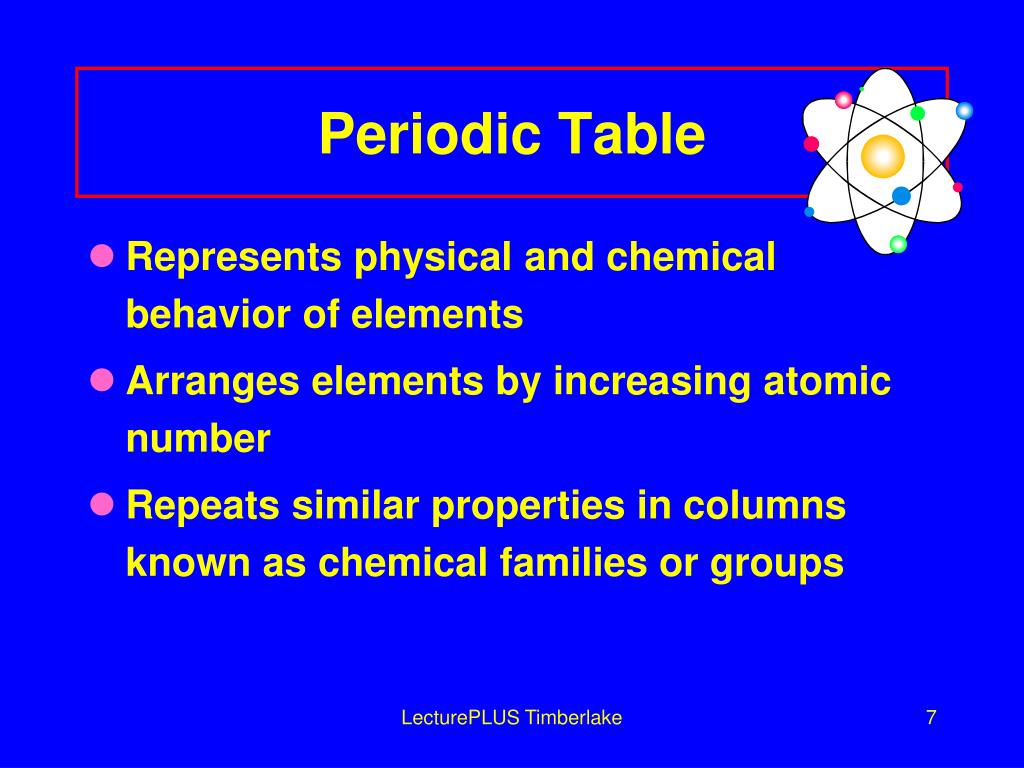

  7. Periodic Table • Represents physical and chemical behavior of elements • Arranges elements by increasing atomic number • Repeats similar properties in columns known as chemical families or groups LecturePLUS Timberlake

  8. Periodic Table 1 2 3 4 5 6 7 8 11 Na LecturePLUS Timberlake

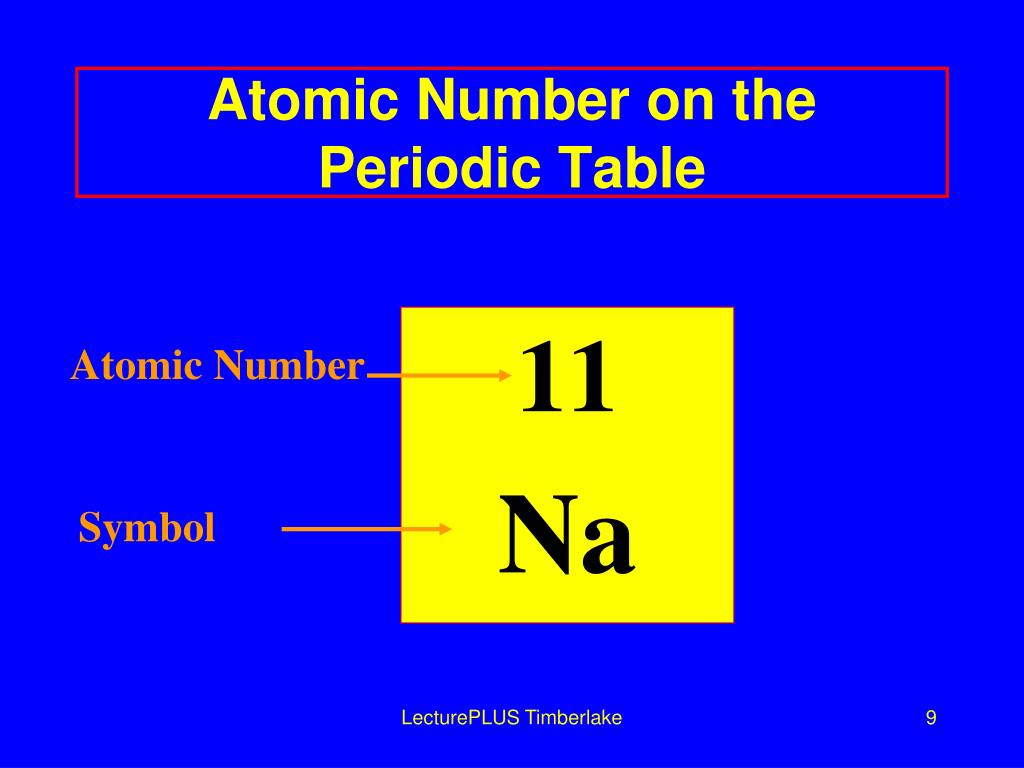

  9. Atomic Number on the Periodic Table 11 Na Atomic Number Symbol LecturePLUS Timberlake

  10. All atoms of an element have the same number of protons 11 Na 11 protons Sodium LecturePLUS Timberlake

  11. Learning Check AT 1 State the number of protons for atoms of each of the following: A. Nitrogen 1) 5 protons 2) 7 protons 3) 14 protons B. Sulfur 1) 32 protons 2) 16 protons 3) 6 protons C. Barium 1) 137 protons 2) 81 protons 3) 56 protons LecturePLUS Timberlake

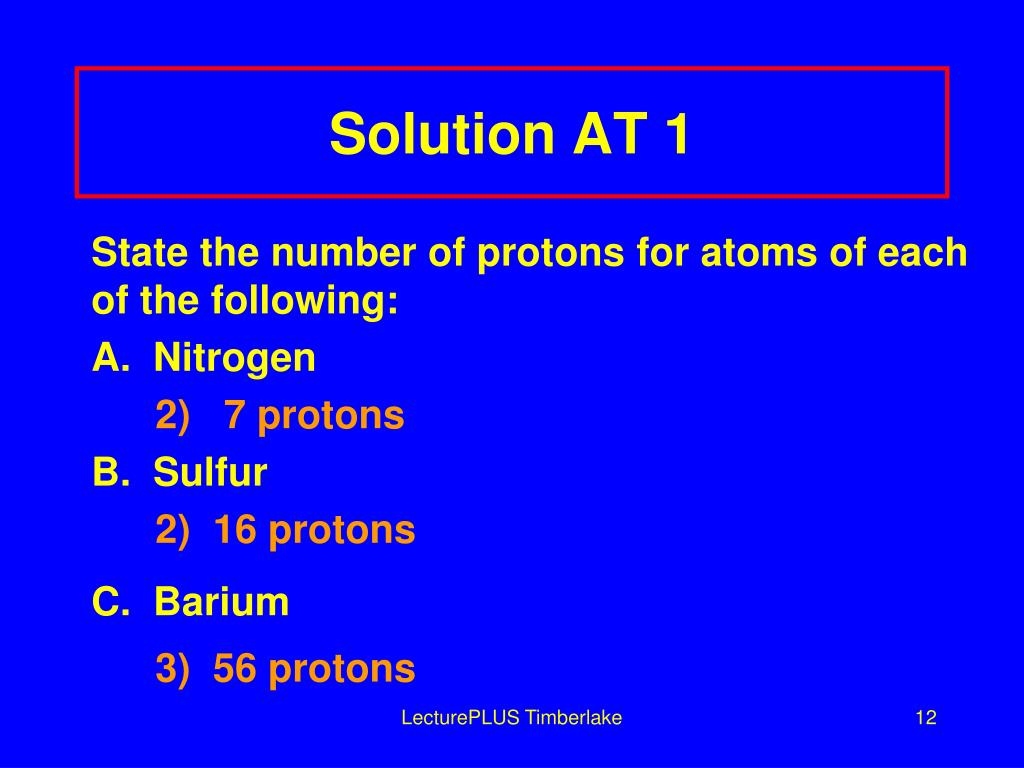

  12. Solution AT 1 State the number of protons for atoms of each of the following: A. Nitrogen 2) 7 protons B. Sulfur 2) 16 protons C. Barium 3) 56 protons LecturePLUS Timberlake

  13. Number of Electrons • An atom is neutral • The net charge is zero • Number of protons = Number of electrons • Atomic number = Number of electrons LecturePLUS Timberlake

  14. Mass Number Counts the number of protons and neutrons in an atom LecturePLUS Timberlake

  15. Atomic Symbols • Show the mass number and atomic number • Give the symbol of the element mass number 23 Nasodium-23 atomic number11 LecturePLUS Timberlake

  16. More Atomic Symbols 16 31 65 O P Zn 8 15 30 8 p+ 15 p+ 30 p+ 8 n 16 n 35 n 8 e- 15e- 30 e- LecturePLUS Timberlake

  17. Isotopes • Atoms with the same number of protons, but different numbers of neutrons. • Atoms of the same element (same atomic number) with different mass numbers Isotopes of chlorine 35Cl 37Cl 1717 chlorine - 35 chlorine - 37 LecturePLUS Timberlake

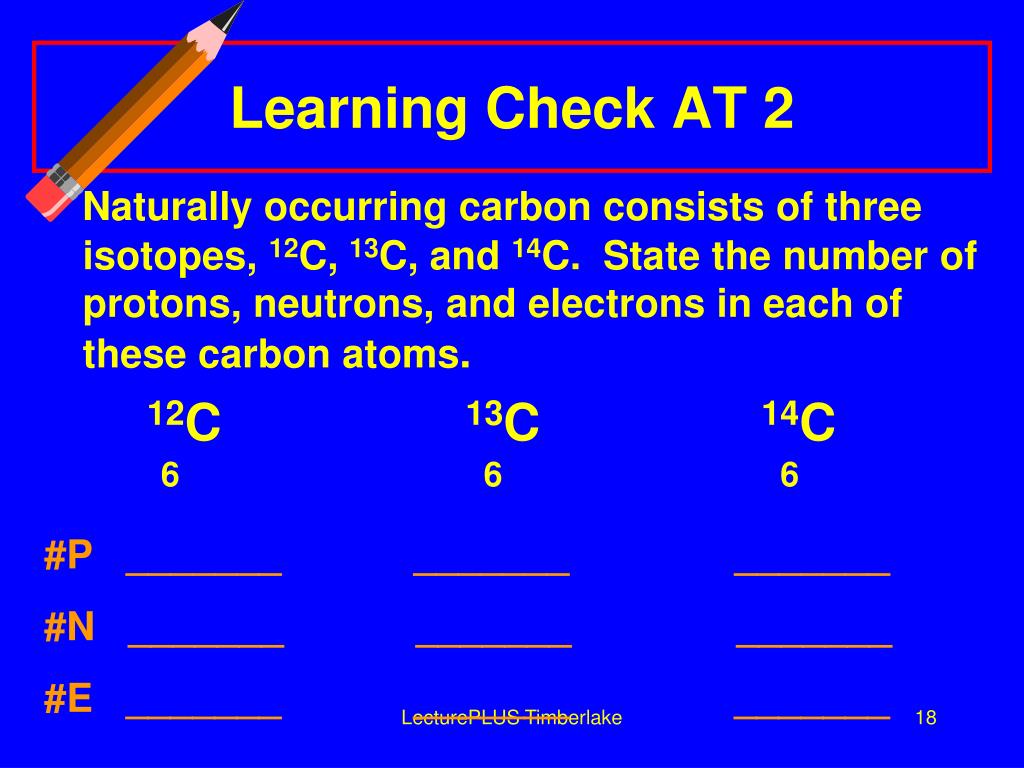

  18. Learning Check AT 2 Naturally occurring carbon consists of three isotopes, 12C, 13C, and 14C. State the number of protons, neutrons, and electrons in each of these carbon atoms. 12C 13C 14C 6 6 6 #P _______ _______ _______ #N _______ _______ _______ #E _______ _______ _______ LecturePLUS Timberlake

  19. Solution AT 2 12C 13C 14C 6 6 6 #P __6____ 6___ ___6___ #N __6___ __7___ ___8___ #E __6____ 6___ ___6___ LecturePLUS Timberlake

  20. Learning Check AT 3 An atom of zinc has a mass number of 65. A. Number of protons in the zinc atom 1) 30 2) 35 3) 65 B. Number of neutrons in the zinc atom 1) 30 2) 35 3) 65 C. What is the mass number of a zinc isotope with 37 neutrons? 1) 37 2) 65 3) 67 LecturePLUS Timberlake

  21. Solution AT 3 An atom of zinc has a mass number of 65. A. Number of protons in the zinc atom 1) 30 B. Number of neutrons in the zinc atom 2) 35 C. What is the mass number of a zinc isotope with 37 neutrons? 3) 67 LecturePLUS Timberlake

  22. Learning Check AT 4 Write the atomic symbols for atoms with the following: A. 8 p+, 8 n, 8 e- ___________ B. 17p+, 20n, 17e- ___________ C. 47p+, 60 n, 47 e- ___________ LecturePLUS Timberlake

  23. Solution AT 4 16O A. 8 p+, 8 n, 8 e- 8 B. 17p+, 20n, 17e- 37Cl 17 C. 47p+, 60 n, 47 e- 107Ag 47 LecturePLUS Timberlake

  24. Learning Check AT 5 An atom has 14 protons and 20 neutrons. A. Its atomic number is 1) 14 2) 16 3) 34 B. Its mass number is 1) 14 2) 16 3) 34 C. The element is 1) Si 2) Ca 3) Se D. Another isotope of this element is 1)34X 2)34X 3)36X 16 14 14 LecturePLUS Timberlake

  25. Solution AT 5 An atom has 14 protons and 20 neutrons. A. It has atomic number 1) 14 B. It has a mass number of 3) 34 C. The element is 1) Si D. Another isotope of this element would be 3) 36X 14 LecturePLUS Timberlake

  26. Masses of Atoms • A scale designed for atoms gives their small atomic masses in atomic mass units (amu) • An atom of 12C was assigned an exact mass of 12.00 amu • Relative masses of all other atoms was determined by comparing each to the mass of 12C • An atom twice as heavy has a mass of 24.00 amu. An atom half as heavy is 6.00 amu. LecturePLUS Timberlake

  27. Atomic Mass Na 22.99 • Listed on the periodic table • Gives the mass of “average” atom of each element compared to 12C • Average atom based on all the isotopes and their abundance % • Atomic mass is not a whole number LecturePLUS Timberlake

  28. Learning Check AT6 Using the periodic table, specify the atomic mass of each element (round to the tenths place): A. calcium __________ B. aluminum __________ C. lead __________ D. barium __________ E. iron __________ LecturePLUS Timberlake

  29. Solution AT6 Using the periodic table, specify the atomic mass of each element (round to the tenths place): A. calcium _40.1 amu _ B. aluminum _27.0 amu _ C. lead _207.2 amu_ D. barium _137.3 amu_ E. iron _55.8 amu__ LecturePLUS Timberlake

  30. Calculating Atomic Mass • Percent(%) abundance of isotopes • Mass of each isotope of that element • Weighted average = mass isotope1(%) + mass isotope2(%) + … 100100 LecturePLUS Timberlake

  31. Atomic Mass of Magnesium Isotopes Mass of Isotope Abundance 24Mg = 24.0 amu 78.70% 25Mg = 25.0 amu 10.13% 26Mg = 26.0 amu 11.17% Atomic mass (average mass) Mg = 24.3 amu Mg 24.3 LecturePLUS Timberlake

  32. Learning Check AT7 Gallium is a metallic element found in small lasers used in compact disc players. In a sample of gallium, there is 60.2% of gallium-69 (68.9 amu) atoms and 39.8% of gallium-71 (70.9 amu) atoms. What is the atomic mass of gallium? LecturePLUS Timberlake

  33. Solution AT7 Ga-69 68.9 amu x 60.2 = 41.5 amu for 69Ga 100 Ga-71 (%/100) 70.9 amu x 39.8 = 28.2 amu for 71Ga 100 Atomic mass Ga = 69.7 amu LecturePLUS Timberlake

  34. Finding An Isotopic Mass A sample of boron consists of 10B (mass 10.0 amu) and 11B (mass 11.0 amu). If the average atomic mass of B is 10.8 amu, what is the % abundance of each boron isotope? LecturePLUS Timberlake

  35. Assign X and Y values: X = % 10B Y = % 11B Determine Y in terms of X X + Y = 100 Y = 100 - X Solve for X: X (10.0) + (100 - X )(11.0) = 10.8 100 100 Multiply through by 100 10.0 X + 1100 - 11.0X = 1080 LecturePLUS Timberlake

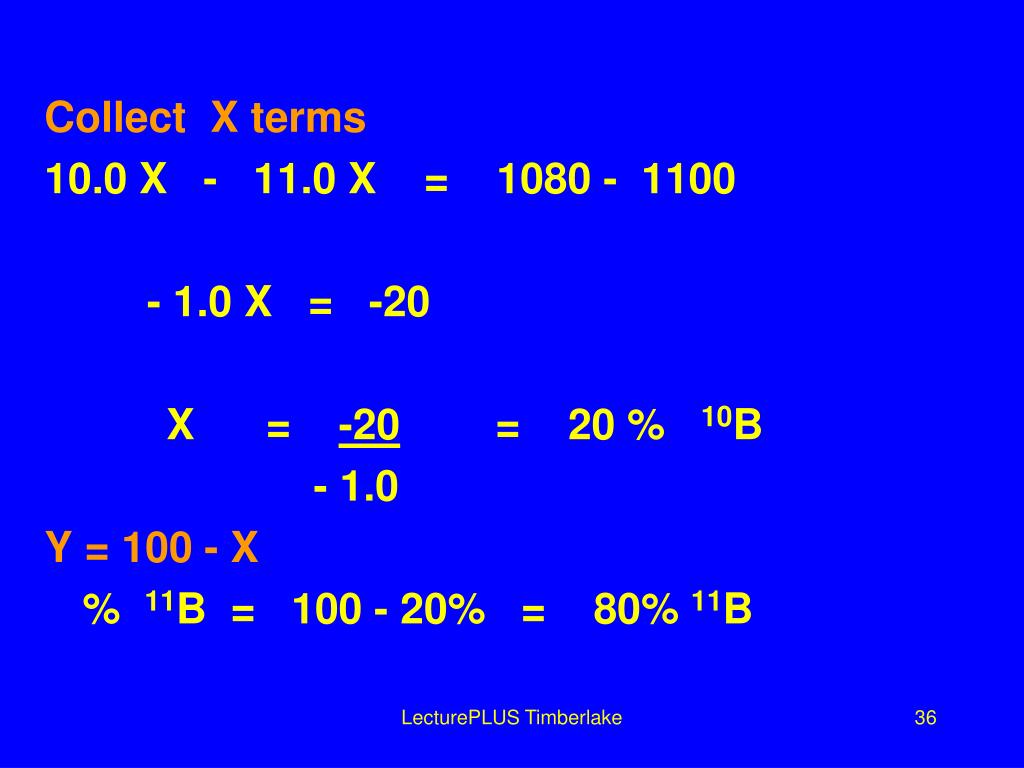

  36. Collect X terms 10.0 X - 11.0 X = 1080 - 1100 - 1.0 X = -20 X = -20 = 20 % 10B - 1.0 Y = 100 - X % 11B = 100 - 20% = 80% 11B LecturePLUS Timberlake

  37. Learning Check AT8 Copper has two isotopes 63Cu (62.9 amu) and 65Cu (64.9 amu). What is the % abundance of each isotope? (Hint: Check periodic table for atomic mass) 1) 30% 2) 70% 3) 100% LecturePLUS Timberlake

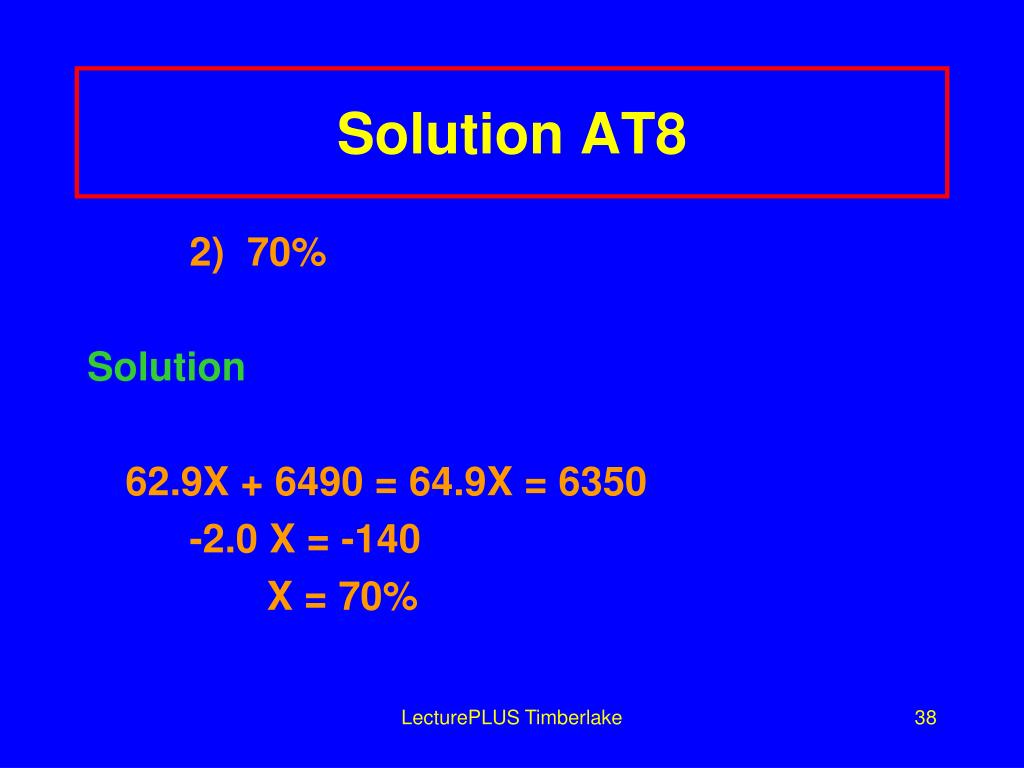

  38. Solution AT8 2) 70% Solution 62.9X + 6490 = 64.9X = 6350 -2.0 X = -140 X = 70% LecturePLUS Timberlake
