BMT-1408C3_8 mm machine vision lens

BalaJi MicroTechnologies is the first company in India manufacturing Machine Vision lenses. The company designs, develops & manufacture machine vision lenses.

Download Presentation

BMT-1408C3_8 mm machine vision lens

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

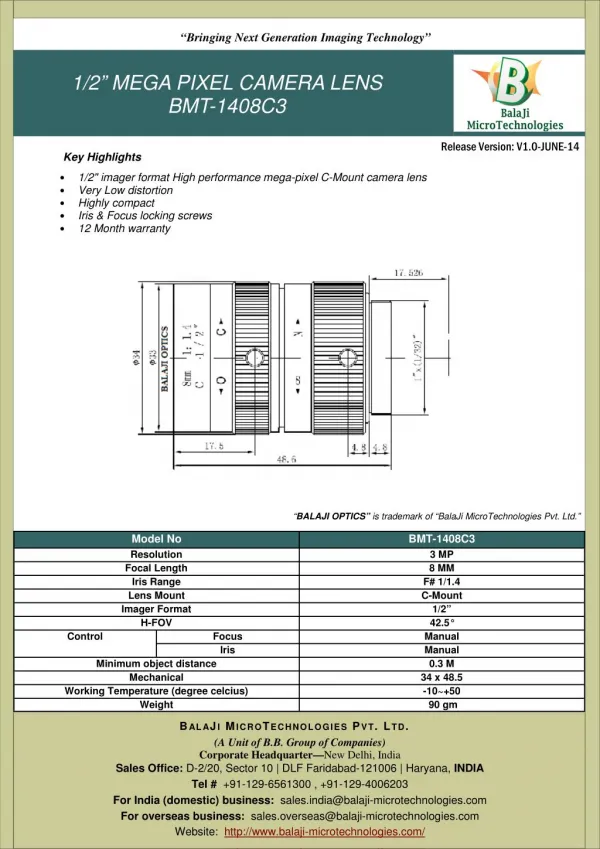

  1. “Bringing Next Generation Imaging Technology” 1/2” MEGA PIXEL CAMERA LENS BMT-1408C3 Release Version: V1.0-JUNE-14 Key Highlights 1/2" imager format High performance mega-pixel C-Mount camera lens Very Low distortion Highly compact Iris & Focus locking screws 12 Month warranty • • • • • “BALAJI OPTICS” is trademark of “BalaJi MicroTechnologies Pvt. Ltd.” Model No BMT-1408C3 Resolution Focal Length Iris Range Lens Mount Imager Format H-FOV 3 MP 8 MM F# 1/1.4 C-Mount 1/2” 42.5° Manual Manual 0.3 M 34 x 48.5 -10~+50 90 gm Control Focus Iris Minimum object distance Mechanical Working Temperature (degree celcius) Weight BALAJI MICROTECHNOLOGIES PVT. LTD. (A Unit of B.B. Group of Companies) Corporate Headquarter—New Delhi, India BALAJI MICROTECHNOLOGIES PVT. LTD. Sales Office: D-2/20, Sector 10 | DLF Faridabad-121006 | Haryana, INDIA Tel # +91-129-6561300 , +91-129-4006203 For India (domestic) business: sales.india@balaji-microtechnologies.com For overseas business: sales.overseas@balaji-microtechnologies.com Website: http://www.balaji-microtechnologies.com/ (A Unit of B.B. Group of Companies) D-2/20, Sector 10 | DLF Faridabad-121006 | Haryana, India Tel # +91-129-6561300 , +91-129-4006203 Email: sales@balaji-microtechnologies.com Website: http://www.balaji-microtechnologies.com/
