Significant Figures: Precision and Accuracy in Measurement

http://commons.wikimedia.org/wiki/File%3AGlass_graduated_cylinders-set.jpgBy Lilly_M [GFDL (http://www.gnu.org/copyleft/fdl.html) or CC-BY-SA-3.0-2.5-2.0-1.0 (http://creativecommons.org/licenses/by-sa/3.0)], via Wikimedia Commons. Significant Figures: Precision and Accuracy in Measurement.

baker-vang
Download Presentation

Significant Figures: Precision and Accuracy in Measurement

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. http://commons.wikimedia.org/wiki/File%3AGlass_graduated_cylinders-set.jpgBy Lilly_M [GFDL (http://www.gnu.org/copyleft/fdl.html) or CC-BY-SA-3.0-2.5-2.0-1.0 (http://creativecommons.org/licenses/by-sa/3.0)], via Wikimedia Commons Significant Figures: Precision and Accuracy in Measurement http://simple.wikipedia.org/wiki/Weighing_scale#mediaviewer/File:Balance_Kern.jpgBalance KernPublic Domain Karelj - Own work http://en.wikipedia.org/wiki/Darts#mediaviewer/File:Darts_in_a_dartboard.jpgDarts in a dartboardPublic Domainview terms PeterPan23 - http://en.wikipedia.org/wiki/Image:Darts_in_a_dartboard.jpg

  2. Target PracticeYou have 5 arrows. Mime shooting the bow. Be sure to make a “thwack” sound each time you shoot. Good luck!

  3. Simple Bow

  4. http://commons.wikimedia.org/wiki/File%3A25_Meter_Precision_and_50_Meter_Pistol_Target.svgBy Caiguanhao [GFDL (http://www.gnu.org/copyleft/fdl.html) or CC-BY-SA-3.0-2.5-2.0-1.0 (http://creativecommons.org/licenses/by-sa/3.0)], via Wikimedia Commons

  5. Was the shooter accurate?Was the shooter precise?Why or why not?

  6. Compound Bow

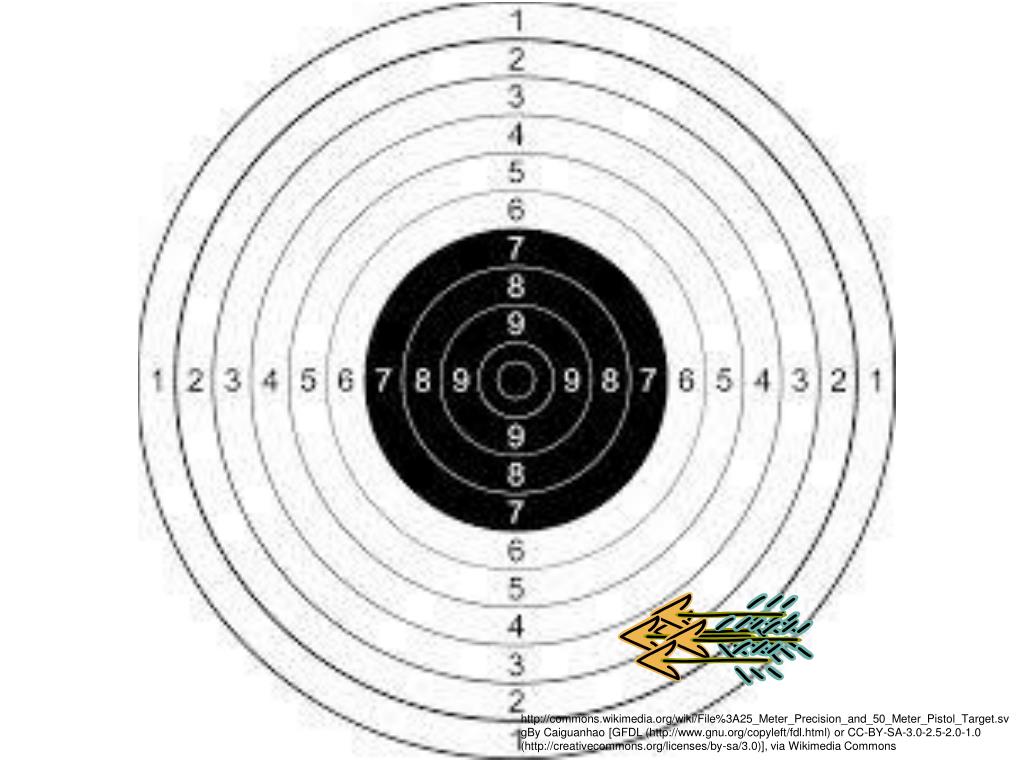

  7. http://commons.wikimedia.org/wiki/File%3A25_Meter_Precision_and_50_Meter_Pistol_Target.svgBy Caiguanhao [GFDL (http://www.gnu.org/copyleft/fdl.html) or CC-BY-SA-3.0-2.5-2.0-1.0 (http://creativecommons.org/licenses/by-sa/3.0)], via Wikimedia Commons

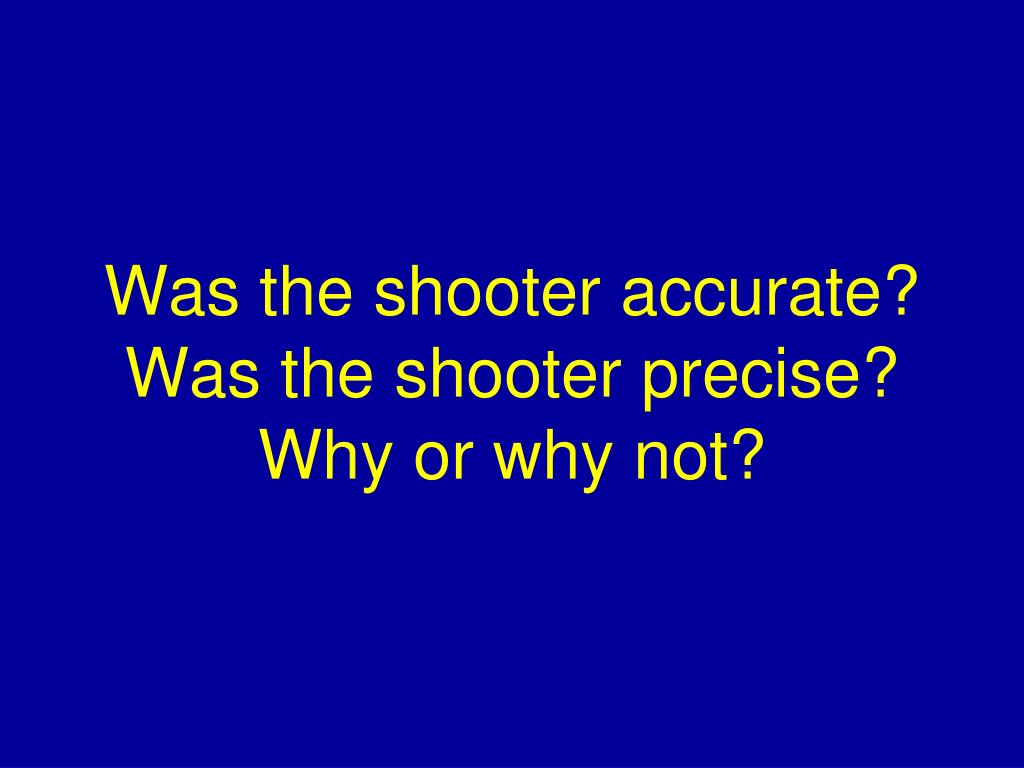

  8. Was the shooter accurate?Was the shooter precise?Why or why not?

  9. Cross Bow

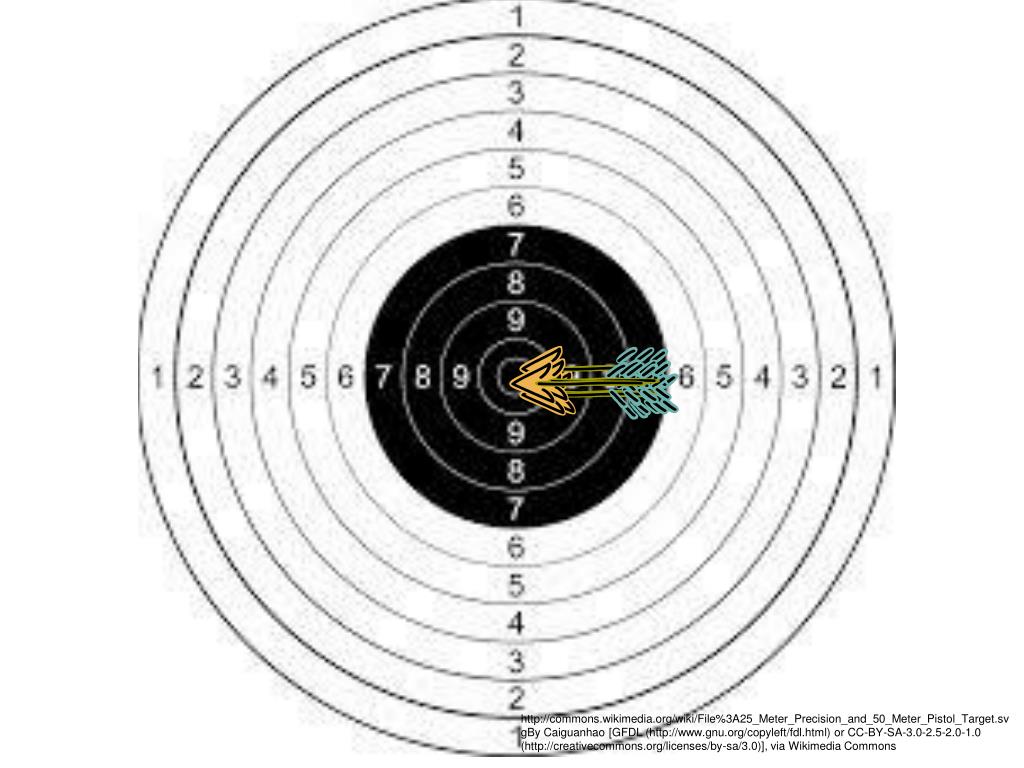

  10. http://commons.wikimedia.org/wiki/File%3A25_Meter_Precision_and_50_Meter_Pistol_Target.svgBy Caiguanhao [GFDL (http://www.gnu.org/copyleft/fdl.html) or CC-BY-SA-3.0-2.5-2.0-1.0 (http://creativecommons.org/licenses/by-sa/3.0)], via Wikimedia Commons

  11. Was the shooter accurate?Was the shooter precise?Why or why not?

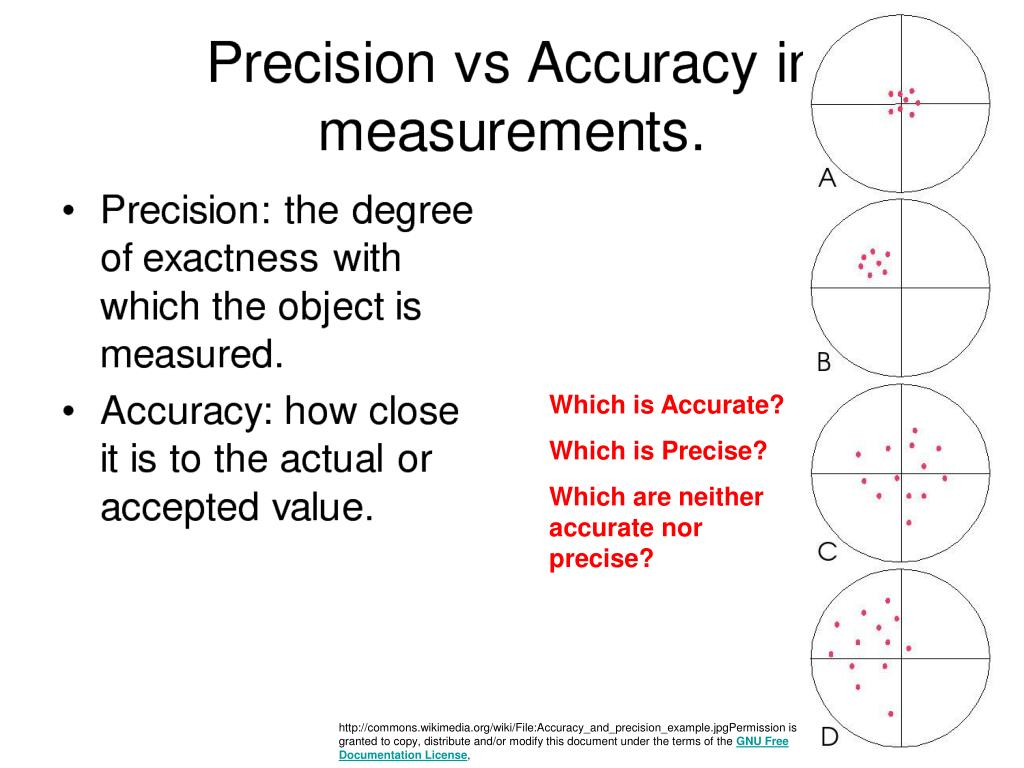

  12. Which is Accurate? Which is Precise? Which are neither accurate nor precise? http://commons.wikimedia.org/wiki/File:Accuracy_and_precision_example.jpgPermission is granted to copy, distribute and/or modify this document under the terms of the GNU Free Documentation License,

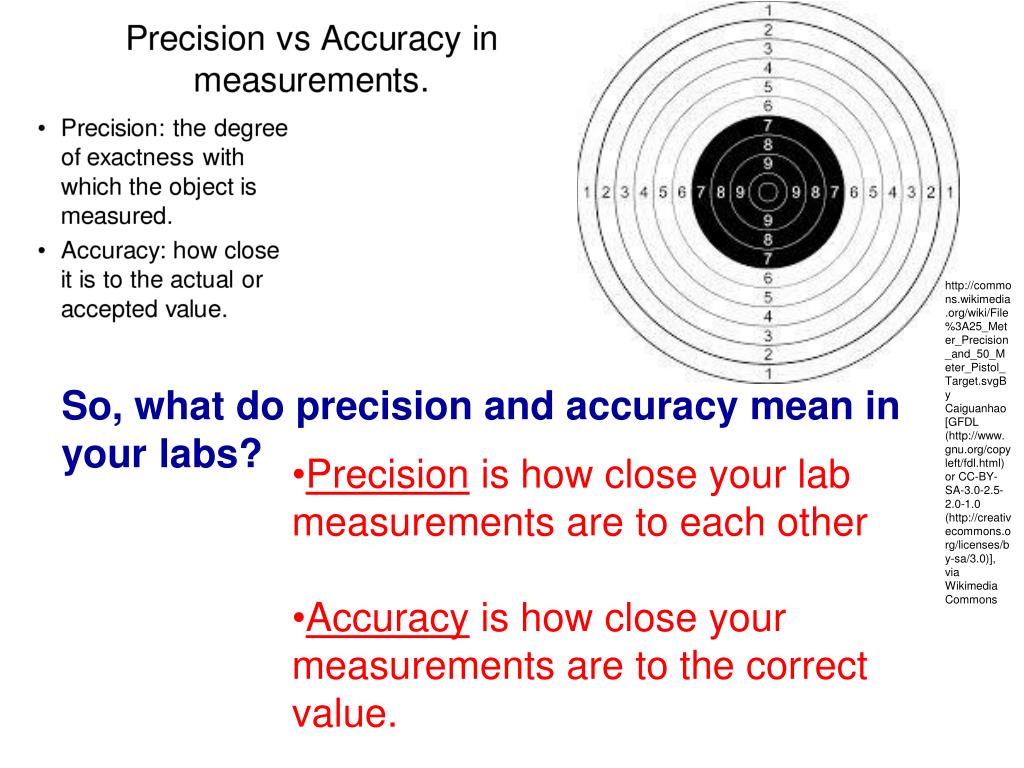

  13. http://commons.wikimedia.org/wiki/File%3A25_Meter_Precision_and_50_Meter_Pistol_Target.svgBy Caiguanhao [GFDL (http://www.gnu.org/copyleft/fdl.html) or CC-BY-SA-3.0-2.5-2.0-1.0 (http://creativecommons.org/licenses/by-sa/3.0)], via Wikimedia Commons So, what do precision and accuracy mean in your labs? • Precision is how close your lab measurements are to each other • Accuracy is how close your measurements are to the correct value.

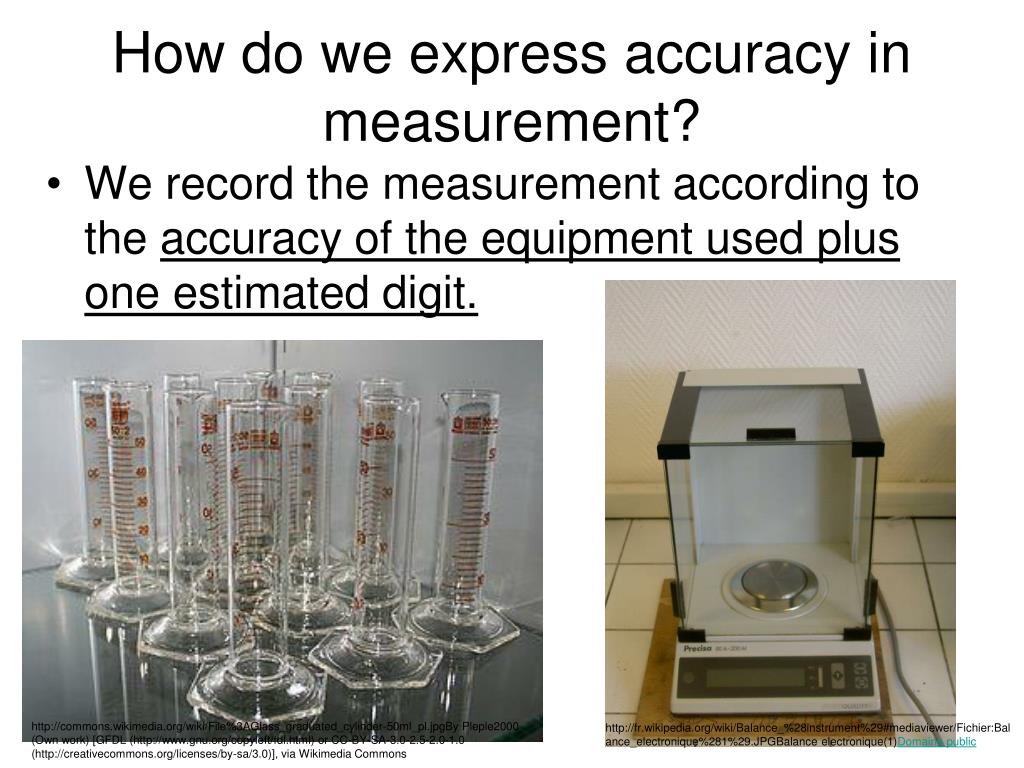

  14. How do we express accuracy in measurement? • We record the measurement according to the accuracy of the equipment used plus one estimated digit. http://commons.wikimedia.org/wiki/File%3AGlass_graduated_cylinder-50ml_pl.jpgBy Pleple2000 (Own work) [GFDL (http://www.gnu.org/copyleft/fdl.html) or CC-BY-SA-3.0-2.5-2.0-1.0 (http://creativecommons.org/licenses/by-sa/3.0)], via Wikimedia Commons http://fr.wikipedia.org/wiki/Balance_%28instrument%29#mediaviewer/Fichier:Balance_electronique%281%29.JPGBalance electronique(1)Domaine public

  15. What is the correct reading for the cylinder? Read the bottom of the meniscus. Meniscus Remember: Estimate one digit between the lines. Answer: 100. mL http://commons.wikimedia.org/wiki/File%3AMeasuring_cylinder.svgBy Lucasbosch (Own work) [CC-BY-SA-3.0 (http://creativecommons.org/licenses/by-sa/3.0)], via Wikimedia Commons

  16. Read the graduated cylinders correctly. Which cylinder is the Which cylinder is the Least accurate Most accurate 655 mL 20.0 mL http://en.wikipedia.org/wiki/Meniscus#mediaviewer/File:Meniscus.jpgMeniscusCC BY-SA 3.0 PRHaney - Own work http://commons.wikimedia.org/wiki/File%3APlastic_graduated_cylinder-1000ml.jpgBy Lilly_M [GFDL (http://www.gnu.org/copyleft/fdl.html) or CC-BY-SA-3.0-2.5-2.0-1.0 (http://creativecommons.org/licenses/by-sa/3.0)], via Wikimedia Commons

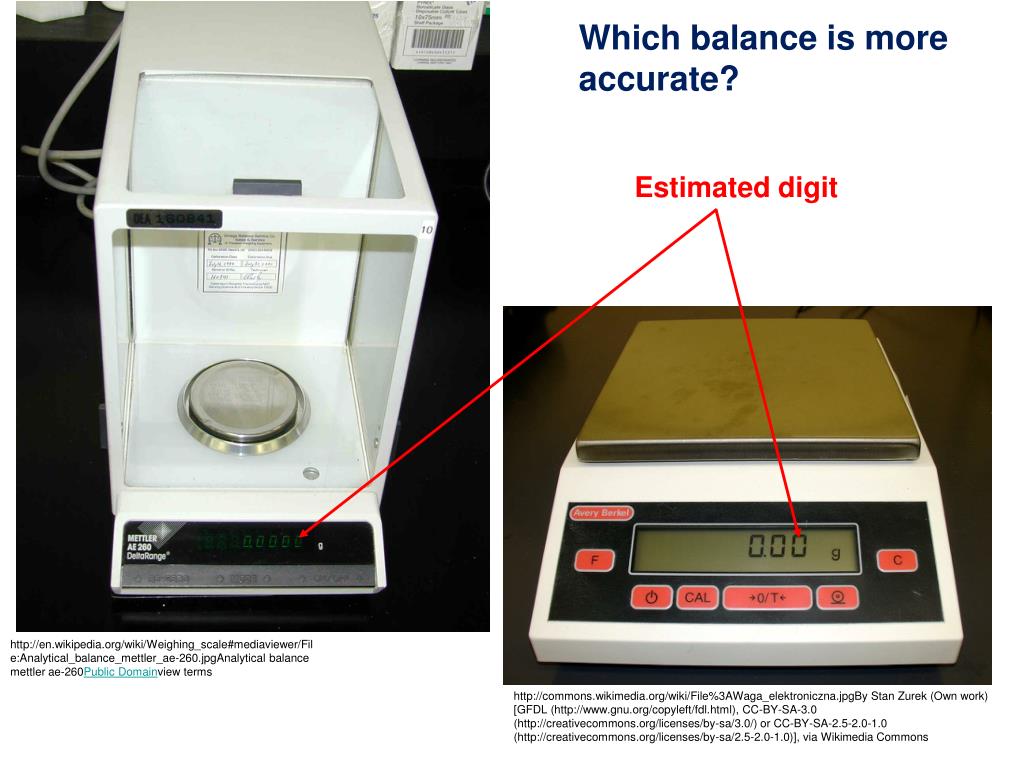

  17. Which balance is more accurate? Estimated digit http://en.wikipedia.org/wiki/Weighing_scale#mediaviewer/File:Analytical_balance_mettler_ae-260.jpgAnalytical balance mettler ae-260Public Domainview terms http://commons.wikimedia.org/wiki/File%3AWaga_elektroniczna.jpgBy Stan Zurek (Own work) [GFDL (http://www.gnu.org/copyleft/fdl.html), CC-BY-SA-3.0 (http://creativecommons.org/licenses/by-sa/3.0/) or CC-BY-SA-2.5-2.0-1.0 (http://creativecommons.org/licenses/by-sa/2.5-2.0-1.0)], via Wikimedia Commons

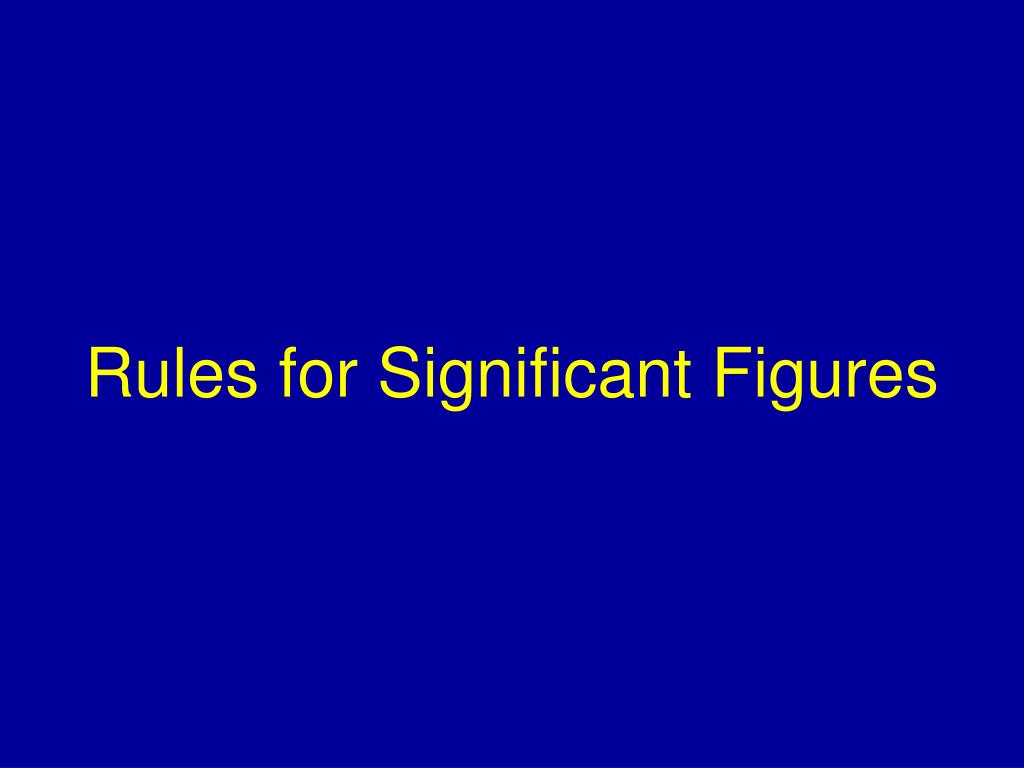

  18. Rules for Significant Figures

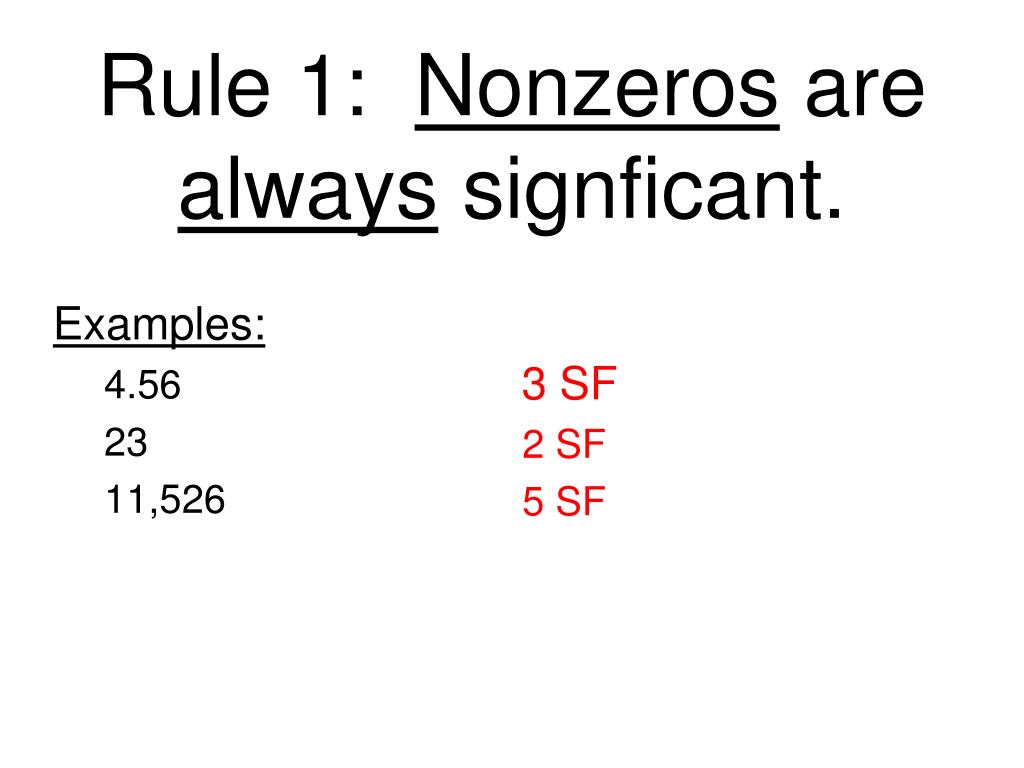

  19. Rule 1: Nonzeros are always signficant. Examples: 4.56 23 11,526 3 SF 2 SF 5 SF

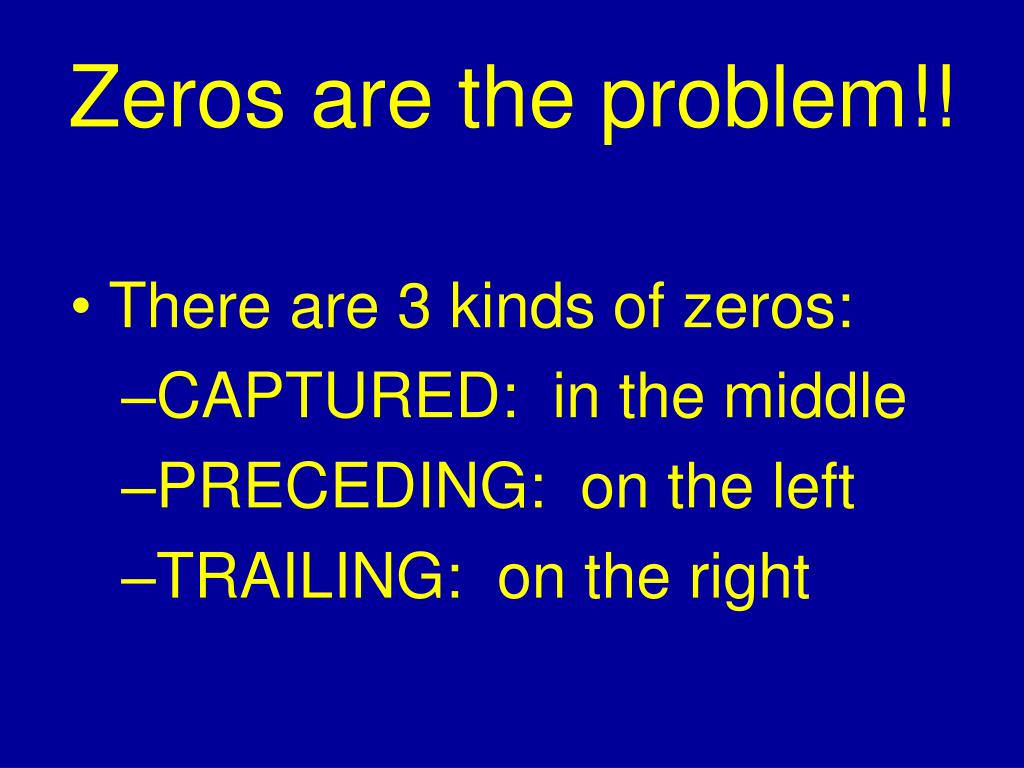

  20. Zeros are the problem!! • There are 3 kinds of zeros: • CAPTURED: in the middle • PRECEDING: on the left • TRAILING: on the right

  21. Rule 2:CAPTURED zeros are ALWAYS significant. Examples: 101 200,205 7802 3 SF 6 SF 4 SF

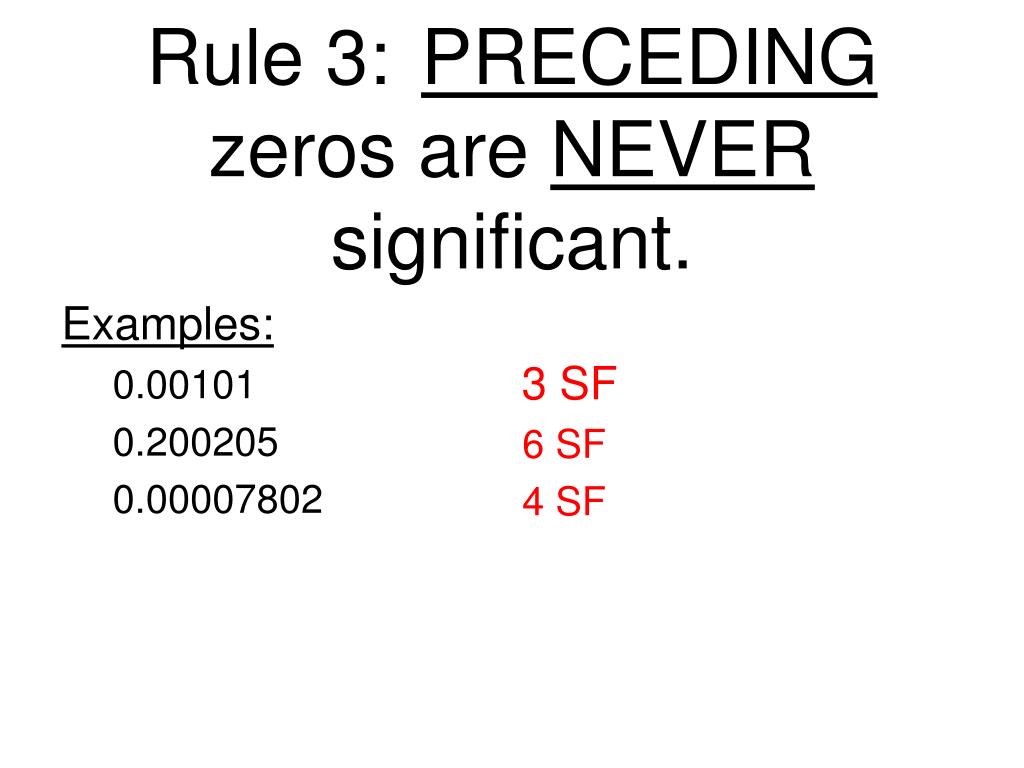

  22. Rule 3:PRECEDING zeros are NEVER significant. Examples: 0.00101 0.200205 0.00007802 3 SF 6 SF 4 SF

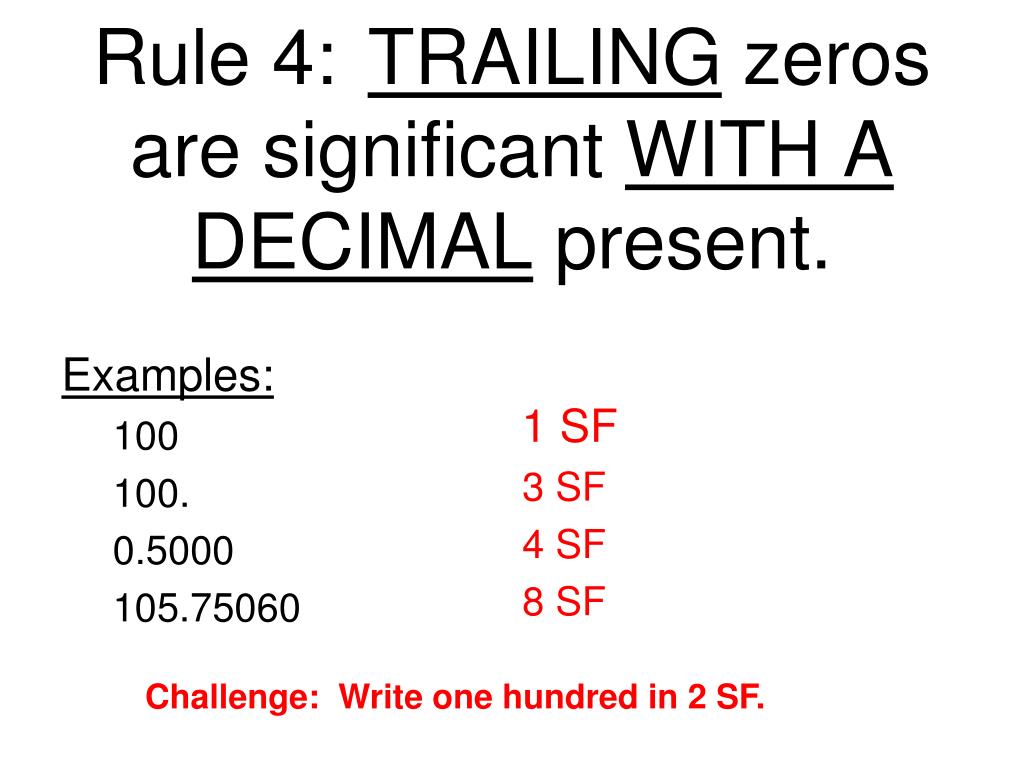

  23. Rule 4:TRAILING zeros are significant WITH A DECIMAL present. Examples: 100 100. 0.5000 105.75060 1 SF 3 SF 4 SF 8 SF Challenge: Write one hundred in 2 SF.

  24. Significant Figures in Calculations http://en.wikipedia.org/wiki/TI-84_Plus_series#mediaviewer/File:TI-84_Plus_Silver_Edition.JPGTI-84 Plus Silver EditionPublic Domain

  25. Multiplying and Dividing http://www.dreamstime.com/royalty-free-stock-photos-icon-multiply-divide-image10996788 • Rule 5: When multiplying or dividing the answer will have the same SF as the least accurate measurement. Example: m = 9.567 g V = 10.1 mL D = m/V = 9.567g/10.1 mL = = Note the use of Given, Formula, Substitute, Solve 3 SF 0.9472277228 g/mL 0.947 g/mL

  26. Rule 6: Counted, known, and accepted values DO NOT affect significant figures. Example: (20 students)(68.18 kg avg. mass) = 1363.6 kg Round answer to 4 sig figs. = 1364 Kg Counted value has no affect Least accurate measurement

  27. Adding and Subtracting • Rule 7: When adding and subtracting, the answer is rounded to most accurate decimal place shared by all the measurements. Example: 209.7 cm 8.004 cm + 1012.39 cm 1230.094 cm Tenths column is the most accurate decimal place shared by all the measurements, so round to tenths. Final answer: 1230.1 cm

  28. http://commons.wikimedia.org/wiki/File%3ALittle_Gray_Mouse_-_The_End_(67).pngBy Dorothy Sherrill (Internet Archive) [Public domain or Public domain], via Wikimedia Commons …for now…
