  1. Gap Assessment of the Top Web Service SpecificationsManaging the Security of Web Services Cristina Fhied SE690 Final Presentation Advisor: Xiaoping Jia, Luigi Guadagno SE 690 - Survey

  2. Outline • 1. Project Goal • 2. Overview of Web Services introduction • 3. Security Enterprise Requirements • 4. Security Specifications • Comparison Overview (how do they map req.) • Drawbacks and Benefits of each • Model • 5. Current Enterprise State Survey • 6. Conclusion and Recommendations • 7. Potential Future Work SE 690 - Survey

  3. Project Goal • Research available web service specifications. • Conduct an enterprise state survey exploring problems and experiences facing network professionals. • Research the Enterprise communication and architecture requirements for a secure Web Services. • Prepare gap assessment tables mapping the communication and network enterprise req. against the researched available security specifications. • Prepare a model showing the interpolation of Ws-Security specification with the interaction of the researched available web service specifications. SE 690 - Survey

  4. What are Web Services? “Software pieces that interact with each other using internet standards to create an application in response to requests that conform to agreed-upon formats.” [Infravio, 2003] SE 690 - Survey

  5. What Are the Characteristics… • A web service is accessible over the internet. • Provides an interface that can be called from one application to another. • Interface can be called from any type of application client or service. • Acts as a liaison between the web and the application logic that implements the service. SE 690 - Survey

  6. How Does a Web Service Communicate? • Uses XML on top of HTTP • XML is a widely accepted format for exchanging data and its semantics • The Web service STACK consists of: • XML (eXtensible Markup Language) • SOAP (Simple Object Access Protocol) • WSDL (Web Services Definition Language) • UDDI (Universal Discovery Description Language) SE 690 - Survey

  7. Web Services Stack Returns the WSDL reference used to bind to web service UDDI Specifies how to connect to a web service WSDL Better describes the data being sent SOAP XML Acts as the envelope for XML messages HTTP (SMTP, FTP, other) Transport layer SE 690 - Survey

  8. What About Current Web Security? • To date much of web security is built around encryption through secure socket layers (SSL) using simple object access protocol (SOAP). • Not enough to protect supply-chain operations and other business to business transactions because SOAP is based on XML. • One way transmission, easy to steal and resend messages. SE 690 - Survey

  9. Enterprise Requirements Network Communication SE 690 - Survey

  10. Communication based Enterprise Security Requirements… • Authentication • Authorization • Data protection • Non-repudiation SE 690 - Survey

  11. Defining Requirements • Authentication – involves accepting credentials from the entity and validating them against an authority. • Authorization – determines whether the service has granted access to the web service to the requestor. • Data protection – ensures that the web services request and response have not tampered with en route. Requires both integrity and privacy. • Nonrepudiation – guarantees that the message sender is the same as the creator of the message. SE 690 - Survey

  12. Network based Enterprise Security Requirements… • Confidentiality • Integrity • Accessibility SE 690 - Survey

  13. Defining RequirementsCont. • Confidentiality – contains information required for protection against unauthorized use or disclosure. • Accessibility – must be able on a timely basis to meet mission requirements or to avoid substantial losses. • Integrity – contained information must be protected from unauthorized, unanticipated or unintentional modifications. SE 690 - Survey

  14. Available Industry Specification Definitions and Features Comparison Mapping Overview Drawbacks and Benefits Model SE 690 - Survey

  15. PKI • Public Key Infrastructure is an open specification. • Published by VeriSign in 2002. • Integrates digital certificates and certificate authorities into enterprise-wide network security architecture. SE 690 - Survey

  16. PKI Cont. • Provides protection by: • Authenticating identity • Verifying Integrity • Ensuring Privacy • Authorizing Access • Authorizing Transactions • Supporting Nonrepudiation SE 690 - Survey

  17. PKI Cont. • Strengths: • Integrates Authentication and digital signatures. • Allows confidential validation on the identity of each party in an internet transaction. • Ensures that the message or documents the digital certificate signs has not been changed in transit online. • Protects information from interception during Internet transmission. • Validates a user identity making it possible to later update a digitally signed transaction (single sign-on). SE 690 - Survey

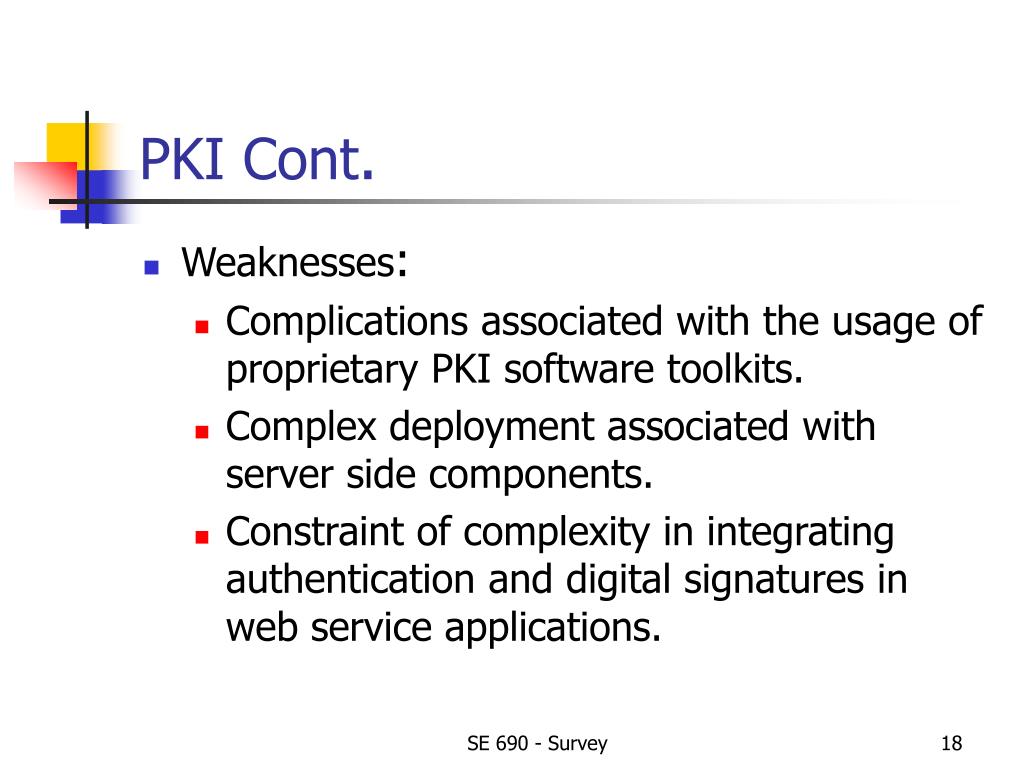

  18. PKI Cont. • Weaknesses: • Complications associated with the usage of proprietary PKI software toolkits. • Complex deployment associated with server side components. • Constraint of complexity in integrating authentication and digital signatures in web service applications. SE 690 - Survey

  19. SAML • Security Assertions Markup Language is an XML-based framework for Web Services. • Security Specification from OASIS, released in February 2002. • First industry standard for enabling secure e-commerce transactions through XML. SE 690 - Survey

  20. SAML Cont. • Gives guidelines on assertions to request and response messages to provide: • Authentication. • Authorization. • Interoperability • Also shows how single sign-on can be achieved when several web-services are interacting; achieved by adding XML assertions. SE 690 - Survey

  21. SAML Cont. • Strengths: • Supports real-time Authentication and Authorization. • Can interoperate with any kind of system. • Makes it possible to have message integrity and non-repudiation of the sender. • Establishes assertions and protocol schemas for the structure of the document that transport security. • Links back to the actual authentication and makes its assertions based on the requests of that event. SE 690 - Survey

  22. SAML Cont. • Weaknesses: • Security of SAML conversation is not a stand-alone application; depends on a trust model, typically PKI. • Does not address privacy policies. • Does not define any technology or approaches for Authentication. • Only makes assertions about credentials; does not authenticate or authorize users. SE 690 - Survey

  23. XKMS • XML Key Management Specification is an open specification. • Published by the W3C as a technical note. • Provides a standard XML-based messaging protocol to outsource the processing of key management to dedicated services. SE 690 - Survey

  24. XKMS Cont. • XML version of PKI handling. • Integrates: • Authentication. • Authorization. • Malicious Attack Support. • Uses SOAP over an HTTP based network. • Makes it easy for applications to interface with key-related services. SE 690 - Survey

  25. XKMS Cont. • Strengths: • Integrates Authentication and Authorization. • Does status checking in a matter of hours. • Rapidly implements trust features incorporating cryptographic support for XML digital signatures. • Moves the complexity associated with PKI integration to server side components. • Specification toolkit is completely platform, vendor, and transport protocol independent. • Developer friendly, syntax used eliminates the necessary plug-ins PKI requires. SE 690 - Survey

  26. XKMS Cont. • Weaknesses: • Has no implemented prototype depicting its available techniques. • Needs to have three standards to be used at the same time, in order for higher security, Not a stand-alone application: • X-KISS (XML Key Information Serv. Spec.). • X-KRSS (XML Key Requirement Serv. Spec.). • Protocol Binding Specification. SE 690 - Survey

  27. WS-Security Cont. • Published in April 2002 by IBM, Microsoft, and VeriSign. • Helps enterprises build secure web services, and applications based on them that are broadly interoperable. • Proposes a set of SOAP extensions, used when building secure web services to implement: • Integrity. • Confidentiality. SE 690 - Survey

  28. WS-Security Cont. • Does not limit itself to a specific model or mechanism, can be used as a guideline. • Has support for several models and security mechanisms. • Supports: • Multiple Security Tokens. • Cryptography Technologies. • Requester Security. • Transport Security. SE 690 - Survey

  29. Ws-Security Cont. • Microsoft, VeriSign and IBM are announcing the publication of 5 new specifications. • When used with Ws-Security they provide a framework that is extensible and flexible in a infrastructure. • WS-Trust: provides Interoperability • WS-Secure Conversation: Cent. Management • WS-Secure Policy:protects against Malicious Attack • WS-Policy: provides Authentication • WS-Authorization: provides Authorization SE 690 - Survey

  30. WS-Security Cont. • Strengths: • Implements integrity and confidentiality. • Building block or better yet a blueprint to be used in conjunction with other web service specifications. • Integrates, unifies and supports many popular security models and technologies. • Defines how signatures can be used. • Provides for a generic mechanism to associate security tokens with messages; does not require any type of security tokens. SE 690 - Survey

  31. WS-Security Cont. • Weaknesses: • Does not discuss how proof-of-possession must be implemented. • Does not discuss how subject confirmations must be implemented. • Their needs to be effort applied to ensure that security protocols that are implemented are not exposed to a wide range of attacks. • Not approved as a standard as of yet, there are not commercial web-services that use this specification as of yet. SE 690 - Survey

  32. Requirement WS-Security SAML XKMS PKI Interoperability Support X X Scalability Support   X Centralized Management Support X Malicious Attack Support   X Gap Assessment Table • Summary Comparison mapping of Communication Enterprise Security Requirements. X SE 690 - Survey

  33. Requirement WS-Security SAML XKMS PKI Authentication Support X X X X Authorization Support X X Data Protection/ Confidentiality Support X X Data Integrity Support X X Gap Assessment Table • Summary Comparison mapping of Network Enterprise Security Requirements. SE 690 - Survey

  34. Model SAML PKI Authentication WS-Policy Assertion WS-S ecur i ty XKMS SAML XKMS Authorization WS-Authorization PKI WS-Security Data Protection/ Confidentiality PKI WS-Security Data Integrity PKI WS-Security Scalability WS-Security WS-Trust Interoperability SAML WS-Secure Conversation Centralized Management SAML PKI XKMS WS-Security Policy XKMS Malicious Attack SE 690 - Survey

  35. Survey Results Current Enterprise State SE 690 - Survey

  36. About the Survey • Explores areas of interest and experiences for those responsible in ensuring network/web service securities • Survey was voluntary and consisted of eight questions • Final survey was sent to 25 individuals • 20 individuals submitted a completed survey SE 690 - Survey

  37. Key Research Questions • Rank web-based communication security requirements based on security framework importance • Rank networking issue requirements based on security framework importance • Rank security methods in terms of effectiveness in acquiring information security at an organization SE 690 - Survey

  38. Security Breach Yes No Viruses or Worms 95% 5% Attacks related to Protocol Weaknesses 43% 57% Attacks related to insecure passwords 19% 81% Attacks on bugs in Web Servers 52% 48% Survey Findings • Experience any of these Security Breaches: SE 690 - Survey

  39. Survey Findings • Indicate level of concern in the following issues SE 690 - Survey

  40. Survey Findings • Method effectiveness in terms of acquiring information security in an organization: SE 690 - Survey

  41. Survey Findings • Priority of the following items Importance to an organization SE 690 - Survey

  42. Survey Findings • Prioritize the Networking Issue Requirements based on security framework importance. SE 690 - Survey

  43. Survey Findings • Prioritize the web-based Communication Security Requirements based on security framework importance: SE 690 - Survey

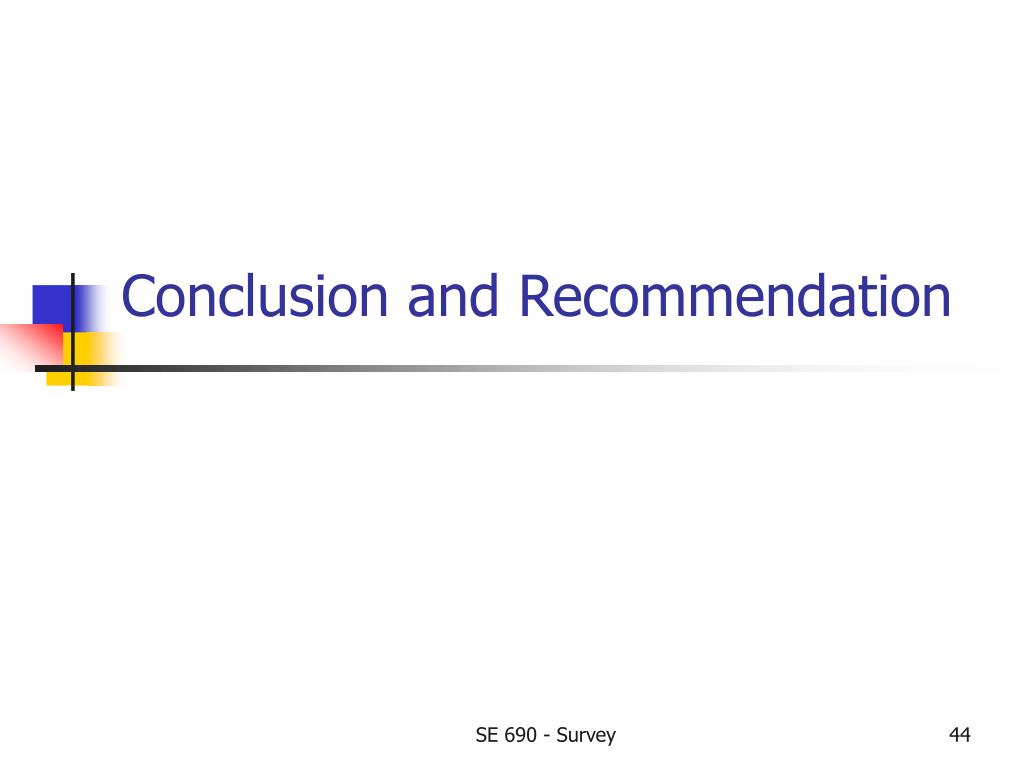

  44. Conclusion and Recommendation SE 690 - Survey

  45. Managing Web Security • Difficult to determine a single best strategy. • When dealing with applications with strong authentication and authorization, Ws-Security and SAML specifications should be considered. • When dealing with concerns of malicious attack and data protection, XKMS and SAML should be considered. • XKMS when joined with WS-Security has a stronger use for digitally signing and SAML assertions. SE 690 - Survey

  46. Managing Web Security Cont. • SAML when combined with Ws-Security should use techniques such as XML signatures and encryptions. • SAML assertions should be carried as security tokens defined in Ws-Security. • SAML traffic should be secured by XKMS-based PKI. SE 690 - Survey

  47. Managing Web Security Cont. • Most effective method in acquiring information security in an organization is by conducting vulnerability assessments and explaining the differences between security and legal requirements. • To reduce obstacles in achieving web service security is to greatly reduce the technical challenges and complexity of using security specification toolkit products. SE 690 - Survey

  48. Potential Future Work • Research and analyze whether an implementation of Ws-Security, PKI, SAML and XKMS on Web Services is enough to provide a system with the needed securities. SE 690 - Survey

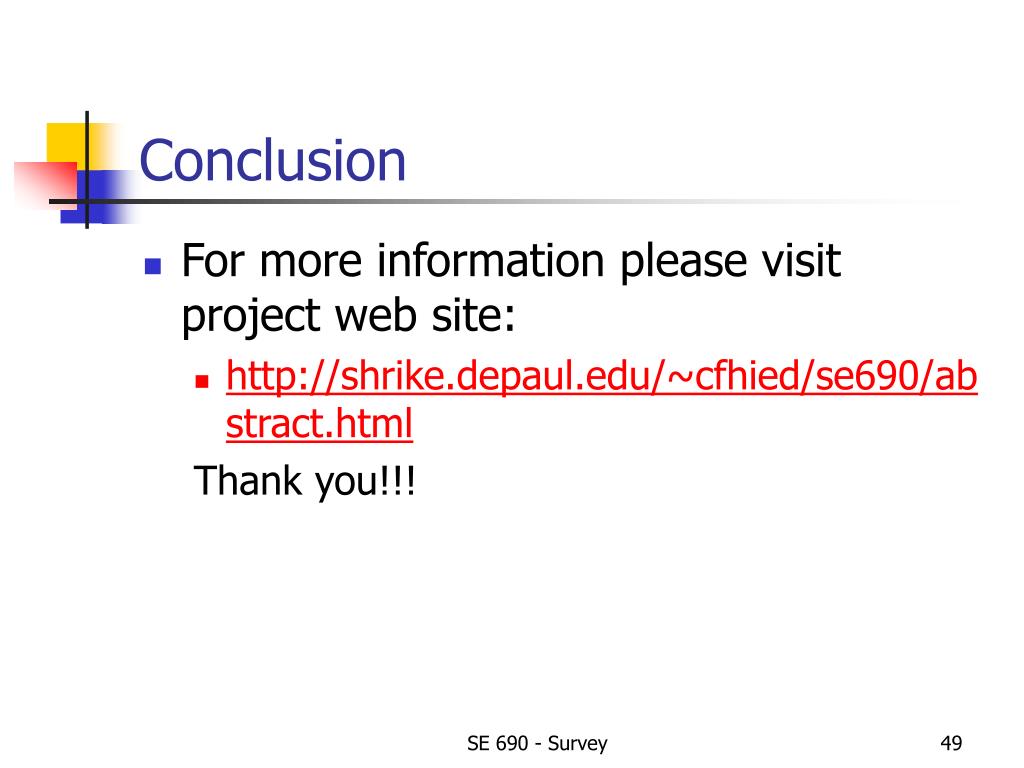

  49. Conclusion • For more information please visit project web site: • http://shrike.depaul.edu/~cfhied/se690/abstract.html Thank you!!! SE 690 - Survey
