  1. CS 415 Operating Systems Principles File System Implementation Dr. Edward C. Cheng

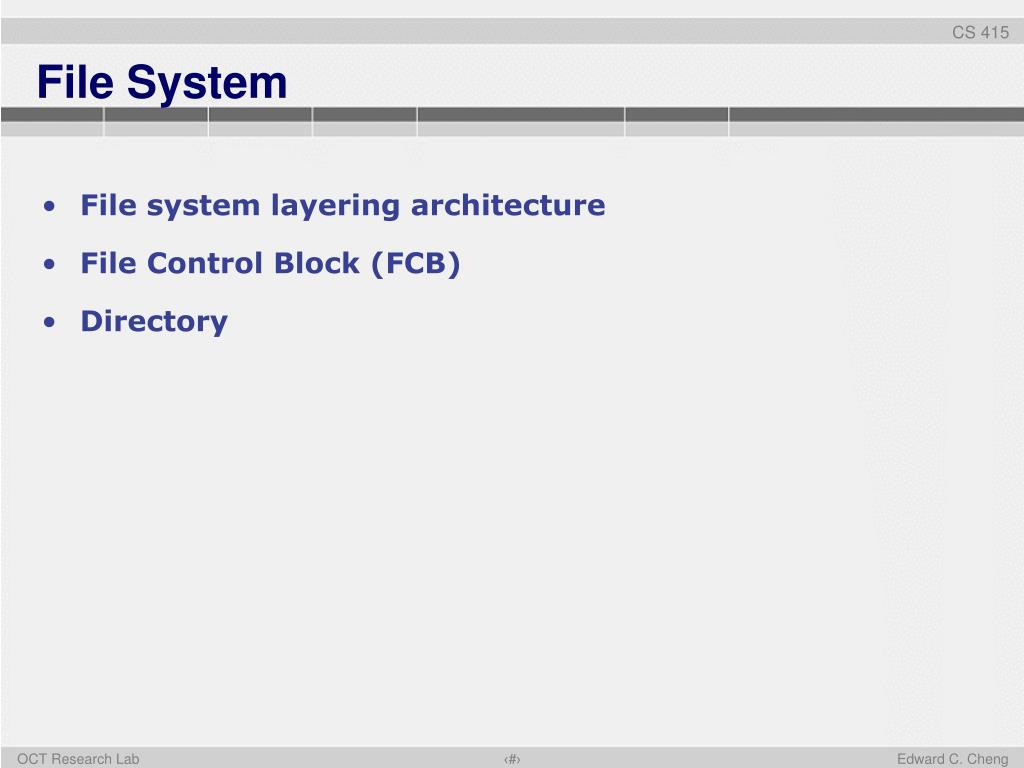

  2. File System • File system layering architecture • File Control Block (FCB) • Directory

  3. Files Logical File System File management modules Basic File System I/O functions Devices File System Layering Architecture

  4. File System Basic Structure • FS: volume directory, file and block • Disk: platter, track and sector (512 bytes) • Formatted vs. unformatted • Boot sector (boot block) • Contains necessary info for the OS to boot up • Volume control block • Contains info of the volume • File control block (FCB) • Contains attribute info of each file • Open-file table • Keep an entry for each opened file

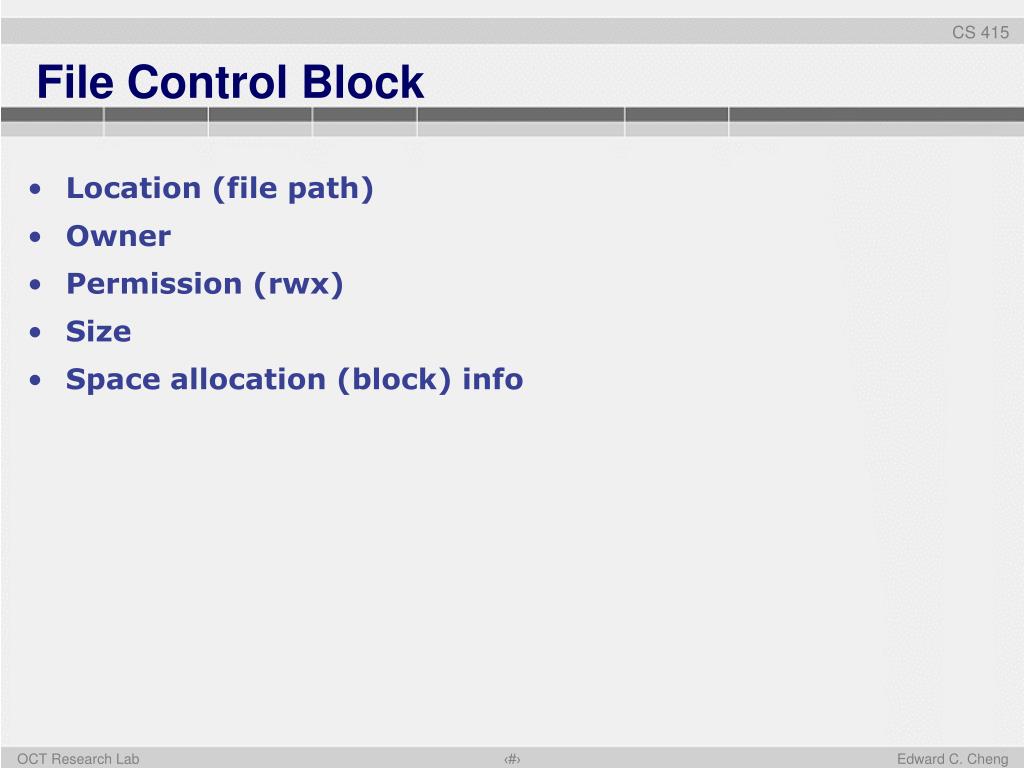

  5. File Control Block • Location (file path) • Owner • Permission (rwx) • Size • Space allocation (block) info

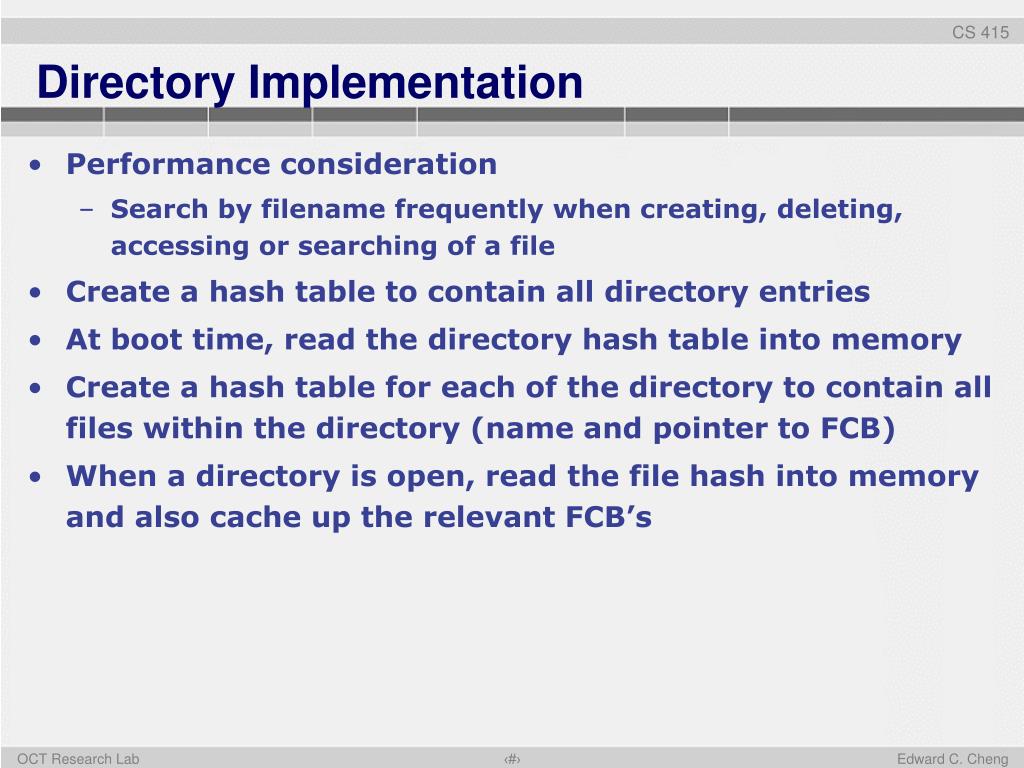

  6. Directory Implementation • Performance consideration • Search by filename frequently when creating, deleting, accessing or searching of a file • Create a hash table to contain all directory entries • At boot time, read the directory hash table into memory • Create a hash table for each of the directory to contain all files within the directory (name and pointer to FCB) • When a directory is open, read the file hash into memory and also cache up the relevant FCB’s

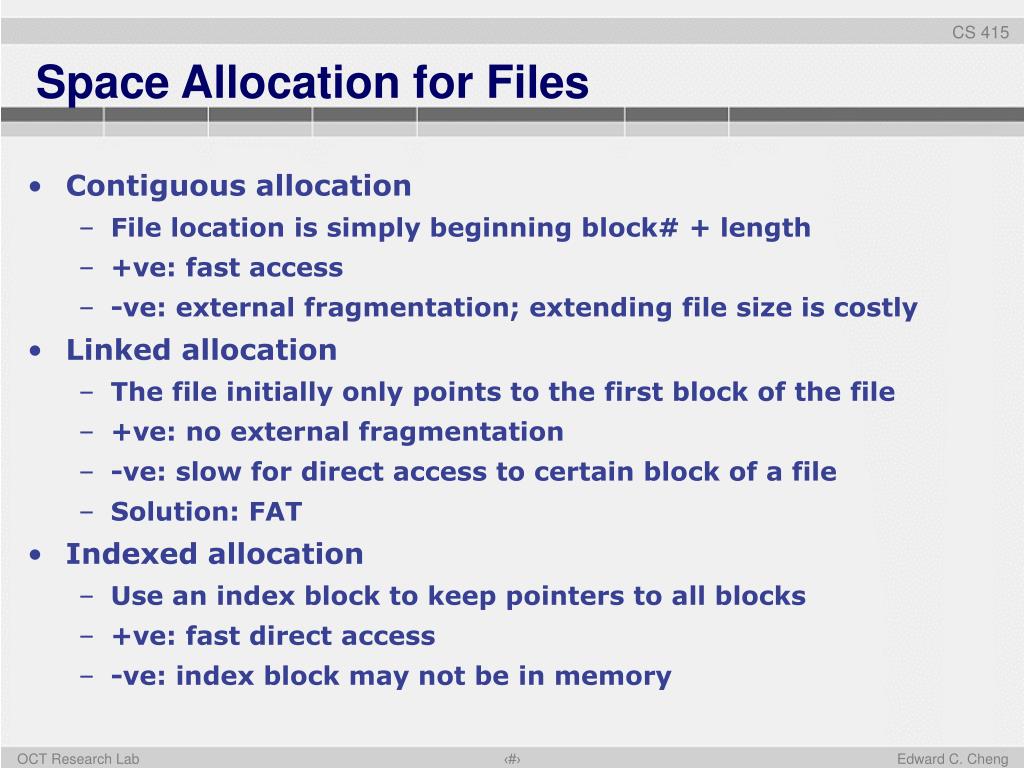

  7. Space Allocation for Files • Contiguous allocation • File location is simply beginning block# + length • +ve: fast access • -ve: external fragmentation; extending file size is costly • Linked allocation • The file initially only points to the first block of the file • +ve: no external fragmentation • -ve: slow for direct access to certain block of a file • Solution: FAT • Indexed allocation • Use an index block to keep pointers to all blocks • +ve: fast direct access • -ve: index block may not be in memory

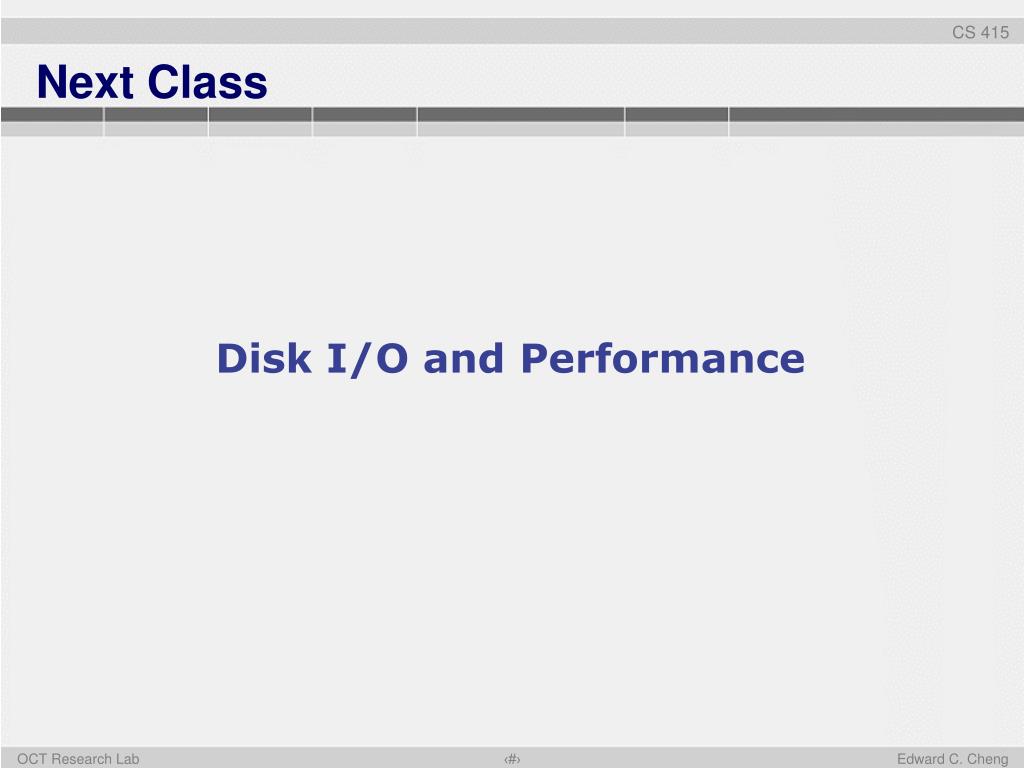

  8. Next Class Disk I/O and Performance
