Presentation Transcript


Proteins l.jpg

PROTEINS

BIT 230

Biochemistry

Purification

Characterization


Review familiar material l.jpg

Review (familiar material)

  • Review of Central Dogma

  • Review of Translation

  • Classes of proteins

  • Amino Acid Characteristics

  • Protein Structures

  • Sequencing


Fig 13 3 the four levels of organization in proteins l.jpg

Fig 13.3 The four levels of organization in proteins.

© 2003 John Wiley and Sons Publishers


Fig 13 1 structures of the 20 amino acids commonly found in proteins l.jpg

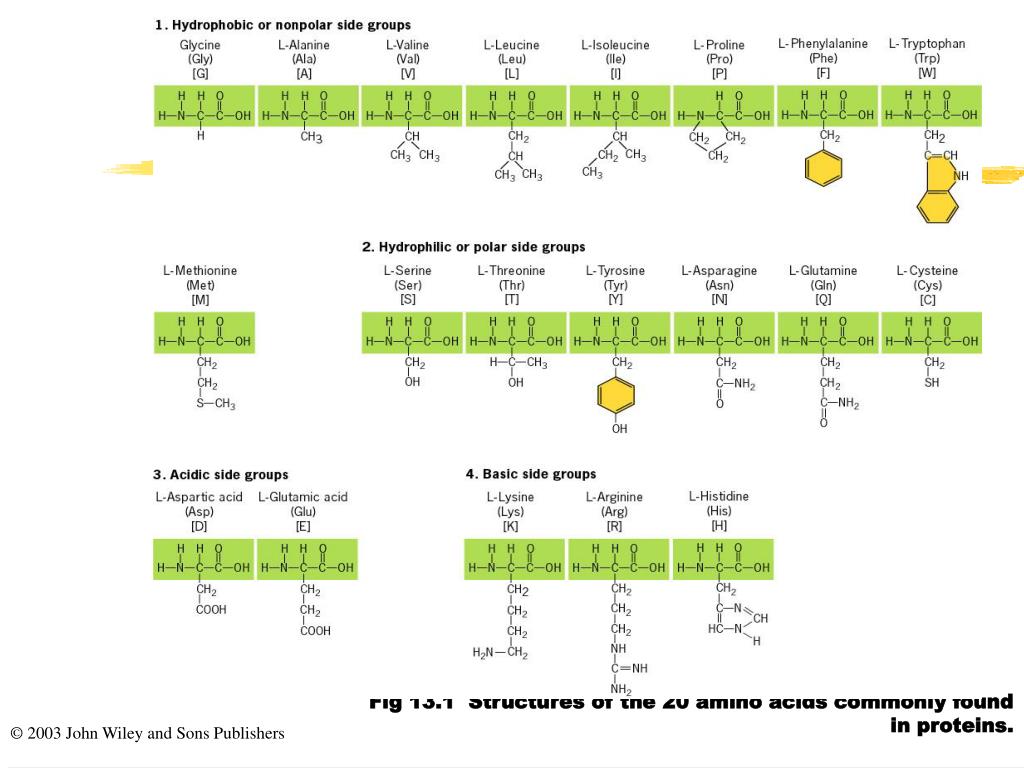

Fig 13.1 Structures of the 20 amino acids commonly found in proteins.

© 2003 John Wiley and Sons Publishers


Slide5 l.jpg

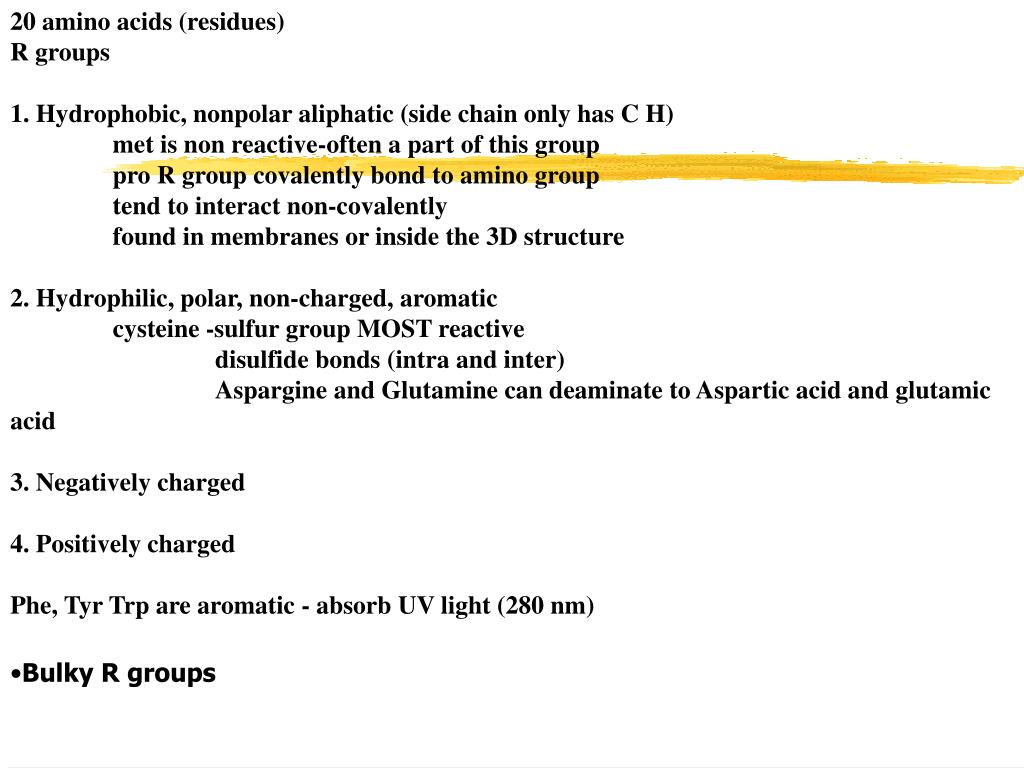

20 amino acids (residues)

R groups

1. Hydrophobic, nonpolar aliphatic (side chain only has C H)

met is non reactive-often a part of this group

pro R group covalently bond to amino group

tend to interact non-covalently

found in membranes or inside the 3D structure

2. Hydrophilic, polar, non-charged, aromatic

cysteine -sulfur group MOST reactive

disulfide bonds (intra and inter)

Aspargine and Glutamine can deaminate to Aspartic acid and glutamic acid

3. Negatively charged

4. Positively charged

Phe, Tyr Trp are aromatic - absorb UV light (280 nm)

  • Bulky R groups


P 304 all the amino acids except proline contain a free amino group and a free carboxyl group l.jpg

p. 304 – All the amino acids except proline contain a free amino group and a free carboxyl group.

© 2003 John Wiley and Sons Publishers


Fig 13 2 the formation of a peptide bond between two amino acids by the removal of water l.jpg

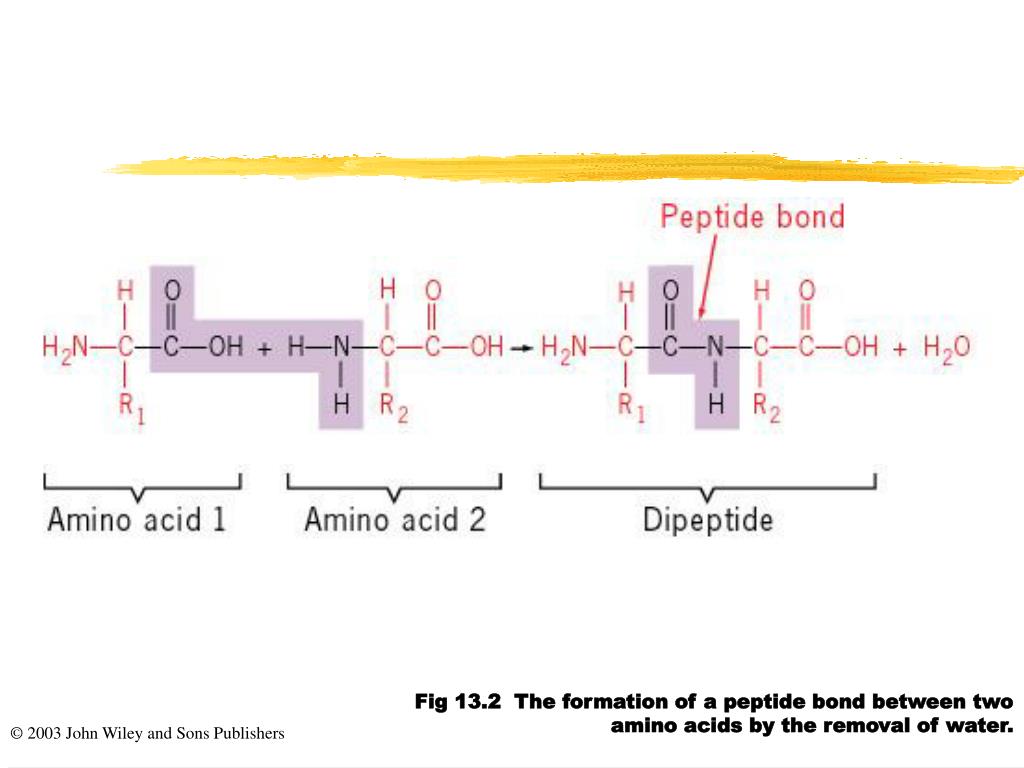

Fig 13.2 The formation of a peptide bond between two amino acids by the removal of water.

© 2003 John Wiley and Sons Publishers


Fig 13 4 secondary structure in proteins l.jpg

Fig 13.4 Secondary structure in proteins.

© 2003 John Wiley and Sons Publishers


Fig 13 5 the five types of molecular interactions that determine the tertiary structure l.jpg

Fig 13.5 The five types of molecular interactions that determine the tertiary structure.

© 2003 John Wiley and Sons Publishers


Features l.jpg

Features

  • Denaturation

  • Structure and Function

  • Classes

    • Fibrous

      • simple, elongated, structural, protective

    • Globular complex, spherical

      Transmembrane proteins

      Signal Sequence (N terminal region)


Simple vs conjugated l.jpg

Simple vs Conjugated

  • Conjugated

    • prosthetic groups (non-peptide)

      • Glycoproteins

      • phosphoproteins

      • flavoproteins

      • metalloproteins


Sequencing amino acids l.jpg

Sequencing Amino Acids

Edman Degradation

http://www.cartage.org.lb/en/themes/Reference/dictionary/Biologie/E/11.html

Mass Spectrometry

http://chipo.chem.uic.edu/web1/ocol/spec/MS1.htm

Swiss Prot Database


Secondary structures l.jpg

Secondary Structures

  • Alpha Helix

    • Ala, Leu, Met, Glutamate

    • why would proline and trp not be found here?

  • Beta Sheets

    • zigzag

  • Loops

    • outside of protein (hydrophilic)

    • active sites of enzymes

    • antigen binding region of Ab

    • susceptible to proteolytic cleavage

    • B turn Glycine at bend (small side) and proline (induces kink)


Tertiary structures l.jpg

Tertiary Structures

  • Domains

    • structural subunits within a single polypeptide

      • intracellular region

      • TMR

      • extracellular domain


Post translational modifications l.jpg

Post Translational Modifications

  • FUNCTION

  • Proteolytic Processing

    • Pro form (zymogen, inactive)

    • cleave some amino acids-

    • ACTIVE clotting factors, digestive enzymes

  • Glycosylation

    • p 30

    • O linked serine threonine

    • N linked asparagine


Ptm continued l.jpg

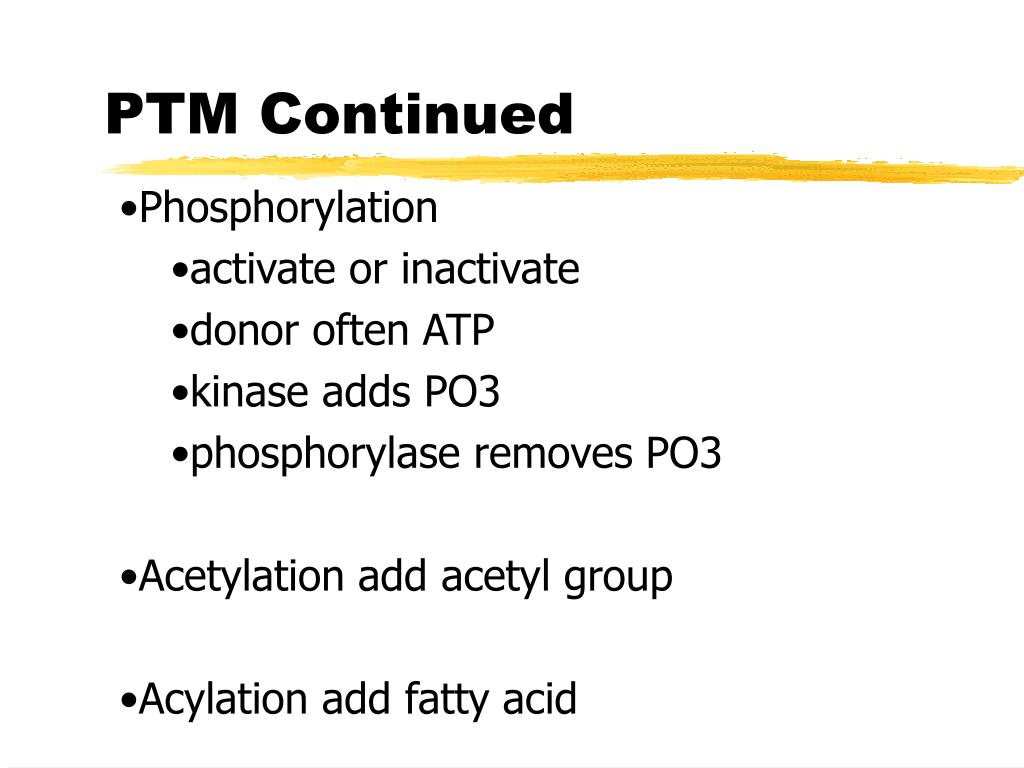

PTM Continued

  • Phosphorylation

    • activate or inactivate

    • donor often ATP

    • kinase adds PO3

    • phosphorylase removes PO3

  • Acetylation add acetyl group

  • Acylation add fatty acid


Inhibition of protein synthesis l.jpg

Inhibition of protein synthesis

  • Antibiotics

    • Cycloheximide -inhibits tranlocation

    • Erythromycin- binds ribosome inhibits tranlocation

    • Streptomycin - inhibits initiation of translation

    • Tetracycline - blocks aminoacyl tRNA from binding to ribosome

  • Antimicrobials

    • Triclosan disrupts membrane of bacteria

      • non-specific? No tolerance developed?

      • Inhibits a reductase (synthesis of fats)
