Intel Celeron Processor

1. Intel Celeron Processor Jeremy Carbaugh Jon Frank April 26, 2002 CS350 Computer Organization Dr. Charles Abzug

2. Intel Celeron Processor • Overview of the Celeron • Introduced in 1999 • Equipped with MMX. Newer versions with SSE. • Originally based on Pentium II • Current versions use core similar to Pentium III

3. Intel Celeron Processor • Original Celeron • Slower than other chips of the time • No L2 cache • Lacked casing • Easily overclocked • Inexpensive

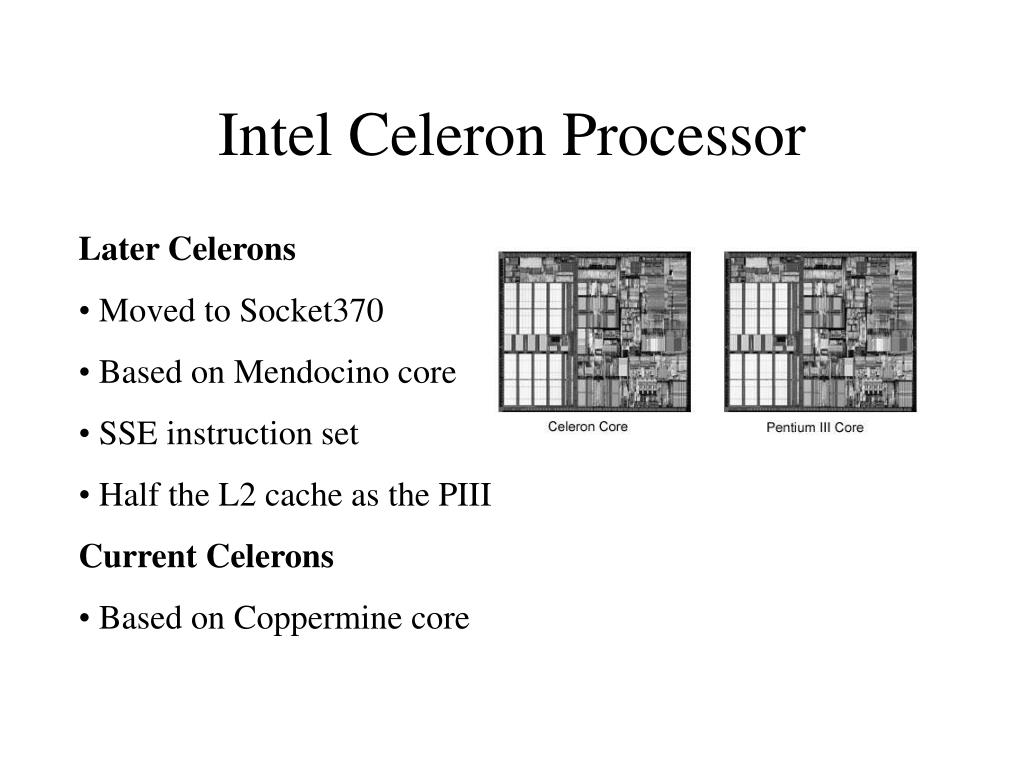

4. Intel Celeron Processor • Later Celerons • Moved to Socket370 • Based on Mendocino core • SSE instruction set • Half the L2 cache as the PIII • Current Celerons • Based on Coppermine core

5. Intel Celeron Processor • Old 66MHz FSB • 500, 533, 566, 600, 633, 667, 700, 733, 766 MHz • 100 MHz FSB • 800, 850, 900, 950 MHz • 1.0, 1.10, 1.20, 1.30 GHz • Move to 133MHz FSB

6. Intel Celeron Processor • Packaging • Single Edge Contact Cartridge 2 (S.E.C.C.2) • Flip-Chip Pin Grid Array (FC-PGA) • Flip-Chip Pin Grid Array 2 (FC-PGA2)

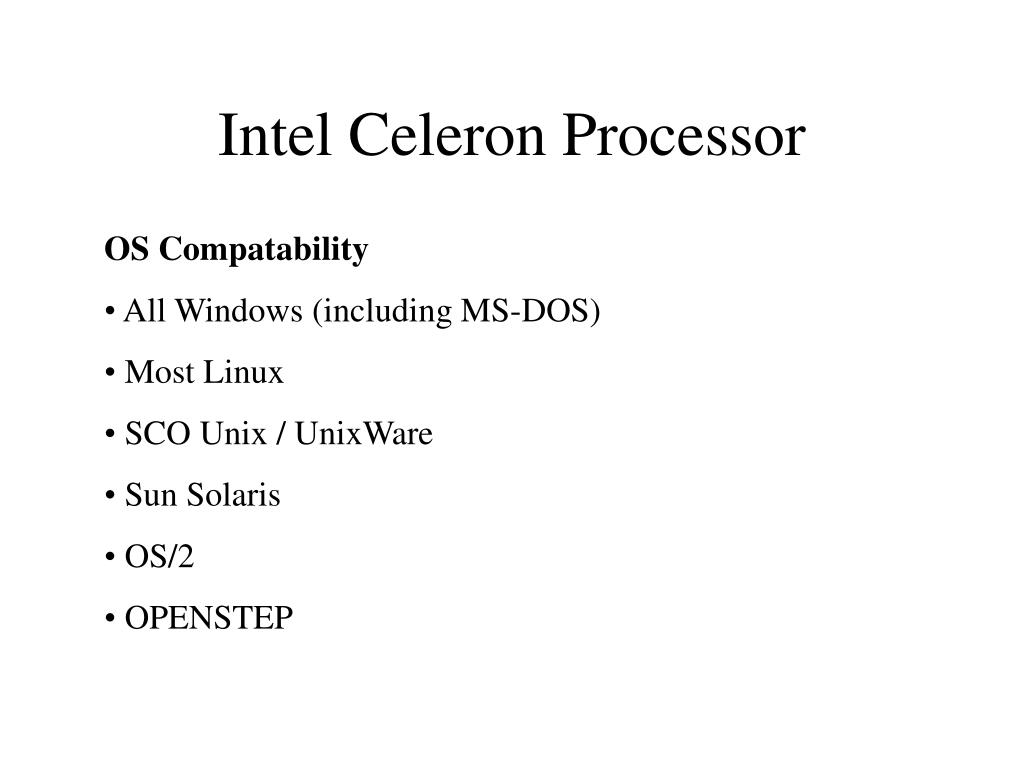

7. Intel Celeron Processor • OS Compatability • All Windows (including MS-DOS) • Most Linux • SCO Unix / UnixWare • Sun Solaris • OS/2 • OPENSTEP

8. Intel Celeron Processor • Features • Based on P6 Micro-architecture • 10-stage pipeline • x86 decoder (CISC to RISC) • 36-bit address space • 64GB addressable memory • MMX Instruction Set (SIMD) • Streaming SIMD Extensions

9. AMD Duron Intel Celeron L1 Cache 128KB 32KB L2 Cache 64KB 128KB Bus Speed 200MHz (100MHz x 2) 66MHz Interface Socket A Socket 370 Intel Celeron Processor Processor comparison • Duron : 64-bit cache to core pathway • Celeron : 256-bit cache to core pathway

10. AMD Duron Intel Celeron SYSmark 2000 127 124 SiSoft Sandra 2000 1947 MIPS / 973 MFLOPS 1883 MIPS / 935 MFLOPS 3DMark 2000 3726 3629 CPU Mark 328 283 MP3 encoding 122 seconds 123 seconds Inspire3D 366 seconds 339 seconds Intel Celeron Processor Benchmarks

11. Intel Celeron Processor • Overclocking the Celeron • No L2 cache • Pentium II cores used • 66MHz bus / 100MHz cores • Current Celerons have locked clock multipliers. • FSB must be changed to overclock the chip.

12. Intel Celeron Processor • Risks of overclocking • Increases heat production • Breaks down connections • Other components may not work with faster bus • DESTROYING THE CHIP!!!!

13. Intel Celeron Processor • Mobile Celeron • Voltage difference • Reduced power consumption • Variable power consumption (Intel SpeedStep) • 0.13-micron process • Smaller chip size

14. Intel Celeron Processor • The Future of the Celeron • Chip will still be produced • However…. • Intel is focusing its marketing efforts on the Pentium 4 for desktops and the mobile Pentium 4 for laptops.

15. Intel Celeron Processor Mah Ung, Gordon (2000). “Celeron VS Duron: Let’s Get It On!” Maximum PC. October 2000, 52 – 55. Mayorov, Dmitry. “Intel Celeron 800 MHz and i815EP-based D815EPEA.” URL: http://www.digit-life.com/articles/celeron800/ McCoy, Jason. “Abit BP6 Dual Socket 370 Motherboard.” URL: http://www.2cpu.com/Hardware/bp61.htm Monroe, Frank (1998). “Celeron Overclocking FAQ.” URL: http://www.arstechnica.com/paedia/celeron_oc_faq.html#Why%20is%20the%20Celeron%20so “Intel Celeron Processor Tech Details.” URL: http://www.intel.com/home/desktop/celeron/tech_info.htm “Intel Mobile Celeron Processor Tech Details.” URL: http://www.intel.com/home/mobile/celeron/tech_info.htm
